AZDFM3L998Wireless LAN Module

User Manual 1.0 This is a user manual for host product manufacturers to use when integrating the module in a host product. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). [2.1 General] This user manual describes the integration procedure per Sec. 2.2 to 2.12 of KDB 996369 D03. This is Limited modular approval as this module is limited to installation by the grantee into our host systems. [2.2 List of applicable FCC rules] This device complies with below part 15 of the FCC Rules. Part 15 Subpart C Part 15 Subpart E [2.3 Summarize the specific operational use conditions] [for ISED] [2.4 Limited module procedures] This is Limited modular approval as this module is limited to installation by th e grant ee into our host systems. This is a Bluetooth enabled module, but because Bluetooth is disabled on its own host, it has not been evaluated for Bluetooth and therefore does not meet standalone requirements and becomes an LMA. [2.5 Trace antenna designs] ‐ Not applicable This module is designed for mounting inside of the end product by us professionally. Bluetooth classic/BLE must be disabled on the host. Disable Bluetooth/BLE: Do not use the Bluetooth/BLE driver without loading it. for indoor use only (5150-5350 MHz) Pour usage intérieur seulement (5150-5350 MHz) [2.6 RF exposure considerations] The following statements must be described on the user manual of the host device of this module; This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. [for ISED] [2.7 Antennas] The device is designed to use the module's antennas. Do not modify the antenna or any other part of the module. Any modifications will invalidate the modular certifications and require new approvals for the host system. Model No. Antenna Type Antenna Gain Dualband module antenna(WLAN AntA) Monopole 1.15dBi Dualband module antenna (WLAN AntB) Monopole 1.59dBi Band Ant A Band Ant B Freq [MHz] Peak Gain [dBi] Freq [MHz] Peak Gain [dBi] 2.4GHz 2490 -0.752.4GHz 2436 -0.26 W52 5210 0.67 W52 5240 0.91 W53 5320 0.85 W53 5320 1.50 W56 5560 0.97 W56 5640 1.59 W58 5850 1.15 W58 5770 1.50 This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’ISDE. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain. [2.8 Label and compliance information] [for FCC] Following information must be indicated on the host device of this module. *If it is difficult to describe this statement on the host device due to the size, please describe in the user's manual and also either describe on the device packaging or on a removable label attached to the device. The following statements must be described on the user manual of the host device of this module; FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. [for ISED] Following information must be indicated on the host device of this module. Contains IC: 498D-FM3L998 [2.9 Information on test modes and additional testing requirements] Test modes should take into consideration different operational conditions for a stand‐alone modular transmitter in a host, as well as for multiple simultaneously transmitting modules or other transmitters in a host product. [2.10 Additional testing, Part 15 Subpart B disclaimer] The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant (FCC Part 15.247/15.407), and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. [2.11 Note EMI Considerations] This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Contains Transmitter Module FCC ID: AZDFM3L998 Contains FCC ID: AZDFM3L998 We recommend to use "best practice" RF design engineering testing and evaluation in case non‐linear interactions generate additional non‐compliant limits due to module placement to host components or properties. The host manufacturer is responsible for ensuring compliance with the applicable FCC rules for the transmitters operating individually and simultaneously. This includes compliance for the summation of all emissions from all outputs occupying the same or overlapping frequency ranges, as defined by the applicable rules. [2.12 How to make changes] This is Limited modular approval as this module is limited to installation by the grantee into our host systems.

CFR47 52.911 (dX7) FCC US Agent Letter of Attestation To: UL Verification Services lnc. 47173 Benicia Street, Fremont, CA 94538 This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of Canon lnc. ("the applicant") for the above referenced FCC lD. We are aware of the requirements and responsibilities of the applicant's agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely yours, Signature

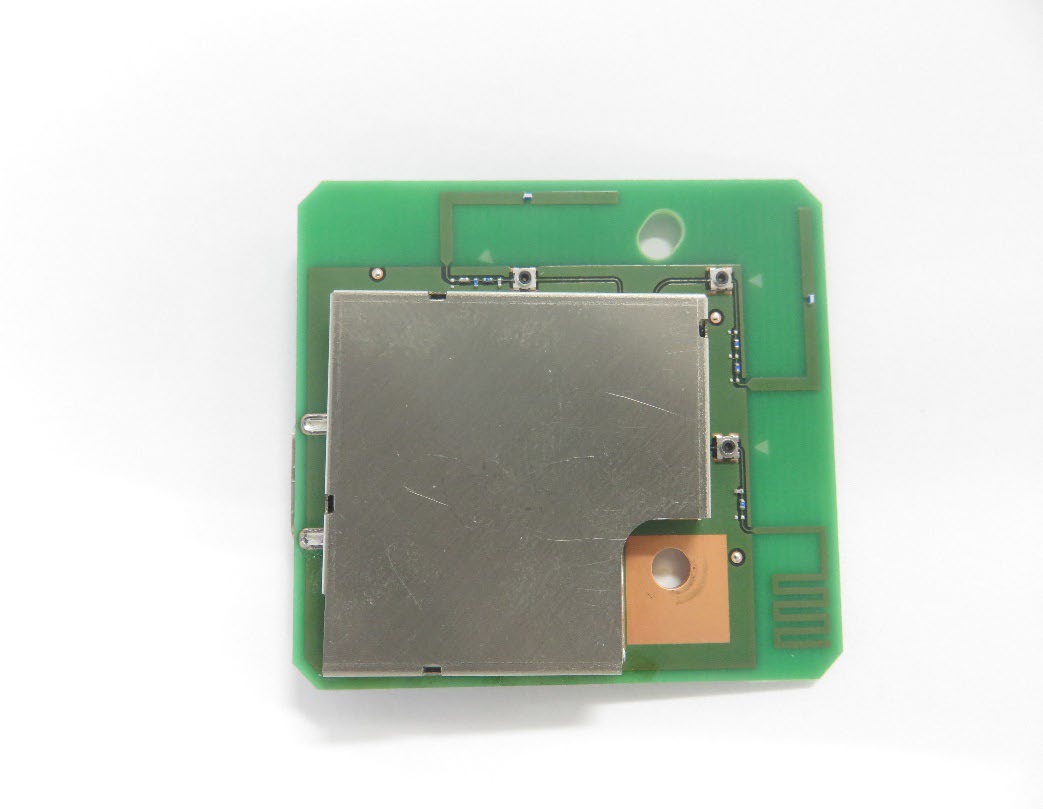

ExternalView （6 side） Side View （Under） Side View （Right） Side View （Left） Side View （Top） Topside View with Shield Cover Back side View

Label（Upper） Label（Under） Apply with the external standard of the shield cover (Left edge reference in horizontal direction, top edge reference in vertical direction) PCB Shield Cover UnderLabel UpperLabel Side View LINTECYUPO80（UV）PAT1 8K UL/CUL No.7015BT80 ＊For the durability and peeling of the label required for this product, it is a certified product with performance proven by UL/CUL standards. Label Layout UpperLabel adhesive part

Label diagram LINTECYUPO80（UV）PAT1 8K UL/CUL No.7015BT80 29.0 18.0 29.0 16.6 22.0 25.0 Helvetica NeueLT Pro 67 Medium Condensed 4.0042pt ＊This module is a dedicated module of our own product, and the FCC ID is written in the manual.

Top sideVIewwith Shield Cover （Open） Topside View without Shield Cover

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 RF Exposure / MPE Calculation No. 14615663S Customer Canon Inc. Description of EUT Wireless LAN Module Model Number of EUT FM3-L998 FCC ID AZDFM3L998 Canon Inc. declares that Model: FM3-L998 complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “FM3-L998“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. [WLAN 2.4 GHz band part] This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1 mW/cm^ 2 uncontrolled exposure limit. The Friis formula used was: Where P =23.15 mW (Maximum average output power) Time average was used for the above value in consideration of 6-minutes time-averaging Burst power average was used for the above value in consideration of worst condition. G =1.782 N umerical Antenna gain; equal to 2.51 dBi r =20 cm (Separation distance) 0.00821 mW/cm 2 Power Density Result S = 2 4r GP S     UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 [WLAN 5 GHz band part] This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1mW/cm^2 uncontrolled exposure limit. The Friis formula used was: Where P =25.72 mW (Maximum average output power) Time average was used for the above value in consideration of 6-minutes time-ave r Burst power average was used for the above value in consideration of worst condit G =2.692 Numerical Antenna gain; equal to 4.3 dBi r =20 cm (Separation distance) 0.01377 mW/cm 2 Power Density Result S = 2 4r GP S    

Freq [MHz]Peak Gain [dBi]Freq [MHz]Peak Gain [dBi] 2.4GHz2490-0.752.4GHz2436-0.26 W5252100.67W5252400.91 W5353200.85W5353201.50 W5655600.97W5656401.59 W5858501.15W5857701.50 Band Ant A Band Ant B

Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:-0.75dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):2.49GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:0.67dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):5.21GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:0.85dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):5.32GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:0.97dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):5.56GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:1.15dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):5.85GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 ■Test EquipmentRev.1.30 ・Network Analyzer Maker : Keysight Technologies Model : E8361C Date of Cal : 22 Sep 2022 ■Calibration Equipment ・Prilnary frequency standard Maker : Keysight Technologies Model : 50７１A Cal. Due : 20 May 2023 ・Universal Frequency Counter Maker : Keysight Technologies Model : 53132A Cal. Due : 17 Dec 2022 ・Standard mechanical calibration kit Maker : Keysight Technologies Model : 85058B Cal. Due : 17 Jun 2023 ・Power Meter Maker : Keysight Technologies Model : N1914A Cal. Due : 3 Mar 2023 ・ECal module Maker : Keysight Technologies Model : N4694A Cal. Due : 30 Jun 2023 ・Power Sensor 100KHz to 6 0GHz Maker : Keysight Technologies Model : N8482A Cal. Due : 20 Dec 2022 ・Power Sensor 50MHz to 50GHz Maker : Keysight Technologies Model : N8487A Cal. Due : 13 Jul 2023 ・Power Sensor 10MHz to 67GHz Maker : Keysight Technologies Model : N8488A Cal. Due : 7 Jan 2023

Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:-0.26dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):2.43GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:0.91dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):5.24GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:1.50dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):5.32GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:1.59dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):5.64GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 Manufacturer:Canon Inc.Rev.1.30 Model name:Dualband module antenna Part number:Canon-Ant-20221019-1 Antenna type:Monopole Peak gain:1.50dBi Antenna placement:Z θ Y Xφ Z Y X Return loss (unit:dB): Radiation pattern (unit:dBi):5.77GHz(Peak)eθ eφ XYYZZX X Y Antenna Spec-sheet 2023/10/27 ■Test EquipmentRev.1.30 ・Network Analyzer Maker : Keysight Technologies Model : E8361C Date of Cal : 22 Sep 2022 ■Calibration Equipment ・Prilnary frequency standard Maker : Keysight Technologies Model : 50７１A Cal. Due : 20 May 2023 ・Universal Frequency Counter Maker : Keysight Technologies Model : 53132A Cal. Due : 17 Dec 2022 ・Standard mechanical calibration kit Maker : Keysight Technologies Model : 85058B Cal. Due : 17 Jun 2023 ・Power Meter Maker : Keysight Technologies Model : N1914A Cal. Due : 3 Mar 2023 ・ECal module Maker : Keysight Technologies Model : N4694A Cal. Due : 30 Jun 2023 ・Power Sensor 100KHz to 6 0GHz Maker : Keysight Technologies Model : N8482A Cal. Due : 20 Dec 2022 ・Power Sensor 50MHz to 50GHz Maker : Keysight Technologies Model : N8487A Cal. Due : 13 Jul 2023 ・Power Sensor 10MHz to 67GHz Maker : Keysight Technologies Model : N8488A Cal. Due : 7 Jan 2023

Test Report No. 14615663S-C Page 1 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 RADIO TEST REPORT Test Report No. 14615663S-C Customer CANON INC. Description of EUT Wireless LAN Module Model Number of EUT FM3-L998 FCC ID AZDFM3L998 Test Regulation FCC Part 15 Subpart E Test Result Complied Issue Date September 6, 2023 Remarks WLAN (5 GHz band) part DFS test only (* Client without radar detection) Representative Test Engineer Approved By Kenichi Adachi Engineer Toyokazu Imamura Leader CERTIFICATE 1266.03 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 22.0 Test Report No. 14615663S-C Page 2 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 ANNOUNCEMENT REVISION HISTORY Original Test Report No. 14615663S-C Revision Test Report No. Date Page Revised Contents - (Original) 14615663S-C September 6, 2023 -  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement b y the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Shonan EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the customer for this report is identified in Section 1.  For test report (s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 14615663S-C Page 3 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics Engineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Develo pment Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technology BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectri ques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadrature -Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. 14615663S-C Page 4 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 CONTENTS PAGE SECTION 1: Customer Information ......................................................................................... 5 SECTION 2: Equipment Under Test (EUT) .............................................................................. 5 SECTION 3: Scope of Report ................................................................................................... 7 SECTION 4: Test specification, Procedures & Results ......................................................... 7 SECTION 5: Operation of EUT during testing ...................................................................... 12 SECTION 6: Channel Move Time, Channel Closing Transmission Time ........................... 18 SECTION 7: Non-Occupancy Period .......................…
