AZD401Wireless Module

RF401 user manual <English> FCC/IC NOTICE HD Camcorder, VIXIA mini systems This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and use in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. Model ID0032 (including WLAN Module Model RF401) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The available scientific evidence does not show that any health problems are associated with using low-power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low-power wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. This model has been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. Canon U.S.A., Inc. One Canon Park, Melville, NY 11747, USA Tel No. 1-800-OK-CANON (1-800-652-2666) CAN ICES-3(B)/NMB-3(B) <French> Modele ID0032 (y compris le modele RF401 du module WLAN) Le present appareil est conforme aux la partie 15 des regles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement. Les connaissances scientifiques dont nous disposons n’ont mis en evidence aucun probleme de sante associe a l’usage des appareils sans fil a faible puissance. Nous ne sommes cependant pas en mesure de prouver que ces appareils sans fil a faible puissance sont entierement sans danger. Les appareils sans fil a faible puissance emettent une energie radioelectrique (RF) tres faible dans le spectre des micro-ondes lorsqu’ils sont utilises. Alors qu’une dose elevee de RF peut avoir des effets sur la sante (en chauffant les tissus), l’exposition a de faibles RF qui ne produisent pas de chaleur n’a pas de mauvais effets connus sur la sante. De nombreuses etudes ont ete menees sur les expositions aux RF faibles et n’ont decouvert aucun effet biologique. Certaines etudes ont suggere qu’il pouvait y avoir certains effets biologiques, mais ces resultats n’ont pas ete confirmes par des recherches supplementaires. Ce modele a ete teste et juge conforme aux limites d’exposition aux rayonnements enoncees pour un environnement non controle et respecte les regles les radioelectriques (RF) de la FCC lignes directrices d'exposition dans le Supplement C a OET65 et d’exposition aux frequences radioelectriques (RF) CNR-102 de l’IC. CAN ICES-3(B) / NMB-3(B) Our end products which included wireless module model RF401 indicates「Contains FCC ID: AZD401」 and「Contains IC: 498J-401」 on the rating label of products. Sentence above is described in our user manual.

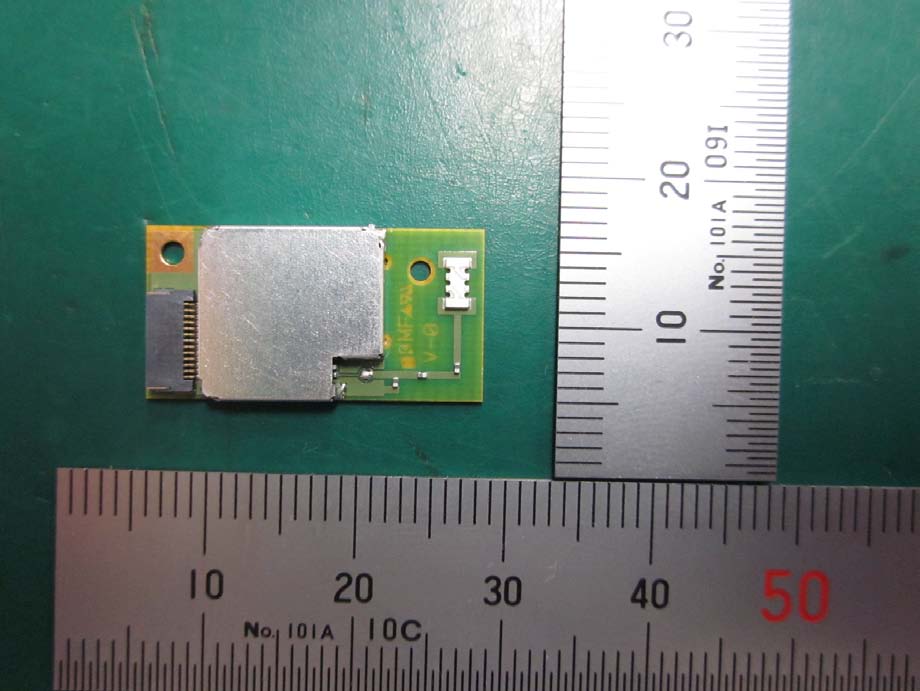

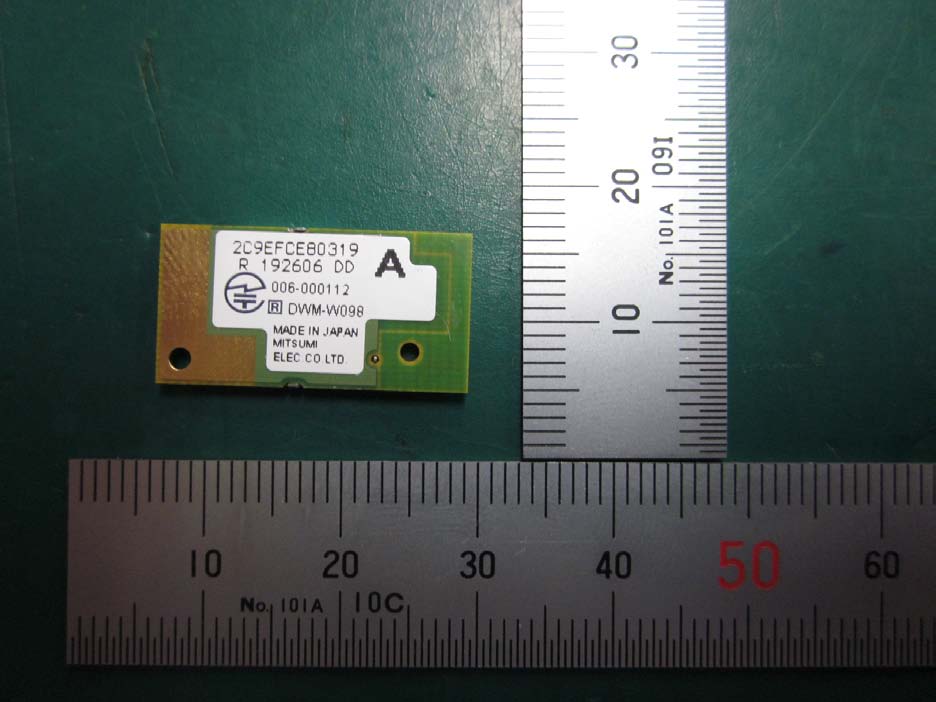

Module Picture (RF401) 1/ 2 Module Picture (RF401) 2/ 2

11.5 ±0.2 Label area GND area without solder resist Resin is incontact area

Module Picture (RF401) 1/ 2 Module Picture (RF401) 2/ 2

Test report No. : 10005570S-A Page : 1 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 SAR TEST REPORT Test Report No.: 10005570S-A Applicant : Canon Inc. Type of Equipment : Wireless Module Model No. : RF401 (*. Installed into the RF401’s platform (1)) FCC ID : AZD401 Test Standard : FCC 47CFR §2.1093, Supplement C (Edition 01-01) to OET Bulletin 65 Test Result : Complied Highest Reported SAR(1g) Value Platform # Platform typePlatform modelRemarks < 0.1 W/kg Platform (1) Digital Video Camcorde r(1) ID0032 (DTS) 2 437MHz, IEEE 802.11n(40HT), (MCS0, BPSK/OFDM)) *. Hi ghest measured SAR(1g) value: 0.042 W/kg *. Highest reported SAR (1g) across exposure conditions for a platform (1) = “< 0.1 W/kg” = grant listing. *. Since highest reported SAR (1g) on the platform (1) which obtained in accordance with KDB447498 (v05) was under 0.8 W/kg, this EUT was approved to operate on multi-platform. 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: May 16, 2013 Test engineer: Hiroshi Naka Engineer of WiSE Japan, UL Verification Service Approved by: Toyokazu Imamura Leader of WiSE Japan, UL Verification Service The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". RTL02610 13-EM-F0429 Revised date : June 6, 2013 (-R01) Test report No. : 10005570S-A Page : 2 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 REVISION HISTORY Revision Test report No. DatePage revisedContents Original 10005570S-A May 27, 2013-- -R01 10005570S-A June 6, 20131,2,11,12 (P11)Antenna separation distance was illustrated. (P1,2,12) Related change of P11. *. By issue of new revision report, the report of an old revision becomes invalid. CONTENTS PAGE REVISION HISTORY ................................................................................................................................................... 2(-R01) CONTENTS .................................................................................................................................................... 2 (-R01) SECTION 1: Customer information .................................................................................... 3 SECTION 2: Equipment under test (EUT) ......................................................................... 3 2.1 Identification of EUT .......................................................................................................... 3 2.2 Product Description ............................................................................................................. 3 2.3 Tx output power specification (antenna port terminal conducted) ...................................... 4 2.4 Maximum output power which may possible ...................................................................... 4 SECTION 3: Test specification, procedures and results .................................................... 5 3.1 Test specification ................................................................................................................. 5 3.2 Exposure limit ..................................................................................................................... 5 3.3 Procedure and result ............................................................................................................ 5 3.4 Test location ........................................................................................................................ 5 3.5 Confirmation before SAR testing ........................................................................................ 6 3.6 Confirmation after SAR testing ........................................................................................... 6 3.7 Test setup of EUT and SAR measurement procedure ......................................................... 7 SECTION 4: Operation of EUT during testing .................................................................. 7 SECTION 5: Uncertainty assessment (SAR measurement) ............................................... 8 SECTION 6: Confirmation before testing .......................................................................... 9 6.1 Assessment for the conducted power of EUT ..................................................................... 9 SECTION 7: Measurement results ...................................................................................... 10 7.1 SAR test results of Platform (1) .......................................................................................... 10 Contents of appendixes APPENDIX 1: Photographs of test setup ............................................................................... 11 Appendix 1-1 Photograph of Platform (1).................................................................................................. 11(-R01) Appendix 1-2 EUT and support equipment ................................................................................................ 12 (-R01) Appendix 1-3 Photograph of test setup / Platform (1).................................................................…

Text truncated - open the document above for the full version.

Test report No. : 10005570S-A Page : 15 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 APPENDIX 2: SAR Measurement data Appendix 2-1: Evaluation procedure The SAR evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and suitable horizontal grid spacing of EUT. Based on these data, the area of the maximum absorption was determined by splines interpolation. Step 3: Around this point found in the Step 2 (area scan), a volume of 30mm(X axis)30mm(Y axis)30mm(Z axis) was assessed by measuring 777 points under 3GHz. And for any secondary peaks found in the Step2 which are within 2dB of maximum peak and not with this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1) The data at the surface were extrapolated, since the center of the dipoles is 1mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 2mm. The extrapolation was based on a least square algorithm. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2) The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed by the 3D-Spline interpolation algorithm. The 3D-Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions). The volume was integrated with the trapezoidal-algorithm. One thousand points (101010) were interpolated to calculate the average. (3) All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1 for the assessment of the power drift. Step 5: Repeat Step 1-Step 4 with other condition or/and setup of EUT. Test report No. : 10005570S-A Page : 16 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 2-2: Measurement data / Platform (1)-Digital video camcorder (1) Step 1: Change the positions Step 1-1: Bottom & touch (separation distance=0mm) / 11b(1Mbps), 2412MHz (1ch.) EUT: Wireless module/Digital Video Camcorder (platform(1)); Type: RF401 (dv:ID0032); Serial: E80357 (dv:133) Communication System: IEEE 802.11b(1Mbps, DBPSK/DSSS); Frequency: 2412 MHz; Crest Factor: 1.0 Medium: M2450; Medium parameters used: f = 2412 MHz; σ = 1.958 S/m; ε r = 50.45; ρ = 1000 kg/m 3 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: -Probe: EX3DV4 - SN3679; ConvF(6.77, 6.77, 6.77); Calibrated: 2012/06/21; -Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0, 161.0 -Electronics: DAE4 Sn518; Calibrated: 2012/10/17 -Phantom: ELI v4.0; Type: QDOVA001BA; Serial: 1059; Phantom section: Flat Section -DASY52 52.8.2(969); SEMCAD X 14.6.6(6824) portable,near-body,rf401+dv1/m8(re#m1),pos;btm(lcd-cl)&touch(d0mm),11b(1m),m2412(max.output)/ Area Scan:108x132,12 (10x12x1): Measurement grid: dx=12mm, dy=12mm; Maximum value of SAR (measured) = 0.0531 W/kg Area Scan:108x132,12 (91x111x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm; Maximum value of SAR (interpolated) = 0.0545 W/kg Z Scan:160,5 (1x1x33): Measurement grid: dx=20mm, dy=20mm, dz=5mm; Maximum value of SAR (measured) = 0.288 W/kg Fast SAR (*Polynomial): SAR(1 g) = 0.033 mW/g Zoom Scan:30x30x30,5 (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm; Reference Value = 5.247 V/m; Power Drift = -0.17 dB, Maximum value of SAR (measured) = 0.0566 W/kg Peak SAR (extrapolated) = 0.086 mW/g SAR(1 g) = 0.037 mW/g; SAR(10 g) = 0.017 mW/g (Shown with no transparency of an area scan and a fast SAR plot.) Remarks: *. Date tested: 2013/05/16; Tested by: Hiroshi Naka; Tested place:No.7 shielded room, *.liquid depth: 154mm; Position: distance of EUT to phantom: 0mm (2mm to liquid); ambient: 24.5  0.5deg.C. / 50  5 %RH, *.liquid temperature: 23.3(start)/23.3(end)/23.3(in check) deg.C.; *.White cubic: zoom scan area, Red cubic: big=SAR(10g )/small=SAR(1g) Test report No. : 10005570S-A Page : 17 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 2-2: Measurement data / Platform (1)-Digital video camcorder (1) (cont’d) Step 2: Change the operation mode Step 2-1: 11n(40HT) (MCS0) / 2437MHz (6ch.), Bottom & touch (separation distance=0mm) EUT: Wireless module/Digital Video Camcorder (platform(1)); Type: RF401 (dv:ID0032); Serial: E80357 (dv:133) Communication System: IEEE 802.11n(40HT)(MCS0, BPSK/OFDM); Frequency: 2437 MHz; Crest Factor: 1.0 Medium: M2450; Medium parameters used: f = 2437 MHz; σ = 1.996 S/m; ε r = 50.33; ρ = 1000 kg/m 3 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: -Probe: EX3DV4 - SN3679; ConvF(6.77, 6.77, 6.77); Calibrated: 2012/06/21; -Sensor-Surface: 2mm (Mechanical Surface Detection), z = 1.0, 31.0, 161.0 -Electronics: DAE4 Sn518; Calibrated: 2012/10/17 -Phantom: ELI v4.0; Type: QDOVA001BA; Serial: 1059; Phantom section: Flat Section -DASY52 52.8.2(969); SEMCAD X 14.6.6(6824) portable,near-body,rf401+dv1/m9,mode;btm(lcd-cl)&touch(d0mm),11n40(mcs0),m2437(max.output)/ Are…

Text truncated - open the document above for the full version.

Test report No. : 10005570S-A Page : 24 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) Test report No. : 10005570S-A Page : 25 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 26 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 27 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 28 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 29 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 30 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 31 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 32 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 33 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 34 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-8: Calibration certificate: E-Field Probe (EX3DV4) (cont’d) Test report No. : 10005570S-A Page : 35 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) Test report No. : 10005570S-A Page : 36 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 10005570S-A Page : 37 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 10005570S-A Page : 38 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 10005570S-A Page : 39 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 10005570S-A Page : 40 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 10005570S-A Page : 41 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) Test report No. : 10005570S-A Page : 42 of 42 Issued date : May 27, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-9: Calibration certificate: Dipole (D2450V2) (cont’d) (End of Report)

Test report No. : 10005569S-A Page : 1 of 72 Issued date : May 28, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10005569S-A Applicant : Canon Inc. Type of Equipment : Wireless Module Model No. : RF401 FCC ID : AZD401 Test regulation : FCC Part15 Subpart C: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: May 5 to 15, 2013 Tested by: Shinichi Takano Engineer of WiSE Japan, UL Verification Service Approved by : Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10005569S-A Page : 2 of 72 Issued date : May 28, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10005569S-A Revision Test report No. Date Page revised Contents - (Original) 10005569S-A May 28, 2013 - - Test report No. : 10005569S-A Page : 3 of 72 Issued date : May 28, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 6 SECTION 4: Operation of E.U.T. during testing .................................................................... 9 SECTION 5: Conducted emission .......................................................................................... 10 SECTION 6: Radiated emission ............................................................................................. 11 SECTION 7: Out of band emissions (Antenna port conducted) ......................................... 13 SECTION 8: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 13 SECTION 9: Maximum peak conducted output power ....................................................... 13 SECTION 10: Peak power density ......................................................................................... 13 Contents of APPENDIXES ....................................................................................................... 14 APPENDIX 1: Data of Radio tests .......................................................................................... 15 APPENDIX 2: Test instruments ............................................................................................. 69 APPENDIX 3: Photographs of test setup ............................................................................... 70 Test report No. : 10005569S-A Page : 4 of 72 Issued date : May 28, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Canon Inc. Address : 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo, 146-8501 Japan Telephone Number : +81-3-5482-8070 Facsimile Number : +81-3-3757-8431 Contact Person : Yasushi Sasaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Module Model Number : RF401 Serial Number : See Section 4. Rating : DC3.3V Country of Mass-production : Philippines Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : April 13, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: RF401 (referred to as the EUT in this report) is a Wireless Module. Clock frequency(ies) in the system : 32.768KHz, 38.4MHz <Radio part> Equipment type : Transceiver Frequency of operation : 2412-2462MHz (IEEE 802.11b, 11g, 11n (HT20)) 2422-2452MHz (IEEE 802.11n (HT40)) Bandwidth : 20MHz (IEEE 802.11a, b, 11g, 11n (HT20)), 40MHz (IEEE 802.11n (HT40)) Channel spacing : 5MHz Type of modulation : DSSS, OFDM Antenna type : Monopole type chip antenna Antenna connector type : None Antenna gain : -0.94dBi ITU code : D1D, G1D Operation temperature range : -20 to +85 deg.C Test report No. : 10005569S-A Page : 5 of 72 Issued date : May 28, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC 15.31 (e) / 212 The module is constantly provided the stable voltage from the host device regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 / 212 It is impossible for end users to replace the antenna, because it is soldered on the circuit board. Therefore the equipment complies with the requirement of 15.203/212. Test report No. : 10005569S-A Page : 6 of 72 Issued date : May 28, 2013 FCC ID : AZD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-k…

Text truncated - open the document above for the full version.

Test report No. : 10005569S-A Page : 70 of 72 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Test Report No.: 10005569S-A 70 of 72 Test report No. : 10005569S-A Page : 71 of 72 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test Report No.: 10005569S-A 71 of 72 Test report No. : 10005569S-A Page : 72 of 72 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kan…
