AZDCM13264WLAN Module Unit

CM13264 WLAN MODULE UNIT Installation Manual Module dimension here are 3 holes on modules to fix module in host Application like DSC and printer. T The 3 holes are insulated from Modules. FPC connector Part name of FPC connector on module is FH26-41S-0.3SHW(10). FPC which connects module and host application has to be designed to adapted for FH26-41S-0.3SHW(10). Pin layout of FH26-41S-0.3SHW(10) on module is shown below. Pin description is below Recommended FPC Dimension B =11.4 C=12.0 F=12.6 All dimension: mm Recommended FPC Construction FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). IC WARNING (This device complies with Part 15 of FCC Rules.) Operation is subject to the following two conditions: (1) this device may not causeinterference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Declaration of conforming to R&TTE requirement Česky [Czech] tímto prohlašuje, že tento je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede erklærer herved, at følgende udstyr overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt , dass sich das Gerät in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab seadme vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, , declares that this is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente declara que el cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ ∆ΗΛΩΝΕΙ ΟΤΙΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente déclare que l'appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente dichiara che questo è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo deklarē, ka atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo deklaruoja, kad šis atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands [Dutch] Hierbij verklaart dat het toestel in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] Hawnhekk, , jiddikjara li dan jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian] Alulírott, nyilatkozom, hogy a megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Português [Portuguese] declara que este está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko [Slovenian] izjavlja, da je ta v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky [Slovak] týmto vyhlasuje, že spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi [Finnish] vakuuttaa täten että tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska [Swedish] Härmed intygar att denna står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Íslenska [Icelandic] Hér með lýsir yfir því að er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. Norsk [Norwegian] erklærer herved at utstyret er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.

Picture of M o dule with Metal shield Picture of M o dule without Metal shi e ld

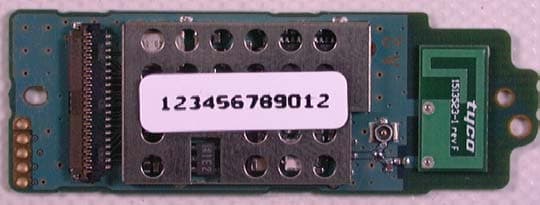

A label which shows MAC address is on a module. The MAC address is used as a serial number. Common information is printed on bottom layer of PCB with silk screen. MAC address 12 characters Antenna FPC connector MAC Address label Certification No. for Japan 1 – 13 ch Certification No. for Japan 14 ch. FCC ID No. IC No. Trade mark Model No.

Picture of M o dule with Metal shield Picture of M o dule without Metal shi e ld

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Canon Inc. Type of Equipment : W LAN MODULE UNIT M odel No. : CM 13264 FCC ID: AZDCM 13264 Canon Inc. declares that M odel : W LAN M ODULE UNIT complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093. The “CM13264“ has 18.79 mW of conducted Peak Output power and 16.37 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW (TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CM 13264“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 18.79 mW (M aximum peak output power) G = 0.87 Numerical Antenna gain; equal -0.60 dBi r =20.0 cm For: CM 13264S = 0.00326 mW/cm 2 No. : 25LE0058-HO RF Exposure / SAR Statement

Test report No. : 25LE0058-HO-1 Page : 2 of 42 Issued date : September 22, 2005 FCC ID : AZDCM13264 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information .................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)................................................................................................ 3 SECTION 3: Test specification, procedures & results ................................................................................ 4 SECTION 4: Operation of E.U.T. during testing ......................................................................................... 6 SECTION 5: Conducted Emission................................................................................................................. 7 SECTION 6: Spurious Emission .................................................................................................................... 8 SECTION 7: 6dB Bandwidth ......................................................................................................................... 8 SECTION 8: Maximum Peak Output Power ............................................................................................... 9 SECTION 9: Peak Power Density.................................................................................................................. 9 APPENDIX 1: Photographs of test setup .................................................................................................... 10 Conducted Emission...............................................................................................................................................10 Spurious Emission (Radiated) ............................................................................................................................... 11 Worst Case Position (Z-axis:Horizontal / Y-axis:Vertical) .................................................................................12 APPENDIX 2:Test instruments .................................................................................................................... 13 APPENDIX 3: Data of EMI test.................................................................................................................... 14 Conducted Emission...............................................................................................................................................14 6dB Bandwidth(DSSS and other forms of modulation)......................................................................................18 Maximum Peak OutPut Power (DSSS and other forms of modulation) ...........................................................20 Radiated Spurious Emission(DSSS and other forms of modulation) ................................................................21 Conducted emission Band Edge compliance (DSSS and other forms of modulation) .....................................36 Power Density (DSSS and other forms of modulation ) ......................................................................................37 APPENDIX 4: Reference data [Testing of the variation of input voltage]................................................ 40 Test report No. : 25LE0058-HO-1 Page : 3 of 42 Issued date : September 22, 2005 FCC ID : AZDCM13264 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : Canon Inc. Brand name : Canon Address : 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo, 146-8501 Japan Telephone Number : +81-3-3757-6798 Facsimile Number : +81-3-3757-8431 Contact Person : Takayuki Kono SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : WLAN MODULE UNIT Model No. : CM13264 Serial No. : MT0165, MT0166 Country of Manufacture : JAPAN Rating : AC100 - 240V (AC Adaptor) Receipt Date of Sample : July 8, 2005 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: CM13264 is the WLAN MODULE UNIT. Clock frequency CPU: 44MHz Feature of EUT A small Wireless LAN module with Antenna and CF interface. RF characteristics is specified in the IEEE 802.11b standard. Equipment Type Transceiver Frequency of Operation 2412-2472 MHz Intermediate frequency 480MHz Type of Modulation DSSS Antenna Type Planar Inverted-F Antenna Gain -0.6 dBi max Mode of Operation Simplex Method of frequency generation Synthesizer ITU code G1D Power Supply DC3.15-3.45V FCC 15.31 (e) Power source, DC3.35V of EUT is supplied from the printer in which the EUT is installed. The following three voltages are supplied with RF module part. -3.3V (not regulated) 2.9V (regulated) 2.5V (regulated) 1.4V (regulated) Testing of the variation of the input voltage was performed and complied with this requirement. As for the detail, please refer to APPENDIX 4. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 25LE0058-HO-1 Page : 4 of 42 Issued date : September 22, 2005 FCC ID : AZDCM13264 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits : 2005 Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz : 2005 3.2 P…

Text truncated - open the document above for the full version.

Test report No. : 25LE0058-HO-1 Page : 10 of 42 Issued date : September 22, 2005 FCC ID : AZDCM13264 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Conducted Emission Front Side Test report No. : 25LE0058-HO-1 Page : 11 of 42 Issued date : September 22, 2005 FCC ID : AZDCM13264 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Spurious Emission (Radiated) Front Rear Test report No. : 25LE0058-HO-1 Page : 12 of 42 Issued date : September 22, 2005 FCC ID : AZDCM13264 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position (Z-axis:Horizontal / Y-axis:Vertical) X-axis Y-axis Z-axis
