American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 19, 2003 RE: FCC ID: AZDK30218 Attention: Keijiro Kumagai I have a few comments on this Application. 1. Since this device is for exclusive use in the Bubble Jet I80, why weren’t radiated spurious emissions performed in the host? 2. Please provide a separate test setup photo exhibit as required by the FCC. 3. The only Bandwidth measurement for FHSS devices is the 20dB bandwidth of 15.247 (a)(1). Please explain what the plot on page 38 is for. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1 dward From: [email protected] Sent: Sunday, September 21, 2003 10:59 PM To: dennisw Subject: RE: New Project: CANON INC. Bluetooth Unit(BU-10) 9-19-03 K30218 ATCB Comme Test Setup Photo.pdf (225 KB) Dear Dennis, Please confirm following reply to your comment on 19Sep2003. 1. Since this device is for exclusive use in the Bubble Jet I80, why weren ’t radiated spurious emissions performed in the host? -->This time our client request us to obtain FCC grant of this device as individual unit. 2. Please provide a separate test setup photo exhibit as required by the FCC. -->Please find attached "Test Setup Poto.pdf". 3. The only Bandwidth measurement for FHSS devices is the 20dB bandwidth of 15.247 (a)(1). Please explain what the plot on page 38 is for. -->This page 38 is for IC application. IC requires 99% Occupied Bandwidth. We use same data so please just use it for your reference. I saw on the news that Hurricane hit in your country was really huge one. Are you and your family OK? I appreciate for your cooperation. Best Regards, UL日本と合併し、4月10日に社名、Eメールアドレスが変更となりました。 ************************************** 株式会社ユーエル エーペックス 〒516-0021 三重県伊勢市朝熊町4383番326 EMC業務部 本社EMC試験所 熊谷 圭二郎 UL Apex Co.Ltd. 4383-326 Asama-cho Ise-shi Mie-ken 516-0021 EMC Service Head Office EMC Laboratory Keijiro Kumagai TEL：0596-24-8116/FAX：0596-24-8124 E-mail：[email protected] Home Page：www.ulapex.jp ************************************** "dennisw" <[email protected]> 2003/09/20 03:29 2 To: <[email protected]> cc: Subject: RE: New Project: CANON INC. Bluetooth Unit(BU-10) Hi Keijiro Please see comments attached Thanks Dennis -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, September 18, 2003 6:51 PM To: dennisw Cc: [email protected] Subject: RE: New Project: CANON INC. Bluetooth Unit(BU-10) Dear Dennis, Thank you for your speedy reply. I am looking forward to hearing from you. Best Regards, ************************************** UL Apex Co.Ltd. 4383-326 Asama-cho Ise-shi Mie-ken 516-0021 EMC Service Head Office EMC Laboratory Keijiro Kumagai TEL：0596-24-8116/FAX：0596-24-8124 E-mail：[email protected] Home Page：www.ulapex.jp ************************************** "dennisw" <[email protected]> 2003/09/19 10:02 To: <[email protected]> cc: <[email protected]> Subject: RE: New Project: CANON INC. Bluetooth Unit(BU-10) Hi Keijiro Hurricane Isabella is causing havoc on the East Coast. The server I believe is down due to power outage. I will be reviewing this application so I will take care of making sure it gets on the ATCB server. 3 I should have something for you Friday our time. Thanks Dennis -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, September 18, 2003 5:40 PM To: dennis@yosemite; [email protected] Cc: [email protected] Subject: New Project: CANON INC. Bluetooth Unit(BU-10) Dear Dennis, Yesterday I submitted application form for CANON INC., Bluetooth Unit (FCC ID: AZDK30218). However, I forgot to submit Technical Specification. Today I tried to upload from ATCB website but I could not access to the website. Please upload attached file to ATCB website. I appreciate for your cooperation. Best Regards, ************************************** UL Apex Co.Ltd. 4383-326 Asama-cho Ise-shi Mie-ken 516-0021 EMC Service Head Office EMC Laboratory Keijiro Kumagai TEL：0596-24-8116/FAX：0596-24-8124 E-mail：[email protected] Home Page：www.ulapex.jp ************************************** __________________ Dear Dennis, Today, I submitted application documents for CANON INC., Bluetooth Unit (FCC ID: AZDK30218). Please confirm and let me know if there is any missing documents or information. Also please issue invoice for this project. I truly appreciate for your cooperation. Best Regards, ************************************** UL Apex Co.Ltd. 4383-326 Asama-cho Ise-shi Mie-ken 516-0021 EMC Service Head Office EMC Laboratory Keijiro Kumagai 4 TEL：0596-24-8116/FAX：0596-24-8124 E-mail：[email protected] Home Page：www.ulapex.jp ************************************** -- For more information about UL, its Marks, and its services for EMC, quality registrations and product certifications for global markets, please access our web sites at http://www.ul.com and http://www.ul-asia.com, or contact your local sales representative. -- ********* Internet E-mail Confidentiality Disclaimer ********** This e-mail message may contain privileged or confidential information. If you are not the intended recipient, you may not disclose, use, disseminate, distribute, copy or rely upon this message or attachment in any way. If you received this e-mail message in error, please return by forwarding the message and its attachments to the sender. Underwriters Laboratories Inc. and its affiliates do not accept liability for any errors, omissions, corruption or virus in the contents of this message or any attachments that arise as a result of e-mail transmission. *****************************************************************

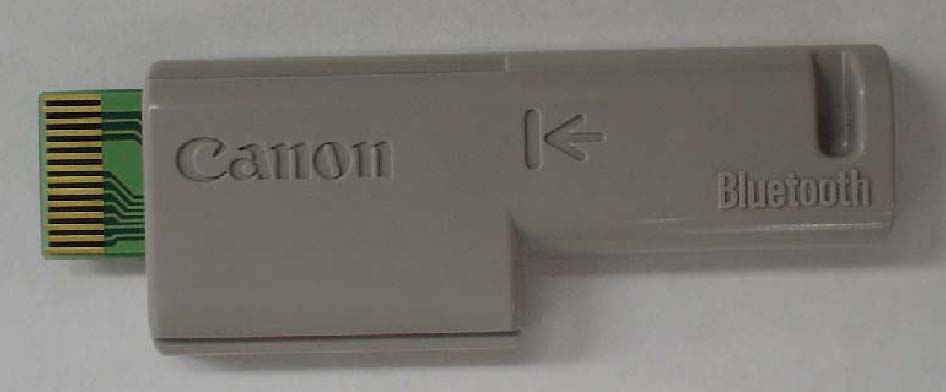

External Photo CANON INC. Bluetooth Unit BU-10 FCC ID: AZDK30218 Over View Front view Rear view

External Photo CANON INC. Bluetooth Unit BU-10 FCC ID: AZDK30218 Front view Rear view

Test report No. : 24AE0060-HO-4 Page : 9 of 38 Issued date : September 12, 2003 FCC ID : AZDK30218 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Side Test report No. : 24AE0060-HO-4 Page : 10 of 38 Issued date : September 12, 2003 FCC ID : AZDK30218 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear Test report No. : 24AE0060-HO-4 Page : 11 of 38 Issued date : September 12, 2003 FCC ID : AZDK30218 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Horizontal: X-axis: / Vertical: X-axis:) X-axis Y-axis Z-axis

Test report No. : 24AE0060-HO-4 Page : 1 of 38 Issued date : September 12, 2003 Revised date : February 6, 2004 FCC ID : AZDK30218 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 24AE0060-HO-4 Applicant : CANON INC. Type of Equipment : Bluetooth Unit Model No. : BU-10 Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247 FCC ID : AZDK30218 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test : August 25, 27 and September 2, 3and 5, 2003 Tested by : Hiroka Umeyama EMC Service Approved by : Hironobu Shimoji Group Leader of EMC Service Test report No. : 24AE0060-HO-4 Page : 2 of 38 Issued date : September 12, 2003 Revised date : February 6, 2004 FCC ID : AZDK30218 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information ..................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................................. 3 SECTION 3: Test specification, procedures & results.................................................................................. 4 SECTION 4: Operation of E.U.T. during testing .......................................................................................... 6 SECTION 5: Conducted Emission, Section 15.207 ....................................................................................... 7 SECTION 6: Carrier Frequency Separation, Section15.247(a)(1)................................................................ 7 SECTION 7: 20dB Bandwidth, Section 15.247(a)(1)...................................................................................... 7 SECTION 8: Number of Hopping Frequency, Section 15.247(a)(1)(iii) ....................................................... 7 SECTION 9: Dwell time, Section 15.247(a)(1)(iii) .......................................................................................... 8 SECTION 10: Maximum Peak Output Power, Section 15.247(b)(1)............................................................ 8 SECTION 11: Band Edge Compliance, Section 15.247(c) .............................................................................8 APPENDIX 1: Photographs of test setup ....................................................................................................... 9 Conducted Emission .......................................................................................................................................... 9 Spurious Emission (Radiated) ........................................................................................................................ 10 Worst Case Position (Horizontal: X-axis: / Vertical: X-axis:)..................................................................... 11 APPENDIX 2:Test instruments ..................................................................................................................... 12 APPENDIX 3: Data of EMI test..................................................................................................................... 13 Conducted Emission (2402MHz) .............................................................................................. 13 Conducted Emission (2402MHz) .............................................................................................. 15 Carrier Frequency Separation .................................................................................................. 17 20dB Bandwidth ......................................................................................................................... 19 Number of Hopping Frequency ................................................................................................ 21 Dwell time.................................................................................................................................... 23 Maximum Peak Output Power ................................................................................................. 26 Band Edge compliance............................................................................................................... 27 Spurious Emission(Conducted)................................................................................................. 35 99% Occupied Bandwidth.........................................................................................................38 Test report No. : 24AE0060-HO-4 Page : 3 of 38 Issued date : September 12, 2003 Revised date : February 6, 2004 FCC ID : AZDK30218 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : CANON INC. Brand Name : CANON INC. Address : 16-1, Shimonoge 3-chome, Takatsu-ku, Kawasaki-shi, Kanagawa, 213- 8512 Japan Telephone Number : +81-44-844-3866 Facsimile Number : +81-44-814-2856 Contact Person : Kenji Kurita SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Unit Model No. : BU-10 Serial No. : 11, 12 Country of Manufacture : Japan Receipt Date of Sample : August 22, 2003 Condition of EUT : Production proto…
