AZDK30326Wireless LAN Module

ENGLISH EN-4 Users in the U.S.A. Regulatory Information FCC Notice (U.S.A. Only) For 120V, 60Hz model Model Number: XXXXX (Contains FCC ID: AZDK30326) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Use of a shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. FCC ID:AZDK30326 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ■ • • • • The equipment complies with FCC radiation exposure limits for at uncontrolled equipment.This equipment should be installed and operated with minimum distance at least 20cm between the radiator and persons body (excluding extremities: hands, wrists, feet and ankles) and must not be co-located or operated with any other antenna or transmitter. Canon U.S.A., Inc. One Canon Plaza Lake Success, NY 11042 1-516-328-5600 Users in Canada Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's website http://www.hc-sc.gc.ca/. ■

 (%%+%4GIWNCVQT[+PHQTOCVKQP  6࡮JGHQNNQYKPIUGPVGPEGUCTGCFFGFVQVJGNCDGNGPFRTQFWEV  %QPVCKPU(%%+&㧦#<&- %QPVCKPU+%㧦%-   .CDGN#TVYQTM      6࡮JGHQNNQYKPIUGPVGPEGUUJCNNDGYTKVVGPKP1RGTCVKQP/CPWCNOCPWCNVQVJGGPFWUGT  ع7UGTUKPVJG75# %JCPIGUQTOQFKHKECVKQPUPQVGZRTGUUN[CRRTQXGFD[VJGRCTV[TGURQPUKDNGHQTEQORNKCPEGEQWNFXQKF VJGWUGT UCWVJQTKV[VQQRGTCVGGSWKROGPV  6JKUVTCPUOKVVGTOWUVPQVDGEQNQECVGFQTQRGTCVKPIKPEQPLWPEVKQPYKVJCP[QVJGTCPVGPPCQT VTCPUOKVVGT  6JGGSWKROGPVEQORNKGUYKVJ(%%TCFKCVKQPGZRQUWTGNKOKVUHQTCVWPEQPVTQNNGFGSWKROGPV6JKUGSWKROGPV UJQWNFDGKPUVCNNGFCPFQRGTCVGFYKVJOKPKOWOFKUVCPEGCVNGCUVEODGVYGGPVJGTCFKCVQTCPFRGTUQPU DQF[ GZENWFKPIGZVTGOKVKGUJCPFUYTKUVUHGGVCPFCPMNGU CPFOWUVPQVDGEQNQECVGFQTQRGTCVGF YKVJCP[QVJGTCPVGPPCQTVTCPUOKVVGT  ع7UGTUKP%CPCFC  1RGTCVKQPKUUWDLGEVVQVJGHQNNQYKPIVYQEQPFKVKQPU  VJKUFGXKEGOC[PQVECWUGKPVGTHGTGPEGCPF  VJKUFGXKEGOWUVCEEGRVCP[KPVGTHGTGPEGKPENWFKPIKPVGTHGTGPEGVJCVOC[ECWUGWPFGUKTGFQRGTCVKQP QHVJGFGXKEG6JGKPUVCNNGTQHVJKUTCFKQGSWKROGPVOWUVGPUWTGVJCVVJGCPVGPPCKUNQECVGFQTRQKPVGF UWEJVJCVKVFQGUPQVGOKV4(HKGNFKPGZEGUUQH*GCNVJ%CPCFCNKOKVUHQTVJGIGPGTCNRQRWNCVKQPEQPUWNV 5CHGV[%QFGQDVCKPCDNGHTQO*GCNVJ%CPCFC UYGDUKVGJVVRYYYJEUEIEEC  ع2QWTNGUWUCIGTUTªUKFCPVCW%CPCFC  .̉WUCIGFGN̉CRRCTGKNFªRGPFFGUFGWZEQPFKVKQPUUWKXCPVGU  EGVCRRCTGKNPGFQKVRCUETªGT F̉KPVGTHªTGPEGGV  EGVCRRCTGKNFQKVTGEGXQKTVQWVGKPVGTHªTGPEGSWGNNGSW̉GNNGUQKV[EQORTKU WPGKPVGTHªTGPEGRQWXCPVGPVTC ̄PGTWPGQRªTCVKQPPQPFªUKTªGFGN̉CRRCTGKN.CRGTUQPPGKPUVCNNCPV EGVªSWKRGOGPV¡QPFGUTCFKQFQKVỦCUUWTGTSWGN̉CPVGPPGGUVRQUKVKQPPªGGVQTKGPVªGFGHC ̈QP¡ PGRCUªOGVVTGWPEJCOR4(GZEªFCPVNGUNKOKVGUHKZªGURCT5CPVª%CPCFCRQWTNGITCPFRWDNKEEQPUWNVG\ NG%QFGFGUªEWTKVªUWTNGUKVGFG5CPVª%CPCFC¡N̉CFTGUUGJVVRYYYJEUEIEEC XXXXX XXXXXX XXXXX Label Artwork (Example)

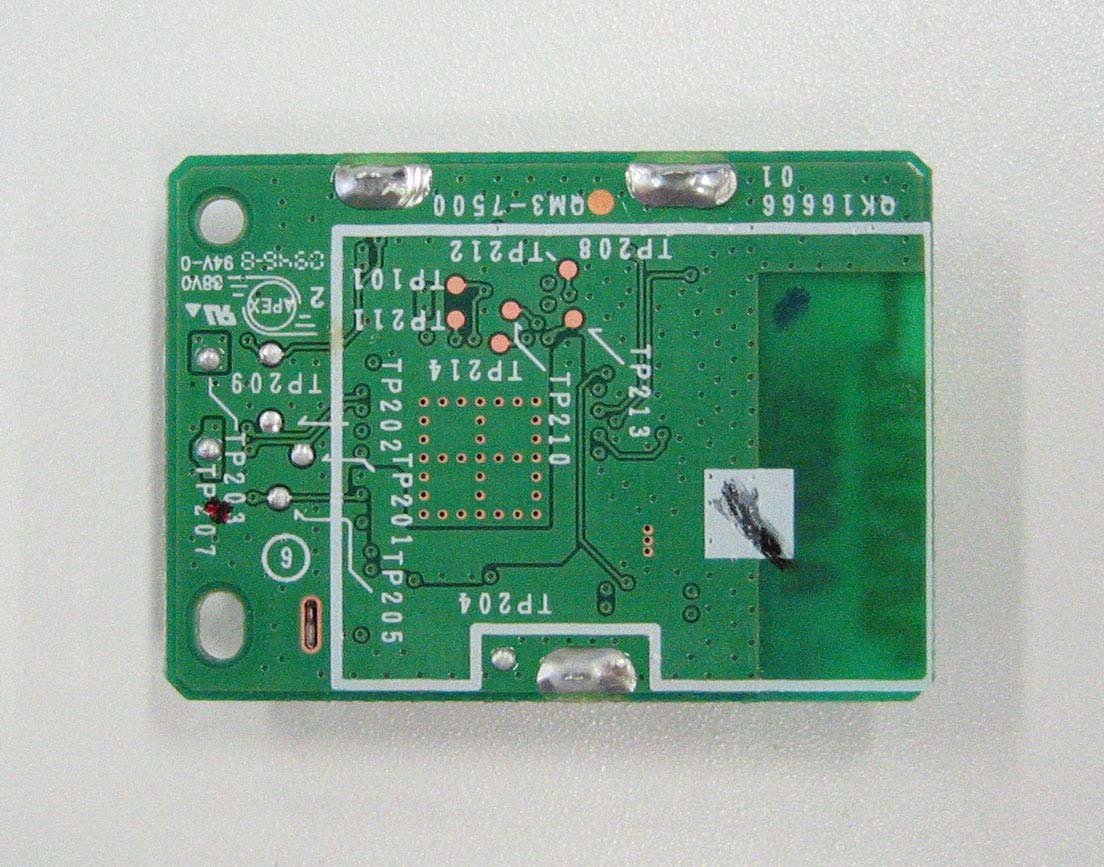

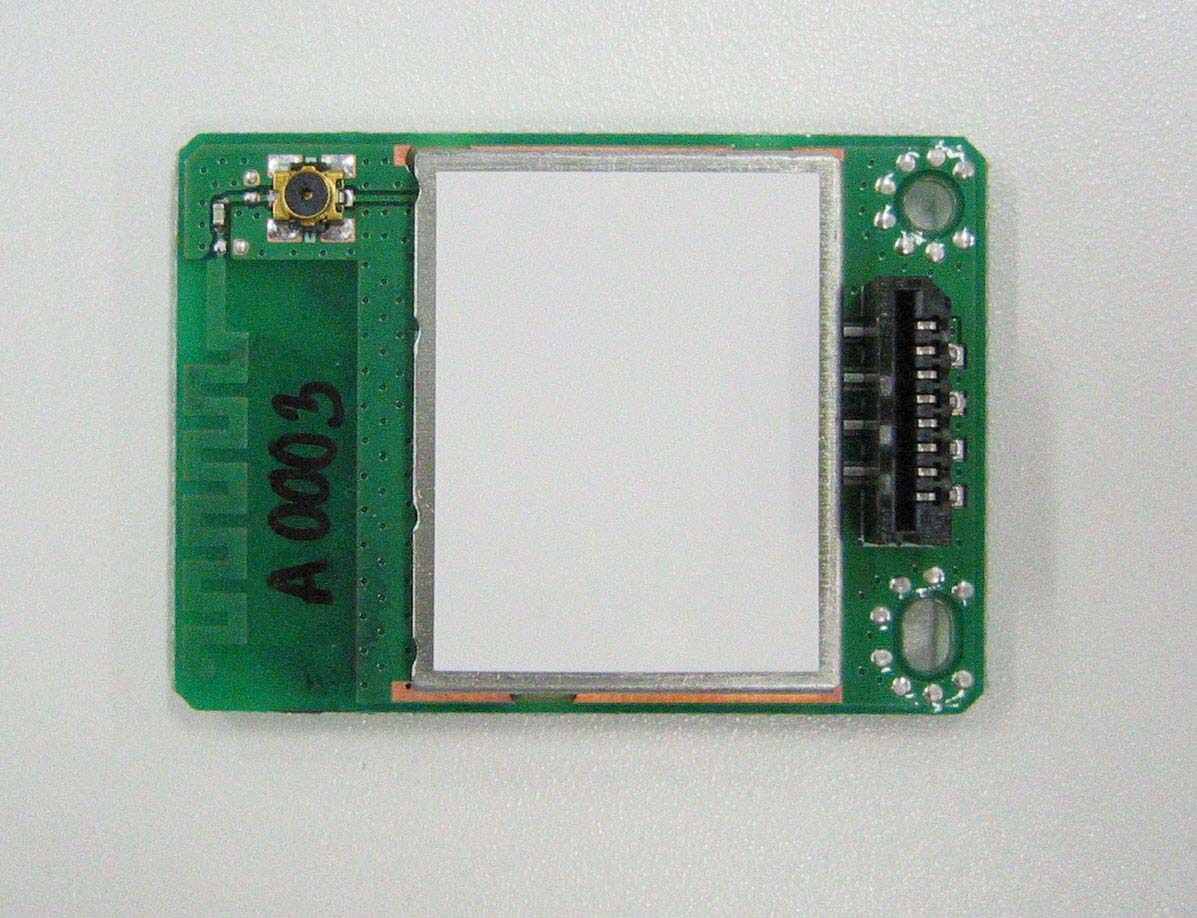

WLAN Module K30326 Soldering Side Shield Side Shield Cover Open

Label putting Upper side WLAN LABEL Paste the label based on the edge of PCB. Stick out from the encircled silk screen is prohibited. Paste the label not to interfere with the check pad at upper side.

WLAN Module K30326 Soldering Side Shield Side Shield Cover Open

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Applicant: CANON INC. Type of Equipment : Wireless LAN M odule M odel No. : K 30326 FCC ID: AZDK 30326 CANON INC. declares that M odel : Wireless LAN M odule complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “K30326“ has 145.21 mW of conducted Peak Output power and 159.22 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “K30326“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exp o su re lim it. T he F riis fo rm u la u sed w as: S = (P * G) / (4* π * r 2 ) Where P = 145.21 mW (M aximum peak output power) G = 1.10 Numerical Antenna gain; equal 0.40 dBi r =20.0 cm For: K 30326S = 0.03168 mW/cm 2 No. : 30FE0016-SH-01-A RF Exposure / SAR Statement

FCC ID : AZDK30326 Test report No. : 30FE0016-SH-01 -A Page : 1 of 68 Issued date : February 22, 2010 Revised date : March 9, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No.: 30FE0016-SH-01-A Applicant : CANON INC. Type of Equipment : Wireless LAN Module Model No. : K30326 FCC ID : AZDK30326 Test regulation : FCC Part15 Subpart C: 2009 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: January 28, 29 and February 1-3, 2010 Tested by: Tatsuya Arai EMC Service Approved by: Ichiro Isozaki Group Leader of Shonan EMC lab. The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". RTL02610 MF060d (06.08.09) FCC ID : AZDK30326 Test report No. : 30FE0016-SH-01-A Page : 2 of 68 Issued date : February 22, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 7 5 Conducted emission 9 6 6dB bandwidth & Occupied bandwidth (99%) 10 7 Maximum peak output power 10 8 Out of band emissions (Antenna port conducted) 10 9 Out of band emissions (Radiated) 11 10 Peak power density 12 Contents of Appendixes 13 APPENDIX 1: Photographs of test setup 14 APPENDIX 2: Test data 17 APPENDIX 3: Test instruments 68 FCC ID : AZDK30326 Test report No. : 30FE0016-SH-01 -A Page : 3 of 68 Issued date : February 22, 2010 Revised date : March 9, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 1 Applicant information Company Name : CANON INC. Address : 30-2, Shimomaruko 3-chome, Ohta-Ku, Tokyo, Japan Telephone Number : +81-3-3758-2111 Contact Person : Takahito Kamiya 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model No. : K30326 Serial No. : A0011 Rating : DC3.465V Country of Mass-production : Thailand Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : January 27, 2010 2.2 Product description Model: K30326 (referred to as the EUT in this report) is a Wireless LAN Module. Equipment type : Transceiver Frequency of operation : 11b,11g, and 11n-20 : 2412-2462MHz 11n-40 : 2422-2452MHz Clock frequency : 40MHz Bandwidth & channel spacing : 11b,11g, and 11n-20 Bandwidth : 20MHz Channel spacing : 5MHz 11n-40 Bandwidth : 40MHz Channel spacing : 5MHz Type of modulation : 11b : DSSS 11g, 11n : OFDM Antenna type : Pattern antenna (meander) Antenna gain with cable loss : 0.4dBi Antenna connector type : - ITU code : D1D, G1D Operation temperature range : -5 to +55 deg.C. FCC Part15.31 (e) The Wireless LAN Module is provided with stable power supply (DC 3.1 V), therefore, the equipment complies power supply regulation. FCC Part15.203 Antenna requirement The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : AZDK30326 Test report No. : 30FE0016-SH-01-A Page : 4 of 68 Issued date : February 22, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2009, final revised on December 2, 2009 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC 15.207 - N/A 17.0dB (0.20609MHz, QP, 11n-40 Tx 2437MHz) Complied 6dB Bandwidth "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (a)(2) & 15.209 ConductedN/A Complied Maximum Peak Output Power "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (b)(3) & 15.209 ConductedN/A - Complied Out of Band Emission & Restricted Band Edges "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 0.4dB (2483.500MHz, Horizontal, AV, 11g Tx 2462MHz) Complied Power Density "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (e) ConductedN/A - Complied 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied bandwidth (99%) ANSI C63.4:2003 13. Measurement of intentional radiators RSS-Gen 4.6.1 RSS-Gen 4.6.1 Conducted- Compl…

Text truncated - open the document above for the full version.

Test Report No.: 30FE0016-SH-01-A Pa ge :29/ 68 Issued date : FCC ID :AZDK30326 Revised date : Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shielded Room Date2010/2/2 Temperature / Humidity23deg.C., 35% EngineerTatsuya Arai ModeTx, 11b Frequency6dB BandwidthLimit [MHz][MHz][kHz] 24129.593>500 24379.597>500 24629.570>500 11g Frequency6dB BandwidthLimit [MHz][MHz][kHz] 241216.446>500 243716.440>500 246216.459>500 11n-20 Frequency6dB BandwidthLimit [MHz][MHz][kHz] 241216.446>500 243717.678>500 246217.690>500 11n-40 Frequency6dB BandwidthLimit [MHz][MHz][kHz] 242236.420>500 243736.420>500 245236.405>500 6dB Bandwidth 22-Feb-10 9-Mar-10 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.:30FE0016-SH-01-A Page :30/ 68 Issued date : FCC ID :AZDK30326 22-Feb-10 6dB Bandwidth Tx, 2412MHzTx, 2412MHz Tx, 2462MHzTx, 2462MHz 11g11b Tx, 2437MH zTx, 2437MHz UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.:30FE0016-SH-01-A Page :31/ 68 Issued date : FCC ID :AZDK30326 22-Feb-10 6dB Bandwidth Tx, 2412MHzTx, 2422MHz Tx, 2462MHzTx, 2452MHz 11n-40MHz11n-20MHz Tx, 2437MH zTx, 2437MHz UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 30FE0016-SH-01-A Page :32/ 68 Issued date : 22-Feb-10 FCC ID : AZDK30326 Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shielded Room Date2010/2/1 Temperature / Humidity24deg.C., 31% EngineerTatsuya Arai ModeTx, 11b, ChFreq.P/MCableAtten.Margin ReadingLossLoss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] Low2412.03.201.059.9914.2426.5530.00100015.76 Mid2437.04.511.0510.0015.5635.9730.00100014.44 High2462.04.441.0410.0015.4835.3230.00100014.52 Sample Calculation: Result = Reading + Cable Loss (supplied by customer) + Atten. Loss * In the above table, factor 0.0dB represents no use of Atten. and/or Filter. *The test result is rounded off to one or two decimal places, so some differences might be observed. [Pre check] Data RateFreq.P/MCableAtten.Margin ReadingLossLoss [Mbps][MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] 12412.03.111.059.9914.1526.0030.00100015.85 22412.03.161.059.9914.2026.3030.00100015.80 5.52412.03.151.059.9914.1926.2430.00100015.81 112412.03.201.059.9914.2426.5530.00100015.76 Peak Output Power (Conducted) ResultLimit ResultLimit UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 30FE0016-SH-01-A Page :33/ 68 Issued date : 22-Feb-10 FCC ID : AZDK30326 Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shielded Room Date2010/2/1 Temperature / Humidity24deg.C., 31% EngineerTatsuya Arai ModeTx, 11g, ChFreq.P/MCableAtten.Margin ReadingLossLoss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] Low2412.010.211.059.9921.25133.3530.0010008.75 Mid2437.010.571.0510.0021.62145.2130.0010008.38 High2462.010.431.0410.0021.47140.2830.0010008.53 Sample Calculation: Result = Reading + Cable Loss (supplied by customer) + Atten. Loss * In the above table, factor 0.0dB represents no use of Atten. and/or Filter. *The test result is rounded off to one or two decimal places, so some differences might be observed. [Pre check] Data RateFreq.P/MCableAtten.Margin ReadingLossLoss [Mbps][MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] 62412.09.951.059.9920.99125.6030.0010009.01 92412.010.211.059.9921.25133.3530.0010008.75 122412.010.081.059.9921.12129.4230.0010008.88 182412.09.651.059.9920.69117.2230.0010009.31 242412.010.121.059.9921.16130.6230.0010008.84 362412.010.041.059.9921.08128.2330.0010008.92 482412.09.891.059.9920.93123.8830.0010009.07 542412.09.641.059.9920.68116.9530.0010009.32 Peak Output Power (Conducted) ResultLimit ResultLimit UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 30FE0016-SH-01-A Page :34/ 68 Issued date : 22-Feb-10 FCC ID : AZDK30326 Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shielded Room Date2010/2/1 Temperature / Humidity24deg.C., 31% EngineerTatsuya Arai ModeTx, 11n-20MHz, ChFreq.P/MCableAtten.Margin ReadingLossLoss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] Low2412.09.821.059.9920.86121.9030.0010009.14 Mid2437.010.261.0510.0021.31135.2130.0010008.69 High2462.010.431.0410.0021.47140.2830.0010008.53 Sample Calculation: Result = Reading + Cable Loss (supplied by customer) + Atten. Loss * In the above table, factor 0.0dB represents no use of Atten. and/or Filter. *The test result is rounded off to one or two decimal places, so some differences might be observed. [Pre check] Data RateFreq.P/MCableAtten.Margin ReadingLossLoss [Mbps][MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] MCS02412.09.821.059.9920.86121.9030.0010009.14 MCS12412.09.151.059.9920.19104.4730.0010009.81 MCS22412.09.521.059.9920.56113.7630.0010009.44 MCS32412.09.181.059.9920.22105.2030.0010009.78 MCS42412.09.391.059.9920.43110.4130.0010009.57 MCS52412.09.261.059.9920.30107.1530.0010009.70 MCS62412.09.651.059.9920.69117.2230.0010009.31 MCS72412.09.351.059.9920.39109.4030.0010009.61 Peak Output Power (Conducted) ResultLimit ResultLimit UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 30FE0016-SH-01-A Page :35/ 68 Issued date : 22-Feb-10 FCC ID : AZDK30326 Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shielded Room Date2010/2/1 Temperature / Humidity24deg.C., 31% EngineerTatsuya Arai ModeTx, 11n-40MHz, ChFreq.P/MCableAtten.Margin ReadingLossLoss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] Low2422.010.401.0510.0021.45139.6430.0010008.55 Mid2437.010.531.0510.0021.58143.8830.0010008.42 High2452.010.451.0410.0021.49140.9330.0010008.51 Sample Calculation: Result = Reading + Cable Loss…

Text truncated - open the document above for the full version.

FCC ID : AZDK30326 Test report No. : 30FE0016-SH-01-A Page : 14 of 68 Issued date : February 22, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Conducted emission Front Side FCC ID : AZDK30326 Test report No. : 30FE0016-SH-01-A Page : 15 of 68 Issued date : February 22, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Out of band emissions (Radiated) Front Rear (Test Distance : 3m) Rear (Test Distance : 1m) FCC ID : AZDK30326 Test report No. : 30FE0016-SH-01-A Page : 16 of 68 Issued date : February 22, 2010 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Pre-check of the worst position X-axis Z-axis Y-axis
