FCC / IC Regulatory Information ・The following sentences are added to the label end product. Contains FCC ID:AZDK30345 Contains IC:498C-K30345 **Label Artwork(Example)** ・The following sentences shall be written in Operation Manual, manual to the end user. ■ Users in the U.S.A. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment complies with FCC radiation exposure limits for at uncontrolled equipment. This equipment should be installed and operated with minimum distance at least 20cm between the radiator and persons body (excluding extremities: hands, wrists, feet and ankles) and must not be co-located or operated with any other antenna or transmitter. ■ Users in Canada This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). ■ Pour les usagers résidant au Canada Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles).

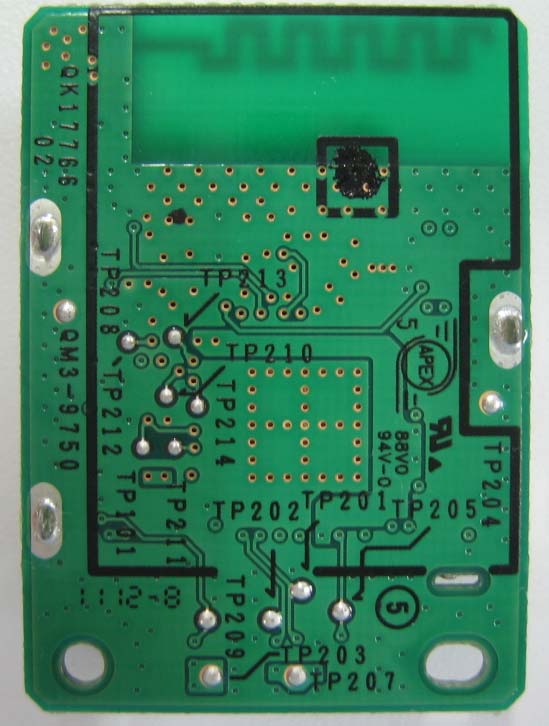

K30345 WLAN Module Photo Soldering Side Shield Side Shield Cover Open

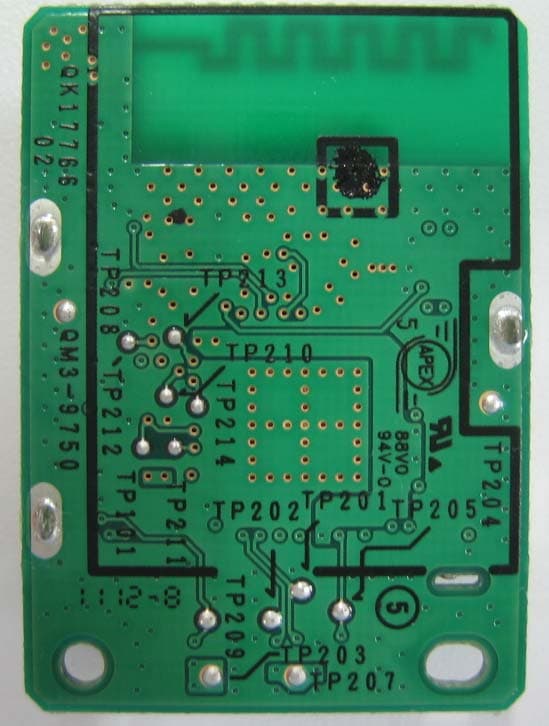

K30345 WLAN Module Photo Soldering Side Shield Side Shield Cover Open
UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: CANON INC. T ype of Equipment : WLAN M odule M odel No. : K30345 FCC ID: AZDK30345 CANON INC. declares that Model : WLAN Module complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “K30345“ has 59.29 mW of conducted Peak Output power and 65.01 mW of EIRP. T his equipment is considered as a mobile device so that SAR testing is excluded. T he Follow ing calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “K30345“ as calculated from FCC OE T Bulletin 65 Appendix A, Table (B) Limits fo r General Populatio n / Unco ntrolled Exposure. This calculation is based on the highest EIRP possible from the system, co nsidering maximum power and antenna gain, and co nsidering a 1.0mW /cm^2 uncontro lled exposure limit. The Friis formula used was: S = (P * G ) / (4* π * r 2 ) Where P = 59.29 mW (M aximum peak output power) G = 1.10 Numerical Antenna gain; equal 0.40 dBi r =20.0 cm For: K 30345S = 0.01293mW/cm 2 No. : 31KE0010-SH-A RF Exposure / SAR Statement
Test report No. : 31KE0010-SH-A Page : 2 of 89 Issued date : August 1, 2011 FCC ID : AZDK30345 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted emission ......................................................................................... 8 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) ............................................. 8 SECTION 7: Maximum peak output power ......................................................................... 9 SECTION 8: Spurious emission (Antenna port conducted) ................................................ 9 SECTION 9: Radiated emission .......................................................................................... 10 SECTION 10: Peak power density ...................................................................................... 11 Contents of appendixes ......................................................................................................... 12 APPENDIX 1: Photographs of test setup ............................................................................ 13 APPENDIX 2: Test data ...................................................................................................... 16 APPENDIX 3: Test instruments .......................................................................................... 88 Test report No. : 31KE0010-SH-A Page : 3 of 89 Issued date : August 1, 2011 Revised date : August 26, 2011 FCC ID : AZDK30345 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : CANON INC. Address : 30-2, Shimomaruko, 3-chome, Ohta-ku, Tokyo, 146-8501 Japan Telephone Number : +81-3-3758-2111 Contact Person : Atsushi Koizumi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : WLAN Module Model Number : K30345 Serial Number : 3 Rating : DC3.465V Country of Mass-production : Thailand, Vietnam Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : May 19, 2011 Modification of EUT : No modification by the test lab. 2.2 Product description Model: K30345 (referred to as the EUT in this report) is a WLAN Module. Clock frequency(ies) in the system : 40MHz Equipment type : Transceiver Frequency of operation : IEEE 802.11b, 11g and 11n-20: 2412-2462MHz IEEE 802.11n-40: 2422-2452MHz Bandwidth & channel spacing : IEEE 802.11b,11g, and 11n-20: Bandwidth: 20MHz, Channel spacing : 5MHz IEEE 802.11n-40: Bandwidth: 40MHz, Channel spacing : 5MHz Type of modulation : IEEE 802.11b: DSSS IEEE 802.11g, 11n: OFDM Antenna type : Pattern antenna (meander) Antenna gain with cable loss : 0.4dBi Antenna connector type : - ITU code : D1D, G1D Operation temperature range : -5 to +55 deg.C. FCC Part15.31 (e) The WLAN Module is provided with stable power supply DC 3.1V, therefore, the equipment complies power supply regulation. FCC Part15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 31KE0010-SH-A Page : 4 of 89 Issued date : August 1, 2011 FCC ID : AZDK30345 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC 15.207 - N/A 14.5dB Freq.: 0.22490MHz Phase: N Detection: Quasi-Peak Mode: Tx 11b 2437MHz Complied 6dB bandwidth "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (a)(2) & 15.209 ConductedN/A See data Complied Maximum peak output power "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (b)(3) & 15.209 ConductedN/A Complied Spurious emission & Restricted band edges "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 2.0dB Freq.: 2390.0MHz Polarization: Vertical Detection: Average Mode: 11n-40 Tx 2422MHz Complied Power density "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (e) ConductedN/A See data Complied Note: UL Japan’s Work Procedures No. 13-EM-W0420 and 13-EM-W0422 Test report No. : 31KE0010-SH-A Page : 5 of 89 Issued date : August 1, 2011 FCC ID : AZDK30345 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 3.3 Addition to standard Item Test Procedure Spec…
Text truncated - open the document above for the full version.
DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/06/03 Company: CANON INC.Mode: 11b Tx 2412MHz Kind of EUT: Wireless LAN ModuleReport No.: 31KE0010-SH-A Model No.: K30326Power: AC120V/60Hz Serial No.: 3Temp./Humi.: 25deg.C / 53% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Minoru Nakatake Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-05 Limit1(QP) Limit2(AV) N Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 Limit1(QP) Limit2(AV) L1 Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 㻝㻢 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/06/03 Company: CANON INC.Mode: 11b Tx 2437MHz Kind of EUT: Wireless LAN ModuleReport No.: 31KE0010-SH-A Model No.: K30326Power: AC120V/60Hz Serial No.: 3Temp./Humi.: 25deg.C / 53% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Minoru Nakatake Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-05 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1500028.0---12.640.6---66.056.025.4---N 20.2249035.623.812.548.136.362.652.614.516.3N 30.3370924.7---12.537.2---59.249.222.0---N 40.6735018.1---12.630.7---56.046.025.3---N 520.2866422.2---13.535.7---60.050.024.3---N 626.5621523.3---13.636.9---60.050.023.1---N 70.1500028.3---12.640.9---66.056.025.1---L1 80.2255035.022.012.547.534.562.652.615.118.1L1 90.3366924.7---12.537.2---59.249.222.0---L1 100.6739010.8---12.623.4---56.046.032.6---L1 1120.2857019.9---13.533.4---60.050.026.6---L1 1226.5602013.8---13.627.4---60.050.032.6---L1 17 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/06/03 Company: CANON INC.Mode: 11b Tx 2462MHz Kind of EUT: Wireless LAN ModuleReport No.: 31KE0010-SH-A Model No.: K30326Power: AC120V/60Hz Serial No.: 3Temp./Humi.: 25deg.C / 53% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Minoru Nakatake Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-05 Limit1(QP) Limit2(AV) N Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 Limit1(QP) Limit2(AV) L1 Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 㻝㻤 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/06/03 Company: CANON INC.Mode: 11g Tx 2412MHz Kind of EUT: Wireless LAN ModuleReport No.: 31KE0010-SH-A Model No.: K30326Power: AC120V/60Hz Serial No.: 3Temp./Humi.: 25deg.C / 53% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Minoru Nakatake Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-05 Limit1(QP) Limit2(AV) N Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 Limit1(QP) Limit2(AV) L1 Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 㻝㻥 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/06/03 Company: CANON INC.Mode: 11g Tx 2437MHz Kind of EUT: Wireless LAN ModuleReport No.: 31KE0010-SH-A Model No.: K30326Power: AC120V/60Hz Serial No.: 3Temp./Humi.: 25deg.C / 53% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Minoru Nakatake Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-05 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1500027.9---12.640.5---66.056.025.5---N 20.2250035.323.412.547.835.962.652.614.816.7N 30.3373024.2---12.536.7---59.249.222.5---N 40.6739017.7---12.630.3---56.046.025.7---N 521.6304522.2---13.535.7---60.050.024.3---N 627.1212923.0---13.636.6---60.050.023.4---N 70.1500028.2---12.640.8---66.056.025.2---L1 80.2247035.422.512.547.935.062.652.614.717.6L1 90.3373024.5---12.537.0---59.249.222.2---L1 100.6731010.8---12.623.4---56.046.032.6---L1 1121.6307017.9---13.531.4---60.050.028.6---L1 1227.1220513.4---13.627.0---60.050.033.0---L1 20 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/06/03 Company: CANON INC.Mode: 11g Tx 2462MHz Kind of EUT: Wireless LAN ModuleReport No.: 31KE0010-SH-A Model No.: K30326Power: AC120V/60Hz Serial No.: 3Temp./Humi.: 25deg.C / 53% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Minoru Nakatake Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-05 Limit1(QP) Limit2(AV) N Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 Limit1(QP) Limit2(AV) L1 Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 㻞㻝 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/06/03 Company: CANON INC.Mode: 11n-20 Tx 2412MHz Kind of EUT: Wireless LAN ModuleReport No.: 31KE0010-SH-A Model No.: K30326Power: AC120V/60Hz Serial No.: 3Temp./Humi.: 25deg.C / 53% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer:: Minoru Nakatake Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-05 Limit1(QP) Limit2(AV) N Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 Limit1(QP) Limit2(AV) L1 Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.71235710…
Text truncated - open the document above for the full version.
Test report No. : 31KE0010-SH-A Page : 13 of 89 Issued date : August 1, 2011 FCC ID : AZDK30345 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 1: Photographs of test setup Conducted emission Front view Side view Test report No. : 31KE0010-SH-A Page : 14 of 89 Issued date : August 1, 2011 FCC ID : AZDK30345 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 31KE0010-SH-A Page : 15 of 89 Issued date : August 1, 2011 FCC ID : AZDK30345 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis
