AZDK30356WLAN Module

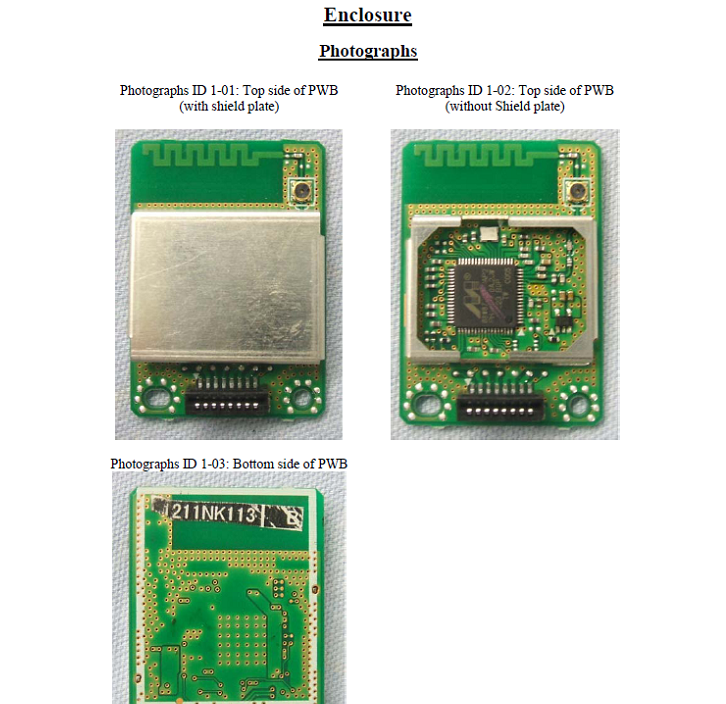

K30356 WLAN Module Photo

1. Label putting ラベルはエッジを基準にして貼る。 Paste the label based on the edge of PCB. サイドはシルクからはみ出ない事。 Stick out from the encircled silk screen is prohibited. 上はチェックパットに掛からないこと。 Paste the label not to interfere with the check pad at upper side. WLAN LABEL Upper side

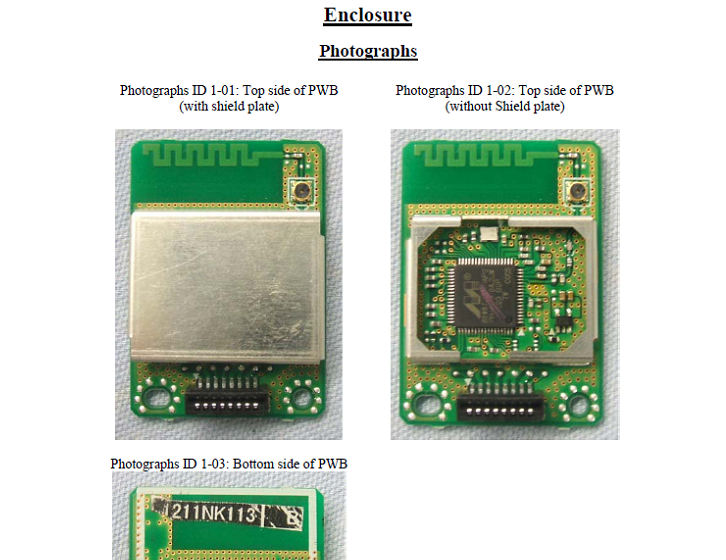

K30356 WLAN Module Photo

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht Carsten Steinröder 14/03/2013 Phone +49 (0) 2102 749 331 Fax +49 (0) 2102 749 350 FCC-ID : AZDK30356 Maximum Permissible Exposure calculation Dear Mr. Vos, please find here our Maximum Permissible Exposure calculations for the CANON 30356. Best Regards i.V. Carsten Steinröder Telefication B.V. Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands MDE_CANON_1301 - 2 - Maximum Permissible Exposure (as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure) Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 Calculations 2400-2483.5 MHz band Maximum peak output power at antenna input terminal for WiFi module: 0.165 W Prediction distance R: 20 cm Prediction frequency: 2.4 GHz Prediction Antenna Gain G: 1.08 dBi MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible power density: 0.00421 mW/cm² => Delta to MPE Limit: 0.9579 mW/cm²

Antenna Spec Sheet CANON INC. Model NamePattern Antenna Network Technology Development Div.1 P/Ncanon-ant-2012-02-1 Network System Development Center Antenna TypeMeander Line2012/02/10 Peak Gain 1.08dBiRev.1.0 Center Frequency2370MHz BandwidthVSWR3.0 300MHz Appearance FPtS11 Appearance Frequency PropertyS11 Radiation Pattern V H Peak Gain: 4.29dBi YZ Plane2400MHz Peak Gain: 1.08dBi XY PlaneFrequency;2.40GHz Peak Gain: 0.75dBi XYPlaneFrequency;2.45GHz Peak Gain: 0.77dBi YZPlaneFrequency;2.5GHz

Test report No. : 10005018S-A Page : 1 of 69 Issued date : February 21, 2013 FCC ID : AZDK30356 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10005018S-A Applicant : Canon Inc. Type of Equipment : Wireless LAN Module Model No. : K30356 FCC ID : AZDK30356 Test regulation : FCC Part15 Subpart C: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: February 7 to 16, 2013 Tested by: Shinichi Takano Engineer of WiSE Japan, UL Verification Service Approved by : Go Ishiwata Manager of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10005018S-A Page : 2 of 69 Issued date : February 21, 2013 FCC ID : AZDK30356 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10005018S-A Revision Test report No. Date Page revised Contents - (Original) 10005018S-A February 21, 2013 - - Test report No. : 10005018S-A Page : 3 of 69 Issued date : February 21, 2013 FCC ID : AZDK30356 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: Conducted emission ............................................................................................ 9 SECTION 6: Radiated emission ............................................................................................. 10 SECTION 7: Out of band emissions (Antenna port conducted) ......................................... 13 SECTION 8: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 13 SECTION 9: Maximum peak output power .......................................................................... 13 SECTION 10: Peak power density ......................................................................................... 13 Contents of APPENDIXES ....................................................................................................... 14 APPENDIX 1: Data of Radio tests .......................................................................................... 15 APPENDIX 2: Test instruments ............................................................................................. 65 APPENDIX 3: Photographs of test setup ............................................................................... 67 Test report No. : 10005018S-A Page : 4 of 69 Issued date : February 21, 2013 FCC ID : AZDK30356 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Canon Inc. Address : 3-451 Tsukagoshi, Saiwai-ku, Kawasaki, Kanagawa 212-8530, Japan Telephone Number : +81-44-542-2111 Facsimile Number : +81-44-548-7513 Contact Person : Kenichi Nampei SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model Number : K30356 Serial Number : See Section 4. Rating : DC3.6V Country of Mass-production : Thailand, Vietnam Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : February 7, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: K30356 (referred to as the EUT in this report) is a Wireless LAN Module. Clock frequency(ies) in the system : 40MHz <Radio part> Equipment type : Transceiver Frequency of operation : 2412-2462MHz (IEEE 802.11b, 11g, 11n-HT20) 2422-2452MHz (IEEE 802.11n-HT40) Bandwidth : 20MHz (IEEE 802.11b, 11g, 11n-HT20), 40MHz (IEEE 802.11n-HT40) Channel spacing : 5MHz Type of modulation : DSSS (IEEE 802.11b), OFDM (IEEE 802.11g/n) Antenna type : Pattern antenna (meander) Antenna connector type : U.FL Antenna gain : 1.08 dBi ITU code : D1D, G1D Operation temperature range : -5 to +55 deg.C FCC 15.31 (e) / 212 The Wireless LAN Module has its own regulator. The Wireless LAN Module is constantly provided voltage (DC3.1V) through the regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 / 212 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement. The antenna connector is a unique type and not used by end user. Test report No. : 10005018S-A Page : 5 of 69 Issued date : February 21, 2013 FCC ID : AZDK30356 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3…

Text truncated - open the document above for the full version.

Test report No. : 10005018S-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front view Side view 67 Test report No. : 10005018S-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) 68 Test report No. : 10005018S-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT 69 / 69
