AZDK30365Wireless LAN module

改訂：2014/01/21 User Manual Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID: AZDK30365 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. [for IC] Contains Transmitter Module IC: 498C-K30365 The following statements must be described on the user manual of the host device of this module; [for FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. [for IC] This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps.

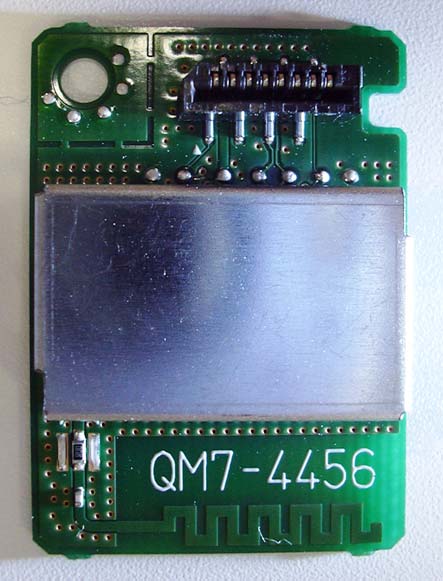

External Photo Model No : K30365

㻷㻷㻟㻜㻟㻢㻡㻌㼘㼍㼎㼑㼘㻌㼘㼛㼏㼍㼠㼕㼛㼚㻌 㻌

Internal Photo Model No : K30365

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Canon Inc. Type of Equipment : W ireless LAN M odule M odel No. : K 30365 FCC ID: AZDK30365 Canon Inc. declares that M odel : K30365 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. RF Exposure Calculations: The following inform ation provides the m inim um separation distance for the highest gain antenna provided with the “K30365“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system , considering m axim um power and antenna gain, and considering a 1.0m W /cm ^2 uncontrolled exposure lim it. The Friis form ula used was: S = (P * G) / (4* π * r 2 ) Where P = 134.59 mW (M aximum peak output pow er w ith tolerance (+2dB )) G = 0.81 Numerical Antenna gain; equal to -0.92 dBi r =20.0 cm For: K 30365S = 0.02166 mW/cm 2 No. : 10420214S-D RF Exposure / SAR Statement

Test report No. : 10420214S-D Page : 1 of 52 Issued date : September 2, 2014 FCC ID : AZDK30365 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10420214S-D Applicant : Canon Inc. Type of Equipment : Wireless LAN Module Model No. : K30365 FCC ID : AZDK30365 Test regulation : FCC Part15 Subpart C: 2014 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: July 28 to August 13, 2014 Tested by: Shinichi Takano Engineer Consumer Technology Division Approved by : Ichiro Isozaki Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10420214S-D Page : 2 of 52 Issued date : September 2, 2014 FCC ID : AZDK30365 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10420214S-D Revision Test report No. Date Page revisedContents - (Original) 10420214S-D September 2, 2014 - - Test report No. : 10420214S-D Page : 3 of 52 Issued date : September 2, 2014 FCC ID : AZDK30365 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: Conducted emission .......................................................................................... 10 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 11 SECTION 7: Maximum peak conducted output power ....................................................... 11 SECTION 8: Out of band emissions (Antenna port conducted) ......................................... 11 SECTION 9: Peak power density ........................................................................................... 11 SECTION 10: Radiated emission ........................................................................................... 12 Contents of APPENDIXES ....................................................................................................... 14 APPENDIX 1: Data of Radio tests .......................................................................................... 15 APPENDIX 2: Test instruments ............................................................................................. 49 APPENDIX 3: Photographs of test setup ............................................................................... 50 Test report No. : 10420214S-D Page : 4 of 52 Issued date : September 2, 2014 FCC ID : AZDK30365 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Canon Inc. Brand name : Canon Address : 3-451 Tsukagoshi, Saiwai-ku, Kawasaki, kanagawa 212-8530 Japan Telephone Number : +81-44-542-2111 Facsimile Number : +81-44-548-7513 Contact Person : Kenichi Nampei SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model Number : K30365 Serial Number : Refer to 4.2 Rating : DC3.3V Country of Mass-production : Thailand, Vietnam Condition of EUT : Engineering prototype (Not for sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : July 28, 2014 Modification of EUT : No modification by the test lab. 2.2 Product description Model: K30365 (referred to as the EUT in this report) is a Wireless LAN Module. The clock frequencies used in the EUT: 38.4MHz Radio specification Equipment type : Transceiver Frequency of operation : 2412-2462MHz (IEEE 802.11b, 11g, 11n(HT20)) Bandwidth : 20MHz (IEEE 802.11b, 11g, 11n(HT20)) Channel spacing : 5MHz Type of modulation : DSSS (IEEE 802.11b), OFDM (IEEE 802.11g/n) Antenna type : Pattern antenna (meander) Antenna connector type : U.FL Antenna gain : -0.92 dBi ITU code : D1D, G1D Operation temperature range : -5 to +55 deg.C FCC 15.31 (e) / 212 The module is constantly provided the stable voltage from the host device regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 / 212 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement. The antenna connector is a unique type and not used by end user. Test report No. : 10420214S-D Page : 5 of 52 Issued date : September 2, 2014 FCC ID : AZDK30365 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart 2014, fin…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Test report No. : 10420214S-D 50 of 52 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 10420214S-D 51 of 52 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT Test report No. : 10420214S-D 52 of 52
