B5DB115Non Broadcast Transmitter

Preliminary Users Manual, Telex SAFE-1000 System. Telex Model SAFE-1000 Wireless Microphone Receiver. Telex Model SAFE-WT Wireless Beltpack Transmitter. Telex Model SAFE-HT Wireless Handheld Transmitter. The components above form the Telex “SAFE-1000” Professional Grade DIGITAL Wireless Microphone System. The system is designed to be used in professional installations where Sound Quality and Reliability are of prime importance. Auto-set features and simplicity of operation are assured along with flexibility for varying venues. These features save valuable installation time at the outset and in the future to help prevent “recalls”. The features of the “SAFE-1000” system such as user programmable frequencies or pre-programmed frequency sets mean that other users such as Rental Houses with itenerant operations will spend the least amount of time feasible during set-up. Features: Receiver.... • In-Line Receiver Power Supply saves terminal strip occupation. • International Power Supplies and cordsets off the shelf. • Phase Locked Frequencies for stable Operation. • 950 Radio Channels, user programmable or factory installed. • LCD Displays for ease of viewing. • Patented Phase Diversity System. • Control port for relay closure. • Adjustable Line Level ¼ inch output jack. • Fixed Microphone Level XLR output jack. • Front Panel Power ON/OFF Switch. • Quadruple Tuned Ceramic Resonator front end for superior interference rejection. • SAW Filter 1 st I.F for out of band rejection. • Triple ceramic filters in 2 nd I.F for adjacent channel rejection.. • Double Tuned Quadrature circuit for low audio distortion. • Permanent Flash Memory for frequency/system storage. Telex SAFE-1000 Page 2 • Front Panel Software Control of Squelch settings with channel monitor. • Double Squelch. Amplitude and Tone Squelch system prevents false squelch. • Auto-Select of frequencies speeds set-up time. • Rugged Steel Case with Powder Coat Paint. • Modern front panel design with tamper resistant control cover. Handheld Transmitter...... • 950 Radio Channels, user programmable or factory installed. • Phase Locked Frequencies for Stable Operation. • Efficient current drain vs. power system. • High/Low power switch for range cut/boost or intermod reduction. • Patented Internal Dipole antenna eliminates wires or “rubber duck” antennas. • Removable Heads allow personal selection of available heads. • Specially shaped Handle with “softpaint” for comfort and low handling noise. • 9 Volt Alkaline “rattle-proof” battery area. • Low Profile Audio Mute and Power Switch. • LCD Display for ease of viewing. • On-board frequency program and menu switch. • Digital modulation for clarity and signal to noise improvement. • Permanent “Flash Memory” for frequency/system storage. • Transmit Tone for squelch control. • Microphone Gain control for talent/head set-up. • Low Battery LED. Telex SAFE-1000 Page 3 Beltpack Transmitter..... • 950 Radio Channels, user programmable or factory installed. • Phase Locked Frequencies for Stable Operation. • Efficient current drain vs. power system. • High/Low power switch for range cut/boost or intermod reduction. • Flexible wire rope replaceable antenna. • Microphone/Instrument input connector for personal selection of microphones/instruments or ease of cord change. • Digital modulation for clarity and signal to noise improvement. • Rugged Die Cast housing with wear resistant spatter paint coating. • Non detachable battery door with dual latches. • 9 Volt Alkaline battery operation. Telex Model SAFE-1000 UHF Wireless Microphone Receiver The Telex Model SAFE-1000 Receiver is a 950 Channel, frequency-selectable full diversity system operating within the frequency range of 520.0 to 608 and 614 to 746.0 MHz, on specific pre-set bands of frequencies with designated systems for UHF Television Channels . distance away from the area where the FMR-1000 is to be used, Channel spacing has been computer calculated and programmed to minimize receiver interference. Systems of SAFE-1000 and its companion transmitters are capable of operating on at least 5 sets of frequencies in a single TV channel simultaneously, sometimes more depending on the individual venue. Certain frequencies can be combined to form a system of 16. Digital frequency control of the SAFE-1000 permits flexibility within a given area and assures confidence in the equipment capability. Telex Model SAFE-1000 System Specifications: General: (System) Operating Frequency Range.................520-608 and 614-746 MHz in 24 MHz wide bands. Frequency Stability........................... 50 PPM. Channels.......................................950 (25 KHz steps). RF Power Output.......5 mW Low, 50 mW High, typical (terminated). Modulation Type......NFSK, 200f1E......FM, 40 KHz Deviation. Audio Frequency Range......................30-7000 Hz, +/- 2 db. Audio Frequency Distortion..................0.5 % THD @ 1000 Hz typical. Audio Frequency Dynamic Range...........100 db. Audio Frequency Signal/Noise Ratio........100 db. Temperature Range.............................-18 deg.C to 54 deg. C. SAFE-1000 Receiver: Sensitivity......................................0.8 uV for 12 db SINAD Nominal. Image Rejection...............................60 db minimum. Spurious Rejection............................60 db minimum, Selectivity......................................230 KHz at 6 db points. Modulation Acceptance.......................40 KHz nominal deviation. Squelch Type...................................Tone with Amplitude Backup. Squelch Adjustment Range...................0 to 30 uV Typical. Squelch Quieting...............................100 db. Audio Output, mic level.......................-20 dbu. Audio Output, line level.......................0 dbm (0.775 V RMS-600 Ohm RL). Audio Signal to Noise ratio...................94 db A Weighted. Audio Distortion (system).....................0.5 % at 1 KHz MF Typical. Audio Frequency Response,........30-7000 Hz, +/- 2 db system. T…

Text truncated - open the document above for the full version.

September 24, 2002 FCC Electronic Filing Applicant: Telex Communications, Inc. Equipment: FCC ID: B5DB115 EA260705 Reference: FORM 731 Frequency Ranges TO WHOM IT MAY CONCERN: Please be advised that the frequency ranges for this radio should be518 – 608(not 602) and614 – 746. This is your authorization to change the Form 731 so that it will the Grant will be correct. Thank you. Sincerely yours, Morton Flom, P. Eng.

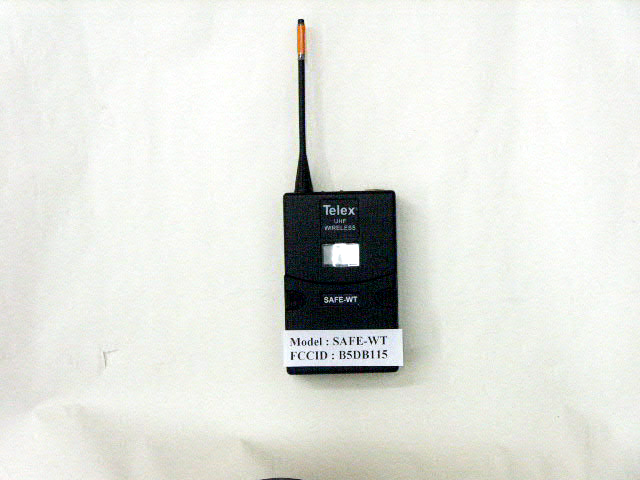

ID LABEL / LOCATION INFO

FCC ID: B5DB115 MFA p0290011, d0290046 Date: September 19, 2002 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Telex Communications, Inc. Equipment: Telex SAFE-WT FCC ID: B5DB115 FCC Rules: 74H, Confidentiality Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. enclosure(s) cc: Applicant MF/cva FCC ID: B5DB115 MFA p0290011, d0290046 LIST OF EXHIBITS (FCC CERTIFICATION (TRANSMITTERS) - REVISED 9/28/98) APPLICANT: Telex Communications, Inc. FCC ID: B5DB115 BY APPLICANT: 1. LETTER OF AUTHORIZATION x 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) x LABEL x LOCATION OF LABEL COMPLIANCE STATEMENT LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) x 4. DOCUMENTATION: 2.1033(c) (3) USER MANUAL x (9) TUNE UP INFO x (10) SCHEMATIC DIAGRAM x (10) CIRCUIT DESCRIPTION x BLOCK DIAGRAM x PARTS LIST x ACTIVE DEVICES x 5. PART 90.203(e) & (g) ATTESTATION N/A 6. REQUEST FOR CONFIDENTIALITY x BY M.F.A. INC. A. TESTIMONIAL & STATEMENT OF CERTIFICATION B. STATEMENT OF QUALIFICATIONS FCC ID: B5DB115 MFA p0290011, d0290046 T R A N S M I T T E R C E R T I F I C A T I O N of FCC ID: B5DB115 MODEL: Telex SAFE-WT to FEDERAL COMMUNICATIONS COMMISSION Rule Part(s) 74H, Confidentiality DATE OF REPORT: September 19, 2002 ON THE BEHALF OF THE APPLICANT: Telex Communications, Inc. AT THE REQUEST OF : P.O. 264117 Telex Communications, Inc. 8601 E. Cornhusker Highway P.O. Box 5579 Lincoln, NE 68505-5579 Attention of: Charles E. Conner, Project Engineer (402) 467-5321; FAX: -3279 E-mail: [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: B5DB115 MFA p0290011, d0290046 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: B5DB115 MFA p0290011, d0290046 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 5 . Standard Test Conditions and Engineering Practices 6 2.1046(a) Carrier Output Power (Conducted) 7 2.1046(a) ERP Carrier Power (Radiated) 9 2.1051 Unwanted Emissions (Transmitter Conducted) 10 2.1053(a) Field Strength of Spurious Radiation 14 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 18 2.1055(a)(1) Frequency Stability (Temperature Variation) 24 2.1055(b)(1) Frequency Stability (Voltage Variation) 27 2.202(g) Necessary Bandwidth and Emission Bandwidth 28 FCC ID: B5DB115 MFA p0290011, d0290046 PAGE NO. 1 of 28. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0290046 d) Client: Telex Communications, Inc. 8601 E. Cornhusker Highway P.O. Box 5579 Lincoln, NE 68505-5579 e) Identification: Telex SAFE-WT FCC ID: B5DB115 EUT Description: Non Broadcast Transmitter f) EUT Condition: Not required unless specified in individual tests. g) Report Date: September 19, 2002 EUT Received: September 16, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: B5DB115 MFA p0290011, d0290046 PAGE NO. 2 of 28. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 74H, Confidentiality Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Telex Communications, Inc. 8601 E. Cornhusker Highway P.O. Box 5579 Lincoln, NE 68505-5579 MANUFACTURER: Telex Communications, Inc. (c)(2): FCC ID: B5DB115 MODEL NO: Telex SAFE-WT (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: 171K0F1E (c)(5): FREQUENCY RANGE, MHz : 518 to 602 614 to 746 (c)(6): POWER RATING: 10mw to 50 mw Switchable Variable x N/A FCC GR…
