B5DH217Wireless Micro Transmitter

Preliminary Users Manual, Telex FMR-1000 System. Telex Model FMR-1000 Wireless Microphone Receiver. Telex Model WT-1000 Wireless Beltpack Transmitter. Telex Model HT-1000 Wireless Handheld Transmitter. The components above form the Telex “1000” Professional Grade Wireless Microphone System. The system is designed to be used in professional installations where Sound Quality and Reliability are of prime importance. Auto-set features and simplicity of operation are assured along with flexibility for varying venues. These features save valuable installation time at the outset and in the future to help prevent “recalls”. The features of the “1000” system such as user programmable frequencies or pre-programmed frequency sets mean that other users such as Rental Houses with itenerant operations will spend the least amount of time feasible during set-up. Features: Receiver.... • In-Line Receiver Power Supply saves terminal strip occupation. • International Power Supplies and cordsets off the shelf. • Phase Locked Frequencies for stable Operation. • 950 Radio Channels, user programmable or factory installed. • LCD Displays for ease of viewing. • Patented Phase Diversity System. • USB Port for uploading software improvements. • Control Port for remote COR or Relay closure. • Adjustable Line Level ¼ inch output jack. • Fixed Microphone Level XLR output jack. • Front Panel Power ON/OFF Switch. • Quadruple Tuned Ceramic Resonator front end for superior interference rejection. • SAW Filter 1 st I.F for out of band rejection. • Triple ceramic filters in 2 nd I.F for adjacent channel rejection.. • Double Tuned Quadrature circuit for low audio distortion. • On-board MIDAS EQ with Amplitude, Q (bandwidth) and Frequency controls. • Permanent Flash Memory for frequency/system storage. Telex FMR-1000 Page 2 • Front Panel Software Control of Squelch settings with channel monitor. • Double Squelch Amplitude and Tone Squelch system prevents false squelch. • Auto-Select of frequencies speeds set-up time. • Rugged Steel Case with Powder Coat Paint. • Modern front panel design with tamper resistant control cover. Handheld Transmitter...... • 950 Radio Channels, user programmable or factory installed. • Phase Locked Frequencies for Stable Operation. • Efficient current drain vs. power system. • High/Low power switch for range cut/boost or intermod reduction. • Patented Internal Dipole antenna eliminates wires or “rubber duck” antennas. • Removable Heads allow personal selection of available heads. • Specially shaped Handle with “softpaint” for comfort and low handling noise. • 9 Volt Alkaline “rattle-proof” battery area. • Low Profile Audio Mute and Power Switch. • LCD Display for ease of viewing. • On-board frequency program and menu switch. • Superior MIDAS microphone pre-amp design. • Permanent “Flash Memory” for frequency/system storage. • Transmit Tone for squelch control. • Microphone Gain control for talent/head set-up. • Low Battery LED. Beltpack Transmitter..... • 950 Radio Channels, user programmable or factory installed. • Phase Locked Frequencies for Stable Operation. • Efficient current drain vs. power system. • High/Low power switch for range cut/boost or intermod reduction. • Flexible wire rope replaceable antenna. Telex FMR-1000 Page 3 • Microphone/Instrument input connector for personal selection of microphones/instruments or ease of cord change. • Rugged Die Cast housing with wear resistant spatter paint coating. • Non detachable battery door with dual latches. • 9 Volt Alkaline battery operation. Telex Model FMR-1000 UHF Wireless Microphone Receiver The Telex Model FMR-1000 Receiver is a 950 Channel, frequency-selectable full diversity system operating within the frequency range of 520.0 to 746.0 MHz, on specific pre-set bands of frequencies with designated systems for UHF Television Channels . This configuration allows some operation even if several TV channels are in use locally. If any of the TV channels are some distance away from the area where the FMR-1000 is to be used, some of the FMR- 1000 channels can also be used in those channels , with some risk of minor interference. Channel spacing has been computer calculated and programmed to minimize interference. Systems of FMR-1000 and its companion transmitters are capable of operating on at least 5 sets of frequencies in a single TV channel simultaneously, sometimes more depending on the individual venue. Certain frequencies can be combined to form a system of 16. Digital frequency control of the FMR-1000 permits flexibility within a given area and assures confidence in the equipment capability. Specifications: General: (System) Operating Frequency Range.................520-608 and 614-746 MHz in 24 MHz wide bands. Frequency Stability........................... 50 PPM. Channels.......................................950 (25 KHz steps). RF Power Output.......5 mW Low, 100 mW High, typical (terminated). Modulation Type..............................FM, 40 KHz Deviation. Audio Frequency Range......................30-15000 Hz, +/- 2 db. (30-15000 Hz instruments) (80-15000 Hz microphones). Audio Frequency Distortion..................0.5 % THD @ 1000 Hz. Audio Frequency Dynamic Range...........100 db. Audio Frequency Signal/Noise Ratio........100 db. Temperature Range.............................-18 deg.C to 54 deg. C. Telex FMR-1000 System Page 4 FMR-1000 Receiver: Sensitivity......................................0.8 uV for 12 db SINAD Nominal. Image Rejection...............................60 db minimum. Spurious Rejection............................60 db minimum, Selectivity......................................180 KHz at –6 db points. Modulation Acceptance.......................40 KHz nominal deviation. Squelch Type...................................Tone with Amplitude Backup. Squelch Adjustment Range...................0 to 30 uV Typical. Squelch Quieting...............................100 db. Audio Output, mic level.......................-20 dbu.…

Text truncated - open the document above for the full version.

ID LABEL / LOCATION INFO

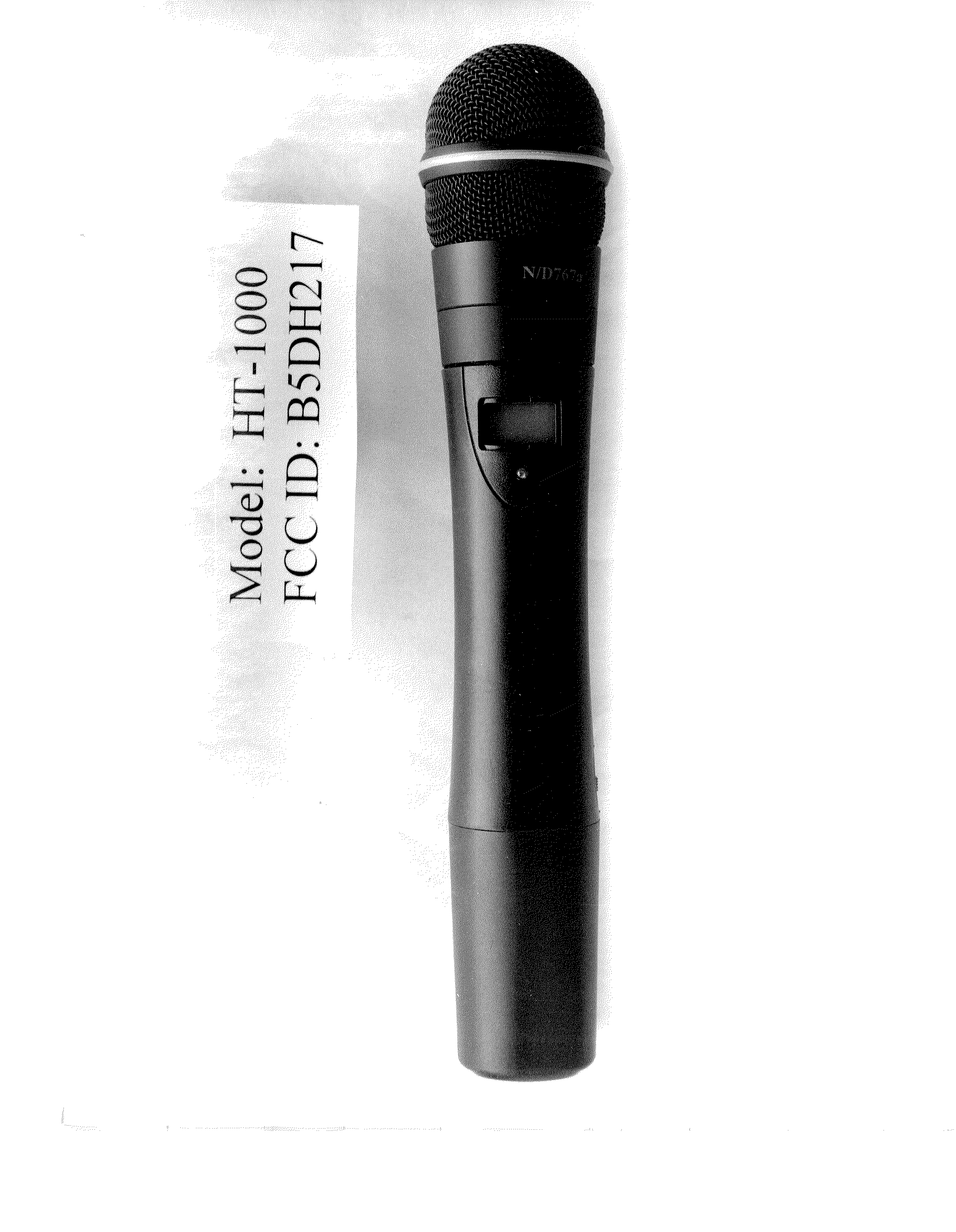

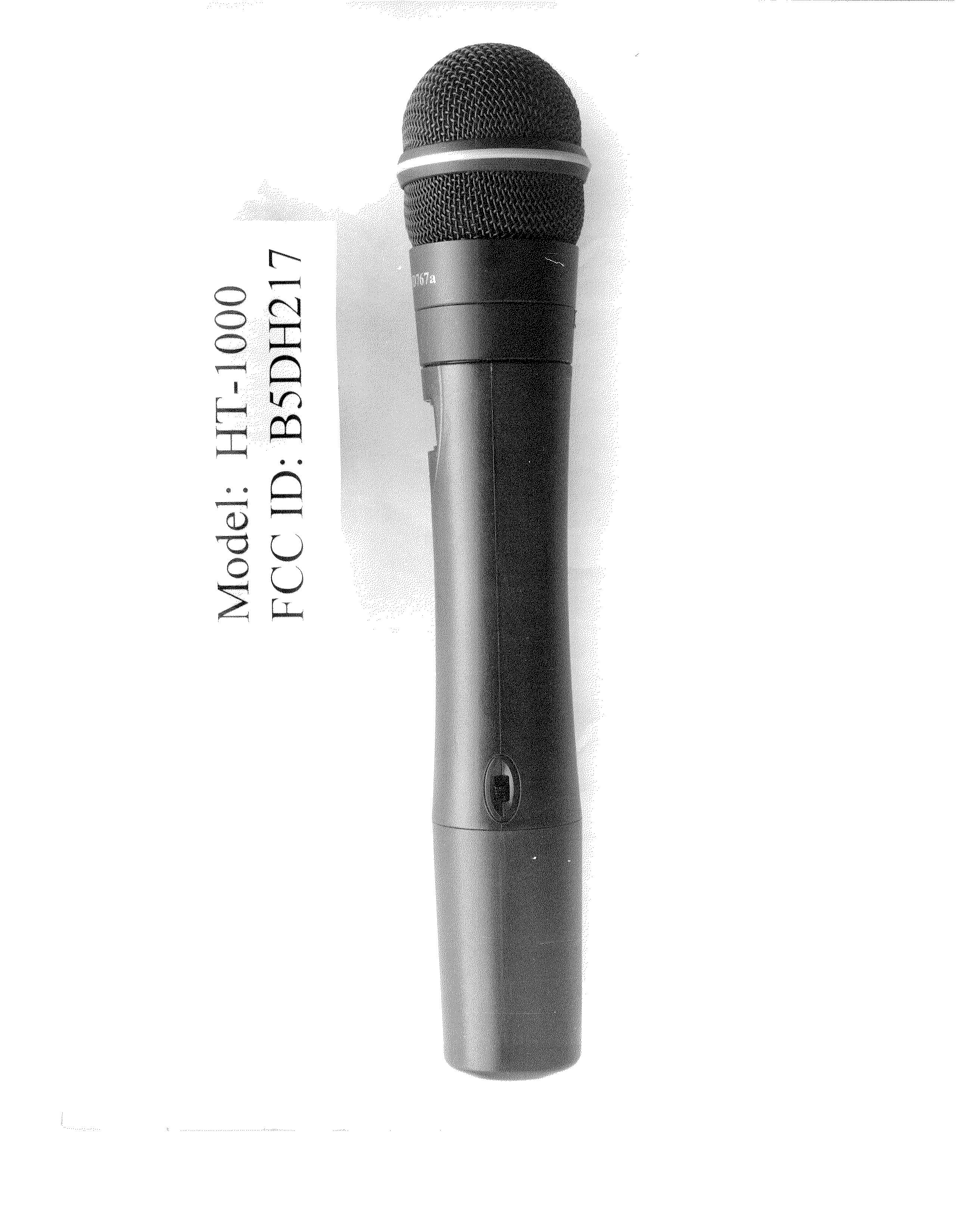

FCC ID: B5DH217 MFA p0230012, d0240002 Date of Report: Date of Submission: April 4, 2002 April 10, 2002 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Telex Communications, Inc. Equipment: Telex HT-1000 FCC ID: B5DH217 FCC Rules: 74H, Confidentiality Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. enclosure(s) cc: Applicant MF/jmm FCC ID: B5DH217 MFA p0230012, d0240002 LIST OF EXHIBITS (FCC CERTIFICATION (TRANSMITTERS) - REVISED 9/28/98) APPLICANT: Telex Communications, Inc. FCC ID: B5DH217 BY APPLICANT: 1. LETTER OF AUTHORIZATION x 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) x LABEL x LOCATION OF LABEL x COMPLIANCE STATEMENT x LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) x 4. CONFIDENTIALITY REQUEST: 0.457 and 0.459 5. DOCUMENTATION: 2.1033(c) (3) USER MANUAL x (9) TUNE UP INFO x (10) SCHEMATIC DIAGRAM x (10) CIRCUIT DESCRIPTION x BLOCK DIAGRAM x PARTS LIST x ACTIVE DEVICES x 6. CALCULATED MPE REPORT x BY M.F.A. INC. A. TESTIMONIAL & STATEMENT OF CERTIFICATION B. STATEMENT OF QUALIFICATIONS FCC ID: B5DH217 MFA p0230012, d0240002 T R A N S M I T T E R C E R T I F I C A T I O N of FCC ID: B5DH217 MODEL: Telex HT-1000 to FEDERAL COMMUNICATIONS COMMISSION Rule Part(s) 74H, Confidentiality DATE OF REPORT: April 2, 2002 ON THE BEHALF OF THE APPLICANT: Telex Communications, Inc. AT THE REQUEST OF : P.O. 253989 Telex Communications, Inc. 8601 E. Cornhusker Highway P.O. Box 5579 Lincoln, NE 68505-5579 Attention of: Charles E. Conner, Project Engineer (402) 467-5321; FAX: -3279 E-mail: [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: B5DH217 MFA p0230012, d0240002 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: B5DH217 MFA p0230012, d0240002 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 5 . Standard Test Conditions and Engineering Practices 6 2.1046(a) Carrier Output Power (Conducted) 7 2.1046(a) ERP Carrier Power (Radiated) 9 2.1051 Unwanted Emissions (Transmitter Conducted) 10 2.1053(a) Field Strength of Spurious Radiation 13 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 17 2.1047(a) Audio Frequency Response 25 2.1047(b) Modulation Limiting 27 2.1055(a)(1) Frequency Stability (Temperature Variation) 29 2.1055(b)(1) Frequency Stability (Voltage Variation) 32 2.202(g) Necessary Bandwidth and Emission Bandwidth 33 FCC ID: B5DH217 MFA p0230012, d0240002 PAGE NO. 1 of 33. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0240002 d) Client: Telex Communications, Inc. 8601 E. Cornhusker Highway P.O. Box 5579 Lincoln, NE 68505-5579 e) Identification: Telex HT-1000 FCC ID: B5DH217 EUT Description: Wireless Microphone Transmitter f) EUT Condition: Not required unless specified in individual tests. g) Report Date: April 2, 2002 EUT Received: March 25, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: B5DH217 MFA p0230012, d0240002 PAGE NO. 2 of 33. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 74H, Confidentiality Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Telex Communications, Inc. 8601 E. Cornhusker Highway P.O. Box 5579 Lincoln, NE 68505-5579 MANUFACTURER: Applicant (c)(2): FCC ID: B5DH217 MODEL NO: Telex HT-1000 (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: 91K0F3E (c)(5): FREQUENCY RANGE, MHz : 722…

Text truncated - open the document above for the full version.

FCC ID: B5DH217 MFA p0230012, d0240002 PAGE NO.26 of 33. NAME OF TEST: Audio Frequency Response g0230303: 2002-Mar-28 Thu 09:05:00 STATE: 0:General Frequency of Maximum Audio Response, Hz=14700 Additional points: FREQUENCY, Hz LEVEL, dB 300 6.38 20000 4.2 30000 -4.13 50000 -18.68 PERFORMED BY: Doug Noble, B.A.S. E.E.T. FCC ID: B5DH217 MFA p0230012, d0240002 PAGE NO.28 of 33. NAME OF TEST: Modulation Limiting g0230305: 2002-Mar-28 Thu 09:26:00 STATE: 0:General Positive Peaks: Negative Peaks: PERFORMED BY: Doug Noble, B.A.S. E.E.T.
