B5DH22550 mW Metal Handheld Transmitter

Page 1 Users Manual Electro-Voice Model REV-H Handheld Wireless Microphone Transmitter The Electro-Voice (Ev) REV-H is a Professional Grade Wireless Handheld Transmitter operating in the UHF frequency range. The REV-H combines frequency agility and ease of use like no other. The transmitter operates within a 24 MHz wide segment in 25 KHz steps. The high quality audio circuitry and advanced Radio Frequency (RF) signal processing offer broadcast quality signal-to-noise and audio clarity. The typical line-of- sight distances for the system may be up to 300 feet. System features include:  Durable Painted Metal Handle.  Permanent Flash Memory for frequency/setting storage.  On-Loc prevents accidental power off (when set).  LCD Display with Backlight for ease of viewing.  Internal top loaded monopole Antenna. Page 2 REV-H Controls and Connections: 1. Main Display – LCD. Display backlight – flashes when battery is low 2. Power On/Off Switch 3. Control Buttons – SET, UP and DOWN 4. Two AA Batteries 5. Battery Cover – Screw Type 6. Microphone Element Page 3 Quick set-up: 1. With the Power Switch on the transmitter OFF, install fresh batteries into the transmitter. 2. To prevent feedback or unintentional noise, mute the audio mixer/amplifier or other device during set-up adjustments. Place the transmitter Power Switch to the ON position. 3. The operating screen (display) light will come on momentarily. The display will current frequency group and channel and the battery level. Note: Anytime Power is removed and turned back on, the GP/CH/Bat screen will be displayed. 4. The screen will stop at the GP (Group) and CH (Channel) screen. If the Group and Channel match the desired receiver group and channel, Proceed to Step 11. If not, proceed to Step 5. 5. To select a different GP/CH, press SET one time. The Group will start flashing. Use the up and down arrows to change the group number. Press the SET button to save the Group. 6. After setting the Group, The Channel number will start flashing . Use the up/down arrows to change the Channel number. Press SET and the channel is now saved. 7. There are 10 Groups and up to 16 Channels (preferred groups/channels) stored in memory. If desired, you can create new groups/ channels but you must change to a new frequency to store in that group/channel. 8. In order to select a new frequency, you must have a “users” group /channel selected. Press the SET button. The Group should be flashing. Press the Up arrow until a group ending with u is found (any u group can be used) Press SET. The Channel should now be flashing. Select a channel with the up/down arrow. Press SET. 9. You are now ready to select a frequency to store in the users group above. Press and hold the set and down arrows at the same time for 3 seconds and release to go to the next screen function. Page 4 10. The next screen displays the operating frequency of the group/channel. If there is no frequency currently stored in the selected users group/channel, a dashed line will be shown. Press SET. The dashed line or frequency will start flashing. Press the up arrow one step at a time to find the desired frequency or hold down the up arrow to scroll through the frequencies quickly. The frequencies can be scrolled either way by the up/down buttons. When the desired frequency is showing, press SET. 11. Press and hold the set and down arrows at the same time for 3 seconds and release to go to the next screen function. 12. The next screen is the audio (microphone) level (attenuator) screen. Setting the level correctly depends on the microphone used and the person using the microphone. Setting the attenuator to “0”db is the same as setting a control to maximum gain. Setting the attenuator to –42 db is the same as setting a control to minimum gain. Each step of the attenuator equals 3 db. Setting the attenuator for the maximum Audio Meter reading on the receiver without peak distortion will produce the best signal to noise ratio. 13. The next screen is RF Power. The Transmit Power (RF) is shipped set to “Lo” for use with multiple frequency systems and the best battery life. “Hi power can be selected for longer distances or to suppress noise or interference. The nominal power in Hi is 50 milliwatts. 14. When power off is required, simply place the power Off-On switch in the OFF position. The display will then delay slightly to allow the receiver to shut down quietly. Page 5 REV-H Specifications RF Frequency range............................. 512.0 to 536.0 MHz. RF Channel Step................................. 25 KHz. RF Power..........................................Norm, 5 mW; High, 50 mW (typical). Modulation........................................ FM, 40 KHz Deviation nominal. Audio Frequency Response.................... 80-15000 Hz +/- 2 dB. Audio Attenuator Range........................ 42 dB. Microphone (Dynamic)........................ 150 Ohm. Antenna............................................ Top Loaded Monopole. Power..............................................Two AA Batteries. Battery Life (Alkaline).......................... 8-10 Hours Typical. Approval Information: (English) The Electro-Voice REV-H Transmitter is Type Accepted under United States Federal Communications Commission CFR 47, Part 74 and Certified to Industry Canada RSS- 123. The device also complies with CRF 47, Part 15 of the FCC Rules and Industry Canada ICES-003 rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. 3. Use only the manufacturer or dealer supplied accessories for this device. 4. This device must not be co-located or operated in conjunction with any other antenna or transmitter. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Licensing of …

Text truncated - open the document above for the full version.

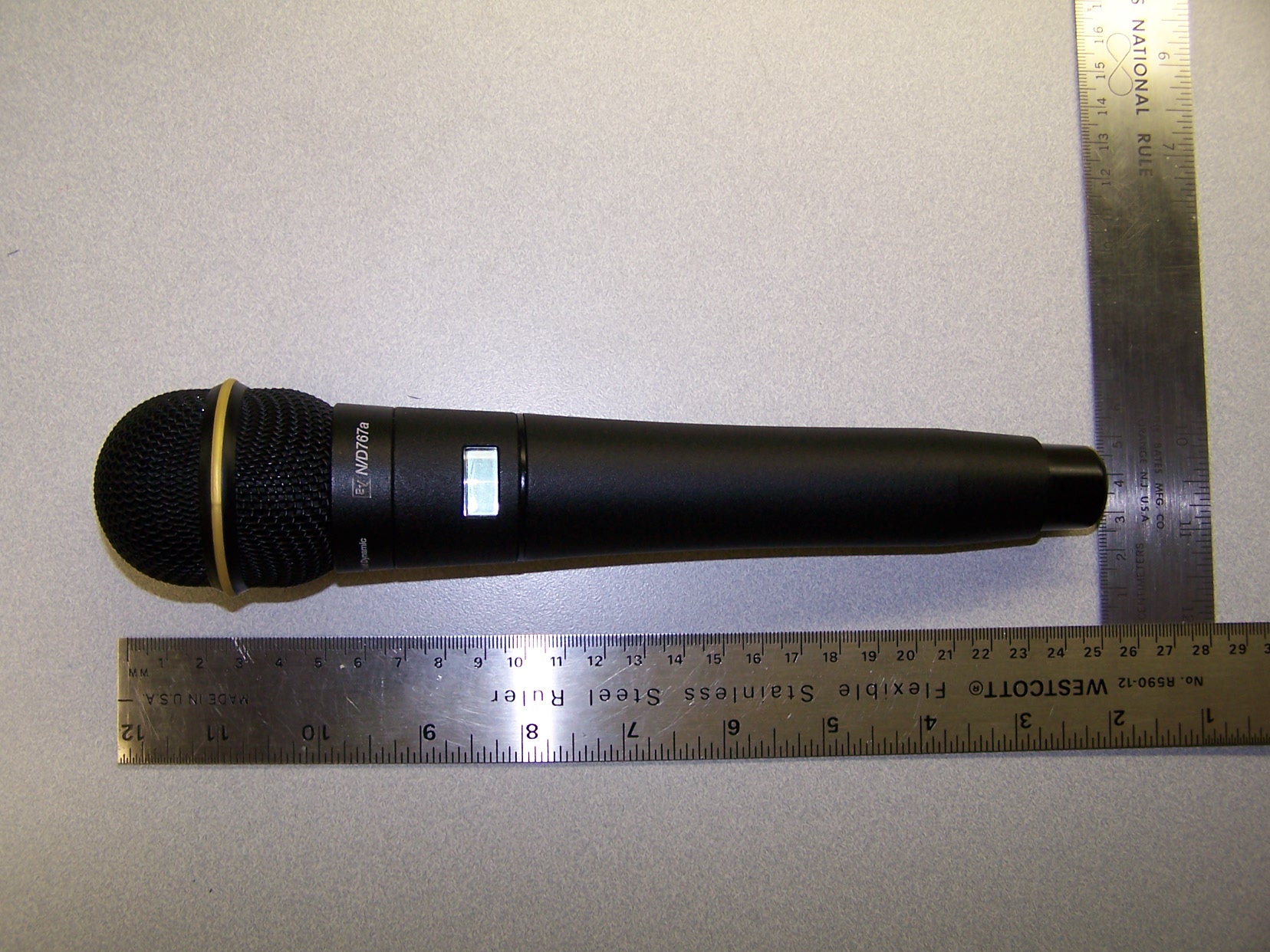

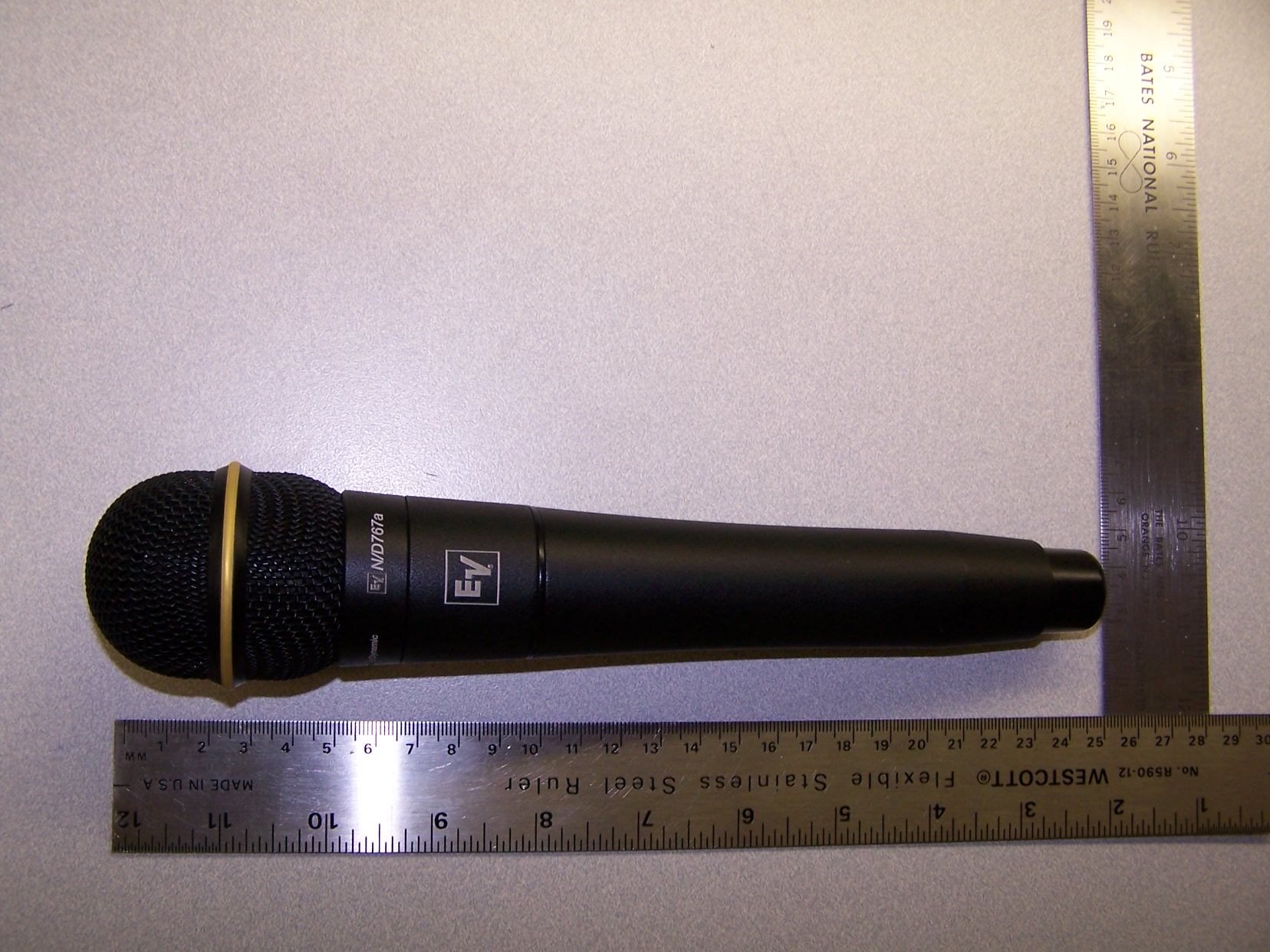

REV-H Front View REV-H Rear View REV-H Front View with Battery Cover Off

Dynacord | Electro-Voice | RTS | Telex BOSCH and the symbol are registered trademarks of Robert Bosch GmbH, Germany Communications Systems REV-H Label Location Bosch Security Systems, Inc. 8601 East Cornhusker Highway Lincoln, NE 68507, USA Tel. +1 402 467 5321 x6671 Fax +1 402 467 3279 [email protected] www.boschcommunications.com Label

REV-H Internal Overview REV-H Stack-Up of PCBs REV-H RF PCB Top REV-H RF PCB Bottom REV-H RF PCB Bottom without Shield

REV-H Display PCB Top REV-H Display PCB Bottom REV-H Micro/Power Supply PCB Top REV-H Micro/Power Supply PCB Bottom REV-H Audio PCB Top REV-H Audio PCB Bottom

REV-H Antenna PCB Top REV-H Antenna PCB Bottom REV-H Microphone Interface PCB Top REV-H Microphone Interface PCB Bottom REV-H Battery Contact PCB Top REV-H Battery Contact PCB Bottom

p1180009_FCC_Part 1.1310_Rev 1.0 Page 1 of 4 Test Report Prepared for: Bosch Security Systems, Inc Model: REV-H (512 - 536 MHz) Description: 50 mW Metal Handheld Transmitter To FCC Part 1.1310 Date of Issue: November 3, 2011 On the behalf of the applicant: Bosch Security Systems, Inc. 8601 E. Cornhusker Highway Lincoln, NE 68507 Attention of: Jim Andersen, Principal Electrical Engineer Ph: (402)467-5321 Fax: (602)489-5896 E-Mail: [email protected] Prepared by Compliance Testing, LLC 3356 N San Marcos Pl, Suite 107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1180009 John Erhard Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p1180009_FCC_Part 1.1310_Rev 1.0 Page 2 of 4 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 November 3, 2011 John Erhard Original Document p1180009_FCC_Part 1.1310_Rev 1.0 Page 3 of 4 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless noted in the table below Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC OATS Reg, #933597 IC Reg. #2044A-1 Non-accredited tests contained in this report: N/A p1180009_FCC_Part 1.1310_Rev 1.0 Page 4 of 4 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline, This is a portable device. 2. Measurement Results Tuned Frequency (MHz) Recorded Measurement (mW) Limit mW Result 512 41.87 117.2 Pass 524 45.60 114.5 Pass 536 42.26 111.9 Pass This is a portable device and the max peak output power is 45.6 mW). The peak output power is lower than the low threshold of 60/f GHz = (111.9 mW), for d<2.5 cm general population category. The SAR/MPE measurement is not necessary. END OF TEST REPORT
