B5DH227UHF WIRELESS MICROPHONE

UR-220S / 220D Series Professional UHF Wireless Microphones Installation and Operation Introduction..........................................................................................P3 Receiver Installation and Connections..................................................................P4 ·Installation................................................................................................P4 ·Connections................................................................................................P4 Receiver Controls and Functions........................................................................P5 UR-220S Front panel..........................................................................................P5 UR-220S Rear panel..........................................................................................P6 UR-220D Front panel..........................................................................................P7 UR-220D Rear panel..........................................................................................P9 Transmitter Controls and Functions.....................................................................P10 ·Handheld Microphone.................................................................................P10 ·Bodypack Transmitter..............................................................................P11 Transmitter Battery Installation........................................................................P12 System Setup................................................................................................P14 ·Receiver Setup..........................................................................................P14 ·Transmitter Setup.......................................................................................P15 Specifications...................................................................................................P17 ......... Thank you for choosing a RELACART professional wireless microphone system. You have joined thousands of other satisfied customers. Our years of professional experience of design and manufacturing to ensure our products' quality, performance and reliability. Contents SET SYNC SET SYNC ①EIA-standard metal 1/2 - rack receiver chassis, antenna diversity. ②The Handheld Transmitter offers durable, ergonomic metal bodies, soft-touch controls. ③Bright and easy-to-read LCD display shows RF/AF, diversity strengths; transmitter battery level; meanwhile, can set up selective channel, frequency, mute and other working status. ④Press the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency ⑤Press [IR] button to upload automatically the receiver frequency to the transmitter. ⑥PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "NoiseLock" squelch effectively blocks stray RF. ⑦Each channel 32 selectable frequencies, dual- channel total 768 selectable frequencies. ⑧Battery life is up to 15 hours. ⑨Designed for use on professional tours, concert halls and houses of worship. Stable functions, reliable and flexible performance, easy to install. Introduction Installation: ①For better operation the receiver should be at least 3ft. 1m above the ground and at least 3ft. away from a wall or metal surface to minimize reflections. ②Attached a pair of UHF antennas to the antenna input jacks, the antenna are normally positioned in the shape of a “V” (both 45°from vertical) for best reception. ③Keep antennas away from noise sources such as computer, digital equipment, motors, automobiles and neon lights, as well as away from large metal objects. ④Keep open space between the receiver and transmitter for better reception. ⑤The transmitter should be at least 3ft. from the receiver. Connections: ①The switching power supply is designed to operate properly from any AC power source 100-240V, 50/60Hz without user adjustment. Simply connect the receiver to a standard AC power outlet, using only an IEC-type input cordset approved for the country use. Power to the unit is controlled by the front panel power switch. ②There are two audio outputs on the rear panel: an XLR microphone output and a 1/4” (6.3mm) phone jack instrument output. The two isolated audio outputs permit simultaneous feeds to two different inputs. Use the appropriate shielded audio cable for connections between the receiver and the input (s) of the mixer or other equipment. 3, Receiver Controls and Functions () Receiver Installation and Connections Figure A: UR-220S Receiver Front Panel ①Power Switch：Press power switch in 3 seconds and the receiver readouts will light. ②Infrared Data Transfer Button (SYNC): Press this button to transmit the channel data from receiver to transmitter. ③Infrared Data Transfer Window (iR): Transmit channel data from the receiver to the transmitter, so that they are in the same frequency. ④LCD Window: Liquid Crystal Display indicates control setting and operational readings. See “System setup” on page X for details. ⑤UP / DOWN Buttons: A, Press Up or Down arrow button, in conjunction with the Set button, to step through menus, select operating frequency and edit receiver function choices. B, Press Up or Down arrow button 3 seconds and the receiver will auto-scan and lock on to an open, interference-free frequency. ②SET Button: Use in conjunction with the Up / Down arrow buttons to step through menus, choose operating frequency and select receiver function options. Receiver Controls and Functions Figure B: UR-220S Receiver Rear Panel ①Antenna Input Jack: BNC type antenna connector for tuner ”B”, attached the antenna directly. ②Volume Button: To adjust the volume. ③Balanced Output Jack: XLR type connector. A standard 2 conductor shielded cable can be used to connect the receiver output to a balanced microphone level input on a mixer or integrated amplifier. ④Unbalanced Mixed Output Jack: Unbalanced Mixed Output Jack: 1…

Text truncated - open the document above for the full version.

AF AMPMICCOMPRESSORPREEMPHASISLPF AMP AF MUTE VCOPLL BUFFER AMP RF AMP PLL LCD Display Panel IR RECELVER 8MHz DC-DC POWER 5V 3.3V

Bosch Security Systems, Inc. FCC ID: B5DH227 POWER OF ATTORNEY Nov.03, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Nov.04, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Bosch Security Systems, Inc., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Bosch Security Systems, Inc. Principal Electrical Engineer

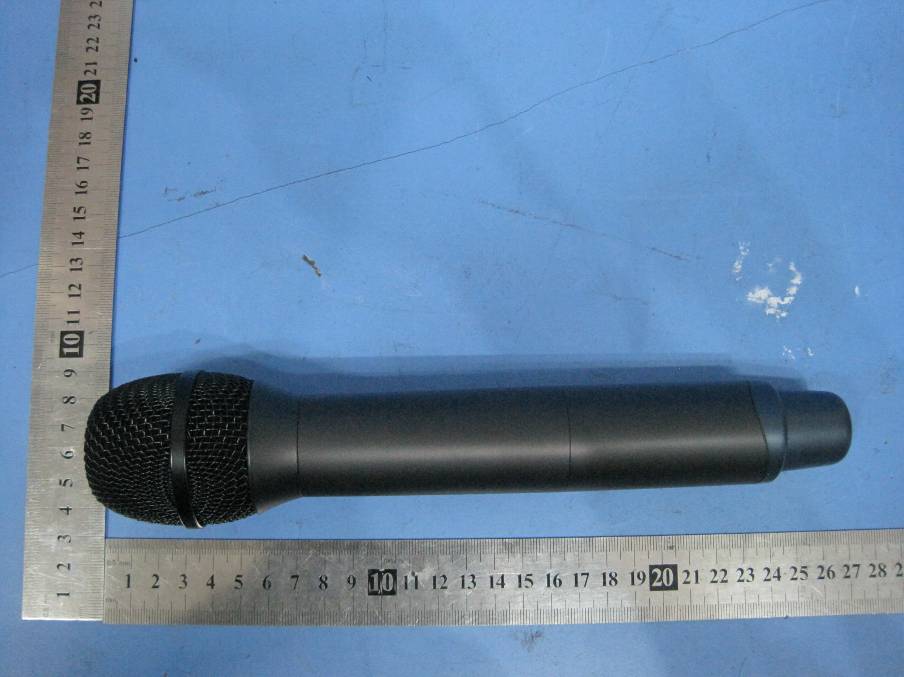

Page 1 of 1 Ref. No.: WT10093873-D-E-F 2.1 EUT – Appearance View 2.2 EUT–Open View

FCC ID Label Location The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location FCC ID: B5DH227

FCC ID Label Sample for Model HT300 FCC ID: B5DH227

Page 1 of 1 Ref. No.: WT10093873-D-E-F 2.1 PCB - Front View 2.2 PCB - Back View

HT-300 / BP-300 Transmitter Circuit Description Power supply for the whole electric circuit is offered by two group voltage. One is 5V DC voltage generated by electric circuit (U2, Q3, D5) after battery 3V voltage is sent to this circuit for voltage-step up through power switch(Q4, Q15). The other one is 3.3V voltage generated by voltage regulator (U1). Microphone audio signal enhanced by prime amplifier (U2) is sent to gain dynamic amplifier (U1,U7) for processing. After processed, the signal is sent to VCO (D7) through low-pass filter (U3) and modulated with PLL(U6), PLL frequency standard(X2-8MHz,Q6), local oscillation signal generated by low-pass filter(R78,C68,C67,R81) and VCO(D6,Q8,Q9). Then audio RF signal after modulated is sent to buffer amplifier (Q7,Q14) and power amplifier(Q13) for amplifying. After amplified, it is sent to low-pass filter(L9,L10,C87,C88) to filter the high harmonic and output to antenna for transmission. MCU(U5), switch S1(POWER) and Infrared receiving module(IR1) is an operation which receives Infrared synchronized signal from receiver, and controls LCD display. MCU(U5) controls PLL(U6) working frequency according to the frequency data operated. Meanwhile, MCU(U5) will test battery voltage and auto-cut off power switch(Q4,Q15) when the voltage is over-low.

Handheld Microphone HT-300 / UH-200 TUNE-UP Procedure 1. TRANSMITTING. 1.1 FREQUENCY ADJUSTMENT a) Connect the frequency counter to the pot F1. b) Replace the crystal Y1 for the operating frequency. c) Adjust L9. d) Specification: Tx Frequency +/- 0.005% 1.2 TX POWER CHECK： a) Connect the RF power meter to the pot F1.(RF impedance 50 ohm). b) Switch on the transmitter. c) Check the Tx power. d) Specification: 12dBm +/- 1dBm 1.3 MAX. DEVIATION ADJUSTMENT： a) Connect the deviation meter to the pot F1. b) Apply the audio signal 400Hz,30mV to the MIC point. c) Adjust VR1. d) Specification: 20KHz, Dev. +/-2KHz. 1.4 Generate the 32.768KHz signal through the Q2,Q1,Y2 and output to Audio.
