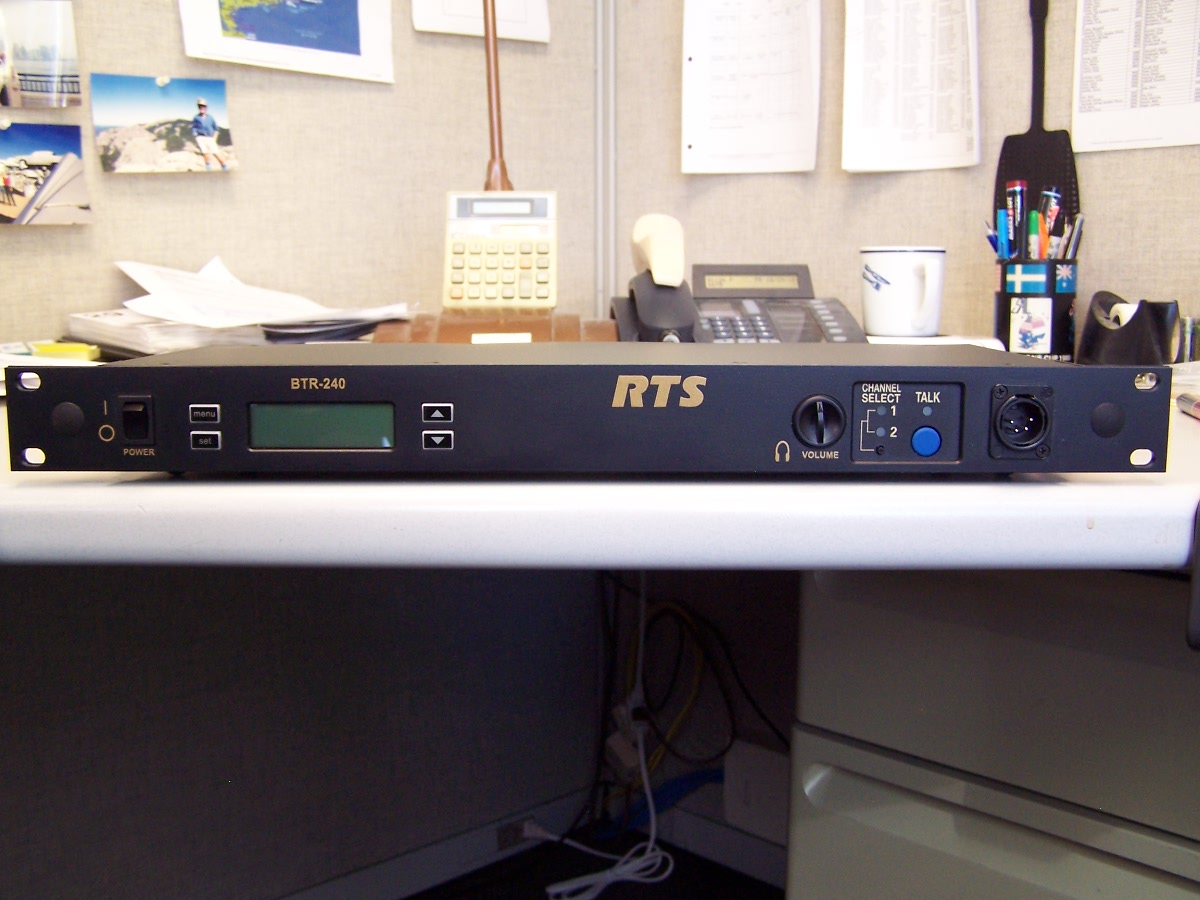

BTR-240 Users Manual - Preliminary Page 1 of 8 Rev D – 4 / 18 / 2011 RTS Model BTR-240 Base Station Owners / Users Manual (Preliminary Information) General Description The RTS model BTR-240 base station transceiver is a rack mountable, full-duplex, wireless intercom radio. The base station provides a central relay location which handles the audio traffic between the TR- 240 beltpacks. A BTR-240 base station can be used to support up to eight full-duplex wireless TR- 240 beltpacks and many more for beltpacks in push-to-transmit mode. The BTR-240 uses the IEEE 802.11b technology to transmit / receive within one channel of the 1 – 11 (2.412 to 2.462 GHz) allowable channels of the 2.4 GHz ISM band. Operation of the BTR-240 is license free. The typical line-of-sight distances for the system may be 300 feet. The transmit and receive antennas are connected via unique reverse TNC connectors on the rear panel of the unit. The BTR-240 is powered via a 12 – 15 VDC receptacle on the rear panel. A 12 VDC power supply is supplied with the BTR-240. The front panel LCD display and buttons allow the following menus to be obtained: • RF operating channel • Microphone gain • Sidetone level • Transmit squelch setting • 2W / 4W intercom type settings and levels • Auxiliary In / Out settings and levels. • Speaker output setting and level. The front panel also has an on/off power control. A talk button, talk light, channel select button, channel select lights, and volume are also available for a user at the base station local headset. BTR-240 Users Manual - Preliminary Page 2 of 8 Rev D – 4 / 18 / 2011 Controls and Connections Figure 1 BTR-240 – Front Panel 1. Power on/off switch – turns the power on/off to the BTR-240. 2. <Menu> button – used to navigate the menu options on the LCD. 3. <Set> button – used to navigate the menu and select options on the LCD. 4. Backlit Graphics LCD (liquid crystal display). 5. <Up> and <Down> buttons – used to navigate the menu and select options on the LCD. 6. <Volume> control knob – controls the volume for the local headset. 7. <Channel Select> button – Controls the intercom to which the local headset is connected. Each press of the button changes the connection; channel 1, channel 2, both. The corresponding LEDs will be illuminated. 8. <Talk> button – Press to enable the audio path from the local headset. The green LED above the <Talk> button will be illuminated when active. 9. Local Headset Connector – Male XLR connector for Telex units, female XLR connector for RTS units. A dynamic or electret headset microphone is automatically detected. 1 2 3 4 5 9 8 76 BTR-240 Users Manual - Preliminary Page 3 of 8 Rev D – 4 / 18 / 2011 Controls and Connections (cont.) Figure 2 BTR-240 – Rear Panel 1. Transmit Antenna – reverse “TNC” connector. 2. Program Input – this RJ-45 jack is used for wired Ethernet connections, configuration, and to update programming in the unit if ever needed. 3. Receive Antenna – reverse “TNC” connector. 4. Speaker Output – one 2-pin connector to attach cables and a speaker (1W rms max into 8Ohms). 5. Intercom Channel 1 Input / Output – Interface to wired intercom system 1. 2-Wire – male and female 3-pin XLR connectors wired in parallel. The connectors are switched to the appropriate intercom configuration via the menu options. 4-Wire – an RJ-11jack compatible with “Matrix” type intercom systems. 6. Intercom Channel 2 Input / Output – Interface to wired intercom system 2. 2-Wire – male and female 3-pin XLR connectors wired in parallel. The connectors are switched to the appropriate intercom configuration via the menu options. 4-Wire – an RJ-11jack compatible with “Matrix” type intercom systems. 7. Auxiliary Input / Output – One 3-pin female XLR / ¼ inch combination input connector and one 3-pin male XLR output connector. 8. DC Input Jack – Accepts 12-15 VDC, 2.0 Amps to power the base station from a D.C. source. 9. Chassis Ground –grounding point of the base station. 1 2 3 4 5 8 7 6 9 BTR-240 Users Manual - Preliminary Page 4 of 8 Rev D – 4 / 18 / 2011 Operation When the BTR-240 is turned on, the backlight of the LCD and menu buttons will illuminate to indicate power. The unit takes approximately 25 seconds to boot and its status is indicated with a progress bar on the LCD. After the unit has booted successfully, the Start- up screen displays the unit model and software versions for approximately 3 seconds. The Status Screen is the main information screen of the base station. It displays the current status of the system including: • RF Channel of operation • Association (how many full-duplex beltpacks are associated with the base station) • 2W / 4W intercom settings • Auxiliary input / output settings • Speaker setting indicator Once the Status Screen is displayed, it is ready to act as an access point and TR-240 beltpacks can be turned on. Once the TR-240 beltpacks are on in “wireless” mode, they will associate with the RF channel selected at the base station. 1 Setting the RF Channel The RF channel can be changed by two different methods: • Manual RF Channel Selection • ClearScan ™ NOTE: The RF channel of operation setting is remembered and the unit will continue to boot on the same channel until it is set differently by the user. NOTE: The RF channel of operation needs to be verified / set before turning on the TR-240 beltpacks. If a beltpack is already associated with a base station, it may not continue to associate once the channel is changed. If this occurs, the beltpack will need to be rebooted. 1.1 Manual RF Channel Selection To manually select an RF channel, navigate to the “RF Channel” menu item and press the <Set> button. The current RF channel will be blinking indicating that the channel is in “set” mode and ready to be changed. Using the <Up> and <Down> buttons, the RF channel is increased and decreased, respectively. Once the desired RF channel has been identified and blinking, pressing the <Set> button will select it and save the settings. Once …

Text truncated - open the document above for the full version.

t 2.4 GHz 3 dBi Antenna MODEL: RA-3 PART No: 302054003 General Description This is a 2.4 GHz, 3 dBi gain, omni-directional pattern “rubber duck” antenna. Tilt and swivel reverse polarity TNC connector. Specifications Electrical Frequency 2.4 GHz – 2.5 GHz Antenna Gain 3 dBi Horizontal Pattern Omni-directional Vertical Pattern 70° (-3 dB bandwidth) VSWR < 2:1 Polarization Vertical, Linear Impedance 50 Ohm Mechanical Connector Reverse Polarity TNC Plug Length 5.6” (143 mm) Diameter 0.5” (13 mm) Weight 0.81 oz. (23 g) RoHS Compliant Operating Temperature -40° C to 85° C (-40° F to 185° F) Bosch Security Systems reserves the right to make specification changes without notice. Bosch Security Systems, Inc. 8601 East Cornhusker Highway Lincoln, NE 68507 Printed in U.S.A. Rev C 2010 t 2.4 GHz 5 dBi Antenna MODEL: RA-5 PART No: 302054005 General Description Indoor / Outdoor 2.4 GHz, 5 dBi gain, omni-directional pattern magnetic mount antenna with TNC reverse polarity coupler. Specifications Electrical Frequency 2.4 GHz – 2.5 GHz Antenna Gain 5 dBi Horizontal Pattern Omni-directional Vertical Pattern 30° (-3 dB bandwidth) VSWR < 2:1 Polarization Vertical, Linear Impedance 50 Ohm Mechanical Connector (On antenna pigtail) Reverse Polarity TNC Plug Length 6” (152.4 mm) Weight 1.0 lbs. (0.45 kg) RoHS Compliant Operating Temperature -40° C to 85° C (-40° F to 185° F) Bosch Security Systems reserves the right to make specification changes without notice. Bosch Security Systems, Inc. 8601 East Cornhusker Highway Lincoln, NE 68507 Printed in U.S.A. Rev C 2010 t 2.4 GHz 7 dBi Antenna MODEL: RA-7 PART No: 302054004 General Description A 2.4 GHz, 7 dBi gain, omni-directional pattern “rubber duck” antenna with tilt and swivel reverse polarity TNC connector on antenna. Specifications Electrical Frequency 2.4 GHz – 2.5 GHz Antenna Gain 7 dBi Horizontal Pattern Omni-directional Vertical Pattern 30° (-3 dB bandwidth) VSWR < 1.5:1 Polarization Vertical, Linear Impedance 50 Ohm Mechanical Connector Reverse Polarity TNC Plug Length 15.2” (388 mm) Diameter 0.5” (13 mm) Weight 2.1 oz. (60 g) RoHS Compliant Operating Temperature -40° C to 60° C (-40° F to 140° F) Bosch Security Systems reserves the right to make specification changes without notice. Bosch Security Systems, Inc. 8601 East Cornhusker Highway Lincoln, NE 68507 Printed in U.S.A. Rev C 2010 t 2.4 GHz 11 dBi Patch Antenna MODEL: FP-11 PART No: 302054006 General Description Indoor / Outdoor 2.4 GHz, 11 dBi gain, directional antenna TNC reverse polarity coupler. The antenna may be mounted in the vertical or horizontal polarity position. Specifications Electrical Frequency 2.4 GHz – 2.5 GHz Antenna Gain 11 dBi Horizontal Pattern 60° (-3 dB bandwidth) Vertical Pattern 35° (-3 dB bandwidth) VSWR < 1.5:1 Polarization Vertical or Horizontal Impedance 50 Ohm Mechanical Connector (Antenna pigtail) Reverse Polarity TNC Plug Size 8.5 x 8.5 x 1 (in), 216 x 216 x 26 (mm) Weight 0.95 lbs. (0.43 kg) Mounting Four ¼” (6.3 mm) holes RoHS Compliant Operating Temperature -40° C to 85° C (-40° F to 185° F) Bosch Security Systems reserves the right to make specification changes without notice. Bosch Security Systems, Inc. 8601 East Cornhusker Highway Lincoln, NE 68507 Printed in U.S.A. Rev C 2010 t 2.4 GHz 11 dBi Dual Patch Antenna MODEL: ANT-FP PART No: 302054001 General Description Indoor / Outdoor 2.4 GHz, 11 dBi gain, dual patch, directional antenna with two TNC reverse polarity couplers. The antenna contains a vertical patch antenna along with a horizontal patch antenna under one radome. The antenna may be mounted in the vertical or horizontal polarity position with respect to antenna 1, the other antenna will be in the opposite polarity. Specifications Electrical Frequency 2.4 GHz – 2.5 GHz Gain (Each antenna under radome) 11 dBi Horizontal Pattern (Antennas 1 and 2) 60° (-3 dB bandwidth) Vertical Pattern (Antennas 1 and 2) 30° (-3 dB bandwidth) VSWR < 1.5:1 Polarization Horizontal (Left Antenna Lead) Vertical (Right Antenna Lead) Impedance 50 Ohm Mechanical Connector (Antenna pigtails) Reverse Polarity TNC Plug Size 8.5 x 8.5 x 1 (in), 216 x 216 x 26 (mm) Weight 0.95 lbs. (0.43 kg) Mounting Four ¼” (6.3 mm) holes RoHS Compliant Operating Temperature -40° C to 85° C (-40° F to 185° F) Bosch Security Systems reserves the right to make specification changes without notice. Bosch Security Systems, Inc. 8601 East Cornhusker Highway Lincoln, NE 68507 Printed in U.S.A. Rev C 2010

Front View Top View Rear View

Dynacord | Electro-Voice | RTS | Telex BOSCH and the symbol are registered trademarks of Robert Bosch GmbH, Germany Bosch Security Systems, Inc. 8601 East Cornhusker Highway Lincoln, NE 68507, USA Tel. +1 402 467 5321 x6671 Fax +1 402 467 3279 [email protected] www.boschcommunications.com Communications Systems BTR-240 Label Location

Overview - Top View Audio PCB - Top View

Audio PCB - Bottom View Front Panel PCB - Front View Front Panel PCB - Rear View

Main PCB - Top View Main PCB - Bottom View with RF Card Main PCB - Bottom View without RF Card

RF Card - Top View RF Card - Bottom View RF Card - Top with Internal Shield View RF Card - Top without Internal Shield View RF Card - Bottom View

TNC PCB - Top View TNC PCB - Bottom View Filter PCB - Top View Filter PCB - Bottom View

p10b0009_FCC 15.247 DTS Rev 2.0 Page: 1 of 63 FCC Certification 15.247 DTS Prepared for FCC ID: B5DM532 Model: BTR-240 Description: 2.4 GHz Wireless Intercom Base Station to Federal Communications Commission Rule Part(s) 15.247 Date of Issue: April 18, 2011 On the behalf of the applicant: Bosch (Telex) 8601 E. Cornhusker Highway Lincoln, NE 68507 Attention of: James Andersen, Principal Electrical Engineer Ph: (402) 467-5321 Fax: (402) 467-3279 Email: [email protected] Prepared by Compliance Testing, LLC 3356 N San Marcos Pl, Suite-107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p10b0009 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing, LLC. p10b0009_FCC 15.247 DTS Rev 2.0 Page: 2 of 63 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 April 18, 2011 Greg Corbin Original Document 2.0 May 9, 2011 Greg Corbin Corrected number of channels under EUT Description on page 6 p10b0009_FCC 15.247 DTS Rev 2.0 Page: 3 of 63 Table of Contents Description Page Standard Test Conditions Engineering Practices 6 Test Results Summary 7 Peak Output Power 8 Conducted Spurious Emission 9 Radiated Spurious Emissions 13 Emissions At Band Edges 43 Occupied Bandwidth 54 Transmitter Power Spectral Density (PSD) 57 A/C Powerline Conducted Emission 59 Receiver Spurious Emissions 61 Test Equipment Utilized 63 p10b0009_FCC 15.247 DTS Rev 2.0 Page: 4 of 63 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless noted in the table below Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC OATS Reg, #933597 IC Reg. #2044A-1 Non-accredited tests contained in this report: N/A p10b0009_FCC 15.247 DTS Rev 2.0 Page: 5 of 63 The applicant has been cautioned as to the following: 15.21 - Information to User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a) - Special Accessories Equipment marked to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p10b0009_FCC 15.247 DTS Rev 2.0 Page: 6 of 63 Standard Test Conditions Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI C63.10-2009 and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated the humidity levels were in the range of 10% to 90% relative humidity. Measurement results, unless otherwise noted, are worst-case measurements. Environmental Conditions Temperature Humidity Pressure 19.8 – 24.9 deg C 20.6 – 24.5 % 967 – 986.2 mbar EUT Description The Bosch model BTR-240 base station transceiver is a rack mountable, full-duplex, wireless intercom radio. The base station provides a central relay location which handles the audio traffic between the TR-240 beltpacks. The BTR-240 uses the IEEE 802.11b technology to transmit / receive within one channel of the 1 – 11 (2.412 to 2.462 GHz) EUT Operation during Tests EUT was operated under normal operating conditions. Accessories: Qty Type Make, Model S/N 1 ITE Power Supply GlobTek, mdl: GT-41062-1812-T3 N/A 1 RA-3 Antenna, Rubber Duck, gain = 2.1 dBi N/A 1 RA-5E Antenna, Magnetic Mount Whip, gain = 5 dBi N/A 1 RA-7E Antenna, Rubber Duck, gain = 7 dBi N/A 1 FP-11E Antenna, Patch, TX and RX elements mounted in separate enclosures, gain = 11 dBi N/A 1 ANT-FPE Antenna, Patch, TX and RX elements combined into 1 enclosure, gain = 11 dBi N/A 1 Headset Telex, Mdl: PH-2 N/A Cables: Qty Type Length, m Shield Shielded Hood Ferrite 2 2 wire intercom cable 0.8 Yes None None 2 4 wire intercom cable 2 No None None p10b0009_FCC 15.247 DTS Rev 2.0 Page: 7 of 63 Test Results Summary Specification Test Name Pass, Fail, N/A Comments 15.247(b) Peak Output Power Pass 15.247(b) Conducted Spurious Emissions Pass 15.247(d), 15.209(a), 15.205 Radiated Spurious E…
