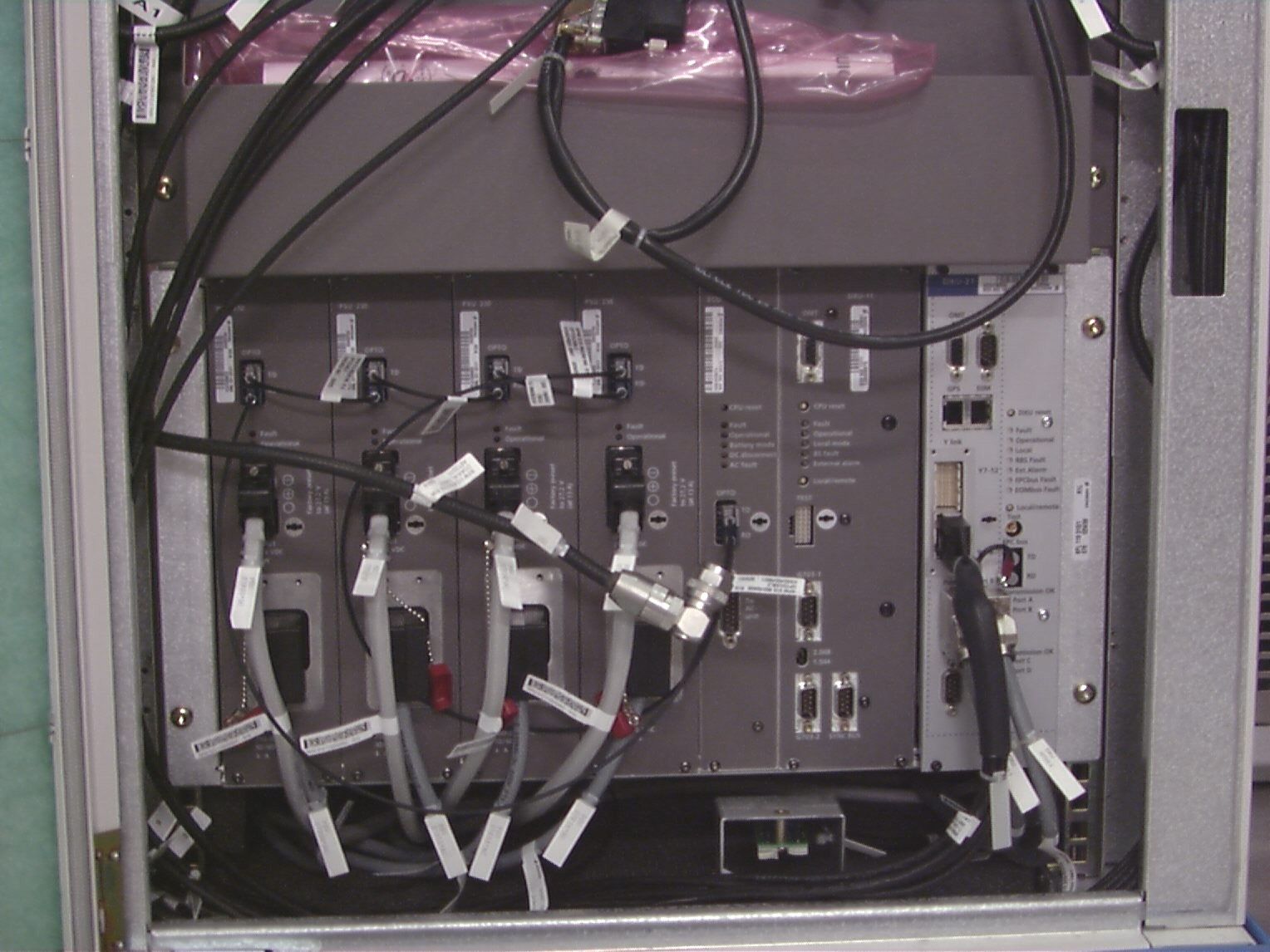

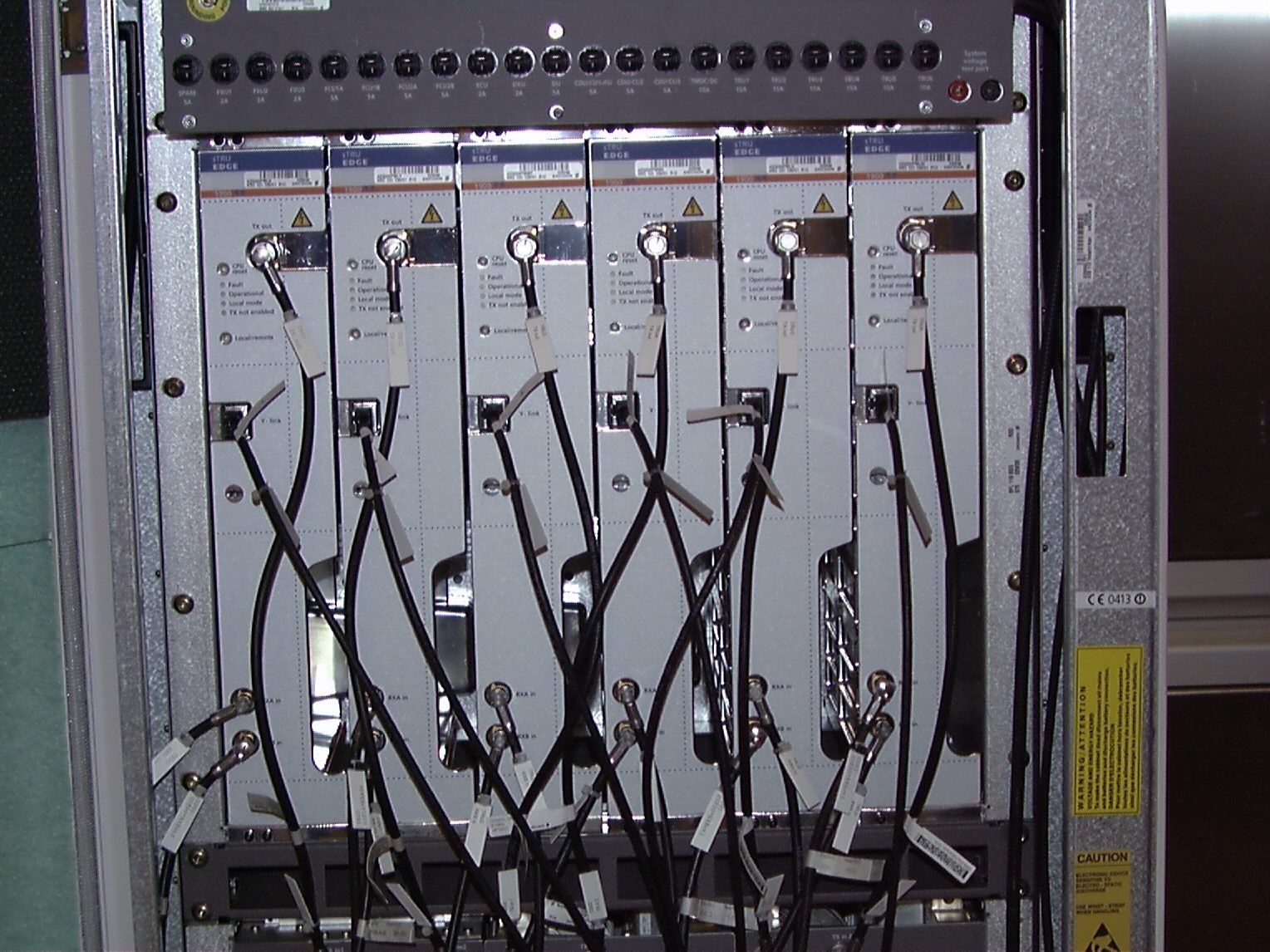

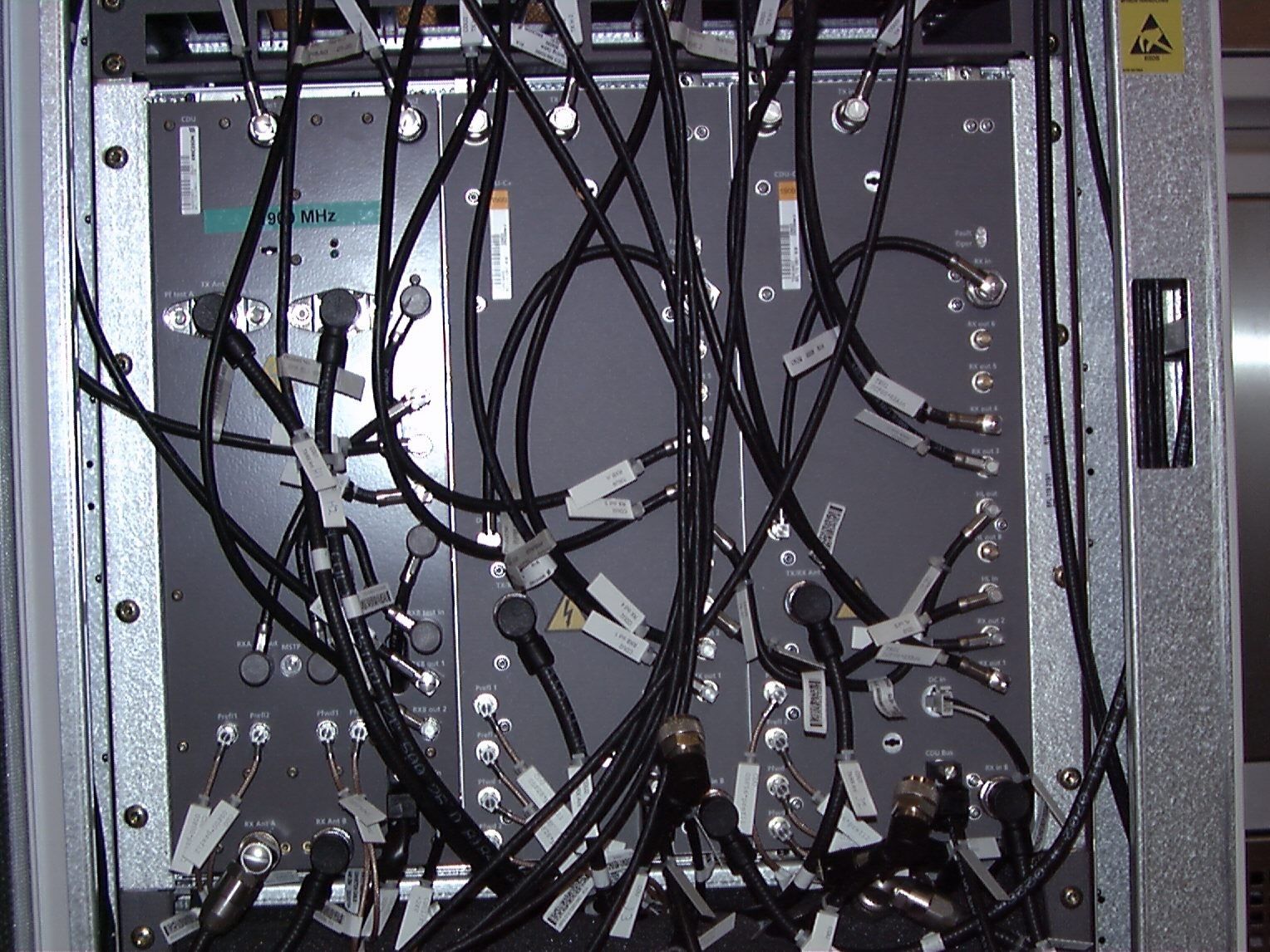

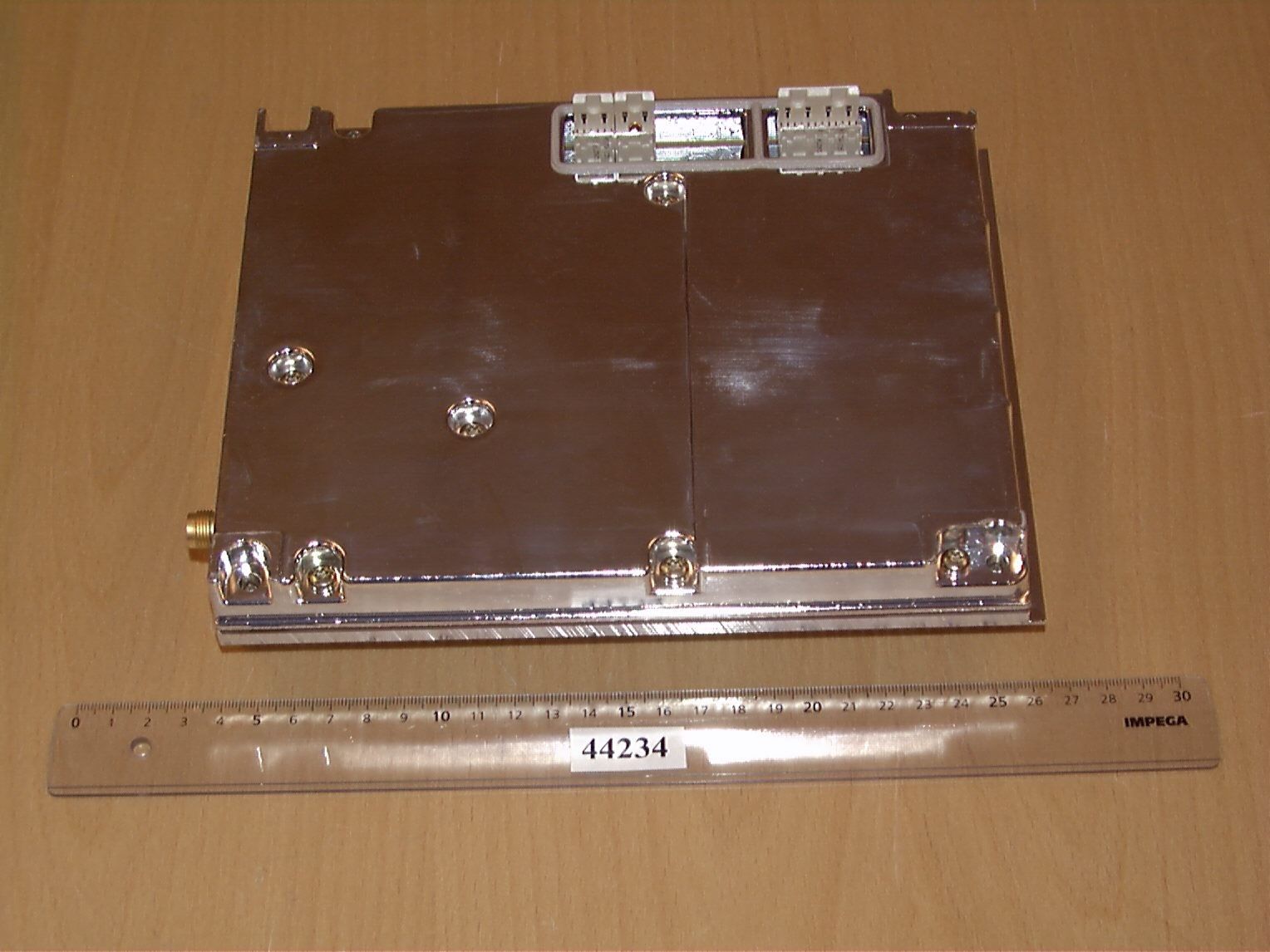

B5KAKRC131139-01PCS Broadband GSM Base Station

Open EXHIBIT 8 Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson) 2003-02-07 A Exhibit 8 – Description Contents This exhibit contains a general description of the RBS family and another description regarding the new sTRU, KRC 131 139/01. Ericsson GSM System, BSS R8 and BSS R9.0 Reference Manual EN/LZT 720 0001 R2A RBS 2101, RBS 2102 RBS 2103, RBS 2202 P005964C E Reference Manual Reference Manual © Ericsson Radio Systems AB — All Rights Reserved — EN/LZT 720 0001 R2A 2001-10-08 1 (493) © Ericsson Radio Systems AB — All Rights Reserved — Reference Manual Due to continued progress in methodology, design and manufacturing, the contents of this document are subject to revision without notice. 2 (493) EN/LZT 720 0001 R2A 2001-10-08 © Ericsson Radio Systems AB — All Rights Reserved — Reference Manual Contents 1 Preface ........................................................................................................... 15 1.1 Objectives ................................................................................................ 15 1.2 Audience.................................................................................................. 15 1.3 RBS 2000 Library Overview.................................................................... 15 1.4 Release History ....................................................................................... 16 2 Product Safety Requirements RBS 2000....................................................19 2.1 References...............................................................................................19 2.2 Product Safety ......................................................................................... 19 3 Environmental Capabilities..........................................................................21 3.1 Scope.......................................................................................................21 3.2 Terminology ............................................................................................. 21 3.3 References...............................................................................................22 3.4 Transport -40  C - +70  C..........................................................................22 3.5 Storage -25  C - +55  C.............................................................................23 3.6 Handling -40  C - +70  C........................................................................... 25 3.7 Operation Indoor +5  C - +40  C ............................................................... 25 3.8 Operation Outdoor -33  C - +40  C ........................................................... 27 3.9 Operation Outdoor -33  C - +45  C ........................................................... 28 3.10 Operation Outdoor -33  C - +55  C ......................................................... 30 3.11 Operation Mast Mounted Equipment -33  C - +45  C.............................30 3.12 Operation Mast Mounted Equipment -33  C - +55  C............................30 4 Radio Configurations, RBS 2000 Macro.....................................................33 4.1 Introduction .............................................................................................. 33 4.2 References...............................................................................................34 4.3 Concepts..................................................................................................35 4.4 Frequency Bands.....................................................................................38 4.5 General .................................................................................................... 38 4.6 Capacity................................................................................................... 40 4.7 Basic Configurations................................................................................42 4.8 Site Equipment Configurations................................................................ 73 EN/LZT 720 0001 R2A 2001-10-08 3 (493) © Ericsson Radio Systems AB — All Rights Reserved — Reference Manual 4.9 Basic Configurations with DDTMA .......................................................... 90 5 Product Specification for RBS 2101 ........................................................... 95 5.1 Concepts..................................................................................................95 5.2 General .................................................................................................... 95 5.3 Product Architecture ................................................................................ 97 5.4 Configuration............................................................................................101 5.5 Interface and Connection ........................................................................ 103 5.6 Product Requirements .............................................................................108 6 Product Specification for RBS 2102 ........................................................... 117 6.1 Concepts..................................................................................................117 6.2 General .................................................................................................... 118 6.3 Product Architecture ................................................................................ 119 6.4 Configuration............................................................................................122 6.5 Interface and Connection ........................................................................ 124 6.6 Product Requirements .............................................................................129 6.7 Future Expansion Possibilities.................................................................136 7 Product Specification for RBS 2…

Text truncated - open the document above for the full version.

Open EXHIBIT 41 (3) Prepared (also subject responsible if other)No. EAB/RBI/R Per Helmersson B5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson) 2003-02-07 A 1 EXHIBIT 4 – COVER SHEET Contents 1EXHIBIT 4 – COVER SHEET1 1.1Block Diagram RDU 1900 MHz GMSK/8-PSK ROA 219 5305/12 1.2Block Diagram PBU 1900 GMSK/8-PSK ROA 219 5310/13 Sheet 4 5 6 7 8 9 10 11 12 13 14 15 16 A B C D E F G H I J K Prepared (also subject responsible if other) References Doc respons/Approved Date Rev Product name Document no A B C D E F G H 1234567891011 I J K 12 13 14 15 16 123 +24V +7V +5V MRRF ROZ 104 018/6 +3.3V +6V5 +4V5 DIG ROZ 104 015/1 +7V +3.3V RLU/AEC sTRU1900/RDU 1(1) RCIF ROZ 104 017/6 +7V +6V5+4V5 +2.5V+1.8V+5V 1911-ROA 219 5305/1 Ux 2002-10-22 RLU/AE ERALTMS BMGC BS EN2000.5 +2.5V+3.3V +6V5 +7V-7V LTU ROZ 104 014/1 ROZ 104 016/1 DC_DC -7V+24V+1.8V +1.8V 13M_MMRF_RCIF(11:1) FF Product name Document no Sheet 1 1 2 2 3 3 4 4 5 5 6 6 AA CC D Prepared (also subject responsible if other) References Doc respons/Approved Date Rev BB D EE 1(1) PBU 1900 EAB/RRU/PG (Pär Hansson)MGC BS C.4A RSAJNLN 2002-12-12 1913-ROA 219 95310/1 Ux

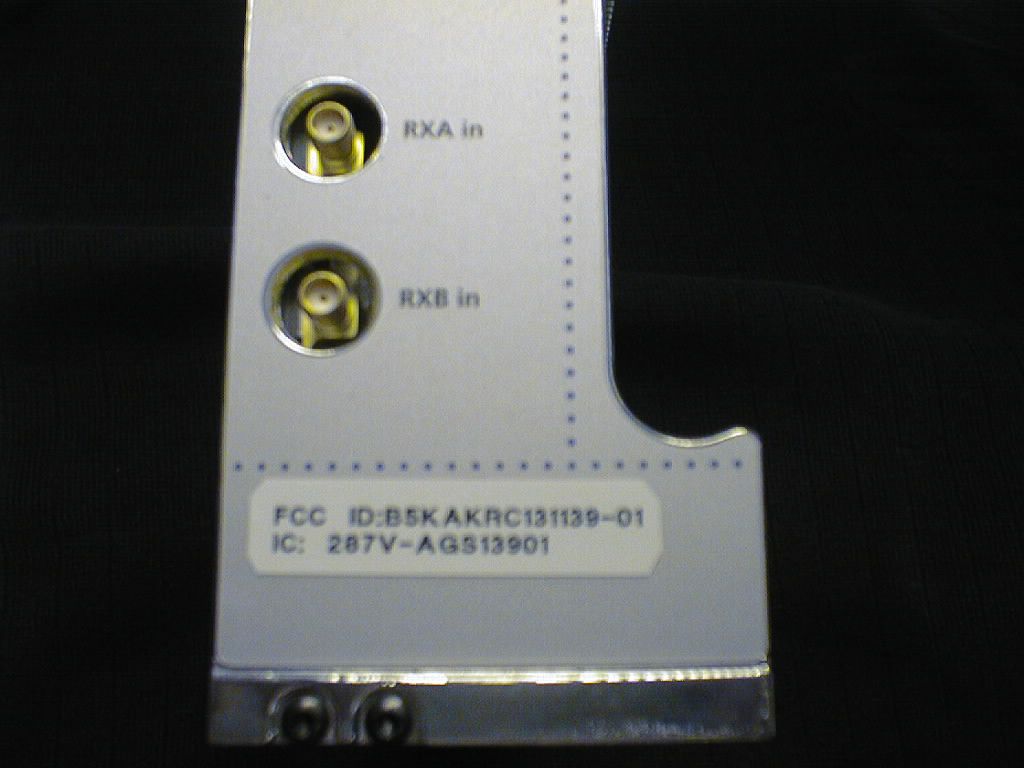

Open EXHIBIT 131 (1) Prepared (also subject responsible if other)No. EAB/RBI/R Per Helmersson ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson)2003-01-07AB5KAKRC131139-01 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Radio Frequency Investigation Ltd Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ United Kingdom February 07, 2003 Subject: Certification for FCC ID: B5KAKRC131139-01 Gentlemen; Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station transceiver is designed for use in the GSM 1900 MHz cellular telephone system. The transmitter will operate from 1930.4 to 1989.6 MHz. The receiver circuit supports 1850.4 to 1809.6 MHz. The base station operates in the 1900 MHz broadband PCS services as per 47 CFR Part 24 subpart E. It meets the requirements of GSM1900 11.10-1 version 4.19.1 specification for operation in GSM cellular systems. This base station will in normal mode operate at a nominal power out of 31,6 watts at the antenna connector. The power output is reducible to ~0.3 watts. The channels at the band and block edges (channel 512 – 1930.2 MHz, 585 - 1944.8 MHz, 586 – 1945.0 MHz, 587 – 1945.2 MHz, 610 – 1949.8 MHz, 611 – 1950.0 MHz, 612 – 1950.2 MHz, 685 – 1964.8 MHz, 686 - 1965.0 MHz, 687 – 1965.2 MHz, 710 – 1969.8 MHz, 711 – 1970.0 MHz, 712 – 1970.2 MHz, 735 - 1974.8 MHz, 736 – 1975.0 MHz, 737 – 1975.2 MHz and channel 810 – 1989.8 MHz) are excluded. This is because of too wide frequency spectrum at the band and block edges. This exclusion is done by database settings in the switch software and will control and exclude channels close to channels other than GMSK or EDGE channels. This is a part of the cell planning by the operator. Ericsson AB requests confidentiality under CFR 0.459. Confidentiality for the following exhibits is requested: Exhibit 5 CPU Part Schematics Exhibit 5 RF Part Schematics Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. If additional information is needed, please contact me on the below listed number. Sincerely, Per Helmersson Staff Engineer, Regulatory Programs Ericsson AB Torshamnsgatan 21-23 (Färögatan 6) Kista, SE-164 80 Stockholm Sweden Telephone No.: +46 8 764 16 52 Fax No.: +46 8 404 44 20 e-mail: [email protected]

February 07, 2003 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: B5KAKRC131139-01 It is requested that the following information is to be held confidential on behalf of Ericsson AB. FCC Rules Part 0.459 refers. Exhibit 5 CPU Part Schematics1 21 pages Exhibit 5 RF Part Schematics1 24 pages Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. Yours sincerely Per Helmersson Staff Engineer, Regulatory Programs Ericsson AB Torshamnsgatan 21-23 (Färögatan 6) Kista, SE-164 80 Stockholm Sweden Telephone No.: +46 8 764 16 52 Fax No.: +46 8 404 44 20 e-mail: [email protected]

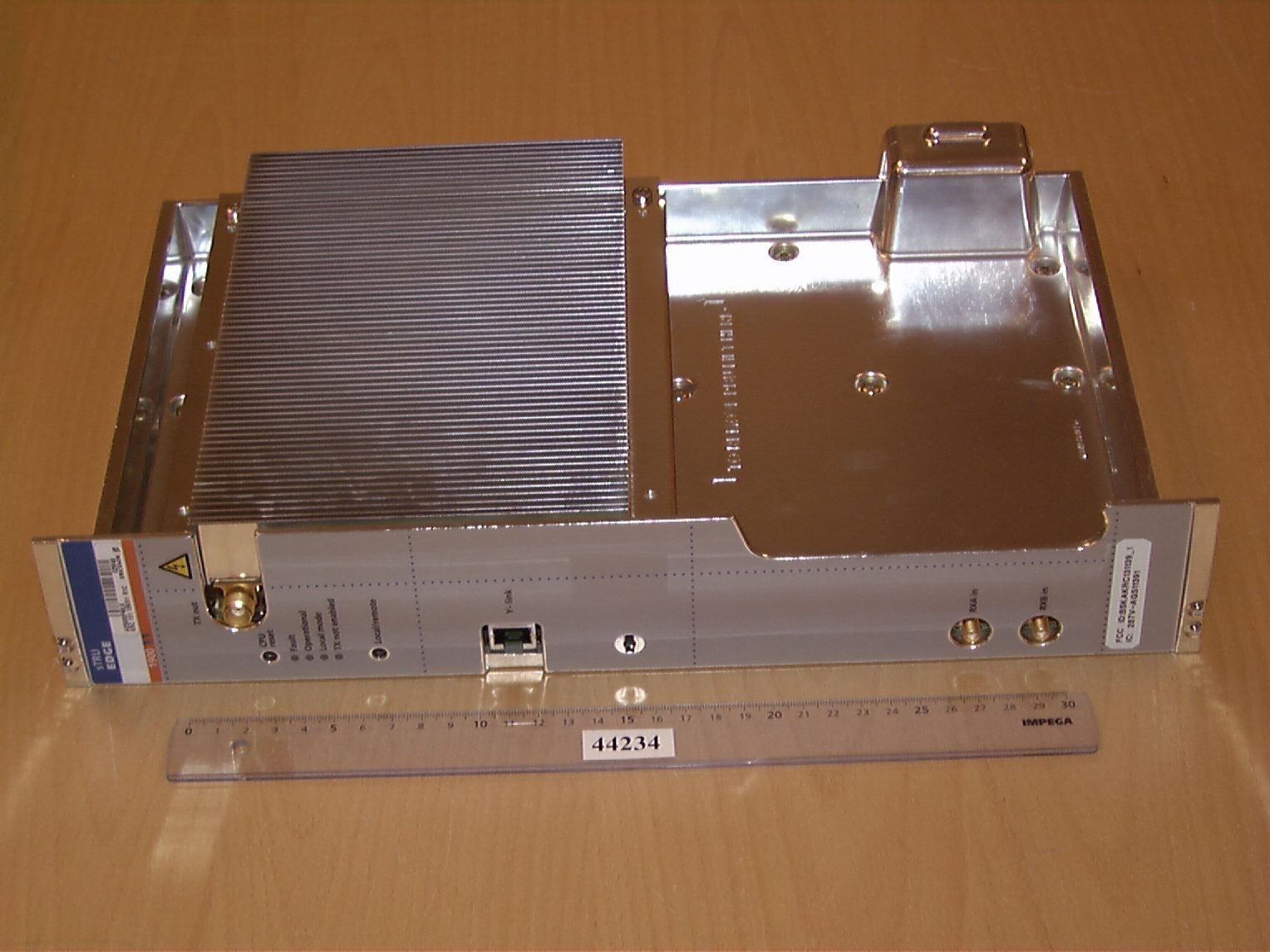

Open EXHIBIT 121 (9) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson) 2003-02-07 A Exhibit 12 – Cover Sheet Contents 12.1033(c) Circuit Description2 1.1(2) FCC Identifier: B5KAKRC131139-012 1.2(4) Type of Emission:2 1.3(5) Frequency range:2 1.4(6) Range of Operating Power:2 1.5(7) Maximum Power Rating:2 1.6(8) Final Amplifier Voltage and Current in normal operation3 1.7(10) Frequency Stabilizing Circuit Description3 1.8(10) Spurious and Harmonic Suppression3 1.9(10) Limiting Power3 1.10(10) Digital Modulation4 1.10.1Modulation format for GMSK4 1.10.2Modulation format for 8PSK7 Open EXHIBIT 122 (9) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson)2003-02-07A 1 2.1033(c) Circuit Description 1.1 (2) FCC Identifier:B5KAKRC131139-01 This sTRU (single Tranceiver Radio Unit) consist of a synthesized transmitter (TRX) operating in the frequency band of 1930.4 to 1989.6 MHz. There are 297 Channels available with a channel spacing of 200 KHz. The transmitter is capable of operation in a TDMA (Time Division Multiple Access) system. For each channel there are 8 time slots available, each containing digital speech or data for GMSK and data for 8-PSK. 1.2 (4) Type of Emission: GMSK:242KGXW 8-PSK:242KG7W 1.3 (5) Frequency range: 1930.4 to 1989.6 MHz 1.4 (6) Range of Operating Power: This transmitter is designed to supply a nominal power level of 44.1 dBm at the antenna connector. The power level can be set at 16 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(15) where P(0) is the highest power level. 1.5 (7) Maximum Power Rating: The maximum power rating with one TRX under environmental and supply voltage variations is equal to 44.1 dBm plus a power level tolerance of + 0.9 dB. Therefore the maximum output power is 45 dBm equal to 31 W at the antenna connector of the radio base station. Open EXHIBIT 123 (9) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson)2003-02-07A 1.6 (8) Final Amplifier Voltage and Current in normal operation P (0)P (15) Collector Voltage 26.0 Volt DC26.0 Volt DC Collector Current 4.9 Amps DC0.7 Amps DC 1.7 (10) Frequency Stabilizing Circuit Description The transmitter in the TRX contains three synthesized oscillators. One PLL gives a 160 MHz signal to the I/Q modulator. The two other generate a 1770 to 1830 MHz signal to the mixer where the modulated signal is converted to the transmit frequency. Two oscillators are needed in frequency hopping mode, one is retuning while the other is active. All three synthesized oscillators have a reference of 13 MHz, which is downmixed by 2, generated in a central synthesized oscillator (PLL) of 26 MHz in the LTU part of the TRU. This PLL frequency reference is extracted from the 13 MHz signal which is generated and distributed, by the DXU (Distribution Switch Unit), to all TRU:s in the basestation. The frequency reference 13 MHz in the DXU is generated in a voltage controlled oscillator placed in an oven together with and phase-locked to a long term stable oven heated oscillator. As an option the oscillator can be phase-locked to the incoming PCM-link frequency or an incoming GPS-link frequency. 1.8 (10) Spurious and Harmonic Suppression Spurious and harmonic suppression is achieved by using two separate bandpass filters of ceramic type in the exciter. A filter module at the output works like a bandpass filter around the carrier. In addition to these filters, the output signal passes a cavity band pass filter in the combining system. 1.9 (10) Limiting Power The TRU measures the output power at its output connector via a RF-detector and the detected value is used by the power loop control block to steer two variable gain amplifiers between the modulator and the power amplifier. Open EXHIBIT 124 (9) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson)2003-02-07A 1.10 (10) Digital Modulation 1.10.1 Modulation format for GMSK 1.10.1.1 Modulating symbol rate The modulating symbol rate is 1/T = 1 625/6 ksymb/s (i.e. approximately 270.833 ksymb/s), which corresponds to 1 625/6 kbit/s (i.e. 270.833 kbit/s). T is the symbol period. 1.10.1.2 Start and stop of the burst Before the first bit of the bursts as defined in GSM 05.02 [3] enters the modulator, the modulator has an internal state as if a modulating bit stream consisting of consecutive ones (d i = 1) had entered the differential encoder. Also after the last bit of the time slot, the modulator has an internal state as if a modulating bit stream consisting of consecutive ones (d i = 1) had continued to enter the differential encoder. These bits are called dummy bits and define the start and the stop of the active and the useful part of the burst as illustrated in figure 1. Nothing is specified about the actual phase of the modulator output signal outside the useful part of the burst. dummy bits Output phase The useful part The active part 000..............000111111..............111111 3 tail bits3 tail bitsdummy bits 1/2 bit1/2 bit Figure 1: Relation between active part of burst, tail bits and dummy bits. For the normal burst the useful part lasts for 147 modulating bits Open EXHIBIT 125 (9) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson)2003-02-07A 1.10.1.3 Differential encoding Each data value d i = [0,1] is differentially encoded. The output of the differential encoder is: $ ({,})dddd iiii =⊕∈ −1 01 where ⊕ denotes modulo 2 addition. The modulating data value α i input to the modulator is: αα iii d=−∈−+1211 $ ({,}) 1.10.1.4 Filtering The modulating data values α i as represente…

Text truncated - open the document above for the full version.

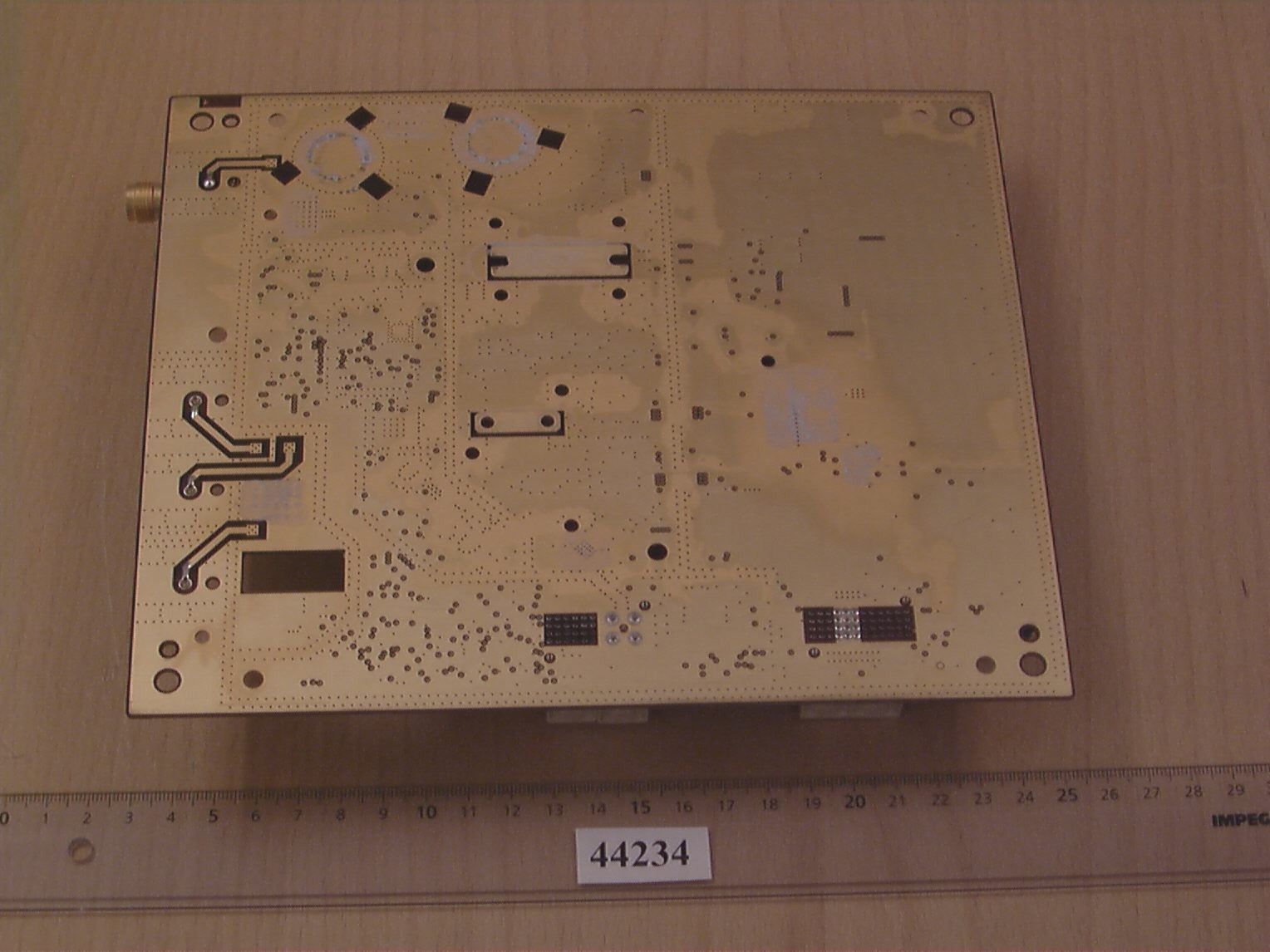

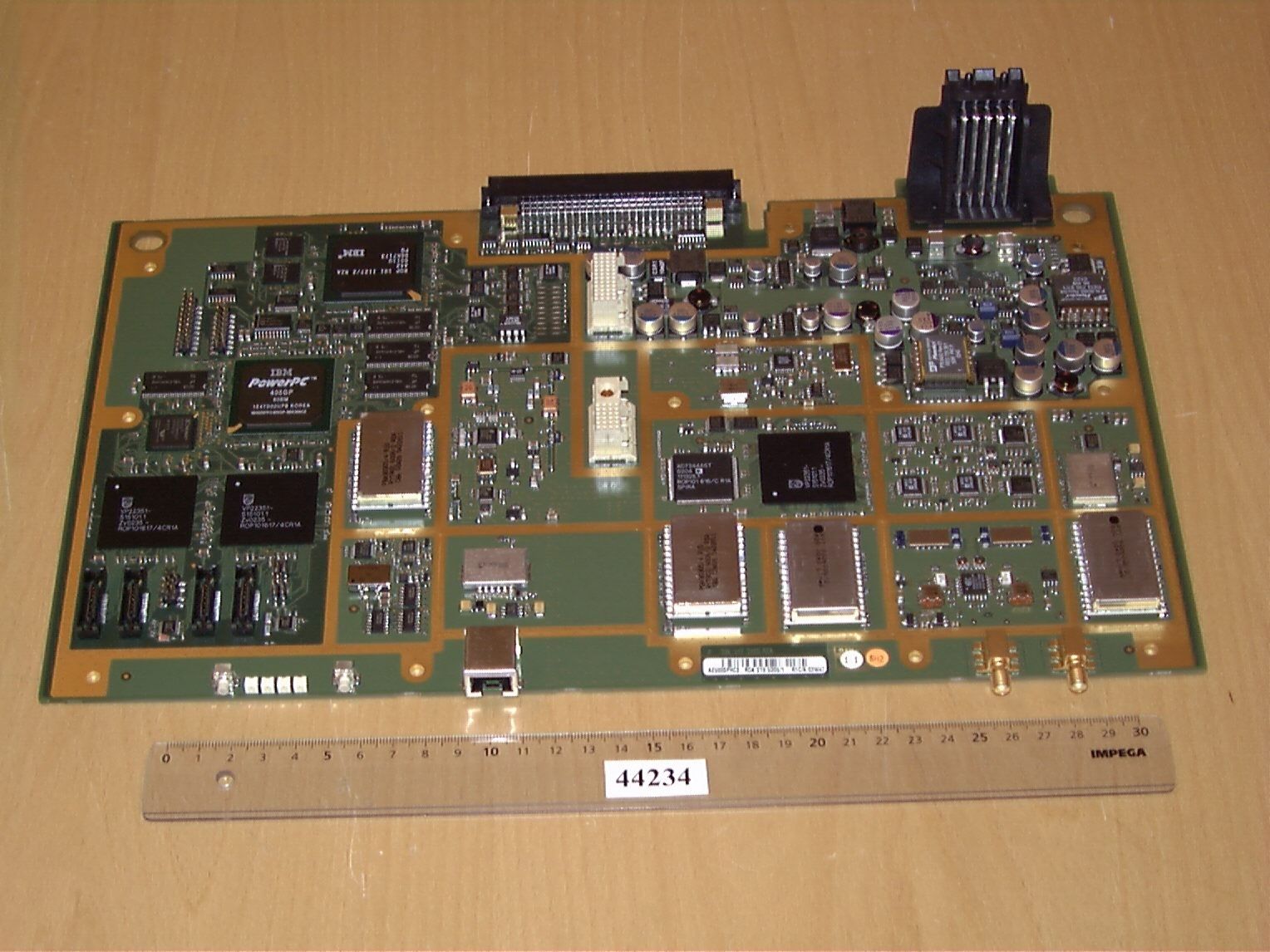

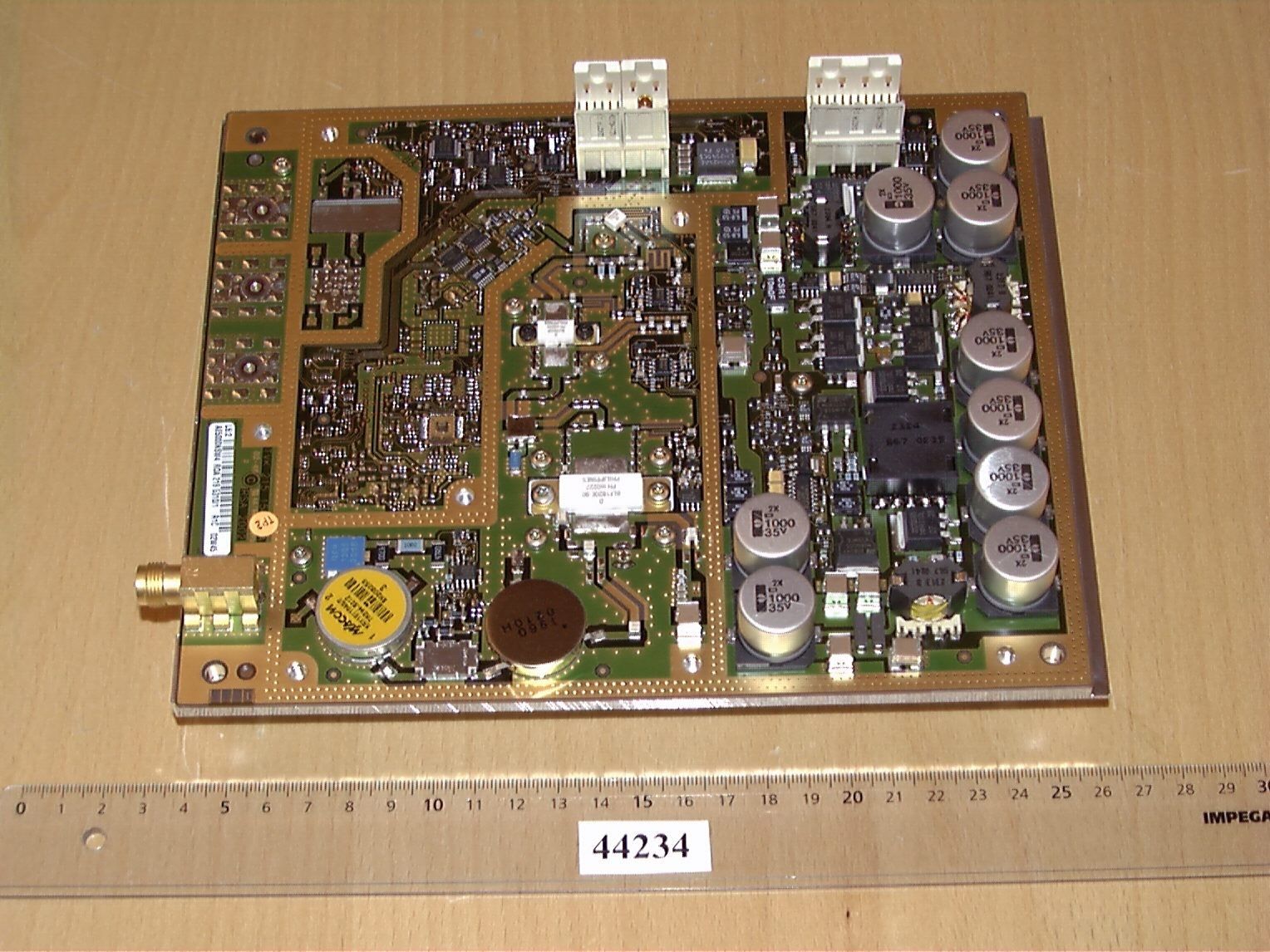

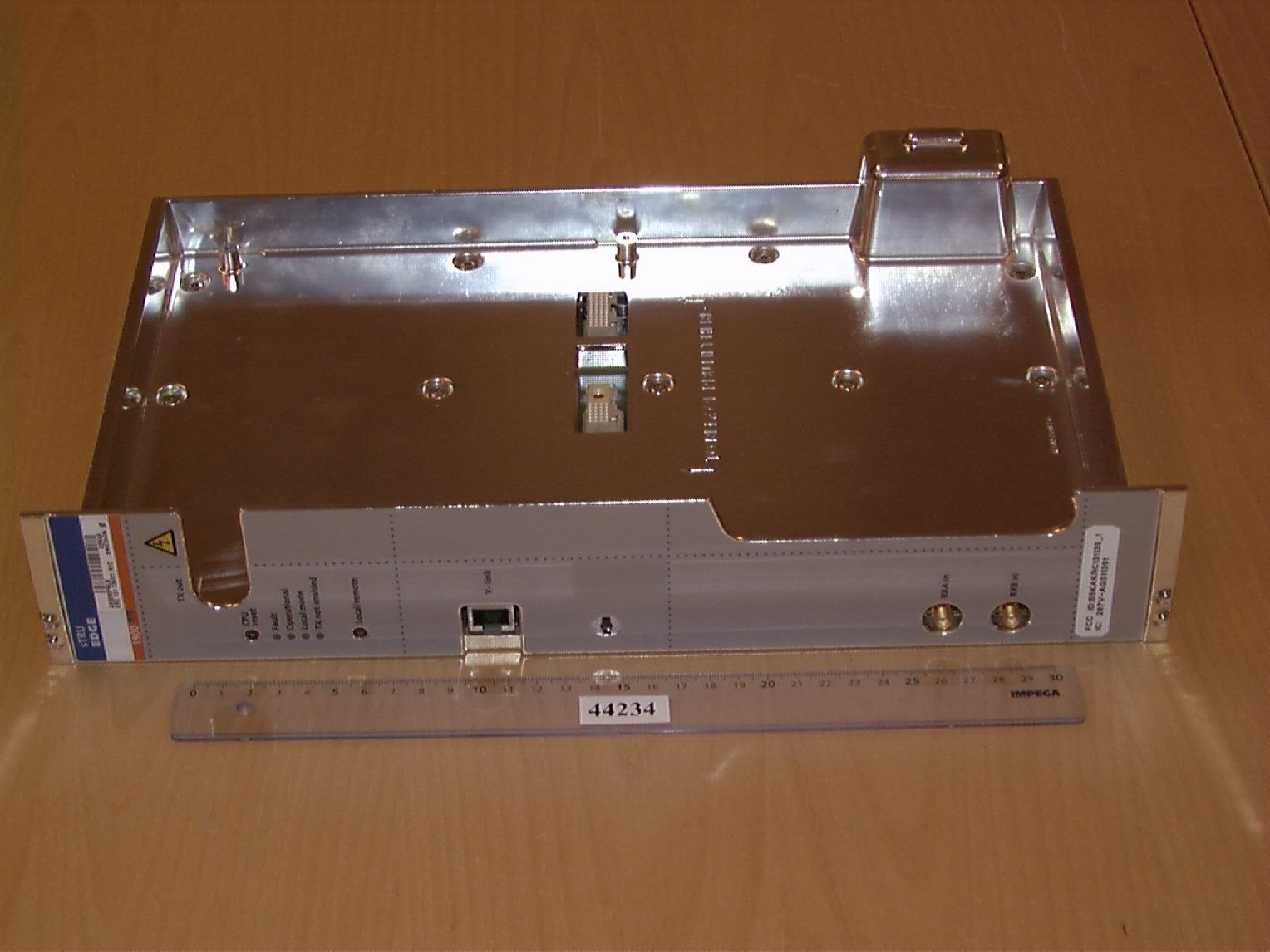

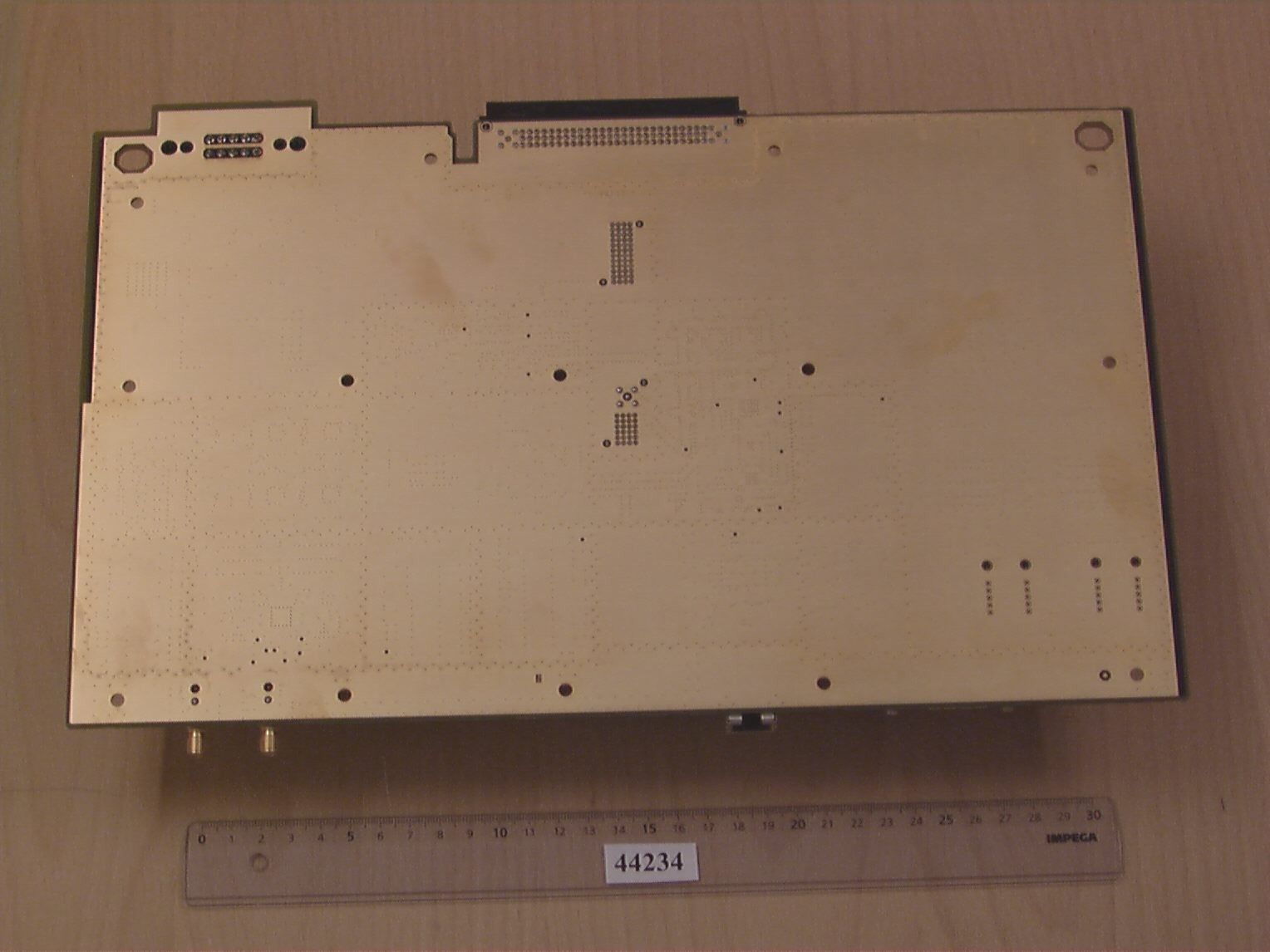

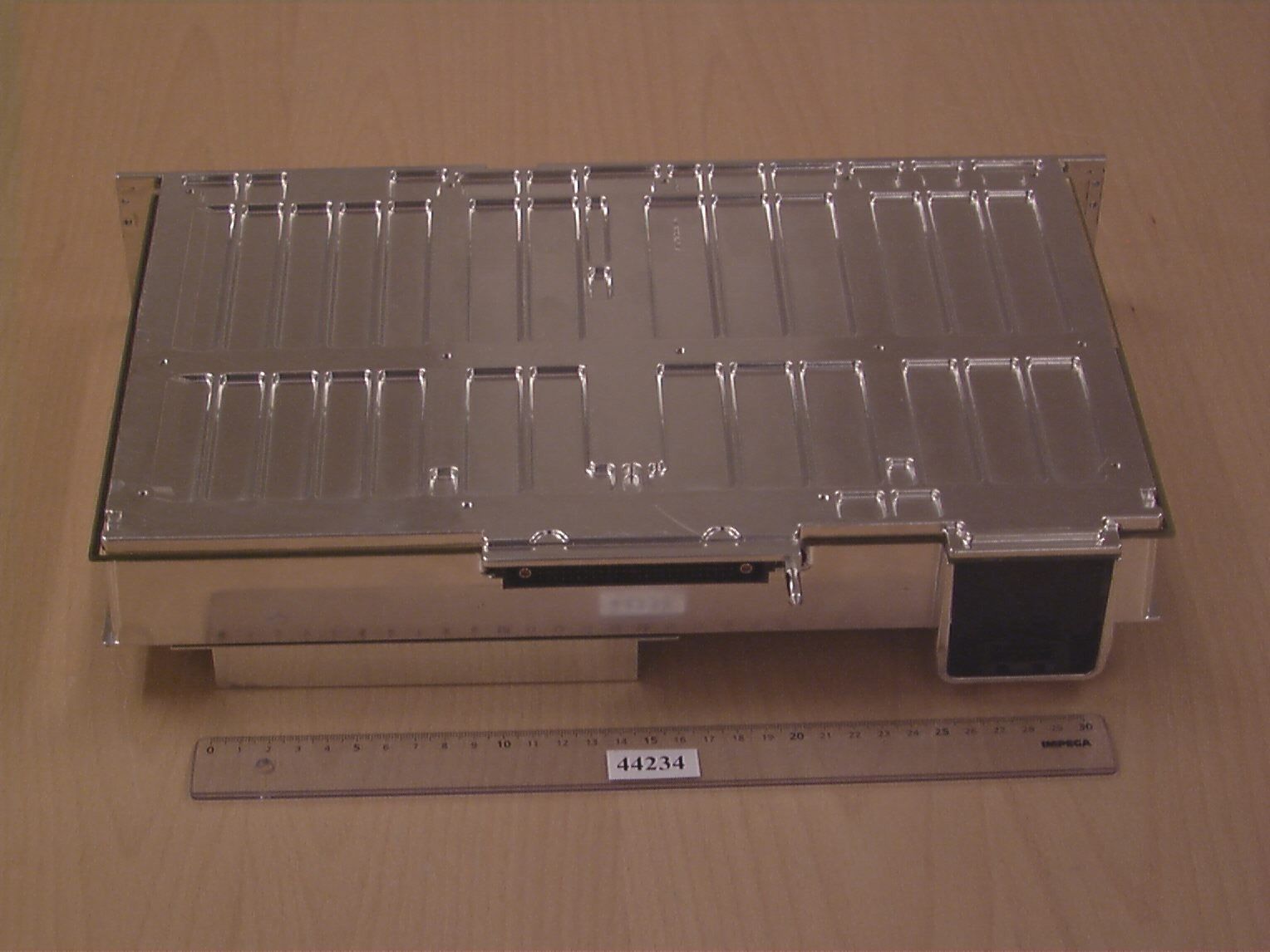

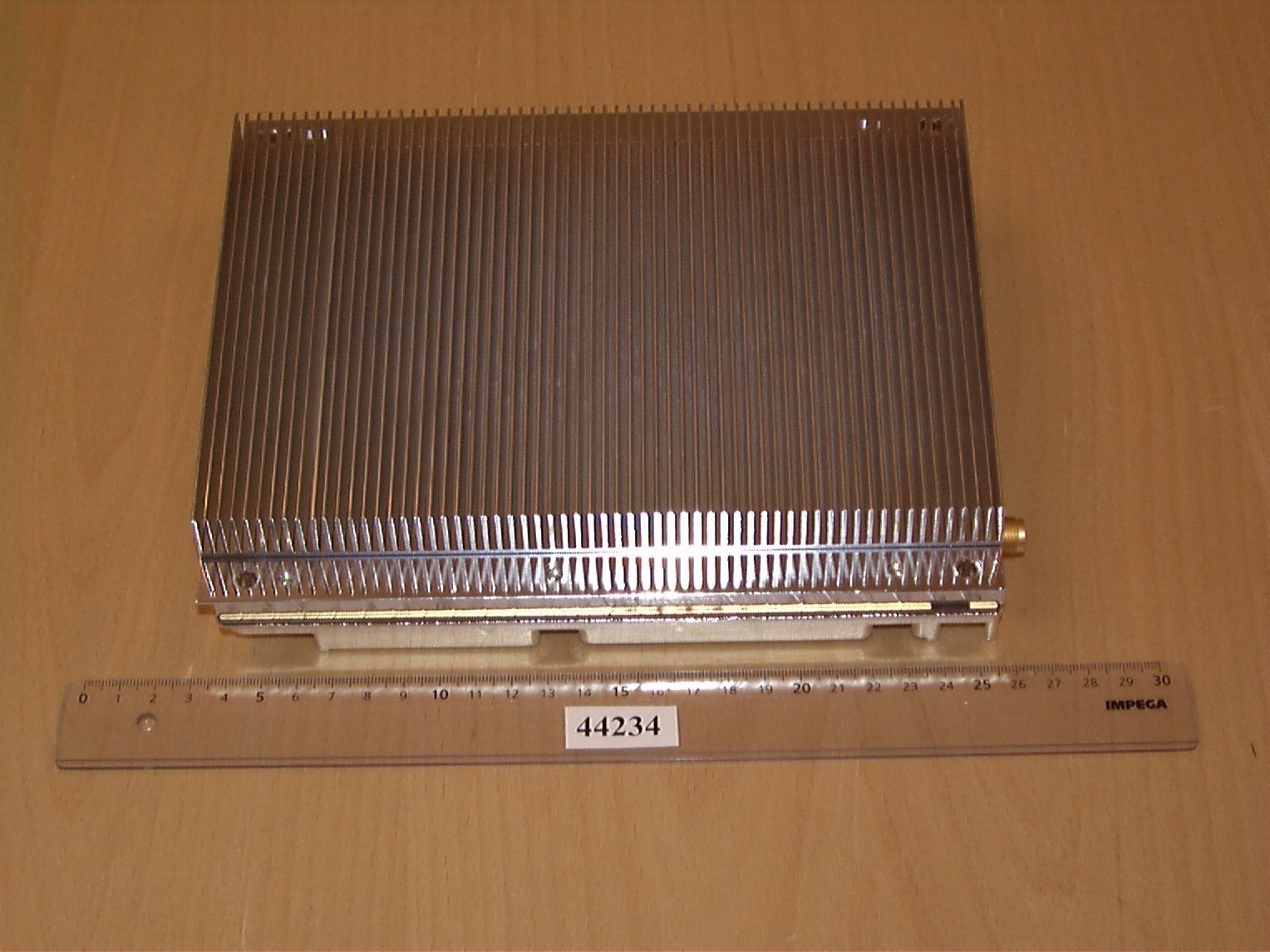

Open EXHIBIT 101 (15) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson) 2003-01-07 A Exhibit 10 – Components, Tune Up Contents 12.1033 (c) (10) Function of Active Circuit Devices2 1.1Printed Board RDU 1900 MHz GMSK/8-PSK ROA 219 5305/12 1.1.1Function Block LTU2 1.1.2Function Block DC/DC3 1.1.3Function Block Digital5 1.1.4Function Block RCiF 1900 MHz7 1.1.5Function Block MRRF 1900 MHz8 1.2Printed Board PBU 1900 GMSK/8-PSK ROA 219 5310/110 1.2.1Function Block Booster10 1.2.2Function Block PA Linearisation GMSK/8-PSK PBU190012 1.2.3Function Block PA, PBU 190013 22.1033(c)(9) Tune-Up Procedure14 32.1033(c)(9,10) Power Tune-Up – Power Limiting15 Open EXHIBIT 102 (15) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson)2003-01-07A 1 2.1033 (c) (10) Function of Active Circuit Devices 1.1 Printed Board RDU 1900 MHz GMSK/8-PSK ROA 219 5305/1 1.1.1 Function Block LTU Product ROZ 104 033/1 Revision PF1 PosProd name/DesProduct number V500DIODE/SCHx2 70V 70mA SOT23 SerialRKZ 323 08/2 Z500MICROCIRCUIT/REG LIN+ ADJ 1.8-20V +/-1% 500RYT 113 6303/1 Z501MICROCIRCUIT/74'74 AC SOP14 2xD FLIP-FLOPRYT 318 0074/C Z503MICROCIRCUIT/MB15E07 PFV-ERRYT 102 6057/1 Z504OSCILLATOR/26.000MHZRTL 202 610/02 Z505MICROCIRCUIT/74'04 LVC SSOP14 6x INVERTERRYT 331 0004/C Z506MICROCIRCUIT/74'04 ACT TSSOP14 6x INVERTERRYT 317 6004/22C Z507MICROCIRCUIT/74'04 ACT TSSOP14 6x INVERTERRYT 317 6004/22C Open EXHIBIT 103 (15) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson)2003-01-07A 1.1.2 Function Block DC/DC Product ROZ 104 016/1 Revision B PosProd name/DesProduct number N706MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 N709MICROCIRCUIT/PWM CURR.-M 5.0V +/-1.5% 1MHzRYT 113 6053/4 N710MICROCIRCUIT/PWM CURR.-M 5.0V +/-1.5% 1MHzRYT 113 6053/4 N711MICROCIRCUIT/REG SW CON- 1.1-4.5V 300-1000HRYT 113 6158/1 N712MICROCIRCUIT/REG SW CON- 1.1-4.5V 300-1000HRYT 113 6158/1 N713MICROCIRCUIT/DC-DC CONV ADJ 1.1-VIN +/-1% 2RYT 113 6236/1 N714MICROCIRCUIT/LM431 ADJ REGULATORRYT 113 008/3C N715MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 N716MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 N717MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 N718MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 N719MICROCIRCUIT/SUP.V 2.93V L/NIN RESETRYT 113 6166/2 N720MICROCIRCUIT/VOLTAGE REG, INVERTING, -5VRYT 113 256/C N721MICROCIRCUIT/REG LIN+ 12V +/-4.2% 500mA 2VRYT 113 6041/2C T701TRANSFORMER/PlanartransformerREG 735 38/1 T702TRANSFORMER/PlanartransformerREG 735 37/1 V702OVERVOLTAGE ARRESTER/DIODE TS 36V 30A DO-214ABRKZ 223 485/36 V703OVERVOLTAGE ARRESTER/DIODE TS 36V 30A DO-214ABRKZ 223 485/36 V704RECTIFIER/SCH 40V 5.5A DPAK 0.51VRKZ 323 6045/1 V705RECTIFIER/SCHx2 30V 2x6A DPAK(TO252AA)RKZ 323 6047/1 V706RECTIFIER/SCHx2 30V 2x6A DPAK(TO252AA)RKZ 323 6047/1 V707DIODE/SWI 75V 0.25A SOT23RKZ 123 612 V708DIODE/SWI 75V 0.25A SOT23RKZ 123 612 V710DIODE/SWI 75V 0.25A SOT23RKZ 123 612 V711DIODE/SWI 75V 0.25A SOT23RKZ 123 612 V712DIODE/SWI 75V 0.25A SOT23RKZ 123 612 V713TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V714TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V715TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V716TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V720DIODE/SCH 20V 0.5A 0.39V SOD123RKZ 323 6011/1 V721DIODE/SCH 20V 0.5A 0.39V SOD123RKZ 323 6011/1 V726TRANSISTOR/NFET 100V 33A D2PAK 0.044_OhmRYN 123 6058/1 V727TRANSISTOR/NFET 100V 33A D2PAK 0.044_OhmRYN 123 6058/1 V728RECTIFIER/SCHx2 30V 2x15A D2PAKRKZ 323 6012/3 V729RECTIFIER/SCHx2 30V 2x6A DPAK(TO252AA)RKZ 323 6047/1 V730DIODE/DUAL SCHOTTKY 90V 6A DPAKRKZ 323 485 V731DIODE/DUAL SCHOTTKY 90V 6A DPAKRKZ 323 485 V735RECTIFIER/SCH 40V 5.5A DPAK 0.51VRKZ 323 6045/1 Open EXHIBIT 104 (15) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson)2003-01-07A V736REGULATOR DIODE/REG 12.0V 6% 0.2W SOT-23RKZ 223 01/18 V741DIODE/SWI 75V 0.25A SOT23RKZ 123 612 Open EXHIBIT 105 (15) Prepared (also subject responsible if other)No. EAB/RBI/R Per HelmerssonB5KAKRC131139-01 ApprovedCheckedDateRevReference KI/EAB/RBI/R (P Helmersson)2003-01-07A 1.1.3 Function Block Digital Product ROZ 104 015/1 Revision C PosProd name/DesProduct number D1MICROCIRCUIT/PowerPC405GP 266MHz rev ERYT 123 6091/4 D3MICROCIRCUIT/NOR GATE,QUAD,74LVC08RYT 331 0008/3C D4PROD. ADAPT. CIRCUIT/CPU-ASIC GARP IIROP 101 1127/2 D5MICROCIRCUIT/FLASH TB 2M16 90NS 3.3V IRYT 118 6152/4 D6MICROCIRCUIT/FLASH 8M16 150ns 3.3V ERYT 118 6153/1 D20PROD. ADAPT. CIRCUIT/TARAC_S+ROP 101 617/4C D21PROD. ADAPT. CIRCUIT/TARAC_S+ROP 101 617/4C D22MICROCIRCUIT/XCV50E-6 FPGA 1.8VRYT 139 055/C D23MICROCIRCUIT/SDRAM CL2+3 16M16 133M 3.3V CRYT 119 6142/5 D50MICROCIRCUIT/74'04 LVC SSOP14 6x INVERTERRYT 331 0004/C D51MICROCIRCUIT/75LBC175 QUAD LINE RECEIVERRYT 109 110/2C D52MICROCIRCUIT/RS485 TRANSC HD x1 5V SOP8 /75RYT 109 6071/1 D53MICROCIRCUIT/RS485 TRANSC HD x1 5V SOP8 /75RYT 109 6071/1 D54MICROCIRCUIT/RS485 TRANSC HD x1 5V SOP8 /75RYT 109 6071/1 D55MICROCIRCUIT/RS485 TRANSC HD x1 5V SOP8 /75RYT 109 6071/1 D58MICROCIRCUIT/75LBC175 QUAD LINE RECEIVERRYT 109 110/2C D60MICROCIRCUIT/74'74 LVC TSSOP14 2xD FLIP-FLORYT 331 0074/3C D61MICROCIRCUIT/74'74 LVC TSSOP14 2xD FLIP-FLORYT 331 0074/3C D70MICROCIRCUIT/LVDS LINE DRIVER x4 TSSOP16 /9RYT 109 6181/2C D71MICROCIRCUIT/LVDS LINE RECEIVER x4 TSSOP16RYT 109 6158/2C D72MICROCIRCUIT/74'244 LVC SSOP20 8x BUFFER NORYT 331 0244/C D75MICROCIRCUIT/SDRAM CL2+3 16M16 133M 3.3V CRYT 119 6142/5 D76MICROCIRCUIT/SDRAM CL2+3 16M16 133M 3.3V CRYT 119 6142/5 D77MICROCIRCUIT/SDRAM CL2+3 16M16 133M 3.3V CRYT 119 6142/5 D81MICROCIRCUIT/8584 I2C-BUS CONTROLLERRYT 125 6010/C D82MICROCIRCUIT/74'00 LVC TSSOP14 4x 2-INP NANRYT 331 0000/3C D83MICROCIRCUIT/74'74 ALVC SOP14 2xD FLIP-FLOPRYT 331 0074/2C D84MICRO…

Text truncated - open the document above for the full version.

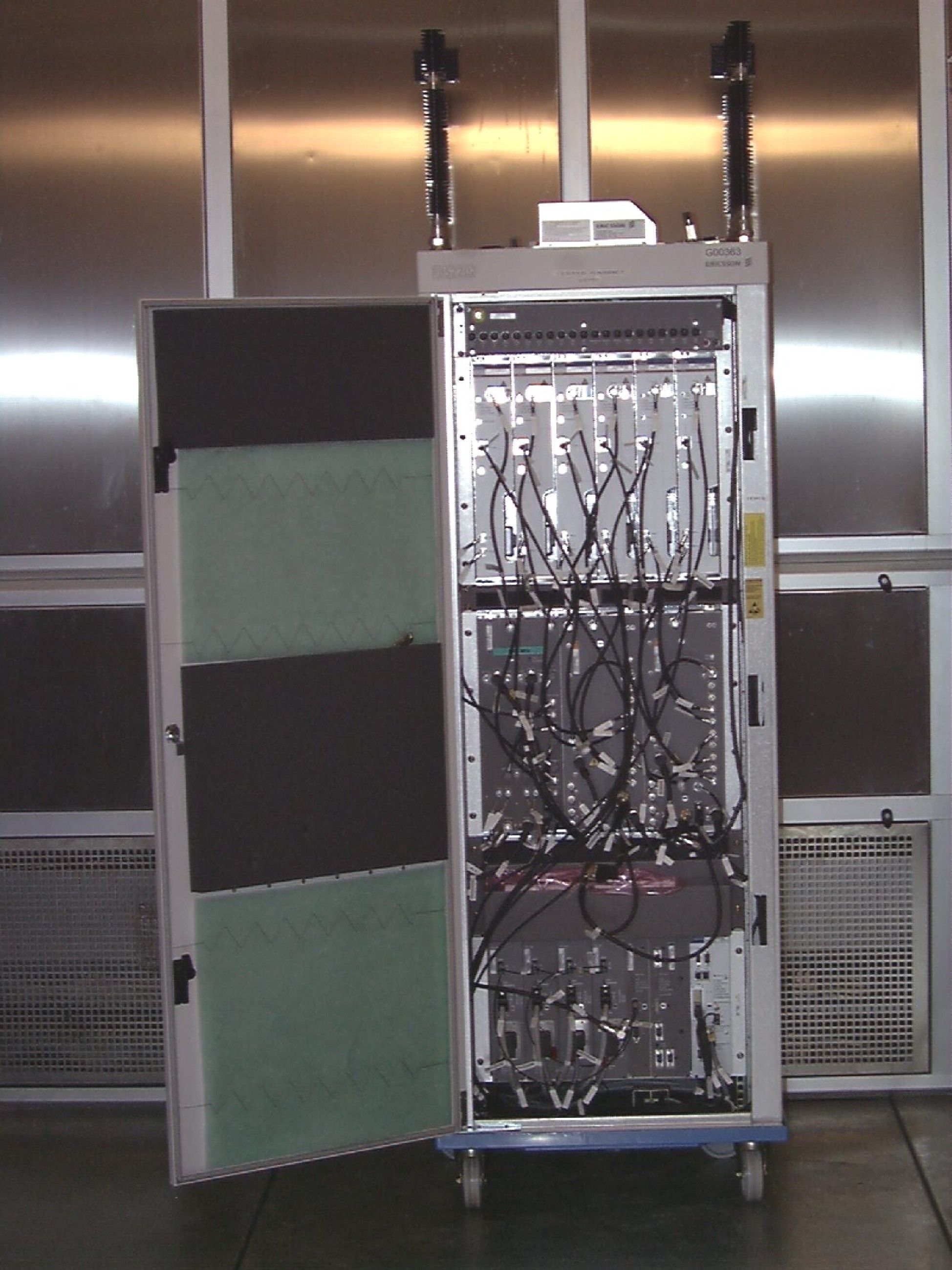

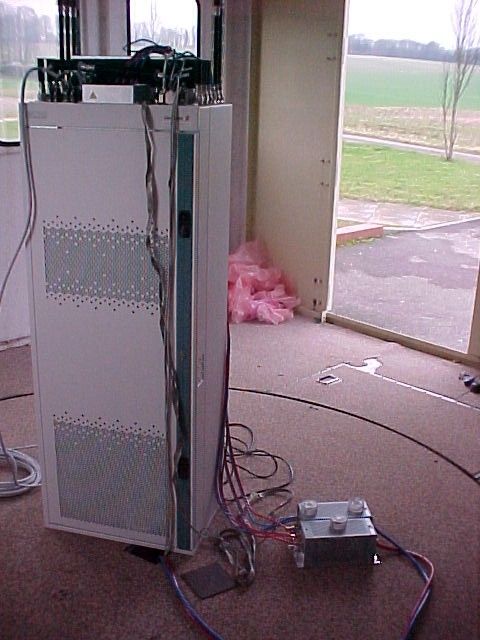

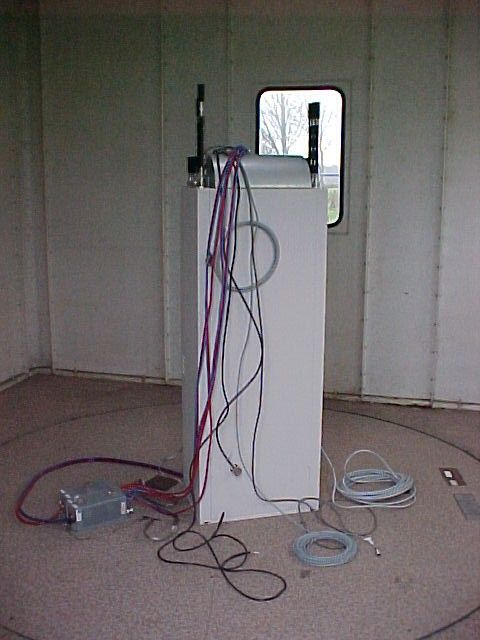

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Ericsson AB. KRC131 139/01 sTRU-Edge Transceiver Unit To: FCC Part 24: 2001 Test Report Serial No: RFI/MPTB1/RP44234JD01A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: Release Version No: PDF01 Issue Date: 19 February 2003 Test Dates: 22 January 2003 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44234JD01A Conformance Testing Department Page 2 of 278 Issue Date: 19 February 2003 Test Of: Ericsson AB. KRC131 139/01 sTRU-Edge Transceiver To: FCC Part 24: 2001 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44234JD01A Conformance Testing Department Page 3 of 278 Issue Date: 19 February 2003 Test Of: Ericsson AB. KRC131 139/01 sTRU-Edge Transceiver To: FCC Part 24: 2001 Table of Contents 1. Client Information..............................................................................................................4 2. Equipment Under Test (EUT) ...........................................................................................5 3. Test Specification, Methods And Procedures ..............................................................13 4. Deviations From The Test Specification .......................................................................15 5. Operation Of The EUT During Testing ..........................................................................16 6. Summary Of Test Results...............................................................................................18 7. Measurements, Examinations And Derived Results....................................................19 8. Measurement Uncertainty ..............................................................................................32 Appendix 1. Test Equipment Used ....................................................................................33 Appendix 2. Measurement Methods ..................................................................................35 Appendix 3. Test Configuration Drawings........................................................................39 Appendix 4. Graphical Test Results ..................................................................................43 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44234JD01A Conformance Testing Department Page 4 of 278 Issue Date: 19 February 2003 Test Of: Ericsson AB. KRC131 139/01 sTRU-Edge Transceiver To: FCC Part 24: 2001 1. Client Information Company Name: Ericsson AB Address: Bergfotsgatan 2 Mölndal SE-431 84 Sweden Contact Name: Mr P Hellberg RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44234JD01A Conformance Testing Department Page 5 of 278 Issue Date: 19 February 2003 Test Of: Ericsson AB. KRC131 139/01 sTRU-Edge Transceiver To: FCC Part 24: 2001 2. Equipment Under Test (EUT) The following information has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Unit Model Number Serial Number Revision Number sTRU 8PSK 1900 KRC 131 139/01 AE5000PMLK R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PMLY R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PMMF R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PMMO R1C Note The above units were tested for conducted measurements within the RBS 2202 (24V DC) BTS. 2.2. Identification Of Equipment Under Test (EUT) Unit Model Number Serial Number Revision Number sTRU 8PSK 1900 KRC 131 139/01 AE5000PVL5 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PVX1 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PVX0 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PVWX R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PSV7 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PMMC R1C Note The above units were tested for radiated measurements within the RBS 2202 (-48V DC) BTS. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44234JD01A Conformance Testing Department Page 6 of 278 Issue Date: 19 February 2003 Test Of: Ericsson AB. KRC131 139/01 sTRU-Edge Transceiver To: FCC Part 24: 2001 Identification Of Equipment Under Test (EUT) (Continued) Unit Model Number Serial Number Revision Number sTRU 8PSK 1900 KRC 131 139/01 AE5000PVL5 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PVX1 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PVX0 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PVWX R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PSV7 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PMMC R1C Note The above units were tested for radiated measurements within the RBS 2202 (230V AC & 24V DC) BTS. Unit Model Number Serial Number Revision Number sTRU 8PSK 1900 KRC 131 139/01 AE5000PVL5 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PVX1 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PVX0 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PVWX R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PSV7 R1C sTRU 8PSK 1900 KRC 131 139/01 AE5000PMMC R1C Note The above units were tested for radiated measurements within the RBS 2102 (208V AC 60 Hz) BTS. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44234JD01A Conformance Testing Department Page 7 of 278 Issue Date: 19 February 2003 Test Of: Ericsson AB. KRC131 139/01 sTRU-Edge Transceiver To: FCC Part 24: 2001 2.3. Description Of EUT The EUT is an sTRU 8PSK 1900 single transceiver unit.…
