B5KDKRC1311005-2Broadband GSM Base station transceiver

Open EXHIBIT 13 1 (2) Prepared (also subject responsible if other) No. EAB/PJR/IR Per Helmersson B5KDKRC1311005-2 Uen Approved Checked Date Rev Reference KI/EAB/PJR/IR (P Helmersson) 2006-09-07 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Sveriges Provnings- och ForskningsInstitut Brinellgatan 4 Box 857 S-501 15 Borås Sweden September 7, 2006 Subject: Certification for FCC ID: B5KDKRC1311005-2 Gentlemen; Ericsson AB requests a Grant of Certification (Type Acceptance) for the mentioned FCC Identifier above. This base station transceiver is designed for use in the GSM 800 MHz cellular telephone system. The transmitter will operate from 869.2 to 893.8 MHz. The receiver circuit supports 824.2 to 848.8 MHz. The base station operates in the 800 MHz broadband Cellular services as per 47 CFR Part 22 subpart H. It meets the requirements of GSM1900 11.10-1 version 4.19.1 specification for operation in GSM cellular systems except for the output frequency range. The transceiver can be used in the base station models RBS 2106, RBS 2107, RBS 2206 and RBS 2207. These base stations will in normal mode operate at a nominal power out of 46.3 dBm for GMSK and 43 dBm for 8- PSK at the antenna connector when using combiner unit CDU-G or CDU-J. In TCC mode with two transmitters combined on the same frequency the nominal output power is 49 dBm for GMSK and 45.7 dBm for 8-PSK. The power output is reducible to ~0.3 watts . The transmitter path in CDU-G and CDU-J is identical. Due to the too wide frequency spectrum at the band edges the output power has to be reduced in some cases. In both GMSK and 8-PSK mode the output power in channel 128 – 869.2 MHz and channel251 – 893.8 MHz has to be reduced to a maximum of 38.3 dBm. Ericsson AB requests confidentiality under CFR 0.459. Confidentiality for the following exhibits is requested: Exhibit 4 Block diagram Exhibit 5 Part 1 Schematics Exhibit 5 Part 2 Schematics Exhibit 8 Internal manuals Exhibit 9 Internal photos Exhibit 10 Components, Tune Up The Radio Base Station (RBS) is always installed and placed in an area with access only to authorize personal. Sensitive information, such as internal photos and manuals is not available for general public in any form. Only customer with a Non-Disclosure Agreement (NDA) in place will get access to sensitive information. So the only way a competitor could get technical information on the RBS is from FCC records. Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Open EXHIBIT 13 2 (2) Prepared (also subject responsible if other) No. EAB/PJR/IR Per Helmersson B5KDKRC1311005-2 Uen Approved Checked Date Rev Reference KI/EAB/PJR/IR (P Helmersson) 2006-09-07 A Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden" If additional information is needed, please contact me on the below listed number. Sincerely, Per Helmersson Staff Engineer, Regulatory Programs Ericsson AB Torshamnsgatan 21-23 (Färögatan 6) Kista, SE-164 80 Stockholm Sweden Telephone No.: +46 8 764 16 52 Fax No.: +46 8 404 41 90 e-mail [email protected]

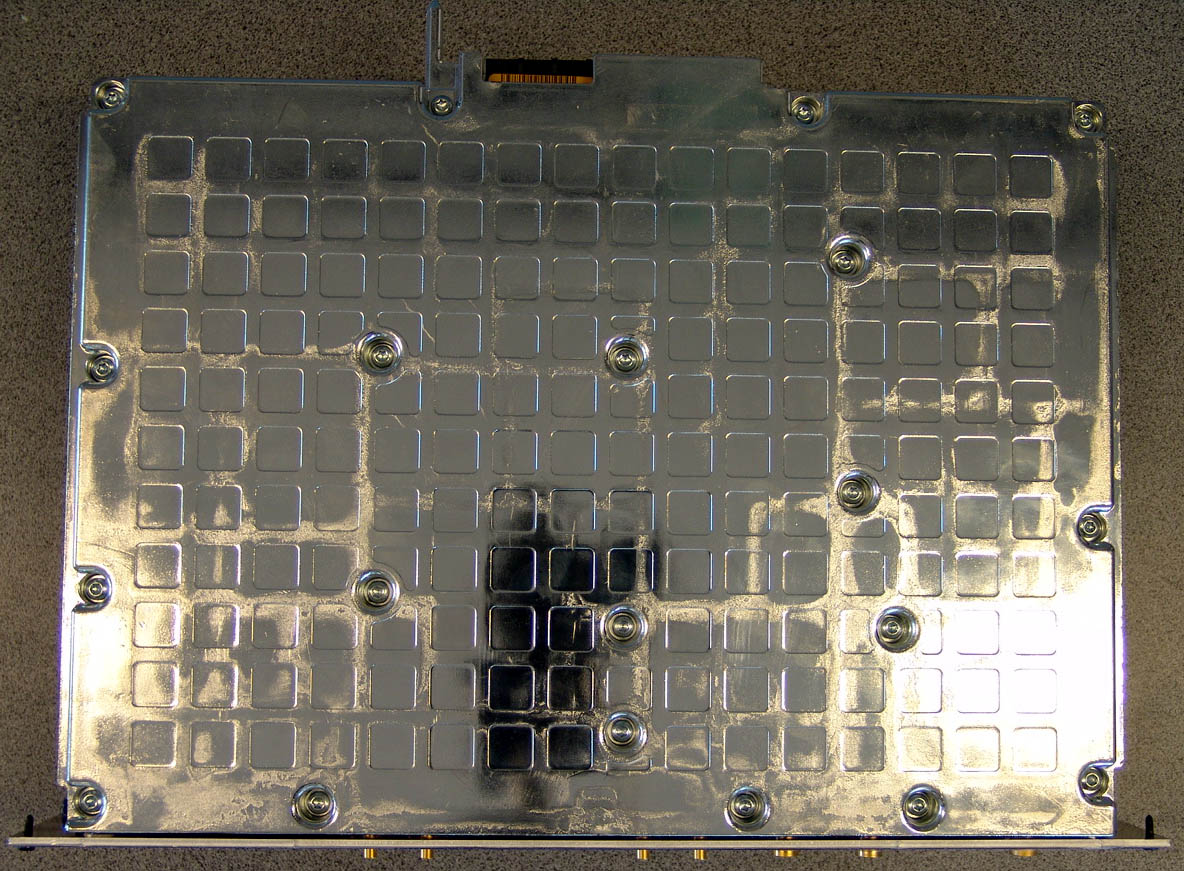

Date Page KRC 131 1005/2 R4A 2006-08-29 1(2) External photos Front side Rear side Right side Date Page KRC 131 1005/2 R4A 2006-08-29 2(2) External photos Left side

Date Page KRC 131 1005/2 R4A 2006-08-29 1(1) FCC ID FCC ID Label: FCC ID placement

Open EXHIBIT 12 1 (10) Prepared (also subject responsible if other) No. ERA/RBI/R Per Helmersson B5KDKRC1311005-2 Approved Checked Date Rev Reference KI/EAB/PJR/IR (P Helmersson) 2006-09-06 A Exhibit 12 – Cover Sheet Contents 1 2.1033(c) Circuit Description 2 1.1 (2) FCC Identifier: B5KDKRC1311005-2 2 1.2 (4) Type of Emission: 2 1.3 (5) Frequency range. 2 1.4 (6) Range of Operating Power: 2 1.5 (7) Maximum Power Rating: 2 1.6 (8) Final Amplifier Voltage and Current in normal operation 3 1.7 (10) Frequency Stabilizing Circuit Description 3 1.8 (10) Spurious and Harmonic Suppression 3 1.9 (10) Limiting Power 3 1.10 (10) Digital Modulation 5 1.10.1 Modulation format for GMSK 5 1.10.2 Modulation format for 8PSK 8 Open EXHIBIT 12 2 (10) Prepared (also subject responsible if other) No. ERA/RBI/R Per Helmersson B5KDKRC1311005-2 Approved Checked Date Rev Reference KI/EAB/PJR/IR (P Helmersson) 2006-09-06 A 1 2.1033(c) Circuit Description 1.1 (2) FCC Identifier: B5KDKRC1311005-2 This dTRU (double Tranceiver Radio Unit) consist of two synthesized transmitters (TRX) operating in the frequency band of 869.2 to 893.8 MHz. There are 122 Channels available with a channel spacing of 200 KHz. The transmitter is capable of operation in a TDMA (Time Division Multiple Access) system. For each channel there are 8 time slots available, each containing digital speech or data for GMSK and data for 8-PSK. The dTRU have a hybrid combiner included which can be used to increase the number of TRX:s per antenna. The combiner can alternatively be used to increase the output power (TCC = Transmitter Coherent Combining) by using the same transmit frequency channel in both TRX:s. This combiner is connected before the cavity band pass filter in the combining system. 1.2 (4) Type of Emission: GMSK: 244KGXW 8-PSK: 244KG7W 1.3 (5) Frequency range. 869.2 to 893.8 MHz 1.4 (6) Range of Operating Power: This transmitter is designed to supply a nominal power level of 46.3 dBm for GMSK and 43.0 dBm for 8-PSK at the antenna connector using combiner unit CDU-G or CDU-J. The power level can be set at 16 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(15) where P(0) is the highest power level. In TCC mode both TRX:s in the transceiver unit are combined to one signal. In this combination the nominal power level is 49.0 dBm for GMSK and 45.7 dBm for 8-PSK at the antenna connector. The power level can be set at 16 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(15) where P(0) is the highest power level. 1.5 (7) Maximum Power Rating: The maximum peak power rating with one TRX under environmental and supply voltage variations is equal to 46.3 dBm plus a power level tolerance of + 2.0 dB. Therefore the maximum peak output power is 48.3 dBm equal to 68 W at the antenna connector of the radio base station. Open EXHIBIT 12 3 (10) Prepared (also subject responsible if other) No. ERA/RBI/R Per Helmersson B5KDKRC1311005-2 Approved Checked Date Rev Reference KI/EAB/PJR/IR (P Helmersson) 2006-09-06 A The maximum peak power rating with two TRX.s combined (TCC) under environmental and supply voltage variations is equal to 49 dBm plus a power level tolerance of + 2.0 dB. Therefore the maximum output power with TCC is 52.0 dBm equal to 158 W at the antenna connector of the radio base station. 1.6 (8) Final Amplifier Voltage and Current in normal operation P (0) P (15) Drain Voltage 30 Volt DC 30Volt DC Drain Current 4,3 Amps DC 0,65 Amps DC 1.7 (10) Frequency Stabilizing Circuit Description The transmitter in each TRX contains three synthesized oscillators. One PLL gives a 90 MHz signal to the I/Q modulator. The two other generate a 779 to 804 MHz signal to the mixer where the modulated signal is converted to the transmit frequency. Two oscillators are needed in frequency hopping mode, one is retuning while the other is active. All three synthesized oscillators have a reference of 13 MHz, which is mixed down by 2, generated in a central synthesized oscillator (PLL) of 26 MHz in the LTU part of the dTRU. This PLL frequency reference is extracted from the 13 MHz signal on the Y-link, which is generated and distributed, by the DXU (Distribution Switch Unit), to all dTRU:s in the base station. The frequency reference 13 MHz in the DXU is generated in a voltage controlled oscillator placed in an oven together with and phase-locked to a long-term stable oven heated oscillator. As an option the oscillator can be phase-locked to the incoming PCM-link frequency or an incoming GPS-link frequency. 1.8 (10) Spurious and Harmonic Suppression Spurious and harmonic suppression is achieved by using two separate band pass filters of ceramic type in the exciter. A filter module at the output works like a band pass filter around the carrier. In addition to these filters, the output signal passes a cavity band pass filter in the combining system. 1.9 (10) Limiting Power The TRU measures the output power at its output connector via a RF-detector and the detected value is used by the power loop control block to control two variable gain amplifiers between the modulator and the power amplifier. Open EXHIBIT 12 4 (10) Prepared (also subject responsible if other) No. ERA/RBI/R Per Helmersson B5KDKRC1311005-2 Approved Checked Date Rev Reference KI/EAB/PJR/IR (P Helmersson) 2006-09-06 A In TCC (Transmitter Coherent Combining) mode the output power is also measured with a RF detector in the non-output branch of the hybrid combiner in the dTRU. This output power is kept as low as possible, by keeping the TRX:s output power in phase with each other, to get maximum output power at the output branch of the hybrid combiner Open EXHIBIT 12 5 (10) Prepared (also subject responsible if other) No. ERA/RBI/R Per Helmersson B5KDKRC1311005-2 Approved Checked Date Rev Reference KI/EAB/PJR/IR (P Helmersson) 2006-09-06 A 1.10 (10) Digital Modulation 1.10.1 Modulation format for GMSK 1.10.1.1 Modulating symbol rate The modulating s…

Text truncated - open the document above for the full version.

Date Reference Page REPORT 2006-08-25 F612783-F22 1 (4) FCC ID: B5KDKRC1311005-2 Appendix 1 Description - Equipment Under Test (EUT) Equipment: GSM Base station transceiver 800 MHz Tx Frequency range: 869.2-893.8 MHz Modulations: GMSK and 8-PSK Maximum output power(average): GMSK 8-PSK Uncombined: 46.3 dBm 43.0 dBm Combined: 43.0 dBm 39.7 dBm Combined+TCC: 49.0 dBm 45.7 dBm Nominal power voltage: 24 V DC Tested Channels Radiated measurements: dTRU ARFCN Frequency Modulation Configuration 145 872.6 MHz 8-PSK With internal combiner No 1 163 876.2 MHz GMSK With internal combiner 180 879.6 MHz 8-PSK With internal combiner No 2 198 883.2. MHz GMSK With internal combiner 128 869.2 MHz 8-PSK With internal combiner+TCC No 3 251 893.8 MHz GMSK With internal combiner+TCC No 4 215 886.6 MHz 8-PSK Without internal combiner No 5 230 889.6 MHz GMSK Without internal combiner The radiated spurious emission measurements were done with the three RF configurations listed above at the same time to simulate worst case. The radiated measurements were performed with the EUT installed in a RBS 2206 powered with 24 VDC which was used as a worst case configuration. Conducted measurements: ARFCN Frequency ARFCN Frequency 128 869.2 MHz 226 888.8 MHz 129 869.4 MHz 250 893.6 MHz 153 874.2 MHz 251 893.8 MHz 190 881.6 MHz All RF conducted measurements were performed with the EUT installed in a RBS 2206 powered with DC power (the list of the RBS hardware is shown in appendix 9). The measurements were done at the output connector of CDU-G 8 (BFL 119 155/1 rev. R3B) with serial number TR43144633. The dTRU with serial number AE53038585 was used for the measurements. The measurement was performed with configurations that represents worst case scenario. Date Reference Page REPORT 2006-08-25 F612783-F22 2 (4) FCC ID: B5KDKRC1311005-2 Appendix 1 Manufacturer’s representative Per Helmersson, Ericsson AB Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in FCC CFR47. References Measurements were done according to relevant parts of the following standards: ANSI/TIA/EIA-603-C-2004 J-STD007A Vol 1 ANSI/TIA/EIA 136-280-D-2002 Reservation The test results in this report apply only to the particular Equipment Under Test (EUT) as declared in the report. Delivery of test object The test object was delivered: 2006-08-04 Test engineers Jörgen Wassholm and Jonas Bremholt Test witnesses Lars Hagbjörk and Mikael Ohlsson, Ericsson AB Date Reference Page REPORT 2006-08-25 F612783-F22 3 (4) FCC ID: B5KDKRC1311005-2 Appendix 1 Test set-up, conducted measurements Note: The TG-Sync and Ext. trig were only used during the frequency stability measurements. 1. Computer with software RBSMMI ver. R9D08 2. Ericsson RBS Master 2 LPY 107 1007/1 R1F/A software ver. R5A08 3. Attenuator Interfaces: Type of port: 24 VDC DC power Antenna: Coaxial cable (50 ohm) Antenna G703: T1, shielded multi-wire (120 ohm) Telecom TG-sync: Shielded multi-wire Signal Date Reference Page REPORT 2006-08-25 F612783-F22 4 (4) FCC ID: B5KDKRC1311005-2 Appendix 1 Test set-up, radiated measurements 1. Computers, with software RBSMMI ver. R9D08 2. Ericsson RBS Master 2 LPY 107 1007/1 R1F/A software ver. R5A08 3. Dummy loads (50 ohm) Interfaces: Type of port: 24 VDC DC power Antenna: Coaxial cable (50 ohm) Antenna G703: T1, shielded multi-wire (120 ohm) Telecom TG-sync: Shielded multi-wire, unterminated Signal Alarm: Unshielded 4 wire, unterminated Signal GPS: Shielded multi-wire, unterminated Signal Date Reference Page REPORT 2006-08-25 F612783-F22 1 (3) FCC ID: B5KDKRC1311005-2 Appendix 2 RF Power output measurements according to 47CFR 2.1046 Date 2006-08-18 Temperature 22 °C ± 3 °C Humidity 58 % ± 5 % Test set-up and procedure Measurements were made at CDU-G 8 output connector. The output was connected to a Peak power analyser via a 50 ohm attenuator. The transmitter was modulated with pseudorandom data and with maximum power in all the time slots during the measurements. Measurement equipment Calibration Due SP number Boonton RF Peak power meter/analyzer 2007-02 503 144 Boonton Power sensor 56518-S/4 2007-02 503 145 Multimeter Fluke 87 2006-11 502 190 Testo 610, Temperature and humidity meter 2006-12 502 658 Measurement uncertainty: 0.5 dB Results Modulation: GMSK dTRU, output 1+2, with internal combiner plus TCC. Rated output power level after CDU-G (maximum): 49.0 dBm Test conditions Transmitter power (dBm) Peak/ Average Channel 128 Channel 190 Channel 251 T nom 22 °C V nom 24 V DC 49.4/ 48.8 49.9/ 49.2 49.6/ 48.9 dTRU, output 1, without internal combiner: Rated output power level after CDU-G (maximum): 46.3 dBm Test conditions Transmitter power (dBm) Peak/ Average Channel 128 Channel 190 Channel 251 T nom 22 °C V nom 24 V DC 46.8/ 46.2 47.3/ 46.6 47.0/ 46.3 dTRU, output 2, without internal combiner: Rated output power level after CDU-G (maximum): 46.3 dBm Test conditions Transmitter power (dBm) Peak/ Average Channel 128 Channel 190 Channel 251 T nom 22 °C V nom 24 V DC 46.8/ 46.1 47.2/ 46.5 46.7/ 46.0 Date Reference Page REPORT 2006-08-25 F612783-F22 2 (3) FCC ID: B5KDKRC1311005-2 Appendix 2 dTRU, output 1, with internal combiner: Rated output power level after CDU-G (maximum): 43.0 dBm Test conditions Transmitter power (dBm) Peak/ Average Channel 128 Channel 190 Channel 251 T nom 22 °C V nom 24 V DC 43.5/ 42.7 43.8/ 43.1 43.7/ 42.9 dTRU, output 2, with internal combiner: Rated output power level after CDU-G (maximum): 43.0 dBm Test conditions Transmitter power (dBm) Peak/ Average Channel 128 Channel 190 Channel 251 T nom 22 °C V nom 24 V DC 43.5/ 42.8 43.9/ 43.2 43.6/ 42.9 Modulation: 8-PSK dTRU, output 1+2, with internal combiner plus TCC: Rated output power level after CDU-G (maximum): 45.7 dBm Test conditions Transmitter power (dBm) Peak/ Average Channel 128 Channel 190 Channel 251 T nom 22 °C V nom 24 V DC 49.4/ 45.6 49.9/ 46.1 49.6/ 45.8 dTRU, output 1, without internal combiner: Rated output power level after CD…

Text truncated - open the document above for the full version.
