Ericsson GSM System RBS 2308 and RBS 2309 User’s Guide EN/LZT 720 0027 R8A RBS 2308 and RBS 2309 User’s Guide Copyright © Ericsson AB 2006 – All Rights Reserved Disclaimer No part of this document may be reproduced in any form without the written permission of the copyright owner. The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Ericsson shall have no liability for any error or damage of any kind resulting from the use of this document. EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Contents 1Introduction1 1.1Product Overview2 1.2Target Groups3 1.3Installation and Integration Process Overview5 1.4Radio Site Implementation Process5 1.5RBS Library Overview8 1.6Release History8 2Personal Health and Safety Information11 2.1Introduction11 2.2Hazard Symbols and Admonitions12 2.3General Safety Precautions13 2.4Electric Shock Hazards14 2.5Energy Hazards15 2.6Fire Hazard16 2.7Heat Hazards17 2.8Mechanical Hazards18 2.9Radio Frequency Exposure Hazards19 2.10Laser Hazards20 2.11Chemical Hazards21 2.12Other Hazards23 3System Safety Information27 3.1Introduction27 3.2Admonitions and Safety Symbols28 3.3Batteries29 3.4Electrical Installation30 3.5Electrostatic Discharge31 3.6Equipment Handling32 3.7Ground Connection33 3.8Lightning Protection33 4Tools and Instruments35 4.1Tools for Installation of RBS 2308 and RBS 230935 EN/LZ T 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 4.2Equipment for Antenna System Test s 36 4.3Equipment for Site Installation Tests37 4.4Equipment for PSTU Startup37 4.5Equipment for RBS Site Integration38 4.6Equipment for Maintenance38 4.7Kit Specifications40 5Installation of RBS41 5.1Introduction41 5.2Preconditions41 5.3Torque Settings42 5.4Installation Procedure43 5.5Installing Mixed Micro Configurations85 6Antenna System Tests87 6.1Checking the Installation89 6.2Calibrating the Antenna Tester90 6.3Performing DTF Tests93 6.4Naming a DTF Measurement96 6.5Calculating the Feeder Attenuation97 6.6Calculating the Feeder Delay99 6.7Performing SWR Test101 6.8Naming an SWR Measurement103 6.9Performing Concluding Routines104 6.10SWR – Return Loss Conversion Table107 7Site Installation Tests109 7.1Preconditions109 7.2Inspecting Cable Connections110 7.3Verifying AC Mains and DC Power Supply111 7.4Switching on the RBS112 7.5Testing Fan Unit113 7.6Setting IDB Parameters114 7.7Reading Fault Status140 7.8Testing External Alarms142 7.9Performing Concluding Routines143 8PSTU Startup149 8.1Preconditions149 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 8.2Work Process for PSTU Startup150 8.3Procedure151 9RBS Site Integration161 9.1Testing Transmission162 9.2Bringing the RBS into Service164 9.3Making Test Calls on the Air Interface165 9.4Performing Concluding Routines169 10Maintenance175 10.1Introduction175 10.2Preconditions175 10.3Fault Localization Using OMT176 10.4Troubleshooting Using the RBS Indicators193 10.5HW Replacement207 10.6Returning Hardware255 11Reconfiguring the RBS for IP Transmission261 11.1Introduction261 11.2Preconditions261 11.3Reconfiguration Procedure261 12Glossary271 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 1Introduction This User’s Guide consists of the chapters listed below. Each chapter is briefly summarized. Introduction This chapter. Personal Health and Safety Information Contains personal health and safety information that applies when working with Ericsson system products. System Safety Information Contains system safety information that applies when working with Ericsson system products. Tools and Instruments Contains lists of all recommended tools and instruments. Installation of RBS Describes activities for: • Installation of the mounting base • Connection of cables • Connection of external antenna • Mounting the radio cabinet on the mounting base Antenna System Tests Describes the site specific antenna tests that should be performed on site. Site Installation Tests Describes the site specific tests that should be performed on-site. 1 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide PSTU Startup Describes how to pu t the Packet-Switched Termination Unit (PSTU) into operation. RBS Site Integrat ion Describes how to i ntegrate an RBS site into a network. Maintenance Describes first l ine maintenance. This means that swap repair is carried out on site and that o nly replaceable units are handled. Reconfiguring t he RBS for IP Transmission Describes how to configure the RBS for IP-based transmission. Glossary Contains abbrev iations and acronyms used in the text. 1.1Product Overview The RBS is a GSM EDGE micro base station for both indoor and outdoor micro cell applications. It is a small yet complete station, with transceivers, switching functions and transmission. The RBS 2308 supports both PCM and IP-based transmission. The RBS can be mounted on a mast/pole as easily as it can be fitted to a wall. 2 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide P015678B MCB Sunshield TIM/PSTU Flash Card Sunshield Screws IXU (Master RBS) MBU Fan RXBP Fan Cover RRU Integral Sector Antenna Integral Omni Antenna Figure 1 RBS Ove rview IXU Interface and Switching Unit MBUMounting Base Unit MCB Multicasting Box PSTUPacket-Switched Termination Unit (available only for RBS 2308) RRURemote Radio Unit RXBPRX Bandpass Filter TIM Transmission Interface Module External optional battery backup is possible, as well as the option of having integrat ed antennas within the base station. 1.2Target Groups This section describes the target group for this manual, which is all personnel involved in activities relating to the installation and integration of an RBS site. 3 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide                                …

Text truncated - open the document above for the full version.

RBS 2308 and RBS 2309 User’s Guide "1"1 3. Attach the front sunshield to the left sunshield. 4. Close the front sunshield and attach it to the top shield (fan cover or omni antenna) and to the right sunshield. 5. Lock the shield. 5.4.18Performing Concluding Routines This section describes the routines to becompleted before leaving the site. Note:Ericsson strongly advises that when cleaning up after installing the RBS, the personnel performing the installation pay particular attention to the environment. Primarily, recycle all waste materials that can be recycled and sort waste so that it can be disposed of according to local regulations. 8 3 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Table 16 Objects to Be Recycled or Disposed of After RBS Installation Item Sort or Recycle? Cable insulation from crimping, brazing or welding Packing chips Foam Polystyrene Bubble plastic Cable tie clippings Sorted with plastics Paper and woodPaper recycling Waste metal from cable ladders Pieces of cable Nuts, bolts, washers and screws Recycled or sort ed as metals Note:All pack ing material should be recycled, and shock absorbers disposed of, in accorda nce with local recycling regulations. 5.4.18.1Updating the S ite Installation Documentation 1. Check theSite Installation Documentationfor deviations from the installatio n. 2. Update the do cuments with the changes that apply. 3. Send the docu ments to the person responsible for Site Installation Engineering . 5.4.18.2Performing F inal Checks Before leav ing the site, make sure that the following tasks have been completed: 84 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Table 17 Checklist Check the following:OK 1. All cables are properly routed and connected. 2. All sunshields are properly installed. 3. The site is clear of waste materials. 4. The Site Installation Documen tation is updated. 5. The modified Site Installation Documentation has been handed over to the person responsible for the site. 6. The RBS is powered up if the surrounding temperature changes between hot and cold and the RBS installation is not completed within 48 hours. (1) (1)SeeChapterSiteInsta llation Tests. 5.5Installing Mixed Micro Configurations 5.5.1General Mixed micro means that an existing RBS 2302 site is expanded by adding one or more RBS 2308s or RBS 2309s. In all mixed micro configurations, the RBS 2308 or RBS 2309 must serve as the master. A maximum of two RBS 2302 cabinets can be connected to an RBS 2308 or RBS 2309. In an existing configuration of six TRXs, one RBS 2302 cabinet mustberemoved.ThetworemainingTRXsofTRX0–5intheRBS2302 group will change their numbering to 8 – 11.See figures below. Figure 33 3×4 Configuration with EDGE Capability in All Cells 8 5 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide EDGE capability is only available in the RBS 2308 and RBS 2309. One RBS must be split betwe en two cells for EDGE capability to be available in all cells. Figure 34 3×4 Configuration with EDGE Capability in Cell 1 and Cell 2 5.5.2Installation 1. Ensure that the conditions inSection 5.2 Preconditions on page 41are fulfilled. 2. Install RBS 2308 or RBS 2309 cabinets according toSection 5.4 Installation Procedure on page 43. 3. Connect the TXL bus to the RBS 2302 to be expanded.See section Connecting the 4- or 6-TRX Cable (Optional)in: RBS 2302 User’s GuideEN/LZT 720 0062 Note:When upgrading from an RBS 2302 configuration to a mixed micro configuration, site-specific data (for example external alarms) can be reused from an old IDB when creating a new IDB. 86 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 6Antenna System Tests This chapter describes the tests, Distance To Fault (DTF) and Standing Wave Ratio (SWR), used to verify the antenna system installation. The tests also include measuring the feeder length to calculate feeder system loss and delay. The tests described are valid for GSM 800/900/1800/1900 passive antenna systems for RBS 2308 and RBS 2309. Equipment for Antenna System Tests The Anritsu Site Master S331C is recommended for the tests described in this chapter. The following Site Master models can be used, if available: • S120A for GSM 800/900 • S235A for GSM 1800/1900 • S251A/B for GSM 800/900/1800/1900 • S331A/B for GSM 800/900/1800/1900 Note:Instructions for these older instruments are not included in this manual. 8 7 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Figure 35 Anritsu Site Master S331C The keys mentioned in the instructions in this chapter are shown in the figure above. In the instructions a “key” is markedwith the text describing its function, while a “soft key” has its text displayed on the screen (next to the key). For more detailed information on the Antritsu Site Master,see: Anritsu Site Master User’s Guide Preconditions Before starting the tests, ensure the following: • For the DTF Tests, that the installation of feeder cables with jumpers is complete prior to testing • For the SWR Test, that the connection of antennas and feeder cables with jumpers is complete prior to testing. It is recommended not to cover the connectors with sealing tape until all testing is complete. • A test record for recording the test results is available 88 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Work Process for Antenna System Tests This section describes the order in which to perform the tests. When the exit criteria for each procedure are fulfilled, the tester enters the results in the test record, then returns to the work process for the next step.    !   "# #   $$   " $ %  #    &    & '()  & " $* )   '() !   " $$  # *     " $$  # * $ + ,- Figure 36 Work Process for Antenna System Tests The work order can be altered or tests can be removed due to local circumstances. In this event, an investi…

Text truncated - open the document above for the full version.

RBS 2308 and RBS 2309 User’s Guide 9.4.3Filling in the Checklist This section describes the checklist to be filled in after the integration has been completed. The following checklist is not mandatory but it is strongly recommended. Local procedures and safety regulations must be evaluated and included in this checklist. Table 60 Checklist Check the following:OK 1. The indicators on the RRU, IXU, and PSTU (optional) are in the approved status. 2. The test equipment has been disconnected from the RBS. 3. The RBS cabinet and the mo unting base are free from foreign objects. 4. All cables are free of damage. 5. Top and bottom of cabinet are free of obstructions (for airflow). 6. The cabinet has been locked, and the screws have been tightened. 7. All tools have been accounted for. 8. All paperwork has been completed. 9.4.4Network Element Acceptance Certificate This section contains a Network Element Acceptance Certificate to be filled in by the person responsible.See Figure below. 1 73 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 0 "  !""" #    %  ' #  %  #   2  &        # ) *+   AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA   '  % % AAAAAAAAAAAAAAAAAA # ) *+   %% $  % #  $ '  %% % * # # $%    %   # 2    % % A  #   '  % #    # %% $  % % A # ) *+   $  %% $  % * #  + $   %#    $ A )  '  + * #  % L  $    & # #2    #   FAAAAAAAAAAAAAA , FAAAAAAAAAAAAAAAAAAAAAAAAAA $  ) F    $   F $  ) F    $   F  %  #  #  %  Fi gure 71 Example of a Network Element Acceptance Certificate 174 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 10Maintenance This chapter describes the maintenance procedures for the RBS 2308 and RBS 2309. 10.1Introduction 10.1.1Target Group The target group for this document is maintenance personnel. To perform maintenance work in a safe and professional way, the work must be done by skilled personnel. The following qualifications are minimum requirements: • Good understanding of radio and telephone engineering • Good understanding of engineering English 10.2Preconditions This section describes the preconditions that apply to the maintenance procedures, including tools and safety. 10.2.1Health and Safety Information Ensure that the chaptersPersonal Health and Safety InstructionsandSystem Safety Informationin this manual has been read and fully understood. 10.2.2Tools This section presents the recommended torque settings for screws, nuts and connectors. Torque Values Table 61 Screws and Nuts DimensionTorque NmRemark M42.6 Nm ± 0.15 NmNormal 1 75 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide DimensionTorque NmRemark M41.7 Nm ± 0.15 Nm Reduced torque for captive screw M821 Nm ± 1.3 NmEarth nut Table 62 Connectors Connector Torque NmRemark TNC 1.7 Nm ± 0.15 Nm – N2.7 Nm ± 0.2 Nm – 10.3Fault Localization Using OMT This section contains information on how to localize a fault when handling an alarm in the OMT. Ericsson recommends that the OMT is used, but if no OMT is available, or it is not possible to connect to the RBS,see Section 10.4 Troubleshooting Using the RBS Indicators on page 193. The section is based on the Replacement Unit Map (RU Map) connected to an alarm. The RU Map consists of two different kinds of RUs: • Physical Units The following RUs are mapped to one single physical unit that can be replaced in the field. −IXU −RRU −TIM (only if an IXU with R-state lower than R5A is used) −PSTU −Fan unit • Logical units The following RUs are handled as one unit, but can actually be one or more physical units. −Antenna: The logical path from the RRU to (and including) the antenna −Battery: The battery backup system including batteries −Environment: External conditions (ambient temperature and site power) −GPS receiver: The synch. signal received and distributed by the GPS receiver 176 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide −GPS receiver DXU cable: The logical link between the GPS receiver and the IXU −IDB: The installation database stored in the RBS, not the physical storage −Y link: The logical link between IXU and RRU(s) For supplementary information about RU maps,see: Fault List Micro EN/LZT 720 0466 10.3.1Reading Fault Status This section describes how to read the fault status, using the OMT. If any fault indicator on the RBS is on, then the fault status must be read. Connect the OMT 1. Remove the lid from the OMT port on the IXU. 2. Connect the OMT cable from the PC serial port 1 to the OMT port on the right-hand side of the IXU. If an extended OMT cable is connected to the OMT port, then connect the OMT cable to the end of the extended OMT cable. P010276B L o c a l/R e m o te IX U te m p . A C p o w e r o n D C p o w e r o n T ra n s m is s io n O K P o r t A P o r t B P o r t C P o r t D OMT Cable Figure 72 Connecting OMT to IXU 3. Start the OMT Reading the IDB 1 77 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 4. In theRBS 2000menu ,selectConnectto logically connect the OMT to the RBS. 5. In theConfigurationmenu, selectRead IDB 6. On theMaintenancemenu, clickMonitorto open the Monitor window. See figure below.  Figure 73 Reading Fault Status 7. In the Available monitors box, select “MO fault maps” and click→to add “RBS” into the Monitors to start box. 8. ClickStart monitor. 9. In the RBS Event Monitor window, check the MO faults box to see if there are any faults. If there are, then correct these before continuing. When an MO fault is selected, corresponding fault description, action and related faults are displayed.See also: 178 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Fault List Micro EN/LZT 720 0466 10. When all faults are corrected, close the RBS Event…

Text truncated - open the document above for the full version.

RBS 2308 and RBS 2309 User’s Guide Taking the RBS Out o f Operation Note:If the PIB is m ounted in an extension cabinet, only that cabinet needs to be taken out of op eration. 1. Open the sunshields. 2. Contact the OMC operator to obtain permission to temporarily take cells out of service. Wait until the RF off indicator shows a constant light. 3. Press the Local/Remote button on the IXU to set the RBS to local mode. If it is an extension cabinet, press the Local/Remote button on the RRU to set the unit to local mode. 4. Switch off the AC power and DC power outside the cabinet. Replacing the PIB 5. Open the t wo clasps and pull the RRU to the left to gain access to the powe r switches. " :0 6. Switc h off the AC and DC switches on the MBU. 228 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 7. Remove the MBU cover. " /"  " , " 9 "    8. Disconnect the upper AC/DC cables and the applicable power cable at the bottom. " /! 9. Remove the PIB after loosening the securing screws. " /  -B . 2 29 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Note:Be careful no t to drop the washer attached behind the lower left screw when loosening it. 10. Insert the new PIB and secure it. 11. Ensure that the gr ound selector switch is in the correct position. Note:Remember to insert the washer behind the lower left screw. 12. Reconnect the upper AC/DC cables. 13. Reconnect the a pplicable AC/DC cable at the bottom. 14. Reconnect the protection earth cable. 15. Refit the cover. 16. Switch on the AC and DC switches. 17. Close the RRU. Putting the RBS into Operation 18. Switch on the AC power and DC power outside the cabinet. 19. Inform the OMC operator that the applicable TRXs are to be put into service. 20. Press the Local/Remote button on the IXU to set the units to remote mode. If it is an extension cabinet, press the Local/Remote button on the RRU to set the unit to remote mode. Wait until the RF off indicator on the RRU interface panel goes off and the Operational indicator lights up. 21. Close the sunshields. Handling Replaced Units The PIB should be returned to Ericsson for repair with a repair delivery note, LZF 084 84 (Blue Tag) attached. Include a clear description of the fault found. SeeSection 10.6 Returning Hardware on page 255for instructions on completing a repair delivery note. 10.5.7Replacing a PSTU This section describes how to replace a faulty Packet-Switched Termination Unit (PSTU). Note:The PSTU parameter settings must be available before starting this procedure. 230 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Taking the RBS Out of Operation 1. Open the sunshields. 2. Contact the OMC operator to obtain permission to take cells out of service temporarily. Wait until the RF off indicator on all RRU interface panels shows a constant light. 3. Press the Local/Remote button on the IXU to set the RBS to local mode. Wait until the local indicator on the IXU shows a constant light. 4. Open the two clasps and pull the RRU to the left to gain access to the power switches. " :0 2 31 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 5. Switch off the AC power and DC power. "1"/  , Replacing the PSTU 6. Open the IXU cover. P010357B 232EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 7. Remove the Ethernet cable connectors from the PSTU. The optical connectors must be protected with connection covers. P015756A P015757A 8. Loosen the four screws and remove the PSTU.See figure below. 2 33 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 4 1.7 Nm ±10% T20 Torx P015875A Figure 86 PS TU Removal 9. Put back the new PSTU. Tighten the screws to 1.7 Nm. Note:Do not connect the Ethernet cable connectors to the PSTU yet. If the PSTU contains a configuration from previous use, then connecting the Ethernet cables can generate conflicting IP traffic. 10. Switch on the AC power and DC power. 11. Put the PSTU into remote operation.See chapter PSTU Startup. Putting the RBS into Operation 12. Infor m the OMC operator that the PSTU configuration can be compl eted from the OSS. 13. Inform the OMC operator that the relevant cells can be put back into service. 14. Press the Local/Remote button on the IXU to set the RBS to remote mode. Wait until the RF off indicator on the RRU interface panel goes off and the Operational indicator comes on. 15. Close the sunshields, if applicable. 234 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Handling Replaced Units The PSTU should be returned to Ericsson for repair with a repair delivery note, LZF 084 84 (Blue Tag) attached. Include a clear description of the fault found. SeeSection 10.6 Returning Hardware on page 255for instructions on completing a repair delivery note. 10.5.8Replacing an RRU This section describes how to replace a faulty RRU. Note:Do not touch the RBS when any indicators are double-flashing.See Section 10.4.1 Double-Flash Indication of Function Changes on page 194. Taking the RRU out of Service 1. Open the sunshields. 2. Contact the OMC operator to obtain permission to temporarily take the TRXs connected to the RRU out of service. Wait until the RF off indicator shows a constant light. 3. Press the Local/Remote button on the RRU to set the unit to local mode. Wait until the Local indicator on the RRU shows a constant light. 4. Open the two clasps and pull the RRU to the left to gain access to the power switches. " :0 2 35 EN /LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide 5. Switch off the RRU power. " 0: 9 6. Remove the upper sunshield and, if applicable, any optional units installed on the RRU. 236 EN/LZT 720 0027 Uen R8A 2006-06-27 RBS 2308 and RBS 2309 User’s Guide Removing the Fan Unit (if Present) 1. Remove the fan unit cover P011263A 2. Disconnect the fan power cable from the RRU. P010543B 3. Loosen the three screws and remove the fan u nit. …

Text truncated - open the document above for the full version.

Public EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EAB/PDB/WI Palle Zetterstrand B5KCKRC16184-7 Uen Approved Checked Date Rev Reference EAB/PDB/WI (P. Zetterstrand) 2006-09-08 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom September 08, 2006 Subject: Certification for FCC ID: B5KCKRC16184-7 Gentlemen; Ericsson AB requests a Grant of Certification (Type Acceptance) for the above-mentioned FCC Identifier. This base station transceiver is designed for use in the GSM 800 MHz cellular telephone system. The transmitter will operate from 869 to 894 MHz. The receiver circuit supports 824 to 849 MHz. The base station operates in the 800 MHz cellular radiotelephone services as per 47 CFR Part 22 subpart H, 22.901 (d). It meets the requirements of GSM1900 11.10-1 version 4.19.1 specification for operation in GSM cellular systems except for the output frequency range. This base station will in normal mode operate at a nominal power output of 2.5 watts at the antenna connector. The power output is reducible to ~20 milliwatts. Ericsson AB requests confidentiality under CFR 0.459. Confidentiality for the following exhibits is requested: Exhibit 5 Schematics Exhibit 10 Components Tune Up Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. If additional information is needed, please contact me on the below listed number. Sincerely, Palle Zetterstrand Verification Engineer Ericsson AB Lindholmspiren 11 SE-417 56 Göteborg Sweden Telephone No.: +46 31 747 19 75 Fax No.: +46 31 747 60 33 e-mail [email protected]

2006-09-08 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: B5KCKRC16184-7 It is requested that the following information is to be held confidential on behalf of Ericsson AB. FCC Rules Part 0.459 refers. Exhibit 5 Schematics 1 49 pages Exhibit 10 Components Tune Up 1 9 pages Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. Yours sincerely Palle Zetterstrand

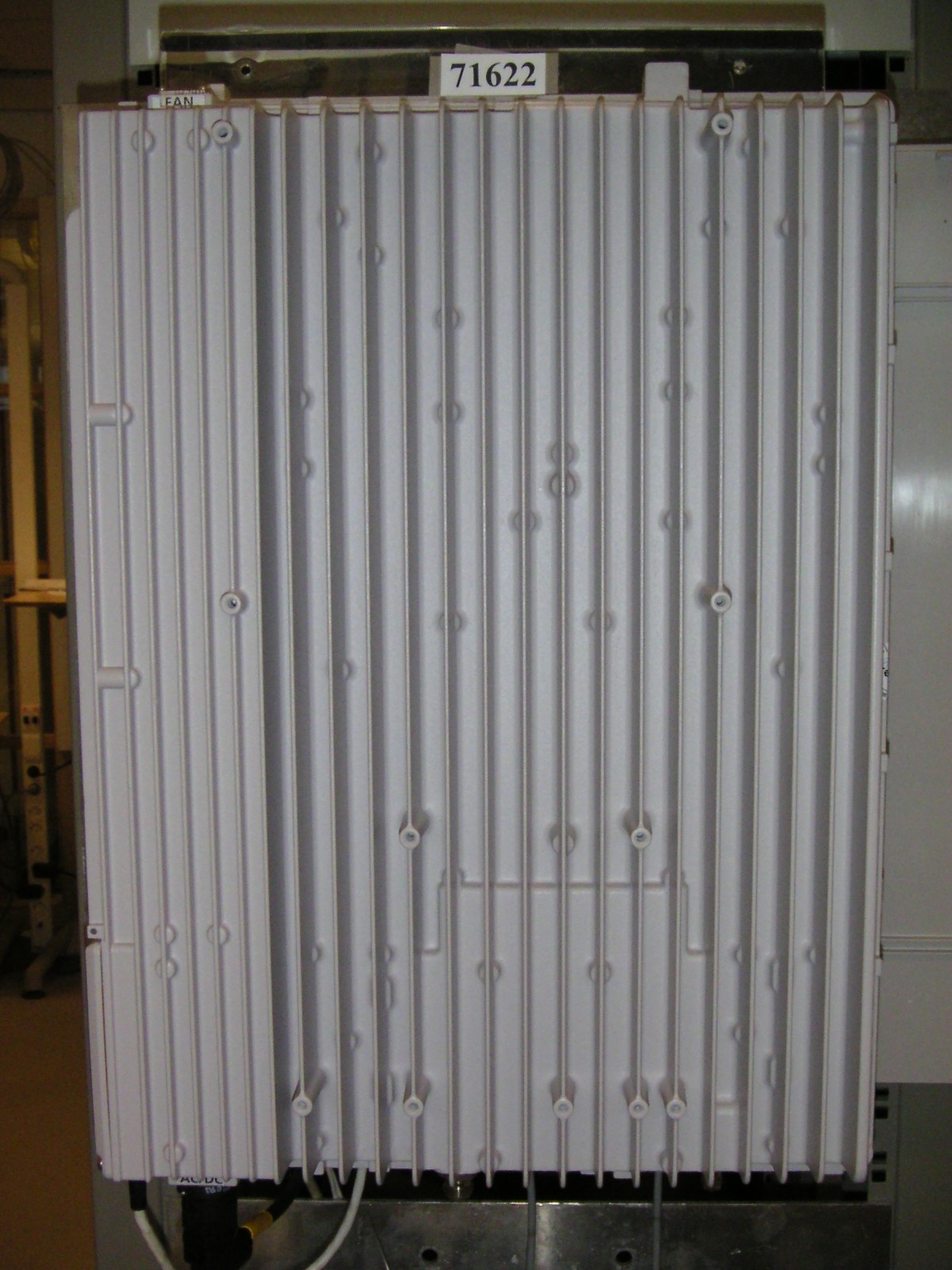

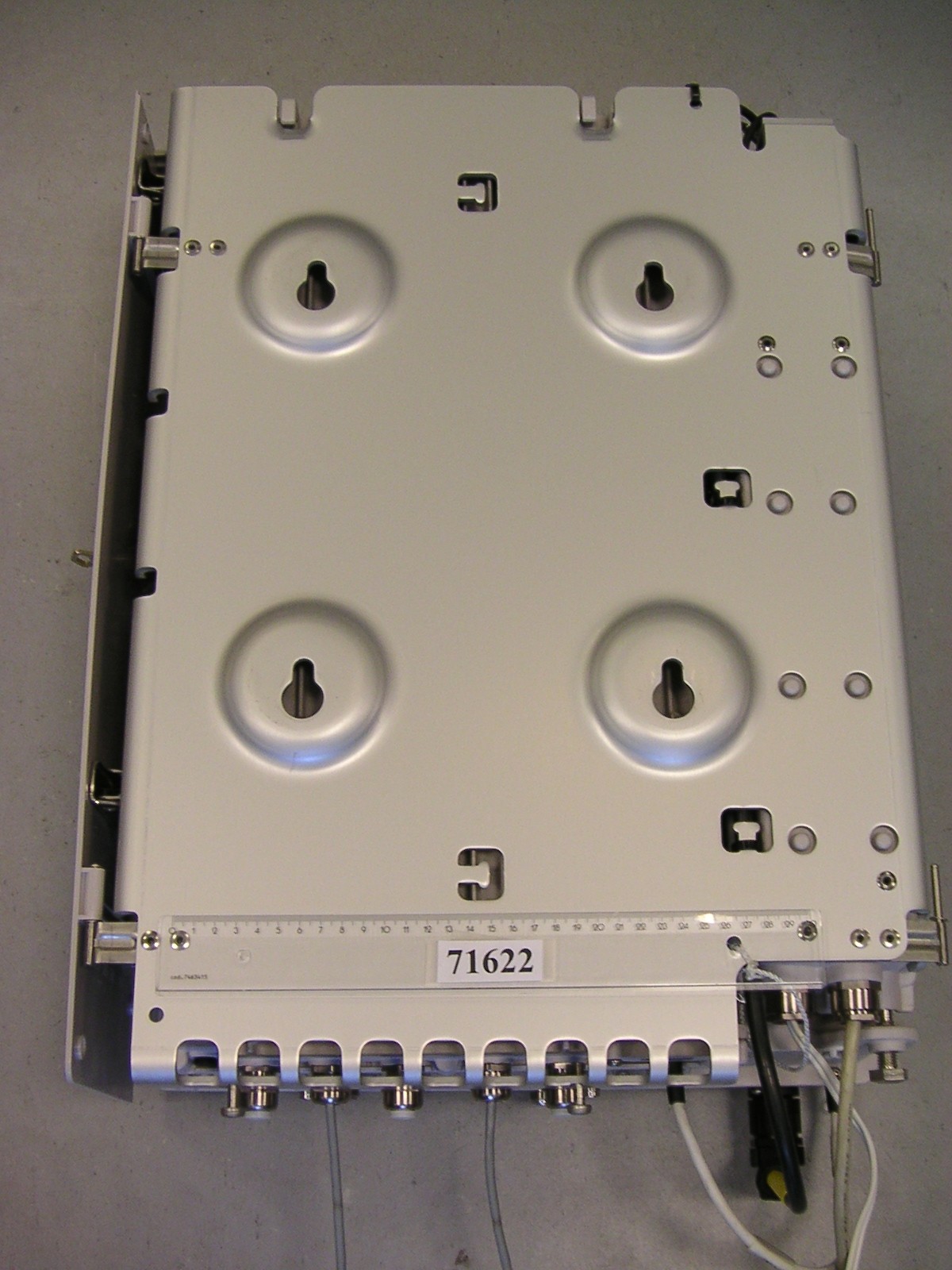

PHT/71622JD21/001 RBS2308 Cabinet with Shields and Mounting Base. Front View PHT/71622JD21/002 RBS2308 Cabinet with Shields Removed. Front View PHT/71622JD21/003 RBS2308 Cabinet with Mounting Base. Open View PHT/71622JD21/004 RBS2308 Cabinet with Mounting Base. Back View PHT/71622JD21/005 Mounting Base. Front View PHT/71622JD21/007 FCC Identifier Label PHT/71622JD21/008 IXU-21. Front View PHT/71622JD21/009 IXU-21. Back View

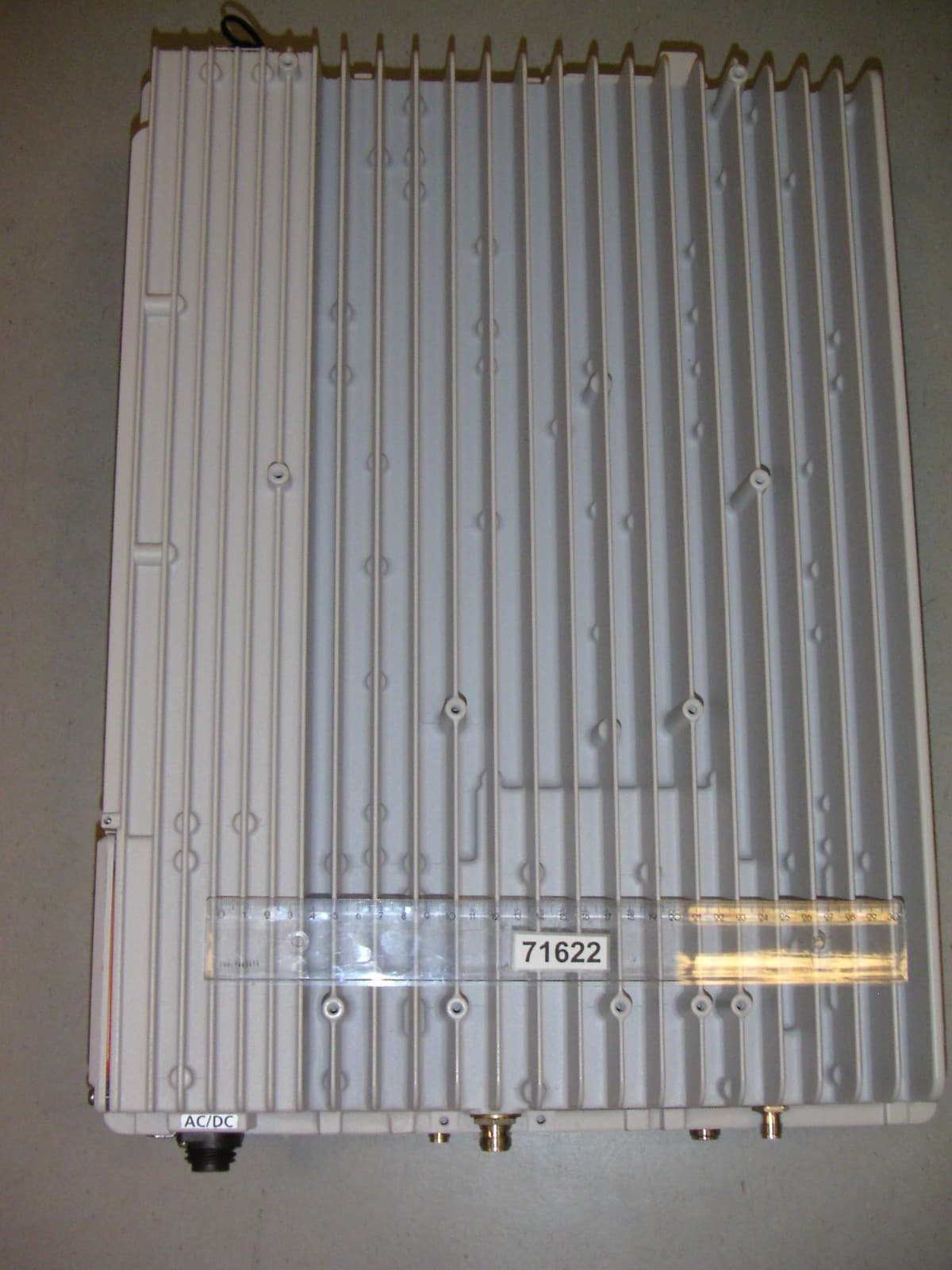

PHT/71622JD21/010 RRU-M8 EDGE. Front View PHT/71622JD21/011 RRU-M8 EDGE. Back View PHT/71622JD21/017 Duplex Filter 1. Front View PHT/71622JD21/018 Duplex Filter 1. Back View PHT/71622JD21/019 Duplex Filter 2. Front View PHT/71622JD21/020 Duplex Filter 2. Back View PHT/71622JD21/021 PSU. Front View PHT/71622JD21/022 PSU. Back View

Limited Internal EXHIBIT 1 1(1) Prepared (also subject responsible if other) No. EAB/PDB/WI Palle Zetterstrand B5KCKRC16184-7 Approved Checked Date Rev Reference EAB/PDB/WI (P. Zetterstrand) 2006-09-08 A EXHIBIT 1 - ID Label Placement FCC ID: B5KCKRC16184-7 Remote Radio Unit KRC 161 84/7, R7C ID Label Label Placement

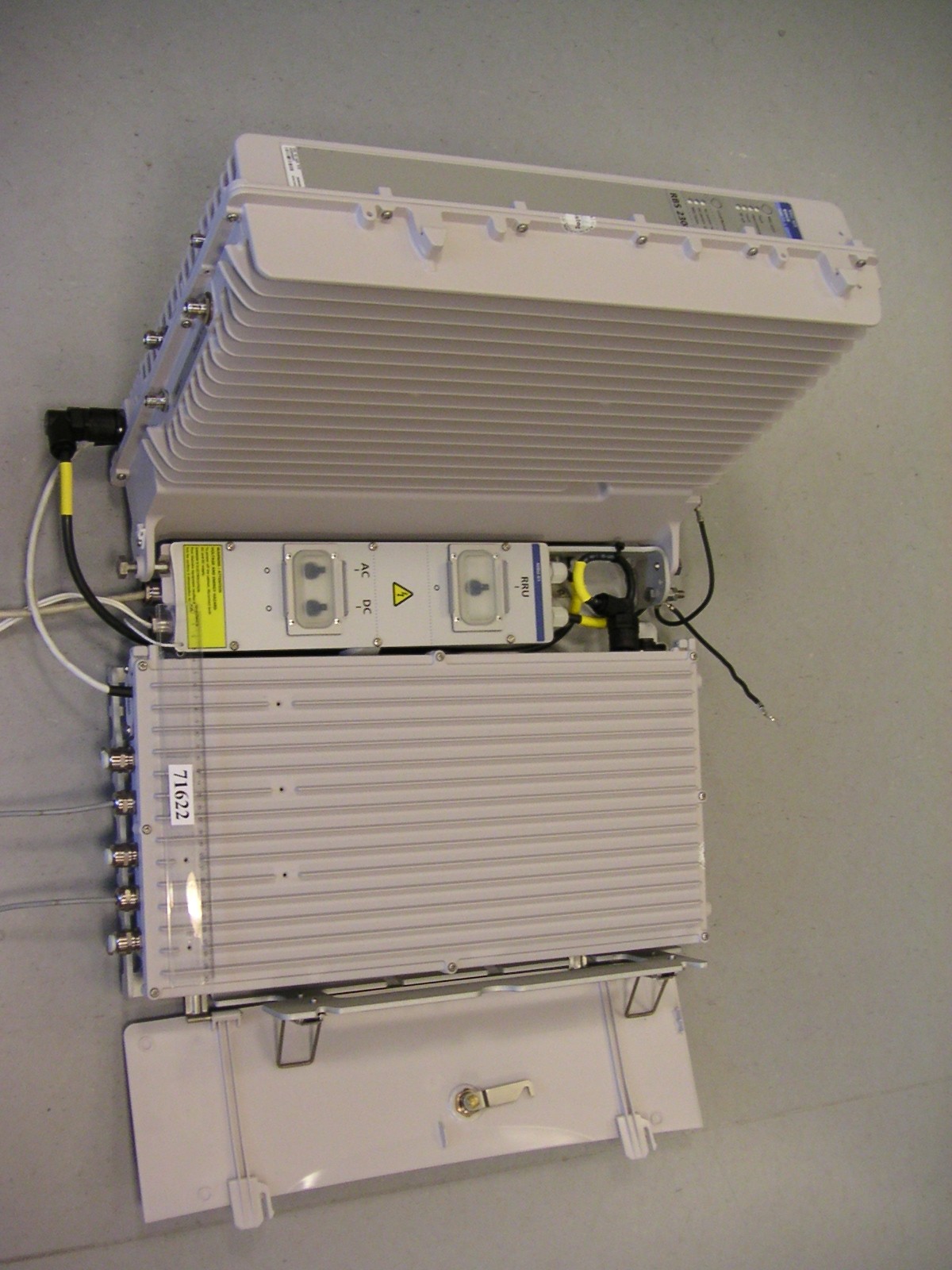

PHT/71622JD21/006 Mounting Base PSU. Internal View PHT/71622JD21/012 RRU-M8 EDGE. Open View PHT/71622JD21/013 Digital Radio Access Board 1. Front View PHT/71622JD21/014 Digital Radio Access Board 1. Back View PHT/71622JD21/015 Digital Radio Access Board 2. Front View PHT/71622JD21/016 Digital Radio Access Board 2. Back View PHT/71622JD21/023 PSU. Internal View

PHT/71622JD21/024 Radio Interface Board. Front View PHT/71622JD21/025 Radio Interface Board. Back View PHT/71622JD21/026 Y Interface Board. Front View PHT/71622JD21/027 Y Interface Board. Back View PHT/71622JD21/028 Power Interface Board. Front View PHT/71622JD21/029 Power Interface Board. Back View

Limited Internal EXHIBIT 12 1 (9) Prepared (also subject responsible if other) No. EAB/PDB/WI Palle Zetterstrand B5KCKRC16184-7 Approved Checked Date Rev Reference EAB/PDB/WI (P. Zetterstrand) 2006-09-08 A Exhibit 12 – Cover Sheet Contents 1 2.1033(c) Circuit Description 2 1.1 (2) FCC Identifier: B5KAKRC161028-1 2 1.2 (4) Type of Emission: 2 1.3 (5) Frequency range: 869.4 to 893.6 MHz. 2 1.4 (6) Range of Operating Power: 2 1.5 (7) Maximum Power Rating: 2 1.6 (8) Final Amplifier Voltage and Current in normal operation 2 1.7 (10) Frequency Stabilizing Circuit Description 3 1.8 (10) Spurious and Harmonic Suppression 3 1.9 (10) Limiting Power 3 1.10 (10) Digital Modulation 4 1.10.1 Modulation format for GMSK 4 1.10.2 Modulation format for 8PSK 7 Limited Internal EXHIBIT 12 2 (9) Prepared (also subject responsible if other) No. EAB/PDB/WI Palle Zetterstrand B5KCKRC16184-7 Approved Checked Date Rev Reference EAB/PDB/WI (P. Zetterstrand) 2006-09-08 A 1 2.1033(c) Circuit Description 1.1 (2) FCC Identifier: B5KCKRC16184-7 This RRU (Remote Radio Unit) consist of four synthesized transceivers (TRX) operating in the frequency band of 869.4 to 893.6 MHz. …
