EN/LZT 720 0327/3 Uen R1A RBS 2308 Micro R BS Product Description The R BS 2308, a member of the RBS 2000 family, is a 4 TRX radio base station for indoor or outdoor use.
 E 1 (30) RBS 2308Micro RBS Contents 1Product Overview3 1.1Main Features3 1.2Variants3 1.3Optional Equipment4 2Dimensions5 3Space Requirements7 4Environment8 4.1Operating Environment8 4.2Environmental Impact9 4.3Materials9 5Hardware Units10 5.1Standard Hardware Units10 5.2Optional Hardware Units12 6Interfaces13 6.1External Connections13 6.2Internal Interface19 6.3OMT Interface20 6.4Operator interface20 7Power System24 7.1Power Supply24 7.2Battery Back-up25 7.3Output Power25 7.4Power Consumption25 8Transmission27 9External Alarms27 10Standards, Regulations and Dependability28 10.1Safety Standards28 10.2Other Standards and Regulations28 11Vandal Resistance29 2 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 1Product Overview The RBS 2308 is an outdoor micro base station. It can be used for indoor or outdoor applications, with four transceivers (TRX). The cabinet can be mounted on walls, poles or masts. The RBS 2308 is designed for use with BSS R9.1C or later. It supports GPRS (CS-1, CS-2, CS-3, and CS-4), HSCSD, and EGPRS in the Micro concept. Main applications of the RBS 2308 are: •Hot spots, adding supplementary coverage •Providing EDGE capacity •Public meeting places, supplying additional capacity in dense areas •Replacement of existing RBS 2302 sites where higher capacity is required. 1.1Main Features The RBS 2308 can support, among others, the following features: •Scalableupto12TRXs •EDGE •Externalalarms •Multidrop by-pass •Positioning with GPS/LMU •Power supply for MINI-LINK E Micro or LMU •Synchronized networks 1.2Variants The RBS 2308 can support the following frequencies: •GSM 1900 •GSM 800 3 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 1.3Optional Equipment The equipment listed below is available, but is not necessary for basic operation: •Fan unit •Mast-mounting fixtures •Multicasting Box (MCB) •RX Bandpass Filter (RXBP) 4 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 2Dimensions This section describes the RBS 2308 dimensions, space requirements and colour. Size and Weight The dimensions of the basic RBS 2308 cabinet (without options) are shown in the figure and table below.
      F igure 1RBS 2308 dimensions Use of the fan will increase the height of the cabinet,see table below. Table 1Maximum dimensions with and without fan Dimension Basic RBS 2308RBS 2308, maximum dimensions Height610 mm742 mm (1) Width433 mm433 mm Depth224 mm270 mm (2) (1) With fan unit. (2) With RXBP. The weights of the RBS 2308 and of the major units to be handled are given in the table below. 5 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS Table 2Weights of RBS 2308 and major units UnitWeight IXU9.5 kg MBU6.5 kg RRU23.5 kg Sunshield1.5 kg To t a l41 kg Colour The RBS 2308 is available in grey (reference number NCS S2502–R). 6 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 3Space Requirements For installation and maintenance, and proper cooling during operation, the space in front of the cabinet must be kept clear for a distance of 500 mm, and there must be at least 250 mm of free space on either side. 300 mm free space is required above the cabinet. The distance between the cabinet and the nearest obstruction below (floor, filing cabinet, another RBS, and so on) must be at least 500 mm. No free space is needed at the back of the cabinet. The figure below shows the minimum space requirements and the dimensions of the RBS in relation to the mounting base (if used). This information can be used to determine a suitable location with respect to other equipment at the site.
                       ! Figure 2Space requirements Mounting Base Holing Pattern The mounting base of the RBS 2308 has the same holing pattern as that of the RBS 2302 mounting base,see Figure 2 on page 7. 7 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 4Environment This section provides an overview of the operating environment, environmental impact, and materials used in the RBS 2308. 4.1Operating Environment The operational temperature limits of the RBS 2308 depend upon the power supply and whether or not the fan is used,see tables below. Table 3Start-up and operational requirements using AC power RBS 2308 Variant Temperature rangeRelative Humidity Without optional fan –33Cto+45C 15–100% With optional fan –33Cto+55C 15–100% Table 4Start-up and operational requirements using DC power RBS 2308 Variant Temperature rangeRelative Humidity Start-up 0Cto+45C 15–100% Operational, without optional fan –15Cto+45C 15–100% Operational, with optional fan –15Cto+55C 15–100% Temperature limits for transport, storage and handling of the RBS 2308 are given in the table below. Table 5Transport, storage and handling climatic requirements Condition Temperature rangeRelative Humidity Transport –40Cto+70C 5–100% Storage –25Cto+55C 10–100% Handling –40Cto+70C 5–100% 8 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 4.2Environmental Impact This section describes the effects that the cabinet has on the environment. Heat Dissipation Average heat loads of the RBS 2308 are given in the table below. The exact figures are dependent upon configuration, equipment and site-specific conditions. Table 6Average heat load Operation Condition Average Heat Load Without heating315 W Acoustic Dispersion The RBS 2308 cabinet does not contribute to the acoustic noise of its surroundings. The optional fan unit generates acoustic noise. The maximum sound power of the fan unit is given in the table below. Table 7Average heat load Ambient Temperature Sound Power Level <30C 5.5 Bel Maximum operating temperature6.5 Bel 4.3Materials All Ericsson products fulfil the legal, market, and Ericsson requirements regarding: •Fire resistance of material, components, wires and cables •Dec…

Text truncated - open the document above for the full version.

Limited Internal EXHIBIT 4 Prepared (also subject responsible if other)No. EAB/RTL/I Palle ZetterstrandB5KAKRC16184-3 Uen ApprovedCheckedDateRevReference EAB/RTL/I (P. Zetterstrand)2003-04-09A 1 EXHIBIT 4 - Cover Sheet Contents 1EXHIBIT 4 - Cover Sheet1 Block Diagram RF Parts, RAB 1900 , 1913-ROA 117 4765/12 Block Diagram CPU Parts, DRB, 1911-ROA 117 4767/23 Rev 10 EE FF GG HH 11 5 6 6 7 7 8 8 9 Product name Document no Sheet 1 1 2 2 3 3 4 4 5 9 10 11 AA BB CC DD Prepared (also subject responsible if other) References Doc respons/Approved Date 1913-ROA 117 4765/1 Ux 2002-12-17 ERAMMSV AMGC BS 2001.1 ERA/RLV/FA RAB-1900 1(1) Rev 10 E E F F G G H H 11 5 66 77 88 9 Product nameDocument no Sheet 11 22 33 44 5 9 10 11 A A B B C C D D Prepared (also subject responsible if other) References Doc respons/Approved Date 1(1) DRB EDGE EAB/RTL/RD (Peter Tammpere) MGC BS C.2 A EMWKESE, EMWTHUN 2002-09-27 1911-ROA 117 4767/2 Ux

Open EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-05-27 A B5KAKRC16184-3 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Radio Frequency Investigation Ltd Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ United Kingdom May 27, 2003 Subject: Certification for FCC ID: B5KAKRC16184-3 Gentlemen; Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station transceiver is designed for use in the GSM 1900 MHz cellular telephone system. The transmitter will operate from 1930.4 to 1989.6 MHz. The receiver circuit supports 1850.4 to 1809.6 MHz. The base station operates in the 1900 MHz broadband PCS services as per 47 CFR Part 24 subpart E. It meets the requirements of GSM1900 11.10-1 version 4.19.1 specification for operation in GSM cellular systems. This base station will in normal mode operate at a nominal power output of 2.3 watts at the antenna connector. The power output is reducible to ~2 milliwatts. The output power for the channels adjacent to each frequency block edge must be reduced to 1W for the 245KG7W(8PSK) and 245KGXW(GMSK) emissions as documented in this filing. Ericsson AB requests confidentiality under CFR 0.459. Confidentiality for the following exhibits is requested: Exhibit 5 CPU Part Schematics Exhibit 5 Radio Part Schematics Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. If additional information is needed, please contact me on the below listed number. Sincerely, Palle Zetterstrand Verification Engineer Ericsson AB Flöjelbergsgatan 1B SE-431 84 Mölndal Sweden Telephone No.: +46 31 747 19 75 Fax No.: +46 31 747 33 21 e-mail [email protected]

2003-05-22 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: B5KAKRC16184-3 It is requested that the following information is to be held confidential on behalf of Ericsson AB FCC Rules Part 0.459 refers. Exhibit 5 CPU Part Schematics 1 30 pages Exhibit 5 RF Part Schematics 1 39 pages Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. Yours sincerely Palle Zetterstrand

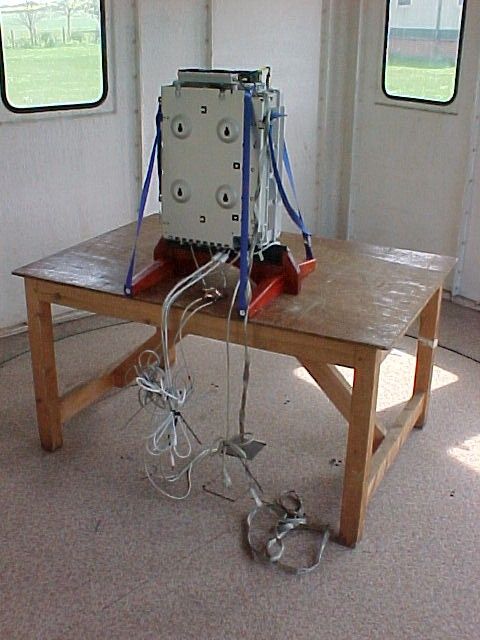

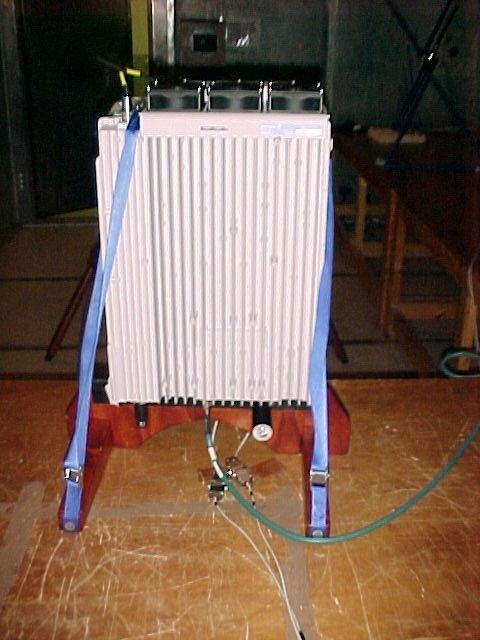

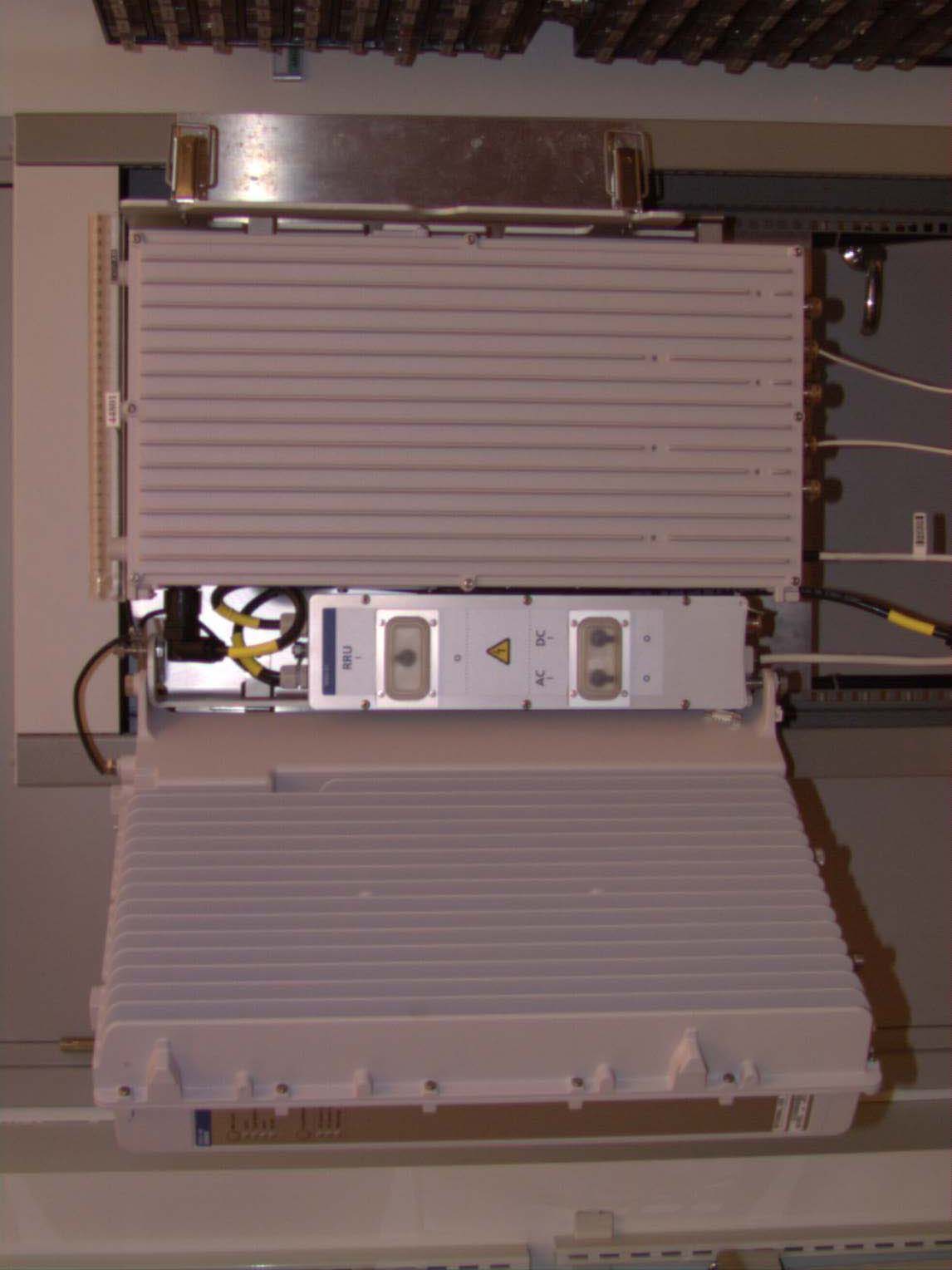

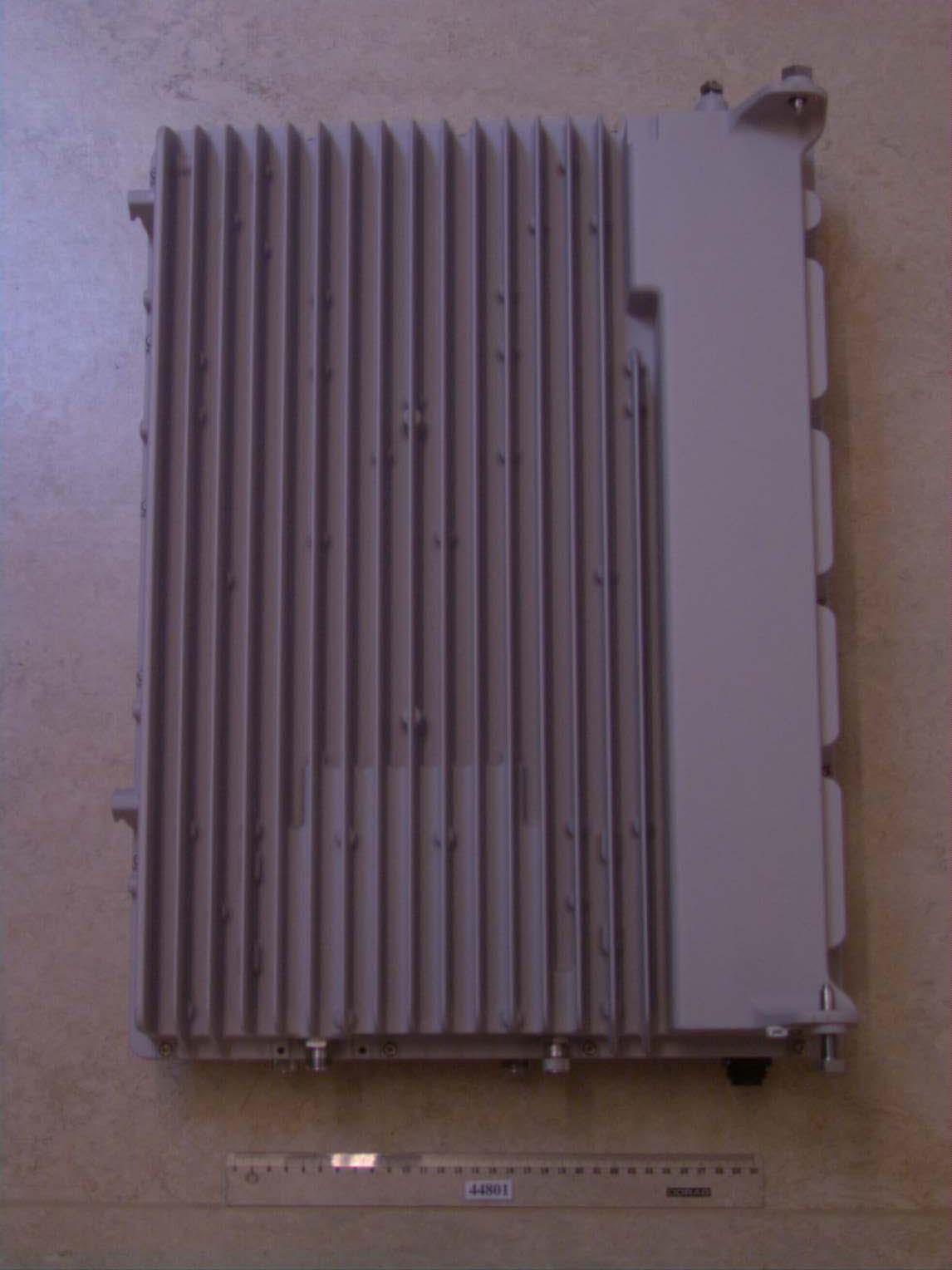

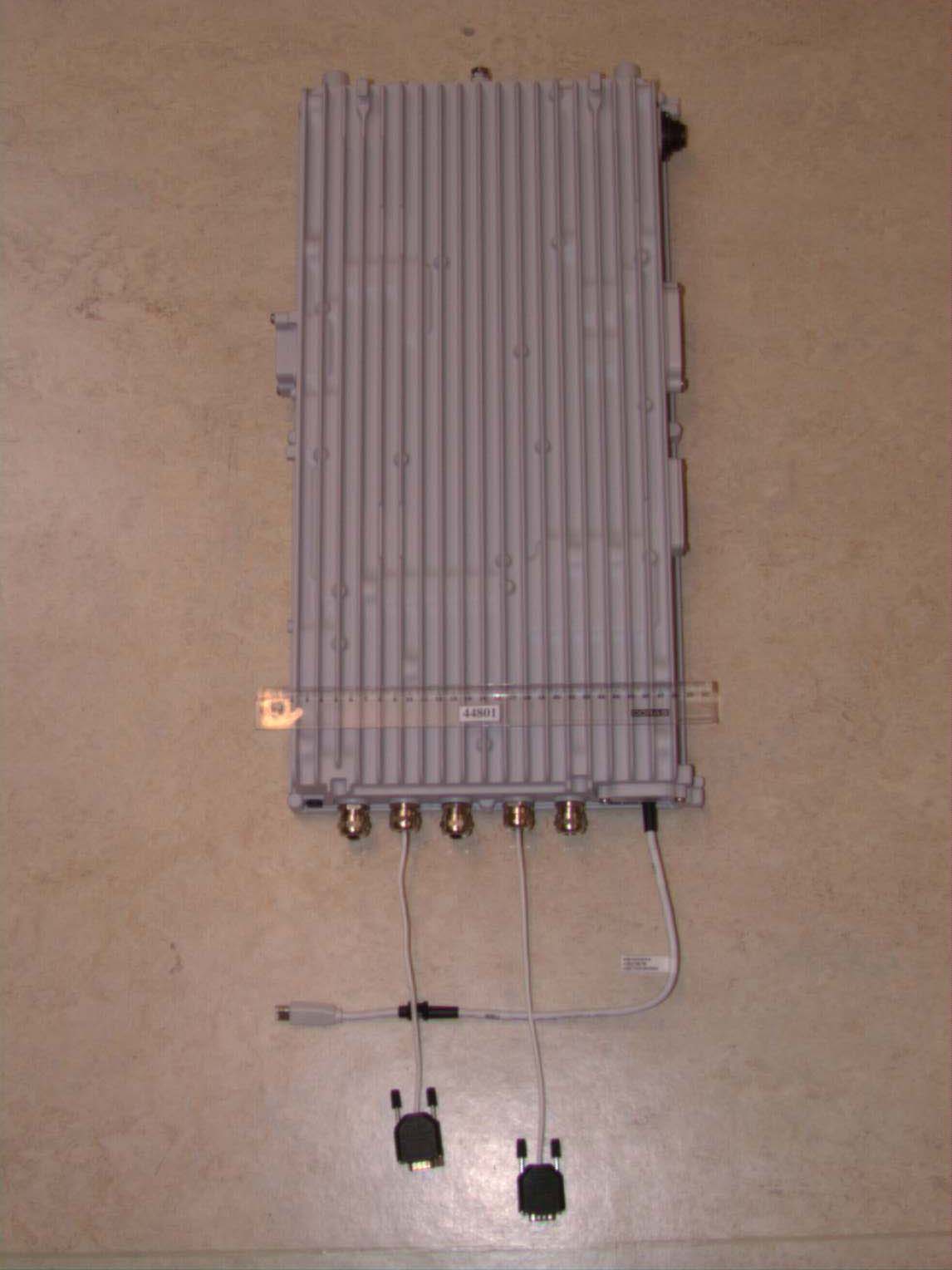

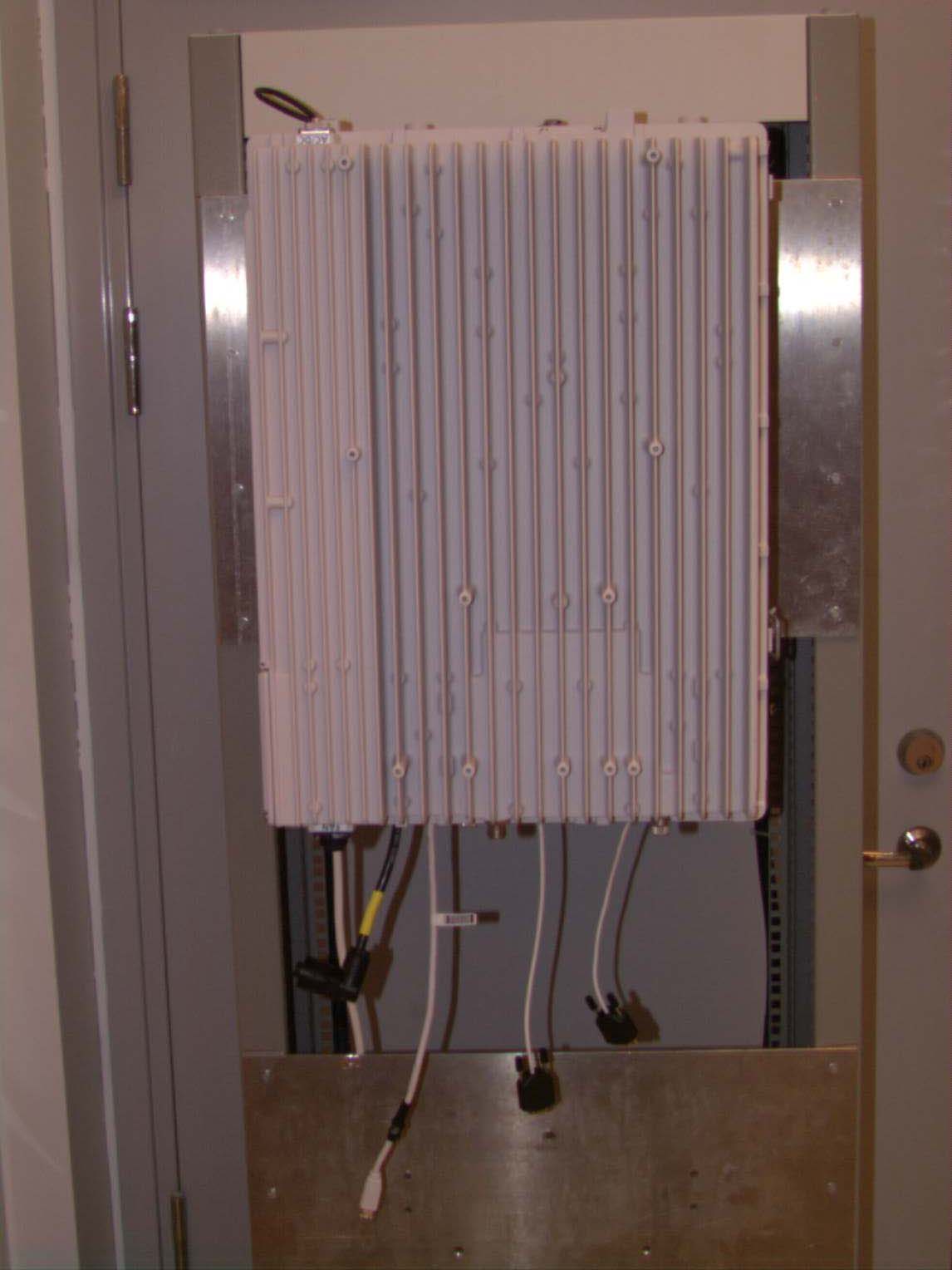

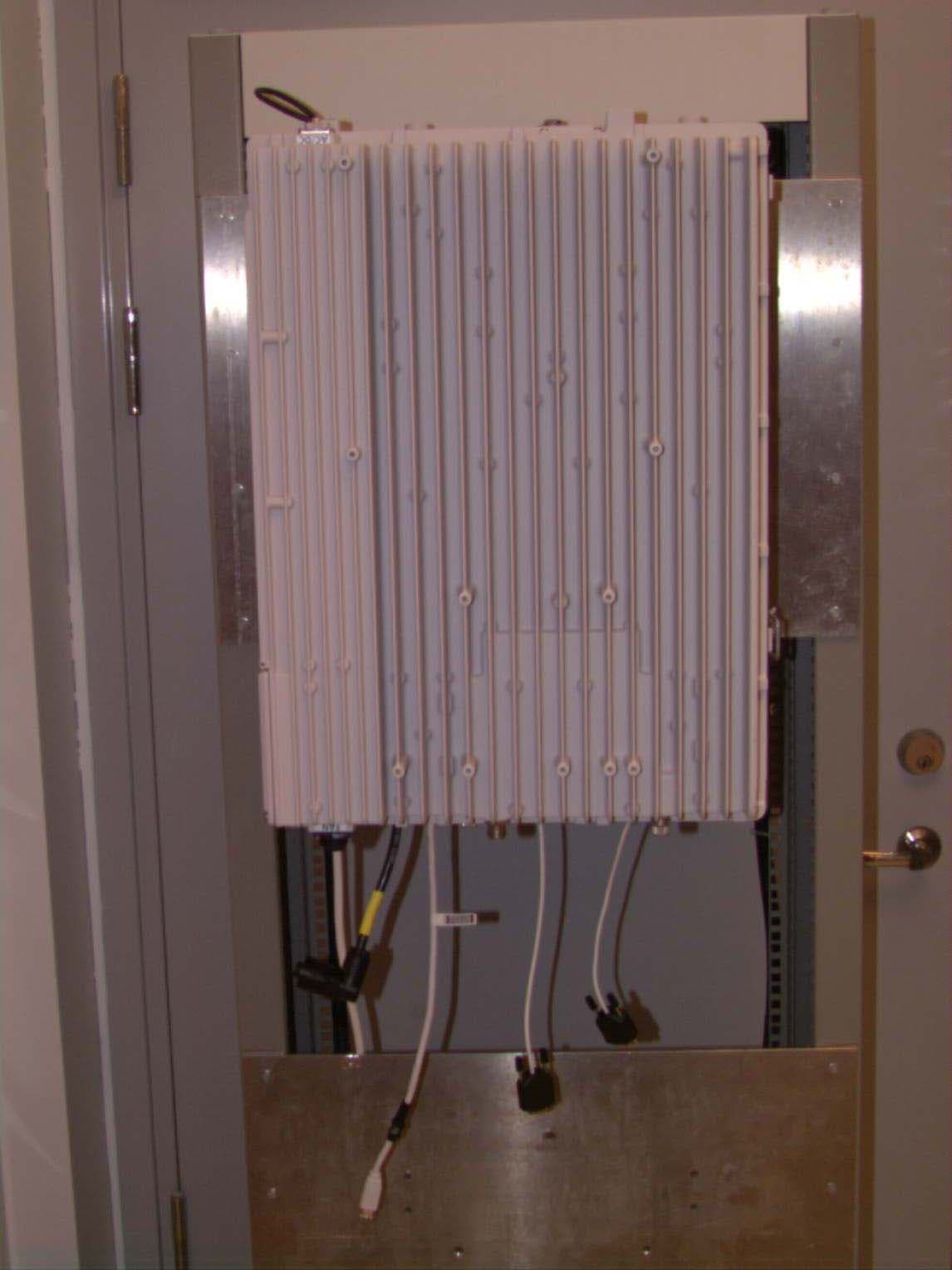

PHOTOGRAPH SECTION - EXTERNAL FOR RFI TEST REPORT SERIAL NO: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44801JD01A Operations Department Page 2 of 4 Issue Date: 12 June 2003 Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44801JD01A Operations Department Page 3 of 4 Issue Date: 12 June 2003 Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 Photographs of EUT This appendix contains the following photographs: Photo Reference Number Title PHT/44801JD01/001 Front View of RBS2308 Cabinet with Shields & Mounting Base PHT/44801JD01/002 Front View of RBS2308 Cabinet Mounting Base Shields Removed PHT/44801JD01/003 Open View of RBS2308 Cabinet Mounting Base Shields Removed PHT/44801JD01/004 Rear View of RBS2308 Cabinet Mounting Base Shields Removed PHT/44801JD01/005 Front View of IXU21 PHT/44801JD01/006 Rear View of IXU21 PHT/44801JD01/007 Front View of RRU-H Edge PHT/44801JD01/008 Rear View of RRU-H Edge These pages are not included in the total number of pages for this report. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44801JD01A Operations Department Page 4 of 4 Issue Date: 12 June 2003 Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/001 Front View of RBS2308 Cabinet with Shields & Mounting Base RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/002 Front View of RBS2308 Cabinet Mounting Base Shields Removed RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/003 Open View of RBS2308 Cabinet Mounting Base Shields Removed RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/004 Rear View of RBS2308 Cabinet Mounting Base Shields Removed RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/005 Front View of IXU21 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/006 Rear View of IXU21 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/007 Front View of RRU-H Edge RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/008 Rear View of RRU-H Edge

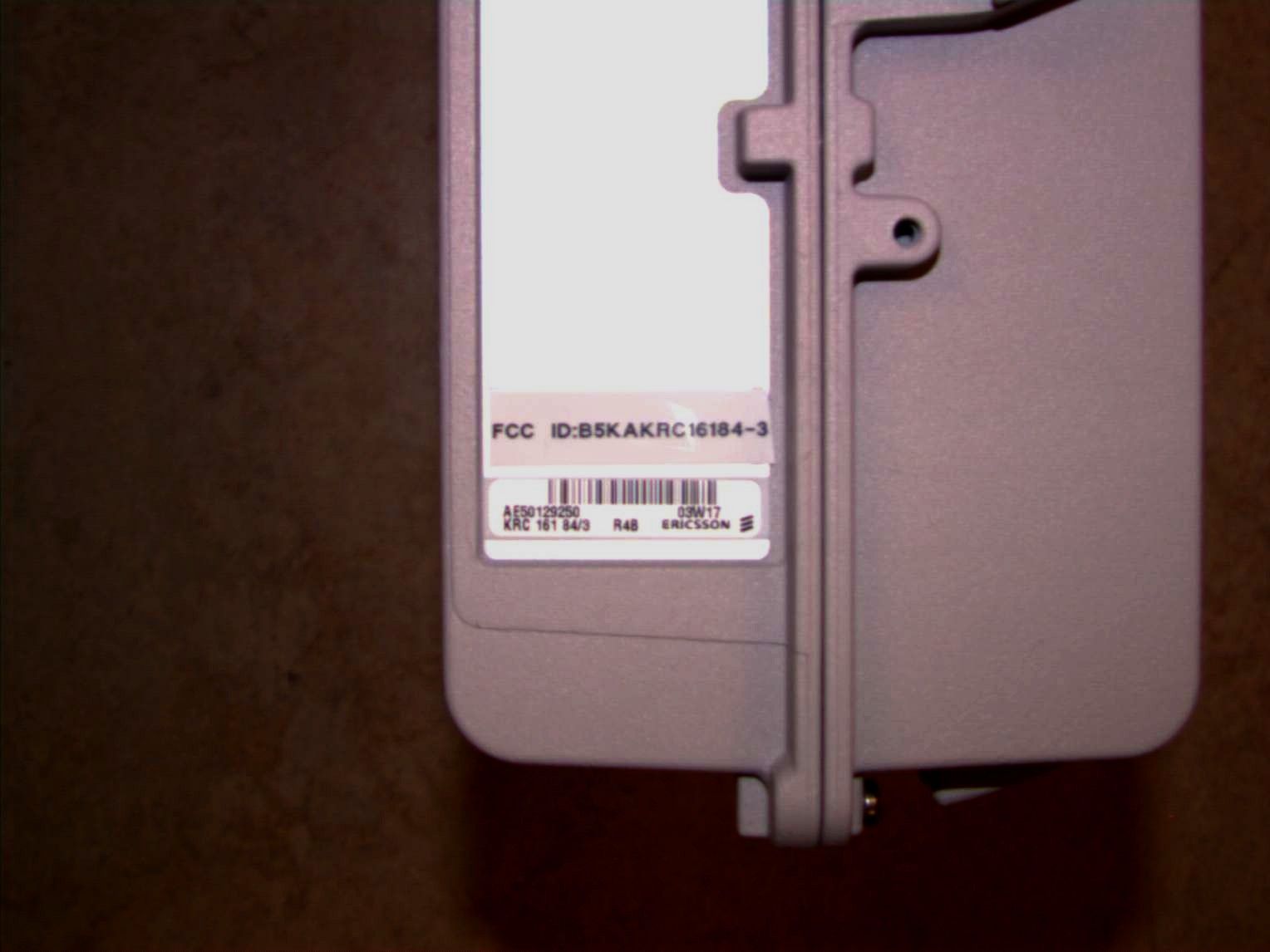

Limited Internal EXHIBIT 1 1(1) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KAKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-04-09 A EXHIBIT 1 - ID Label Placement FCC ID: B5KAKRC16184-3 Remote Radio Unit KRC 161 84/3, R4B ID Label Label Placement

PHOTOGRAPH SECTION - INTERNAL FOR RFI TEST REPORT SERIAL NO: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44801JD01A Operations Department Page 2 of 4 Issue Date: 12 June 2003 Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44801JD01A Operations Department Page 3 of 4 Issue Date: 12 June 2003 Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 Photographs of EUT This appendix contains the following photographs: Photo Reference Number Title PHT/44801JD01/001 Open View of RRU-H Edge PHT/44801JD01/002 Front View of Radio Access Board 1 PHT/44801JD01/003 Rear View of Radio Access Board 1 PHT/44801JD01/004 Front View of Radio Access Board 2 PHT/44801JD01/005 Rear View of Radio Access Board 2 PHT/44801JD01/006 Front View of Digital Radio Board 1 PHT/44801JD01/007 Rear View of Digital Radio Board 1 PHT/44801JD01/008 Front View of Digital Radio Board 2 PHT/44801JD01/009 Rear View of Digital Radio Board 2 PHT/44801JD01/010 Front View of Duplex Filter 1 PHT/44801JD01/011 Rear View of Duplex Filter 1 PHT/44801JD01/012 Front View of Duplex Filter 2 PHT/44801JD01/013 Rear View of Duplex Filter 2 PHT/44801JD01/014 Front View of Heater PHT/44801JD01/015 Rear View of Heater PHT/44801JD01/016 Top View of PSU PHT/44801JD01/017 Bottom View of PSU PHT/44801JD01/018 Internal View of PSU PHT/44801JD01/019 Top View of Power Interface Board PHT/44801JD01/020 Bottom View of Power Interface Board PHT/44801JD01/021 Top View of Y Interface Board PHT/44801JD01/022 Bottom View of Y Interface Board PHT/44801JD01/023 Top View of Radio Interface Board PHT/44801JD01/024 Bottom View of Radio Interface Board These pages are not included in the total number of pages for this report. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44801JD01A Operations Department Page 4 of 4 Issue Date: 12 June 2003 Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/001 Open View of RRU-H Edge RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/002 Front View of Radio Access Board 1 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/003 Rear View of Radio Access Board 1 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/004 Front View of Radio Access Board 2 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/005 Rear View of Radio Access Board 2 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/006 Front View of Digital Radio Board 1 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/007 Rear View of Digital Radio Board 1 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/008 Front View of Digital Radio Board 2 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/009 Rear View of Digital Radio Board 2 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/010 Front View of Duplex Filter 1 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/011 Rear View of Duplex Filter 1 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/012 Front View of Duplex Filter 2 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/013 Rear View of Duplex Filter 2 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/014 Front View of Heater RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/015 Rear View of Heater RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/016 Top View of PSU RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/017 Bottom View of PSU RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Photograph Section Operations Department S.No: RFI/MPTB1/RP44801JD01A Test Of: Ericsson AB. RBS 2308 To: FCC Part 24: 2002 PHT/44801JD01/01…

Text truncated - open the document above for the full version.

Limited Internal EXHIBIT 12 1 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KAKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-04-09 A Exhibit 12 – Cover Sheet Contents 1 2.1033(c) Circuit Description 2 1.1 (2) FCC Identifier: B5KAKRC16184-3 2 1.2 (4) Type of Emission: 2 1.3 (5) Frequency range: 1930.4 to 1989.6 MHz. 2 1.4 (6) Range of Operating Power: 2 1.5 (7) Maximum Power Rating: 2 1.6 (8) Final Amplifier Voltage and Current in normal operation 2 1.7 (10) Frequency Stabilizing Circuit Description 3 1.8 (10) Spurious and Harmonic Suppression 3 1.9 (10) Limiting Power 3 1.10 (10) Digital Modulation 4 1.10.1 Modulation format for GMSK 4 1.10.2 Modulation format for 8PSK 7 Limited Internal EXHIBIT 12 2 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KAKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-04-09 A 1 2.1033(c) Circuit Description 1.1 (2) FCC Identifier: B5KAKRC16184-3 This RRU (Remote Radio Unit) consist of four synthesized transceivers (TRX) operating in the frequency band of 1930.4 to 1989.6 MHz. There are 297 Channels available with a channel spacing of 200 KHz. The transceiver is capable of operation in a TDMA (Time Division Multiple Access) system. For each channel there are 8 time slots available, each containing digital speech or data for GMSK and data for 8-PSK. The RRU have a hybrid combiner included which combines two TRX:s per antenna. 1.2 (4) Type of Emission: GMSK: 245KGXW 8-PSK: 245KG7W 1.3 (5) Frequency range: 1930.4 to 1989.6 MHz. 1.4 (6) Range of Operating Power: This transmitter is designed to supply a nominal power level of 33.5 dBm at the antenna connector. The power level can be set at 14 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(13) where P(0) is the highest power level. 1.5 (7) Maximum Power Rating: The maximum power rating with one TRX under environmental and supply voltage variations is equal to 33.5 dBm plus a power level tolerance of +-2 dB. Therefore the maximum output power is 35.5 dBm equal to 3.6 W at the antenna connector of the radio base station. 1.6 (8) Final Amplifier Voltage and Current in normal operation P (0) P (13) Collector Voltage 26.0 Volt DC 26.0 Volt DC Collector Current 1.1 Amps DC 0.7 Amps DC Limited Internal EXHIBIT 12 3 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KAKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-04-09 A 1.7 (10) Frequency Stabilizing Circuit Description The transmitter in each TRX contains three synthesized oscillators. One PLL gives a 160 MHz signal to the I/Q modulator. The two other generate a 1770 to 1830 MHz signal to the mixer where the modulated signal is converted to the transmit frequency. Two oscillators are needed in frequency hopping mode, one is retuning while the other is active. All three synthesized oscillators have a reference of 13 MHz generated in a central synthesized oscillator (PLL) of 26 MHz, which is downmixed by 2, in the LTU part of the RRU. This PLL frequency reference is locked to a 3.25 MHz clock which is extracted from the multiplexed Y-interface MY. MY is generated and distributed by the IXU (Interface & Switching Unit) to all RRU:s in the base station. The frequency reference 13 MHz in the IXU is generated in a voltage controlled oscillator phase-locked to the incoming PCM-link frequency or as an option an incoming GPS-link frequency. 1.8 (10) Spurious and Harmonic Suppression Spurious and harmonic suppression is achieved by using two separate bandpass filters of ceramic type in the exciter. A filter module at the output works like a bandpass filter around the carrier. In addition to these filters, the output signal passes a cavity band pass filter in the combining system. 1.9 (10) Limiting Power The TRX measures the output power at its output connector via a RF-detector and the detected value is used by the power loop control block to steer two variable gain attenuators between the modulator and the power amplifier. Limited Internal EXHIBIT 12 4 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KAKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-04-09 A 1.10 (10) Digital Modulation 1.10.1 Modulation format for GMSK 1.10.1.1 Modulating symbol rate The modulating symbol rate is 1/T = 1 625/6 ksymb/s (i.e. approximately 270.833 ksymb/s), which corresponds to 1 625/6 kbit/s (i.e. 270.833 kbit/s). T is the symbol period. 1.10.1.2 Start and stop of the burst Before the first bit of the bursts as defined in GSM 05.02 [3] enters the modulator, the modulator has an internal state as if a modulating bit stream consisting of consecutive ones (d i = 1) had entered the differential encoder. Also after the last bit of the time slot, the modulator has an internal state as if a modulating bit stream consisting of consecutive ones (d i = 1) had continued to enter the differential encoder. These bits are called dummy bits and define the start and the stop of the active and the useful part of the burst as illustrated in figure 1. Nothing is specified about the actual phase of the modulator output signal outside the useful part of the burst. dummy bits Output phase The useful part The active part 000..............000111111..............111111 3 tail bits3 tail bitsdummy bits 1/2 bit1/2 bit Figure 1: Relation between active part of burst, tail bits and dummy bits. For the normal burst the useful part lasts for 147 modulating bits Limited Internal EXHIBIT 12 5 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KAKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-04-09 A }) 1.10.1.3 Differential encoding Each data value d i = [0,1] is differentially encoded. The output of the differential encoder is: ∃ ({,dddd iiii =⊕…

Text truncated - open the document above for the full version.

Limited Internal EXHIBIT 101 (9) Prepared (also subject responsible if other)No. EAB/RTL/I Palle ZetterstrandB5KAKRC16184-3 Uen ApprovedCheckedDateRevReference EAB/RTL/I (P. Zetterstrand)2003-04-09A EXHIBIT 10 Components - Tune Up Contents 12.1033 (c) (10) Function of Active Circuit Devices2 1.1Printed Board RAB 1900 ROA 117 4765/12 1.1.1Function Block RX Frontend, ROZ 104 237/12 1.1.2Function Block RX0, ROZ 104 238/12 1.1.3Function Block RX1, ROZ 104 239/13 1.1.4Function Block RC0, ROZ 104 111/14 1.1.5Function Block RC1, ROZ 104 112/14 1.1.6Function Block TXPA0, ROZ 104 240/14 1.1.7Function Block TXPA1, ROZ 104 241/15 1.1.8Function Block LTU, ROZ 104 110/16 1.1.9Function Block RDI, ROZ 104 122/17 1.2Printed Board, DRB, ROA 117 4767/27 1.2.1Function Block LEC, ROZ 104 120/17 1.2.2Function Block Digital, ROZ 104 232/18 22.1033(c)(9) Tune-Up Procedure9 32.1033(c)(9,10) Power Tune-Up – Power Limiting9 Limited Internal EXHIBIT 102 (9) Prepared (also subject responsible if other)No. EAB/RTL/I Palle ZetterstrandB5KAKRC16184-3 Uen ApprovedCheckedDateRevReference EAB/RTL/I (P. Zetterstrand)2003-04-09A 1 2.1033 (c) (10) Function of Active Circuit Devices 1.1 Printed Board RAB 1900 ROA 117 4765/1 1.1.1 Function Block RX Frontend, ROZ 104 237/1 Product: ROZ 104 237/1, Revision: C PosProd name/DesProduct number D5101MIKROKRETS/IC, DIGITAL THERMOMETER AND THRYT 124 6006/C L5100INDUKTOR/22NH 5% 0.7A 0603REG 704 1122/22 L5101INDUKTOR/22NH 5% 0.7A 0603REG 704 1122/22 N5100MIKROKRETS/Amplifier RF SiGe HBT MMICRYT 101 6526/1 N5101RIKTKOPPLARE/PD18-73 Y010UND 106 039/1 N5102RIKTKOPPLARE/PD18-73 Y010UND 106 039/1 N5103RIKTKOPPLARE/PD18-73 Y010UND 106 039/1 N5104RIKTKOPPLARE/PD18-73 Y010UND 106 039/1 N5105RIKTKOPPLARE/PD18-73 Y010UND 106 039/1 N5106MIKROKRETS/Amplifier RF SiGe HBT MMICRYT 101 6526/1 N5107MIKROKRETS/AS186-302RYT 101 6438/1 N5108MIKROKRETS/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N5109MIKROKRETS/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N5110MIKROKRETS/COMP 2.7V R/R OPEN DRAINRYT 101 6326/1 N5111MIKROKRETS/COMP 2.7V R/R OPEN DRAINRYT 101 6326/1 N5112MIKROKRETS/COMP 2.7V R/R OPEN DRAINRYT 101 6326/1 N5113MIKROKRETS/COMP 2.7V R/R OPEN DRAINRYT 101 6326/1 X3106KOAXIALKONTAKT/MCX STRAIGHT SMDRNT 403 090/1 X3107KOAXIALKONTAKT/MCX STRAIGHT SMDRNT 403 090/1 X3108KOAXIALKONTAKT/SMP male 50ohm SMD w.g.pinsRPT 408 1002/01 X3109KOAXIALKONTAKT/SMP male 50ohm SMCRPT 408 1012/01 1.1.2 Function Block RX0, ROZ 104 238/1 Product: ROZ 104 238/1, Revision: E PosProd name/DesProduct number N6200MICROCIRCUIT/Minisynth (RX 1900 MHz) 3.3VRYT 902 6029/2 N6201MICROCIRCUIT/Minisynth (RX 1900 MHz) 3.3VRYT 902 6029/2 N6202MICROCIRCUIT/TEMP SENSOR, SOT-23, LM50CRYT 124 6009/C N6203MICROCIRCUIT/IC ASIC ULLA IIROP 101 664/C N6204MICROCIRCUIT/REG LIN+ 3.3V 300mA 0.155VRYT 113 6238/2 N6205MICROCIRCUIT/REG LIN- -5.0V 200mA ESD=400VRYT 113 6343/1 N6206MICROCIRCUIT/REGLIN 3.3V 150mA 0.165VRYT 113 6156/6 N6207MICROCIRCUIT/COMP x1 1.6V R/RRYT 101 6312/1 Limited Internal EXHIBIT 103 (9) Prepared (also subject responsible if other)No. EAB/RTL/I Palle ZetterstrandB5KAKRC16184-3 Uen ApprovedCheckedDateRevReference EAB/RTL/I (P. Zetterstrand)2003-04-09A N6300MICROCIRCUIT/REG LIN+ 3.3V 300mA 0.155VRYT 113 6238/2 N6301MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N6400MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N6401MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 T6200TRANSFORMER/BALUN 50/50 OHM 1880 MHZREG 135 58/5 T6201TRANSFORMER/SMD TRANSFORMERREG 135 55/7 T6202TRANSFORMER/BALUN 50/50 OHM 1880 MHZREG 135 58/5 T6203TRANSFORMER/SMD TRANSFORMERREG 135 55/7 V6200DIODE/SWIx2 70V 0.2A SOT23 6ns SeriaRKZ 123 03/1 V6300DIODE/CAP 15V 15-6pF 1-1E1A(USC) 6pFRKZ 323 610/1 V6301DIODE/CAP 15V 15-6pF 1-1E1A(USC) 6pFRKZ 323 610/1 X6300FILTER/201MHz BP SAWRTN 201 851/03 X6301FILTER/201MHz BP SAWRTN 201 851/03 Z6200FILTER/1880MHz BP BW=30MHZRTN 202 709/02 Z6202FILTER/1880MHz BP BW=30MHZRTN 202 709/02 Z6300PROD. ADAPT. CIRCUIT/ASIC VERDIROP 101 609 Z6301PROD. ADAPT. CIRCUIT/ASIC QIMROP 101 1115/C Z6400MICROCIRCUIT/DUAL SIGMA-DELTA MODULATORRYT 120 6061/2 Z6401MICROCIRCUIT/DUAL SIGMA-DELTA MODULATORRYT 120 6061/2 Z6402MICROCIRCUIT/DUAL SIGMA-DELTA MODULATORRYT 120 6061/2 Z6403MICROCIRCUIT/DUAL SIGMA-DELTA MODULATORRYT 120 6061/2 1.1.3 Function Block RX1…

Text truncated - open the document above for the full version.
