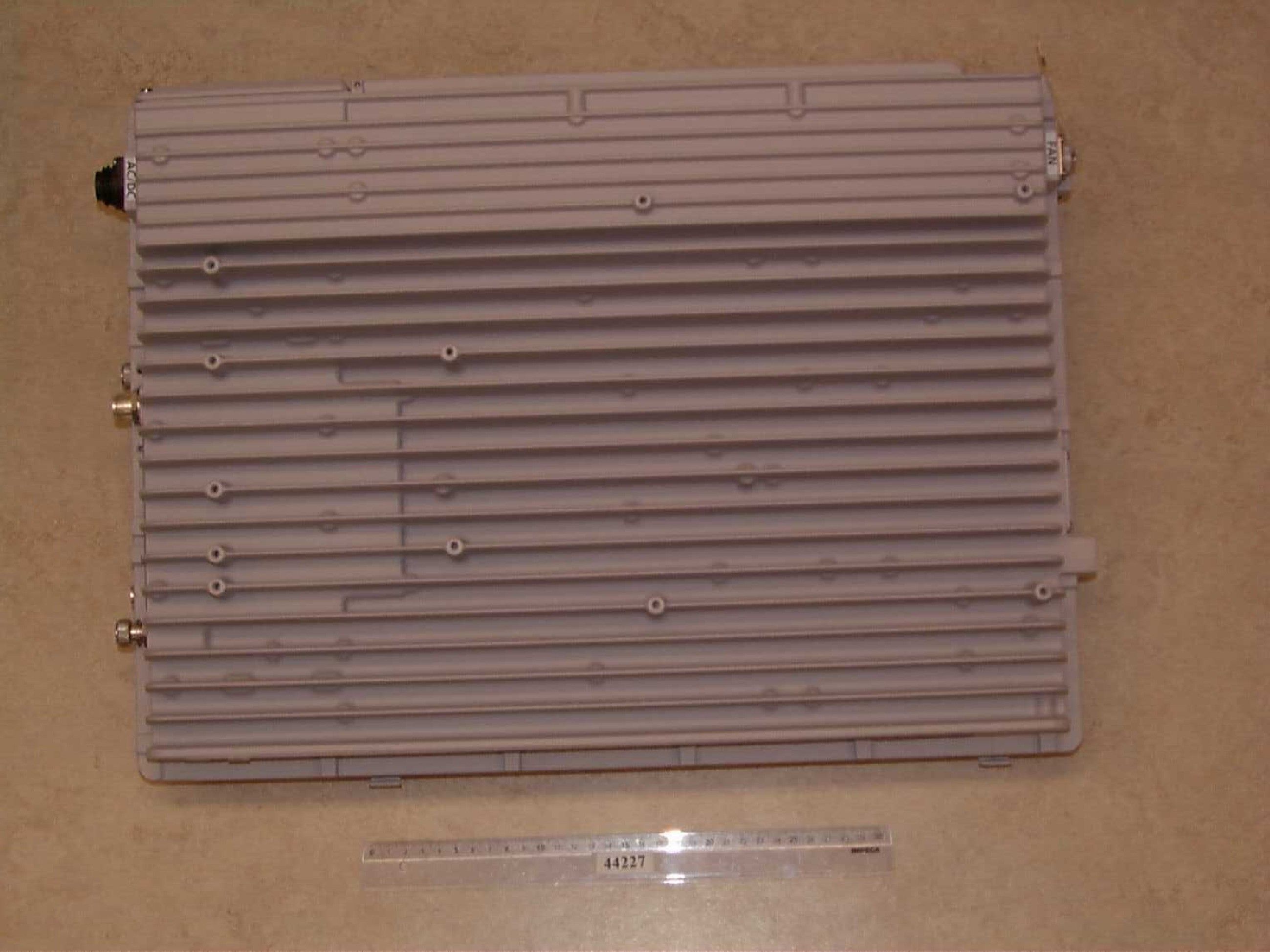

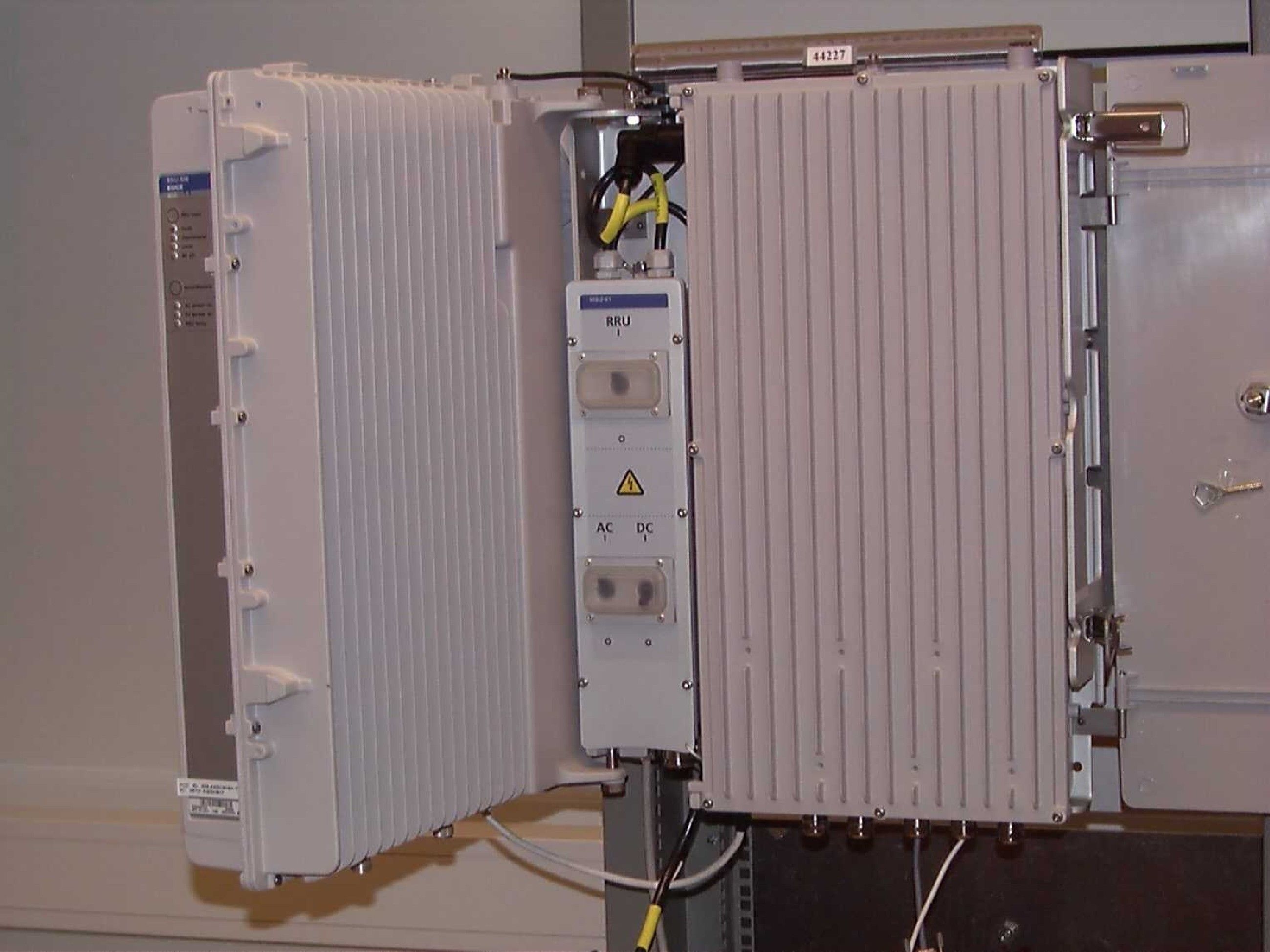

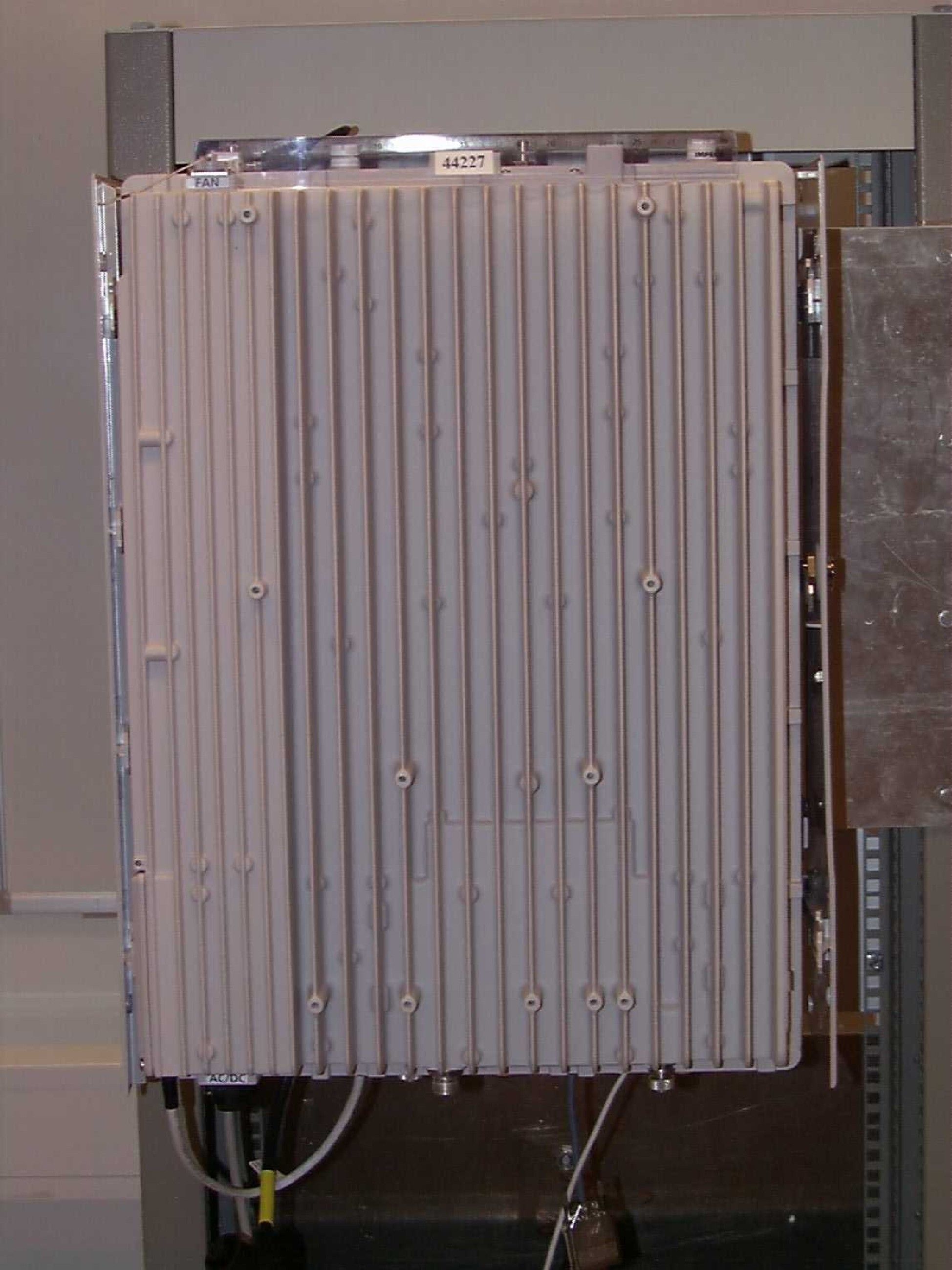

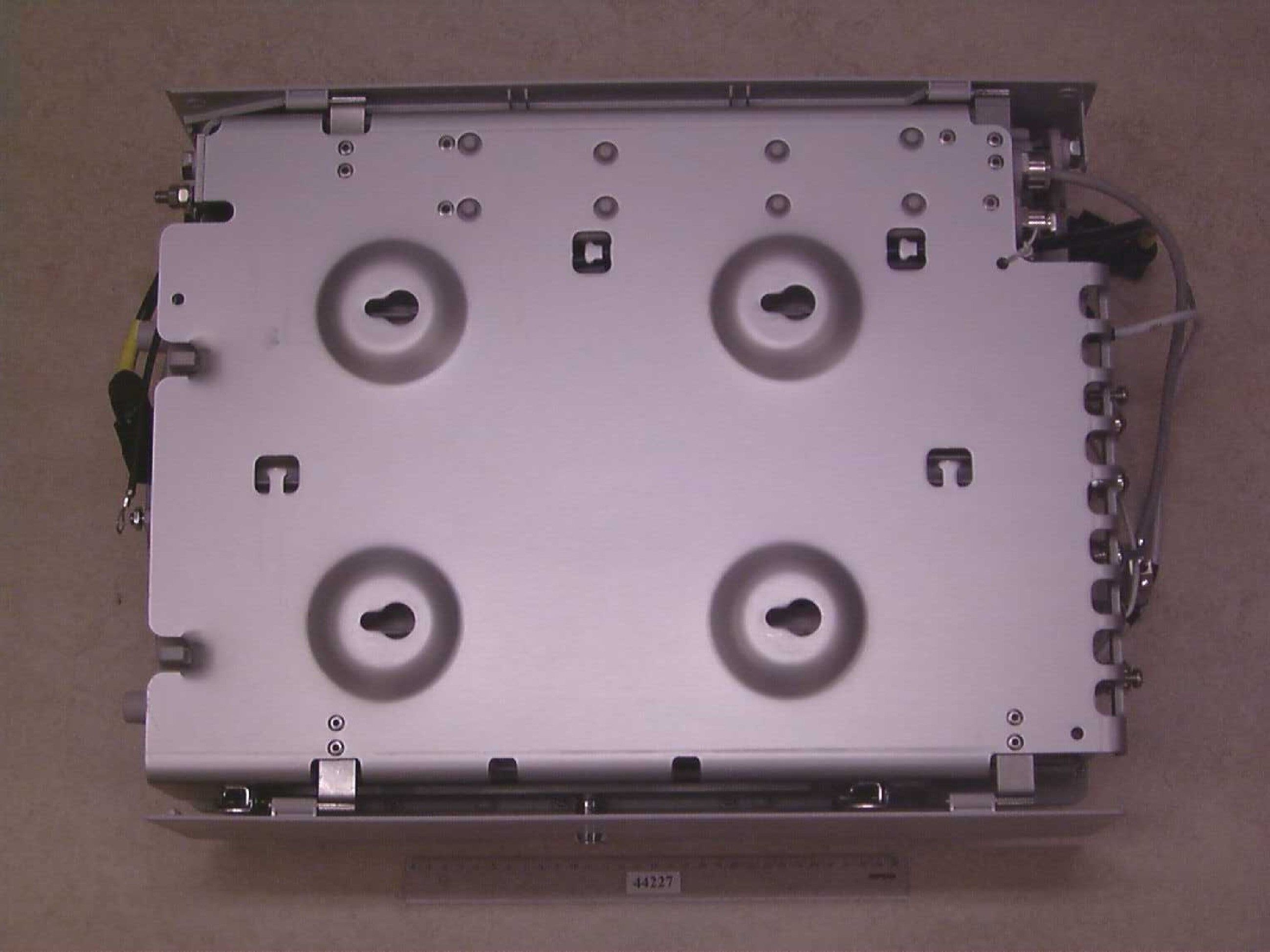

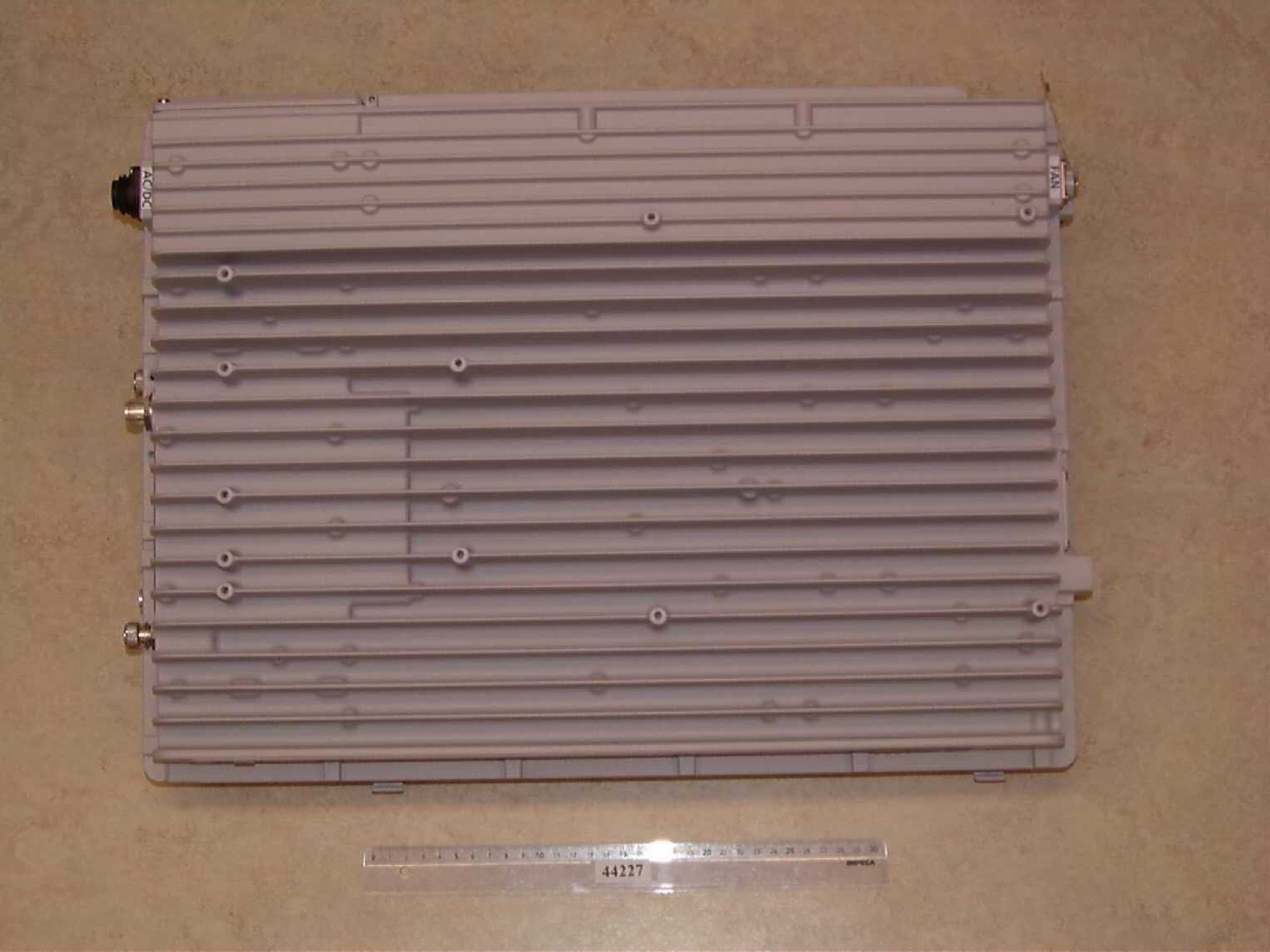

B5KAKRC16184-7PCS Broadband GSM Base Station

2/EN/LZT 720 0327 P1D RBS 2308 Radio Base Station Product Description 1(22) The RBS 2308, a member of the RBS 2000 family, is a 4 TRX radio base station for indoor and outdoor applications.

 R e v i e w C o p y Radio Base StationRBS 2308 2 (22)2/EN/LZT 720 0327 P1D Contents 1Product Overview3 1.1Main features3 1.2Variants3 1.3Optional Equipment3 2Dimensions4 3Space requirements5 4Environment6 4.1Operating Environment6 4.2Environmental Impact6 4.3Materials7 5Hardware Units7 5.1Standard Hardware Units8 5.2Optional Hardware Units9 6Interfaces10 6.1External connections10 6.2OMT Interface14 6.3Operator Interface14 7Power System18 7.1Power Supply19 7.2Power Consumption19 8Transmission20 9External Alarms20 10Standards, Regulations and Dependability20 10.1Safety Standards21 10.2Other Standards and Regulations21 R e v i e w C o p y RBS 2308Radio Base Station 2/EN/LZT 720 0327 P1D3 (22) 1 Product Overview The RBS 2308 is an outdoor micro base station. It can be used for indoor or outdoor applications, with four transceiver (TRX) units. The cabinet can be mounted on walls, poles or masts. The RBS 2308 supports CS-3, CS-4 and EGPRS. Main applications for the RBS 2308 are: • Hot spots, adding supplementary capacity • Mega networks, providing micro-cell coverage • Public meeting places, supplying additional capacity in dense areas • Replacement of existing RBS 2302 sites where higher capacity or EDGE is required. 1.1 Main features The RBS 2308 can support the following features: • 4 TRXs • Duplex filters • EDGE (hardware prepared) • External alarms • Multidrop by-pass • Positioning with LMU (Mode A only) • Power supply for MINI LINK E Micro or LMU 1.2 Variants The RBS 2308 is available for the following frequency: • GSM 800 1.3 Optional Equipment The equipment listed below is available, but is not necessary for basic operation: • Mast fixture set • Material set wall bracket R e v i e w C o p y Radio Base StationRBS 2308 4 (22)2/EN/LZT 720 0327 P1D 2 Dimensions This section describes the RBS 2308 dimensions, weights and colour. Size and weight The dimensions of the basic RBS 2308 cabinet are shown in the figure below.
      Figure 1 RBS 2308 dimensions The weights of the RBS 2308 and of the major units to be handled are given in the table below. Table 1Weights of RBS 2308 and major units UnitWeight IXU9.5 kg MBU6.5 kg RRU23.5 kg RXBP1.6 kg Sunshield1.5 kg Total42.6 kg Colour The RBS 2308 is available in grey (reference number NCS S2502-R). R e v i e w C o p y RBS 2308Radio Base Station 2/EN/LZT 720 0327 P1D5 (22) 3 Space requirements For installation and maintenance, and proper cooling during operation, the space in front of the cabinet must be kept clear for a distance of 1000 mm, and there must be at least 500 mm of free space on the right side and 250 mm on the left. 300 mm free space is required above the cabinet, see figure below. No free space is needed at the back of the cabinet. The distance between the cabinet and the nearest obstruction (floor, filing cabinet, another RBS, and so on) must be at least 500 mm. P010123A Unit of measurement: mm RBS 250 500 300 1000 500 500 RBS Figure 2 Space requirements Mounting Base Holing Pattern The mounting base of the RBS 2308 has the same holing pattern as that of the RBS 2302. R e v i e w C o p y Radio Base StationRBS 2308 6 (22)2/EN/LZT 720 0327 P1D
          Figure 3 Base frame and installation frame holing pattern 4 Environment This section provides an overview of the operating environment, environmental impact, and materials used in the RBS 2308. 4.1 Operating Environment Climatic Requirements Temperature limits for operation, transport, storage and handling of the RBS 2308 are given in the table below. Table 2Climatic requirements ConditionTemperatureRelative humidity Start-up and operation -33° – +45°C 15 – 100% Transport -40° – +70°C 5 – 100% Storage -25° – +55°C 10 – 100% Handling -40° – +70°C 5 – 100% 4.2 Environmental Impact This section describes the effects that the cabinet has on the environment. R e v i e w C o p y RBS 2308Radio Base Station 2/EN/LZT 720 0327 P1D7 (22) Heat Dissipation Average heat loads of the RBS 2308 are given in the table below. The exact figures are dependent upon configuration, equipment and site-specific conditions. Table 3Average heat load Operating conditionAverage heat load Without heating315 W With heating1000 W Acoustic Dispersion The RBS 2308 cabinet does not contribute to the acoustic noise of its surroundings. 4.3 Materials All Ericsson products fulfil legal, market and Ericsson requirements regarding: • Fire resistance of material, components, wires and cables • Declaration of materials • Use of restricted materials • Recycling Package Material The package material is recyclable. 5 Hardware Units A high level of availability is achieved using strict functional modularity in a system of standardised Replaceable Units (RUs). A failed RU can easily be replaced by a new one. R e v i e w C o p y Radio Base StationRBS 2308 8 (22)2/EN/LZT 720 0327 P1D

  !"#$% &   ' # "% ' # "% Figure 4 RBS 2308 overview 5.1 Standard Hardware Units This section briefly describes the standard hardware units required for operation. Flash Memory Card All loadable software and the IDB are stored on this unit. The flashcard is field replaceable and contains all information needed for configuring the RBS 2308 at site. Number of units: 1 IXU – Interface and Switching Unit The IXU is the central control unit for one RBS. All switching of traffic is performed in the IXU, as well as control of climate. The Flash Memory Card, the TIM, and most external interfaces are located on the IXU. Number of units: 1 MBU – Mounting Base Unit The MBU is the mechanical mounting interface for the RBS 2308. It also contains the interface for the main power supply, and provides surge and R e v i e w C o p y RBS 2308Radio Base Station 2/EN/LZ…

Text truncated - open the document above for the full version.

Limited Internal EXHIBIT 4 Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-04A 1 EXHIBIT 4 - Cover Sheet Contents EXHIBIT 4 - Cover Sheet1 Block Diagram RF Parts, RAB 800 , 1913-ROA 117 4853/12 Block Diagram CPU Parts, DRB, 1911-ROA 117 4767/23 Rev 10 EE FF GG HH 11 5 6 6 7 7 8 8 9 Product name Document no Sheet 1 1 2 2 3 3 4 4 5 9 10 11 AA BB CC DD Prepared (also subject responsible if other) References Doc respons/Approved Date 1(1)1913-ROA 117 4853/1 Ux 2002-10-04 EKAJBLI ERANHE AMGC BS C.4 ERA/RLV/FA RAB-800 Rev 10 E E F F G G H H 11 5 66 77 88 9 Product nameDocument no Sheet 11 22 33 44 5 9 10 11 A A B B C C D D Prepared (also subject responsible if other) References Doc respons/Approved Date 1(1) DRB EDGE EAB/RTL/RD (Peter Tammpere) MGC BS C.2 A EMWKESE, EMWTHUN 2002-09-27 1911-ROA 117 4767/2 Ux

2002-12-03 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: B5KAKRC16184-7 It is requested that the following information is to be held confidential on behalf of Ericsson AB. FCC Rules Part 0.459 refers. Exhibit 5 CPU Part Schematics 1 30 pages Exhibit 5 RF Part Schematics 1 39 pages Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. Yours sincerely Palle Zetterstrand

Open EXHIBIT 131 (1) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle Zetterstrand ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-03AB5KAKRC16184-7 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Radio Frequency Investigation Ltd Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ United Kingdom January 15, 2003 Subject: Certification for FCC ID: B5KAKRC16184-7 Gentlemen; Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station transceiver is designed for use in the GSM 800 MHz cellular telephone system. The transmitter will operate from 869 to 894 MHz. The receiver circuit supports 824 to 849 MHz. The base station operates in the 800 MHz cellular radiotelephone services as per 47 CFR Part 22 subpart H, 22.901 (d). It meets the requirements of GSM1900 11.10-1 version 4.19.1 specification for operation in GSM cellular systems except for the output frequency range. This base station will in normal mode operate at a nominal power output of 2.5 watts at the antenna connector. The power output is reducible to ~5 milliwatts. The channels at the band and block edges (channels 128, 181, 183, 231, 233, 239, 240 and 251) are excluded. This is because of too wide frequency spectrum at the band and block edges. This exclusion is done by database settings in the switch software. These channels will never be set there. These database settings will also control internal band edges and exclude channels that neighbors other than GMSK or EDGE channels. This is a part of the cell planning by the operator. Ericsson AB requests confidentiality under CFR 0.459. Confidentiality for the following exhibits is requested: Exhibit 5 CPU Part Schematics Exhibit 5 Radio Part Schematics Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. If additional information is needed, please contact me on the below listed number. Sincerely, Palle Zetterstrand Verification Engineer Ericsson AB Flöjelbergsgatan 1B SE-431 84 Mölndal Sweden Telephone No.: +46 31 747 19 75 Fax No.: +46 31 747 33 21 e-mail [email protected]

Limited Internal EXHIBIT 11(1) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-18A EXHIBIT 1 - ID Label Placement FCC ID: B5KAKRC16184-7 Remote Radio Unit KRC 161 84/7, R2B ID Label Label Placement

INTERNAL PHOTOGRAPH SECTION Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 This section contains the following photographs: Photo Reference Number Title PHT\44227\001 Digital Radio Board2 PCB Bottom PHT\44227\002 Digital Radio Board2 PCB Top PHT\44227\003 DRB1 PCB Bottom PHT\44227\004 DRB1 PCB Top PHT\44227\005 Duplex Filter Unit1 Bottom PHT\44227\006 Duplex Filter Unit1 Top PHT\44227\007 Duplex Filter Unit2 Bottom PHT\44227\008 Duplex Filter Unit2 Top PHT\44227\009 FCC ID Label PHT\44227\010 Heater Unit Bottom PHT\44227\011 Heater Unit Top PHT\44227\012 IXU Front View PHT\44227\013 IXU Rear View PHT\44227\014 Mounting Base Without Cabinet & IXU Front View PHT\44227\015 Power Interface Board Bottom PHT\44227\016 Power Interface Board Top PHT\44227\017 PSU Bottom PHT\44227\018 PSU Top PHT\44227\019 Radio Access Board 2 PCB Bottom PHT\44227\020 Radio Access Board 2 PCB Top PHT\44227\021 Radio Access Board 1 PCB Bottom PHT\44227\022 Radio Access Board 1 PCB Top PHT\44227\023 RBS2308 Cabinet Opened PHT\44227\024 Y Interface Board and radio Interface Board Bottom PHT\44227\025 Y Interface Board and radio Interface Board top These pages are not included in the total number of pages for this report RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\001 Digital Radio Board2 PCB Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\002 Digital Radio Board2 PCB Top RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\003 DRB1 PCB Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\004 DRB1 PCB Top RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\005 Duplex Filter Unit1 Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\006 Duplex Filter Unit1 Top RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\007 Duplex Filter Unit2 Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\008 Duplex Filter Unit2 Top RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\009 FCC ID Label RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\010 Heater Unit Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\011 Heater Unit Top RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\012 IXU Front View RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\013 IXU Rear View RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\014 Mounting Base Without Cabinet & IXU Front View RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\015 Power Interface Board Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\016 Power Interface Board Top RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\017 PSU Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\018 PSU Top RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\019 Radio Access Board 2 PCB Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\020 Radio Access Board 2 PCB Top RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\021 Radio Access Board 1 PCB Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\022 Radio Access Board 1 PCB Top RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\023 RBS2308 Cabinet Opened RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\024 Y Interface Board and radio Interface Board Bottom RADIO FREQUENCY INVESTIGATION LTD. Internal Photograph Section Test Of: Ericsson AB RBS 2308 To: FCC Part 22: 2001 PHT\44227\025 Y Interface Board and radio Interface Board top

Limited Internal EXHIBIT 121 (9) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-05A Exhibit 12 – Cover Sheet Contents 12.1033(c) Circuit Description2 1.1(2) FCC Identifier: B5KAKRC16184-72 1.2(4) Type of Emission:2 1.3(5) Frequency range: 869.4 to 893.6 MHz.2 1.4(6) Range of Operating Power:2 1.5(7) Maximum Power Rating:2 1.6(8) Final Amplifier Voltage and Current in normal operation2 1.7(10) Frequency Stabilizing Circuit Description3 1.8(10) Spurious and Harmonic Suppression3 1.9(10) Limiting Power3 1.10(10) Digital Modulation4 1.10.1Modulation format for GMSK4 1.10.2Modulation format for 8PSK7 Limited Internal EXHIBIT 122 (9) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-05A 1 2.1033(c) Circuit Description 1.1 (2) FCC Identifier:B5KAKRC16184-7 This RRU (Remote Radio Unit) consist of four synthesized transceivers (TRX) operating in the frequency band of 869.4 to 893.6 MHz. There are 122 Channels available with a channel spacing of 200 KHz. The transceiver is capable of operation in a TDMA (Time Division Multiple Access) system. For each channel there are 8 time slots available, each containing digital speech or data for GMSK and data for 8-PSK. The RRU have a hybrid combiner included which combines two TRX:s per antenna. 1.2 (4) Type of Emission: GMSK:245KGXW 8-PSK:245KG7W 1.3 (5) Frequency range:869.4 to 893.6 MHz. 1.4 (6) Range of Operating Power: This transmitter is designed to supply a nominal power level of 34 dBm at the antenna connector. The power level can be set at 14 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(13) where P(0) is the highest power level. 1.5 (7) Maximum Power Rating: The maximum power rating with one TRX under environmental and supply voltage variations is equal to 34 dBm plus a power level tolerance of +-2 dB. Therefore the maximum output power is 36 dBm equal to 4 W at the antenna connector of the radio base station. 1.6 (8) Final Amplifier Voltage and Current in normal operation P (0)P (13) Collector Voltage 26.0 Volt DC26.0 Volt DC Collector Current 1.1 Amps DC0.7 Amps DC Limited Internal EXHIBIT 123 (9) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-05A 1.7 (10) Frequency Stabilizing Circuit Description The transmitter in each TRX contains three synthesized oscillators. One PLL gives a 90 MHz signal to the I/Q modulator. The two other generate a 779 to 804 MHz signal to the mixer where the modulated signal is converted to the transmit frequency. Two oscillators are needed in frequency hopping mode, one is retuning while the other is active. All three synthesized oscillators have a reference of 13 MHz generated in a central synthesized oscillator (PLL) of 26 MHz, which is downmixed by 2, in the LTU part of the RRU. This PLL frequency reference is locked to a 3.25 MHz clock which is extracted from the multiplexed Y-interface MY. MY is generated and distributed by the IXU (Interface & Switching Unit) to all RRU:s in the base station. The frequency reference 13 MHz in the IXU is generated in a voltage controlled oscillator phase-locked to the incoming PCM-link frequency or as an option an incoming GPS-link frequency. 1.8 (10) Spurious and Harmonic Suppression Spurious and harmonic suppression is achieved by using two separate bandpass filters of ceramic type in the exciter. A filter module at the output works like a bandpass filter around the carrier. In addition to these filters, the output signal passes a cavity band pass filter in the combining system. 1.9 (10) Limiting Power The TRX measures the output power at its output connector via a RF-detector and the detected value is used by the power loop control block to steer two variable gain attenuators between the modulator and the power amplifier. Limited Internal EXHIBIT 124 (9) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-05A 1.10 (10) Digital Modulation 1.10.1 Modulation format for GMSK 1.10.1.1 Modulating symbol rate The modulating symbol rate is 1/T = 1 625/6 ksymb/s (i.e. approximately 270.833 ksymb/s), which corresponds to 1 625/6 kbit/s (i.e. 270.833 kbit/s). T is the symbol period. 1.10.1.2 Start and stop of the burst Before the first bit of the bursts as defined in GSM 05.02 [3] enters the modulator, the modulator has an internal state as if a modulating bit stream consisting of consecutive ones (d i = 1) had entered the differential encoder. Also after the last bit of the time slot, the modulator has an internal state as if a modulating bit stream consisting of consecutive ones (d i = 1) had continued to enter the differential encoder. These bits are called dummy bits and define the start and the stop of the active and the useful part of the burst as illustrated in figure 1. Nothing is specified about the actual phase of the modulator output signal outside the useful part of the burst. dummy bits Output phase The useful part The active part 000..............000111111..............111111 3 tail bits3 tail bitsdummy bits 1/2 bit1/2 bit Figure 1: Relation between active part of burst, tail bits and dummy bits. For the normal burst the useful part lasts for 147 modulating bits Limited Internal EXHIBIT 125 (9) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-05A 1.10.1.3 Differential encoding Each data value d i = [0,1] is differentially encoded. The output of the differential encoder is: $ ({,})dddd iiii =⊕∈ −1 01 where ⊕ denotes modulo 2 addition. The modulating data value α i input to the …

Text truncated - open the document above for the full version.

Limited Internal EXHIBIT 101 (9) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-04A EXHIBIT 10 Components - Tune Up Contents 12.1033 (c) (10) Function of Active Circuit Devices2 1.1Printed Board RAB 800 ROA 117 4853/12 1.1.1Function Block RX Frontend, ROZ 104 214/12 1.1.2Function Block RX0, ROZ 104 215/12 1.1.3Function Block RX1, ROZ 104 216/13 1.1.4Function Block RC0, ROZ 104 111/14 1.1.5Function Block RC1, ROZ 104 112/14 1.1.6Function Block TXPA0, ROZ 104 217/14 1.1.7Function Block TXPA1, ROZ 104 218/15 1.1.8Function Block LTU, ROZ 104 110/16 1.1.9Function Block RDI, ROZ 104 122/17 1.2Printed Board, DRB, ROA 117 4767/27 1.2.1Function Block LEC, ROZ 104 120/17 1.2.2Function Block Digital, ROZ 104 232/18 22.1033(c)(9) Tune-Up Procedure9 32.1033(c)(9,10) Power Tune-Up – Power Limiting9 Limited Internal EXHIBIT 102 (9) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-04A 1 2.1033 (c) (10) Function of Active Circuit Devices 1.1 Printed Board RAB 800 ROA 117 4853/1 1.1.1 Function Block RX Frontend, ROZ 104 214/1 Product: ROZ 104 214/1, Revision: C PosProd name/DesProduct number D5100MICROCIRCUIT/74'04 HC1G SSOP5-P 1x INVERTERRYT 326 6004/C D5101MICROCIRCUIT/DS1621 DIG. TERMOMETER 150milRYT 124 7601/C N5100MICROCIRCUIT/AMPLIFIER SI-MMIC 50ohn GAIN BRYT 101 6492/1 N5101SPLITTER/COMBINDER/PD09-73RYT 901 6186/1 N5102SPLITTER/COMBINDER/PD09-73RYT 901 6186/1 N5103SPLITTER/COMBINDER/PD09-73RYT 901 6186/1 N5104SPLITTER/COMBINDER/PD09-73RYT 901 6186/1 N5105SPLITTER/COMBINDER/PD09-73RYT 901 6186/1 N5106MICROCIRCUIT/AMPLIFIER SI-MMIC 50ohn GAIN BRYT 101 6492/1 N5107MICROCIRCUIT/AS186-302RYT 101 6438/1 N5108MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N5109MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N5110MICROCIRCUIT/COMP 2.7V R/R OPEN DRAINRYT 101 6326/1 N5111MICROCIRCUIT/COMP 2.7V R/R OPEN DRAINRYT 101 6326/1 N5112MICROCIRCUIT/COMP 2.7V R/R OPEN DRAINRYT 101 6326/1 N5113MICROCIRCUIT/COMP 2.7V R/R OPEN DRAINRYT 101 6326/1 X3106COAXIAL CONNECTOR/MCX STRAIGHT SMDRNT 403 090/1 X3107COAXIAL CONNECTOR/MCX STRAIGHT SMDRNT 403 090/1 X3108COAXIAL CONNECTOR/SMP male 50ohm SMD w.g.pinsRPT 408 1002/01 X3109COAXIAL CONNECTOR/SMP male 50ohm SMCRPT 408 1012/01 1.1.2 Function Block RX0, ROZ 104 215/1 Product: ROZ 104 215/1, Revision: E PosProd name/DesProduct number N6200MICROCIRCUIT/Minisynth (RX 800 MHz) 3.3VRYT 902 6025/2 N6201MICROCIRCUIT/Minisynth (RX 800 MHz) 3.3VRYT 902 6025/2 N6202MICROCIRCUIT/TEMP SENSOR, SOT-23, LM50CRYT 124 6009/C N6203MICROCIRCUIT/IC ASIC ULLA IROP 101 664/2C N6204MICROCIRCUIT/REG LIN+ 3.3V 300mA 0.155VRYT 113 6238/2 N6205MICROCIRCUIT/REG LIN- -5.0V 200mA 240mVRYT 113 6343/1 N6206MICROCIRCUIT/REGLIN 3.3V 150mA 0.165VRYT 113 6156/6 Limited Internal EXHIBIT 103 (9) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-04A N6207MICROCIRCUIT/COMP x1 1.6V R/RRYT 101 6312/1 N6300MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N6301MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N6400MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N6401MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 T6200BALUN/BALUN,850 +/-150 MHZREG 735 58/1 T6201TRANSFORMER/SMD TRANSFORMERREG 135 55/7 T6202BALUN/BALUN,850 +/-150 MHZREG 735 58/1 T6203TRANSFORMER/SMD TRANSFORMERREG 135 55/7 V6200DIODE/SWIx2 70V 0.2A SOT23 6nsRKZ 123 03/1 V6300DIODE/CAP 15V 15-6pF 1-1E1A(USC) 6pFRKZ 323 610/1 V6301DIODE/CAP 15V 15-6pF 1-1E1A(USC) 6pFRKZ 323 610/1 X6300FILTER/BP 71MHz SAWRTN 201 850/01 X6301FILTER/BP 71MHz SAWRTN 201 850/01 Z6200FILTER/BP 836MHzRTN 202 1034/1 Z6201FILTER/765.5MHzRTN 202 711/02 Z6202FILTER/BP 836MHzRTN 202 1034/1 Z6203FILTER/765.5MHzRTN 202 711/02 Z6300PROD. ADAPT. CIRCUIT/ASIC VERDIROP 101 609 Z6301PROD. ADAPT. CIRCUIT/ASIC QIMROP 101 1115/C Z6400MICROCIRCUIT/DUAL SIGMA-DELTA MODULATORRYT 120 6061/2 Z6401MICROCIRCUIT/DUAL SIGMA-DELTA MODULATORRYT 120 6061/2 Z6402MICROCIRCUIT/DUAL SIGMA-DELTA MODULATORRYT 120 6061/2 Z6403MICROCIRCUIT/DUAL SIGMA-DELTA MODULATORRYT 120 6061/2 1.1.3 Function Block RX1, ROZ 104 216/1 Product: ROZ 104 216/1, Revision: G PosProd name/DesProduct number N7200MICROCIRCUIT/Minisynth (RX 800 MHz) 3.3VRYT 902 6025/2 N7201MICROCIRCUIT/Minisynth (RX 800 MHz) 3.3VRYT 902 6025/2 N7202MICROCIRCUIT/TEMP SENSOR, SOT-23, LM50CRYT 124 6009/C N7203MICROCIRCUIT/IC ASIC ULLA IROP 101 664/2C N7204MICROCIRCUIT/REG LIN+ 3.3V 300mA 0.155VRYT 113 6238/2 N7205MICROCIRCUIT/COMP x1 1.6V R/RRYT 101 6312/1 N7206MICROCIRCUIT/REG LIN- -5.0V 200mA 240mVRYT 113 6343/1 N7207MICROCIRCUIT/REGLIN 3.3V 150mA 0.165VRYT 113 6156/6 N7300MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N7301MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N7400MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 N7401MICROCIRCUIT/REG LIN 5.0V 150mA 0.165VRYT 113 6156/4 T7200BALUN/BALUN,850 +/-150 MHZREG 735 58/1 T7201TRANSFORMER/SMD TRANSFORMERREG 135 55/7 T7202BALUN/BALUN,850 +/-150 MHZREG 735 58/1 T7203TRANSFORMER/SMD TRANSFORMERREG 135 55/7 V7200DIODE/SWIx2 70V 0.2A SOT23 6nsRKZ 123 03/1 V7300DIODE/CAP 15V 15-6pF 1-1E1A(USC) 6pFRKZ 323 610/1 V7301DIODE/CAP 15V 15-6pF 1-1E1A(USC) 6pFRKZ 323 610/1 Limited Internal EXHIBIT 104 (9) Prepared (also subject responsible if other)No. EAB/RTL/FG Palle ZetterstrandB5KAKRC16184-7 Uen ApprovedCheckedDateRevReference EAB/RTL/FG (P. Zetterstrand)2002-12-04A X7300FILTER/BP 71MHz SAWRTN 201 850/01 X7301FILTER/BP 71MHz SAWRTN 201 850/01 Z7200FILTER/BP 836MHzRTN 202 1034/1 Z7201FILTER/765.5MHzRTN 202 711/02 Z7202FILTER/BP 836MHzRTN 202 1034/1 Z7203FILTER/765.5MHzRTN 202 711/02 Z7300PROD. ADAPT. CIRCUIT/ASIC QIMROP 101 1115/C Z7301PROD. ADAPT. CIRCUIT/ASIC VERDIROP 101 609 Z7400MICROCIRCUIT/DUAL SIGMA-DELTA MODULATORRYT 120 6061/2 …

Text truncated - open the document above for the full version.

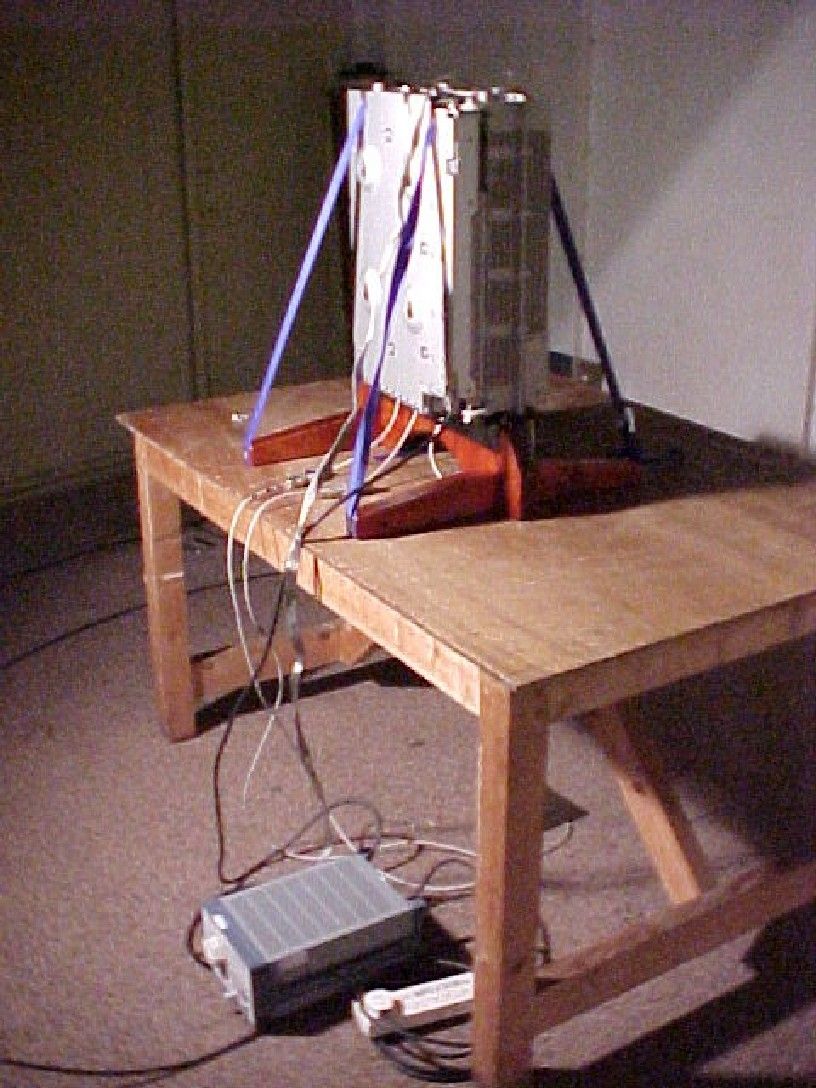

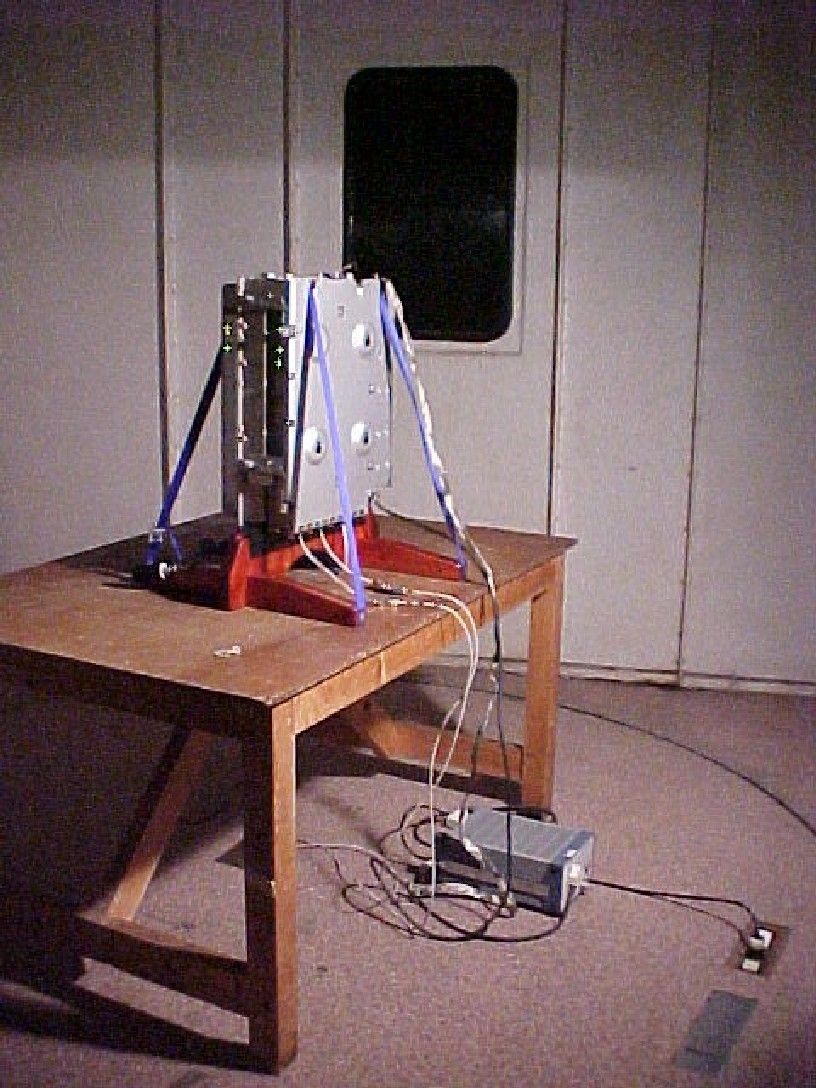

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Ericsson AB. RBS 2308 To: FCC Part 22: 2001 Test Report Serial No: RFI/MPTB1/RP44227JD01A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: pp Tested By: Release Version No: PDF01 Issue Date: 20 December 2002 Test Dates: 09 December to 13 December 2002 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44227JD01A Conformance Testing Department Page 2 of 42 Issue Date: 20 December 2002 Test Of: Ericsson AB. RBS 2308 To: FCC Part 22: 2001 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No: RFI/MPTB1/RP44227JD01A Conformance Testing Department Page 3 of 42 Issue Date: 20 December 2002 Test Of: Ericsson AB. RBS 2308 To: FCC Part 22: 2001 Table of Contents 1. Client Information..............................................................................................................4 2. Equipment Under Test (EUT) ...........................................................................................5 3. Test Specification, Methods And Procedures ..............................................................12 4. Deviations From The Test Specification .....................................…

Text truncated - open the document above for the full version.
