      !"!# P r e l i m i n a r y P r e l i m i n a r y E RBS 2106, RBS 2206 Reference Manual RBS 2106, RBS 2206 Reference Manual © Ericsson Radio Systems AB — All Rights Reserved — EN/LZT 720 0008 P2A 2001-11-28 1 (485) © Ericsson Radio Systems AB — All Rights Reserved — P r e l i m i n a r y RBS 2106, RBS 2206 Reference Manual Due to continued progress in methodology, design and manufacturing, the contents of this document are subject to revision without notice. 2 (485) EN/LZT 720 0008 P2A 2001-11-28 © Ericsson Radio Systems AB — All Rights Reserved — P r e l i m i n a r y RBS 2106, RBS 2206 Reference Manual Contents 1 Preface ........................................................................................................... 15 1.1 Objectives ................................................................................................ 15 1.2 Target Groups..........................................................................................15 1.3 RBS 2000 Library Overview.................................................................... 15 1.4 How to Order CPI....................................................................................16 1.5 R1A to P2A..............................................................................................17 2 Product Safety Requirements RBS 2000....................................................19 2.1 References...............................................................................................19 2.2 Product Safety ......................................................................................... 19 3 Environmental Capabilities..........................................................................21 3.1 Scope.......................................................................................................21 3.2 Terminology ............................................................................................. 21 3.3 References...............................................................................................22 3.4 Transport -40  C - +70  C..........................................................................22 3.5 Storage -25  C - +55  C.............................................................................23 3.6 Handling -40  C - +70  C........................................................................... 25 3.7 Operation Indoor +5  C - +40  C ............................................................... 25 3.8 Operation Outdoor -33  C - +40  C ........................................................... 27 3.9 Operation Outdoor -33  C - +45  C ........................................................... 28 3.10 Operation Outdoor -33  C - +55  C ......................................................... 30 3.11 Operation Mast Mounted Equipment -33  C - +45  C.............................30 3.12 Operation Mast Mounted Equipment -33  C - +55  C............................30 4 Radio Configurations, RBS 2106 and RBS 2206.......................................33 4.1 Introduction .............................................................................................. 33 4.2 References...............................................................................................34 4.3 Definitions ................................................................................................ 34 4.4 Frequency Bands.....................................................................................36 4.5 Basic Configurations................................................................................37 4.6 Site Cell Configurations (SCC)................................................................69 4.7 Co-Siting with RBS 200 or RBS 2000 Macro Cabinets .......................... 78 EN/LZT 720 0008 P2A 2001-11-28 3 (485) © Ericsson Radio Systems AB — All Rights Reserved — P r e l i m i n a r y RBS 2106, RBS 2206 Reference Manual 4.8 Co-Siting with TDMA RBS Using an ASU .............................................. 82 5 Product Data RBS 2106................................................................................87 5.1 Introduction .............................................................................................. 87 5.2 RBS 2106 Cabinet Description................................................................87 5.3 Connection Interfaces..............................................................................96 5.4 RBS Power System................................................................................. 101 5.5 Antenna System ...................................................................................... 105 5.6 Transmission............................................................................................106 6 Product Data RBS 2206................................................................................109 6.1 Site Equipment Overview ........................................................................ 109 6.2 Site Power Options..................................................................................110 6.3 Power Connections..................................................................................110 6.4 RBS 2206 Cabinet Hardware Description...............................................114 6.5 External Alarm and Transmission Interface ............................................ 123 6.6 BBS 2000 Rack Description.................................................................... 127 6.7 Antenna System ...................................................................................... 129 7 Unit Description, DXU-21 ............................................................................. 147 7.1 System Environment................................................................................147 7.2 Block Diagram .................................................................................…

Text truncated - open the document above for the full version.

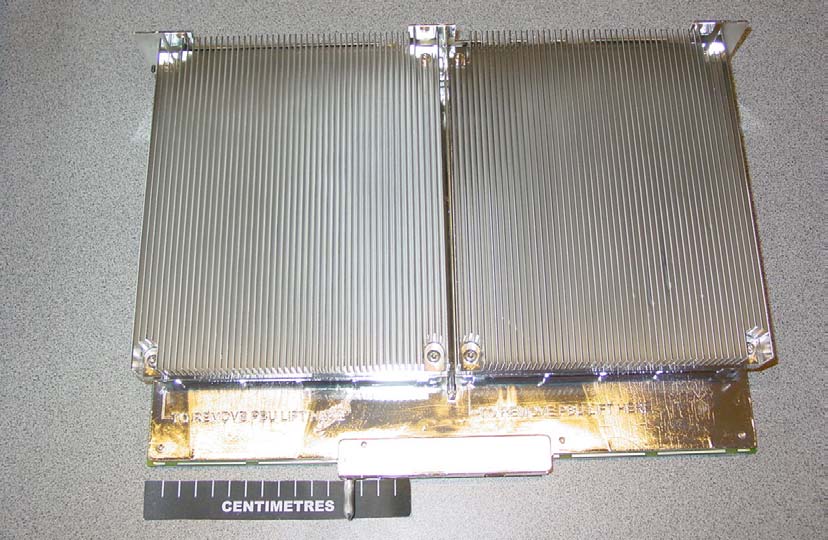

REPORT Datum/Date Beteckning/Reference Sida/Page 2002-05-15 F207839-24 7 (11) FCC ID: B5KAKRC1311004-1 Encl. 10 Transceiver Unit KRC 131 1004/1, R5A Front side Rear side Bottom side REPORT Datum/Date Beteckning/Reference Sida/Page 2001-10-09 F207839-24 11 (11) FCC ID: B5KBKRC1311004-1 Encl. 10 Top

REPORT Datum/Date Beteckning/Reference Sida/Page 2001-10-09 F207839-24 11 (11) FCC ID: B5KBKRC1311004-1 Encl. 10 Transceiver Unit KRC 131 1004/1, R5A Label placement Front side FCC ID label REPORT Datum/Date Beteckning/Reference Sida/Page 2001-10-09 F207839-24 11 (11) FCC ID: B5KBKRC1311004-1 Encl. 10 ID Label

REPORT Datum/Date Beteckning/Reference Sida/Page 2002-05-15 F207839-24 10 (11) FCC ID: B5KBKRC1311004-1 Encl. 10 Main board- PCB component side Main board- PCB rear side REPORT Datum/Date Beteckning/Reference Sida/Page 2001-10-09 F207839-24 11 (11) FCC ID: B5KBKRC1311004-1 Encl. 10 PA1- PCB components side PA1- PCB rear side REPORT Datum/Date Beteckning/Reference Sida/Page 2001-10-09 F207839-24 11 (11) FCC ID: B5KBKRC1311004-1 Encl. 10 PA2- PCB components side PA2- PCB rear side

Open EXHIBIT 121 (6) Prepared (also subject responsible if other)No. ERA/RKF/VR Larry LindströmB5KBKRC1311004-1 ApprovedCheckedDateRevReference KI/ERA/RKF/VR (L Lindström)2002-05-03A Exhibit 12 – Cover Sheet Contents 12.1033(c) Circuit Description............................................................2 1.1(2) FCC Identifier: B5KBKRC1311004-1.........................................2 1.2(4) Type of Emission: 210KGXW.....................................................2 1.3(5) Frequency range: 1930 to 1990 MHz.........................................2 1.4(6) Range of Operating Power:........................................................2 1.5(7) Maximum Power Rating:.............................................................2 1.6(8) Final Amplifier Voltage and Current in normal operation...........3 1.7(10) Frequency Stabilizing Circuit Description.................................3 1.8(10) Spurious and Harmonic Suppression.......................................3 1.9(10) Limiting Power...........................................................................3 1.10(10) Digital Modulation......................................................................4 Open EXHIBIT 122 (6) Prepared (also subject responsible if other)No. ERA/RKF/VR Larry LindströmB5KBKRC1311004-1 ApprovedCheckedDateRevReference KI/ERA/RKF/VR (L Lindström)2002-05-03A 1 2.1033(c) Circuit Description 1.1 (2) FCC Identifier:B5KBKRC1311004-1 This dTRU (double Tranceiver Radio Unit) consist of two synthesized transmitters (TRX) operating in the frequency band of 1930 to 1990 MHz. There are 299 Channels available with a channel spacing of 200 KHz. This is a constant envelop transmitter using GMSK 0.3 modulation, which is MSK filtered with a Gaussian filter ,having a BT product of 0.3. The transmitter is capable of operation in a TDMA (Time Division Multiple Access) system. For each channel there are 8 time slots available,each containing digital speech or data. The dTRU have a hybrid combiner included which can be used to increase the number of TRX:s per antenna. The combiner can alternativately be used to increase the output power (TCC = Transmitter Coherent Combining) by using the same transmit frequency channel in both TRX:s. This combiner is connected before the cavity band pass filter in the combining system. 1.2 (4) Type of Emission:210KGXW 1.3 (5) Frequency range:1930 to 1990 MHz 1.4 (6) Range of Operating Power: This transmitter is designed to supply a nominal power level of 44.5 dBm at the antenna connector. The power level can be set at 16 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(15) where P(0) is the highest power level. In TCC mode with both TRX:s combined will the combination supply a nominal power level of 47 dBm at the antenna connector. The power level can be set at 16 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(15) where P(0) is the highest power level. 1.5 (7) Maximum Power Rating: The maximum power rating with one TRX under environmental and supply voltage variations is equal to 44.5 dBm plus a power level tolerance of + 1.3 dB. Therefore the maximum output power is 45.8 dBm equal to 38 W at the antenna connector of the radio base station. The maximum power rating with two TRX.s combined (TCC) under environmental and supply voltage variations is equal to 47 dBm plus a power level tolerance of + 1.3 dB. Therefore the maximum output power with TCC is 48.3 dBm equal to 67.6 W at the antenna connector of the radio base station. Open EXHIBIT 123 (6) Prepared (also subject responsible if other)No. ERA/RKF/VR Larry LindströmB5KBKRC1311004-1 ApprovedCheckedDateRevReference KI/ERA/RKF/VR (L Lindström)2002-05-03A 1.6 (8) Final Amplifier Voltage and Current in normal operation P (0)P (15) Collector Voltage26.0 Volt DC26.0 Volt DC Collector Current4.9 Amps DC0.7 Amps DC 1.7 (10) Frequency Stabilizing Circuit Description The transmitter in each TRX contains three synthesized oscillators. One PLL gives a 160 MHz signal to the I/Q modulator. The two other generate a 1770 to 1830 MHz signal to the mixer where the modulated signal is converted to the transmit frequency. Two oscillators are needed in frequency hopping mode, one is retuning while the other is active. All three synthesized oscillators have a reference of 13 MHz, which is downmixed by 2, generated in a central synthesized oscillator (PLL) of 26 MHz in the LTU part of the dTRU. This PLL frequency reference is extracted from the 13 MHz signal on the Y-link, which is generated and distributed, by the DXU (Distribution Switch Unit), to all dTRU:s in the basestation. The frequency reference 13 MHz in the DXU is generated in a voltage controlled oscillator placed in an oven together with and phase-locked to a long term stable oven heated oscillator. As an option can the oscillator be phase-locked to the incoming PCM-link frequency or an incoming GPS-link frequency. 1.8 (10) Spurious and Harmonic Suppression Spurious and harmonic suppression is achieved by using two separate bandpass filters of ceramic type in the exciter. A filter module at the output works like a bandpass filter around the carrier. In addition to these filters, the output signal passes a cavity band pass filter in the combining system. 1.9 (10) Limiting Power The TRU measures the output power at its output connector via a RF-detector and the detected value is used by the power loop control block to steer two variable gain amplifiers beteween the modulator and the power amplifier. In TCC (Transmitter Coherent Combining) mode is the output power also measured with a RF detector in the non-output branch of the hybride combiner in the dTRU. This output power is kept as low as possible, by keeping the TRX:s output power in phase with each other, to get maximum output power at the output branch of the hybride combiner Open EXHIBIT 124 (6) Prepared (also subject responsible if other)No. ERA/RKF/VR Larry LindströmB5KBKRC1311…

Text truncated - open the document above for the full version.

Open EXHIBIT 101 (22) Prepared (also subject responsible if other)No. ERA/RKF/VR Larry LindströmB5KBKRC1311004-1 ApprovedCheckedDateRevReference KI/ERA/RKF/VR (L Lindström)2002-05-03A Exhibit 10 – Components, Tune Up Contents 12.1033 (c) (10) Function of Active Circuit Devices..........................2 1.1Printed Board RSU 1900 MHz GMSK/8-PSK ROA 117 8461/1......2 1.1.1Function Block LTU..........................................................................2 1.1.2Function Block DC/DC.....................................................................3 1.1.3Function Block Rx Frontend 1900 MHz...........................................5 1.1.4Function Block RX IF1 GMSK/8-PSK 1900 MHz.............................7 1.1.5Function Block RX IF2 GMSK/8-PSK 1900 MHz.............................8 1.1.6Function Block CPU.........................................................................9 1.1.7Function Block SPARC 1 GMSK/8-PSK........................................11 1.1.8Function Block SPARC 2 GMSK/8-PSK........................................12 1.1.9Function Block TX1 GMSK/8-PSK 1900 MHz...............................13 1.1.10Function Block TX2 GMSK/8-PSK 1900 MHz...............................14 1.2Printed Board PBU1 1900 GMSK/8-PSK Hybrid Combiner ROA 219 5387/1.............................................................................................15 1.2.1Function Block DC Booster............................................................15 1.2.2Function Block PA Linearisation GMSK/8-PSK PBU1900...........17 1.2.3Function Block PA, PBU 1900........................................................18 1.2.4Function Block Hybrid Combiner, PBU 1900.................................19 1.3Printed Board PBU1 1900 GMSK/8-PSK wo Hybrid Combiner ROA 219 5388/1.............................................................................................20 1.3.1Function Block DC Booster............................................................20 1.3.2Function Block PA Linearisation GMSK/8-PSK PBU1900...........20 1.3.3Function Block PA, PBU 1900........................................................20 22.1033(c)(9) Tune-Up Procedure...................................................21 32.1033(c)(9,10) Power Tune-Up – Power Limiting........................22 Open EXHIBIT 102 (22) Prepared (also subject responsible if other)No. ERA/RKF/VR Larry LindströmB5KBKRC1311004-1 ApprovedCheckedDateRevReference KI/ERA/RKF/VR (L Lindström)2002-05-03A 1 2.1033 (c) (10) Function of Active Circuit Devices 1.1 Printed Board RSU 1900 MHz GMSK/8-PSK ROA 117 8461/1 1.1.1 Function Block LTU Product ROZ 104 033/1 Revision PF1 PosProd name/DesProduct number V500DIODE/SCHx2 70V 70mA SOT23 SerialRKZ 323 08/2 Z500MICROCIRCUIT/REG LIN+ ADJ 1.8-20V +/-1% 500 RYT 113 6303/1 Z501MICROCIRCUIT/74'74 AC SOP14 2xD FLIP- FLOP RYT 318 0074/C Z503MICROCIRCUIT/MB15E07 PFV-ERRYT 102 6057/1 Z504OSCILLATOR/26.000MHZRTL 202 610/02 Z505MICROCIRCUIT/74'04 LVC SSOP14 6x INVERTER RYT 331 0004/C Z506MICROCIRCUIT/74'04 ACT TSSOP14 6x INVERTER RYT 317 6004/22C Z507MICROCIRCUIT/74'04 ACT TSSOP14 6x INVERTER RYT 317 6004/22C Open EXHIBIT 103 (22) Prepared (also subject responsible if other)No. ERA/RKF/VR Larry LindströmB5KBKRC1311004-1 ApprovedCheckedDateRevReference KI/ERA/RKF/VR (L Lindström)2002-05-03A 1.1.2 Function Block DC/DC Product ROZ 104 032/1 Revision M PosProd name/DesProduct number T700TRANSFORMER/PLANARTRANSFORMER T40REG 735 305/2 T702TRANSFORMER/PLANARTRANSFORMER T25REG 735 304/2 V700RECTIFIER/SCHx2 30V 2x15A D2PAKRKZ 323 6012/3 V702RECTIFIER/SCHx2 30V 2x6A DPAK(TO252AA)RKZ 323 6047/1 V703OVERVOLTAGEPROT./DIODE TS 36V 30A DO- 214AB RKZ 223 485/36 V708RECTIFIER/REC 200V 1A 35ns SMA (DO214AC)RKZ 123 05/2 V709RECTIFIER/REC 200V 1A 35ns SMA (DO214AC)RKZ 123 05/2 V710TRANSISTOR/NFET 100V 6A SO8 0.026ohmRYN 123 6032/1 V711TRANSISTOR/NFET 100V 6A SO8 0.026ohmRYN 123 6032/1 V712TRANSISTOR/NFET 100V 6A SO8 0.026ohmRYN 123 6032/1 V714TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V715TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V716TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V717TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V718TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V719TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V720TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V721TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V722RECTIFIER/SCH 25V 10A SMBRKZ 323 6038/1 V723RECTIFIER/SCH 25V 10A SMBRKZ 323 6038/1 V724RECTIFIER/SCH 25V 10A SMBRKZ 323 6038/1 V725RECTIFIER/SCH 25V 10A SMBRKZ 323 6038/1 V727TRANSISTOR/N chanl. MOSFETRYN 123 251/C V728TRANSISTOR/N chanl. MOSFETRYN 123 251/C V729DIODE/SWI 75V 0.25A SOT23RKZ 123 612 V730DIODE/SWI 75V 0.25A SOT23RKZ 123 612 V736REG.DIODE/REG 12.0V 6% 0.2W SOT-23RKZ 223 01/18 V738OVERVOLTAGEPROT./DIODE TS 36V 30A DO- 214AB RKZ 223 485/36 V746DIODE/SWI 75V 0.25A SOT23RKZ 123 612 V747DIODE/DUAL SERIES 70V .2A 6ns SOT-23RKZ 123 03/1 V748DIODE/DUAL SERIES 70V .2A 6ns SOT-23RKZ 123 03/1 V749TRANSISTOR/NFET 100V 6A SO8 0.026ohmRYN 123 6032/1 V750TRANSISTOR/NFET 100V 6A SO8 0.026ohmRYN 123 6032/1 Z703MICROCIRCUIT/REG SW- ADJ 150kHz 0.5ARYT 113 6320/1 Z705MICROCIRCUIT/LM431 ADJ REGULATORRYT 113 008/3C Z709MICROCIRCUIT/REG SW- 1.26-2.5V +/-1.2% 20ARYT 113 6175/1 Z710MICROCIRCUIT/PWM CURR.-M 5.0V +/-1.5% 1MHzRYT 113 6053/4 Open EXHIBIT 104 (22) Prepared (also subject responsible if other)No. ERA/RKF/VR Larry LindströmB5KBKRC1311004-1 ApprovedCheckedDateRevReference KI/ERA/RKF/VR (L Lindström)2002-05-03A Z711MICROCIRCUIT/PWM CURR.-M 5.0V +/-1.5% 1MHzRYT 113 6053/4 Z712MICROCIRCUIT/VOLTAGE REG, INVERTING, -5VRYT 113 256/C Z851MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 Z853MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 Z854MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 Z855MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 Z856MICROCIRCUIT/SUP.V 2.93V L/NIN RESETRYT 113 6166/2 Z857MICROCIRCUIT/COMP x2 36VRYT 101 6169/1 Z858MICROCIRCUIT/MOSFET DRIVERx2 INV/NONINV /44RYT 109 6204/1 Z859MICROCIRCUIT/MOSFET D…

Text truncated - open the document above for the full version.

REPORT Datum/Date Beteckning/Reference Sida/Page 2002-05-02 F207839-24 1 (1) FCC ID: B5KBKRC1311004-1 Encl. 1 Sign:..... Description - Equipment Under Test (EUT) Equipment: GSM Base station transceiver 1900MHz Tx Frequency range: 1930.2-1989.8 MHz Tested Channels: 512: 1930.2 MHz 513: 1930.4 MHz 537: 1935.2 MHz 661: 1960.0 MHz 785: 1984.8 MHz 809: 1989.6 MHz 810: 1989.8 MHz Product number: dTRU-19: KRC 131 1004/1 Serial number: See Hardware list in enclosure 9 RF conducted measurements were done on dTRU-19: KRC 131 1004/1, R5A s/n: AE5000DCFD CDU-G19 BFL 119 153/1, R4A s/n: A40003FWM6 All RF conducted measurements were done at the output connectors of CDU-G. Manufacturer’s representative: Larry Lindström, Ericsson AB Purpose of test The purpose of the tests is to verify compliance with the performance characteristics specified in FCC CFR47. Reservation The test results in this report apply only to the particular Equipment Under Test (EUT) as declared in the report. Delivery of test objects The test objects was delivered: 2002-04-12 Test engineers Fredrik Isaksson Peter Grahn Test witness Larry Lindström, Ericsson AB REPORT Datum/Date Beteckning/Reference Sida/Page 2002-05-02 F207839-24 1 (3) FCC ID: B5KBKRC1311004-1 Encl. 2 Sign:..... RF Power output measurements according to 47CFR 2.1046 Date 2002-04-26 Temperature 23 °C ± 3 °C Humidity 32 % ± 5 % Test set-up and Procedure The measurements were made per J-STD-007A Vol 1. Measurements were made at CDU-G output connectors. The output was connected to a Peak power analyzer via a 50 ohm attenuator. The RF power was measured with variation in supply voltage at the highest power level. Test was performed on 24 V DC supply voltage system. The transmitter was modulated with 270.8 kbs pseudorandom data during the measurements. Measurement equipment Calibration Due SP number Boonton RF Peak power meter/analyzer 2002-12 503 144 Boonton Power sensor 56518-S/4 2003-02 503 146 Multimeter Fluke 83 2002-08 501 521 Testo 610, Temperature and humidity meter 2002-11 502 658 Results dTRU, output 1+2 (TCC): Nominal power 24 V DC Rated output power level after CDU-G (maximum): 47 dBm Test conditions Transmitter power (dBm) Channel 512 Channel 661 Channel 810 T nom 23°C V nom 24 V DC 46.8 47.2 46.3 T nom 23°C V min 20.4 V DC 46.7 47.1 46.3 V max 27.6 V DC 46.7 47.2 46.4 Measurement uncertainty 0.5 dB REPORT Datum/Date Beteckning/Reference Sida/Page 2002-05-02 F207839-24 2 (3) FCC ID: B5KBKRC1311004-1 Encl. 2 Sign:..... dTRU, output 1, without internal combiner: Nominal power 24 V DC Rated output power level after CDU-G (maximum): 44.5 dBm Test conditions Transmitter power (dBm) Channel 512 Channel 661 Channel 810 T nom 23°C V nom 24 V DC 44.4 44.8 44.3 T nom 23°C V min 20.4 V DC 44.4 44.9 44.3 V max 27.6 V DC 44.5 44.8 44.3 Measurement uncertainty 0.5 dB dTRU, output 2, without internal combiner: Nominal power 24 V DC Rated output power level after CDU-G (maximum): 44.5 dBm Test conditions Transmitter power (dBm) Channel 512 Channel 661 Channel 810 T nom 23°C V nom 24 V DC 44.5 44.7 44.3 T nom 23°C V min 20.4 V DC 44.4 44.7 44.2 V max 27.6 V DC 44.4 44.7 44.2 Measurement uncertainty 0.5 dB REPORT Datum/Date Beteckning/Reference Sida/Page 2002-05-02 F207839-24 3 (3) FCC ID: B5KBKRC1311004-1 Encl. 2 Sign:..... dTRU, output 1, with internal combiner: Nominal power 24 V DC Rated output power level after CDU-G (maximum): 41 dBm Test conditions Transmitter power (dBm) Channel 512 Channel 661 Channel 810 T nom 23°C V nom 24 V DC 40.9 41.3 40.4 T nom 23°C V min 20.4 V DC 40.9 41.3 40.4 V max 27.6 V DC 40.9 41.3 40.4 Measurement uncertainty 0.5 dB dTRU, output 2, with internal combiner: Nominal power 24 V DC Rated output power level after CDU-G (maximum): 41 dBm Test conditions Transmitter power (dBm) Channel 512 Channel 661 Channel 810 T nom 23°C V nom 24 V DC 41.1 41.6 40.9 T nom 23°C V min 20.4 V DC 41.1 41.6 40.8 V max 27.6 V DC 41.1 41.6 40.8 Measurement uncertainty 0.5 dB Limits The deviation of output power shall not be greater than ±2 dB of the maximum rated output power. Complies? Yes REPORT Datum/Date Beteckning/Reference Sida/Page 2002-05-02 F207839-24 1 (1) FCC ID: B5KBKRC1311004-1 Encl. 3 Sign:..... Modulation characteristics measurements according to 47CFR 2.1047 Date 2002-04-24 Temperature 22 °C ± 3 °C Humidity 31 % ± 5 % Test set-up and Procedure The measurements were made per J-STD-007A Vol 1. Measurements were made at CDU-G output connectors. The output was connected to a spectrum analyzer. The spectrum analyser was connected to an external 10 MHz reference standard during the measurements. The transmitter was modulated with 270.8 kbs pseudorandom data during the measurements. Measurement equipment Calibration Due SP number R&S ESI 26 2003-04 Ericsson Id. 638906 Frequency Reference Fluke PM6681R 2002-05 502 480 Multimeter Fluke 83 2002-08 501 521 Climate chamber 2002-10 503 546 Testo 610, Temperature and humidity meter 2002-11 502 658 Results Nominal Voltage 24 V DC 44.5 dBm output power at Channel 661 (1960.0 MHz) Phase error (°) TRU Output 1 TRU Output 2 1 1 Maximum phase error (°) 1 Limits The tolerance of the maximum output phase error shall not be greater than 5 degrees. Complies? Yes REPORT Datum/Date Beteckning/Reference Sida/Page 2002-05-02 F207839-24 1 (32) FCC ID: B5KBKRC1311004-1 Encl. 4 Sign:..... Occupied bandwidth measurements according to 47CFR 2.1049 Date 2002-04-30 Temperature 22 °C ± 3 °C Humidity 33 % ± 5 % Test set-up and Procedure The measurements were made per J-STD-007A Vol 1. Measurements were made at CDU-G output connectors. The output was connected to a spectrum analyzer. The transmitter was modulated with 270.8 kbs pseudorandom data during the measurements. Measurement equipment Calibration Due SP number R&S ESI 40 with option FSE-B7 2002-07 503 125 Testo 610, Temperature and humidity meter 2002-11 502 658 Measurement uncertainty: 3.7 dB Results dTRU Output 1, without internal combiner: Diagram 1 Ch 512 OBW Reference level …
