B5KBKRC16184-3PCS Broadband GSM Basestation

Ericsson Radio Systems AB

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Nov 02, 2003
Application Purpose: Original Equipment
Date of Application: Nov 02, 2003
Equipment Note: PCS Broadband GSM Basestation
Frequency Range: 1930.20000000 - 1989.80000000
Company: Ericsson Radio Systems AB
Country: Sweden

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

EN/LZT 720 0327/3 Uen R1A RBS 2308 Micro R BS Product Description The R BS 2308, a member of the RBS 2000 family, is a 4 TRX radio base station for indoor or outdoor use. E 1 (30) RBS 2308Micro RBS Contents 1Product Overview3 1.1Main Features3 1.2Variants3 1.3Optional Equipment4 2Dimensions5 3Space Requirements7 4Environment8 4.1Operating Environment8 4.2Environmental Impact9 4.3Materials9 5Hardware Units10 5.1Standard Hardware Units10 5.2Optional Hardware Units12 6Interfaces13 6.1External Connections13 6.2Internal Interface19 6.3OMT Interface20 6.4Operator interface20 7Power System24 7.1Power Supply24 7.2Battery Back-up25 7.3Output Power25 7.4Power Consumption25 8Transmission27 9External Alarms27 10Standards, Regulations and Dependability28 10.1Safety Standards28 10.2Other Standards and Regulations28 11Vandal Resistance29 2 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 1Product Overview The RBS 2308 is an outdoor micro base station. It can be used for indoor or outdoor applications, with four transceivers (TRX). The cabinet can be mounted on walls, poles or masts. The RBS 2308 is designed for use with BSS R9.1C or later. It supports GPRS (CS-1, CS-2, CS-3, and CS-4), HSCSD, and EGPRS in the Micro concept. Main applications of the RBS 2308 are: •Hot spots, adding supplementary coverage •Providing EDGE capacity •Public meeting places, supplying additional capacity in dense areas •Replacement of existing RBS 2302 sites where higher capacity is required. 1.1Main Features The RBS 2308 can support, among others, the following features: •Scalableupto12TRXs •EDGE •Externalalarms •Multidrop by-pass •Positioning with GPS/LMU •Power supply for MINI-LINK E Micro or LMU •Synchronized networks 1.2Variants The RBS 2308 can support the following frequencies: •GSM 1900 •GSM 800 3 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 1.3Optional Equipment The equipment listed below is available, but is not necessary for basic operation: •Fan unit •Mast-mounting fixtures •Multicasting Box (MCB) •RX Bandpass Filter (RXBP) 4 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 2Dimensions This section describes the RBS 2308 dimensions, space requirements and colour. Size and Weight The dimensions of the basic RBS 2308 cabinet (without options) are shown in the figure and table below. F igure 1RBS 2308 dimensions Use of the fan will increase the height of the cabinet,see table below. Table 1Maximum dimensions with and without fan Dimension Basic RBS 2308RBS 2308, maximum dimensions Height610 mm742 mm (1) Width433 mm433 mm Depth224 mm270 mm (2) (1) With fan unit. (2) With RXBP. The weights of the RBS 2308 and of the major units to be handled are given in the table below. 5 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS Table 2Weights of RBS 2308 and major units UnitWeight IXU9.5 kg MBU6.5 kg RRU23.5 kg Sunshield1.5 kg To t a l41 kg Colour The RBS 2308 is available in grey (reference number NCS S2502–R). 6 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 3Space Requirements For installation and maintenance, and proper cooling during operation, the space in front of the cabinet must be kept clear for a distance of 500 mm, and there must be at least 250 mm of free space on either side. 300 mm free space is required above the cabinet. The distance between the cabinet and the nearest obstruction below (floor, filing cabinet, another RBS, and so on) must be at least 500 mm. No free space is needed at the back of the cabinet. The figure below shows the minimum space requirements and the dimensions of the RBS in relation to the mounting base (if used). This information can be used to determine a suitable location with respect to other equipment at the site. ! Figure 2Space requirements Mounting Base Holing Pattern The mounting base of the RBS 2308 has the same holing pattern as that of the RBS 2302 mounting base,see Figure 2 on page 7. 7 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 4Environment This section provides an overview of the operating environment, environmental impact, and materials used in the RBS 2308. 4.1Operating Environment The operational temperature limits of the RBS 2308 depend upon the power supply and whether or not the fan is used,see tables below. Table 3Start-up and operational requirements using AC power RBS 2308 Variant Temperature rangeRelative Humidity Without optional fan –33Cto+45C 15–100% With optional fan –33Cto+55C 15–100% Table 4Start-up and operational requirements using DC power RBS 2308 Variant Temperature rangeRelative Humidity Start-up 0Cto+45C 15–100% Operational, without optional fan –15Cto+45C 15–100% Operational, with optional fan –15Cto+55C 15–100% Temperature limits for transport, storage and handling of the RBS 2308 are given in the table below. Table 5Transport, storage and handling climatic requirements Condition Temperature rangeRelative Humidity Transport –40Cto+70C 5–100% Storage –25Cto+55C 10–100% Handling –40Cto+70C 5–100% 8 (30) EN/LZT 720 0327/3 Uen R1A RBS 2308Micro RBS 4.2Environmental Impact This section describes the effects that the cabinet has on the environment. Heat Dissipation Average heat loads of the RBS 2308 are given in the table below. The exact figures are dependent upon configuration, equipment and site-specific conditions. Table 6Average heat load Operation Condition Average Heat Load Without heating315 W Acoustic Dispersion The RBS 2308 cabinet does not contribute to the acoustic noise of its surroundings. The optional fan unit generates acoustic noise. The maximum sound power of the fan unit is given in the table below. Table 7Average heat load Ambient Temperature Sound Power Level <30C 5.5 Bel Maximum operating temperature6.5 Bel 4.3Materials All Ericsson products fulfil the legal, market, and Ericsson requirements regarding: •Fire resistance of material, components, wires and cables •Dec…

Text truncated - open the document above for the full version.

Block Diagram

Limited Internal EXHIBIT 4 Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KBKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-10-14 A 1 EXHIBIT 4 - Cover Sheet Contents EXHIBIT 4 - Cover Sheet 1 Block Diagram RF Parts, RAB 1900 , 1913-ROA 117 4765/1 2 Block Diagram CPU Parts, DRB, 1911-ROA 117 4767/3 3 Rev 10 EE FF GG HH 11 5 6 6 7 7 8 8 9 Product name Document no Sheet 1 1 2 2 3 3 4 4 5 9 10 11 AA BB CC DD Prepared (also subject responsible if other) References Doc respons/Approved Date -5.5V +26V +5.7V +7V +3.3V +7V +5.7V +26V +5.7V +3.3V +1.8V +7V +3.3V +3.3V +1.8V +26V -5.5V +7V +3.3V +5.7V -5.5V +1.8V +3.3V +5.7V +7V +26V +5.7V -5.5V +5.7V +7V +26V +3.3V +5.7V +5.7V 1(1) RAB-M19 EAB/RTL/R (Anders Lindahl)MGC BS 2001.1 C EMWCOEM 2003-07-09 1911-ROA 117 4765/1 Ux +3.3V RC0_PA_ON RX0_J1_BUS(18:0) RX0_J3_BUS(8:0) SPIRA0_BUS(27:0) SPIRA0_TXI_BUS(11:0) SPIRA0_TXQ_BUS(11:0) TX0_13MHZ TX0_CTRL_BUS(15:0) +7V RX1_TEMP +5V_RX1_AD ATCFRAMESY_RC0 LNA_FAULT0 LNA_FAULT1 PBU0_CTRL_BUS(8:0) RC1_PA_ON RESET_RC1_N RX1_J1_BUS(18:0) RX1_J3_BUS(8:0) SPIRA1_BUS(27:0) SPIRA1_TXI_BUS(11:0) SPIRA1_TXQ_BUS(11:0) TX1_CTRL_BUS(15:0) +5V_LEC IIC_DRB(1:0) RF_LOOP_0 RF_LOOP_1 RX0_ARF RX0_BRF RX1_ARF RX1_BRF RX0_TEMP G_BUS_RC0(2:0) RESET_RC0_N 13MHZ_DSP0 13MHZ_DSP1 13MHZ_RC0 13MHZ_RC0 13MHZ_RC1 26MHZ 3.25MHZ LTU_BUS(3:0) RX0_13MHZ RX0_13MHZ RX1_13MHZ RXIF0_13MHZ RXIF1_13MHZ TX1_13MHZ ATCFRAMESY_RC1 G_BUS_RC1(2:0) PBU1_CTRL_BUS(8:0) PROM_PROG_BUS(8:0) Sheet 4 5 6 7 8 9 10 11 12 13 14 15 16 A B C D E F G H I J K Prepared (also subject responsible if other) References Doc respons/Approved Date Rev Product name Document no A B C D E F G H 1234567891011 I J K 12 13 14 15 16 123 Reviewed and approved according to Check Report 18/17763-592/FCP 103 3486 HEATER_FAULT_EC HEATER_ON_X POWER_GOOD_EC DC_OUT_OVL_EC XTEMP_LED_MMI 1(1) DRB EDGE EAB/RTL/D (P Tammpere)MGC BS C.2A EMWKESE 2003-09-03 1911-ROA 117 4767/3 Ux 5_7V 5_7V_RTN 5V_LEC 5V_LEC_RTN 1_8V_1 1_8V_2 1_2V_1 3_3V 7V -5_5V 1_8V_1_SENSE 1_8V_2_SENSE 1_2V_1_SENSE 3_3V_SENSE DC_OFF_EC AC_MAINS_FAIL DC_OUT_OVL DC_SUPPLY_FAIL FAN_FAULT#1 FAN_ON_EC HEATER_ON_EC HEAT_ON I2CBSDA I2CBSCL AC_MAINS_FAIL_EC AC_POWER_ON_MMI DC_ON_X DC_PA_ON DC_POWER_ON_MMI DC_SUPPLY_FAIL_EC FAN_FAULT_EC FAN_ON_X

Cover Letter(s)

Open EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-11-02 B B5KBKRC16184-3 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Radio Frequency Investigation Ltd Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ United Kingdom November 2, 2003 Subject: Certification for FCC ID: B5KBKRC16184-3 Gentlemen; Ericsson AB requests a Grant of Certification (Type Acceptance) for the above-mentioned FCC Identifier. This base station transceiver is designed for use in the GSM 1900 MHz cellular telephone system. The transmitter will operate from 1930.4 to 1989.6 MHz. The receiver circuit supports 1850.4 to 1809.6 MHz. The base station operates in the 1900 MHz broadband PCS services as per 47 CFR Part 24 subpart E. It meets the requirements of GSM1900 11.10-1 version 4.19.1 specification for operation in GSM cellular systems. This base station will in normal mode operate at a nominal power output of 2.3 watts at the antenna connector. The power output is reducible to ~2 milliwatts. The output power for the channels adjacent to each frequency block edge must be reduced to 0.89 W for the 245KG7W(8PSK) and 245KGXW(GMSK) emissions as documented in this filing. Ericsson AB requests confidentiality under CFR 0.459. Confidentiality for the following exhibits is requested: Exhibit 5 CPU Part Schematics Exhibit 5 Radio Part Schematics Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. If additional information is needed, please contact me on the below listed number. Sincerely, Palle Zetterstrand Verification Engineer Ericsson AB Flöjelbergsgatan 1B SE-431 84 Mölndal Sweden Telephone No.: +46 31 747 19 75 Fax No.: +46 31 747 33 21 e-mail [email protected]

Cover Letter(s)

2003-10-13 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: B5KBKRC16184-3 It is requested that the following information is to be held confidential on behalf of Ericsson AB. FCC Rules Part 0.459 refers. Exhibit 5 CPU Part Schematics 1 19 pages Exhibit 5 RF Part Schematics 1 39 pages Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. Yours sincerely Palle Zetterstrand

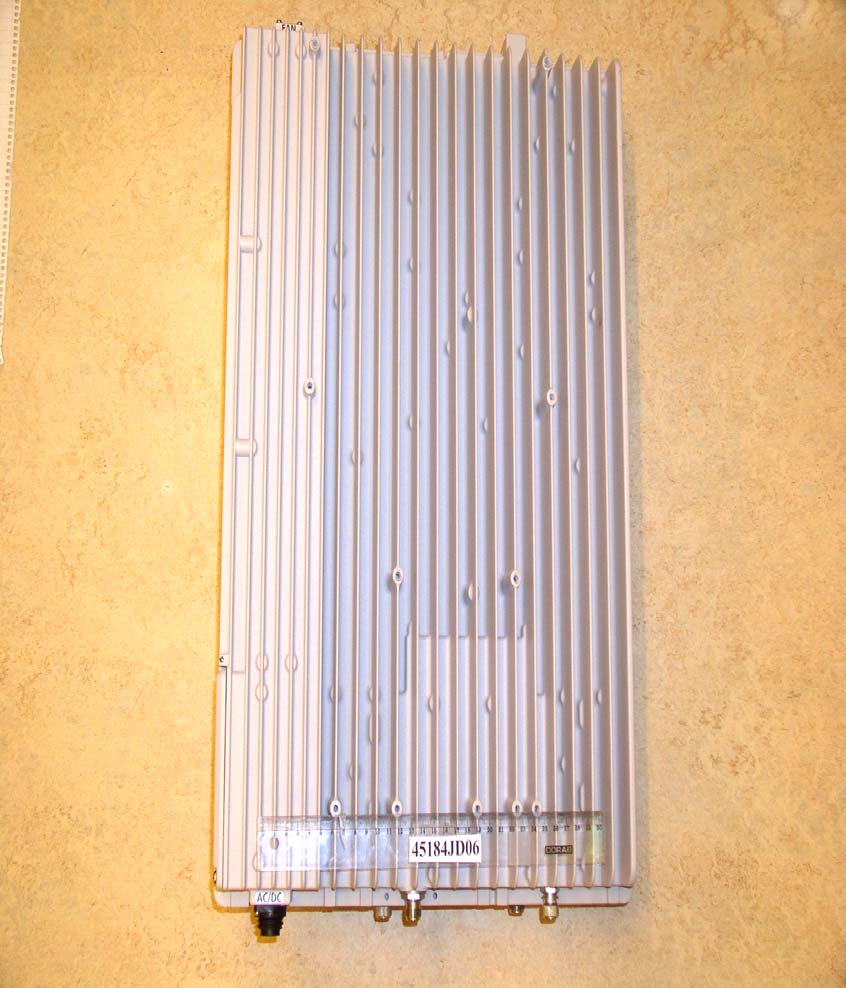

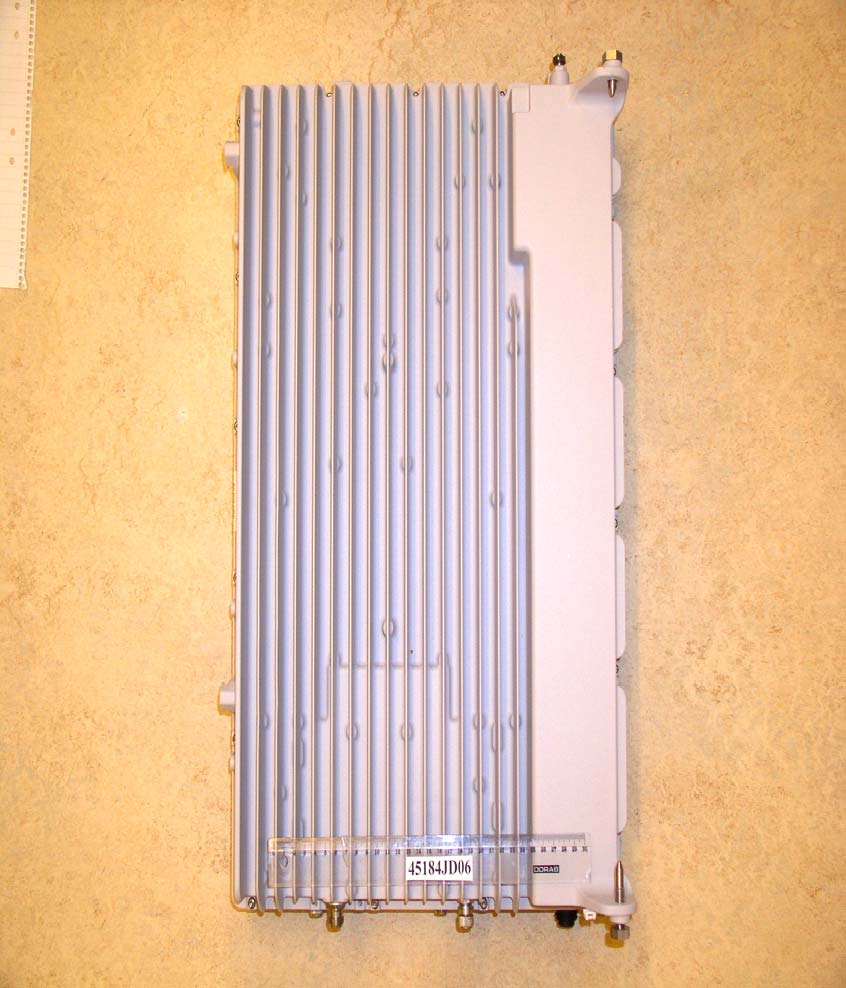

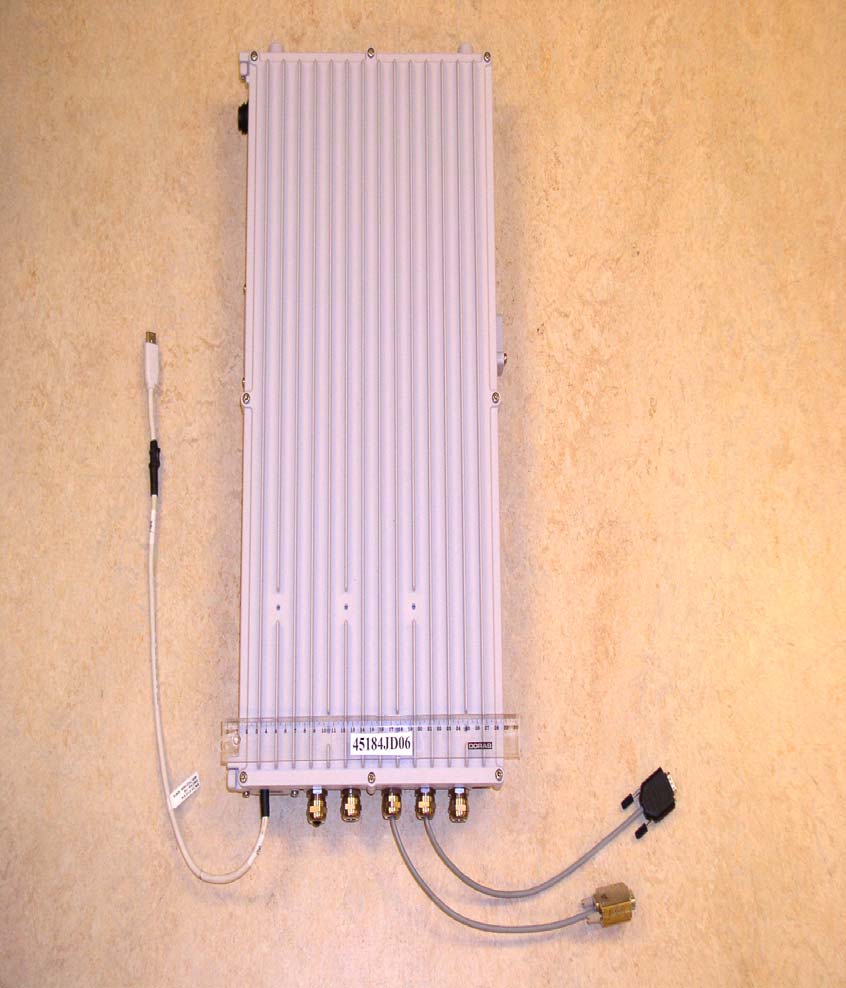

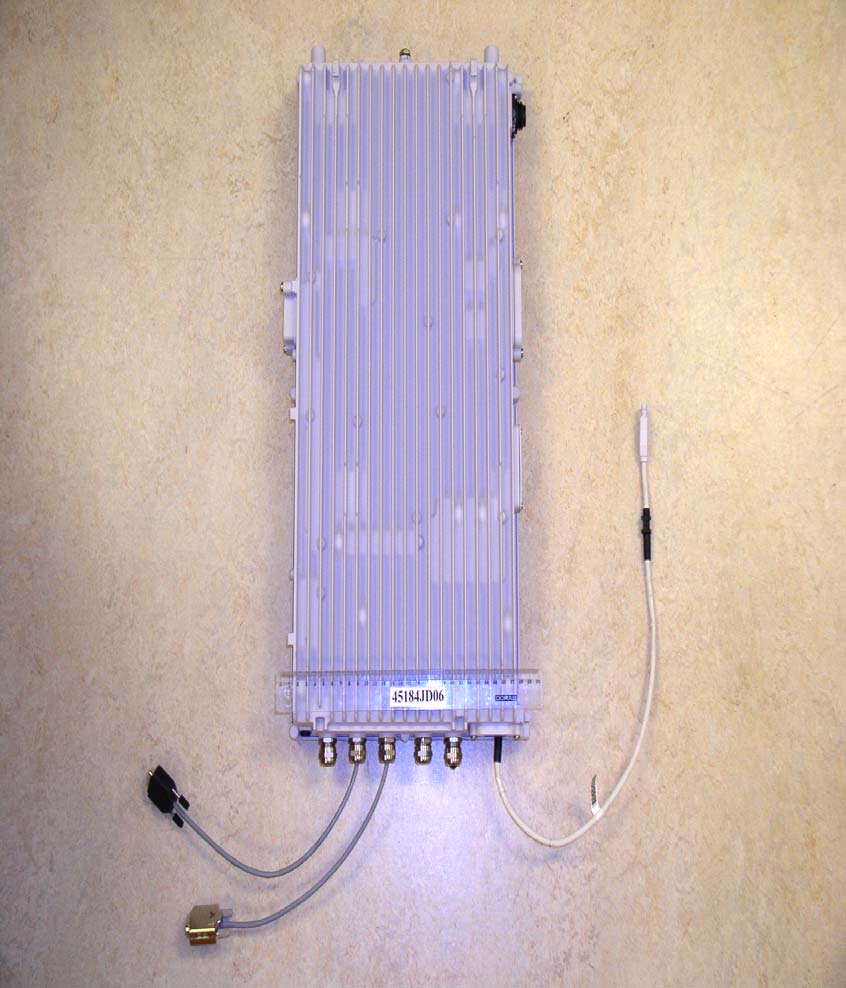

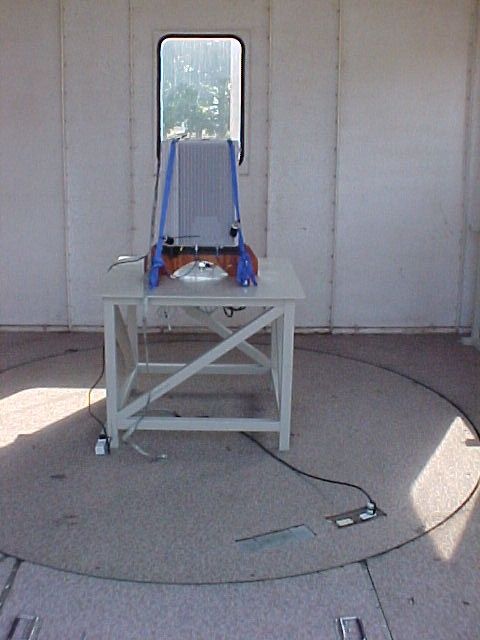

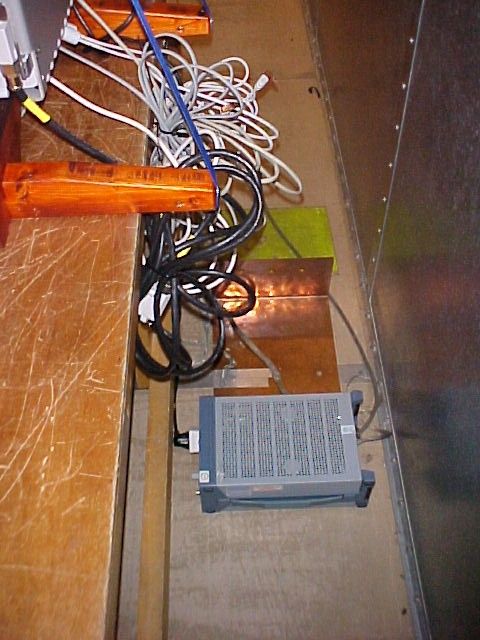

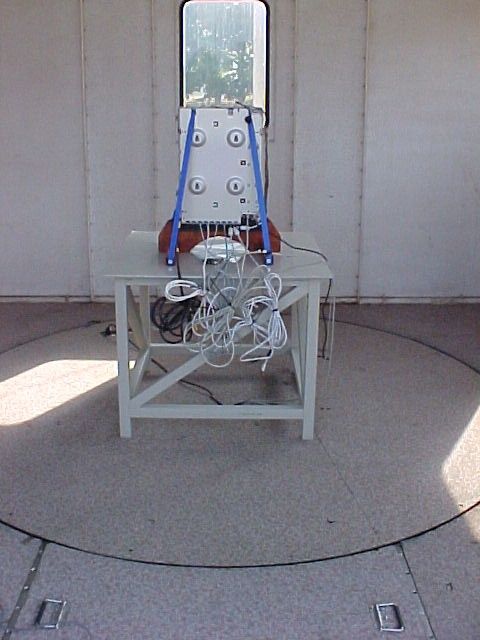

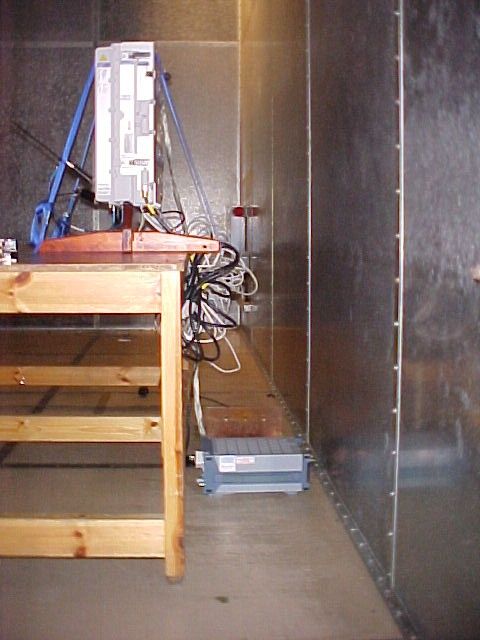

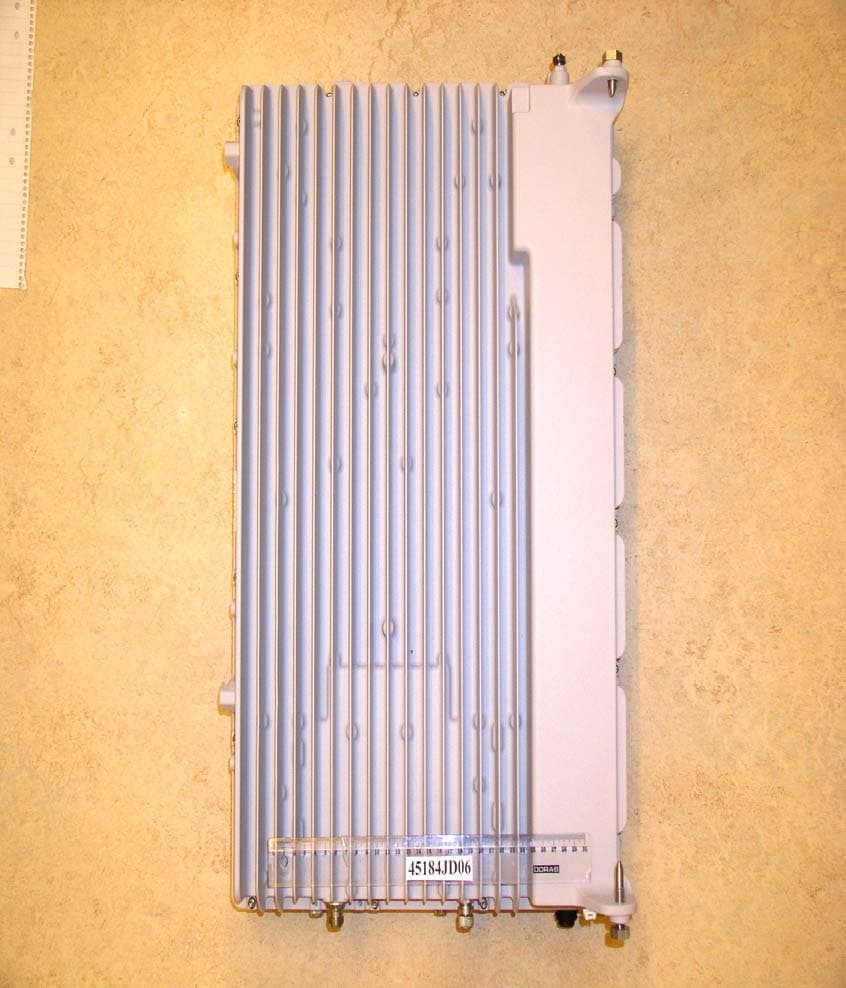

External Photos

ID Label/Location Info

Limited Internal EXHIBIT 1 1(1) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KBKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-10-13 A EXHIBIT 1 - ID Label Placement FCC ID: B5KBKRC16184-3 Remote Radio Unit KRC 161 84/3, R5B ID Label Label Placement

Internal Photos

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ 0644 INTERNAL PHOTOGRAPH SECTION FOR RFI TEST REPORT SERIAL NO: RFI/MPTB1/45184JD06A Test Of: Ericsson AB. RBS 2308 1900 MHz R5B To: FCC Part 24: 2003 RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 This section contains the following photographs: Photo reference number Title PHT/45184JD06/001 Open view of RRU-M EDGE PHT/45184JD06/002 Front view of Radio Access Board 1 PHT/45184JD06/003 Back view of Radio Access Board 1 PHT/45184JD06/004 Front view of Radio Access Board 2 PHT/45184JD06/005 Back view of Radio Access Board 2 PHT/45184JD06/006 Front view of Digital Radio Board 1 PHT/45184JD06/007 Back view of Digital Radio Board 1 PHT/45184JD06/008 Front view of Digital Radio Board 2 PHT/45184JD06/009 Back view of Digital Radio Board 2 PHT/45184JD06/010 Front view of Duplex Filter 1 PHT/45184JD06/011 Back view of Duplex Filter 1 PHT/45184JD06/012 Front view of Duplex Filter 2 PHT/45184JD06/013 Back view of Duplex Filter 2 PHT/45184JD06/014 Front view of Heater PHT/45184JD06/015 Back view of Heater PHT/45184JD06/016 Top view of Power Supply Unit PHT/45184JD06/017 Bottom view of Power Supply Unit PHT/45184JD06/018 Internal view of Power Supply Unit PHT/45184JD06/019 Front view of Power Interface Board PHT/45184JD06/020 Back view of Power Interface Board PHT/45184JD06/021 Top view of Y Interface Board PHT/45184JD06/022 Bottom view of Y Interface Board PHT/45184JD06/023 Top view of Radio Interface Board PHT/45184JD06/024 Bottom view of Radio Interface Board PHT/45184JD06/025 FCC ID Label These pages are not included in the total number of pages for this report. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/001 Open view of RRU-M EDGE. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/002 Front view of Radio Access Board 1. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/003 Back view of Radio Access Board 1. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/004 Front view of Radio Access Board 2. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/005 Back view of Radio Access Board 2. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/006 Front view of Digital Radio Board 1. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/007 Back view of Digital Radio Board 1. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/008 Front view of Digital Radio Board 2. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/009 Back view of Digital Radio Board 2. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/010 Front view of Duplex Filter 1. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/011 Back view of Duplex Filter 1. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/012 Front view of Duplex Filter 2. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/013 Back view of Duplex Filter 2. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/014 Front view of Heater RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT Internal Photograph Section Conformance Testing Department S.No: RFI/MPTB1/RP45184JD06A Test Of: Ericsson AB. RBS 2308 1900MHz R5B To: FCC Part 24: 2003 PHT/45184JD06/015 Back view of Heater RADIO FREQUE…

Text truncated - open the document above for the full version.

Operational Description

Limited Internal EXHIBIT 12 1 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KBKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-10-13 A Exhibit 12 – Cover Sheet Contents 1 2.1033(c) Circuit Description 2 1.1 (2) FCC Identifier: B5KBKRC16184-3 2 1.2 (4) Type of Emission: 2 1.3 (5) Frequency range: 1930.4 to 1989.6 MHz. 2 1.4 (6) Range of Operating Power: 2 1.5 (7) Maximum Power Rating: 2 1.6 (8) Final Amplifier Voltage and Current in normal operation 2 1.7 (10) Frequency Stabilizing Circuit Description 3 1.8 (10) Spurious and Harmonic Suppression 3 1.9 (10) Limiting Power 3 1.10 (10) Digital Modulation 4 1.10.1 Modulation format for GMSK 4 1.10.2 Modulation format for 8PSK 7 Limited Internal EXHIBIT 12 2 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KBKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-10-13 A 1 2.1033(c) Circuit Description 1.1 (2) FCC Identifier: B5KBKRC16184-3 This RRU (Remote Radio Unit) consist of four synthesized transceivers (TRX) operating in the frequency band of 1930.4 to 1989.6 MHz. There are 297 Channels available with a channel spacing of 200 KHz. The transceiver is capable of operation in a TDMA (Time Division Multiple Access) system. For each channel there are 8 time slots available, each containing digital speech or data for GMSK and data for 8-PSK. The RRU have a hybrid combiner included which combines two TRX:s per antenna. 1.2 (4) Type of Emission: GMSK: 245KGXW 8-PSK: 245KG7W 1.3 (5) Frequency range: 1930.4 to 1989.6 MHz. 1.4 (6) Range of Operating Power: This transmitter is designed to supply a nominal power level of 33.5 dBm at the antenna connector. The power level can be set at 14 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(13) where P(0) is the highest power level. 1.5 (7) Maximum Power Rating: The maximum power rating with one TRX under environmental and supply voltage variations is equal to 33.5 dBm plus a power level tolerance of +-2 dB. Therefore the maximum output power is 35.5 dBm equal to 3.6 W at the antenna connector of the radio base station. 1.6 (8) Final Amplifier Voltage and Current in normal operation P (0) P (13) Collector Voltage 26.0 Volt DC 26.0 Volt DC Collector Current 1.1 Amps DC 0.7 Amps DC Limited Internal EXHIBIT 12 3 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KBKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-10-13 A 1.7 (10) Frequency Stabilizing Circuit Description The transmitter in each TRX contains three synthesized oscillators. One PLL gives a 160 MHz signal to the I/Q modulator. The two other generate a 1770 to 1830 MHz signal to the mixer where the modulated signal is converted to the transmit frequency. Two oscillators are needed in frequency hopping mode, one is retuning while the other is active. All three synthesized oscillators have a reference of 13 MHz generated in a central synthesized oscillator (PLL) of 26 MHz, which is downmixed by 2, in the LTU part of the RRU. This PLL frequency reference is locked to a 3.25 MHz clock which is extracted from the multiplexed Y-interface MY. MY is generated and distributed by the IXU (Interface & Switching Unit) to all RRU:s in the base station. The frequency reference 13 MHz in the IXU is generated in a voltage controlled oscillator phase-locked to the incoming PCM-link frequency or as an option an incoming GPS-link frequency. 1.8 (10) Spurious and Harmonic Suppression Spurious and harmonic suppression is achieved by using two separate bandpass filters of ceramic type in the exciter. A filter module at the output works like a bandpass filter around the carrier. In addition to these filters, the output signal passes a cavity band pass filter in the combining system. 1.9 (10) Limiting Power The TRX measures the output power at its output connector via a RF-detector and the detected value is used by the power loop control block to steer two variable gain attenuators between the modulator and the power amplifier. Limited Internal EXHIBIT 12 4 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KBKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-10-13 A 1.10 (10) Digital Modulation 1.10.1 Modulation format for GMSK 1.10.1.1 Modulating symbol rate The modulating symbol rate is 1/T = 1 625/6 ksymb/s (i.e. approximately 270.833 ksymb/s), which corresponds to 1 625/6 kbit/s (i.e. 270.833 kbit/s). T is the symbol period. 1.10.1.2 Start and stop of the burst Before the first bit of the bursts as defined in GSM 05.02 [3] enters the modulator, the modulator has an internal state as if a modulating bit stream consisting of consecutive ones (d i = 1) had entered the differential encoder. Also after the last bit of the time slot, the modulator has an internal state as if a modulating bit stream consisting of consecutive ones (d i = 1) had continued to enter the differential encoder. These bits are called dummy bits and define the start and the stop of the active and the useful part of the burst as illustrated in figure 1. Nothing is specified about the actual phase of the modulator output signal outside the useful part of the burst. dummy bits Output phase The useful part The active part 000..............000111111..............111111 3 tail bits3 tail bitsdummy bits 1/2 bit1/2 bit Figure 1: Relation between active part of burst, tail bits and dummy bits. For the normal burst the useful part lasts for 147 modulating bits Limited Internal EXHIBIT 12 5 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KBKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-10-13 A }) 1.10.1.3 Differential encoding Each data value d i = [0,1] is differentially encoded. The output of the differential encoder is: ∃ ({,dddd iiii =⊕…

Text truncated - open the document above for the full version.

Parts List/Tune Up Info

Limited Internal EXHIBIT 10 1 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KBKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-10-13 A EXHIBIT 10 Components - Tune Up Contents 1 2.1033 (c) (10) Function of Active Circuit Devices 2 1.1 Printed Board RAB 1900 ROA 117 4765/1 2 1.1.1 Function Block RX Frontend, ROZ 104 237/1 2 1.1.2 Function Block RX0, ROZ 104 238/1 2 1.1.3 Function Block RX1, ROZ 104 239/1 3 1.1.4 Function Block RC0, ROZ 104 111/1 4 1.1.5 Function Block RC1, ROZ 104 112/1 4 1.1.6 Function Block TXPA0, ROZ 104 240/1 4 1.1.7 Function Block TXPA1, ROZ 104 241/1 5 1.1.8 Function Block LTU, ROZ 104 110/1 6 1.1.9 Function Block RDI, ROZ 104 122/1 7 1.2 Printed Board, DRB, ROA 117 4767/3 7 1.2.1 Function Block LEC, ROZ 104 120/2 7 1.2.2 Function Block Digital, ROZ 104 232/2 8 2 2.1033(c)(9) Tune-Up Procedure 9 3 2.1033(c)(9,10) Power Tune-Up – Power Limiting 9 Limited Internal EXHIBIT 10 2 (9) Prepared (also subject responsible if other) No. EAB/RTL/I Palle Zetterstrand B5KBKRC16184-3 Uen Approved Checked Date Rev Reference EAB/RTL/I (P. Zetterstrand) 2003-10-13 A 1 2.1033 (c) (10) Function of Active Circuit Devices 1.1 Printed Board RAB 1900 ROA 117 4765/1 1.1.1 Function Block RX Frontend, ROZ 104 237/1 ROZ 104 237/1, , Revision: C Pos Prod name/Func des Product number D5100 MICROCIRCUIT/74'04 HC1G SSOP5-P 1x INVERTER RYT 326 6004/C D5101 MICROCIRCUIT/IC, DIGITAL THERMOMETER AND TH RYT 124 6006/C L5100 INDUCTOR/22NH 5% 0.7A 0603 REG 704 1122/22 L5101 INDUCTOR/22NH 5% 0.7A 0603 REG 704 1122/22 N5100 MICROCIRCUIT/RF Amplifier. SiGe HBT MMIC RYT 101 6526/1 N5101 DIRECTIONAL COUPLER/PD18-73 Y010 UND 106 039/1 N5102 DIRECTIONAL COUPLER/PD18-73 Y010 UND 106 039/1 N5103 DIRECTIONAL COUPLER/PD18-73 Y010 UND 106 039/1 N5104 DIRECTIONAL COUPLER/PD18-73 Y010 UND 106 039/1 N5105 DIRECTIONAL COUPLER/PD18-73 Y010 UND 106 039/1 N5106 MICROCIRCUIT/RF Amplifier. SiGe HBT MMIC RYT 101 6526/1 N5107 MICROCIRCUIT/Switch. AS186-302 MSOP-8 RYT 101 6438/1 N5108 MICROCIRCUIT/REG LIN+ 5.0V 150mA 0.165V RYT 113 6156/4 N5109 MICROCIRCUIT/REG LIN+ 5.0V 150mA 0.165V RYT 113 6156/4 N5110 MICROCIRCUIT/COMP 2.7V R/R OPEN DRAIN RYT 101 6326/1 N5111 MICROCIRCUIT/COMP 2.7V R/R OPEN DRAIN RYT 101 6326/1 N5112 MICROCIRCUIT/COMP 2.7V R/R OPEN DRAIN RYT 101 6326/1 N5113 MICROCIRCUIT/COMP 2.7V R/R OPEN DRAIN RYT 101 6326/1 1.1.2 Function Block …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Bo Bergstrom(Manager)

+468 757 0401Fax: +468 751 4687

Technical Contact

Ericsson Radio Systems ABLarry Lindstrom

[email protected]+46 8 764 1273

Torshamnsgatan 21-23 · SE-16480, Stockholm · Sweden

Test Firm

RFI Global Services Ltd.Allan Hume

[email protected]44-1256-855439Fax: 44-1256-851195

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.93 GHz - 1.99 GHz	2.14 W	245KG7W	0.05 ppm

Confidentiality

Long Term

Grant Notes

The output power listed is conducted. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). The output power for the channels adjacent to each frequency block edge must be reduced to 0.89 W for the 245KG7W(8PSK) and 245KGXW(GMSK) emissions as documented in this filing.
