B5KCKRC1311005-2

Ericsson Radio Systems AB

Broadband GSM Base station transceiver

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Sep 30, 2004
Application Purpose: Original Equipment
Date of Application: Sep 30, 2004
Equipment Note: Broadband GSM Base station transceiver
Frequency Range: 869.20000000 - 893.80000000
Company: Ericsson Radio Systems AB
Country: Sweden

Documents & Files

Select a file to view

Users Manual

Block Diagram

Cover Letter(s)

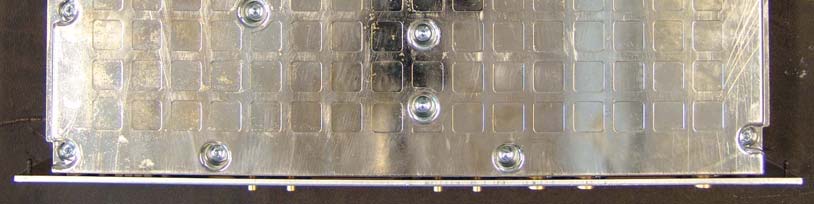

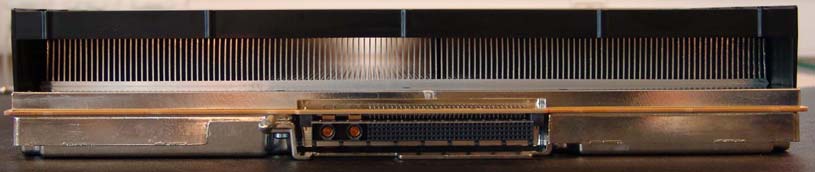

External Photos

ID Label/Location Info

Internal Photos

Operational Description

Parts List/Tune Up Info

Test Report

Contact Information

Applicant

Bo Bergstrom(Manager)

+468 757 0401Fax: +468 751 4687

Technical Contact

Ericsson ABPer Helmersson

[email protected]+46 8 764 16 52

Torshamnsgatan 21-23 · SE-164 80 Stockholm · Sweden

Test Firm

SP Technical Research Institute of SwedenMagnus Winehem

[email protected]46-10-516-53-71Fax: 46-33-12-19-30

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	22H	869.2 MHz - 893.8 MHz	100 W	250KG7W	0.05 ppm

Confidentiality

Long Term

Grant Notes

The lower power ouput listed is per carrier and conducted. The higher power output is 2 carriers combined power and conducted. This transmitter must only be operated in the grantees RBS2106, RBS2206 and RBS2207 base stations equipped with a CDU-G or CDU-J unit. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is adressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-locating requirements of 1.1307(b)(3). This unit must use reduced transmit power as documented in the filing for the channels 128 and 251.
