B5KKRC16145

PRELIMINARY E RBS 2401 User’s Guide RBS 2401 User’s Guide © Ericsson Radio Systems AB — All Rights Reserved — LZN 302 14 P3A-1 1999-11-10 1 (158) © Ericsson Radio Systems AB — All Rights Reserved — PRELIMINARY RBS 2401 User’s Guide Due to continued progress in methodology, design and manufacturing, the contents of this document are subject to revision without notice. 2 (158) LZN 302 14 P3A-1 1999-11-10 © Ericsson Radio Systems AB — All Rights Reserved — PRELIMINARY RBS 2401 User’s Guide Contents 1 Introduction ................................................................................................... 7 1.1 Competence Requirements for Work with RBS 2401.............................7 1.2 Release History ....................................................................................... 8 1.2.1 R1A to R2A...........................................................................................8 2 Safety Instructions........................................................................................9 2.1 Warnings..................................................................................................9 2.2 Notes........................................................................................................10 2.3 Electrical Hazards....................................................................................11 2.3.1 Electrostatic Discharge, ESD ............................................................... 13 2.4 Working at Heights .................................................................................. 14 2.4.1 Rules and Advice for the Safe Use of Ladders ................................... 14 2.5 Radio Frequency Radiation..................................................................... 16 2.6 Other Hazards ......................................................................................... 17 3 Site Planning and Product Data..................................................................19 3.1 Site Requirements ................................................................................... 19 3.1.1 Preconditions ........................................................................................ 19 3.1.2 Environmental requirements.................................................................19 3.1.3 Antenna System ................................................................................... 20 3.2 Product Data RBS 2401.......................................................................... 21 3.2.1 Main Units.............................................................................................21 3.2.2 Technical Data......................................................................................22 3.2.3 Transmission.........................................................................................23 3.2.4 Omnidirectional Antenna (Optional) ..................................................... 25 3.3 Product Data HDSL Module.................................................................... 26 3.4 Product Data AGW.................................................................................. 27 4 Installation and Tests................................................................................... 29 4.1 Tools and Instruments.............................................................................29 4.1.1 Tools for Installation ............................................................................. 29 4.1.2 Test Equipment.....................................................................................30 4.2 Installation of Radio Cabinet ................................................................... 32 LZN 302 14 P3A-1 1999-11-10 3 (158) © Ericsson Radio Systems AB — All Rights Reserved — PRELIMINARY RBS 2401 User’s Guide 4.2.1 Installation Procedure Overview...........................................................32 4.2.2 Unpacking............................................................................................. 33 4.2.3 Mounting the Radio Cabinet.................................................................34 4.2.4 Connecting Cables ............................................................................... 38 4.2.5 Extension and Reconfiguration.............................................................50 4.3 Test of Radio Cabinet..............................................................................51 4.3.1 User Interface ....................................................................................... 51 4.3.2 Test Procedure Overview..................................................................... 53 4.3.3 Test Procedure ..................................................................................... 53 4.4 Installation and Test of Optional AGW....................................................59 4.4.1 Installation of AGW...............................................................................59 4.4.2 Test of AGW.........................................................................................68 4.5 Installation and Test of Optional HDSL Module......................................68 4.5.1 Installation of HDSL Module.................................................................69 4.5.2 Test of HDSL Module........................................................................... 80 4.6 Concluding Routines................................................................................80 4.7 Test Record ............................................................................................. 81 4.7.1 Site Data...............................................................................................81 4.7.2 Test Result............................................................................................81 4.7.3 Signatures.............................................................................................84 4.7.4 Trouble Report.............................................................…

Text truncated - open the document above for the full version.

APPLICANT:Exhibit 4 Ericsson Radio Systems ABBlock Diagram FCC ID NO. B5KKRC16145 Block Diagram Exhibit No.Paragraph. Ref.Description 4Block diagram of the active devices APPLICANT:Exhibit 4 Ericsson Radio Systems ABBlock Diagram FCC ID NO. B5KKRC16145 Block Diagram This is a block diagram showing the oscillators in the receiver and transmitter boards. Note that the 13 MHz sync signal is created in the Distribution Switch Board. Transmitter RF-Out IF-OSC 160 MHz I Q-modulator I Q RF-Synth 1770 – 1830 MHz RF-Synth 1770 – 1830 MHz Receiver RF-In IF-OSC 201 MHz I Q- demodulator I Q RF-Synth 1649 – 1709 MHz RF-Synth 1649 – 1709 MHz 13 MHz 13 MHz

Novembr 24, 1999 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Type acceptance for FCC ID: B5KKRC16145 Dear Sir/Madame, Ericsson Radio Systems AB requests a grant of Type Acceptance under Pt. 24 of CFR Title 47 for the above mentioned FCC Identifier. This Base Transceiver Station is designed for use in PCS (GSM) 1900 system. The GSM 1900 system is a fully digitized TDMA system. The Base Station will operate from 1930.2 MHz to 1989.8 MHz. Ericsson Radio Systems AB requests confidentially under CFR 0.459. Confidentially for the following exhibit is requested: - Schematics Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in the design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson's competitive advantage on these proprietary techniques, we request the above listed exhibit be held as confidential and withheld from the Public Information File. If additional information is needed, please contact me on the below listed number. Sincerely, Krister Boman Manager GSM Integration and Verification Telephone No: +46 31 747 0000 Fax No: +46 31 7473670 E-Mail: [email protected]

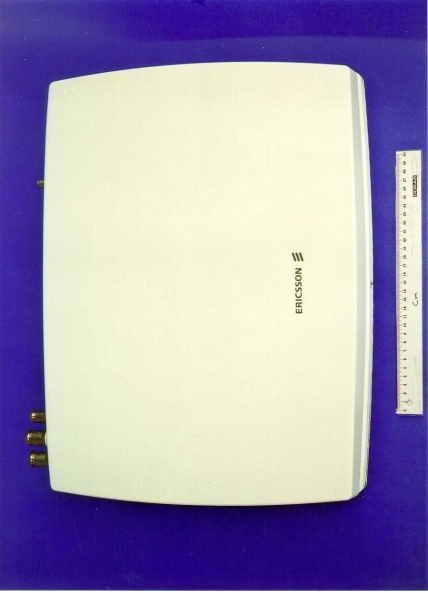

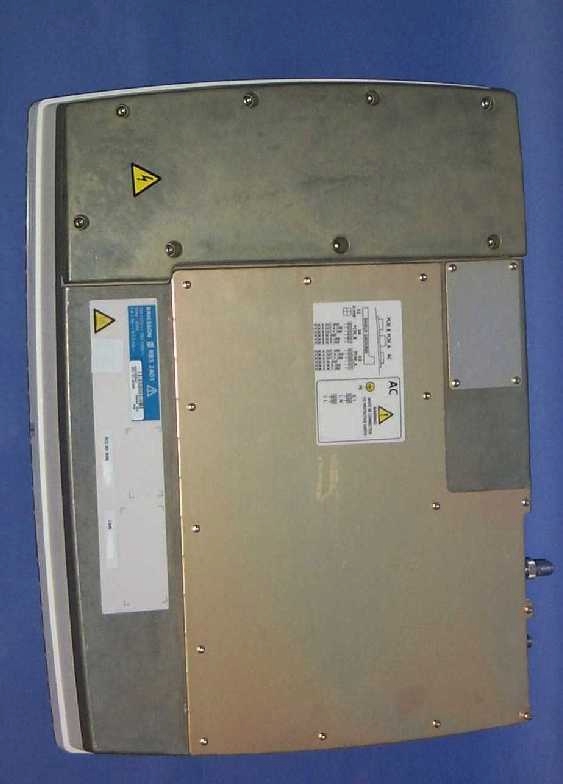

APPLICANT:Exhibit 3 Ericsson Radio Systems ABExternal Photographs FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT Exhibit No.Paragraph. Ref.Description 32.1033 (c12)External Photographs Photograph # 1Front view of microbase 2Rear view of microbase. 3Front view of microbase with sun shield removed. APPLICANT:Exhibit 3 Ericsson Radio Systems ABPhotograph # 1 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 3 Ericsson Radio Systems ABPhotograph # 2 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 3 Ericsson Radio Systems ABPhotograph # 3 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT

APPLICANT:Exhibit 1 Ericsson Radio Systems ABFCC identifier FCC ID NO. B5KKRC16145 FCC Identifier Exhibit No.Paragraph. Ref.Description 12.1033 (c2)Identification Plate APPLICANT:Exhibit 1 Ericsson Radio Systems ABFCC identifier FCC ID NO. B5KKRC16145 IDENTIFICATION PLATE 2.1033 (c2)The FCC ID label is located on the front side of the picobase, under the sunshield. FCC ID:B5KKRC16145 FCC Id label location

APPLICANT:Exhibit 9 Ericsson Radio Systems ABInternal Photographs FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT Exhibit No.Paragraph. Ref.Description 92.1033 (c12)Internal Photographs Photograph # 1View of microbase showing radio part and digital part. 2Top view of Receiver circuit boards 3Bottom view of Receiver circuit boards. 4Top view of Transmitter circuit board. 5Bottom view of Transmitter circuit board. 6Top view of Distribution plane circuit board. 7Bottom view of Distribution plane circuit board 8Top view of Transceiver Control Board. 9Bottom view of Transceiver Control Board 10Top view of Distribution Switch board 11Bottom view of Distribution Switch board 12Top view of Power Supply circuit board 13Bottom view of Power Supply circuit board 14Top view of Control and Power Interface circuit board 15Bottom view of Control and Power Interface circuit board APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 1 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 2 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 3 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 4 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 5 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 6 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 7 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 8 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 9 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 10 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 11 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 12 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 13 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 14 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT APPLICANT:Exhibit 9 Ericsson Radio Systems ABPhotograph # 15 FCC ID NO. B5KKRC16145 PHOTOGRAPHS OF EQUIPMENT

APPLICANT:Exhibit 12 Ericsson Radio Systems ABOperational Description FCC ID NO. B5KKRC16145 EXHIBIT LIST Exhibit No.Paragraph. Ref.Description 122.1033 (c) Technical Description of RBS 2401 APPLICANT:Exhibit 12 Ericsson Radio Systems ABFCC ID NO. B5KKRC16145 DESCRIPTION 2.1033(c) (1)Manufacturer:Ericsson Radio Systems AB Torshamnsgatan 21-23 S-164 80 Stockholm Applicant:Ericsson Microwave Systems AB Bergfotsgatan 2 S-431 84 Gothenburg The equipment is manufactured with the following possible variations: - It's fitted with two transceivers in the same enclosure. - It can be fitted with one of two variants of the frequency reference, one which locks it’s frequency to the incoming PCM-signal, or one which has an internal, oven-controlled reference oscillator. - It can be fitted with one of two variants of communication hardware for the PCM-connection. One for the E1 standard (2.048 Mbps), or one for the T1 standard (1.544 Mbps). - The encryption is realized with either algorithm A5/1 or A5/2. The transceiver is prepared for quantity production. This transmitter is a synthesized transmitter operating in the frequency band of 1930 to 1990 MHz. There are 299 Channels available with a channel spacing of 200 kHz. This is a constant envelop transmitter using Gaussian Minimum Shift Keying (GMSK) with a BT product of 0.3. The transmitter is capable of operation in a TDMA (Time Division Multiple Access) system. For each channel there are timeslots available, each containing digital speech or data. The transmitter is designed for use in Personal Communications Services systems. (4)Type of Emission: 305KGXW (5)Frequency range: 1930 to 1990 MHz (6)Range of Operating Power: This transmitter is designed to supply a maximum nominal power level of 22 dBm of power at the antenna connector. The power level can be set at 8 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(7) where P(0) is the highest power level. (7)Maximum Power Rating: The maximum power rating under environmental and supply voltage variations is equal to 22 dBm plus a power level tolerance of +/- 2 dB. Therefore the maximum output power is 24 dBm at each antenna connector of the radio base station. (8)Final Amplifier Voltage and Current in normal operation per transceiver. P(0) P(7) Collector Voltage 12 Volt DC 12 Volt DC Collector Current 0.2 Amps DC 0.1 Amps DC APPLICANT:Exhibit 12 Ericsson Radio Systems ABFCC ID NO. B5KKRC16131 CIRCUIT AND DEVICE DESCRIPTIONS (10)Frequency Stabilizing Circuit Description The transmitter contains three synthesized oscillators. One gives a 160 MHz signal to the I/Q modulator. The two other generate a 1770 to 1830 MHz signal to the mixer where the modulated signal is upconverted to the transmit frequency. Two oscillators are needed in frequency hopping mode, one is retuning while the other is active. All three synthesized oscillators have as reference a 13 MHz sinusoidal signal generated in a phase locked loop (PLL) in the TRX. The PLL is locked to a 270.8 kHz signal which is generated and distributed to all TRX in the basestation by the DXB (Distribution Switch Board). The frequency reference from DXB is generated in a voltage controlled oscillator whichis frequency locked to a long term stable oven heated oscillator or as an option to the incoming PCM-link frequency. Attenuation of Spurious Emissions Spurious and harmonic suppression is achieved by using two separate bandpass filters (Z3 & Z4) of ceramic type in the exciter. A filter module at the output works like a harmonic filter. In addition to these filters, the output signal passes the CDU (Combining and Distributing Unit) which contains of two cavity band pass filter and a hybrid-combiner. Limiting Power The TRX measures the output power at its output connector via a RF-detector and the detected value is used by the power loop control block to steer two variable gain amplifiers between the modulator and the power amplifier. (13)Digital Modulation The modulation description is given in PN3389 Air Interface: Volume 1 section 4. PN3389 Air Interface: Volume 1 section 4.1 to 4.1.3 PN3389 Air Interface: Volume 1 section 4.1.4 to 4.1.6 APPLICANT:Exhibit 12 Ericsson Radio Systems ABFCC ID NO. B5KKRC16131 CIRCUIT AND DEVICE DESCRIPTIONS PN3389 Air Interface: Volume 1JTC(AIR)94.10.31-231R5 4.Modulation This chapter defines the theoretical requirements of the modulator, inclusive of the differential encoder. The modulator receives the bits from the encryption unit and produces an RF modulated signal. The information bits are first differentially encoded and then passed to the modulator. The modulation is GMSK (Gaussian Minimum Shift Keying) with a BT product of 0.3. 4.1Modulation Format 4.1.1Modulating Bit Rate The modulating bit rate is 1/T = 1625/6 kb/s (approximately 270.833 kb/s). 4.1.2Start And Stop Of The Burst The bits contained within a burst are defined in chapter 2. For the purpose of the modulator specification that follows, the bits entering the differential encoder prior to the first bit of the burst and following the last bit of the burst are consecutive logical ones and are denoted by the term dummy bits which define the start and end points of the useful and active parts of the burst as shown in Figure 4.1. The actual state of these bits is left to the manufacturer’s implementation subject to the requirement that all performance specifications of this volume are met. Nothing is specified about the actual phase of the modulator output signal outside of the useful part of the burst. Figure 4.1 depicts the relationship between the active and useful part of the burst, the tail bits and dummy bits for a normal burst. The useful part of the burst lasts for 147 modulating bits. Output phase The useful part The active part dummy bits 111111... 3 tail bits ...000 1/2 bit 3 tail bits 000... dummy bits ...111111 1/2 bit Figure 4.1: Normal Burst 4.1.3Differential Encoding Each data value d i = [0,1] is differentially encod…

Text truncated - open the document above for the full version.

APPLICANT:Exhibit 10 Ericsson Radio Systems ABParts list FCC ID NO. B5KKRC16145 Parts List Exhibit No.Paragraph. Ref.Description 10Parts List Alignment Procedure APPLICANT:Exhibit 10 Ericsson Radio Systems ABParts list FCC ID NO. B5KKRC16145 FUNCTION OF ACTIVE CIRCUIT DEVICES Micro Cabinet Power Supply Unit - PSU (ROA 219 3066/1) L1Transformer Choke Coil L3Transformer Inductor L4Transformer FILTER T1Transformer Transformer T2Transformer PFC inductor/transformer N1Micro Circuit DRIVER, DUAL N3Micro Circuit VOLTAGE COMPARATOR N5Micro Circuit TEMPERATURE TRANSDUCER N6Micro Circuit OP-AMP N8Micro Circuit OP-AMP N9Micro Circuit VOLTAGE REG, POS, ADJ N10Micro Circuit VOLTAGE REG, POS, ADJ N11Micro Circuit Micro Circuit V19Micro Circuit ADJUSTABLE REFERENCE SO-8 V2Transistor NCH MOSFET 8A/600V TO247 V11Transistor NCH MOSFET 8A/600V TO247 V12Transistor BST82 V15Transistor 2N2222A I SOT-223 V17Transistor NPN, 40V, SOT-23 V23Transistor BST82 V24Transistor NCH MOSFET 8A/600V TO247 V27Transistor BST82 V30Transistor N CHANNEL FET V41Transistor MOSFET, N-CHANNEL, 30V, 120A V44Transistor BST82 V48Transistor MOSFET, N-CHANNEL, 30V, 120A APPLICANT:Exhibit 10 Ericsson Radio Systems ABParts list FCC ID NO. B5KKRC16145 FUNCTION OF ACTIVE CIRCUIT DEVICES Micro Cabinet Communication Power Interface - (ROA 219 3067/1) L1Transformer Choke Coil L2Transformer /1.05mH +30/-40% 2A T1Transformer /EMI-PREVENTION,2 CORES,DIP,SMD T2Transformer /EMI-PREVENTION,2 CORES,DIP,SMD T3Transformer /PULSE,transmit and receive T4Transformer /PULSE,transmit and receive APPLICANT:Exhibit 10 Ericsson Radio Systems ABParts list FCC ID NO. B5KKRC16145 FUNCTION OF ACTIVE CIRCUIT DEVICES Micro Cabinet Distribution Switch Board - DXB/6TRX - (ROA 117 3678/3) L1Transformer /390NH 0.47A 1008 L2Transformer /390NH 0.47A 1008 L3Transformer /330NH 0.45A 1008 T6Transformer /TRANSFORMER T7Transformer /TRANSFORMER Q4Transistor /PLANAR EPITAX.NPN.TR. SOT-23 Q5Transistor /PNP 45V 500MA SOT-323 Z1Oscillator /5.0000 MHZ Z18Oscillator /EPIC-1 Z7Oscillator /13.0000MHZ Z39Oscillator /50MHZ Z50Oscillator /32,768MHZ Z119Oscillator /1.544MHZ SMD Z2Micro Circuit /REF03 Z3Micro Circuit /MC34072 Z4Micro Circuit /7538 D/A CONVERTER Z6Micro Circuit /ASIC PICASSO Z9Micro Circuit /74HCT174 6X1 D-TYPE FF Z14Micro Circuit /LXT360 TRANSCIEVER Z15Micro Circuit /LXT360 TRANSCIEVER Z16Micro Circuit /IC 2035 ACFA Z17Micro Circuit /IC 2035 ACFA Z20Micro Circuit /74ACT138 3-8 DEMULTIPLEXER Z22Micro Circuit /74'244 HCT 8xBUFF/LINE DRIV 3S Z25Micro Circuit /74'244 HCT 8xBUFF/LINE DRIV 3S Z30Micro Circuit /74HCT174 6X1 D-TYPE FF Z31Micro Circuit /74'541 HCT 8x BUS BUFFER 3S Z33Micro Circuit /74'541 HCT 8x BUS BUFFER 3S Z38Micro Circuit /29243-25 3,3V E2 Z42Micro Circuit /MUNICH32 V3.2 Z46Micro Circuit /32K8 SRAM 85 NS Z47Micro Circuit /32K8 SRAM 85 NS Z48Micro Circuit /32K8 SRAM 85 NS Z49Micro Circuit /32K8 SRAM 85 NS Z53Micro Circuit /IC 705 SUPERVISORY CIRCUIT Z79Micro Circuit /74ACT04 6X1 INVERTER Z80Micro Circuit /74ACT245 8XBUSTRANCEIVER TS Z95Micro Circuit /DRAM 2M8 50NS 5.0V Z96Micro Circuit /DRAM 2M8 50NS 5.0V Z97Micro Circuit /DRAM 2M8 50NS 5.0V Z98Micro Circuit /DRAM 2M8 50NS 5.0V Z99Micro Circuit /75176 Z100Micro Circuit /74'32 HCT 4x2 OR GATE Z102Micro Circuit /TRANSCEIVER, DUAL APPLICANT:Exhibit 10 Ericsson Radio Systems ABParts list FCC ID NO. B5KKRC16145 FUNCTION OF ACTIVE CIRCUIT DEVICES Z103Micro Circuit /FLASH 2M8 70NS 5.0V Z104Micro Circuit /FLASH 2M8 70NS 5.0V Z105Micro Circuit /FLASH 2M8 70NS 5.0V Z106Micro Circuit /FLASH 2M8 70NS 5.0V Z103Micro Circuit /FLASH 1M16 70NS SVT Z104Micro Circuit /FLASH 1M16 70NS SVT Z105Micro Circuit /FLASH 1M16 70NS SVT Z106Micro Circuit /FLASH 1M16 70NS SVT Z107Micro Circuit /EEPROM 128X16 MICROWIRE Z108Micro Circuit /74'08 ACT 4x2-INP AND GATE Z109Micro Circuit /DRAM 4M1 50NS 5.0V Z110Micro Circuit /DRAM 4M1 50NS 5.0V Z111Micro Circuit /DRAM 4M1 50NS 5.0V Z112Micro Circuit /DRAM 4M1 50NS 5.0V Z116Micro Circuit /74ACT74 2XD FLIP-FLOP Z123Micro Circuit /74'166 HCT 8-BIT P-IN/S-OUT SR Z124Micro Circuit /74'166 HCT 8-BIT P-IN/S-OUT SR Z129Micro Circuit /74ACT86 4X2 EXOR Z130Micro Circuit /74'244 HCT 8xBUFF/LINE DRIV 3S Z132Micro Circuit /OP-AMP,LOW VOLTAGE,LMC7101AIM5 Z133Micro Circuit /MAX809T RESET CIRCUIT 3.08V APPLICANT:Exhibit 10 Ericsson Radio Systems ABParts list FCC ID NO. B5KKRC16145 FUNCTION OF ACTIVE CIRCUIT DEVICES Micro Cabinet Transceiver Control Board - TCB/6TRX A5/1-2 (ROA 117 3677/1) L1Transformer /10UH 0.3A L2Transformer /390NH 0.47A 1008 L3Transformer /390NH 0.47A 1008 L4Transformer /390NH 0.47A 1008 L5Transformer /390NH 0.47A 1008 L6Transformer /330NH 0.45A 1008 L7Transformer /330NH 0.45A 1008 L8Transformer /330NH 0.45A 1008 L9Transformer /330NH 0.45A 1008 L10Transformer /330NH 0.45A 1008 L11Transformer /330NH 0.45A 1008 L12Transformer /330NH 0.45A 1008 L13Transformer /330NH 0.45A 1008 L14Transformer /220NH 0.5A 1008 L15Transformer /220NH 0.5A 1008 L16Transformer /220NH 0.5A 1008 L17Transformer /220NH 0.5A 1008 L18Transformer /180NH 0.62A 1008 L19Transformer /180NH 0.62A 1008 L20Transformer /180NH 0.62A 1008 L21Transformer /180NH 0.62A 1008 V7Transistor /P-CHANNEL,DMOS,SOT223 V8Transistor /P-CHANNEL,DMOS,SOT223 V11Transistor /N-CH,FET,SOT-23 ,BSS138 V12Transistor /N-CH,FET,SOT-23 ,BSS138 Z1Oscillator /26.000MHZ Z4Micro Circuit /74AC74 2XD FLIP-FLOP Z7Micro Circuit /74HC32 Z8Micro Circuit /74HC32 Z20Micro Circuit /74'08 ACT 4x2-INP AND GATE Z21Micro Circuit /74'08 ACT 4x2-INP AND GATE Z23Micro Circuit /74AC04 6X1 INVERTER Z24Micro Circuit /74AC04 6X1 INVERTER Z25Micro Circuit /74LCX245 8 X BUS TRANSCEIVER T Z26Micro Circuit /74LCX245 8 X BUS TRANSCEIVER T Z27Micro Circuit /74LCX245 8 X BUS TRANSCEIVER T Z28Micro Circuit /74LCX245 8 X BUS TRANSCEIVER T Z30Micro Circuit /LP2951A Z41Micro Circuit /MC34072 Z42Micro Circuit /PMB2306T Z45Micro Circuit /EEPROM 8K8 SPI 2.7V-5.5 I Z46Micro Circuit /EEPROM 8K8 SPI 2.7V-5.5 I Z49Micro Circuit /DRAM 2M8 50NS 3.3V EDO Z50Micro Circuit /DRAM 2M8 50NS 3.3V EDO APPLICANT:Ex…

Text truncated - open the document above for the full version.

APPLICANT:Exhibit 11 Ericsson Radio Systems ABRF Exposure Info FCC ID NO. B5KKRC16145 RF Exposure Info Exhibit No.Paragraph. Ref.Description 1124.52RF Exposure Info APPLICANT:Exhibit 11 Ericsson Radio Systems ABRF Exposure Info FCC ID NO. B5KKRC16145 RF Exposure Info 24.52 According to paragraph 24.52 in C.F.R 47 Radiation Hazards measurments have been performed at Radio Frequency Investigation Ltd in Basingstoke England. For test results please refer to chapter 7.4, page 26 in report RFI/RP40144A.

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Ericsson Microwave Systems AB. Ericsson RBS 2000, RBS 2401 GSM 1900 Duplex Configuration To: FCC Part 24:1998 (Clause: 24.236) and FCC Part 15 Subpart B:1998 Test Report Serial No: RFI/EMCB2/RP40144A Supersedes Test Report Serial No: RFI/EMCB1/RP40144A This Test Report Is Issued Under The Authority Of Brian Watson Technical Director: Checked By: Tested By:Release Version No: PDF01 Issue Date: 1st December 1999Test Date: 18 th November 1999 to 19 th November 1999 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP40144A EMC DepartmentPage 2 of 44 Issue Date: 1st December 1999 Test Of:Ericsson Microwave Systems AB. Ericsson RBS 2000, RBS 2401 GSM 1900 Duplex Configuration To:FCC Part 24:1998 (Clause: 24.236) and FCC Part 15 Subpart B:1998 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP40144A EMC DepartmentPage 3 of 44 Issue Date: 1st December 1999 Test Of:Ericsson Microwave Systems AB. Ericsson RBS 2000, RBS 2401 GSM 1900 Duplex Configuration To:FCC Part 24:1998 (Clause: 24.236) and FCC Part 15 Subpart B:1998 Table of Contents 1. Client Information......................................................................................................4 2. Equipment Under Test (EUT)....................................................................................5 3. Test Specification, Methods And Procedures.......................................................10 4. Deviations From The Test Specification................................................................12 5. Operation Of The EUT During Testing....................................................................13 6. Summary Of Test Results.......................................................................................14 7. Measurements, Examinations And Derived Results.............................................15 8. Measurement Uncertainty.......................................................................................27 Appendix 1. Test Equipment Used..............................................................................28 Appendix 2. Measurement Methods............................................................................30 Appendix 3. Test Configuration Drawings..................................................................36 Appendix 4. Graphical Test Results............................................................................40 Appendix 5. Photographs of EUT................................................................................43 Test Report Serial No: RFI/EMCB2/RP40144A supersedes Test Report Serial No: RFI/EMCB1/RP40144A RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP40144A EMC DepartmentPage 4 of 44 Issue Date: 1st December 1999 Test Of:Ericsson Microwave Systems AB. Ericsson RBS 2000, RBS 2401 GSM 1900 Duplex Configuration To:FCC Part 24:1998 (Clause: 24.236) and FCC Part 15 Subpart B:1998 1. Client Information Company Name: Ericsson Microwave Systems AB Address: S-431 84 Molndal Sweden Contact Name: Krister Boman RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP40144A EMC DepartmentPage 5 of 44 Issue Date: 1st December 1999 Test Of:Ericsson Microwave Systems AB. Ericsson RBS 2000, RBS 2401 GSM 1900 Duplex Configuration To:FCC Part 24:1998 (Clause: 24.236) and FCC Part 15 Subpart B:1998 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Ericsson Model Name or Number: RBS 2401 GSM 1900 Unique Type Identification: KRC 161 45/090 Serial Number: A531925530 Country of Manufacture: Sweden FCC ID Number: B5KKRC16145 Date of Receipt: 18 th November 1999 2.2. Description Of EUT The equipment under test is a pico GSM base station configured with 2 transceiver units. The pico shall provide mobile telephone users with a connection to a mobile network or PSTN. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP40144A EMC DepartmentPage 6 of 44 Issue Date: 1st December 1999 Test Of:Ericsson Microwave Systems AB. Ericsson RBS 2000, RBS 2401 GSM 1900 Duplex Configuration To:FCC Part 24:1998 (Clause: 24.236) and FCC Part 15 Subpart B:1998 2.3. Hardware Revision List DescriptionProduct NumberSerial No.Revision CabinetKRC 161 45/090A531925530R2E CPIROA 219 3067/1S951104608R3A TCB 6TRX A5/1-2ROA 117 3677/1A531657454R4D DXB-TXROA 117 3678/3A531874869R3A Distribution PlaneROA 219 2057/1S951099457R2B Duplex FilterKRF 901 09/1A531888531R1A Power SupplyROA 219 3066/1TA31002131R3B TXU 1900ROA 117 4664/1A531925507R1D TXU 1900ROA 117 4664/1A531925511R1D RXDP 1900ROA 117 4665/1A531441217R1B RXU 1900ROA 117 3581/1A531914473R1B RXU 1900ROA 117 3581/1A531914505R1B RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP40144A EMC DepartmentPage 7 of 44 Issue Date: 1st December 1999 Test Of:Ericsson Microwave Systems AB. Ericsson RBS 2000, RBS 2401 GSM 1900 Duplex Configuration To:FCC Part 24:1998 (Clause: 24.236) and FCC Part 15 Subpart B:1998 2.4. Modifications Incorporated In EUT None stated by client. RADIO FREQUENCY INVESTIGATION LT…
