B5KPKRC1311005-1PCS Broadband GSM Base station



      !"!# P r e l i m i n a r y P r e l i m i n a r y E RBS 2106, RBS 2206 Reference Manual RBS 2106, RBS 2206 Reference Manual © Ericsson Radio Systems AB — All Rights Reserved — EN/LZT 720 0008 P2A 2001-11-28 1 (485) © Ericsson Radio Systems AB — All Rights Reserved — P r e l i m i n a r y RBS 2106, RBS 2206 Reference Manual Due to continued progress in methodology, design and manufacturing, the contents of this document are subject to revision without notice. 2 (485) EN/LZT 720 0008 P2A 2001-11-28 © Ericsson Radio Systems AB — All Rights Reserved — P r e l i m i n a r y RBS 2106, RBS 2206 Reference Manual Contents 1 Preface ........................................................................................................... 15 1.1 Objectives ................................................................................................ 15 1.2 Target Groups..........................................................................................15 1.3 RBS 2000 Library Overview.................................................................... 15 1.4 How to Order CPI....................................................................................16 1.5 R1A to P2A..............................................................................................17 2 Product Safety Requirements RBS 2000....................................................19 2.1 References...............................................................................................19 2.2 Product Safety ......................................................................................... 19 3 Environmental Capabilities..........................................................................21 3.1 Scope.......................................................................................................21 3.2 Terminology ............................................................................................. 21 3.3 References...............................................................................................22 3.4 Transport -40  C - +70  C..........................................................................22 3.5 Storage -25  C - +55  C.............................................................................23 3.6 Handling -40  C - +70  C........................................................................... 25 3.7 Operation Indoor +5  C - +40  C ............................................................... 25 3.8 Operation Outdoor -33  C - +40  C ........................................................... 27 3.9 Operation Outdoor -33  C - +45  C ........................................................... 28 3.10 Operation Outdoor -33  C - +55  C ......................................................... 30 3.11 Operation Mast Mounted Equipment -33  C - +45  C.............................30 3.12 Operation Mast Mounted Equipment -33  C - +55  C............................30 4 Radio Configurations, RBS 2106 and RBS 2206.......................................33 4.1 Introduction .............................................................................................. 33 4.2 References...............................................................................................34 4.3 Definitions ................................................................................................ 34 4.4 Frequency Bands.....................................................................................36 4.5 Basic Configurations................................................................................37 4.6 Site Cell Configurations (SCC)................................................................69 4.7 Co-Siting with RBS 200 or RBS 2000 Macro Cabinets .......................... 78 EN/LZT 720 0008 P2A 2001-11-28 3 (485) © Ericsson Radio Systems AB — All Rights Reserved — P r e l i m i n a r y RBS 2106, RBS 2206 Reference Manual 4.8 Co-Siting with TDMA RBS Using an ASU .............................................. 82 5 Product Data RBS 2106................................................................................87 5.1 Introduction .............................................................................................. 87 5.2 RBS 2106 Cabinet Description................................................................87 5.3 Connection Interfaces..............................................................................96 5.4 RBS Power System................................................................................. 101 5.5 Antenna System ...................................................................................... 105 5.6 Transmission............................................................................................106 6 Product Data RBS 2206................................................................................109 6.1 Site Equipment Overview ........................................................................ 109 6.2 Site Power Options..................................................................................110 6.3 Power Connections..................................................................................110 6.4 RBS 2206 Cabinet Hardware Description...............................................114 6.5 External Alarm and Transmission Interface ............................................ 123 6.6 BBS 2000 Rack Description.................................................................... 127 6.7 Antenna System ...................................................................................... 129 7 Unit Description, DXU-21 ............................................................................. 147 7.1 System Environment................................................................................147 7.2 Block Diagram .................................................................................…

Text truncated - open the document above for the full version.

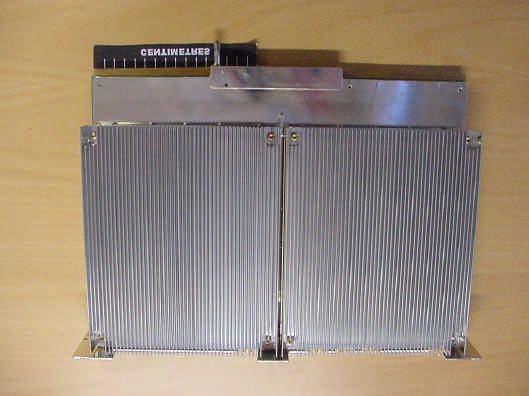

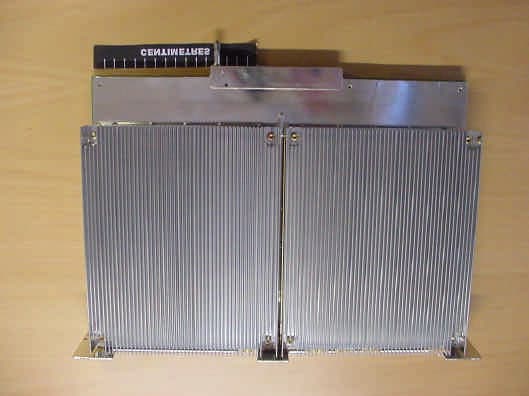

Datum/Date Beteckning/Reference Sida/Page 2002-01-09 F122706 4 (8) FCC ID: B5KPKRC1311005-1 Encl. 10 Transceiver unit KRC 131 1005/1 Front side Rear side Bottom side Datum/Date Beteckning/Reference Sida/Page 2002-01-09 F122706 4 (8) FCC ID: B5KPKRC1311005-1 Encl. 10 Top ID label Datum/Date Beteckning/Reference Sida/Page 2002-01-09 F122706 8 (8) FCC ID: B5KPKRC1311005-1 Encl. 10 Main board

Datum/Date Beteckning/Reference Sida/Page 2002-01-09 F122706 8 (8) FCC ID: B5KPKRC1311005-1 Encl. 10 FCC label FCC label placement

Datum/Date Beteckning/Reference Sida/Page 2002-01-09 F122706 6 (8) FCC ID: B5KPKRC1311005-1 Encl. 10 Main board, PCB component side Main board, PCB bottom side Datum/Date Beteckning/Reference Sida/Page 2002-01-09 F122706 7 (8) FCC ID: B5KPKRC1311005-1 Encl. 10 PA1, PCB component side PA1, PCB rear side Datum/Date Beteckning/Reference Sida/Page 2002-01-09 F122706 8 (8) FCC ID: B5KPKRC1311005-1 Encl. 10 PA2, PCB component side PA2, PCB rear side

Open EXHIBIT 121 (6) Prepared (also subject responsible if other)No. ERA/RKN/TR Larry LindströmB5KPKRC1311005-1 ApprovedCheckedDateRevReference KI/ERA/RKN/TR (L Lindström)2001-12-20A Exhibit 12 – Cover Sheet Contents 12.1033(c) Circuit Description............................................................2 1.1(2) FCC Identifier: B5KPKRC1311005-1.........................................2 1.2(4) Type of Emission: 245KGXW.....................................................2 1.3(5) Frequency range: 869 to 894 MHz.............................................2 1.4(6) Range of Operating Power:........................................................2 1.5(7) Maximum Power Rating:.............................................................2 1.6(8) Final Amplifier Voltage and Current in normal operation...........2 1.7(10) Frequency Stabilizing Circuit Description.................................3 1.8(10) Spurious and Harmonic Suppression.......................................3 1.9(10) Limiting Power...........................................................................3 1.10(10) Digital Modulation......................................................................4 Open EXHIBIT 122 (6) Prepared (also subject responsible if other)No. ERA/RKN/TR Larry LindströmB5KPKRC1311005-1 ApprovedCheckedDateRevReference KI/ERA/RKN/TR (L Lindström)2001-12-20A 1 2.1033(c) Circuit Description 1.1 (2) FCC Identifier:B5KPKRC1311005-1 This dTRU (double Tranceiver Radio Unit) consist of two synthesized transmitters (TRX) operating in the frequency band of 869 to 894 MHz. There are 124 Channels available with a channel spacing of 200 KHz. This is a constant envelop transmitter using GMSK 0.3 modulation, which is MSK filtered with a Gaussian filter ,having a BT product of 0.3. The transmitter is capable of operation in a TDMA (Time Division Multiple Access) system. For each channel there are 8 time slots available,each containing digital speech or data. The dTRU have a hybrid combiner included which can be used to increase the number of TRX:s per antenna. This combiner is connected before the cavity band pass filter in the combining system. 1.2 (4) Type of Emission:245KGXW 1.3 (5) Frequency range:869 to 894 MHz 1.4 (6) Range of Operating Power: This transmitter is designed to supply a nominal power level of 46.5 dBm at the antenna connector. The power level can be set at 16 power levels, each with a 2 dB increment. The power levels are labeled P(0) to P(15) where P(0) is the highest power level. 1.5 (7) Maximum Power Rating: The maximum power rating with one TRX under environmental and supply voltage variations is equal to 46.5 dBm plus a power level tolerance of + 1.5 dB. Therefore the maximum output power is 48 dBm equal to 63.1 W at the antenna connector of the radio base station. 1.6 (8) Final Amplifier Voltage and Current in normal operation P (0)P (15) Collector Voltage26.0 Volt DC26.0 Volt DC Collector Current6.5 Amps DC0.8 Amps DC Open EXHIBIT 123 (6) Prepared (also subject responsible if other)No. ERA/RKN/TR Larry LindströmB5KPKRC1311005-1 ApprovedCheckedDateRevReference KI/ERA/RKN/TR (L Lindström)2001-12-20A 1.7 (10) Frequency Stabilizing Circuit Description The transmitter in each TRX contains three synthesized oscillators. One PLL gives a 90 MHz signal to the I/Q modulator. The two other generate a 779 to 804 MHz signal to the mixer where the modulated signal is converted to the transmit frequency. Two oscillators are needed in frequency hopping mode, one is retuning while the other is active. All three synthesized oscillators have a reference of 13 MHz, which is downmixed by 2, generated in a central synthesized oscillator (PLL) of 26 MHz in the LTU part of the dTRU. This PLL frequency reference is extracted from the 13 MHz signal on the Y-link, which is generated and distributed, by the DXU (Distribution Switch Unit), to all dTRU:s in the basestation. The frequency reference 13 MHz in the DXU is generated in a voltage controlled oscillator placed in an oven together with and phase-locked to a long term stable oven heated oscillator. As an option can the oscillator be phase-locked to the incoming PCM-link frequency or an incoming GPS-link frequency. 1.8 (10) Spurious and Harmonic Suppression Spurious and harmonic suppression is achieved by using two separate bandpass filters of ceramic type in the exciter. A filter module at the output works like a bandpass filter around the carrier. In addition to these filters, the output signal passes a cavity band pass filter in the combining system. 1.9 (10) Limiting Power The TRU measures the output power at its output connector via a RF-detector and the detected value is used by the power loop control block to steer two variable gain amplifiers beteween the modulator and the power amplifier. Open EXHIBIT 124 (6) Prepared (also subject responsible if other)No. ERA/RKN/TR Larry LindströmB5KPKRC1311005-1 ApprovedCheckedDateRevReference KI/ERA/RKN/TR (L Lindström)2001-12-20A 1.10 (10) Digital Modulation The modulation description is given in PN3389 Air Interface: Volume 1 section 4. PN3389 Air Interface: Volume 1 JTC(AIR)/94.10.31-231 R5 4. Modulation This chapter defines the theoretical requirements of the modulator, inclusive of the differential encoder. The modulator receives the bits from the encryption unit and produces an RF modulated signal. The information bits are first differentially encoded and then passed to the modulator. The modulation is GMSK (Gaussian Minimum Shift Keying) with a BT product of 0.3. 4.1 Modulation Format 4.1.1 Modulating Bit Rate The modulating bit rate is 1/T = 1625/6 kb/s (approximately 270.633 kb/s). 4.1.2 Start And Stop Of The Burst The bits contained within a burst are defined in chapter 2. For the purpose of the modulator specification that follows, the bits entering the differential encoder prior to the first bit of the burst and following the last bit of the burst are consecutive logical ones and are denoted by the term du…

Text truncated - open the document above for the full version.

Open EXHIBIT 101 (21) Prepared (also subject responsible if other)No. ERA/RKN/TR Larry LindströmB5KPKRC1311005-1 ApprovedCheckedDateRevReference KI/ERA/RKN/TR (L Lindström)2001-12-20A Exhibit 10 – Cover Sheet Contents 12.1033 (c) (10) Function of Active Circuit Devices..........................2 1.1Printed Board RSU 800 MHz GMSK ROA 215 001/1.....................2 1.1.1Function Block LTU..........................................................................2 1.1.2Function Block DC/DC.....................................................................3 1.1.3Function Block Rx Frontend 800 MHz.............................................5 1.1.4Function Block RX IF1 GMSK 800 MHz..........................................7 1.1.5Function Block RX IF2 GMSK 800 MHz..........................................8 1.1.6Function Block CPU.........................................................................9 1.1.7Function Block SPARC 1 GMSK....................................................10 1.1.8Function Block SPARC 2 GMSK....................................................11 1.1.9Function Block TX1 GMSK 800 MHz.............................................12 1.1.10Function Block TX2 GMSK 800 MHz.............................................13 1.2Printed Board PBU1 800 GMSK Hybrid Combiner ROA 219 7652/114 1.2.1Function Block DC Booster............................................................14 1.2.2Function Block PA Linearisation GMSK PBU 800.........................16 1.2.3Function Block PA, PBU 800..........................................................17 1.2.4Function Block Hybrid Combiner, PBU 800...................................18 1.3Printed Board PBU1 800 GMSK wo Hybrid Combiner ROA 219 7653/1 ........................................................................................................19 1.3.1Function Block DC Booster............................................................19 1.3.2Function Block PA Linearisation GMSK PBU 800.........................19 1.3.3Function Block PA, PBU 800..........................................................19 22.1033(c)(9) Tune-Up Procedure...................................................20 32.1033(c)(9,10) Power Tune-Up – Power Limiting........................21 Open EXHIBIT 102 (21) Prepared (also subject responsible if other)No. ERA/RKN/TR Larry LindströmB5KPKRC1311005-1 ApprovedCheckedDateRevReference KI/ERA/RKN/TR (L Lindström)2001-12-20A 1 2.1033 (c) (10) Function of Active Circuit Devices 1.1 Printed Board RSU 800 MHz GMSK ROA 215 001/1 1.1.1 Function Block LTU Product ROZ 104 033/1 Revision D PosProd name/DesProduct number V500DIOD/SCHx2 70V 70mA SOT23 SerialRKZ 323 08/2 Z500MIKROKRETS/REG LIN+ ADJ 1.8-20V +/-1% 500 RYT 113 6303/1 Z501MIKROKRETS/74'74 AC SOP14 2xD FLIP- FLOP RYT 318 0074/C Z503MIKROKRETS/MB15E07 PFV-ERRYT 102 6057/1 Z504OSCILLATOR/26.000MHZRTL 202 610/02 Z505MIKROKRETS/74'04 LVC SSOP14 6x INVERTER RYT 331 0004/C Z506MIKROKRETS/74'04 ACT TSSOP14 6x INVERTER RYT 317 6004/22C Z507MIKROKRETS/74'04 ACT TSSOP14 6x INVERTER RYT 317 6004/22C Open EXHIBIT 103 (21) Prepared (also subject responsible if other)No. ERA/RKN/TR Larry LindströmB5KPKRC1311005-1 ApprovedCheckedDateRevReference KI/ERA/RKN/TR (L Lindström)2001-12-20A 1.1.2 Function Block DC/DC Product ROZ 104 032/1 Revision L4 PosProd name/DesProduct number T700TRANSFORMATOR/PLANARTRANSFORMER T40REG 735 305/2 T701TRANSFORMATOR/CURRENT SENSE TRANS 100:1 SMD REG 709 673 T702TRANSFORMATOR/PLANARTRANSFORMER T25REG 735 304/2 T705TRANSFORMATOR/Current Transformer 4900uHREG 135 79/1 V700LIKRIKTARE/SCHx2 30V 2x15A D2PAKRKZ 323 6012/3 V702LIKRIKTARE/SCHx2 30V 2x6A DPAK(TO252AA)RKZ 323 6047/1 V703ÖVERSPÄNNINGSSKYDD/DIODE TS 36V 30A DO- 214AB RKZ 223 485/36 V704DIOD/DUAL COM. CATH. 70V .2A SOT-23RKZ 123 03/3 V705DIOD/DUAL COM. CATH. 70V .2A SOT-23RKZ 123 03/3 V706TRANSISTOR/NPN 45V 100mA SOT23RYN 121 37/1 V707TRANSISTOR/NPN 45V 100mA SOT23RYN 121 37/1 V708LIKRIKTARE/REC 200V 1A 35ns SMA (DO214AC)RKZ 123 05/2 V709LIKRIKTARE/REC 200V 1A 35ns SMA (DO214AC)RKZ 123 05/2 V710TRANSISTOR/NFET 100V 57A D2PAK 0.025_OhmRYN 123 696/1 V711TRANSISTOR/NFET 100V 57A D2PAK 0.025_OhmRYN 123 696/1 V714TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V715TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V716TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V717TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V718TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V719TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V720TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V721TRANSISTOR/NFET 30V 14A SO8 0.008ohmRYN 123 6012/1 V722LIKRIKTARE/SCH 25V 10A SMBRKZ 323 6038/1 V723LIKRIKTARE/SCH 25V 10A SMBRKZ 323 6038/1 V724LIKRIKTARE/SCH 25V 10A SMBRKZ 323 6038/1 V725LIKRIKTARE/SCH 25V 10A SMBRKZ 323 6038/1 V727TRANSISTOR/N chanl. MOSFETRYN 123 251/C V728TRANSISTOR/N chanl. MOSFETRYN 123 251/C V729DIOD/DIODE 75V 250mA SOT23 BAS16RKZ 123 612 V730DIOD/DIODE 75V 250mA SOT23 BAS16RKZ 123 612 V731DIOD/DUAL COM. CATH. 70V .2A SOT-23RKZ 123 03/3 V735REGLERDIOD/REG 6.2V 6% 0.2W SOT-23RKZ 223 01/11 V736REGLERDIOD/REG 12.0V 6% 0.2W SOT-23RKZ 223 01/18 V737REGLERDIOD/REG 6.2V 6% 0.2W SOT-23RKZ 223 01/11 V738ÖVERSPÄNNINGSSKYDD/DIODE TS 36V 30A DO- 214AB RKZ 223 485/36 Open EXHIBIT 104 (21) Prepared (also subject responsible if other)No. ERA/RKN/TR Larry LindströmB5KPKRC1311005-1 ApprovedCheckedDateRevReference KI/ERA/RKN/TR (L Lindström)2001-12-20A V743LIKRIKTARE/SCHx2 30V 2x6A DPAK(TO252AA)RKZ 323 6047/1 V744REGLERDIOD/REG 3.3V 6% 0.2W SOT-23RKZ 223 01/4 Z700MIKROKRETS/SWITCH RECTIFIER DRIVER 4ARYT 113 6324/2 Z701MIKROKRETS/SWITCH RECTIFIER DRIVER 4ARYT 113 6324/2 Z703MIKROKRETS/REG SW- ADJ 150kHz 0.5ARYT 113 6320/1 Z705MIKROKRETS/LM431 ADJ REGULATORRYT 113 008/3C Z709MIKROKRETS/REG SW- 1.26-2.5V +/-1.2% 20ARYT 113 6175/1 Z710MIKROKRETS/PWM CURR.-M 5.0V +/-1.5% 1MHzRYT 113 6053/4 Z711MIKROKRETS/PWM CURR.-M 5.0V +/-1.5% 1MHzRYT 113 6053/4 Z712MIKROKRETS/VOLTAGE REG, INVERTING, -5VRYT 113 256/C Z851MIKROKRE…

Text truncated - open the document above for the full version.

REPORT Datum/Date Beteckning/Reference Sida/Page 2002-01-08 F122706 1 (1) FCC ID: B5KPKRC1311005-1 Encl. 1 Sign:..... Description - Equipment Under Test (EUT) Equipment: GSM Base station transceiver 800 MHz Tx Frequency range: 869.2-893.8 MHz Tested Channels: 128: 869.2 MHz 129: 869.4 MHz 153: 874.2 MHz 190: 881.4 MHz 226: 888.8 MHz 250: 893.6 MHz 251: 893.8 MHz Product number: TRU: KRC 131 1005/1 Serial number: See Hardware list in enclosure 9 RF conducted measurements were done on TRU: KRC 131 1005/1, R1A s/n: AE50007E43 CDU-G8: BFL 119 155/1, R1B s/n: A40003HOKA All RF conducted measurements were done at the output connectors of CDU-G. Manufacturer’s representative: Larry Lindström, Ericsson Radio Systems AB Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in FCC CFR47. Reservation The test results in this report apply only to the particular Equipment Under Test (EUT) as declared in the report. Delivery of test object The test object was delivered: 2001-12-03. Test engineer Fredrik Isaksson Test witnesses Lars Hagbjörk, Ericsson Radio Systems AB (partly present) Lucia Morandi, Ericsson Radio Systems AB REPORT Datum/Date Beteckning/Reference Sida/Page 2002-01-08 F122706 1 (3) FCC ID: B5KPKRC1311005-1 Encl. 2 Sign:..... RF Power output measurements according to 47CFR 2.1046 Date 2001-12-10 Temperature 22 °C ± 3 °C Humidity 30 % ± 5 % Test set-up and Procedure The measurements were made per J-STD-007A Vol 1. Measurements were made at CDU-G output connectors. The output was connected to a Peak power analyzer via a 50 ohm attenuator. The RF power was measured with variation in supply voltage at the highest power level. Test was performed on 24 V DC supply voltage system. The transmitter was modulated with 270.8 kbs pseudorandom data during the measurements. Measurement equipment Calibration Due SP number Boonton RF Peak power meter/analyzer 2002-12 503 144 Boonton Peak power sensor 56518-S/4 2002-12 503 146 Testo 615, Temperature and humidity meter 2003-08 503 505 REPORT Datum/Date Beteckning/Reference Sida/Page 2002-01-08 F122706 2 (3) FCC ID: B5KPKRC1311005-1 Encl. 2 Sign:..... Results TRU, s/n: AE50007E43, output 1, without dTRU internal combiner, in cabinet 2206, revision R3A: Nominal power 24 V DC Rated output power level after CDU-G (maximum): 46.5 dBm Test conditions Transmitter power (dBm) Channel 128 Channel 190 Channel 251 T nom 22°C V nom 24 V DC 46.5 46.9 46.7 T nom 22°C V min 20.4 V DC 46.5 46.9 46.7 V max 29.0 V DC 46.5 47.0 46.6 Measurement uncertainty 0.5 dB TRU, s/n: AE50007E43, output 2, without dTRU internal combiner, in cabinet 2206, revision R3A: Nominal power 24 V DC Rated output power level after CDU-G (maximum): 46.5 dBm Test conditions Transmitter power (dBm) Channel 128 Channel 190 Channel 251 T nom 22°C V nom 24 V DC 46.4 46.9 47.1 T nom 22°C V min 20.4 V DC 46.6 47.6 46.4 V max 29.0 V DC 46.6 46.9 46.4 Measurement uncertainty 0.5 dB REPORT Datum/Date Beteckning/Reference Sida/Page 2002-01-08 F122706 3 (3) FCC ID: B5KPKRC1311005-1 Encl. 2 Sign:..... TRU, s/n: AE50007E43, output 1, with dTRU internal combiner, in cabinet 2206, revision R3A: Nominal power 24 V DC Rated output power level after CDU-G (maximum): 43 dBm Test conditions Transmitter power (dBm) Channel 128 Channel 190 Channel 251 T nom 22°C V nom 24 V DC 43.2 44.0 43.3 T nom 22°C V min 20.4 V DC 43.1 43.6 43.2 V max 29.0 V DC 43.2 43.7 43.3 Measurement uncertainty 0.5 dB TRU, s/n: AE50007E43, output 2, with dTRU internal combiner, in cabinet 2206, revision R3A: Nominal power 24 V DC Rated output power level after CDU-G (maximum): 43 dBm Test conditions Transmitter power (dBm) Channel 128 Channel 190 Channel 251 T nom 22°C V nom 24 V DC 43.5 43.6 43.2 T nom 22°C V min 20.4 V DC 43.3 43.6 43.2 V max 29.0 V DC 43.2 43.6 43.2 Measurement uncertainty 0.5 dB Limits The tolerance of the maximum rated output power shall not be greater than ±2 dB. Compliant? Yes REPORT Datum/Date Beteckning/Reference Sida/Page 2002-01-08 F122706 1 (1) FCC ID: B5KPKRC1311005-1 Encl. 3 Sign:..... Modulation characteristics measurements according to 47CFR 2.1047 Date 2001-12-06 Temperature 24 °C ± 3 °C Humidity 21 % ± 5 % Test set-up and Procedure Measurement equipment Calibration Due SP number R&S ESI 40 with option FSE-B7 2002-07 503 125 Testo 615, Temperature and humidity meter 2003-08 503 505 Results TRU, s/n: AE50007E43 in cabinet 2206, revision R3A Nominal Voltage 24 V DC 46.5 dBm output power at Channel 128 (869.2 MHz) Phase error (°) TRU Output 1 TRU Output 2 1 1 Maximum phase error (°) 1 Limits The tolerance of the maximum output phase error shall not be greater than 5 degrees. Compliant? Yes REPORT Datum/Date Beteckning/Reference Sida/Page 2002-01-08 F122706 1 (38) FCC ID: B5KPKRC1311005-1 Encl. 4 Sign:..... Occupied bandwidth measurements according to 47CFR 2.1049 Date 2001-12-13 Temperature 22 °C ± 3 °C Humidity 24 % ± 5 % Test set-up and Procedure The measurements were made per J-STD-007A Vol 1. Measurements were made at CDU-G output connectors. The output was connected to a spectrum analyzer. The spectrum analyser was hooked up to an external 10 MHz reference standard during the measurements. The transmitter was modulated with 270.8 kbs pseudorandom data during the measurements. Measurement equipment Calibration Due SP number R&S ESI 40 with option FSE-B7 2002-07 503 125 Testo 615, Temperature and humidity meter 2003-08 503 505 Measurement uncertainty: 3.7 dB Results TRU, s/n: AE50007E43 in cabinet 2206 R3A, TRU Output 1: Diagram 1 Ch 128 OBW Reference level +20.5 dBm output power Diagram 2 Ch 128 OBW 26 dB points +20.5 dBm output power Diagram 3 Ch 128 OBW Band edge +20.5 dBm output power Diagram 4 Ch 129 OBW Reference level +46.5 dBm output power Diagram 5 Ch 129 OBW 26 dB points +46.5 dBm output power Diagram 6 Ch 129 OBW Band edge +46.5 dBm output power Diagram 7 Ch 250 OBW Reference level +46.5 dBm output power Diagram 8 Ch 250 OBW 26 dB points +46.5 dB…
