BBD3-1ACRF Power Amplifier

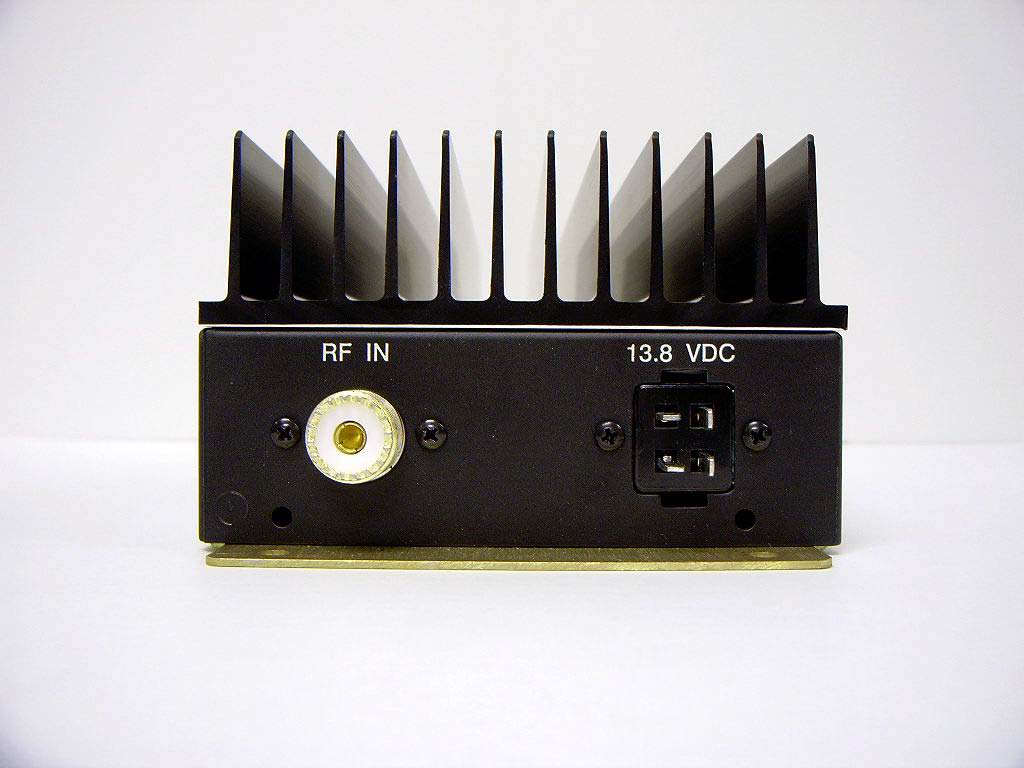

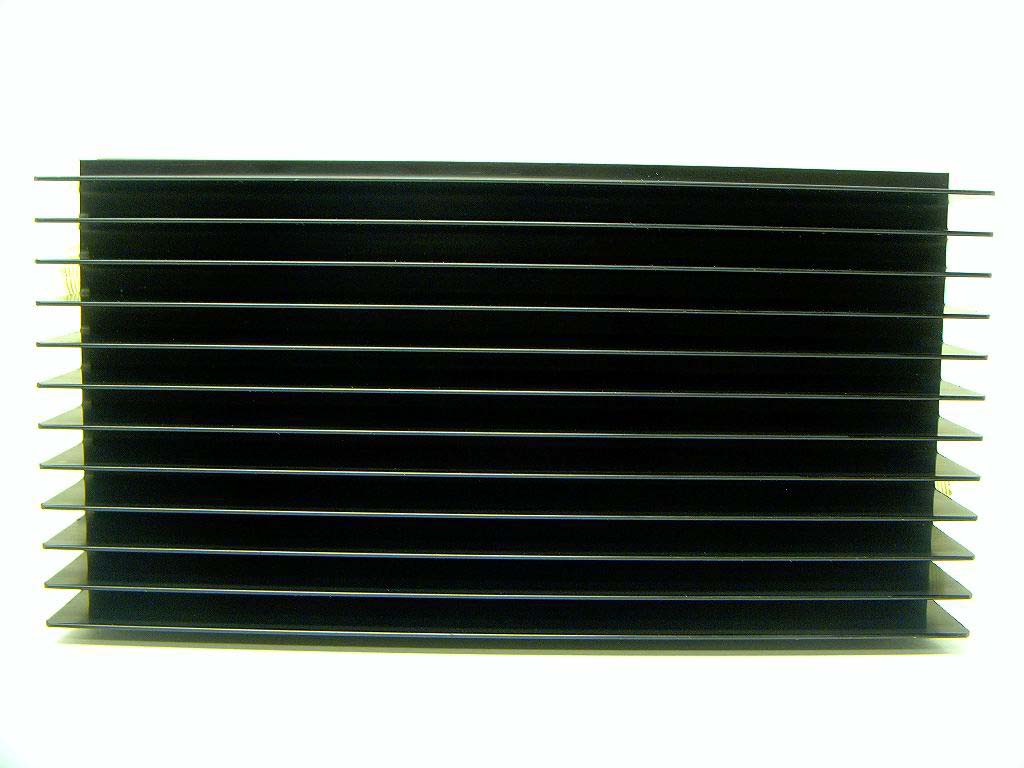

PRODUCT DESCRIPTION The PA3-1AC model is a mobile VHF high band RF power amplifier intended for use in the mobile applications. This amplifier can deliver RF power from 10 to 45 W when driven with 1 to 5W and it will cover the frequency range from 150 - 174 MHz. The mobile amplifier is designed to be installed in the interior of a car or in the trunk. The amplifier’s dimensions are: 9.5"L x 3.0"H x 4.5" W (see figure 1) and the weight is 4 lbs. Figure 1. Dimension (C package). GENERAL SPECIFICATIONS The general specifications for the PA3-1AC amplifier are shown in this section. TABLE 1 OPERATION MODE:FM / CW OPERATING VOLTAGE:Nominal DC operating voltage is 13.8VDC and the specifications are given at this voltage. However, the minimum DC operating voltage is 11 Volts and the maximum DC operating voltage is 15 Volts as measured at the VDC input connector. Reduced DC input voltage will result in lower output power and efficiency. EIA DUTY CYCLE:WITH NO EXTERNAL COOLING: 45 W Output (FM)50% duty cycle NOTE: Use of TPL Mobile Amplifiers above the recommended duty cycle or in repeater applications is not recommended and voids the warranty. Page 2 MODEL INPUT POWER OUTPUT POWER NOMINAL CURRENT NOMINAL VOLTAGE FUSE PA3-1AC1-5 W 10-45 W8 A13.8 VDC15 A

FCC CFR47 PART 22, SUBPART E AND FCC CFR47 PART 90, SUBPART I CERTIFICATION TEST REPORT FOR RF POWER AMPLIFIER MODEL NUMBER: PA3-1AC FCC ID: BBD3-1AC REPORT NUMBER: 06U10112-1B ISSUE DATE: JULY 20, 2006 Prepared for TPL COMMUNICATION 3370 SAN FERNANDO ROAD, SUITE 206 LOS ANGELES, CA 90065, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06U10112-1B DATE: JULY 20, 2006 EUT: RF POWER AMPLIFIER FCC ID: BBD3-1AC Page 2 of 40 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By A 3/14/06 Initial Issue Thu B 7/20/06 Revised Sections 5.1 & 5.2 Thu REPORT NO: 06U10112-1B DATE: JULY 20, 2006 EUT: RF POWER AMPLIFIER FCC ID: BBD3-1AC Page 3 of 40 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.....................................................................................4 2. TEST METHODOLOGY.........................................................................................................5 3. FACILITIES AND ACCREDITATION...................................................................................5 4. CALIBRATION AND UNCERTAINTY..................................................................................5 4.1. MEASURING INSTRUMENT CALIBRATION......................................................................5 4.2. MEASUREMENT UNCERTAINTY.......................................................................................5 5. EQUIPMENT UNDER TEST..................................................................................................6 5.1. DESCRIPTION OF EUT.....................................................................................................6 5.2. MAXIMUM OUTPUT POWER............................................................................................6 5.3. WORST-CASE CONFIGURATION AND MODE..................................................................6 5.4. DESCRIPTION OF TEST SETUP........................................................................................7 6. TEST AND MEASUREMENT EQUIPMENT.........................................................................9 7. LIMITS AND RESULTS........................................................................................................10 7.1. OCCUPIED BANDWIDTH...............................................................................................10 7.2. FM EMISSION LIMITATION............................................................................................17 7.3. MODULATION CHARACTERISTICS................................................................................24 7.4. RF POWER OUTPUT.......................................................................................................24 7.5. VOLTAGE STABILITY......................................................................................................28 7.6. FREQUENCY STABILITY.................................................................................................29 7.7. SPURIOUS EMISSION AT ANTENNA TERMINAL............................................................29 7.7.1. FIELD STRENGTH OF SPURIOUS RADIATION......................................................36 7.7.2. SPURIOUS RADIATION...........................................................................................37 8. SETUP PHOTOS...................................................................................................................38 REPORT NO: 06U10112-1B DATE: JULY 20, 2006 EUT: RF POWER AMPLIFIER FCC ID: BBD3-1AC Page 4 of 40 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: TPL COMMUNICATION 3370 SAN FERNANDO ROAD, SUITE 206 LOS ANGELES, CA 90065, USA EUT DESCRIPTION: RF POWER AMPLIFIER MODEL: PA3-1AC SERIAL NUMBER: 01675 DATE TESTED: MARCH 07 - 08, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 22 SUBPART E NO NON-COMPLIANCE NOTED FCC PART 90 SUBPART I NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN CHIN PANG EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 06U10112-1B DATE: JULY 20, 2006 EUT: RF POWER AMPLIFIER FCC ID: BBD3-1AC Page 5 of 40 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHO…

Text truncated - open the document above for the full version.

REPORT NO: 06U10112-1 DATE: MARCH 14, 2006 EUT: RF POWER AMPLIFIER FCC ID: BBD3-1AC Page 38 of 40 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06U10112-1 DATE: MARCH 14, 2006 EUT: RF POWER AMPLIFIER FCC ID: BBD3-1AC Page 39 of 40 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 06U10112-1 DATE: MARCH 14, 2006 EUT: RF POWER AMPLIFIER FCC ID: BBD3-1AC Page 40 of 40 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT RADIATED BACK PHOTO
