BBD8-1DB-KRF Power Amplifier

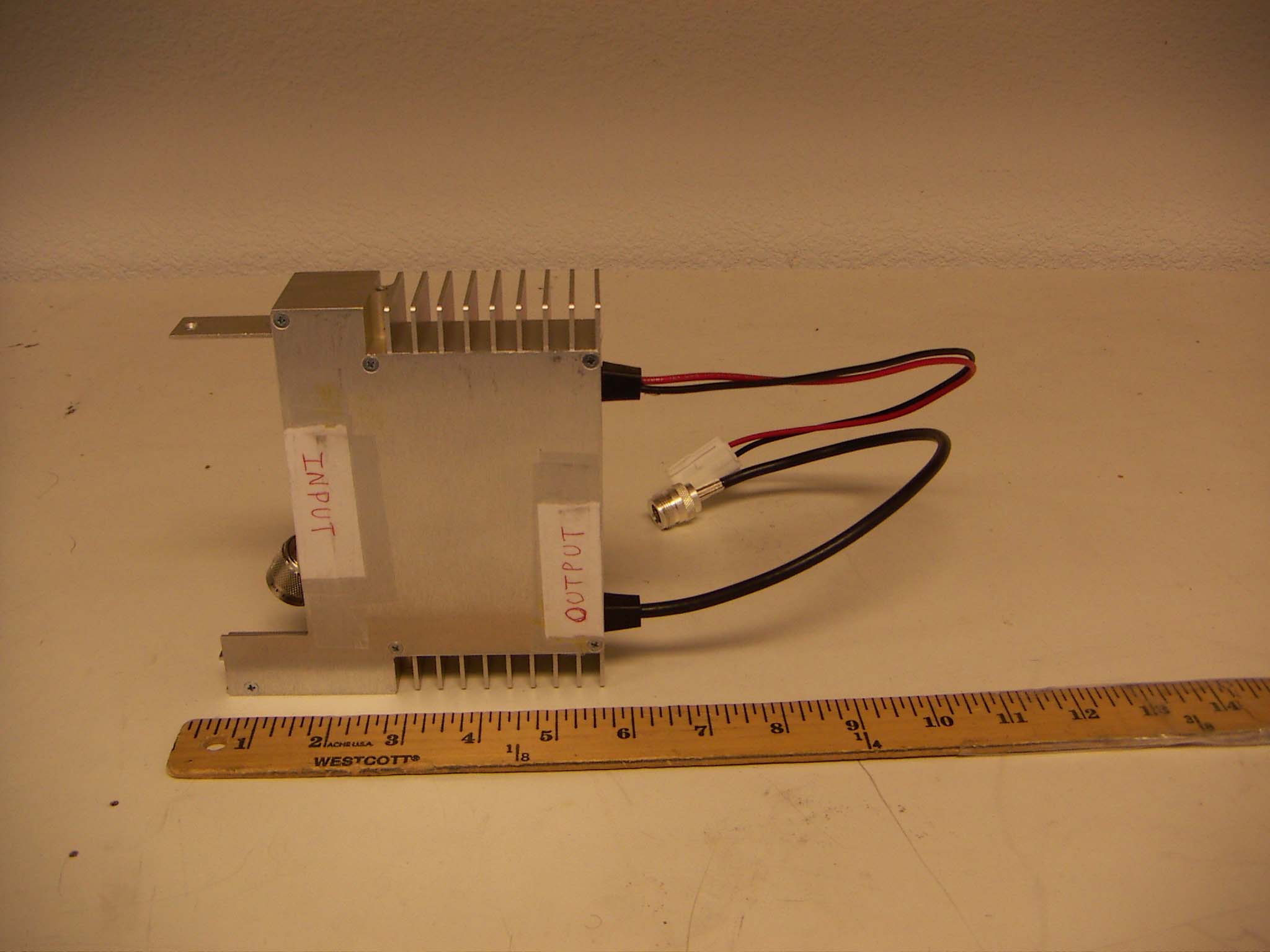

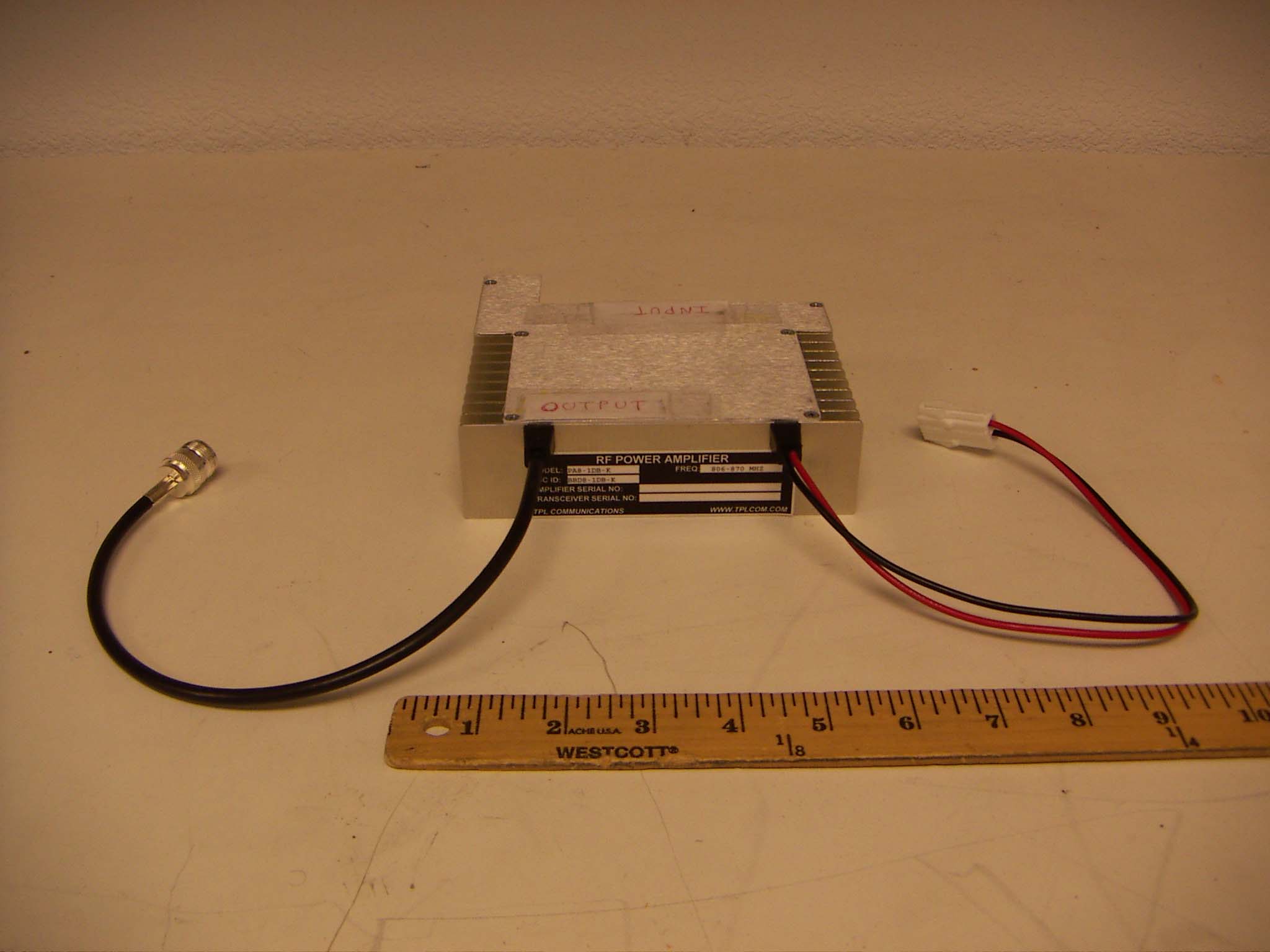

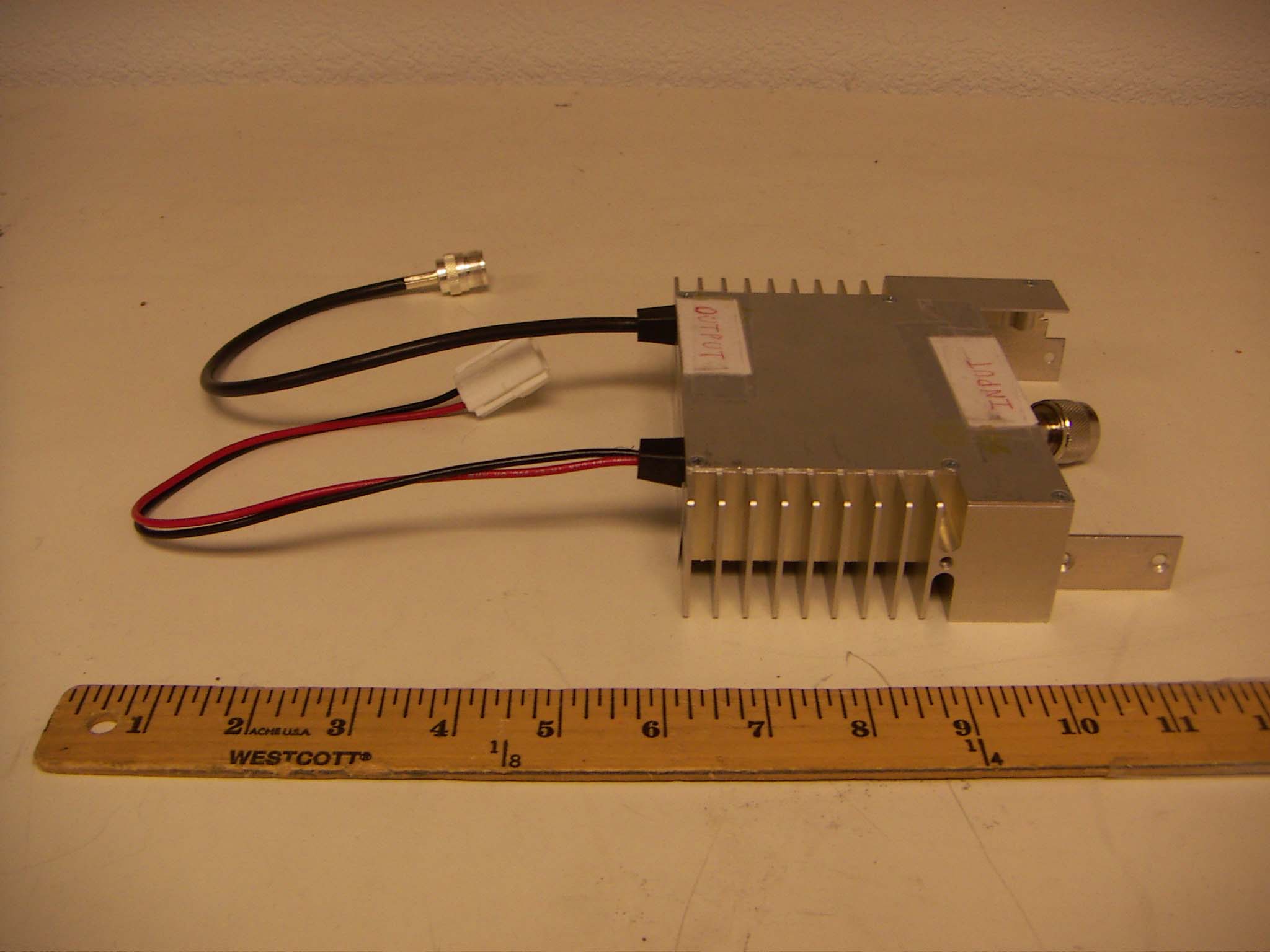

RF POWER AMPLIFIER MODEL: PA8-1DB-K FREQ: 806-870 MHZ FCC ID: BBD8-1DB-K AMPLIFIER SERIAL NO: TRANSCEIVER SERIAL NO:

TUNE-UP INSTRUCTIONS The model PA8-1DB-K power amplifier has no adjustable components inside therefore this procedure is simply a performance check. Connect the amplifier as depicted in the Amplifer Test and Adjustment Set Up Diagram on page11. Apply the nominal RF drive level at a few points across the band of 806 to 870 MHz. The RF output power should be within the specified range and supply current shall be 8 amps or less. The reflected input power must not exceed 10% of the forward power. Observe the spectrum analyzer for hamonic and spurious emissions less than or equal to -70 dBc. Connect the signal generator, at a drive level of -10 dBm, to the antenna connector and a RF Power meter to the transceiver connector. The Receive Path Insertion Loss should not be greater than 1.5 dB. 10

FCC CFR47 PART 90 CERTIFICATION TEST REPORT FOR RF POWER AMPLIFIER MODEL NUMBER: PA8-1DB-K FCC ID: BBD8-1DB-K REPORT NUMBER: 05U3506 ISSUE DATE: JANUARY 24, 2005 Prepared for TPL COMMUNICATION, INC. 3370 SAN FERNANDO ROAD, SUITE 206 LOS ANGELES, CA 90065 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 Revision History REPORT NO: 05U3206 DATE: JANUARY 24, 2005 EUT: RF POWER AMPLIFIER FCC ID: BBD8-1DB-K Page 2 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Rev. Revisions Revised By REPORT NO: 05U3206 DATE: JANUARY 24, 2005 EUT: RF POWER AMPLIFIER FCC ID: BBD8-1DB-K Page 3 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.5. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. OCCUPIED BANDWIDTH ........................................................................................................ 10 7.2. FM EMISSION LIMITATION ..................................................................................................... 17 7.3. MODULATION CHARACTERISTICS........................................................................................ 37 7.4. FREQUENCY STABILITY .......................................................................................................... 37 7.5. RF POWER OUTPUT.................................................................................................................38 7.6. SPURIOUS EMISSION AT ANTENNA TERMINAL................................................................... 40 7.7. FIELD STRENGTH OF SPURIOUS RADIATION..................................................................... 44 8. SETUP PHOTOS .............................................................................................................................. 46 REPORT NO: 05U3206 DATE: JANUARY 24, 2005 EUT: RF POWER AMPLIFIER FCC ID: BBD8-1DB-K Page 4 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: TPL COMMUNICATION, INC. 3370 SAN FERNANDO ROAD, SUITE 206 LOS ANGELES, CA 90065 USA EUT DESCRIPTION: RF POWER AMPLIFIER MODEL: PA8-1DB-K SERIAL NUMBER: N/A DATE TESTED: JANUARY 17 – 20, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 90 NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN WILLIAM ZHUANG EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 05U3206 DATE: JANUARY 24, 2005 EUT: RF POWER AMPLIFIER FCC ID: BBD8-1DB-K Page 5 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests document…
