BBD8-1ED-MASRF Amplifier

Delivered-To: trephonc-tncokenias:[email protected] From: "Les Payne" <[email protected]> To: "Tom Cokenias" <[email protected]> Cc: "Chris Landsberger" <[email protected]> Subject: TPL Amplifiers Date: Wed, 10 Sep 2003 14:01:14 -0700 X-Priority: 3 (Normal) Importance: Normal Greetings Tom, Corrections to TPL Amplifiers BBD8-1ED incorrect frequency range listed is 800-860 should be 800-960 BBD3,BBD6 and BBD8 amplifiers should include Part 22 as well as Part 90, Thanks Les

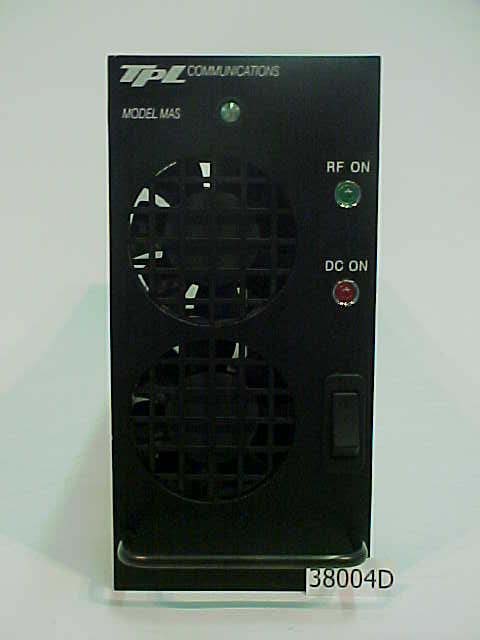

FCC ID: BBD8-1ED-MAS 2.1033 (C) (12) Equipment Photographs - External Photo 5 Detail View – External – Front FCC ID: BBD8-1ED-MAS 2.1033 (C) (12) Equipment Photographs - External Photo 6 Detail View – External – Left Side FCC ID: BBD8-1ED-MAS 2.1033 (C) (12) Equipment Photographs - External Photo 7 Detail View – External - Rear FCC ID: BBD8-1ED-MAS 2.1033 (C) (12) Equipment Photographs - External Photo 8 Detail View – External – Right Side FCC ID: BBD8-1ED-MAS 2.1033 (C) (12) Equipment Photographs - External Photo 9 Detail View – External - Top FCC ID: BBD8-1ED-MAS 2.1033 (C) (12) Equipment Photographs - External Photo 10 Detail View – External - Bottom

FCC ID: BBD8-1ED-MAS 2.1033 (C) (12) Equipment Photographs - Internal Photo 1 Detail View – Internal – Component Side of PCB FCC ID: BBD8-1ED-MAS 2.1033 (C) (12) Equipment Photographs - Internal Photo 2 Detail View – Internal – Circuit Side of PCB

FCC ID: BBD8-1ED-MAS 1 Application for Certification For an RF Power Amplifier TPL Communications 3370 San Fernando Road, Suite 206 Los Angeles, CA 90065 RF Power Amplifier: Part # PA8-1ED-MAS FCC ID: BBD8-1ED-MAS REPORT # RV38004G This report was prepared in accordance with the requirements of the FCC Rules and Regulations Part 2, Subpart J, 2.1031 through 2.1057, and Part 90 and other applicable sections of the rules as indicated herein. Prepared By: C. L. Payne III DNB Engineering, Inc. 5969 Robinson Avenue Riverside, Ca 92503-8620 4 June 2003 FCC ID: BBD8-1ED-MAS 2 TABLE OF CONTENTS Section Title Sheet # 1.0 ADMINISTRATIVE DATA 3 1.1 Certifications and Qualifications 3 1.2 Measurements and Repeatability Information 3 Note: Paragraph numbers in this report follow the application section numbers found in the FEDERAL COMMUNICATIONS COMMISSION Rules and Regulations, Part 2, Subpart J for Certification of electronic equipment. 2.1033 (C) (1) Application for Certification 4 2.1033 (C) (2) FCC Identifier 5 2.1033 (C) (3) Installation and Operating Instructions (Service manual) 6-20 2.1033 (C) (4) Type of Emissions 21 2.1033 (C) (5) Frequency Range 22 2.1033 (C) (6) Operating Power 23 2.1033 (C) (7) Maximum Power Allowed in Applicable part(s) of the Rules 24 2.1033 (C) (8) Final RF Amplifier Input Power Characteristics 25 2.1033 (C) (9) Tune Up Procedure 26 2.1033 (C) (10) Schematic Diagram and Circuit Description 27-28 2.1033 (C) (11) Equipment Identification Plate 29 2.1033 (C) (12) Equipment Photographs (Internal) 30-31 2.1033 (C) (12) Equipment Photographs (External) 32-37 2.1033 (C) (13) Digital Modulation Techniques 38 2.1033 (C) (14) Test Data 39 Test Set-Up 40-41 2.1046 Measurement of RF Power Output 42-43 2.1049 Measurement of Occupied Bandwidth 44-45 2.1051 Spurious Emissions at Antenna Terminals 46-50 2.1053 Measurement of Field Strength of Spurious Radiation 51-52 2.1055 Measurement of Frequency Stability 53 2.1057 Frequency Spectrum to be Investigated 54 RF Exposure 55 Test Equipment Log 56 FCC ID: BBD8-1ED-MAS 3 1.0 ADMINISTRATIVE DATA 1.1 Certifications and Qualifications I certify that DNB Engineering, Inc conducted the tests performed in order to obtain the technical data presented in this application. Also, based on the results of the enclosed data, I have concluded that the equipment tested meets or exceeds the requirements of the Rules and Regulations governing this application. 1.2 Measurement Repeatability Information The test data presented in this report has been acquired using the guidelines set forth in FCC Part 2.1031 through 2.1057, and Part 90. The test results presented in this document are valid only for the equipment identified herein under the test conditions described. Repeatability of these test results will only be achieved with identical measurement conditions. These conditions include: The same test distance, EUT Height, Measurement Site Characteristics, and the same EUT System Components. The system must have the same Interconnecting Cables arranged in identical placement to that in the test set-up, with the system and/or EUT functioning in the identical mode of operation (i.e. software and so on) as on the date of the test. Any deviation from the test conditions and the environment on the date of the test may result in measurement repeatability difficulties. All changes made to the EUT during the course of testing as identified in this test report must be incorporated into the EUT or identical models to ensure compliance with the FCC regulations. C. L. Payne III (Para. 1.1) Manager, Commercial Products. DNB Engineering, Inc. Tel. (909) 637-2630 Fax (909) 637-2704 E-mail [email protected] FCC ID: BBD8-1ED-MAS 4 2.1033 (C) (1) Application for Certification Name of Applicant: TPL Communications 3370 San Fernando Road, Suite 206 Los Angeles, Ca 90065 FRN: 0008271447 Applicant is: X Manufacturer Vendor Licensee Prospective Licensee Other Name of Manufacturer TPL Communications Description: RF Power Amplifier Part Number: PA8-1ED-MAS Anticipated Production Quantity: Multiple Units Applicable FCC Parts: 90 FCC ID No: BBD8-1ED-MAS FCC Emissions Designator: F3E Frequency Range: 800-960 MHz Rated Output Power: 60-80W FCC ID: BBD8-1ED-MAS 5 2.1033 (C) (2) FCC Identifier FCC ID: BBD8-1ED-MAS FCC ID: BBD8-1ED-MAS 6 2.1033 (C) 3) Installation and Operating Instructions 2.1033 (C) 3) Installation and Operating Instructions FCC ID: BBD8-1ED-MAS 7 2.1033 (C) (4) Type of Emission N/A (FM Modulation) Emission Designator: F3E FCC ID: BBD8-1ED-MAS 8 2.1033 (C) (5)Frequency Range 800-960MHz (Factory set for 860MHz) FCC ID: BBD8-1ED-MAS 9 2.1033 (C) (6)Operating Power 60-80 Watts FCC ID: BBD8-1ED-MAS 10 2.1033 (C) (7)Maximum Power Allowed in Applicable Part(s) of the Rules RULES PART MAXIMUM POWER (WATTS) Part 90.205(q) 96 FCC ID: BBD8-1ED-MAS 11 2.1033 (C) (13) Digital Modulation Techniques Not Applicable FCC ID: BBD8-1ED-MAS 12 2.1033 (c) (14)Test Data Refer to 2.1046 through 2.1057 FCC ID: BBD8-1ED-MAS 13 2.1033 (c) (14)FIGURE 1: Block Diagram SIGNAL GENERATOR MARCONI 2024 RF AMPLIFIER IFI 5500 HP 7470A PLOTTER HP 8566B SPECTRUM ANALYZER EUT RF POWER AMP HP 778P 21 dB DUAL DIRECTIONAL COUPLER 50 OHM LOAD 40 dB ATTEN. INMET 18N50W – 40 dB 50 OHM TERMALINE DC POWER SUPPLY 13.8 VDC FCC ID: BBD8-1ED-MAS 14 2.1033 (c) (14)Photograph of Test Set Up FCC ID: BBD8-1ED-MAS 15 2.1046 Measurement of RF Power Output Definition: For RF Amplifiers. Test Method: See FIGURE 1. Output Power is measured across a precision 50 ohm load with a Spectrum Analyzer. For the power measurement, CW (no modulation) is used. Test Results: POWER OUTPUT MEASURED AT NOMINAL VOLTAGE WAS: Frequency (MHz) Power (dBm) Power (W) 860 47.7 58.88 FCC ID: BBD8-1ED-MAS 16 5969 Robinson Avenue Riverside, CA 92503 (909) 637-2630 FAX (909) 637-2704 Output Power DNB Job Number: 38004 Date: July 15, 2002 Customer: TPL Communications Model Number: PA8-1ED-MAS Serial Number: 1000 RF Amplifier Description: Conformance Stan…
