BBD8-2EFRF Amplifier

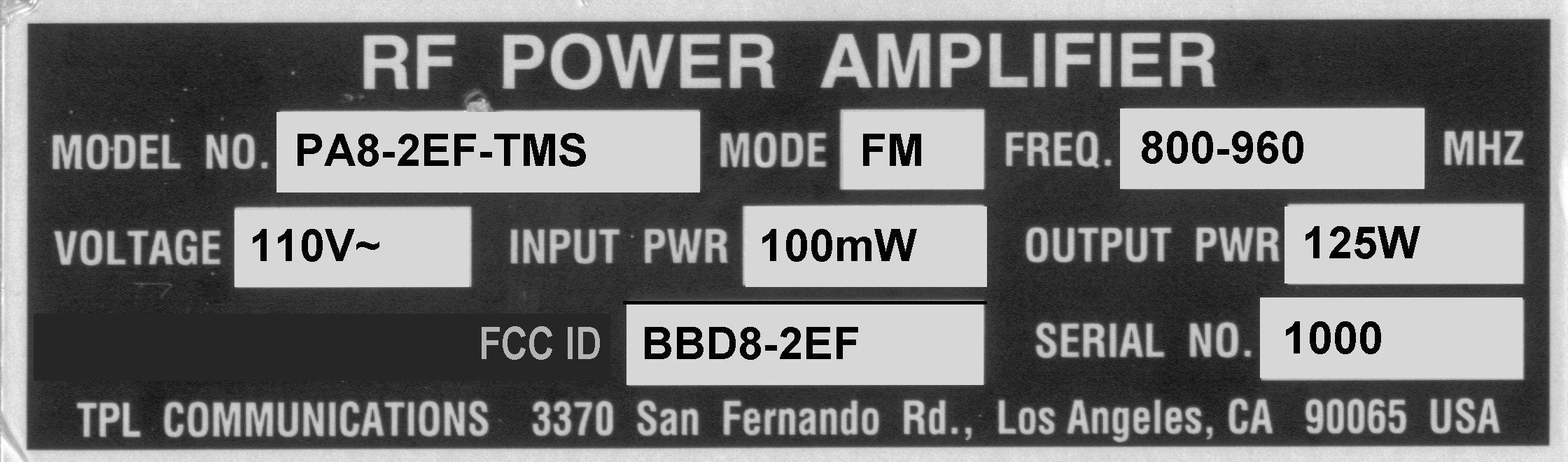

-----Original Message----- From: Les Payne [mailto:[email protected]] Sent: Tuesday, July 29, 2003 2:46 PM To: 'Anne Liang' Subject: RE: TPL COMMUNICATIONS, FCC ID: BBD8-2EF, Assessment NO.: AN03T3046 (#5) -----Original Message----- From: Anne Liang [<mailto:[email protected]>mailto:[email protected]] Sent: Wednesday, July 23, 2003 10:04 AM To: '[email protected]' Subject: FW: TPL COMMUNICATIONS, FCC ID: BBD8-2EF, Assessment NO.: AN03T3046 (#5) -----Original Message----- From: Compliance Certification Services [<mailto:[email protected]>mailto:[email protected]] Sent: Tuesday, July 22, 2003 4:15 PM Cc: [email protected], [email protected] Subject: TPL COMMUNICATIONS, FCC ID: BBD8-2EF, Assessment NO.: AN03T3046 (#5) 1. FCC rule para 2.925 requires the words "FCC ID" to be placed before the FCC identifier. Please submit revised label drawings or photographs that show compliance with this requirement. Attached 2. The product interior photographs do not seem to have sufficient resolution. Please re-submit or re-scan at a higher resolution. Attached 3. Will the amplifier be sold for use with 12.5 kHz channel bandwidth equipment? If so, the limit for emissions removed by more than 12.5 kHz must be suppressed by at least 50+10log(Pwatts). i.e., they must be less than -20dBm . The display line shown on the spuruios emissions graphs is -13 dBm. Please comment. Please reference new page 70 of the report - attached 4. For spurious emission field strength emissions required by rule para. 2.1053, emissions are referenced to the radiated output power of the transmitter, assuming all emissions are radiated from a dipole. FCC interprets this to mean that the "substitution" method must be used to determine compliance. This method called out by EIA/TIA 603 specification (among others) requires that once radiated emissions from the EUT have been measured, the EUT is removed and a signal generator and substitution antenna is put in its place. Emissions are again maximized, the signal generator is set to match the radiated reading, and the resultant ERP is compared against the limit. Please submit data for radiated emissions performed in this fashion. Attached 5. Please submit a photograph showing the radiated emissions test set-up Attached 6. The schematics do not seem to have sufficient resolution to be legible. Please submit original electronic file or new document scanned at higher resolution. Attached The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Attachment converted: Starfish:PA82EFTMS LABEL.jpg (JPEG/prvw) (000A5CFD) Attachment converted: Starfish:Schem_01.jpg (JPEG/prvw) (000A5CFE) Attachment converted: Starfish:Schem_02.jpg (JPEG/prvw) (000A5CFF) Attachment converted: Starfish:Schem_03.jpg (JPEG/prvw) (000A5D00) Attachment converted: Starfish:Schem_04.jpg (JPEG/prvw) (000A5D01) Attachment converted: Starfish:RV38004B Spur.pdf (PDF /CARO) (000A5D02) Attachment converted: Starfish:Spurious Test Set Up - SU 5.jpg (JPEG/prvw) (000A5D03) Attachment converted: Starfish:Spurious Test Set Up EUT 5.jpg (JPEG/prvw) (000A5D04) Attachment converted: Starfish:38004_05.JPG (JPEG/prvw) (000A5D05) Attachment converted: Starfish:MVC-038S.JPG (JPEG/prvw) (000A5D06) Attachment converted: Starfish:MVC-039S.JPG (JPEG/prvw) (000A5D07) Attachment converted: Starfish:MVC-040S.JPG (JPEG/prvw) (000A5D08) Attachment converted: Starfish:MVC-041S.JPG (JPEG/prvw) (000A5D09) Attachment converted: Starfish:MVC-042S.JPG (JPEG/prvw) (000A5D0A) Attachment converted: Starfish:MVC-043S.JPG (JPEG/prvw) (000A5D0B) Attachment converted: Starfish:MVC-044S.JPG (JPEG/prvw) (000A5D0C) Attachment converted: Starfish:MVC-045S.JPG (JPEG/prvw) (000A5D0D)

Delivered-To: trephonc-tncokenias:[email protected] From: "Les Payne" <[email protected]> To: "Tom Cokenias" <[email protected]> Cc: "Chris Landsberger" <[email protected]> Subject: TPL Amplifiers Date: Wed, 10 Sep 2003 14:01:14 -0700 X-Priority: 3 (Normal) Importance: Normal Greetings Tom, Corrections to TPL Amplifiers BBD8-1ED incorrect frequency range listed is 800-860 should be 800-960 BBD3,BBD6 and BBD8 amplifiers should include Part 22 as well as Part 90, Thanks Les

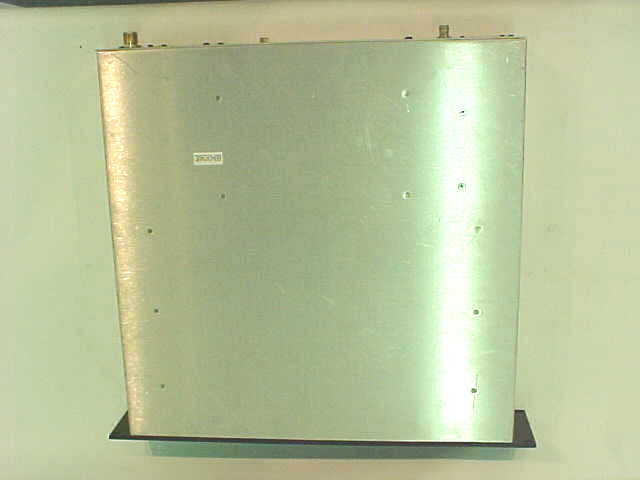

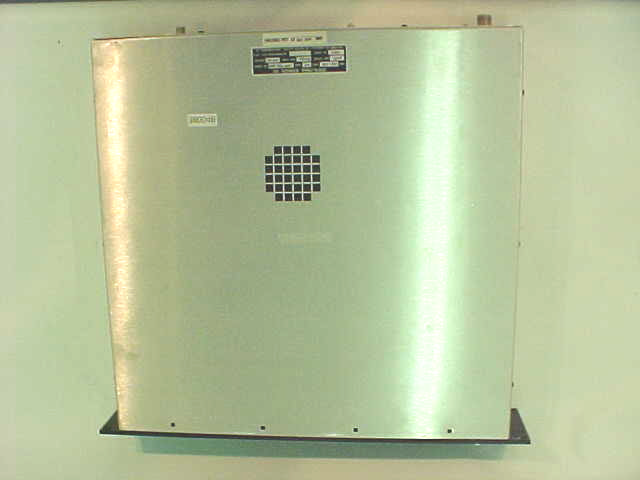

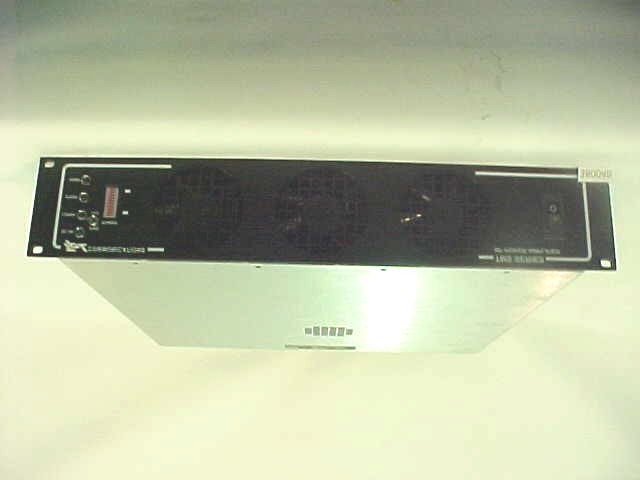

FCC ID: BBD8-2EF 52 2.1033 (C) (12) Equipment Photographs - External Photo 9 Detail View – External – Front FCC ID: BBD8-2EF 53 2.1033 (C) (12) Equipment Photographs - External Photo 10 Detail View – External – Left Side FCC ID: BBD8-2EF 54 2.1033 (C) (12) Equipment Photographs - External Photo 11 Detail View – External - Rear FCC ID: BBD8-2EF 55 2.1033 (C) (12) Equipment Photographs - External Photo 12 Detail View – External – Right Side FCC ID: BBD8-2EF 56 2.1033 (C) (12) Equipment Photographs - External Photo 13 Detail View – External - Top FCC ID: BBD8-2EF 57 2.1033 (C) (12) Equipment Photographs - External Photo 14 Detail View – External - Bottom

TPL Inc. Internal Photos FCC ID: BBD8-2EF

FCC ID: BBD8-2EF 1 Application for Certification For an RF Power Amplifier TPL Communications 3370 San Fernando Road, Suite 206 Los Angeles, CA 90065 RF Power Amplifier: Part # PA8-2EF-TMS FCC ID: BBD8-2EF REPORT # RV38004B This report was prepared in accordance with the requirements of the FCC Rules and Regulations Part 2, Subpart J, 2.1031 through 2.1057, and Part 90 and other applicable sections of the rules as indicated herein. Prepared By: C. L. Payne III DNB Engineering, Inc. 5969 Robinson Avenue Riverside, Ca 92503-8620 14 Jun 2003 FCC ID: BBD8-2EF 2 TABLE OF CONTENTS Section Title Sheet # 1.0 ADMINISTRATIVE DATA 3 1.1 Certifications and Qualifications 3 1.2 Measurements and Repeatability Information 3 Note: Paragraph numbers in this report follow the application section numbers found in the FEDERAL COMMUNICATIONS COMMISSION Rules and Regulations, Part 2, Subpart J for Certification of electronic equipment. 2.1033 (C) (1) Application for Certification 4 2.1033 (C) (2) FCC Identifier 5 2.1033 (C) (3) Installation and Operating Instructions (Service manual) 6-31 2.1033 (C) (4) Type of Emissions 32 2.1033 (C) (5) Frequency Range 33 2.1033 (C) (6) Operating Power 34 2.1033 (C) (7) Maximum Power Allowed in Applicable part(s) of the Rules 35 2.1033 (C) (8) Final RF Amplifier Input Power Characteristics 36 2.1033 (C) (9) Tune Up Procedure 37 2.1033 (C) (10) Schematic Diagram and Circuit Description 38-42 2.1033 (C) (11) Equipment Identification Plate 43 2.1033 (C) (12) Equipment Photographs (Internal) 44-51 2.1033 (C) (12) Equipment Photographs (External) 52-57 2.1033 (C) (13) Digital Modulation Techniques 58 2.1033 (C) (14) Test Data 59 Test Set-Up 60-61 2.1046 Measurement of RF Power Output 62-63 2.1049 Measurement of Occupied Bandwidth 64-65 2.1051 Spurious Emissions at Antenna Terminals 66-68 2.1053 Measurement of Field Strength of Spurious Radiation 69-70 Conducted Emissions 71-72 2.1055 Measurement of Frequency Stability 73 2.1057 Frequency Spectrum to be Investigated 74 RF Exposure 75 Test Equipment Log 76 FCC ID: BBD8-2EF 3 1.0 ADMINISTRATIVE DATA 1.1 Certifications and Qualifications I certify that DNB Engineering, Inc conducted the tests performed in order to obtain the technical data presented in this application. Also, based on the results of the enclosed data, I have concluded that the equipment tested meets or exceeds the requirements of the Rules and Regulations governing this application. 1.2 Measurement Repeatability Information The test data presented in this report has been acquired using the guidelines set forth in FCC Part 2.1031 through 2.1057, and Part 90. The test results presented in this document are valid only for the equipment identified herein under the test conditions described. Repeatability of these test results will only be achieved with identical measurement conditions. These conditions include: The same test distance, EUT Height, Measurement Site Characteristics, and the same EUT System Components. The system must have the same Interconnecting Cables arranged in identical placement to that in the test set-up, with the system and/or EUT functioning in the identical mode of operation (i.e. software and so on) as on the date of the test. Any deviation from the test conditions and the environment on the date of the test may result in measurement repeatability difficulties. All changes made to the EUT during the course of testing as identified in this test report must be incorporated into the EUT or identical models to ensure compliance with the FCC regulations. C. L. Payne III (Para. 1.1) Manager, Commercial Products. DNB Engineering, Inc. Tel. (909) 637-2630 Fax (909) 637-2704 E-mail [email protected] FCC ID: BBD8-2EF 4 2.1033 (C) (1) Application for Certification Name of Applicant: TPL Communications 3370 San Fernando Road, Suite 206 Los Angeles, Ca 90065 FRN: 0008271447 Applicant is: X Manufacturer Vendor Licensee Prospective Licensee Other Name of Manufacturer TPL Communications Description: RF Power Amplifier Part Number: PA8-2EF-TMS Anticipated Production Quantity: Multiple Units Applicable FCC Parts: 90 FCC ID No: BBD8-2EF FCC Emissions Designator: F3E Frequency Range: 800-960 MHz Rated Output Power: 150W FCC ID: BBD8-2EF 5 2.1033 (C) (2) FCC Identifier FCC ID: BBD8-2EF FCC ID: BBD8-2EF 32 2.1033 (C) (4) Type of Emission N/A (FM Modulation) Emission Designator: F3E FCC ID: BBD8-2EF 33 2.1033 (C) (5) Frequency Range 800-960MHz (Factory set for 860MHz) FCC ID: BBD8-2EF 34 2.1033 (C) (6) Operating Power 150 Watts FCC ID: BBD8-2EF 35 2.1033 (C) (7) Maximum Power Allowed in Applicable Part(s) of the Rules RULES PART MAXIMUM POWER (WATTS) Part 90.205(q) 180 FCC ID: BBD8-2EF 43 2.1033 (C) (11) Equipment Identification Plate NOTES: Label will be constructed of 0.02 inch aluminum as shown on the equipment with permanent adhesive. All information on the label will be etched or stamped. Both methods will exceed the expected lifetime of the equipment. The label will be large enough to allow all information to be legible. FCC ID: BBD8-2EF 44 2.1033 (C) (12) Equipment Photographs - Internal Photo 1 Detail View – Internal FCC ID: BBD8-2EF 45 2.1033 (C) (12) Equipment Photographs - Internal Photo 2 Detail View – Internal FCC ID: BBD8-2EF 46 2.1033 (C) (12) Equipment Photographs - Internal Photo 3 Detail View – Internal FCC ID: BBD8-2EF 47 2.1033 (C) (12) Equipment Photographs - Internal Photo 4 Detail View – Internal FCC ID: BBD8-2EF 48 2.1033 (C) (12) Equipment Photographs - Internal Photo 5 Detail View – Internal FCC ID: BBD8-2EF 49 2.1033 (C) (12) Equipment Photographs - Internal Photo 6 Detail View – Internal – Close Up FCC ID: BBD8-2EF 50 2.1033 (C) (12) Equipment Photographs - Internal Photo 7 Detail View – Internal– Close Up FCC ID: BBD8-2EF 51 2.1033 (C) (12) Equipment Photographs - Internal Photo 8 Detail View – Internal – Circuit Side of PCB – Close Up FCC ID: BBD8-2EF 52 2.1033 (C) (12) Equipment Photographs - External Photo 9 Detail View – External – Fro…

Text truncated - open the document above for the full version.

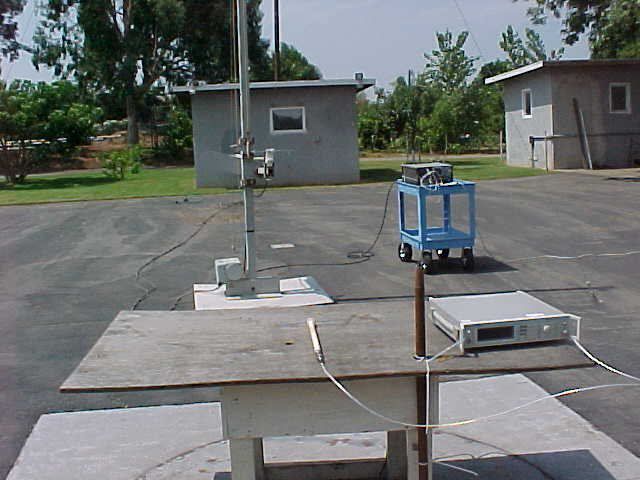

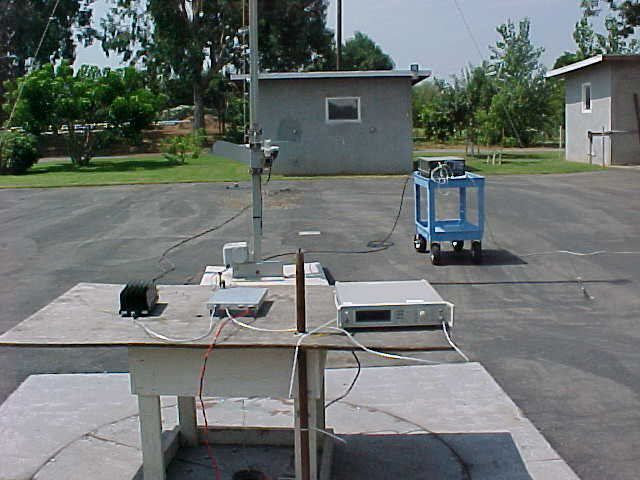

FCC ID: BBD8-2EF 60 2.1033 (c) (14) FIGURE 1: Block Diagram SIGNAL GENERATOR MARCONI 2024 RF AMPLIFIER IFI 5500 HP 7470A PLOTTER HP 8566B SPECTRUM ANALYZER EUT RF POWER AMP HP 778P 21 dB DUAL DIRECTIONAL COUPLER 50 OHM LOAD 40 dB ATTEN. INMET 18N50W – 40 dB 50 OHM TERMALINE DC POWER SUPPLY 13.8 VDC FCC ID: BBD8-2EF 61 2.1033 (c) (14) Photograph of Test Set Up
