BCR-803D125Transmitter Non-Broadcast Booster

Andrew Corporation 108 Rand Park Drive Garner, NC U.S.A. 27529 Tel: (919) 771-2570 Fax: (919) 771-2360 www.andrew.com 2 July 2007 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: BCR-RPT-803D125 Product Name: MR803D miniRepeater Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Schematic: MRx03D Schematics.pdf • Manual: MRx03D Manual.pdf • Datasheet: MRx03D Datasheet.pdf • Block Diagram: MRx03D Block Diagram.pdf These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. The manual is only provided for use by trained technicians and is not available to the general user from Andrew’s website. Dated this 2 Day of July 20 07 By: Michael Williamson Signature Printed Title: Product Manager On behalf of : Andrew Corporation Telephone: (919) 329 8941

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 30, 2007 RE: Andrew Corporation FCC ID: BCR-803D125 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please separate the Internal and External photographs into two discrete documents. FCC desires the photographs be provided as separate Internal and External exhibits. 2.) Please provide a Parts List. This is a requirement for all Licensed radio transmitters. These can be held Confidential if included as part of your Confidentiality Request letter. 3.) The IC application form does not match the label provided. Please review the model numbers. 4.) The Test Setup photographs are out-of-focus. Moreover, I am unsure what test it is supposed to represent. If this is for transmitter Radiated Emissions, then you are reminded to always test with a load terminated transmitter as required by TIA/EIA 603. Since this is a bi-directional amplifier, it can be a bit tricky. Kindly review. 5.) For Canada, you must specify the necessary bandwidth in addition to the emission designator on the Application forms. Please review. 6.) The emission designators shown on the application forms do not match those shown in the FCC Test Report section A9 page 12. Please review. 7.) The Canada test report uses a different set of emission designators than the FCC test report. 8.) You have designated the Manual as a Confidential document. Except for very limited situations, manuals can never be held Confidential. This document appears instead to be the “Datasheet” listed in the Confidentiality Request letter. Please review. 9.) Is this device intended to be sold with specific antennas approved by the manufacturer? If so, then specifications on these antennas would be advisable. 10.) You are reminded that in the interests of limiting RF Exposure, it is required that MPE exhibit for this device be included. In addition, specific instructions to installers as to how antennas shall be installed must also be included in this filing – usually as an installation manual. 11.) In the interest of understanding this device, a gain chart of input to output power performed on mid channel, and for both uplink and downlink paths, would be helpful. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 July 30, 2007 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

July 30, 2007 RE: Andrew Corporation FCC ID: BCR-803D125 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please separate the Internal and External photographs into two discrete documents. FCC desires the photographs be provided as separate Internal and External exhibits. Please find separate internal and external photo exhibits 2.) Please provide a Parts List. This is a requirement for all Licensed radio transmitters. These can be held Confidential if included as part of your Confidentiality Request letter. The part number and component value designations are included on the schematic diagrams. Is this sufficient for this requirement? 3.) The IC application form does not match the label provided. Please review the model numbers. Please find a revised IC application form 4.) The Test Setup photographs are out-of-focus. Moreover, I am unsure what test it is supposed to represent. If this is for transmitter Radiated Emissions, then you are reminded to always test with a load terminated transmitter as required by TIA/EIA 603. Since this is a bi-directional amplifier, it can be a bit tricky. Kindly review. I have tried to clear up the photos as much as possible and have included a comment pointing out the 50 ohm load. The signal source used to feed the signal to the device under test is located on the ground plane beneath the turntable. A 50 ohm SMA load is attached to the output cosxial port. 5.) For Canada, you must specify the necessary bandwidth in addition to the emission designator on the Application forms. Please review. Please find an amended IC application form with the necessary bandwidths listed. These are the necessary bandwidths for a single channel, however, the booster tested is not limited to a single channel. 6.) The emission designators shown on the application forms do not match those shown in the FCC Test Report section A9 page 12. Please review. The correct emission designators should be F3E and GXW to represent analogue voice and iDEN respectively. I have uploaded an amended report so that there is consistency between the application and the report. 7.) The Canada test report uses a different set of emission designators than the FCC test report. The emission designators in the IC test report are the correct ones. 8.) You have designated the Manual as a Confidential document. Except for very limited situations, manuals can never be held Confidential. This document appears instead to be the “Datasheet” listed in the Confidentiality Request letter. Please review. In the past Andrew has been able to do this based on the fact that they only provide installation manuals to the installer under a NDA. 9.) Is this device intended to be sold with specific antennas approved by the manufacturer? If so, then specifications on these antennas would be advisable. The device is not sold with any particular antenna. However, the Install manual specifies a maximum antenna gain of 12 dBi in order to ensure compliance with RF Exposure requirments. 10.) You are reminded that in the interests of limiting RF Exposure, it is required that MPE exhibit for this device be included. In addition, specific instructions to installers as to how antennas shall be installed must also be included in this filing – usually as an installation manual. Please find an MPE prediction for this device. The install manual on page 1 includes a warning to the installer to maintain a 20 cm. separation between the antenna and nearby persons and specifies a maximum antenna gain of 12 dBi. 11.) In the interest of understanding this device, a gain chart of input to output power performed on mid channel, and for both uplink and downlink paths, would be helpful. Pages 70 – 71 of the FCC report are intended to demonstrate the rf gain across frequency. The rf input level for these graphs is held at -50 dBm for the entire sweep. The nominal gain is 70 dB as stated in the manufacturer’s data sheet.

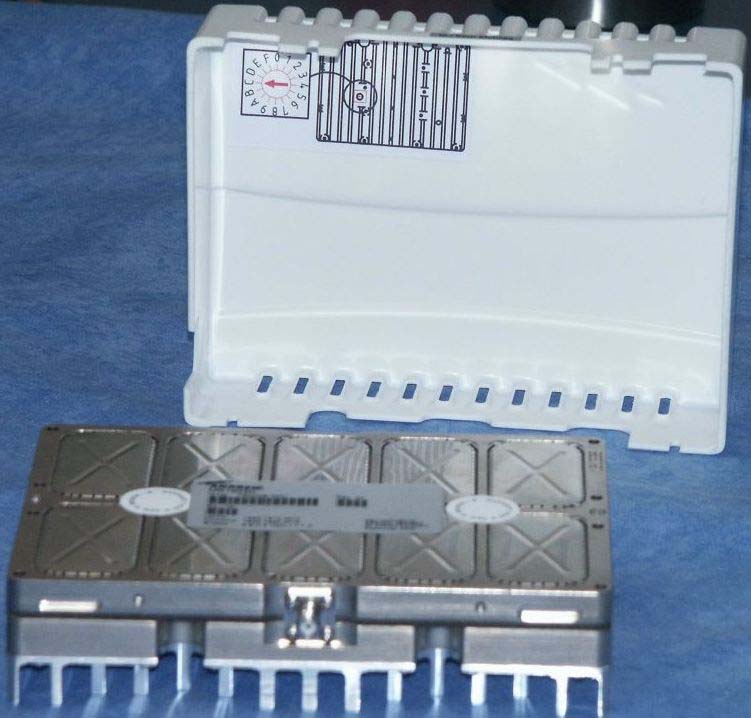

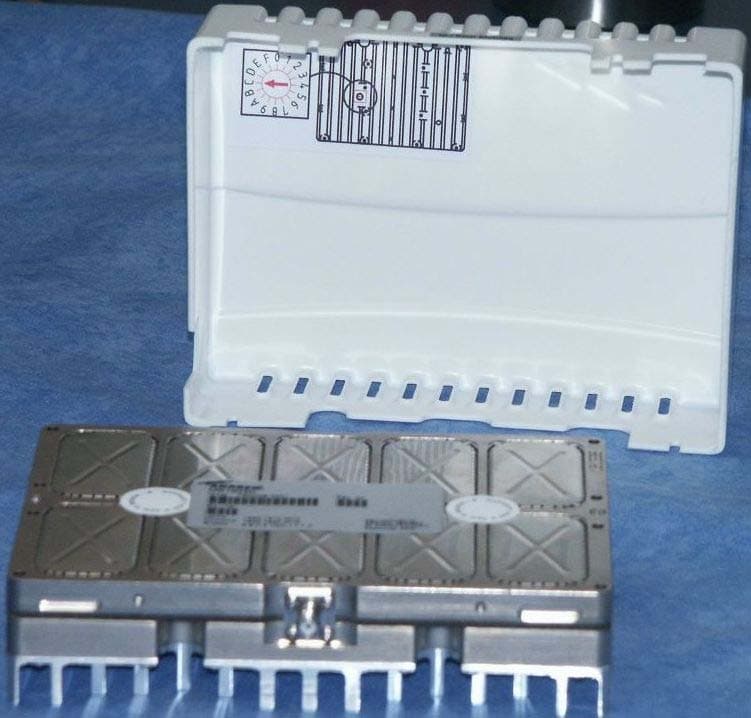

Exterior – Bottom Exterior – Top Exterior – Front Exterior – Back Exterior – Cover Removed

PCB – Top PCB – Bottom

MRx03D miniRepeater Tune-Up Procedure The first step in setting up the MRx03D is to set the frequency of the single stage SAW filter. Two rotary switches are used to set the start frequency of the SAW filter and the step size of the frequency adjustment is 200 kHz. The next step is to set the appropriate attenuation of the MRx03D to provide the desired output power. There are two methods of setting the attenuation: manually or automatically. In manual mode, the user would measure the input signals and set the attenuation of the MRx03D to provide the desired output power. ALC is always functioning and the maximum output power of the MRx03D will never be exceeded. In automatic mode, the MRx03D will adjust gain in the downlink path to maximize output power, but no exceed the maximum ALC limit. The uplink gain will be set to the downlink gain.

This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 1 of 73 Certification Test Report CFR 47 FCC Part 2 and Part 90, Subpart I Model: MR803D FCC ID.: BCR-803D125 Report No.: W7220-1 Revision: 1 Prepared for: Andrew Corporation 108 Rand Park Drive Garner, North Carolina 27529 Author: Tom Tidwell, Manager of Wireless Services Issued: 6 August, 2007 1701 E. Plano Parkway, Suite 150 Plano, Texas 75074 Phone: (972) 509-2566 Fax: (972) 509-0073 Model: MR803D Compliance Test Report FCC ID.: BCR -803D125 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 2 of 73 Report Summary NTS Plano Accreditation Numbers: FCC: 101741 IC: 46405-4319 File # IC-4319-A Applicant: Andrew Corporation Customer Representative: Mike Williamson EUT Description: EUT Description Manufacturer Model Revision Serial Number The EUT is a mini repeater used to enhance coverage of a SMR (Specialized Mobile Radio) network. Andrew Corporation MR803D 1 12 Model: MR803D Compliance Test Report FCC ID.: BCR -803D125 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 3 of 73 Test Summary Deviations from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable Rule Parts A RF Power Output No No No PASS CFR 47, Part 2, Para. 2.1046 CFR 47, Part 90, Para. 90.205 B Modulation Characteristics No No No PASS CFR 47, Part 2, Para. 2.1047 CFR 47, Part 90, Para. 90.207 C Occupied Bandwidth No No No PASS CFR 47, Part 2, Para. 2.1049 CFR 47, Part 90, Para. 90.210 D Spurious Emissions at Antenna Terminals No No No PASS CFR 47, Part 2, Para. 2.1051 CFR 47, Part 90, Para. 90.210 E Field Strength of Spurious Radiation No No No PASS CFR 47, Part 2, Para. 2.1053 CFR 47, Part 90, Para. 90.210 F Frequency Stability No No No PASS CFR 47, Part 2, Para. 2.1055 CFR 47, Part 90, Para. 90.213 G Transient Frequency Behaviour No No No PASS CFR 47, Part 2, Para. 2.1055 CFR 47, Part 90, Para. 90.214 Test Result: The product presented for testing complied with test requirements as shown above. This is to certify that the preceding report is true and correct to the best of my knowledge. Robert Stevens, Tom Tidwell, Quality Assurance Manager Wireless Test Engineer Model: MR803D Compliance Test Report FCC ID.: BCR -803D125 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 4 of 73 Table of Contents REPORT SUMMARY ........................................................................................................................................................2 TEST SUMMARY..............................................................................................................................................................3 REGISTER OF REVISIONS ...........................................................................…

Text truncated - open the document above for the full version.

Prediction of Maximum Permissible Exposure Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = directional power gain of the antenna relative to an isotropic radiator R = distance to the center of radiation of the antenna Max. peak output power at antenna terminal(dBm):18.00 Max. peak output power at antenna terminal(mW):63.096 Antenna gain for prediction(dBi):12 Maximum antenna gain(numeric):15.848932 Duty Cycle(%):100 Prediction distance(cm):20 Prediction frequency(MHz):802 Limit for uncontrolled exposure(mw/cm²): 0.533 S(mw/cm²) = :0.199 2 4 PG S RΠ =
