American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 31, 2007 RE: FCC ID: BCR-853D5_ATCB005236 Attention: Tom Tidwell I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the above FCC ID requests grant of certification in the Part 22 cell bands. Please note that the operational description indicates that the device is band selectable and that other than the above mentioned bands may be selected. It appears that the particular band selected determines the model number. The operational description is not clear on this issue. As this is a part 22 only application, the user cannot make the device operate on other than the frequency bands requested. Please explain how this is prevented for this particular model device. 2. Please note that as this is a booster/amplifier operating under the license of a base station and can be used in other than a licensed station location (i.e. in buildings etc) rf exposure must be addressed at the time of certification as it cannot be addressed at the time of licensing. Please provide an MPE report for the device. Please also show in the manual rf exposure information. 3. Please note that the report calls this device a repeater while other documentation (i.e. 731) calls the device a booster. Please explain, is this device a repeater or a booster? 4. Please provide separate internal photos of the device as required by the FCC. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

July 31, 2007 RE: FCC ID: BCR-853D5_ATCB005236 Attention: Tom Tidwell I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the above FCC ID requests grant of certification in the Part 22 cell bands. Please note that the operational description indicates that the device is band selectable and that other than the above mentioned bands may be selected. It appears that the particular band selected determines the model number. The operational description is not clear on this issue. As this is a part 22 only application, the user cannot make the device operate on other than the frequency bands requested. Please explain how this is prevented for this particular model device. The band of operation is set by the model number the model 853D5 operates only in the Cellular band (824 – 849 MHz / 869 – 894 MHz). This is denoted by the model number 853D, The number 5 in the model designation indicates that the booster has a 5 MHz filter width. The filter can be tuned across the cellular band but the user cannot configure the booster to operate outside the cellular band. 2. Please note that as this is a booster/amplifier operating under the license of a base station and can be used in other than a licensed station location (i.e. in buildings etc) rf exposure must be addressed at the time of certification as it cannot be addressed at the time of licensing. Please provide an MPE report for the device. Please also show in the manual rf exposure information. Please find the requested MPE report. The user manual includes a statement on page 1 warning the installer/user to maintain a 20 cm. separation distance between the antenna and nearby persons. The maximum antenna gain stated in the manual is 12 dBi 3. Please note that the report calls this device a repeater while other documentation (i.e. 731) calls the device a booster. Please explain, is this device a repeater or a booster? The device would be classified as a booster according to the FCC Guidance sheet. and the definition in CFR 47, 22.99 4. Please provide separate internal photos of the device as required by the FCC. Please find a separate file with internal photos.

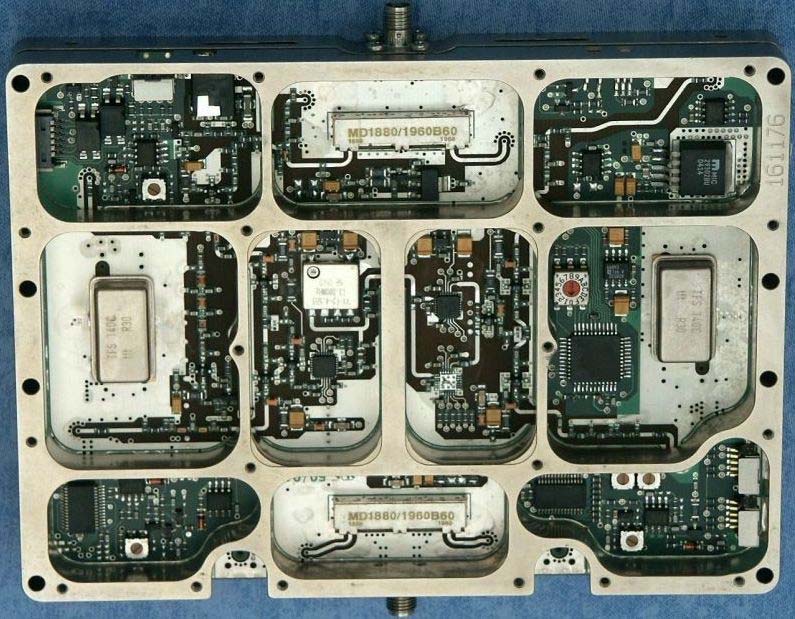

Exterior – Bottom Exterior – Top Exterior – Front Exterior – Back Exterior – Cover Removed PCB – Top PCB – Bottom

PCB – Top PCB – Bottom

Prediction of Maximum Permissible Exposure Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = directional power gain of the antenna relative to an isotropic radiator R = distance to the center of radiation of the antenna Max. peak output power at antenna terminal(dBm):18.00 Max. peak output power at antenna terminal(mW):63.096 Antenna gain for prediction(dBi):12 Maximum antenna gain(numeric):15.848932 Duty Cycle(%):100 Prediction distance(cm):20 Prediction frequency(MHz):824 Limit for uncontrolled exposure(mw/cm²): 0.533 S(mw/cm²) = :0.199 2 4 PG S RΠ =

This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 1 of 114 Certification Test Report CFR 47 FCC Part 2 and Part 22, Subpart C Model: MR853D FCC ID No.: BCR-853D5 Project Code: W7220-4 Revision: 0 Prepared for: Andrew Corporation 108 Rand Park Drive Garner, North Carolina 27529 Author: Tom Tidwell, Manager of Wireless Services Issued: 11 July, 2007 1701 E. Plano Parkway, Suite 150 Plano, Texas 75074 Phone: (972) 509-2566 Fax: (972) 509-0073 Model: MR853D Compliance Test Report FCC ID.: BCR-853D5 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 2 of 114 Report Summary NTS Plano Accreditation Numbers: FCC: 101741 IC: 46405-4319 File # IC-4319 Applicant: Andrew Corporation 108 Rand Park Drive Garner, North Carolina 27529 Customer Representative: Michael Williamson EUT Description: EUT Description Manufacturer Model Revision Serial Number The EUT is mini repeater system that operates in the North American Mobile Phone System band (824-849 MHz Uplink/869-894 MHz Downlink) Andrew Wireless Systems Gmbh MR853D - - Model: MR853D Compliance Test Report FCC ID.: BCR-853D5 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 3 of 114 Test Summary Deviations from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable Rule Parts A RF Power Output No No No PASS CFR 47, Part 2, Para. 2.1046 CFR 47, Part 22, Para. 22.913 B Modulation Characteristics No No No PASS CFR 47, Part 2, Para. 2.1047 C Occupied Bandwidth No No No PASS CFR 47, Part 2, Para. 2.1049 CFR 47, Part 22, Para. 22.917 D Spurious Emissions at Antenna Terminals No No No PASS CFR 47, Part 2, Para. 2.1051 CFR 47, Part 22, Para. 22.917 E Field Strength of Spurious Radiation No No No PASS CFR 47, Part 2, Para. 2.1053 CFR 47, Part 22, Para. 22.917 F Frequency Stability No No No PASS CFR 47, Part 2, Para. 2.1055 CFR 47, Part 22, Para. 22.355 Test Result: The product presented for testing complied with test requirements as shown above. This is to certify that the preceding report is true and correct to the best of my knowledge. Robert Stevens, Tom Tidwell, Quality Assurance Manager Wireless Test Engineer Model: MR853D Compliance Test Report FCC ID.: BCR-853D5 This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 4 of 114 Table of Contents REPORT SUMMARY ........................................................................................................................................................2 TEST SUMMARY..............................................................................................................................................................3 REGISTER OF REVISIONS ....................................................................................................................…
