BCR-BCEL-FAST819Repeater

U U S S E E R R I I N N S S T T A A L L L L A A T T I I O O N N M M A A N N U U A A L L MN021-01 Page 1 of 28 INDEX 1. Installation & safety requirements.............................................................................................................................3 1.1. Environmental conditions:...........................................................................................................................3 1.2. Installation site features..............................................................................................................................3 1.3. Connection to the power.............................................................................................................................3 1.4. Safety and precautions during the installation.............................................................................................3 1.5. Safety and precautions for lasers................................................................................................................3 1.6. Connector care and cleaning......................................................................................................................4 2. Warning labels..........................................................................................................................................................4 3. Health and safety warnings.......................................................................................................................................5 4. System description....................................................................................................................................................6 4.1. Features......................................................................................................................................................6 4.2. Services......................................................................................................................................................7 4.3. Functional description.................................................................................................................................7 5. Functional description...............................................................................................................................................9 5.1. Block diagram.............................................................................................................................................9 5.2. Down link operations...................................................................................................................................9 5.3. Up link operations.......................................................................................................................................9 5.4. Remote supply..........................................................................................................................................10 5.5. Automatic Gain Control.............................................................................................................................10 6. Alarms and settings................................................................................................................................................10 6.1. Alarm contacts..........................................................................................................................................11 6.2. UL level setting.........................................................................................................................................11 6.3. Software auto-configuration......................................................................................................................11 7. Installation and Cabling...........................................................................................................................................12 7.1. Power supply............................................................................................................................................12 7.2. RF Ports....................................................................................................................................................13 7.3. Optical fibres connection...........................................................................................................................13 8. Troubleshooting......................................................................................................................................................14 9. Part description.......................................................................................................................................................15 10. Functional description...........................................................................................................................................16 10.1. Block diagram...........................................................................................................................................16 10.2. Up link operations.....................................................................................................................................16 10.3. Down link operations.................................................................................................................................16 10.4. Remote supply..........................................................................................................................................16 10.5. Automatic Gain Control.............................................................................................................................16 11. Alarms and settings..............................................................................................................................................17 11.1. Remote unit LEDs...................................................…

Text truncated - open the document above for the full version.

Block Diagram Block Diagram

REQUEST FOR CONFIDENTIALITY Allen Telecom Systems would like to request confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID. No. BCR-BCEL-FAST819 (1) Schematic diagrams contained in electronic file identified as schematics.pdf. It is the opinion of Allen Telecom Systems disclosure of this information would result in significant loss of revenue. This information should be kept confidential for 10 years/months. Only information that is not accessible to the general public may be held confidential. Generally internal and external photos cannot be held confidential. The exception would be if the PC board is potted.

Response to TCB findings Hi David and Davida, Here is the review of the next one: 1. The 731 Form has the FCC ID BCRBCEL-FAST819. Please confirm that you meant BCR- BCEL-FAST819. No new 731 form is needed. Confirmed. 2. There needs to be a statement in the manual addressing RF exposure. The following template may be used: “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the following antenna installation and device operating configurations must be satisfied: A separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). Maximum permissible antenna gain is **** as determined in MPE calculations**** dBi.” Revised manual supplied. 3. MPE prediction is based on 19dBm, yet the Part 22 test report says the product produces 22.8 dBm. The part 24 test report has 21.6dBm. Please provide an updated MPE exhibit and insert the correct antenna gain value in the warning in the manual. Revised MPE predictions supplied. 4. Please tell me where on the product the label will be located. A diagram or photo would be helpful. Photo supplied. Best regards Jon Curtis for: Barry C. Quinlan Certification & Telecom Manager ------------------------------------------------------------------------------- Curtis-Straus LLC Voice: 978.486.8880 x270 527 Great Road Fax: 978.486.8828 Littleton, MA 01460 http://www.curtis-straus.com --------------------------------------------------------------------------------

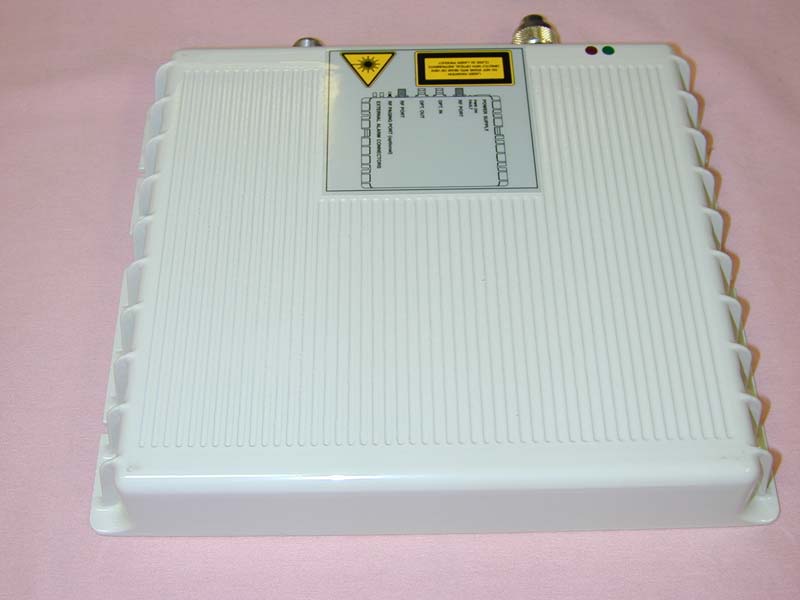

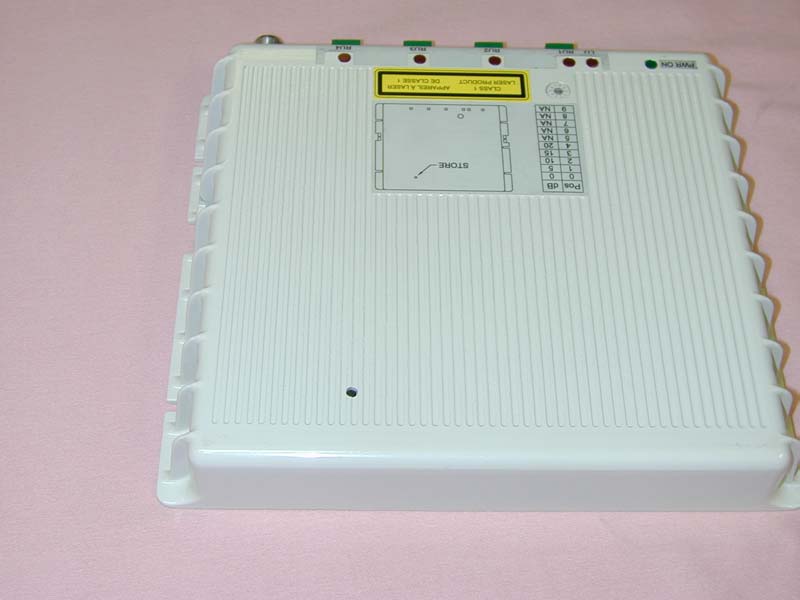

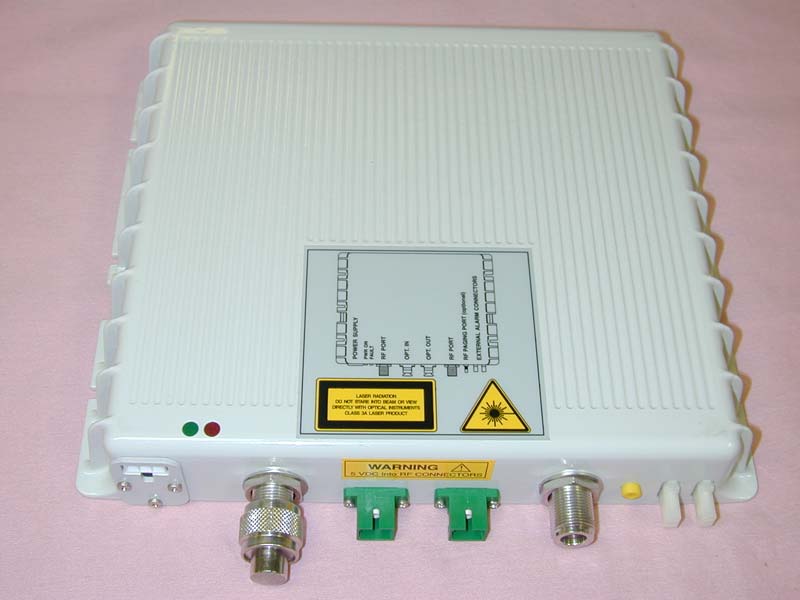

External photos

Internal photos

Tune-up Procedure Step 1: Connect the BriteCell donor unit to the BriteCell remote unit using single mode fiber Step 2: Connect power to both units. Step 3: Input a TX test signal into the donor unit port (N-connector) Step 4: Measure the output power at one of the remote unit ports. This signal will be +7dB gain from the donor. Increase the gain until the spurs are above -13dBm Step 5: Input an RX test signal into the remote unit port. Step 6: Measure the output power at the donor unit port (N-connector). This signal will be +17dB gain from the remote unit. It is a good rule when working with the fibre optic components, to always have available the appropriate screw covers for closure of the optic connectors that are not connected. The intrinsic delicateness of an optic connection must be highlighted. A minimum layer of dust causes a notable increase of the insertion loss, therefore. ÿ Always close the optic connectors that are not connected, with the appropriate screw covers. ÿ Always use compressed gas to remove any deposits in the receptacles before closing them. ÿ Use the appropriate cloths to clean the connectors. ÿ Do not allow the male connector to come into contact with skin or oily surfaces. ÿ Should it be necessary to clean the optic connector, only use pure alcohol.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:22.80(dBm) Maximum peak output power at antenna input terminal:190.5461(mW) Antenna gain(typical):11(dBi) Maximum antenna gain:12.58925(numeric) Prediction distance:20(cm) Prediction frequency:890(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.533333(mW/cm^2) Power density at prediction frequency:0.477233(mW/cm^2) Maximum allowable antenna gain:11.48269(dBi) 2 4R PG S π = G = power gain of the antenna in the direction of interest relative to an isotropic radiator (numeric) (mW/cm^2) (mW/cm^2)

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:21.60(dBm) Maximum peak output power at antenna input terminal:144.544(mW) Antenna gain(typical):15(dBi) Maximum antenna gain:31.62278(numeric) Prediction distance:20(cm) Prediction frequency:1900(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.909348(mW/cm^2) Maximum allowable antenna gain:15.4127(dBi) 2 4R PG S π = G = power gain of the antenna in the direction of interest relative to an isotropic radiator (numeric) (mW/cm^2) (mW/cm^2)

Nemko Test Report: 1L0263RUS1 Applicant: ALLEN TELECOM 140 Vista Center Dr. Forest, Virginia 24551 Equipment Under Test: DUAL BAND BRITECELL FAST SYSTEM (E.U.T.) In Accordance With: FCC Part 22, Subpart H Cellular Band Repeaters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, RF Group Manager Date: 7/16/01 Total Number of Pages: 52 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: DUAL BAND BRITECELL FAST SYSTEM FCC ID: PROJECT NO.: 1L0263RUS1 Page 2 of 52 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS.............................................................................................3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION..........................................................................5 SECTION 3. RF POWER OUTPUT...............................................................................................................7 SECTION 4. OCCUPIED BANDWIDTH.......................................................................................................8 TEST DATA --- OCCUPIED BANDWIDTH – VOICE......................................................................................9 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS.......................................................17 SECTION 6. FIELD STRENGTH OF SPURIOUS......................................................................................32 SECTION 7. FREQUENCY STABILITY....................................................................................................35 SECTION 8. TEST EQUIPMENT LIST......................................................................................................36 ANNEX A - TEST DETAILS......................................................................................................................37 ANNEX B - TEST DIAGRAMS..................................................................................................................46 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: DUAL BAND BRITECELL FAST SYSTEM FCC ID: PROJECT NO.: 1L0263RUS1 Page 3 of 52 Section 1. Summary of Test Results Manufacturer: ALLEN TELECOM Model No.: DUAL BAND BRITECELL FAST SYSTEM Serial No.: NONE General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: DUAL BAND BRITECELL FAST SYSTEM FCC ID: PROJECT NO.: 1L0263RUS1 Page 4 of 52 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. MEAS. RESULT RF Power Output 22.913(a) 500W ERP < 500W ERP Complies Occupied Bandwidth (Voice & SAT) 22.917(c) Mask Plot Complies Occupies Bandwidth (Wideband Data) 22.917(d) Mask Plot Complies Occupied Bandwidth (ST) 22.917(d) Mask Plot Complies Occupied Bandwidth (Digital) None None Plot Complies Spurious Emissions at Antenna Terminals 22.917 -13 dBm < -13dBm Complies Field Strength of Spurious Emissions 22.917 -13 dBm E.I.R.P. < -13dBm Complies Frequency Stability 22.355 1.5 ppm N/A N/A Footnotes: E.U.T is an F1 to F1 repeater. Frequency stability was not measured Measurement uncertainty for each test configuration is expressed to 95% probability. . Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: DUAL BAND BRITECELL FAST SYSTEM FCC ID: PROJECT NO.: 1L0263RUS1 Page 5 of 52 Section 2. General Equipment Specification Supply Voltage Input: - 48 VDC Frequency Range: Downlink: 869 – 894 MHz Frequency Range: Uplink: 824 – 849 MHz CDMA GSM NADC CDPD AMPS (F9W) (GXW) (DXW) (F9W) (F8W, F1D) Type of Modulation and Designator: Output Impedance: 50 ohms Downlink: 1 Carrier 19 dBm RF Output (Rated): 2 Carriers 14 dBm 3 Carriers 12 dBm 4 Carriers 11 dBm Frequency Translation: F1-F1 F1-F2 N/A Software Duplexer Change Fullband Coverage Band Selection: Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: DUAL BAND BRITECELL FAST SYSTEM FCC ID: PROJECT NO.: 1L0263RUS1 Page 6 of 52 Description of Operation BRITECELL™ FAST is a plug and play BriteCell kit, offering the most suitable solution for indoor coverage in small areas, thanks to its compactness and absolute easiness to install. The package includes up to four compact RF remote transceivers (TFAF), driven by one local distribution unit (TFLF). It is available in various frequency ranges (from 800MHz up to 2200 MHz), as a single band product. It is aimed to satisfy the requirements of 2 nd and 3 rd generation mobile networks for simple coverage needs. The TFLF local unit has been properly designed into a stand-alone mechanical case, including all required ancillary and support functions. The kit includes also four standard TFAF Remote units and a compound fiber-copper cable to connect them to local unit. The installed units can be lately kept also in case of system expansion to a fully modular BriteCell configuration, both single band or dual band, with a minimum setting effort. Both TFL and TFA can be optionally hosted into TKA mounting kits, allowing outdoor installation if required. System Diagram Nemko Dallas FCC PART 22, …

Text truncated - open the document above for the full version.

RF DC Currents & Voltages RF power output 0.1W for all modulation schemes DC voltage -36 to -72 VDC Remote Current consumption @-48V = less than .35A Donor Current consumption @-48V = less than .5A When donor is powering the remotes total current consumption = .5+4*.35 = 1.9A @-48V

Test setup photos
