BCR-BCEL-PCSBRITE CELL PCS REPEATER

OPERATIVE ANDOPERATIVE AND MAINTENANCEMAINTENANCE HANDBOOKHANDBOOK Copyright 1998Tekmar Sistemi S.r.l. All Rights Reserved Rel 00 08/04/98 BriteCell Dual Band Operative and maintenance Handbook Tekmar Sistemi S.r.l. keeps the right of any change or improvement without prior notice. Pag.2/15 SYSTEM: BRITECELL Class 1 (High Dynamic Range) OPERATING BAND: Rel.00-980408 ® AMPS 800 + DCS 1800 ® AMPS 800 + PCS 1900 ® GSM 900 + DCS 1800 ® GSM 900 + PCS 1900 INDEX 1. DECLINE OF RESPONSIBILITY....................................................................................3 2. CONFORMITY DECLARATION.....................................................................................4 3. INSTALLATION CONDITIONS.......................................................................................5 4. ASSISTANCE AND WARRANTY CONDITIONS............................................................6 5. WARNING LABELS........................................................................................................7 6. SYSTEM THEORY.........................................................................................................8 7. TECHNICAL DETAILS...................................................................................................9 7.1 OPTICAL CONNECTORS.........................................................................................9 7.2 LOCAL INTERFACE..................................................................................................9 7.2.1 6HE SUBRACK TPR912.............................................................................................................9 7.2.2 PLUG IN LOCAL INTERFACE MODULE....................................................................................9 7.2.3 STANDALONE LOCAL INTERFACE UNIT...............................................................................10 7.2.4 TFL BSI....................................................................................................................................11 7.2.5 CROSSBAND COUPLER TLC2501..........................................................................................11 7.2.6 2-WAYS RF COMBINER TLC 2502/TFL-UDD..........................................................................11 7.2.7 3-WAYS RF COMBINER TLC 2503..........................................................................................11 7.2.8 PAGER DL COMBINER TLC-DB..............................................................................................11 7.3 REMOTE RF OPTICAL TRANSCEIVER.................................................................11 7.3.1 PAGER REMOTE PANEL ACTIVE ANTENNA TPA320...........................................................12 7.3.2 MINIPANEL ANTENNA TPA302...............................................................................................12 7.3.3 FLAT PANEL MULTIBAND ANTENNA TPA 3020.....................................................................12 7.3.4 DOWNLINK AGC.....................................................................................................................12 7.3.5 UPLINK GAIN SETTING...........................................................................................................12 7.3.6 POWER SUPPLY.....................................................................................................................13 8. INSTALLATION HINTS................................................................................................14 8.1 INSTALLATION OF LOCAL INTERFACE...............................................................14 8.2 INSTALLATION OF REMOTE RF OPTICAL TRANSCEIVER................................14 9. POWER LEVELS..........................................................................................................14 Rel 00 08/04/98 BriteCell Dual Band Operative and maintenance Handbook Tekmar Sistemi S.r.l. keeps the right of any change or improvement without prior notice. Pag.3/15 1. DECLINE OF RESPONSIBILITY This handbook provides all necessary information about the device, namely: • installation • usage and possible problem solving • maintenance Tekmar Sistemi advises the accurate reading of this handbook and the respect of the operating instructions given here below, in order to get all necessary information for a correct installation, usage and maintenance of the device. Tekmar Sistemi declines all responsibilities with respect to any possible damage due to an inappropriate usage of this handbook, or to a non-compliance of the rules set up in this handbook. Rel 00 08/04/98 BriteCell Dual Band Operative and maintenance Handbook Tekmar Sistemi S.r.l. keeps the right of any change or improvement without prior notice. Pag.4/15 2. CONFORMITY DECLARATION Tekmar Sistemi S.r.l. DECLARES : that the device related to this usage and maintenance handbook comply with the CE mark requirements, according to the Low Tension Rules 73/23/CEE and Electro-magnetic compatibility Rules 89/392/CEE , and particularly with the following laws and rules : EN Rules IEC Rules Tekmar Sistemi will carefully retain the technical file related to the device design, together with this usage and maintenance handbook, for a minimum time span of 10 years. Signature : Legal Representative of Tekmar Sistemi S.r.l. Rel 00 08/04/98 BriteCell Dual Band Operative and maintenance Handbook Tekmar Sistemi S.r.l. keeps the right of any change or improvement without prior notice. Pag.5/15 3. INSTALLATION CONDITIONS Environmental Conditions : Temperature : 5-40°C Chemical materials : Do not install in corrosive atmosphere or environments, in any environment with explosive materials or with inflammable substances ; Installation site features: The installation of the rack has to be carried out by proper and competent staff. Besides, the system is supposed to be used for indoor installation. The rack has to be positioned in indoor environments, dry and suitable for this purpose, i.e.: • no explosion risks…

Text truncated - open the document above for the full version.

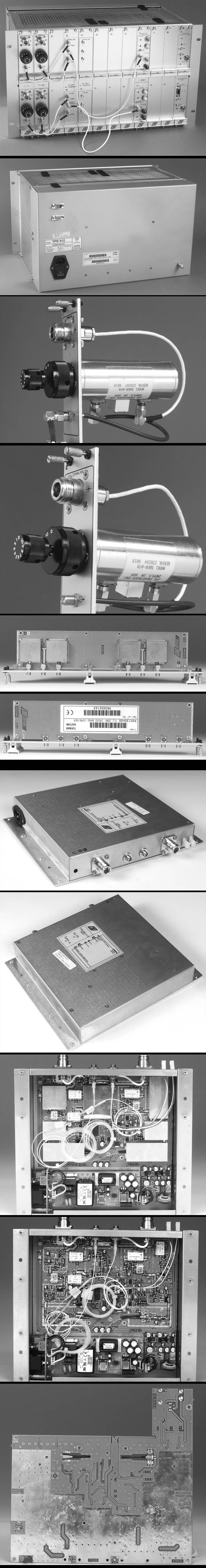

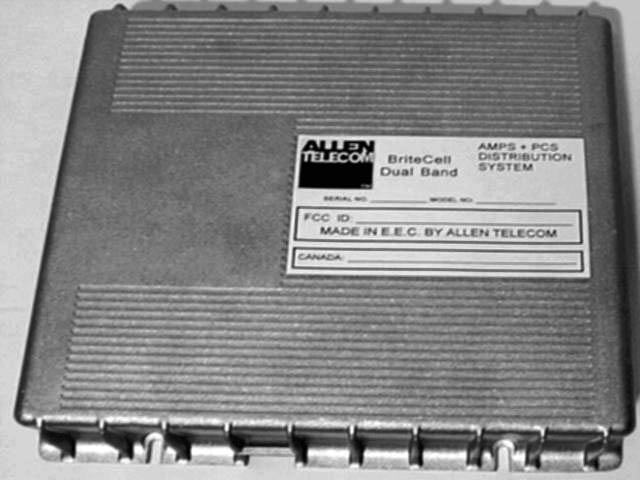

BCR-BCEL-PCS

DUAL BAND DRAFT DF 096 Rel. 01 April 98Pag.1/7 Tekmar Sistemi s.r.l. All data and information are Tekmar Sistemi S.r.l. proprietary. All data and information herewith provided are believed to be accurate and reliable. Tekmar Sistemi s.r.l. keeps the right of any change or improvement without prior notice. •• Indoor microcoverage •• Up to 1.5 Km remotable •• Wide dynamic range •• Virtually transparent, wideband •• 2 systems ⇒ GSM+DCS ⇒ GSM+PCS ⇒ AMPS+PCS ⇒ AMPS+DCS •• Very small size and weight, compact design •• On-board power supply •• Low power consumption •• Easy to install, wall or ceiling mounting •• Minimum visual impact •• Individual remote alarms •• Dual antenna connection DRAFT DF 096 Rel. 01 April 98 DUAL BAND ACTIVE INDOOR COVERAGE SYSTEM, FIBER OPTIC REMOTELY INTERFACED, FOR ANALOG AND DIGITAL MOBILE TELEPHONE STANDARDS is an RF distribution system for two cellular systems; it is based on TFA compact, low profile remote units, which include a fiber optic to RF interface and power supply; it features an extremely flexible coverage design, with minimum optical impact and installation effort. TFA are fiber optic remotized ,each realizing a link, jointly with the compact local interface TFL or with modular upgrade TFL. Both local interfaces can support and continuously monitor up to 4 remote TFA; in case of failure, a local alarm appears at a specific output in the local interface. Up to 6 modular TFL can be housed in TPR 912, which is a 19" subrack, including power supply, allowing a possible 24 TFA distribution network, when it is at its maximum configuration.TFA remote units offer maximum coverage design flexibility, because of its small size and low power consumption. TFA can be powered by locally available power supply or by low-voltage AC or DC source; this latter option makes it possible to use a mixed fiber/copper cable to power supply the TFA remote units from the same location of TFL local interface. DUAL BAND DRAFT DF 096 Rel. 01 April 98Pag.2/7 Tekmar Sistemi s.r.l. All data and information are Tekmar Sistemi S.r.l. proprietary. All data and information herewith provided are believed to be accurate and reliable. Tekmar Sistemi s.r.l. keeps the right of any change or improvement without prior notice. TFA REMOTE UNIT SPECIFICATIONS OPERATING FREQUENCY BAND See Table 1 RF INTERFACE Dual RF port ConnectorsSMA-F standard (N-F on request) Impedance 50 Ω Return loss> 10 dB FIBER OPTIC INTERFACE Wavelenght1310 ± -10nm SourceLaser, Class 1 (per EN 60825) ReceiverPIN photodiode Allowed optical loss< 3dB Allowed backreflection> -36dB Fiber optic typeSingle mode, 9.5/125um ConnectorsFC-APC MECHANICAL & ENVIRONMENTAL Dimensions240h x 200w x 36d Power supply84 to 264Vac, 18VA (universal mains version) 15 to 24 Vdc/ac, 1.05A (low voltage version) Local alarmOptical power fault or PA Bias fault Operating temperature range+5 to +40 Centigrades, as per ETS 300 019-1-3, Class 3.1 FinishingGlazed stainless steel DUAL BAND DRAFT DF 096 Rel. 01 April 98Pag.3/7 Tekmar Sistemi s.r.l. All data and information are Tekmar Sistemi S.r.l. proprietary. All data and information herewith provided are believed to be accurate and reliable. Tekmar Sistemi s.r.l. keeps the right of any change or improvement without prior notice. TFL LOCAL INTERFACE SPECIFICATION OPERATING FREQUENCY BANDSee table 1 FIBER OPTIC INTERFACE Number of remote interfacesUp to 4 Wavelenght1310 ± 10nm SourceLaser Class 1 (per EN60825) Receiver (1 of 4)PIN photodiode, RF amplifier Allowed optical loss< 3dB Allowed backreflection< -36dB Fiber optic typeSingle mode, 9.5 / 125um ConnectorsFC-APC RF INTERFACE ConnectorsSMA-F Impedance 50Ω Return loss> 10dB RF input level (Meeting ETSI level spurious ) < 3dBm/carrier, 2 carriers <-4dBm/carrier, 10 carriers MECHANICAL & ENVIRONMENTAL Dimensions6HE slot (Modular plug in version) 1HE x 19” x 240mm subrack (Stand alone version) Operating temperature range+5 to +40 Centigrades, as per ETS 300 019-1-3, Class3.1 Power supply84 to 264 Vac, 50-60 Hz, 30VA max. (stand alone version) Internal DC bus, 12 W max (modular plug-in version) DUAL BAND DRAFT DF 096 Rel. 01 April 98Pag.4/7 Tekmar Sistemi s.r.l. All data and information are Tekmar Sistemi S.r.l. proprietary. All data and information herewith provided are believed to be accurate and reliable. Tekmar Sistemi s.r.l. keeps the right of any change or improvement without prior notice. RF SYSTEM PERFORMANCE (TFA in conjunction with 1/4 TFL) OPERATING FREQUENCY BANDSee table 1 Frequency response (UL & DL)± 2dB within the band Frequency translationnone DOWNLINK RF power gain7dB Output power> 20dBm at 1 dB compression > 10dBm/carrier, 2 carriers > 2dBm/carrier, 20 carriers Spurious and intermodulation (not met at 1 dB compr.) < -36 dBm, f ≤ 1GHz < -30 dBm, f ≥ 1GHz Wideband noise< -120dBm / Hz UPLINK RF power gain 17 ± 1dB RF presettable gain reduction (PGR)0dB5dB10dB Noise figure (PGR at 0dB)13 dB Input ICP3 (PGR at 0dB)0 dBm Blocking at 3dB C/N degradation, 200KHz (PGR at 0dB) >-18 dBm Spurious free dynamic range> 72dB, 200 KHz BW > 77 dB, BW = 30 KHz DUAL BAND DRAFT DF 096 Rel. 01 April 98Pag.5/7 Tekmar Sistemi s.r.l. All data and information are Tekmar Sistemi S.r.l. proprietary. All data and information herewith provided are believed to be accurate and reliable. Tekmar Sistemi s.r.l. keeps the right of any change or improvement without prior notice. ORDERING INFORMATION - PART NUMBERS Local interface : TFL ab4H-c afrequency band :21 - GSM+DCS 22 - GSM+PCS 23 - AMPS+PCS 24 - AMPS+DCS btype :0 - modular, plug in 1 - stand alone, mains power supply 2 - stand alone, dc power supply coptical connector :1 - DIN-APC 2 - FC-APC (recommended) 3 - EC-APC 4 - SC-APC DUAL BAND DRAFT DF 096 Rel. 01 April 98Pag.6/7 Tekmar Sistemi s.r.l. All data and information are Tekmar Sistemi S.r.l. proprietary. All data and information herewith provided are believed to be accurate and reliable. Tekmar Sistemi s.r.l. keeps the right of any change or improvement wit…

Text truncated - open the document above for the full version.

Master: ktlPT24RPTR Date: October 8, 1998 KTL Test Report:8R01059 Applicant:Allen Telecom Group 140 Vista Centre Drive Forest, Virginia 24551 Equipment Under Test:Brite Cell PCS (E.U.T.) FCC ID:BCR-BCEL-PCS In Accordance With:FCC Part 24, Subpart E Broadband PCS Repeaters Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: _____________________________ T. Tidwell, Wireless Group Manager Date:_____________________________ Total Number of Pages:61 KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R01059 EQUIPMENT: Brite Cell PCS FCC ID: BCR-BCEL-PCS Page 2 of 51 Table of Contents Section 1. Summary of Test Results General Summary of Test Data Section 2. General Equipment Specification Specifications Description of Modifications for Class II Permissive Change Modifications Made During Testing Theory of Operation System Diagram Section 3. RF Power Output Test Results Measurement Data Power Over Bandwidth Graphs Section 4. Occupied Bandwidth Occupied Bandwidth (CDMA) Test Results CDMA Input and Output Graphs Occupied Bandwidth (GSM) Test Results GSM Input and Output Graphs Occupied Bandwidth (NADC) Test Results NADC Input and Output Graphs Section 5. Spurious Emissions at Antenna Terminals Test Results Test Data Graphs Section 6. Field Strength of Spurious Test Results Test Data Test Data - Radiated Emissions - Uplink Test Data - Radiated Emissions - Downlink Photographs of Test Setup Pre-Scan Data KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R01059 EQUIPMENT: Brite Cell PCS FCC ID: BCR-BCEL-PCS Page 3 of 51 Table of Contents, continued Section 7. Frequency Stability Test Results Measurement Data Graphs Section 8. Test Equipment List Annex A - Test Methodologies RF Power Output Occupied Bandwidth (CDMA) Occupied Bandwidth (GSM) Occupied Bandwidth (NADC) Spurious Emission at Antenna Terminals Field Strength of Spurious Frequency Stability Annex B - Test Diagrams R.F. Power Output Occupied Bandwidth Spurious Emissions at Antenna Terminals Field Strength of Spurious Frequency Stability KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R01059 EQUIPMENT: Brite Cell PCS FCC ID: BCR-BCEL-PCS Page 4 of 51 Section 1.Summary of Test Results Manufacturer:Allen Telecom Group Model No.:Brite Cell PCS Serial No.:982701926 General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit TNB Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. None See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist TECHNICAL REVIEW:_____________________________ DATE:____________________ KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R01059 EQUIPMENT: Brite Cell PCS FCC ID: BCR-BCEL-PCS Page 5 of 51 Summary Of Test Data NAME OF TESTPARA. NO.SPEC.MEAS.RESULT RF Power Output24.232100W0.063 WComplies Occupied Bandwidth (CDMA)24.238Input/OutputPlotComplies Occupied Bandwidth (GSM)24.238Input/OutputPlotComplies Occupied Bandwidth (NADC)24.238Input/OutputPlotComplies Spurious Emissions at Antenna Terminals 24.238(a)-13 dBm-13.0Complies Field Strength of Spurious Emissions24.238(a)-13 dBm E.I.R.P. -19.6 dBmComplies Frequency Stability24.235N/AN/A Footnotes For N/A’s: Test Conditions:Temperature: 18 °C Humidity:25 % KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R01059 EQUIPMENT: Brite Cell PCS FCC ID: BCR-BCEL-PCS Page 6 of 51 Section 2.General Equipment Specification Supply Voltage Input: 120 VAC, 60 Hz Frequency Range:Downlink: 1930 – 1990 GHz Frequency Range:Uplink: Not Tested Type of Modulation and CDMAGSMNADC Designator: (F9W)(GXW)(DXW) AGC Threshold: Not Applicable Output Impedance: 50 ohm Gain: 4.5 dB Nominal Max Input Power: 16.0 dBm RF Output (Rated):Single: 15.0 dBm Composite: 18.0 dBm / 2 Channel Frequency Translation: F1-F1F1-F2N/A Band Selection: SoftwareDuplexer Change Fullband Coverage KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R01059 EQUIPMENT: Brite Cell PCS FCC ID: BCR-BCEL-PCS Page 7 of 51 Description of Modifications For Class II Permissive Change KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R01059 EQUIPMENT: Brite Cell PCS FCC ID: BCR-BCEL-PCS Page 8 of 51 Modifications Made During Testing KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R01059 EQUIPMENT: Brite Cell PCS FCC ID: BCR-BCEL-PCS Page 9 of 51 Theory of Operation The Brite Cell Dual Band is an active indoor coverage system incorporating fibre optic and RF technologies. The device operates in the 800 MHz cell band and the 1990 MHz band. It features dual RF outputs and can operate from a 120 VAC line or battery. This system is hardwired to the base station and only re-transmits the downlink signal. System Diagram E O O E O E O E O E E O E O E O E O ALARMS LOCAL INTERFACE REMOTE FROM BTS Tx To BTS Rx KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R01059 EQUIPMENT: Brite Cell PCS FCC ID: BCR-BCEL-PCS Page 10 of 51 Section 3.RF Power Output NAME OF TEST: RF Power OutputPARA. NO.: 2.985 TE…
