Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 800MHz 1900MHz Maximum peak output power at antenna input terminal:37.0037.00(dBm) Maximum peak output power at antenna input terminal:5011.872 5011.8723(mW) Antenna gain(typical):00(dBi) Maximum antenna gain:11(numeric) Prediction distance:3535(cm) Prediction frequency:8501900(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.5333331(mW/cm^2) Power density at prediction frequency:0.3255770.32558(mW/cm^2) Multiple transmitter Calculation: (Sum of all fractional Contributions) 0.61046+0.32558= 0.93603 <1.0 2 4R PG S π =

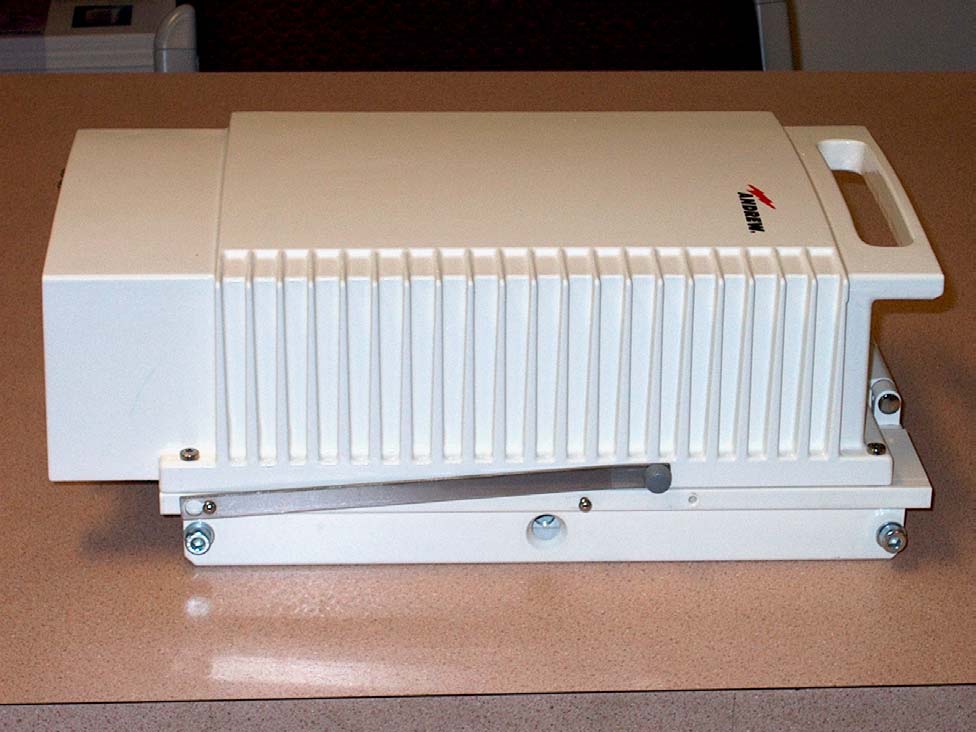

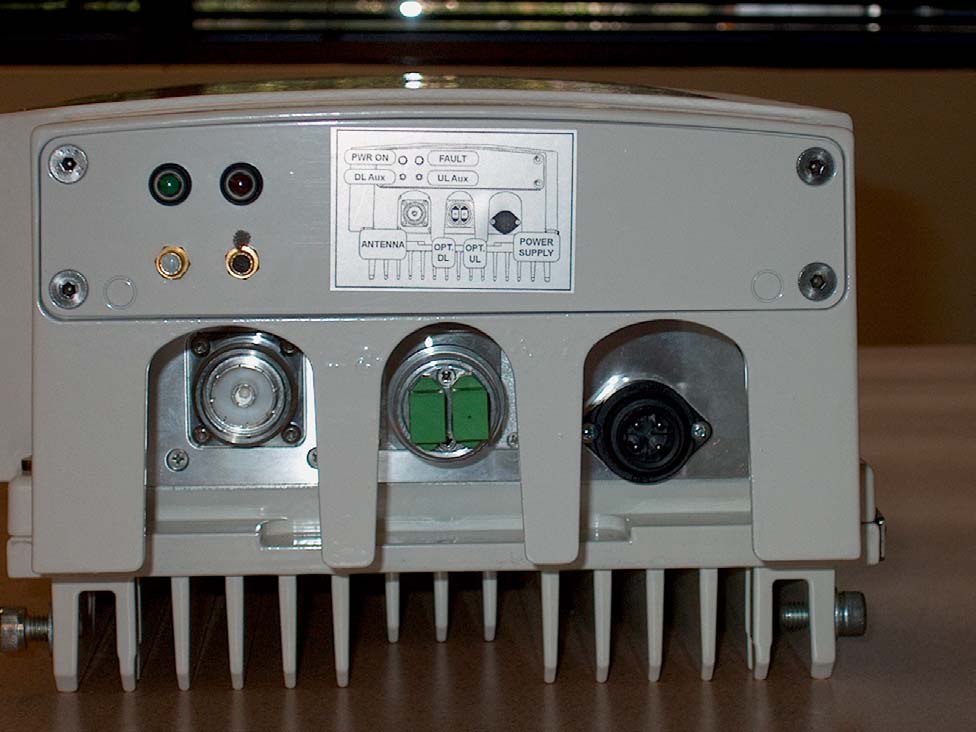

Nemko Test Report: 4L0570RUS1 Applicant: Andrew Corporation 108 Rand Park Drive Garner, NC 27529 Equipment Under Test: TFAH 85/19 (E.U.T.) In Accordance With: FCC Part 22, Subpart H Cellular Band Repeaters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: 9/1/04 Total Number of Pages: 53 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS1 Page 2 of 53 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS ............................................................................................. 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION.......................................................................... 5 SECTION 3. RF POWER OUTPUT ................................................................................................................7 SECTION 4. OCCUPIED BANDWIDTH ....................................................................................................... 8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS...................................................... 19 SECTION 6. FIELD STRENGTH OF SPURIOUS ...................................................................................... 35 SECTION 7. TEST EQUIPMENT LIST ....................................................................................................... 37 ANNEX A - TEST DETAILS............................................................................................................................. 38 ANNEX B - TEST DIAGRAMS ........................................................................................................................ 47 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS1 Page 3 of 53 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAH 85/19 Serial No.: 043003041 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS1 Page 4 of 53 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 22.913(a) 500W ERP Complies Occupied Bandwidth 22.917(c) Input/Output Complies Spurious Emissions at Antenna Terminals 22.917 -13 dBm Complies Field Strength of Spurious Emissions 22.917 -13 dBm E.I.R.P. Complies Frequency Stability 22.355 1.5 ppm NA Footnotes: Measurement uncertainty for each test configuration is expressed to 95% probability. . Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS1 Page 5 of 53 Section 2. General Equipment Specification Supply Voltage Input: 115 Vac Frequency Range: Downlink: 869 – 894 MHz Frequency Range: Uplink: NA CDMA GSM NADC EDGE AMPS (F9W) (GXW) (D7W) (D7W) (F8W, F1D) Type of Modulation and Designator: Output Impedance: 50 ohms RF Output (Rated): Downlink: Modulation 1 Carrier 2 Carriers Analog 37 27 CDMA 31 24.5 GSM 37 27 EDGE 33.5 25 TDMA 34.5 25.5 Frequency Translation: F1-F1 F1-F2 N/A Software Duplexer Change Fullband Coverage Band Selection: Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS1 Page 6 of 53 Description of Operation TFAH 85/19 is a fiber based tri-band repeater operating in the 800 MHz SMR, the 800 MHz cellular and the 1900 MHz PCS bands System Diagram TFLN Britecell Unit (EUT) Fiber RF Out RF AC AC Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS1 Page 7 of 53 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: David Light DATE: 8/30/04 Test Results: Complies. Test Data: Direction Modulation Type Per Channel Power Output (dBm) Composite Power Output (dBm) Downlink AMPS 27 30 Downlink CDMA 24.5 27.5 Downlink GSM 27 30 Downlink NADC 25 28 Downlink CDPD 25.5 28.5 Equipment Used: 1036-1065-1604-1629 Measurement Uncertainty: +/- 1.7dB Temperature: 25 °C Relative Humidity: 40 % Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS1 Page 8 of 53 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 8/30/04 Test Results: Complies. Test Data: See attached plots Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS1 Page 9 of 53 Test Data – Occupied Bandwidth Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 2 CompleteX Job No.:4L0570Date:8/30/2004Preliminary: Specification:PT22Temperature(°C):25 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: Refer to plotsMeasurement Detector Type:PeakVBW: Refer to plots Distance: NAm Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1629 Filter: Cable #2: Receiver:1036Cable #3: Attenuator #11065Cable #4: Attenuator #2:1604Mixer: Additional equipment use…
Text truncated - open the document above for the full version.
Nemko Test Report No.: 4L0570RUS2 Applicant: Andrew Corporation 108 Rand Park Drive Garner, NC 27529 Equipment Under Test: TFAH 85/19 In Accordance With: FCC Part 24, Subpart E Broadband PCS Repeaters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: 1 September, 2004 Total Number of Pages: 43 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS2 Page 2 of 43 Table of Contents Section 1. Summary of Test Results.................................................................... 3 Section 2. General Equipment Specification ...................................................... 5 Section 3. RF Power Output ................................................................................ 7 Section 4. Occupied Bandwidth .......................................................................... 8 Section 5. Spurious Emissions at Antenna Terminals ......................................17 Section 6. Field Strength of Spurious ...............................................................30 Section 7. Test Equipment List .........................................................................33 ANNEX A - TEST DETAILS................................................................................34 ANNEX B - TEST DIAGRAMS ...........................................................................40 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS2 Page 3 of 43 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAH 85/19 Serial No.: 043003041 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS2 Page 4 of 43 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 24.232 100W Complies Occupied Bandwidth 24.238 Input/Output Complies Spurious Emissions at Antenna Terminals 24.238(a)-13 dBm Complies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. Complies Frequency Stability 24.235 NA Footnotes: (1) Modulation characteristics were not tested since the E.U.T. processes but does not produce a modulated waveform. Measurement uncertainty for each test configuration is expressed to 95% probability. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS2 Page 5 of 43 Section 2. General Equipment Specification Supply Voltage Input: 115 Vac Frequency Bands: Downlink: Block A : 1930 – 1945 MHz Block D : 1945 – 1950 MHz Block B : 1950 – 1965 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block C : 1975 – 1990 MHz Frequency Bands: Uplink: NA CDMA GSM NADC EDGE (F9W) (G7W) (DXW) (G7W) Type of Modulation and Designator: Output Impedance: 50 ohms Modulation 1 Carrier 2 Carriers RF Output (Rated dBm/carrier): DL CDMA 31 24.5 GSM 37 27 EDGE 33.5 25 TDMA 34.5 25.5 F1-F1 F1-F2 N/A Frequency Translation: Software Duplexer Fullband Band Selection: Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS2 Page 6 of 43 Description of Operation TFAH 85/19 is a fiber based dual band repeater operating in the 800 MHz cellular and the 1900 MHz PCS bands System Diagram TFLN Britecell Unit (EUT) Fiber RF Out RFAC AC Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS2 Page 7 of 43 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: David Light DATE: 8/30/04 Test Results: Complies. Measurement Data: Direction Modulation Type Per Channel Power Output (dBm) Composite Power Output (dBm) Downlink CDMA 24.5 27.5 Downlink GSM 27 30 Downlink NADC 25 28 Downlink CDPD 25.5 28.8 Equipment Used: 1036-1065-1604-1629 Measurement Uncertainty: +/- 1.7 dB Temperature: 25 °C Relative Humidity: 40 % Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS2 Page 8 of 43 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 8/30/04 Test Results: Complies. Test Data: See attached plot(s). Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAH 85/19 Test Report No.: 4L0570RUS2 Page 9 of 43 Test Data – Occupied Bandwidth Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 2 CompleteX Job No.:4L0570Date:8/30/2004Preliminary: Specification:PT24Temperature(°C):25 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: 30 kHzMeasurement Detector Type:PeakVBW: 30 kHz Distance: NAm Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1629 Filter: Cable #2: Receiver:1036Cable #3: Attenuator #11065Cable #4: Attenuator #2:1604Mixer: Additional equipment used: Measurement Uncertainty:+/-1.7 dB Notes: CDMA OUTPUT MAX POWER 30.7 dBm Occupied Bandwidth PCS…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 22H | 869 MHz - 894 MHz | 2.24 W | G7W | Amp |

ION-E
Equipment Class
B2I - Part 20 Industrial Booster (CMRS)
ION-M17P/26 EU
Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
ION-B TFAH-US7/17
Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
ION-B TFAH-US4B
Equipment Class
PCB - PCS Licensed Transmitter
ION-B TFBM17 FIBER OPTIC DISTRIBUTION REMOTE UNIT
Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
