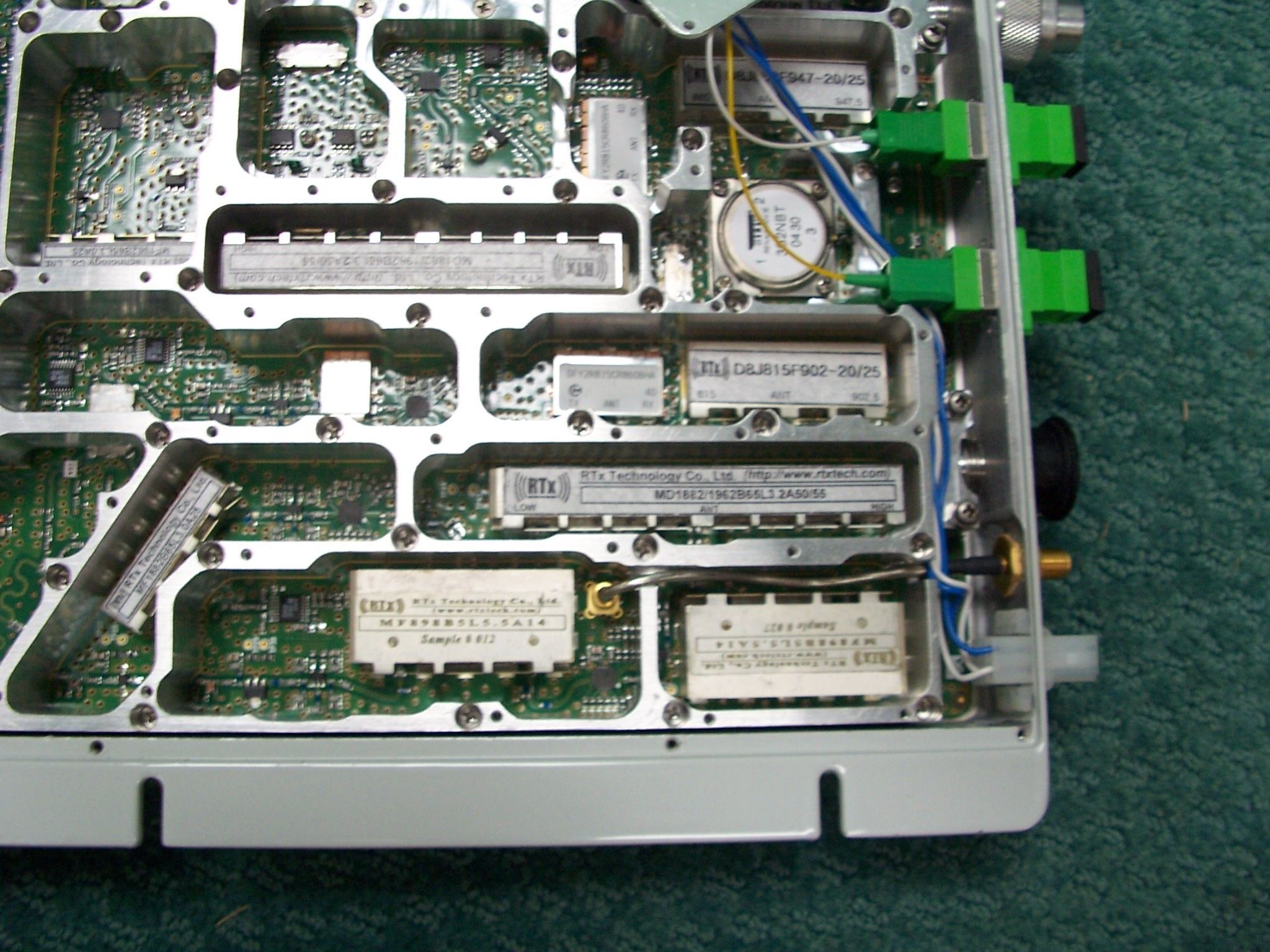

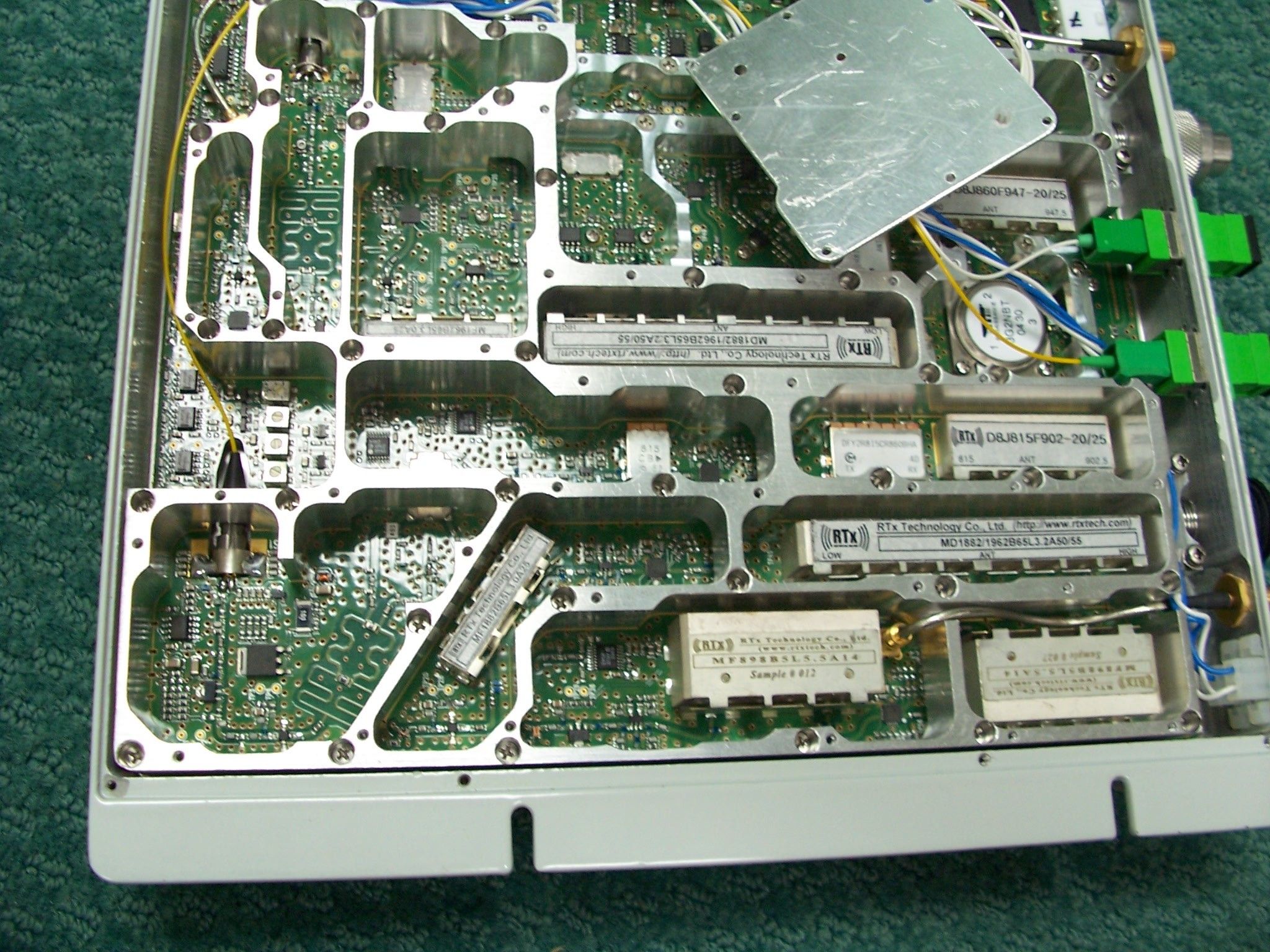

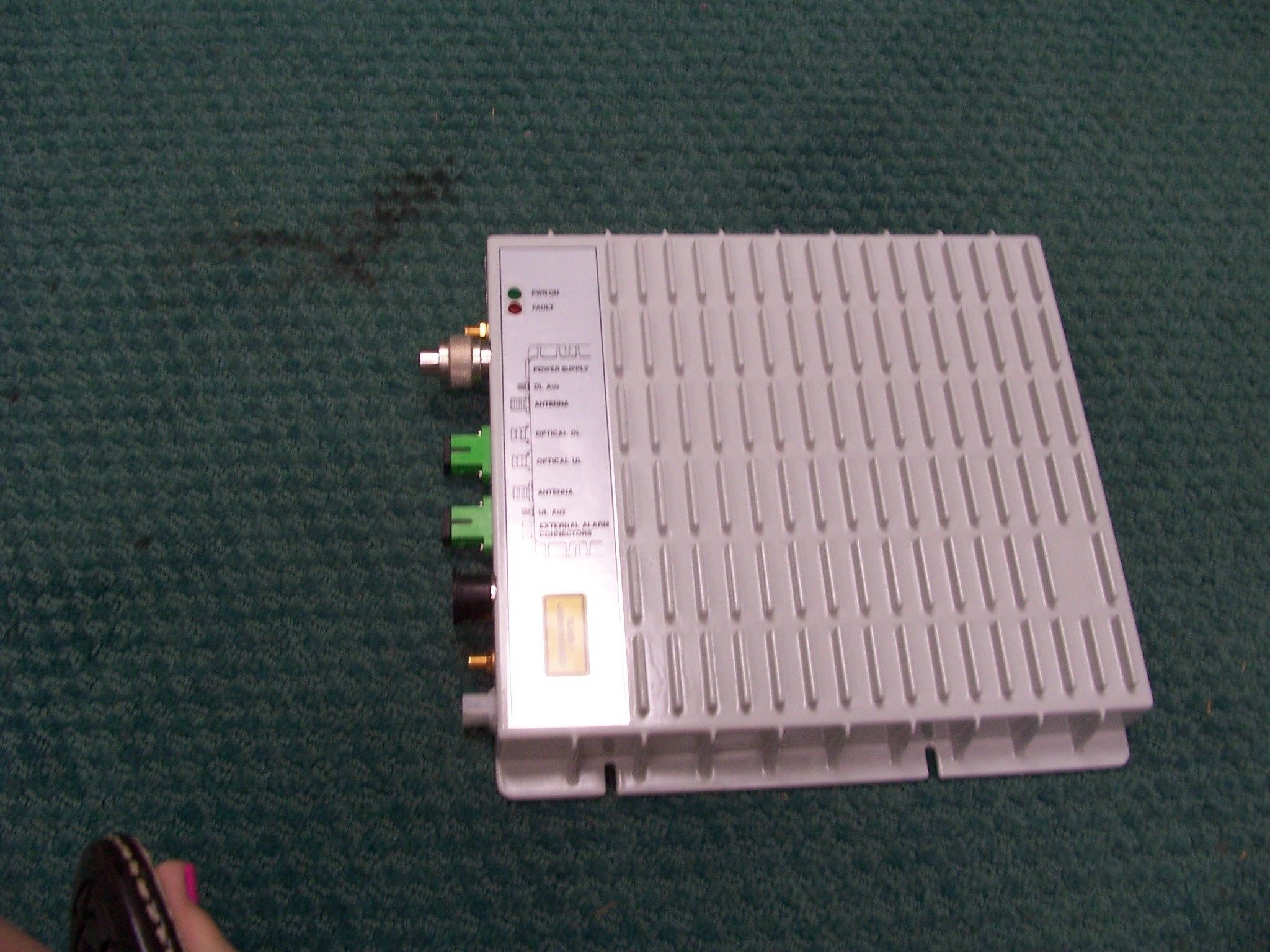

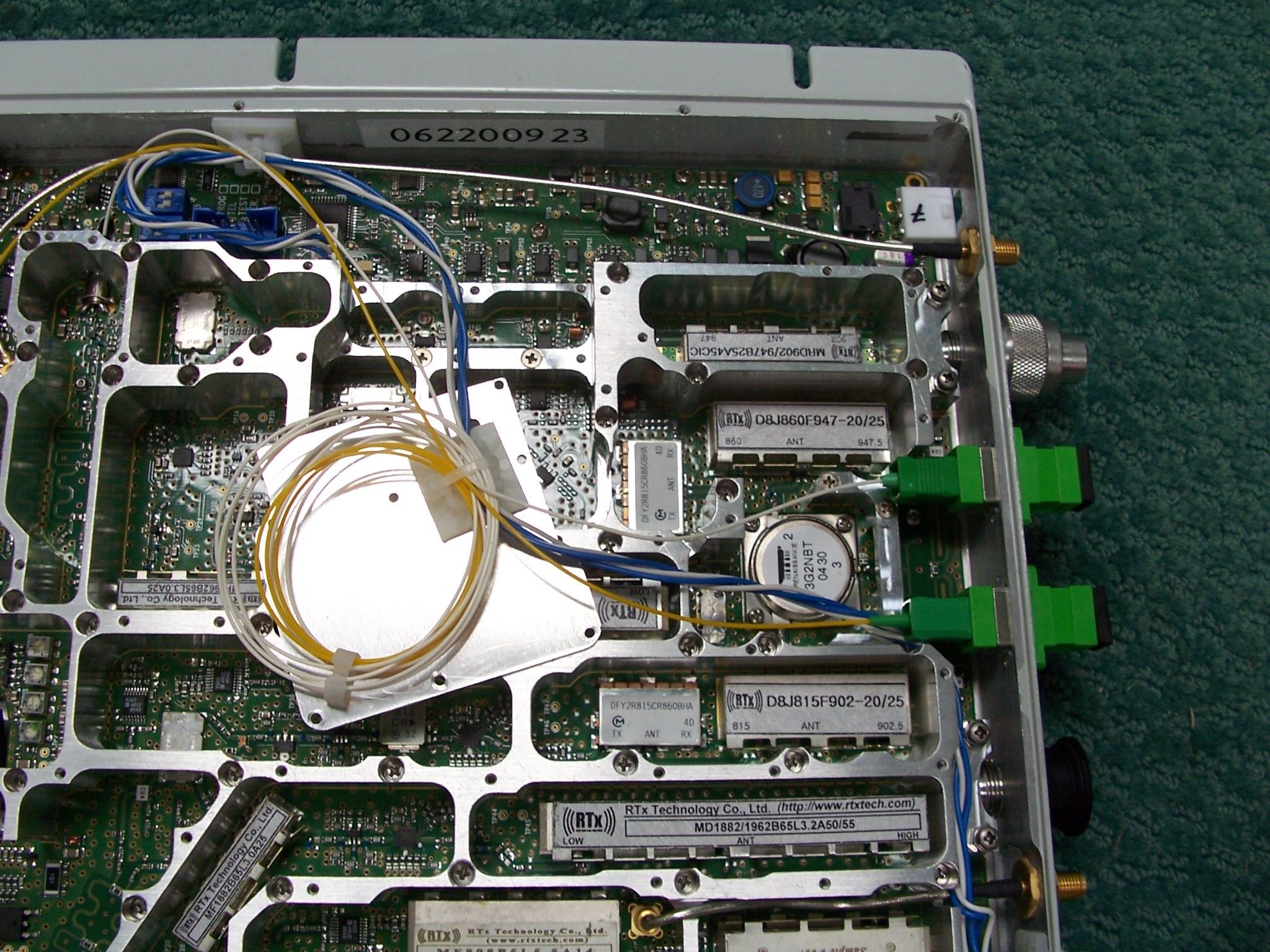

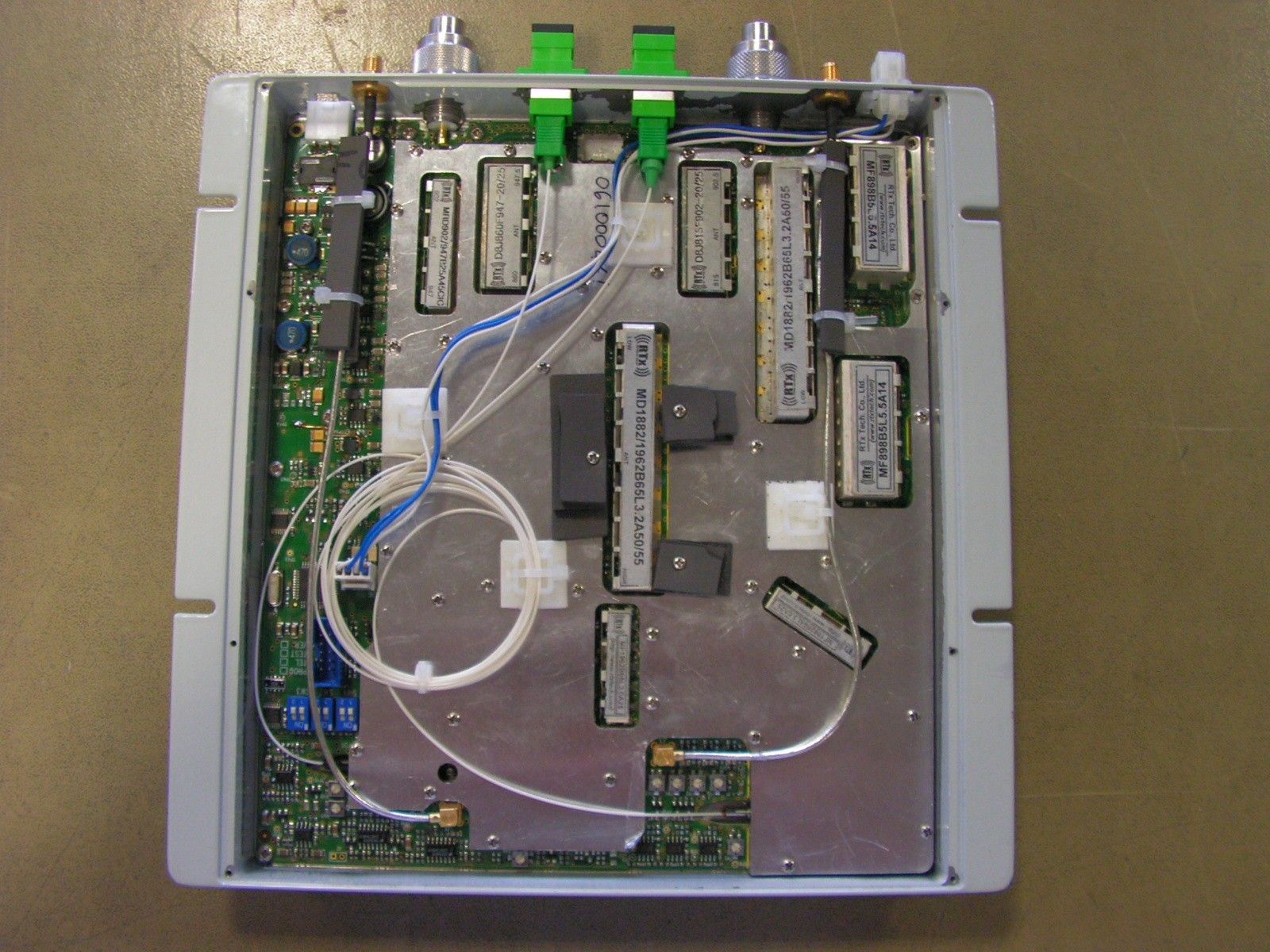

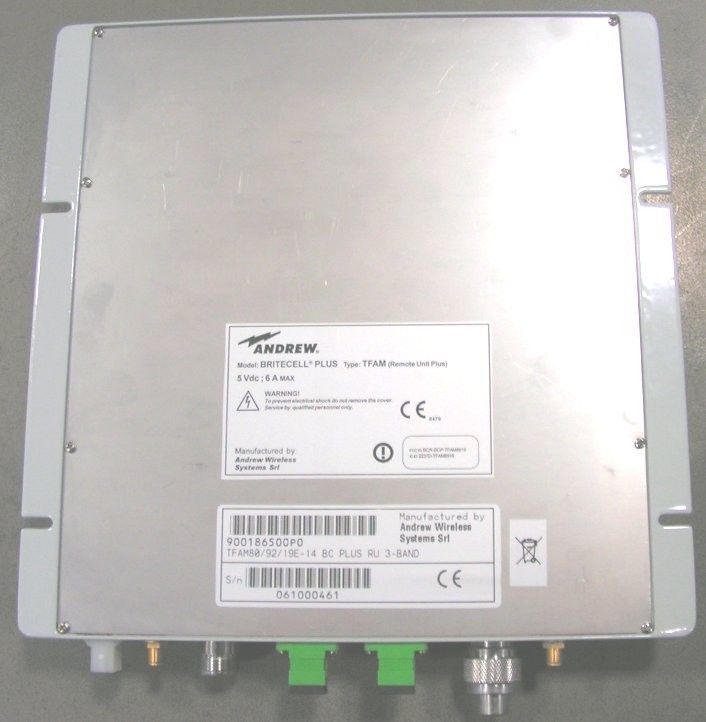

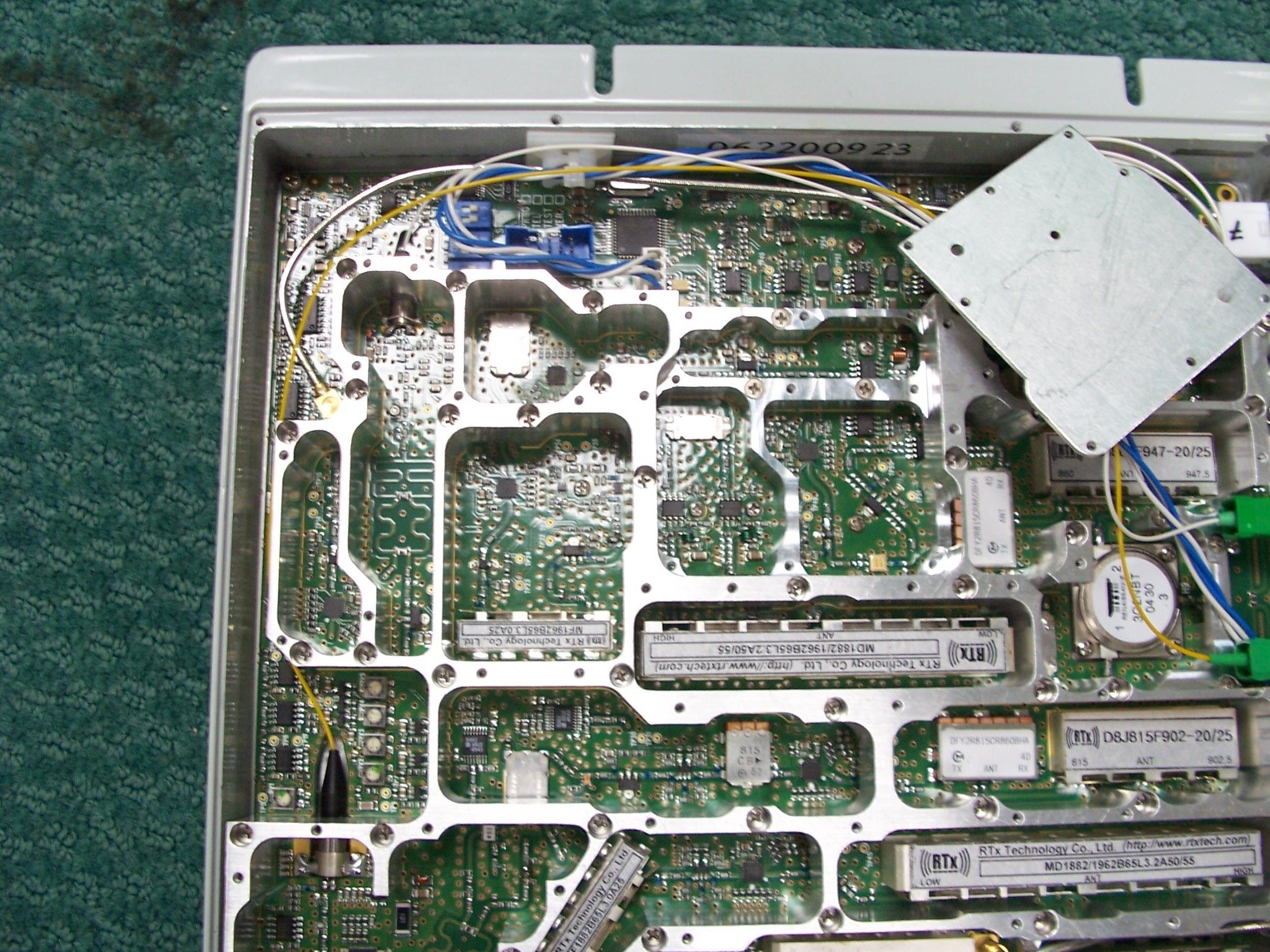

BCR-BCP-TFAM8919FIBER OPTIC SYSTEM/ REPEATER

Andrew Corporation 108 Rand Park Drive Garner, NC U.S.A. 27529 Tel: (919) 771-2570 Fax: (919) 771-2360 www.andrew.com 19 July 2006 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: BCR-BCP-TFAM8919 Product Name: ION-B TFAM80/92/19E Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Manual • Datasheet • Bill of Materials These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. The manual is only provided for use by trained technicians and is not available to the general user from Andrew’s website. Dated this 19 Day of July 20 06 By: Michael Williamson Signature Printed Title: Product Manager On behalf of : Andrew Corporation Telephone: (919) 771-2570 x223

Andrew Corporation 108 Rand Park Drive Garner, NC U.S.A. 27529 Tel: (919) 771-2570 Fax: (919) 771-2360 www.andrew.com 25 July 2006 A request has been made for the FCC identifier of the master hardware for the TFAM80/92/19E product. In the past, dating back to 1998, this has not been required. The remote unit, TFAM80/92/19E, has been the only unit requiring an FCC identifier. The remote unit is the only part of the hardware that radiates an RF signal. Regards, Michael Williamson

ION-B TFAM80/92/19E Tune-Up Procedure Gain for the ION-B TFAM80/92/19E is set at the factory and no provisions are made for user accessible controls. Output power is a function of the input power and the fixed gain of the TFAM80/92/19E. The user should provide an input signal that will produce an output power not exceeding the levels included in the product data sheet for the TFAM80/92/19E remote.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:22.00(dBm) Maximum peak output power at antenna input terminal:158.4893192(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1(numeric) Time Averaging:100(%) Prediction distance:20(cm) Prediction frequency:1940(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.031530(mW/cm^2) Margin of compliance:-15.0(dB) 2 4R PG S π =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:16.00(dBm) Maximum peak output power at antenna input terminal:39.81071706(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1(numeric) Time Averaging:100(%) Prediction distance:20(cm) Prediction frequency:937(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.6(mW/cm^2) Power density at prediction frequency:0.007920(mW/cm^2) Margin of compliance:-18.8(dB) 2 4R PG S π =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:16.00(dBm) Maximum peak output power at antenna input terminal:39.81071706(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1(numeric) Time Averaging:100(%) Prediction distance:20(cm) Prediction frequency:858(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.533333333(mW/cm^2) Power density at prediction frequency:0.007920(mW/cm^2) Margin of compliance:-18.3(dB) 2 4R PG S π =

Nemko Test Report No.: 6L0172RUS1 Applicant: Andrew Corporation 108 Rand Park Drive Garner, NC 27529 Equipment Under Test: TFAM80/92/19E In Accordance With: FCC Part 24, Subpart E Broadband PCS Repeaters Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Kevin Rose Wireless Engineer Date: June 30, 2006 Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 2 of 46 Table of Contents Section 1. Summary of Test Results ................................................................... 3 Section 2. General Equipment Specification....................................................... 5 Section 3. RF Power Output................................................................................ 7 Section 4. Occupied Bandwidth .......................................................................... 8 Section 5. Spurious Emissions at Antenna Terminals ...................................... 19 Section 6. Field Strength of Spurious ............................................................... 35 Section. Test Equipment List............................................................................. 37 ANNEX A - TEST DETAILS ............................................................................... 38 ANNEX B - TEST DIAGRAMS........................................................................... 43 Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 3 of 46 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAM80/92/19E Serial No.: 062200923 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 4 of 46 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 24.232 100W Complies Occupied Bandwidth 24.238 Input/Output Complies Spurious Emissions at Antenna Terminals 24.238(a)-13 dBm Complies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. Complies Frequency Stability 24.235 NA Footnotes: Measurement uncertainty for each test configuration is expressed to 95% probability. Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 5 of 46 Section 2. General Equipment Specification Supply Voltage Input: 120 Vac Frequency Range: Downlink: 1930.03 to 1989.97 MHz Uplink: NA CDMA GSM TDMA EDGE WCDMA (F9W) (GXW) (DXW) (G7W) (F9W) Type of Modulation and Designator: CDMA 1M25F9W GSM 300KGXW TDMA 30K0DXW EDGE 300KG7W WCDMA 4M20F9W System Gain: 19 dB 1900 Band Output Impedance: 50 ohms RF Output (Rated): Uplink NA Rated RF Output (dB): Downlink Number of Carriers 1 2 4 8 CW1900 22 .19 .16 13 TDMA1900 21 .18 .15 12 CDMA1900 19 .16 .13 10 W-CDMA1900 18 .14 .10 6 F1-F1 F1-F2 N/A Frequency Translation: Software Duplexer Fullband Band Selection: Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 6 of 46 Description of Operation The TFAM80/92/19E is a triple band remote unit designed to distribute LMR800, LMR900 and PCS1900 extended band signals along the same fiber. System Diagram TFLN AUXMAIN UL 1 3 2 4 DL DL TXs UL RXs - 4 - - 3 - - 2 - - 1 - Optical Fibers RF INPUT RF OUTPUT Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 7 of 46 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: David Light DATE: 28 June 2006 Test Results: Complies. Measurement Data: Frequency (MHz) Modulation Type Per Channel Output Power (dBm) 1931.25 CDMA 18.92 1960.00 CDMA 19.06 1988.75 CDMA 19.05 1930.2 GSM 21.28 1960 GSM 21.27 1989.8 GSM 21.18 1930.2 EDGE 21.25 1960 EDGE 21.08 1989.8 EDGE 21.01 1930.03 TDMA 21.27 1960.00 TDMA 21.11 1989.97 TDMA 21.13 1932.5 WCDMA 18.06 1960 WCDMA 18.22 1987.5 WCDMA 18.15 Equipment Used: 1036-1042-1472-1469 Measurement Uncertainty: +/- 1.7 dB Temperature: 22 °C Relative Humidity: 40 % Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 8 of 46 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 28 June 2006 Test Results: Complies. Test Data: See attached plot(s). Equipment Used: 1036-1042-1472-1469 Measurement Uncertainty: +/- 1.6 dB Temperature: 22 °C Relative Humidity: 40 % Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 9 of 46 Test Data – Occupied Bandwidth CDMA OUTPUT Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 10 of 46 Test Data – Occupied Bandwidth CDMA INPUT Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 11 of 46 Test Data – Occupied Bandwidth GSM OUTPUT Nemko USA FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAM80/92/19E REPORT NO.: 6L0172RUS1 Page 12 of 46 Test …

Text truncated - open the document above for the full version.

Master: ktlPT90PLMR Date: April 19, 1999 Nemko Test Report: 6L0172RUS2 Applicant: Andrew Corporation 108 Rand Park Drive Garner, NC 27529 Equipment Under Test: TFAM80/92/19E (E.U.T.) In Accordance With: FCC Part 90, Subpart I Private Land Mobile Repeater Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Abe Cox, Key Account Manager Date: July 7, 2006 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAM80/92/19E PROJECT NO.: 6L0172RUS2 Page 2 of 43 Table of Contents Section 1. Summary of Test Results ........................................................................................... 3 Section 2. General Equipment Specification .............................................................................. 5 Section 3. RF Power Output ....................................................................................................... 7 Section 4. Occupied Bandwidth..................................................................................................8 Section 5. Spurious Emissions at Antenna Terminals .............................................................. 17 Section 6. Field Strength of Spurious Emissions...................................................................... 33 Section 7. Test Equipment List ................................................................................................. 35 ANNEX A - TEST METHODOLOGIES..................................................................................... 36 ANNEX B - TEST DIAGRAMS.................................................................................................. 41 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAM80/92/19E PROJECT NO.: 6L0172RUS2 Page 3 of 43 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAM80/92/19E Serial No.: 062200923 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAM80/92/19E PROJECT NO.: 6L0172RUS2 Page 4 of 43 Summary Of Test Data NAME OF TEST PARA. NO. RESULT RF Power Output 90.205 Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A Modulation Limiting TIA EIA-603.3.2.6 N/A Occupied Bandwidth 90.210 Complies Spurious Emissions at Antenna Terminals 90.210 Complies Field Strength of Spurious Emissions 90.210 Complies Frequency Stability 90.213 N/A Transient Frequency Behavior 90.214 N/A Footnotes For N/A’s: (1) Since the E.U.T. does not contain modulation circuitry modulation testing was not performed. (2) Since the E.U.T. is not a keyed carrier system, Transient Frequency Behavior was not performed. . Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAM80/92/19E PROJECT NO.: 6L0172RUS2 Page 5 of 43 Section 2. General Equipment Specification Transmitter Supply Voltage Input: 120 Vac Frequency Range: 851 to 869 MHz 935 to 940 MHz Type(s) of Modulation: F3E (Analog) F1D (Analog) GXW (iDEN Analog 30K0F3E and 30K0F1D iDEN 30K0GXW Gain: +13 dB Output Impedance: 50 ohms RF Power Output (rated): Output power per carrier @ each antenna port (dBm) Number of Carriers 1 2 4 8 CW800 and 900 16 13 .10 .7 iDEN800 13 10 .7 .4 Analog800 16 .13 .10 .7 iDEN900 13 .10 .7 .4 Analog900 16 .13 10 .7 Operator Selection of Operating Frequency: None Power Output Adjustment Capability: None Frequency Translation: F1-F1 F1-F2 N/A Band Selection: Software Duplexer Change Fullband Coverage Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAM80/92/19E PROJECT NO.: 6L0172RUS2 Page 6 of 43 Description of Operation The TFAM80/92/19E is a triple band remote unit designed to distribute LMR800, LMR900 and PCS1900 extended band signals along the same fiber. System Diagram TFLN AUXMAIN UL 1 3 2 4 DL DL TXs UL RXs - 4 - - 3 - - 2 - - 1 - Optical Fibers RF INPUT RF OUTPUT Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAM80/92/19E PROJECT NO.: 6L0172RUS2 Page 7 of 43 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: David Light DATE: 28 June 2006 Test Results: Complies. Measurement Data: Frequency (MHz) Modulation Measured Power (dBm) 851.0125 Analog 16.11 860.0 Analog 16.1 868.987.5 Analog 16.13 851.03 iDEN 13.21 860.0 iDEN 13.07 868.97 iDEN 13.05 935.0125 Analog 16.03 937.5 Analog 16.31 939.9875 Analog 16.21 935.03 iDEN 13.14 937.0 iDEN 13.2 939.97 iDEN 13.04 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAM80/92/19E PROJECT NO.: 6L0172RUS2 Page 8 of 43 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.989 TESTED BY: David Light DATE: 29 June 2006 Test Results: Complies. Test Data: See attached graph(s). Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAM80/92/19E PROJECT NO.: 6L0172RUS2 Page 9 of 43 Test Data Occupied Bandwidth Analog Output 2 kHz tone/ 3 kHz Deviation 800 Band Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAM80/92/1…
