BCR-IONM17PHIGH-POWER, MULTI-OPERATOR REMOTE OPTICAL SYSTEM

Andrew Corporation 620 N. Greenfield Parkway Garner, NC U.S.A. 27529 Tel: (919) 329-8941 Fax: (919) 329-8950 www.andrew.com 15 October 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 FCC ID: BCR-RPT-IONM17P Product Name: ION-M17P Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • ION-M17P Block Diagram.pdf • ION-M17P Datasheet.pdf • ION-M17P Internal Pictures.pdf • ION-M17P Manual.pdf • ION-M17P Schematic - Control Board.pdf • ION-M17P Schematic - PA Control.pdf • ION-M17P Schematic - PA Main.pdf • ION-M17P - Schematic OTRX Rx.pdf • ION-M17P - Schematic OTRX Tx.pdf • ION-M17P Tune-Up Procedure.pdf • ION-M17P Voltage and Current into Final Devices.pdf • ION-M17P PARTS LIST Confidential.pdf These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. The manual is only provided for use by trained technicians and is not available to the general user from Andrew’s website. Dated this 15 Day of October 2007 By: Michael Williamson Signature Printed Title: Product Manager On behalf of : Andrew Corporation Telephone: (919) 329-8941

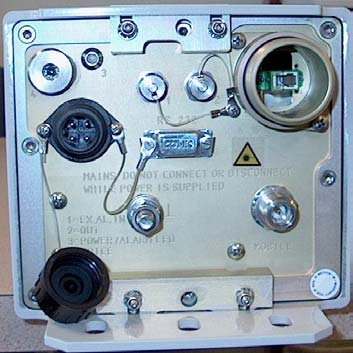

ION-M17P Pictures Front Back Left Right Top Bottom Label – Right Side

Nemko Test Report: 7750RUS1 Applicant: Andrew Corporation 108 Rand Park Drive Garner, NC 27529 USA Equipment Under Test: ION-M17P (E.U.T.) In Accordance With: CFR 47, Part 27, Subpart C Miscellaneous Wireless Communication Services Tested By: Nemko USA, Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE : 25 September 2007 David Light, Senior Wireless Engineer APPROVED BY: DATE : 25 September 2007 Harry Ward, Verifier Number of Pages: 34 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Page 2 of 34 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 7 SECTION 4. OCCUPIED BANDWIDTH 8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 13 SECTION 6. FIELD STRENGTH OF SPURIOUS 24 SECTION 7. TEST EQUIPMENT LIST 25 ANNEX A - TEST DETAILS 26 ANNEX B - TEST DIAGRAMS 31 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Section 1. Summary of Test Results Manufacturer Andrew Corporation Model No.: ION-M17P Serial No.: 14 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR 47, Part 27, Subpart C. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Page 3 of 34 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 27.50(d) 1640 Watts Complies Occupied Bandwidth 2.1049 Input/Output Complies Spurious Emissions at Antenna Terminals 27.53(g) -13 dBm Complies Field Strength of Spurious Emissions 27.53(g) -13 dBm E.I.R.P. Complies Frequency Stability 27.54 Must stay in band NA Page 4 of 34 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Page 5 of 34 Section 2. General Equipment Specification Supply Voltage Input: 120 Vac Frequency Bands: Downlink: 2110 to 2155 MHz Frequency Bands: Uplink: NA CDMA GSM NADC W-CDMA EDGE (F9W) (GXW) (DXW) (F9W) (G7W) Type of Modulation and Designator: System Gain: 40 dB Output Impedance: 50 ohms NAW RF Output (Rated): Uplink NAdBm 20W RF Output (Rated): Downlink 43dBm F1-F1 F1-F2 N/A Frequency Translation: Software Duplexer Fullband Band Selection: Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Description of EUT Andrew ION-M17P is a multiband multi-operator remote unit with various extension units. It is used in conjunction with a master unit in the ION optical distribution system. This system transports multiple frequency bands simultaneously (850 MHz, 1900 MHz and 2100 MHz), providing a cost-efficient solution for distributing capacity from one or more base stations. System Diagram Page 6 of 34 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Page 7 of 34 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 27.50 TESTED BY: David Light DATE: 25 September 2007 Test Results: Complies. Measurement Data: Direction Frequency (MHz) Modulation RF Power (dBm) RF Power (W) Downlink Only 2111.25 CDMA 43.03 20.1 2130.00 CDMA 42.90 19.5 2153.75 CDMA 43.10 20.4 2112.50 WCDMA 43.17 20.7 2130.00 WCDMA 43.23 21.0 2152.50 WCDMA 43.02 20.1 Equipment Used: 1604-1064-1082-1036 Measurement Uncertainty: +/- 1.7dB Temperature: 22 °C Relative Humidity: 48 % Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Page 8 of 34 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 25 September 2007 Test Results: Complies. Test Data: See attached plot(s). Equipment Used: 1064-1604-10821036 Measurement Uncertainty: 1X10 -7 ppm Temperature: 22 °C Relative Humidity: 48 % Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Test Data – Occupied Bandwidth CDMA/EV-DO OBW OUTPUT Page 9 of 34 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Test Data – Occupied Bandwidth CDMA/EV-DO OBW INPUT Page 10 of 34 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Test Data – Occupied Bandwidth WCDMA/HSDPA OBW OUTPUT Page 11 of 34 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Test Data – Occupied Bandwidth WCDMA/HSDPA OBW INPUT Page 12 of 34 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: ION-M17P PROJECT NO.: 7750RUS1 Page 13 of 34 Section 5. Spurious Emissions at Antenna Terminals NAME OF TEST: Spurious Emissions @ Antenna Terminals PARA. NO.: 27.53 TESTED BY: David Light DATE: 25 Sept 2007 Test Results: Complies. Test Data: See attached plo…
