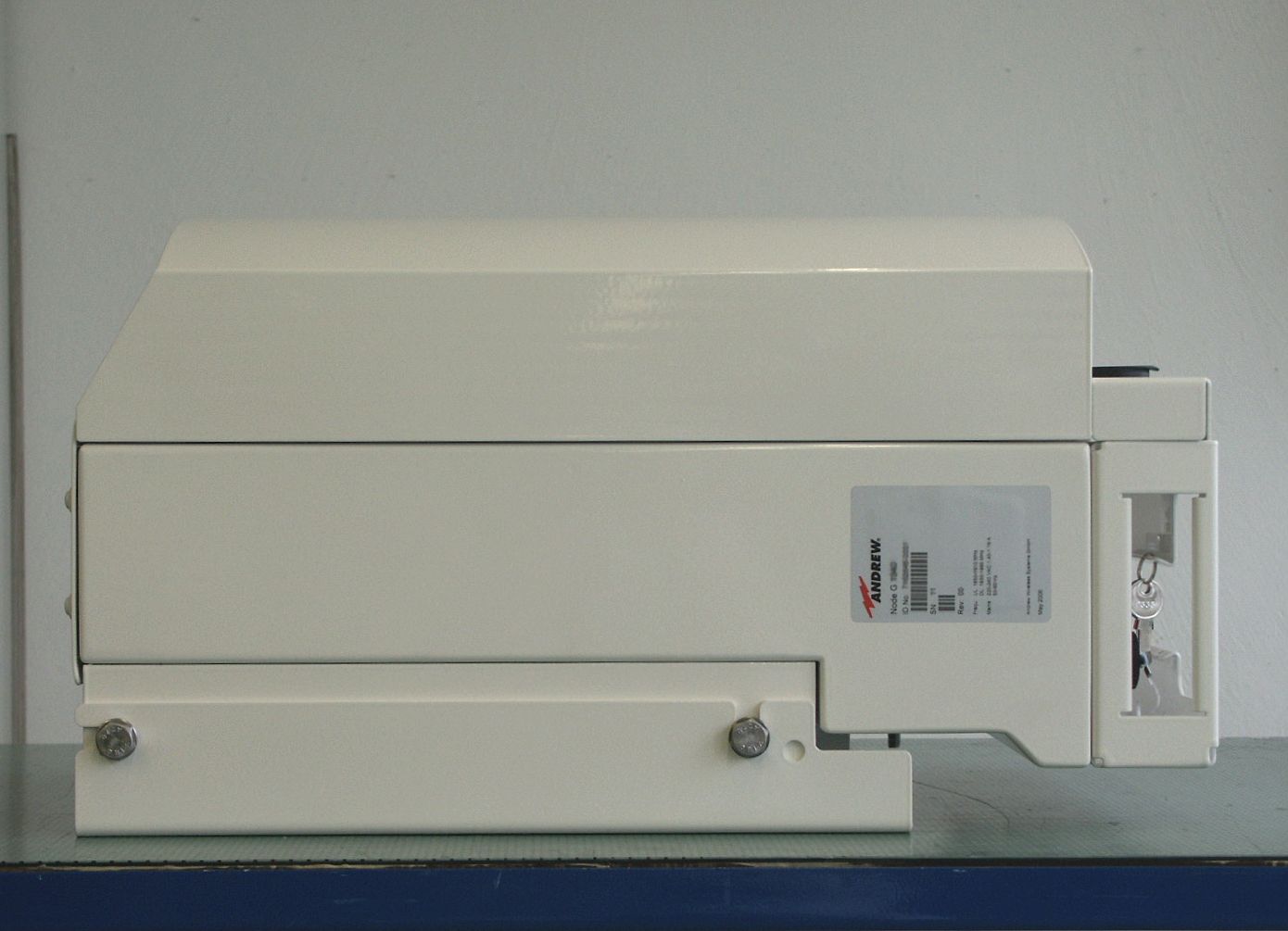

BCR-NODEG1940FIBER OPTIC SYSTEM/ REPEATER

Andrew Corporation 108 Rand Park Drive Garner, NC U.S.A. 27529 Tel: (919) 771-2570 Fax: (919) 771-2360 www.andrew.com 15 May 2007 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: BCR-NODEG1940 Product Name: Node G Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Schematics o Overview_schematics.pdf o P1710S2B.pdf o P1710S6B.pdf o P1711S3A.pdf o P1711S4A.pdf o P1719S0D.pdf o p3000s0_v7516662_D.pdf o P3004S0A.pdf o P3043S0.pdf o RF500860A_tla0533.pdf o RF500862A_tla0536.pdf • Manual o M0121A2D_prel.pdf • Datasheet o Node G 1940 PA-100910[1].2-EN_LR.pdf • Block Diagram o Blockdiagram_node_g_x40.pdf • BOM’s o NodeG1940_7162648-0001.htm o NodeG1940EU_7162649-0001.htm These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. The manual is only provided for use by trained technicians and is not available to the general user from Andrew’s website. Dated this 15 Day of May 20 07 By: Michael Williamson Signature Printed Title: Product Manager On behalf of : Andrew Corporation Telephone: (919) 329 8941

Nemko Test Report: 4648RUS1 Applicant: Andrew Corporation 108 Rand Park Drive Garner, NC 27529 USA Equipment Under Test: Node G 1940 RF Enhancer (E.U.T.) In Accordance With: CFR 47, Part 24, Subpart E Broadband PCS Repeaters Tested By: Nemko USA, Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE : 24 April 2007 David Light, Senior Wireless Engineer APPROVED BY: DATE : 25 th April 2007 Harry Ward, Verificator Number of Pages: 42 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Page 2 of 42 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 7 SECTION 4. OCCUPIED BANDWIDTH 8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 17 SECTION 6. FIELD STRENGTH OF SPURIOUS 30 SECTION 7. TEST EQUIPMENT LIST 32 ANNEX A - TEST DETAILS 33 ANNEX B - TEST DIAGRAMS 39 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Section 1. Summary of Test Results Manufacturer Andrew Corporation Model No.: Node G 1940 Serial No.: 22 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR 47, Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. None See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Page 3 of 42 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Page 4 of 42 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 24.232 100W Complies Occupied Bandwidth 2.1049 Input/Output Complies Spurious Emissions at Antenna Terminals 24.238(a) -13 dBm Complies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. Complies Frequency Stability 24.235 NA Footnotes: (1) Modulation characteristics were not tested since the E.U.T. processes but does not produce a modulated waveform. (2) Frequency stability was not tested since the enhancer does not perform any frequency translation. Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Page 5 of 42 Section 2. General Equipment Specification Supply Voltage Input: Frequency Bands: Downlink: Block A : 1930 – 1945 MHz Block D : 1945 – 1950 MHz Block B : 1950 – 1965 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block C : 1975 – 1990 MHz Frequency Bands: Uplink: Block A : 1850 – 1865 MHz Block B : 1865 – 1870 MHz Block C : 1870 – 1885 MHz Block D : 1885 – 1890 MHz Block E : 1890 – 1895 MHz Block F : 1895 – 1910 MHz CDMA GSM NADC W-CDMA EDGE (F9W) (GXW) (DXW) (F9W) (G7W) Type of Modulation and Designator: System Gain: 100 dB Output Impedance: 50 ohms 1.12W RF Output (Rated): Uplink 30.5dBm 20W RF Output (Rated): Downlink 43dBm F1-F1 F1-F2 N/A Frequency Translation: Software Duplexer Fullband Band Selection: Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Description of EUT The Andrew Node G 1940 is an RF enhancer for GSM systems. It is capable of filtering and amplifying from 1 to 8 GSM & EDGE channels across the entire band. System Diagram Page 6 of 42 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Page 7 of 42 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 24.232 TESTED BY: David Light DATE: 24 April 2007 Test Results: Complies. Measurement Data: Direction Modulation Output per Channel (dBm) Composite Power (dBm) Composite Power (W) Uplink EDGE 24.5 27.5 0.562 Downlink EDGE 36.5 39.5 8.913 Uplink GSM 27.5 30.5 1.122 Downlink GSM 40.0 43.0 20.0 Equipment Used: 1082-1036-1064-1064-1604 Measurement Uncertainty: +/- 1.7dB Temperature: 22 °C Relative Humidity: 48 % Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Page 8 of 42 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 24.238 TESTED BY: David Light DATE: 24 April 2007 Test Results: Complies. Test Data: See attached plot(s). Equipment Used: 1036-1082-1604-1064-1065 Measurement Uncertainty: 1X10 -7 ppm Temperature: 22 °C Relative Humidity: 48 % Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Test Data – Occupied Bandwidth GSM - Output Downlink Page 9 of 42 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Test Data – Occupied Bandwidth GSM - Input Downlink Page 10 of 42 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Test Data – Occupied Bandwidth GSM - Output Uplink Page 11 of 42 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Test Data – Occupied Bandwidth GSM - Input Uplink Page 12 of 42 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Test Data – Occupied Bandwidth EDGE - Output Downlink Page 13 of 42 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: Node G 1940 PROJECT NO.: 4648RUS1 Test Data – Occu…

Text truncated - open the document above for the full version.

Voltage and Current into Final Devices of the Node G 1850-1910 MHz PA V = +28 VDC, I = 2A 1930-1990 MHz PA V = +28 VDC, I = 4 A
