BCR-RPT-AMR1910

Andrew Wireless Innovations Group

Booster

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Oct 23, 2006
Application Purpose: Original Equipment
Date of Application: Oct 23, 2006
Equipment Note: Booster
Frequency Range: 1850.00000000 - 1910.00000000
Company: Andrew Wireless Innovations Group
Country: United States

Documents & Files

Select a file to view

Cover Letter(s)

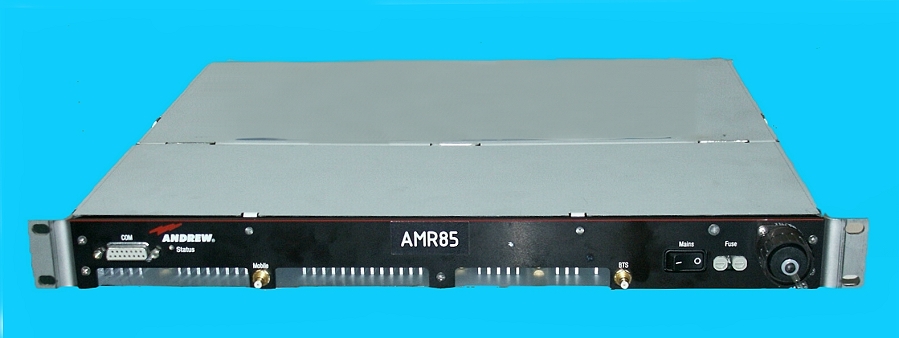

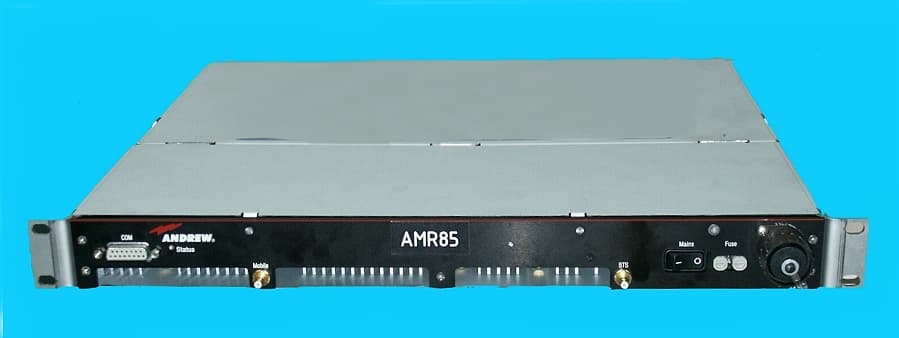

External Photos

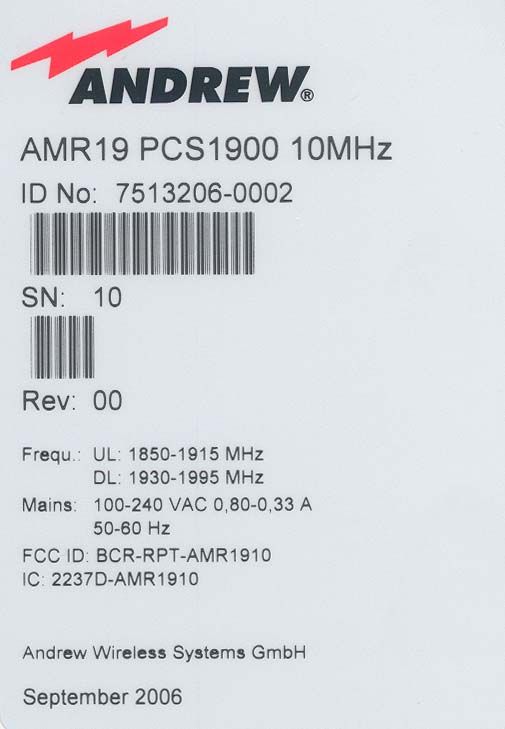

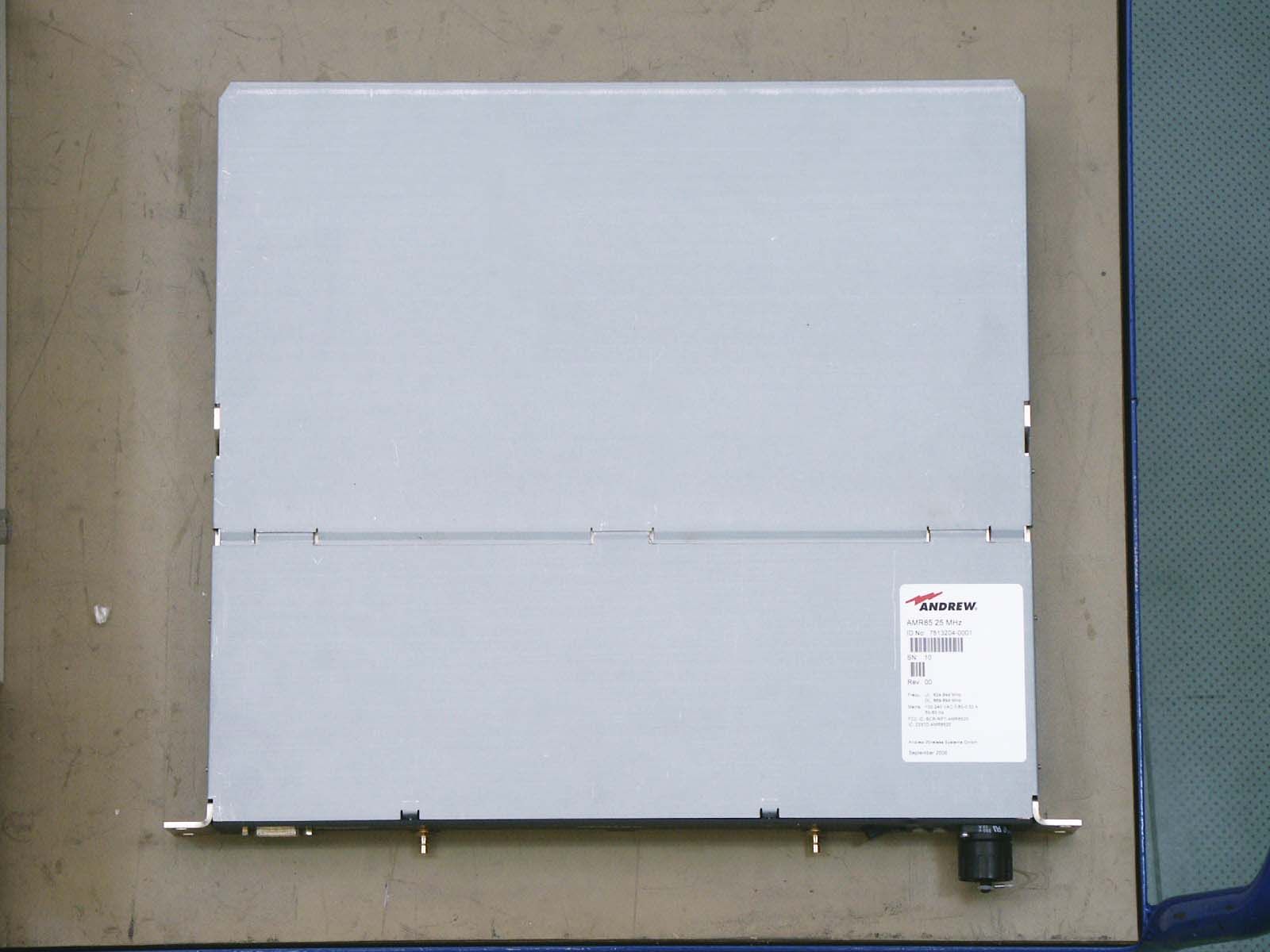

ID Label/Location Info

Internal Photos

Parts List/Tune Up Info

Test Report

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
8	24E	1.85 GHz - 1.91 GHz	320.00 mW	G7W	Amp

Confidentiality

Long Term

Grant Notes

Power listed is maximum conducted composite of multi channels. This device is for use with CDMA, WCDMA, GSM, EDGE, and NADC modulation. The antenna(s) used for this transmitter must be fixed-mounted on indoor/outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3).
