BCR-RPT-AMR1915Booster

Andrew Wireless Innovations Group
Booster - FCC ID BCR-RPT-AMR1915 - Andrew Wireless Innovations Group
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Oct 24, 2006
Application Purpose
Original Equipment
Date of Application
Oct 23, 2006
Equipment Note
Booster
Frequency Range
1850.00000000 - 1910.00000000
Company
Andrew Wireless Innovations Group
Country
United States

Documents & Files

Select a file to view

Cover Letter(s)

β†—

External Photos

β†—
β†—
β†—
β†—
β†—

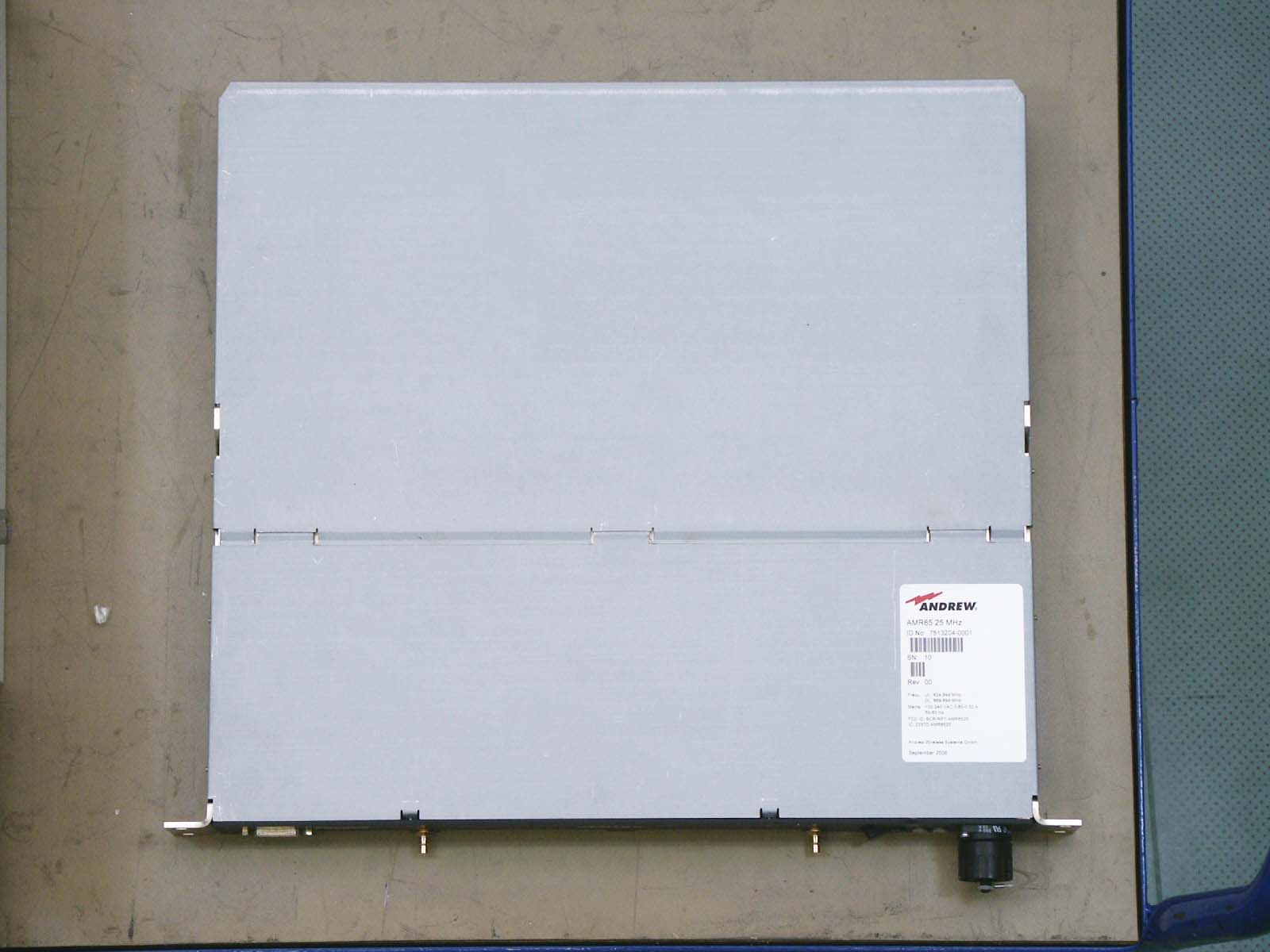

ID Label/Location Info

β†—
β†—

Internal Photos

β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—

Parts List/Tune Up Info

β†—

Test Report

β†—
β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Andrew Corporation 108 Rand Park Drive Garner, NC U.S.A. 27529 Tel: (919) 771-2570 Fax: (919) 771-2360 www.andrew.com 26 September 2006 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: BCR-RPT-AMR1915 Product Name: AMR80/90/19 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: β€’ Schematics Labeled Schematics-AMR1915.pdf β€’ Block diagram Labeled AMR Block Diagram.jpeg β€’ Manual Labeled AMR Manual.pdf β€’ Datasheet Labeled AMR Datasheet.pdf β€’ Bill of Materials Labeled Schematics and BOMsrev.1.xls These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. The manual is only provided for use by trained technicians and is not available to the general user from Andrew’s website. Dated this 26 Day of September 20 06 By: Michael Williamson Signature Printed Title: Product Manager On behalf of : Andrew Corporation Telephone: (919) 771-2570 x223

Parts List/Tune Up Info

AMR Tune-Up Procedure The first step in setting up the AMR is to set the frequency of the single stage SAW filter. The user may select the filter setting through the GUI. The next step is to set the appropriate attenuation of the AMR to provide the desired output power. There are two methods of setting the attenuation: manually or automatically. In manual mode, the user would measure the input signals and set the attenuation of the AMR to provide the desired output power. ALC is always functioning and the maximum output power of the AMR will never be exceeded. In automatic mode, the AMR will adjust gain to maximize output power, but no exceed the maximum ALC limit.

Test Report

Nemko Test Report: 6L0432RUS1 Applicant: Andrew Corporation 108 Rand Park Drive Garner, NC 27529 USA Equipment Under Test: AMR1915 (E.U.T.) In Accordance With: CFR 47, Part 24, Subpart E Broadband PCS Repeaters Tested By: Nemko USA, Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE: 25 September 2006 David Light Wireless Engineer APPROVED BY: DATE: 29 September 2006 Number of Pages: 72 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: AMR1915 PROJECT NO.: 6L0432RUS1 Page 2 of 72 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 7 SECTION 4. OCCUPIED BANDWIDTH 8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 29 SECTION 6. FIELD STRENGTH OF SPURIOUS 60 SECTION 7. TEST EQUIPMENT LIST 62 ANNEX A - TEST DETAILS 63 ANNEX B - TEST DIAGRAMS 69 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: AMR1915 PROJECT NO.: 6L0432RUS1 Page 3 of 72 Section 1. Summary of Test Results Manufacturer Andrew Corporation Model No.: AMR1915 Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR 47, Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See β€œ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: AMR1915 PROJECT NO.: 6L0432RUS1 Page 4 of 72 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 24.232 100W Complies Occupied Bandwidth 2.1049 Input/Output Complies Spurious Emissions at Antenna Terminals 24.238(a) -13 dBm Complies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. Complies Frequency Stability 24.235 NA Footnotes: (1) Modulation characteristics were not tested since the E.U.T. processes but does not produce a modulated waveform. Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: AMR1915 PROJECT NO.: 6L0432RUS1 Page 5 of 72 Section 2. General Equipment Specification Supply Voltage Input: Frequency Bands: Downlink: Block A : 1930 – 1945 MHz Block D : 1945 – 1950 MHz Block B : 1950 – 1965 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block C : 1975 – 1990 MHz Frequency Bands: Uplink: Block A : 1850 – 1865 MHz Block B : 1865 – 1870 MHz Block C : 1870 – 1885 MHz Block D : 1885 – 1890 MHz Block E : 1890 – 1895 MHz Block F : 1895 – 1910 MHz CDMA GSM NADC W-CDMA EDGE (F9W) (GXW) (DXW) (F9W) (G7W) Type of Modulation and Designator: System Gain: 89 dB Max Output Impedance: 50 ohms 0.32 W RF Output (Rated): Uplink 25 dBm 0.50 W RF Output (Rated): Downlink 27 dBm F1-F1 F1-F2 N/A Frequency Translation: Software Duplexer Fullband Band Selection: Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: AMR1915 PROJECT NO.: 6L0432RUS1 Page 6 of 72 Description of EUT Bi-directional amplifier used to enhance signals between a mobile and a base station in a wireless network. Typical applications are coverage improvement in small and medium sized environments such as offices, store fronts, underground floors, and small manufacturing facilities. The AMR family will automatically set its gain to maximize performance. However, an alphanumeric interface allows the user to manually set the gain if desired. ALC, Automatic Level Control, is incorporated to prevent overdriving the amplifier. System Diagram Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: AMR1915 PROJECT NO.: 6L0432RUS1 Page 7 of 72 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 24.232 TESTED BY: David Light DATE: 29 August 2006 Test Results: Complies. Measurement Data: Direction Modulation Output per Channel (dBm) Composite Power (dBm) Composite Power (W) Uplink CDMA 24.01 27.01 0.50 Downlink CDMA 22.00 25.00 0.32 Uplink TDMA 24.03 27.03 0.50 Downlink TDMA 22.04 25.04 0.32 Uplink EDGE 24.00 27.00 0.50 Downlink EDGE 22.01 25.01 0.32 Uplink GSM 24.00 27.00 0.50 Downlink GSM 22.04 25.04 0.32 Uplink W-CDMA 23.99 26.99 0.50 Downlink W-CDMA 22.01 25.01 0.32 Equipment Used: 1082-1469-1472-1659 Measurement Uncertainty: +/- 1.7 dB Temperature: 21 Β°C Relative Humidity: 32 % Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: AMR1915 PROJECT NO.: 6L0432RUS1 Page 8 of 72 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 24.238 TESTED BY: David Light DATE: 29 August 2006 Test Results: Complies. Test Data: See attached plot(s). Equipment Used: 1082-1469-1472-1659 Measurement Uncertainty: 1X10 -7 ppm Temperature: 21 Β°C Relative Humidity: 32 % Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: AMR1915 PROJECT NO.: 6L0432RUS1 Page 9 of 72 Test Data – Occupied Bandwidth CDMA - Output Downlink Ref 30 dBmAtt 30 dB A Offset 31.3 dB LVL EXT Center 1.933 GHzSpan 5 MHz500 kHz/ * RBW 30 kHz VBW 100 kHz SWT 15 ms * *1 PK VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Date: 29.AUG.2006 14:10:54 Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: AMR1915 PROJECT NO.: 6L0432RUS1 Page 10 of 72 Test Data – Occupied Bandwidth CDMA – Input Downlink Nemko USA, Inc. CFR 47, PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: …

Text truncated - open the document above for the full version.

Test Report

Voltage and Current into Final Devices AMR19 1850-1915 MHz PA 2 final MMIC devices in parallel, V = +5 VDC, I = 800 mA for each device 1930-1995 MHz PA 2 final MMIC devices in parallel, V = +5 VDC, I = 800 mA for each device

Contact Information

Applicant

Michael Shumate(Director, North American Operations)
[email protected]919 329-8940Fax: 919 329-8950

Test Firm

Nemko USA, Inc.Tom Tidwell
[email protected]9724369600Fax: 9724362667

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
824E1.85 GHz - 1.91 GHz320.00 mWG7WAmp
Confidentiality
Long Term
Grant Notes
Power listed is maximum conducted composite of multi channels. This device is for use with CDMA, WCDMA, GSM, EDGE, and NADC modulation. The antenna(s) used for this transmitter must be fixed-mounted on indoor/outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of οΏ½1.1307(b)(3).
