BCR-RPT-IONM19PTransmitter Non-Broadcast Booster

Andrew Corporation 108 Rand Park Drive Garner, NC 27529 Tel: (919) 329-8941 Fax: (919) 329-8950 www.andrew.com 17 October, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: NTS Laboratory is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Michael Williamson Product Manager Andrew Corporation

Andrew Corporation 620 N. Greenfield Parkway Garner, NC U.S.A. 27529 Tel: (919) 329-8941 Fax: (919) 329-8950 www.andrew.com 9 January 2007 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: BCR-RPT-IONM19P Product Name: ION-M19P Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Manual • Datasheet These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. The manual is only provided for use by trained technicians and is not available to the general user from Andrew’s website. Dated this 9 Day of January 20 07 By: Michael Williamson Signature Printed Title: Product Manager On behalf of : Andrew Corporation Telephone: (919) 329-8941

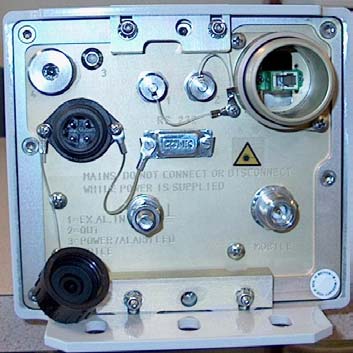

MMR Pictures Front Back Left Right Top Bottom Label – Right Side

Control Board OTRx Top OTRx Bottom PA – Top PA - Bottom

GENERAL OPERATIONAL DESCRIPTION – ION-M19P The ION-M19P is an in-building optical wireless distribution system. The system consists of a host unit and a remote unit. The host unit connects directly to a BTS via coaxial cable and converts the rf from the BTS transmit port to optical and sends it to the remote unit via fiber optic cable. The remote unit converts the optical signal back to rf and sends the rf to a donor antenna. The mobile signals are received by the remote unit, converted to optical signals and sent via fiber optic to the main unit where the signals are converted back to rf and coupled to the BTS receive port via coaxial cable. The ION-M19P operates in the PCS 1900 MHz band only. A future extension unit will allow transmission in the 2110 – 2155 MHz unit. This extension unit is a separate enclosure and will require a separate FCC approval when available.

ION-M19P Tuning Procedure There is no provision for tuning of the ION-M19P. Installation instructions are provided but no tuning is necessary for installation or maintenance. Voltage and Current into Final Devices of the ION-M19P 4 final devices in parallel, V = +28 VDC, I = 1.55 amps for each device

Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = directional power gain of the antenna relative to an isotropic radiator R = distance to the center of radiation of the antenna Max. peak output power at antenna terminal(dBm):43.00 Max. peak output power at antenna terminal(W):19.953 Antenna gain for prediction(dBi):0 Maximum antenna gain(numeric):1 Duty Cycle(%):100 Prediction distance(cm):40 Prediction frequency(MHz):1850 Limit for uncontrolled exposure(mw/cm²): 1.000 S(mw/cm²) = :0.992 Prediction of Maximum Permissible Exposure 2 4 PG S RΠ =

This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 1 of 137 Certification Test Report CFR 47 FCC Part 2 and Part 24, Subparts C and E Model: ION-M19P Optical Remote FCC ID NO.: BCR-RPT-IONM19P Project Code: W6437 Report Code: W6437-1 Revision: 0 Prepared for: Andrew Corporation 108 Rand Park Drive Garner, North Carolina 27529 Author: Tom Tidwell, Manager of Wireless Services Issued: 27 December, 2006 1701 E. Plano Parkway, Suite 150 Plano, Texas 75074 Phone: (972) 509-2566 Fax: (972) 509-0073 Model: ION-M19P Compliance Test Report FCC ID # BCR-RPT-IONM19P This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 2 of 137 Report Summary NTS Plano Accreditation Numbers: FCC: 101741 IC: 46405-4319 File # IC-4319A-1 Applicant: Andrew Corporation 108 Rand Park Drive Garner, North Carolina 27529 Customer Representative: Michael Williamson EUT Description: EUT Description Manufacturer Model Revision Serial Number The EUT is a remote fiber, in- building repeater system designed to repeat various types of rf signals in the North American PCS 1900 band. Andrew Wireless Systems Gmbh ION-M19P 0 11 Model: ION-M19P Compliance Test Report FCC ID # BCR-RPT-IONM19P This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 3 of 137 Test Summary Deviations from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable Rule Parts A RF Power Output No No No PASS CFR 47, Part 2, Para. 2.1046 CFR 47, Part 24, Para.24.232 B Modulation Characteristics No No No NOT TESTED 1 CFR 47, Part 2, Para. 2.1047 C Occupied Bandwidth No No No PASS CFR 47, Part 2, Para. 2.1049 CFR 47, Part 24, Para. 24.238 D Spurious Emissions at Antenna Terminals No No No PASS CFR 47, Part 2, Para. 2.1051 CFR 47, Part 24, Para. 24.238 E Field Strength of Spurious Radiation No No No PASS CFR 47, Part 2, Para. 2.1053 CFR 47, Part 24, Para. 24.238 F Frequency Stability No No No PASS CFR 47, Part 2, Para. 2.1055 CFR 47, Part 24, Para. 24.235 1 This device processes a modulated rf carrier but does not create the waveform. Thus there are no modulation circuits to test. A description of the modulated waveforms is given on page 16 to satisfy this requirement. Test Result: The product presented for testing complied with test requirements as shown above. This is to certify that the preceding report is true and correct to the best of my knowledge. Robert Stevens, Tom Tidwell, Quality Assurance Manager Wireless Test Engineer Model: ION-M19P Compliance Test Report FCC ID # BCR-RPT-IONM19P This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 4 of 137 Table of Contents REPORT SUMMARY .......................................................................................................................................................…
