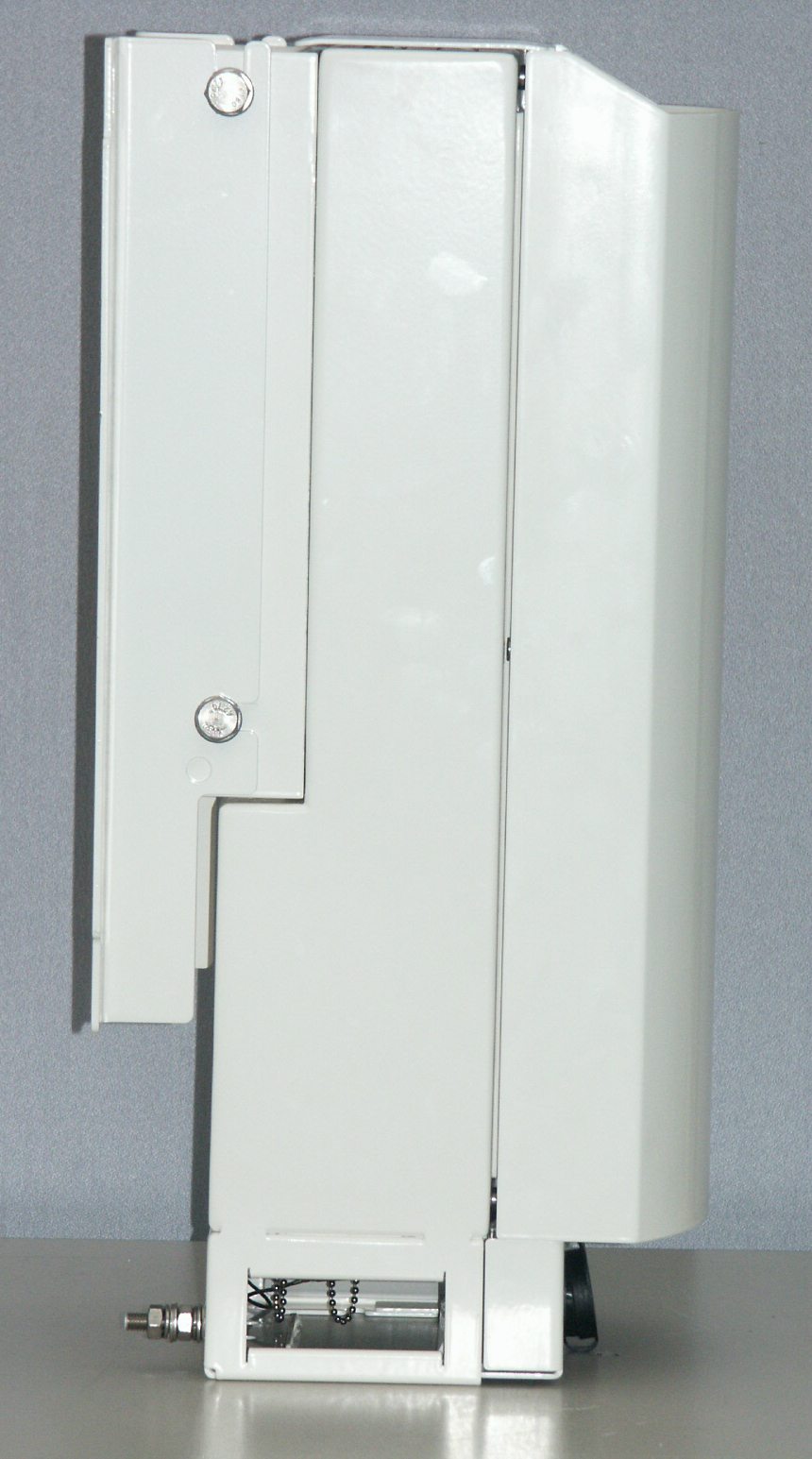

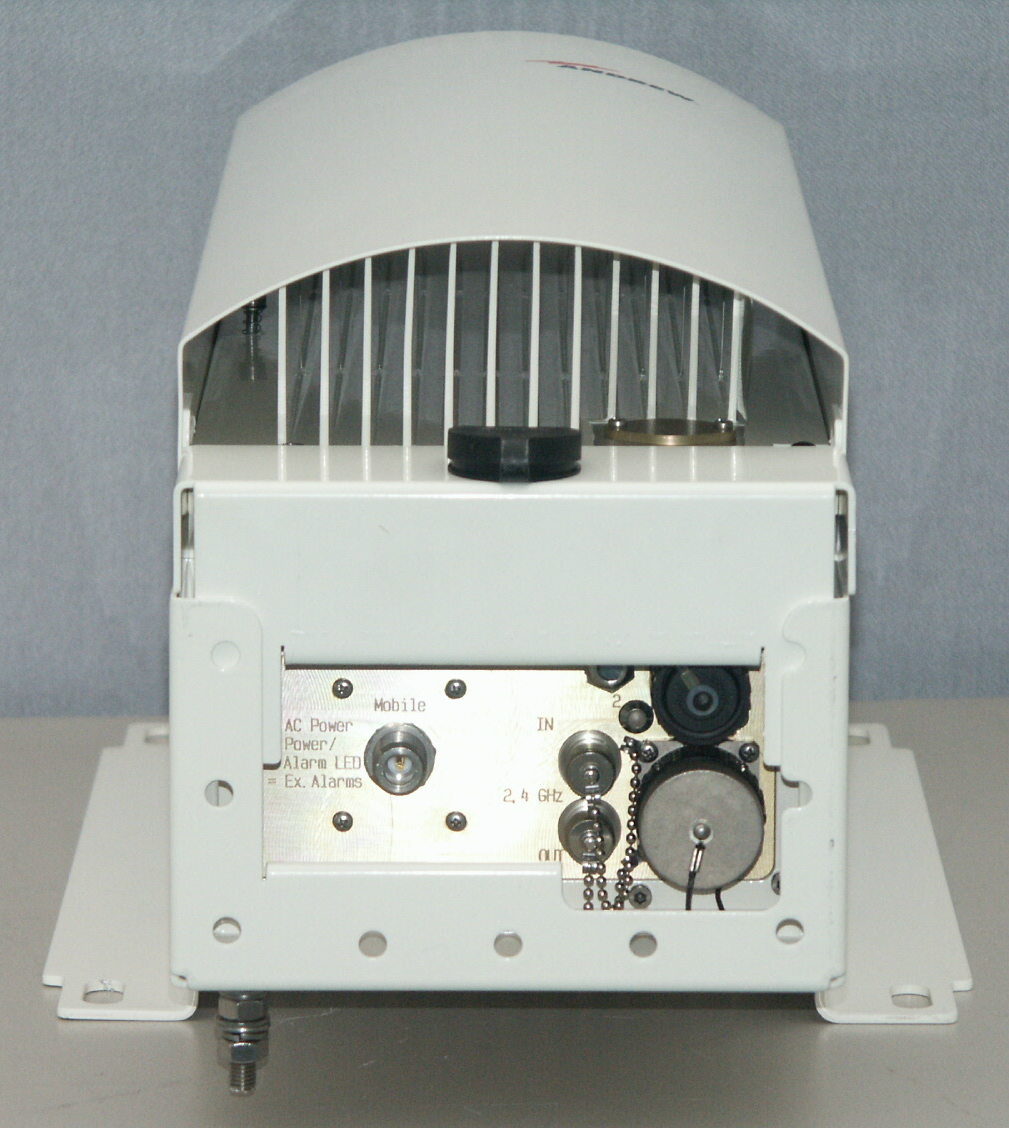

ID No: 163511 Page 1 User’s Manual for MMR8L L Single Band Remote Unit User’s Manual for Remote Unit MMR8L L Page 2 M0106ASB.doc © Copyright 2005 Mikom GmbH All rights reserved. All information contained in this manual has been revised thoroughly. Yet Mikom accepts no liability for any omissions or faults. Mikom reserves the right to change all hard- and software characteristics without notice. Names of products mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. No parts of this publication may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronical, mechanical photocopying, recording or otherwise, without prior written permission of the publisher. Mikom GmbH An Andrew Company, 27-January-2005 ID No: 163511 Page 3 TABLE OF CONTENTS 1. GENERAL 5 1.1. USED ABBREVIATIONS 5 1.2. HEALTH AND SAFETY WARNINGS 6 1.3. PREAMBLE 8 1.4. INTERNATIONAL CONTACT ADDRESSES 9 2. INTRODUCTION 11 2.1. PURPOSE 11 2.2. THE MMR8L L SINGLE BAND REMOTE UNIT 11 3. FUNCTIONAL DESCRIPTION 13 3.1. GENERAL 13 3.2. COMPONENTS OF THE MMR8L L REMOTE UNIT 14 4. INSTALLATION 15 4.1. MECHANICAL INSTALLATION 15 4.1.1. General 15 4.1.2. Wall and Pole Mounting 16 4.2. ELECTRICAL INSTALLATION 17 4.2.1. General 17 4.2.2. Connections 18 4.2.3. Grounding 18 4.2.4. Power Connection 19 4.2.5. Connection of the Antenna Cables 20 4.2.6. Optical Fibre Cable Connection 20 4.2.7. Protective Tube Kit 24 5. COMMISSIONING 27 5.1. GENERAL 27 5.2. AUTO-LEVELLING 27 6. ALARMS 29 6.1. BITE AND ALARMS 29 6.2. HANDLING OF ALARMS 29 6.3. ALARM STATUS 29 6.4. LED ALARMS 30 6.5. EXTERNAL ALARM INPUTS AND OUTPUTS 31 6.6. TROUBLESHOOTING 32 User’s Manual for Remote Unit MMR8L L Page 4 M0106ASB.doc 7. MAINTENANCE 33 7.1. MAINTENANCE 33 7.2. GENERAL 34 7.3. REPLACEMENT OF POWER SUPPLY 35 8. APPENDIX 37 8.1. LAYOUT 37 8.2. SPECIFICATIONS 38 8.2.1. Electrical Specifications 38 8.2.2. Environmental and Safety Specifications 39 8.2.3. Mechanical Specifications 40 8.3. PARTS LIST 40 9. INDEX 41 10. LIST OF CHANGES 42 FIGURES AND TABLES figure 3-1 Configuration of an MMR8L L remote unit ................................................ 13 figure 3-2 MMR8L L, base ........................................................................................ 14 figure 3-3 MMR8L L, lid ............................................................................................ 14 figure 4-1 Wall mounting........................................................................................... 16 figure 4-2 Pole mounting .......................................................................................... 16 figure 4-3 Connector flange ...................................................................................... 18 figure 4-4 Grounding bolt .......................................................................................... 18 figure 4-5 AC mains plug .......................................................................................... 19 figure 4-6 DC mains plug .......................................................................................... 19 figure 4-7 Protective plug assembly.......................................................................... 22 figure 4-8 Tube kit installation................................................................................... 25 figure 6-1 Connecting board ..................................................................................... 31 figure 7-1 Locker with key......................................................................................... 34 figure 7-2 Front and top cover screws ...................................................................... 34 figure 7-3 Position of mains power switch................................................................. 34 figure 7-4 Power supply screws................................................................................ 35 figure 8-1 Layout of the remote unit .......................................................................... 37 table 1-1 List of international contact addresses......................................................... 9 table 6-1 LED alarms ................................................................................................ 30 table 7-1 Specified torques for various screw types ................................................. 33 1 General ID No: 163511 Page 5 1. GENERAL 1.1. USED ABBREVIATIONS ALC Automatic Level Control AMPS American Mobile Phone System or Advanced Mobile Phone System APAC Automatic Power Adjustment Circuit BCCH Broadcast Control Channel BITE Built In Test Equipment BTS Base Transceiver Station CDMA Code Division Multiple Access CEPT Conférénce Européenne des Postes et Télécommunications CF Center Frequency CFO Center Frequency Offset DL Downlink EDGE Enhanced Data Rates for GSM Evolution ESD Electrostatic Discharge ETS European Telecommunication Standard ETSI European Telecommunication Standards Institute FSK Frequency Shift Keying GSM Global System for Mobile Communication I 2 C-Bus Inter Integrated Circuit Bus (Philips) ID No Identification Number IF Intermediate Frequency LMT Local Maintenance Terminal MS Mobile Station NSO Network Supervision Option OMC Operation and Maintenance Center PCMCIA Personal Computer Modem Communication International Association PCS Personal Communication System PSTN Public Switched Telephone Network Rev Revision RF Radio Frequency RLP Radio Link Protocol RSSI Receive Signal Strength Indication RTC Real Time Clock RX Receiver SCL Serial Clock SDA Serial Data TCH Traffic Channel TDMA Time Division Multiple Access TX Transmitter UL Uplink UMTS Universal Mobile Telecommunication System UPS Uninterruptible Power Supply VSWR Voltage Standing Wave Ratio User’s Manual for Remote Unit MMR8L L Page 6 M0106ASB.doc 1.2. HEALTH AND SAFETY WARNINGS 1. Only suitably qualified personnel is allowed to work on this unit and o…

Text truncated - open the document above for the full version.

Voltage and Current into Final Devices of the MMR 851-869 MHz PA 4 final devices in parallel, V = +28 VDC, I = 1.55 amps for each device

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:40.00(dBm) Maximum peak output power at antenna input terminal:10000(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1(numeric) Prediction distance:40(cm) Prediction frequency:860(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.533333(mW/cm^2) Power density at prediction frequency:0.497359(mW/cm^2) 2 4R PG S π =

Master: ktlPT90PLMR Date: April 19, 1999 Nemko Test Report: 4L0761RUS1REV2 Applicant: Andrew Corporation Equipment Under Test: MMR8L L Repeater (E.U.T.) In Accordance With: FCC Part 90, Subpart I Private Land Mobile Repeater Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Dustin Oaks, Engineer Date: 12/30/04 Total Number of Pages: 48 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L L Repeater PROJECT NO.: 4L0761R Page 2 of 2 Table of Contents Section 1. Summary of Test Results...................................................................................................... 3 Section 2. General Equipment Specification......................................................................................... 5 Section 3. RF Power Output .................................................................................................................. 8 Section 4. Occupied Bandwidth ............................................................................................................9 Section 5. Spurious Emissions at Antenna Terminals......................................................................... 26 Section 6. Field Strength of Spurious Emissions ................................................................................ 33 Section 7. Frequency Stability.............................................................................................................. 37 Section 8. Test Equipment List ...........................................................................................................38 ANNEX A - TEST METHODOLOGIES ................................................................................................. 39 ANNEX B - TEST DIAGRAMS .............................................................................................................. 45 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L L Repeater PROJECT NO.: 4L0761R Page 3 of 3 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: MMM\R8L L Serial No.: 11 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L L Repeater PROJECT NO.: 4L0761R Page 4 of 4 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. MEAS. RESULT RF Power Output 90.205 39.02 Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A N/A Occupied Bandwidth 90.210 Plots Plots Complies Spurious Emissions at Antenna Terminals 90.210 -13 dBm Plots Complies Field Strength of Spurious Emissions 90.210 -13 dBm E.R.P. E.R.P. Complies Frequency Stability 90.213 Complies Transient Frequency Behavior 90.214 N/A N/A N/A Footnotes For N/A’s: (1) Since the E.U.T. does not contain modulation circuitry modulation testing was not performed. (2) Since the E.U.T. is not a keyed carrier system, Transient Frequency Behavior was not performed. Indoor Temperature: 20°C Humidity: 32% Outdoor Temperature: 17 °C Humidity: 68 % . Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L L Repeater PROJECT NO.: 4L0761R Page 5 of 5 Section 2. General Equipment Specification Transmitter Supply Voltage Input: 115V AC Frequency Range: 851-869MHz Tunable Bands: 851-869MHz Type(s) of Modulation: F3E (Voice) F1D F2D GXW (iDEN) Other Maximum Input: +0dBm Output Impedance: NA RF Power Output (rated): Single: +40dBm Composite: +37dBm (2-Carrier) Frequency Translation: F1-F1 F1-F2 N/A Band Selection: Software Duplexer Change Fullband Coverage Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L L Repeater PROJECT NO.: 4L0761R Page 6 of 6 Modifications Made During Testing No Modifications made during testing Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L L Repeater PROJECT NO.: 4L0761R Page 7 of 7 System Diagram Master Unit MMR8L L (EUT) Fiber RF Out RFAC AC Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L L Repeater PROJECT NO.: 4L0761R Page 8 of 8 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: Kevin Rose DATE: 12/30/2004 Test Results: Complies Measurement Data: iDEN Frequency (MHz) Measured Power (dBm) Rated Power (dBm) DL851 39.94 40 DL869 39.98 40 Dual DL851 36.4 37 Dual DL869 36.6 37 Analog Frequency (MHz) Measured Power (dBm) Rated Power (dBm) DL851 39.2 40 DL869 39.3 40 Dual DL851 36.4 37 Dual DL869 36.5 37 Equipment Used: 1036, 1052, 1053, 1626, 1627, 1964, 1092 Measurement Uncertainty: +/- 1.6dB Temperature: 21 °C Relative Humidity: 38 % Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L L Repeater PROJECT NO.: 4L0761R Page 9 of 9 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.989 TESTED BY: Kevin Rose DATE: 12/30/2004 Test Results: Complies Test Data: See attached graph(s). Equipment Used: 1036, 1052, 1053, 1626, 1627, 1964, 1092, 1073, 1051, 0973 Measur…

Text truncated - open the document above for the full version.
