BCR-RPT-MMR8L9LDownlink Booster

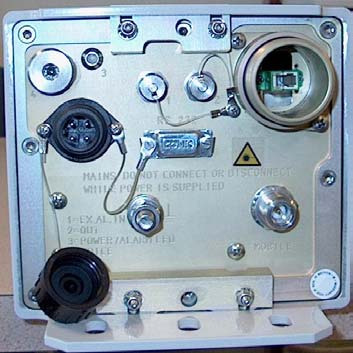

MMR Pictures Front Back Left Right Top Bottom Label – Right Side

Nemko Test Report: 5L0279RUS1rev1 Applicant: Andrew Corporation Equipment Under Test: MMR8L/9L (E.U.T.) In Accordance With: FCC Part 90, Subpart I Private Land Mobile Repeater Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Frontline Manager Date: 28 August 2005 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 2 of 67 Table of Contents Section 1. Summary of Test Results...................................................................................................... 3 Section 2. General Equipment Specification......................................................................................... 5 Section 3. RF Power Output .................................................................................................................. 7 Section 4. Occupied Bandwidth ............................................................................................................8 Section 5. Spurious Emissions at Antenna Terminals......................................................................... 21 Section 6. Field Strength of Spurious Emissions ................................................................................ 34 Section 7. Test Equipment List ...........................................................................................................38 ANNEX A - TEST METHODOLOGIES ................................................................................................. 39 ANNEX B - TEST DIAGRAMS .............................................................................................................. 45 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 3 of 67 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: MMR8L/9L Serial No.: 11 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 4 of 67 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 90.205 Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Plots Complies Spurious Emissions at Antenna Terminals 90.210 -13 dBm Complies Field Strength of Spurious Emissions 90.210 -13 dBm E.R.P. Complies Frequency Stability 90.213 N/A Transient Frequency Behavior 90.214 N/A N/A Footnotes For N/A’s: (1) Since the E.U.T. does not contain modulation circuitry modulation testing was not performed. (2) Since the E.U.T. is not a keyed carrier system, Transient Frequency Behavior was not performed. . Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 5 of 67 Section 2. General Equipment Specification Transmitter Supply Voltage Input: 115V AC, 60 Hz Frequency Range: Downlink: 935 - 941MHz 851 - 869MHz Frequency Range: Uplink: NA Output Impedance: 50ohms RF Output (Rated): Downlink +39dBm 900 Band / 43 dBm 800 Band RF Output (Rated): Uplink NA Frequency Translation: F1-F1 F1-F2 N/A Band Selection: Software Duplexer Change Fullband Coverage Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 6 of 67 System Diagram Controller MMR (EUT) Fiber RF Out RF AC AC Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 7 of 67 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: Dustin Oaks DATE: 06/13/2005 Test Results: Complies Measurement Data: 900 Band Frequency (MHz) Measured Power (dBm) Measured Power (Watts) Rated Power (dBm) iDEN 39.04 8.02 39 ANALOG 39.10 8.13 39 800 Band Frequency (MHz) Measured Power (dBm) Measured Power (Watts) Rated Power (dBm) iDEN 43.09 20.37 43 ANALOG 43 20.00 43 Equipment Used: 1036, 1053, 1627, 1471, 1973 Measurement Uncertainty: +/- 1.6dB Temperature: 21 °C Relative Humidity: 51 % Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 8 of 67 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.989 TESTED BY: Dustin Oaks DATE: 06/13/2005 Test Results: Complies Test Data: See attached graph(s). Equipment Used: 1036, 1053, 1627, 1471, 1973, 1092 Measurement Uncertainty: +/- 1.6dB Temperature: 21 °C Relative Humidity: 51 % Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 9 of 67 Band Width and Input/Output Input 900MHz iDEN Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 10 of 67 Output 900MHz iDEN Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: MMR8L/9L PROJECT NO.: 5L0279RUS1rev1 Page 11 of 67 I/O Plots Input 800 iDEN Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER …

Text truncated - open the document above for the full version.
