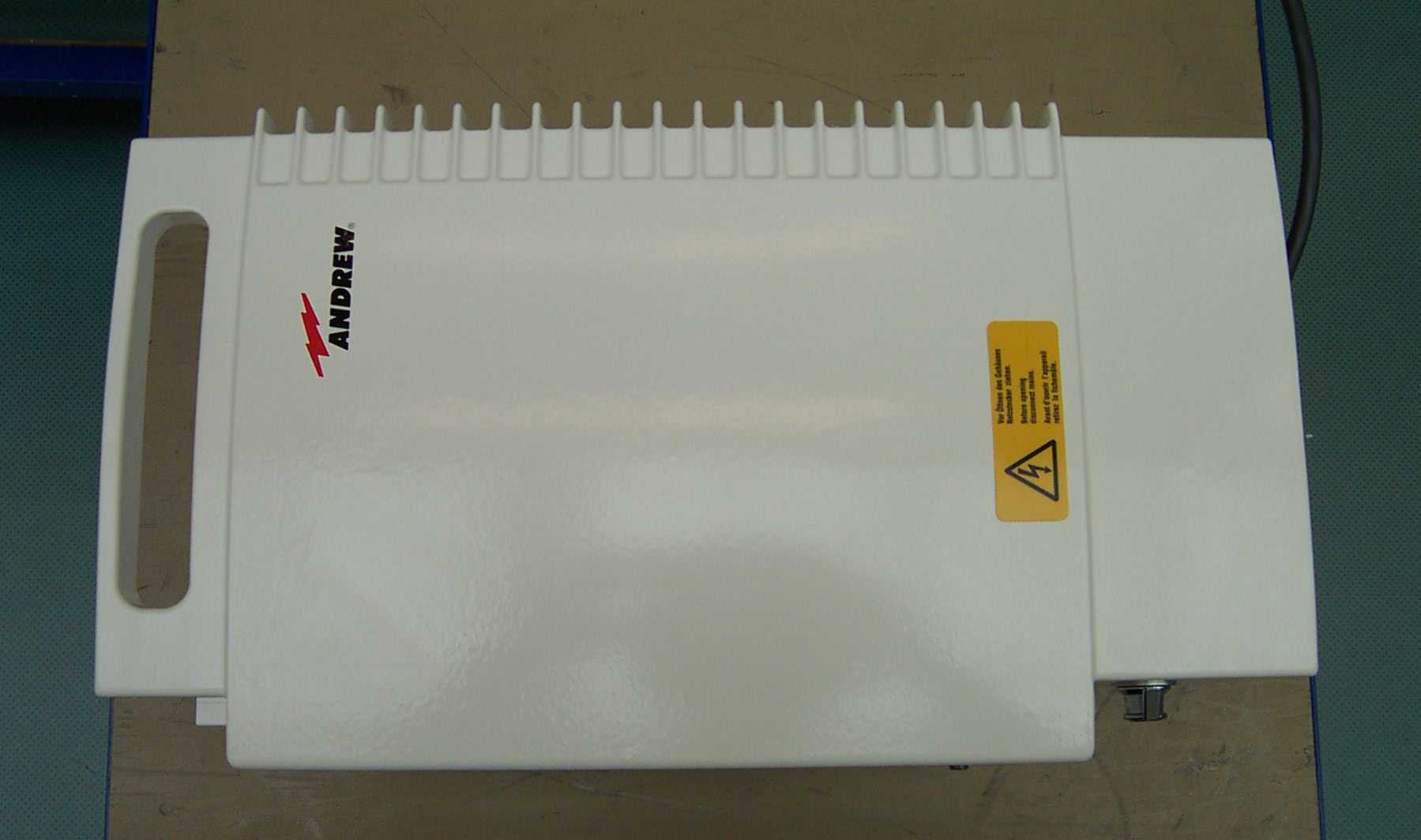

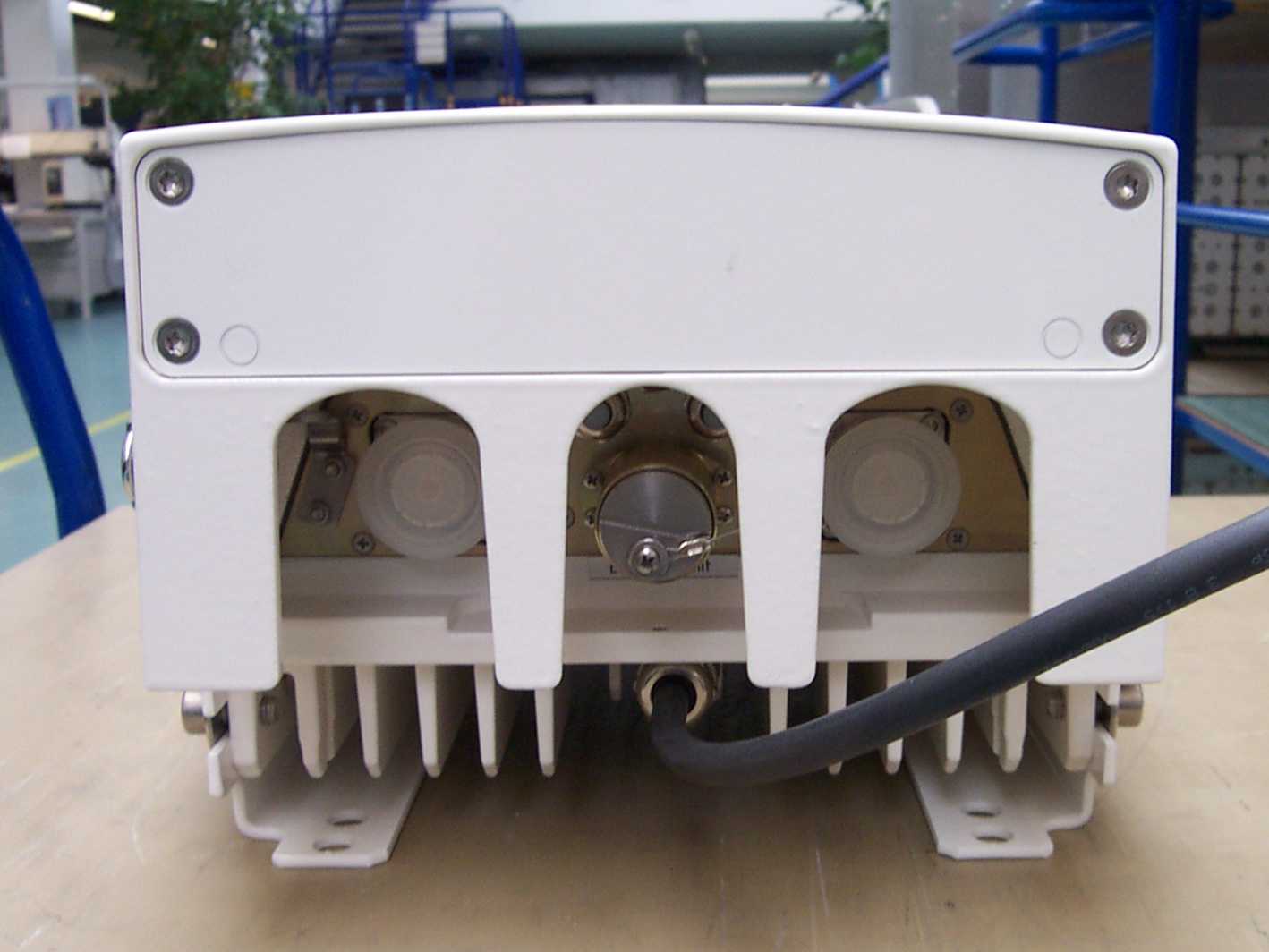

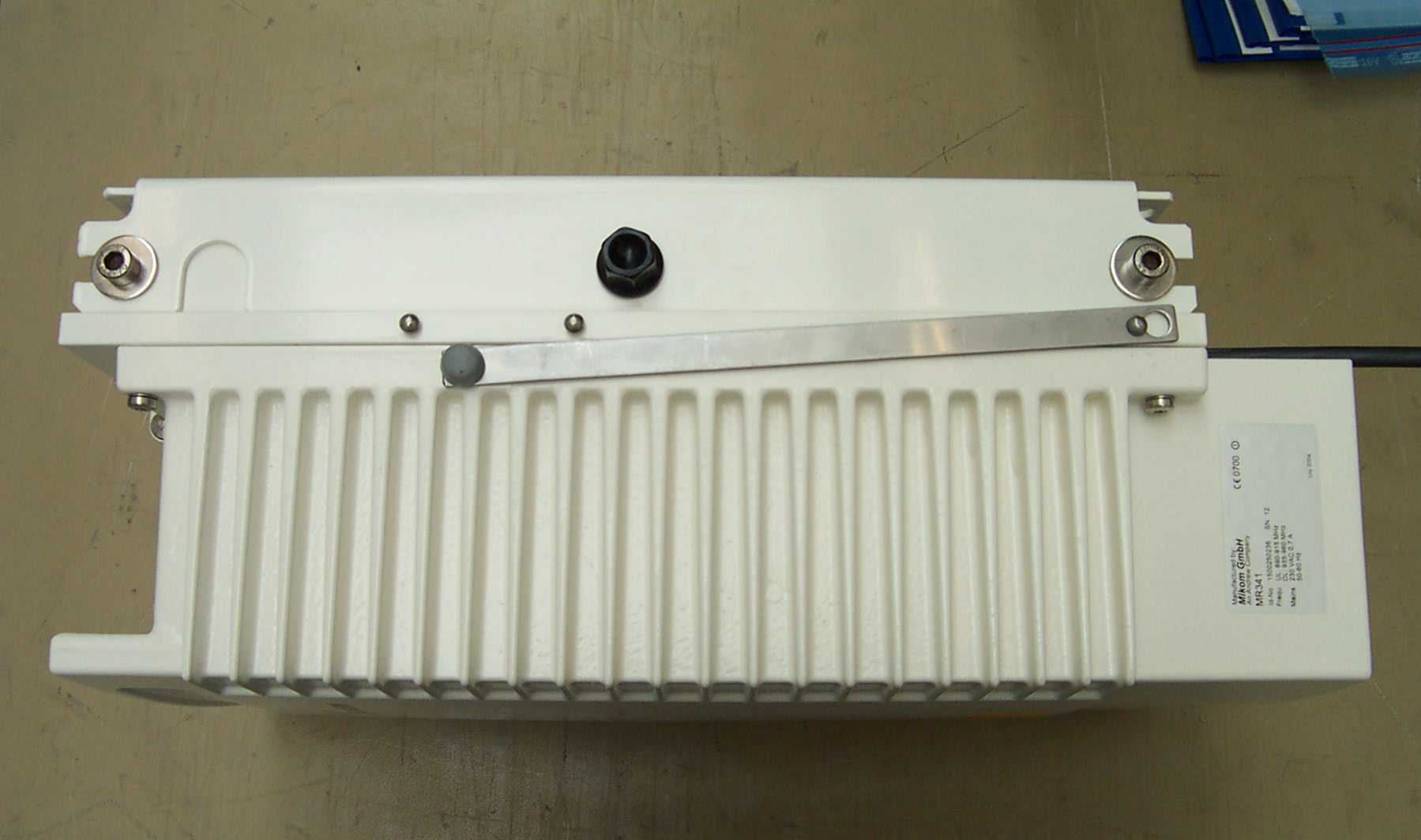

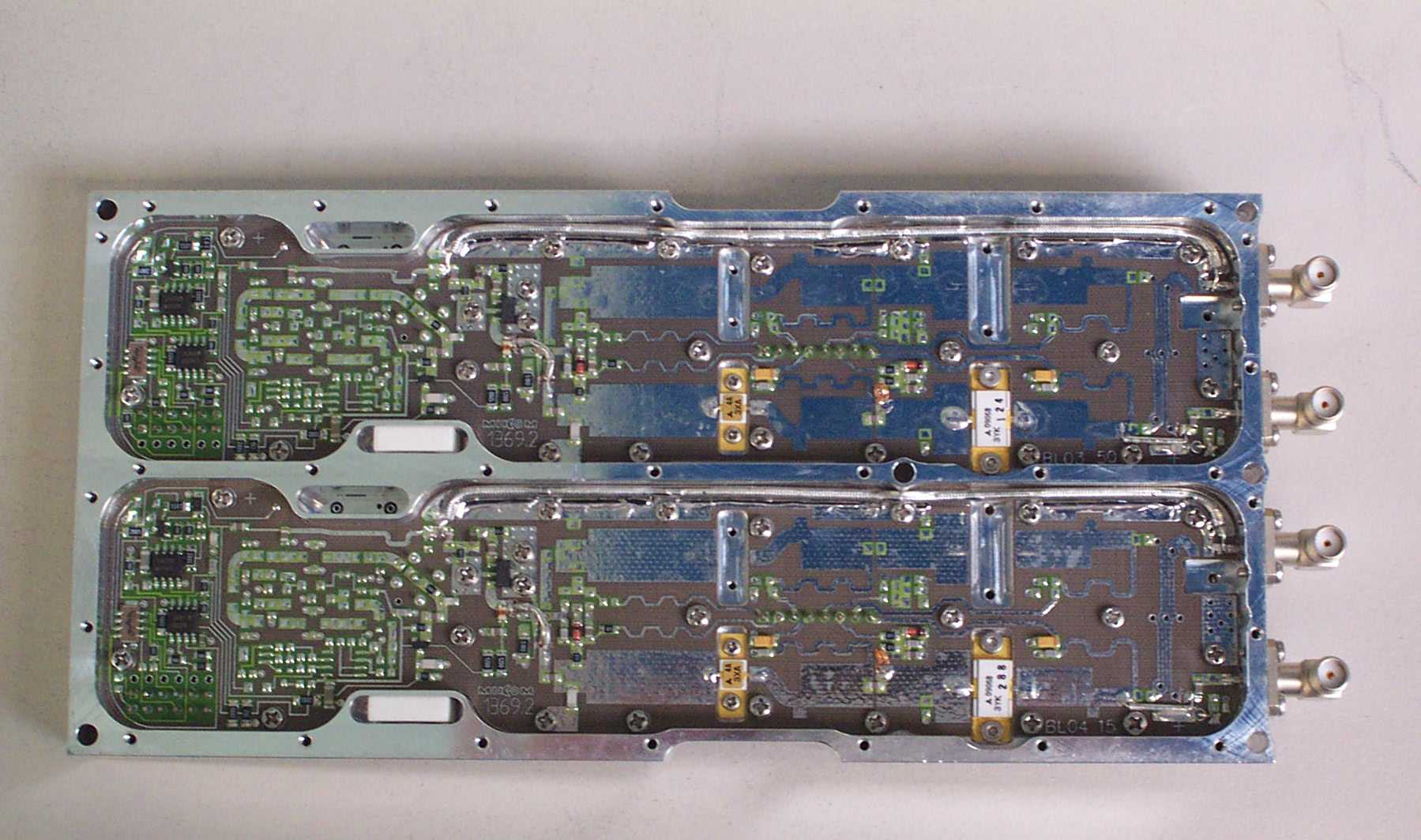

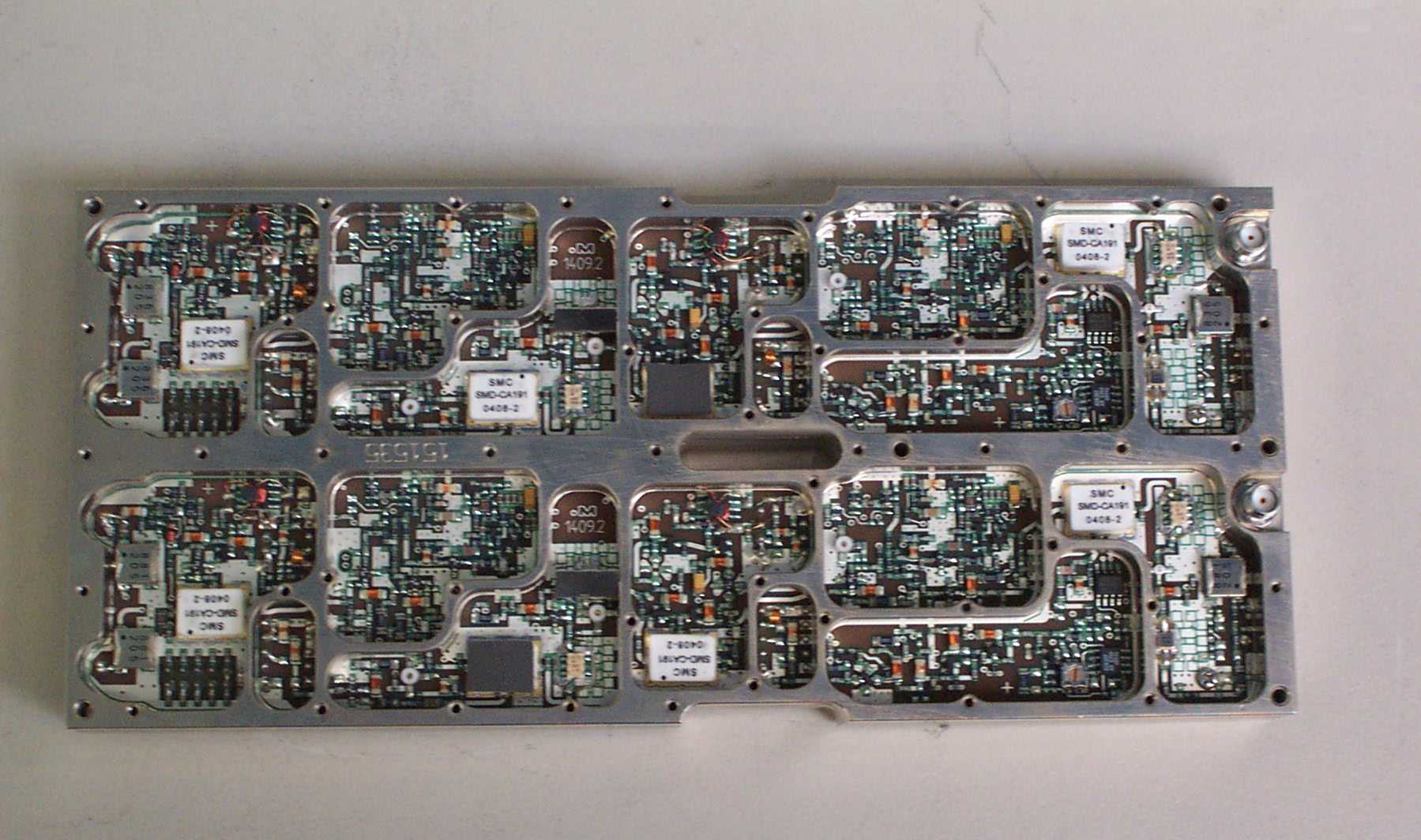

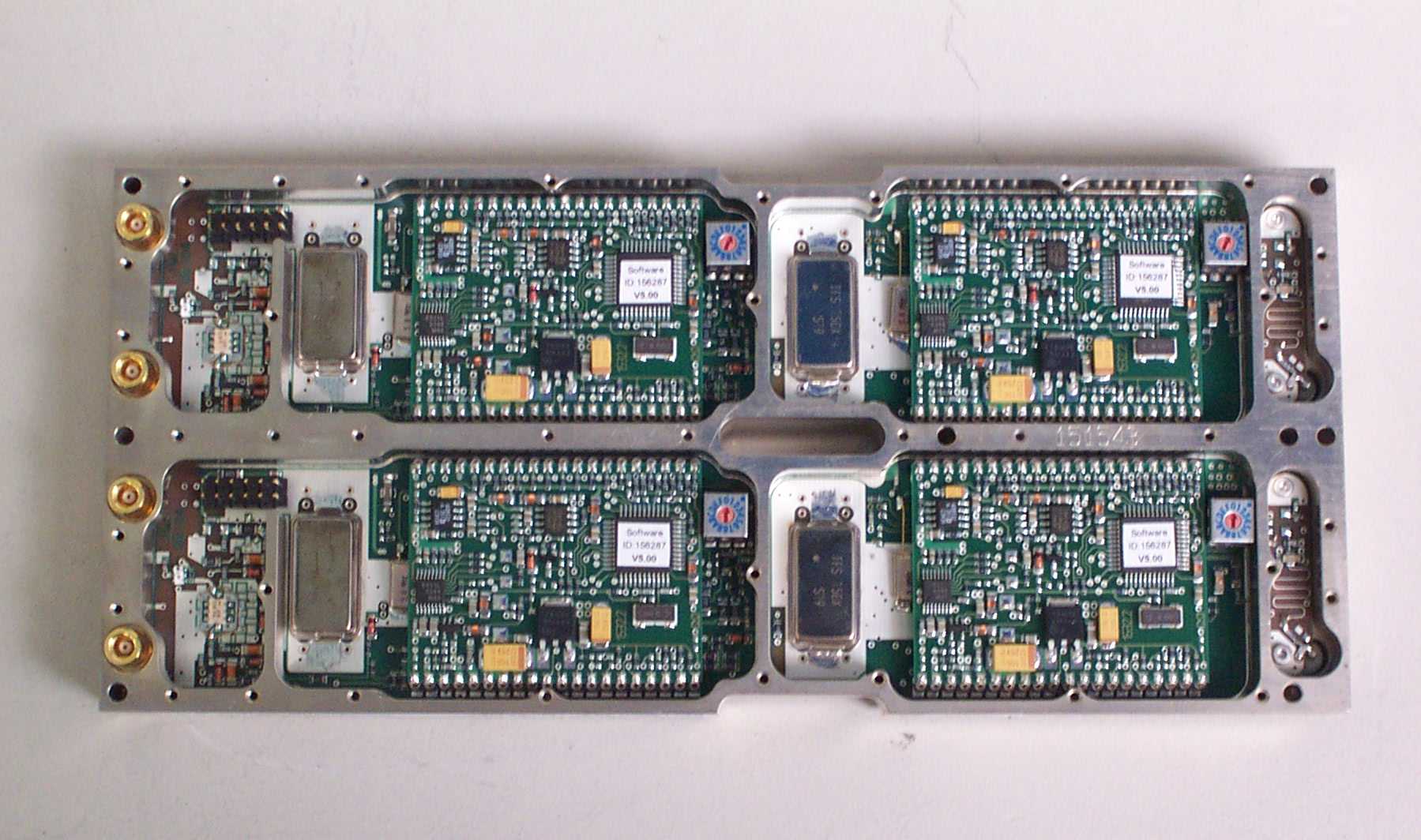

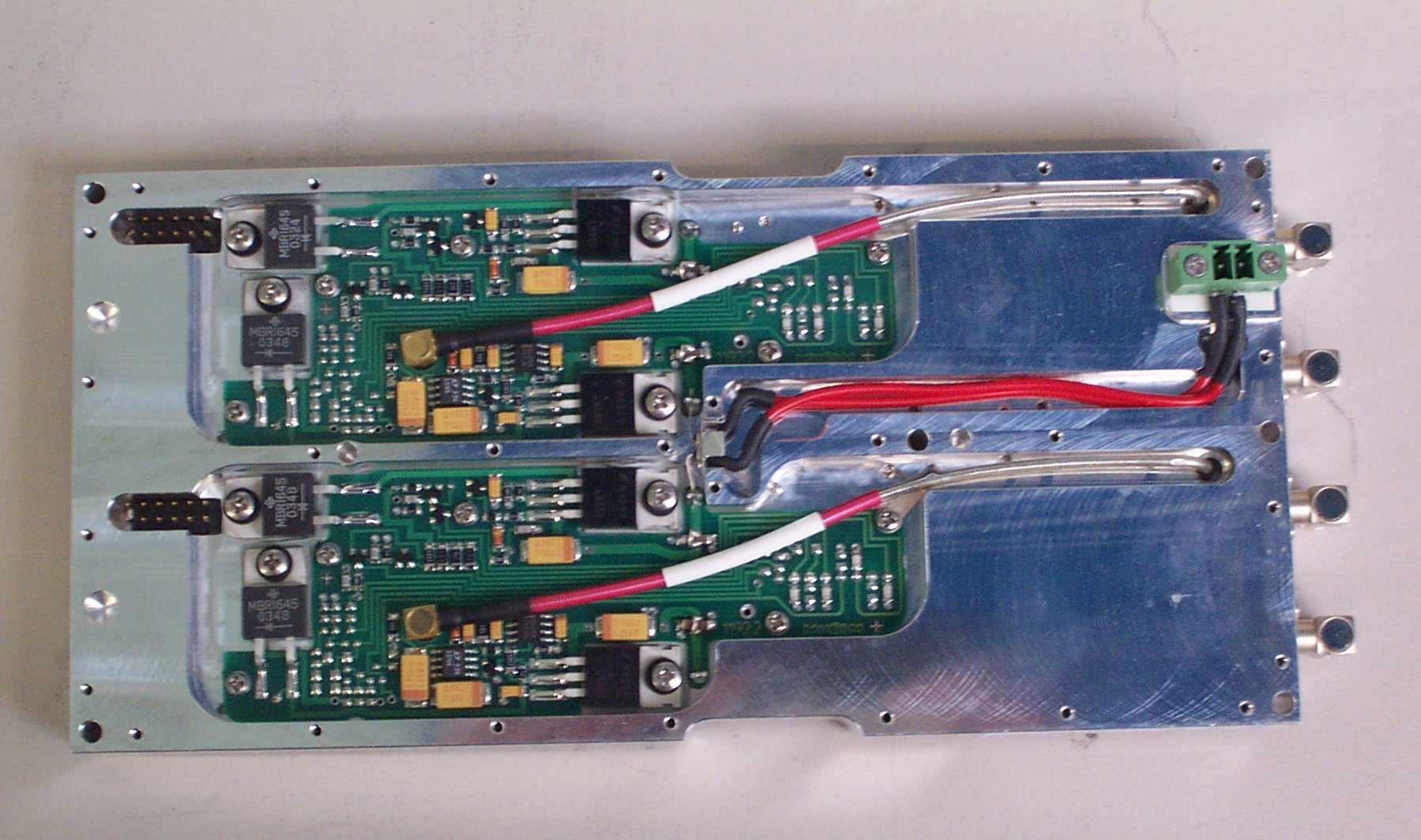

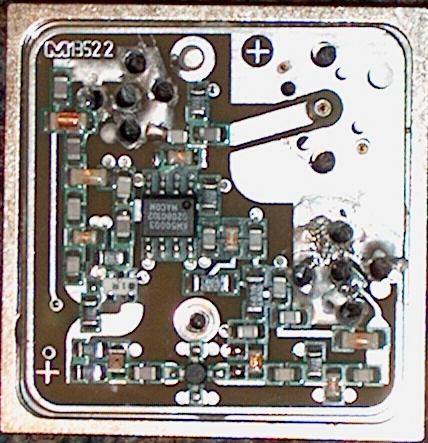

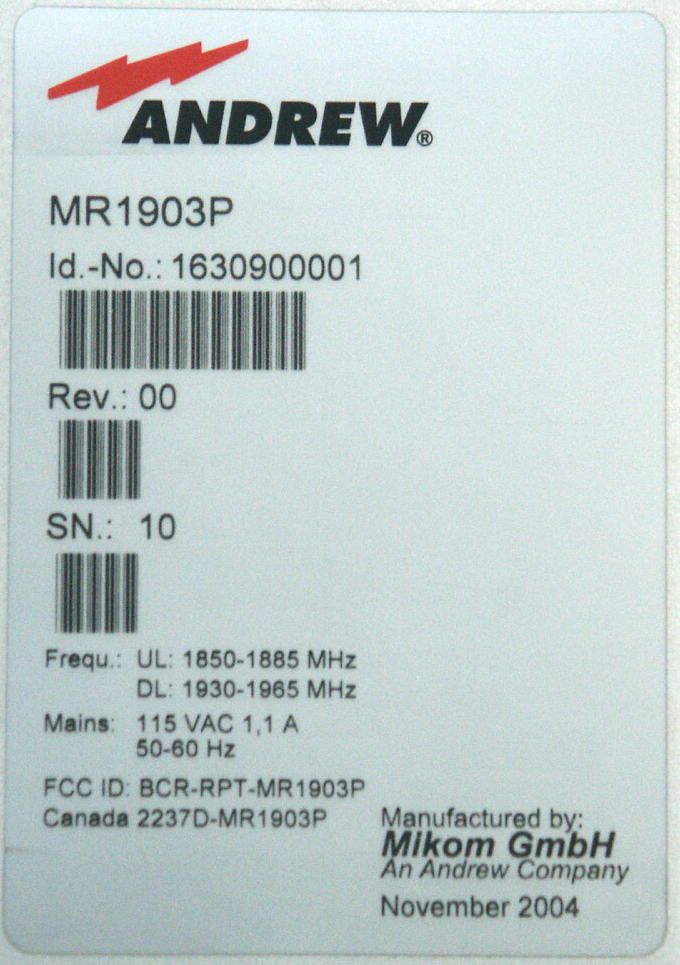

BCR-RPT-MR1903PPBooster

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 1900MHz Maximum peak output power at antenna input terminal:34.00(dBm) Maximum peak output power at antenna input terminal:2511.886(mW) Antenna gain(typical):7(dBi) Maximum antenna gain:5.011872(numeric) Prediction distance:35(cm) Prediction frequency:1900(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.817813(mW/cm^2) 2 4R PG S π =

Nemko Test Report No.: 4L0459RUS1 Applicant: Andrew Corporation Equipment Under Test: MR1903PP In Accordance With: FCC Part 24, Subpart E Broadband PCS Repeaters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: 2 August, 2004 Total Number of Pages: 66 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:MR1903PP Test Report No.: 4L0459RUS1 Page 2 of 66 Table of Contents Section 1. Summary of Test Results .....................................................................3 Section 2. General Equipment Specification.........................................................5 Section 3. RF Power Output..................................................................................7 Section 4. Occupied Bandwidth ............................................................................8 Section 5. Spurious Emissions at Antenna Terminals ........................................17 Section 6. Field Strength of Spurious .................................................................50 Section 7. Test Equipment List ...........................................................................56 ANNEX A - TEST DETAILS .................................................................................57 ANNEX B - TEST DIAGRAMS.............................................................................63 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:MR1903PP Test Report No.: 4L0459RUS1 Page 3 of 66 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: MR1903PP Serial No.: 11 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:MR1903PP Test Report No.: 4L0459RUS1 Page 4 of 66 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 24.232 100W Complies Occupied Bandwidth 24.238 Input/Output Complies Spurious Emissions at Antenna Terminals 24.238(a)-13 dBm Complies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. Complies Frequency Stability 24.235 NA Footnotes: (1) Modulation characteristics were not tested since the E.U.T. processes but does not produce a modulated waveform. Measurement uncertainty for each test configuration is expressed to 95% probability. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:MR1903PP Test Report No.: 4L0459RUS1 Page 5 of 66 Section 2. General Equipment Specification Supply Voltage Input: 115 Vac Frequency Bands: Downlink: Block A : 1930 – 1945 MHz Block D : 1945 – 1950 MHz Block B : 1950 – 1965 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block C : 1975 – 1990 MHz Frequency Bands: Uplink: Block A : 1850 – 1865 MHz Block B : 1865 – 1870 MHz Block C : 1870 – 1885 MHz Block D : 1885 – 1890 MHz Block E : 1890 – 1895 MHz Block F : 1895 – 1910 MHz CDMA GSM NADC EDGE (G7W) (GXW) (DXW) ((GXW) Type of Modulation and Designator: Output Impedance: 50 ohms Modulation 1 Carrier 2 Carriers 4 Carriers CDMA 28 22 19 GSM 34 24 21 EDGE 30.5 22.5 19.5 RF Output (Rated): Downlink: TDMA 31.5 23 20 Modulation 1 Carrier 2 Carriers 4 Carriers CDMA 28 22 19 GSM 34 24 21 EDGE 30.5 22.5 19.5 Uplink: TDMA 31.5 23 20 F1-F1 F1-F2 N/A Frequency Translation: Software Duplexer Fullband Band Selection: Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:MR1903PP Test Report No.: 4L0459RUS1 Page 6 of 66 Description of Operation This is a booster operating in the PCS 1900 band using two 15 MHz variable bandwidth modules for uplink and downlink. System Diagram Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:MR1903PP Test Report No.: 4L0459RUS1 Page 7 of 66 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: David Light DATE: 7/28/04 Test Results: Complies. Measurement Data: Modulation Type Per Channel Output Power (dBm) Composite Output Power (dBm) Uplink CDMA 22 25 Downlink CDMA 22 25 Uplink GSM 24 27 Downlink GSM 24 27 Uplink NADC 22.5 25.5 Downlink NADC 22.5 25.5 Uplink EDGE 23 26 Downlink EDGE 23 26 Equipment Used: 1036-1064-1626-1627 Measurement Uncertainty: +/- 1.6 dB Temperature: 22 °C Relative Humidity: 44 % Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:MR1903PP Test Report No.: 4L0459RUS1 Page 8 of 66 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 7/27/04 Test Results: Complies. Test Data: See attached plot(s). Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:MR1903PP Test Report No.: 4L0459RUS1 Page 9 of 66 Test Data – Occupied Bandwidth Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 4 Complete X Job No.:4L0459R Date:7/27/2004Preliminary: Specification:PT24Temperature(°C):22 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: Refer to plotsMeasurement Detector Type:PeakVBW: Refer to plots Distance: NAm Test Equipment Used A…

Text truncated - open the document above for the full version.

Nemko Dallas RSS 131, ISSUE 1, REPEATERS EQUIPMENT:MR1903PP TEST REPORT NO.:4L0459RIC1 Page 8 of 24 Test Data – Amplifier Gain and Bandwidth Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 3 CompleteX Job No.:4L0459R Date:7/27/2004Preliminary: Specification:RSS131Temperature(°C):22 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: Refer to plotsMeasurement Detector Type:PeakVBW: Refer to plots Distance: NAm Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1626 Filter: Cable #2:1627 Receiver:1036Cable #3: Attenuator #11064Cable #4: Attenuator #2:1065Mixer: Additional equipment used: Measurement Uncertainty:+/-1.7 dB Notes: Spurious Emissions at Antenna Terminals PCS REPEATER TX 20 dB Passband = 16.8 MHz INPUT LEVEL = -50.5 dBm ACROSS BAND OUTPUT LEVEL - +34.4 dBm / gain = 84.9 dB Nemko Dallas RSS 131, ISSUE 1, REPEATERS EQUIPMENT:MR1903PP TEST REPORT NO.:4L0459RIC1 Page 9 of 24 Test Data – Amplifier Gain and Bandwidth Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 1 Complete X Job No.:4L0459RDate:10/18/2004Preliminary: Specification:RSS131Temperature(°C):25 Tested By:David LightRelative Humidity(%)45 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: 30 kHzMeasurement Detector Type:PeakVBW: 30 kHz Distance: NAm Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1629 Filter: Cable #2: Receiver:1036Cable #3: Attenuator #11064Cable #4: Attenuator #2: Mixer: Additional equipment used: Measurement Uncertainty:+/-1.7 dB Notes: Spurious Emissions at Antenna Terminals PCS REPEATER TX 20 dB Passband = 16.8 MHz INPUT LEVEL = -57.6 dBm ACROSS BAND OUTPUT LEVEL - +28.1 dBm / gain = 85.7 dB
