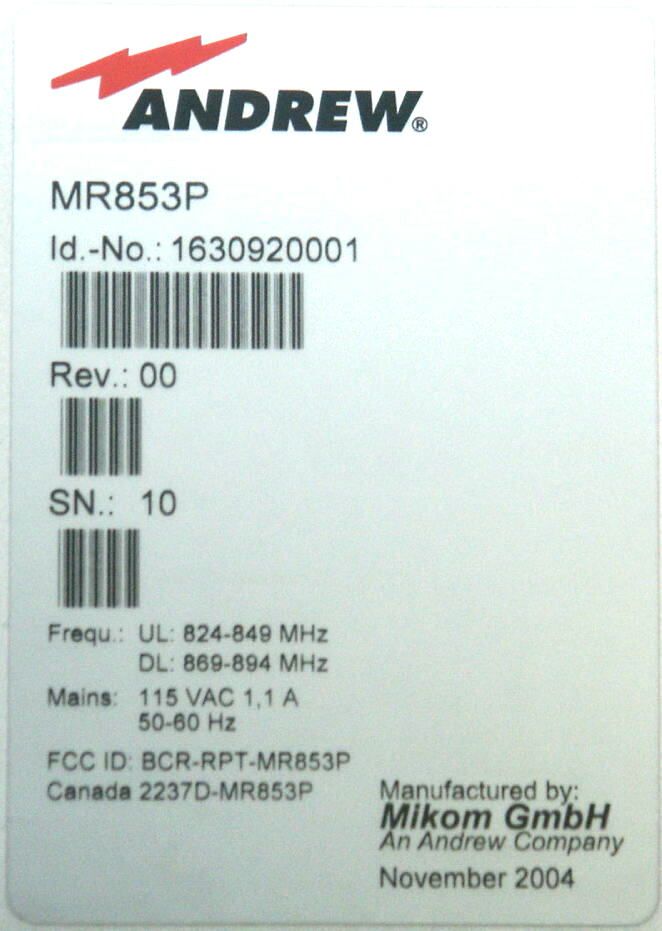

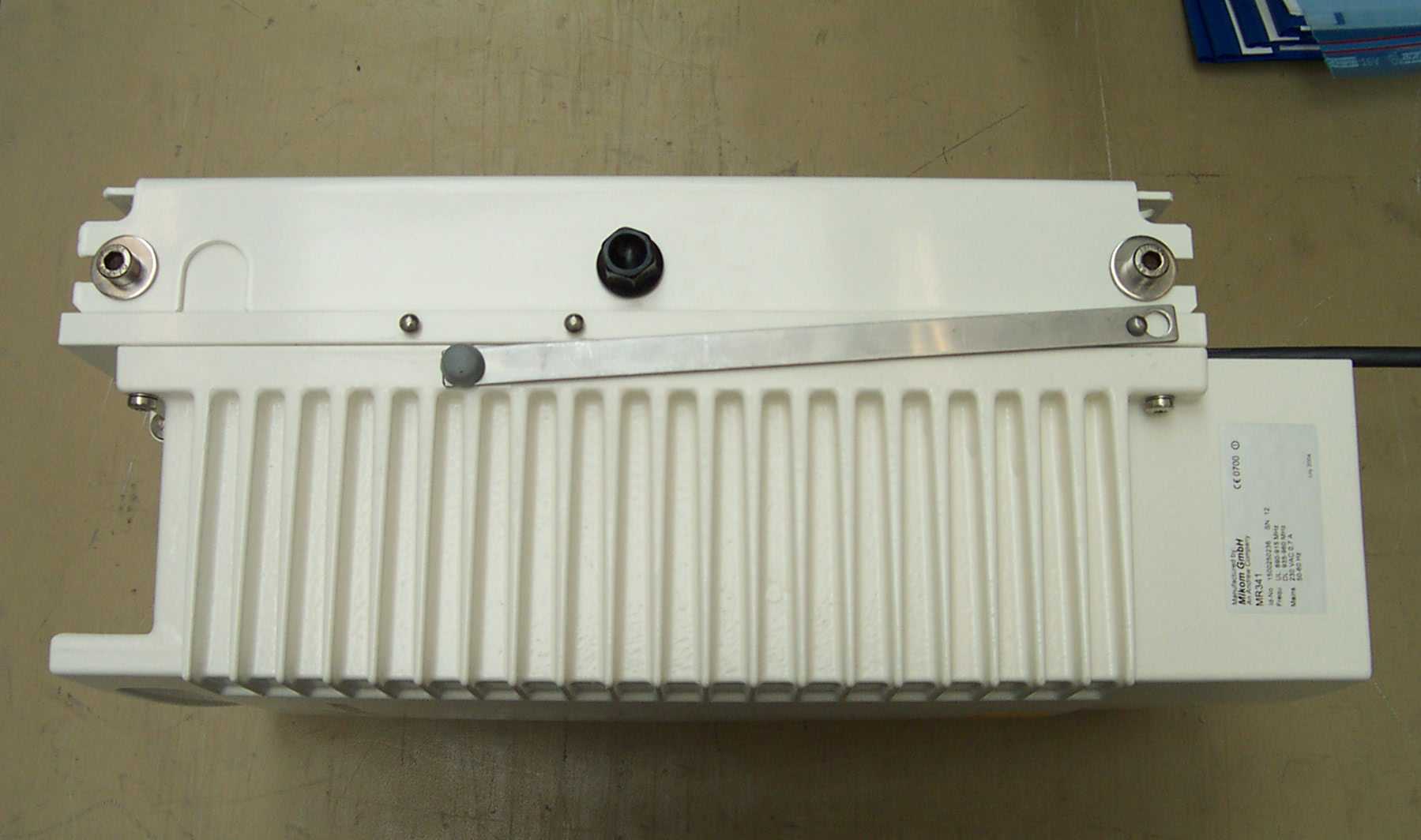

BCR-RPT-MR853PBooster

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 800MHz Maximum peak output power at antenna input terminal:34.00 (dBm) Maximum peak output power at antenna input terminal: 2511.886(mW) Antenna gain(typical):5 (dBi) Maximum antenna gain: 3.162278(numeric) Prediction distance:35(cm) Prediction frequency:850 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.533333(mW/cm^2) Power density at prediction frequency: 0.516005(mW/cm^2) 2 4R PG S π =

Nemko Test Report: 4L0458RUS1 Applicant: Andrew Corporation Equipment Under Test: MR853P (E.U.T.) In Accordance With: FCC Part 22, Subpart H Cellular Band Repeaters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: 2 August, 2004 Total Number of Pages: 70 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: MR853P Test Report No.: 4L0458RUS1 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS.............................................................................................3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION..........................................................................5 SECTION 3. RF POWER OUTPUT................................................................................................................7 SECTION 4. OCCUPIED BANDWIDTH........................................................................................................8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS......................................................19 SECTION 6. FIELD STRENGTH OF SPURIOUS......................................................................................50 SECTION 7. TEST EQUIPMENT LIST........................................................................................................54 ANNEX A - TEST DETAILS.............................................................................................................................55 ANNEX B - TEST DIAGRAMS........................................................................................................................64 Page 2 of 70 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: MR853P Test Report No.: 4L0458RUS1 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: MR853P Serial No.: 11 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Page 3 of 70 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: MR853P Test Report No.: 4L0458RUS1 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 22.913(a) 500W ERP Complies Occupied Bandwidth (Voice & SAT) 22.917(c) Input/Output Complies Spurious Emissions at Antenna Terminals 22.917 -13 dBm Complies Field Strength of Spurious Emissions 22.917 -13 dBm E.I.R.P. Complies Frequency Stability 22.355 1.5 ppm NA Footnotes : The device processes but does not produce a modulated waveform and does not perform any frequency translation. Measurement uncertainty for each test configuration is expressed to 95% probability. . Page 4 of 70 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: MR853P Test Report No.: 4L0458RUS1 Section 2. General Equipment Specification Supply Voltage Input: 115 Vac Frequency Range: Downlink: 869 – 894 MHz Frequency Range: Uplink: 824 – 849 MHz CDMA GSM NADC EDGE AMPS (F9W) (GXW) (DXW) (G7W) (F8W, F1D) Type of Modulation and Designator: Output Impedance: 50 ohms Max Input Power: +10dBm RF Output (Rated): Downlink: Modulation 1 Carrier 2 Carriers 4 Carriers Analog 34 24 21 CDMA 28 22 19 GSM 34 24 21 EDGE 30.5 22.5 19.5 TDMA 31.5 23 20 Uplink: Modulation 1 Carrier 2 Carriers 4 Carriers Analog 34 24 21 CDMA 28 22 19 GSM 34 24 21 EDGE 30.5 22.5 19.5 TDMA 31.5 23 20 Frequency Translation: F1-F1 F1-F2 N/A Software Duplexer Change Fullband Coverage Band Selection: Page 5 of 70 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: MR853P Test Report No.: 4L0458RUS1 Description of Operation This is a booster operating in the 800 MHz SMR band using two 15 MHz variable bandwidth modules for uplink and downlink. System Diagram Page 6 of 70 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: MR853P Test Report No.: 4L0458RUS1 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: David Light DATE: 7/28/04 Test Results: Complies. Test Data: Modulation Type Per Channel Power Output (dBm) Composite Power Output (dBm) Uplink AMPS 24 27 Downlink AMPS 22 25 Uplink CDMA 24 27 Downlink CDMA 22.5 25.5 Uplink GSM 23 26 Downlink GSM 24 27 Uplink NADC 22 25 Downlink NADC 24 27 Uplink EDGE 22.5 25.5 Downlink EDGE 23 26 Equipment Used: 1036-1064-1627-1628 Measurement Uncertainty: +/- 1.7dB Temperature: 22 °C Relative Humidity: 40 % Page 7 of 70 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: MR853P Test Report No.: 4L0458RUS1 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 7/29/04 Test Results: Complies. Test Data: See attached plots Page 8 of 70 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: MR853P Test Report No.: 4L0458RUS1 Test Data – Occupied Bandwidth Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of5 Complete X Job No.:4L0458R Date:7/29/2004Preliminary: Specification:PT22Temperature(°C):22 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW:Refer to plotsMeasureme…

Text truncated - open the document above for the full version.

Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 3 Complete X Job No.:4L0458Date:9/9/2004Preliminary: Specification:RSS131Temperature(°C):25 Tested By:David LightRelative Humidity(%)35 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: 100 kHzMeasurement Detector Type:PeakVBW: 100 kHz Distance: NAm Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1627 Filter: Cable #2:1628 Receiver:1036Cable #3: Attenuator #11064Cable #4: Attenuator #2: Mixer: Additional equipment used: Measurement Uncertainty:+/-1.7 dB Notes: Spurious Emissions at Antenna Terminals CELL BAND REPEATER TX 20 dB Passband = 25.7 MHz INPUT LEVEL = -55.6 dBm ACROSS BAND OUTPUT LEVEL - +30 dBm / gain = 90 dB Out of band rejection. Uplink Out of band rejection. Downlink. Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 3 Complete X Job No.:4L0458 Date:7/27/2004Preliminary: Specification:RSS131Temperature(°C):22 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: Refer to plotsMeasurement Detector Type:PeakVBW: Refer to plots Distance: NAm Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1627 Filter: Cable #2:1628 Receiver:1036Cable #3: Attenuator #11064Cable #4: Attenuator #2: Mixer: Additional equipment used: Measurement Uncertainty:+/-1.7 dB Notes: Spurious Emissions at Antenna Terminals CELL BAND REPEATER TX 20 dB Passband = 25.64 MHz INPUT LEVEL = -55.4 dBm ACROSS BAND OUTPUT LEVEL - +27.4 dBm / gain = 82.8 dB
