BCR-RPT-TFAN8019Down Link Booster

Andrew Wireless Innovations Group
Down Link Booster - FCC ID BCR-RPT-TFAN8019 - Andrew Wireless Innovations Group
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Oct 31, 2004
Application Purpose
Original Equipment
Date of Application
Oct 31, 2004
Equipment Note
Down Link Booster
Frequency Range
851.00000000 - 869.00000000
Company
Andrew Wireless Innovations Group
Country
United States

Documents & Files

Select a file to view

Attestation Statements

↗

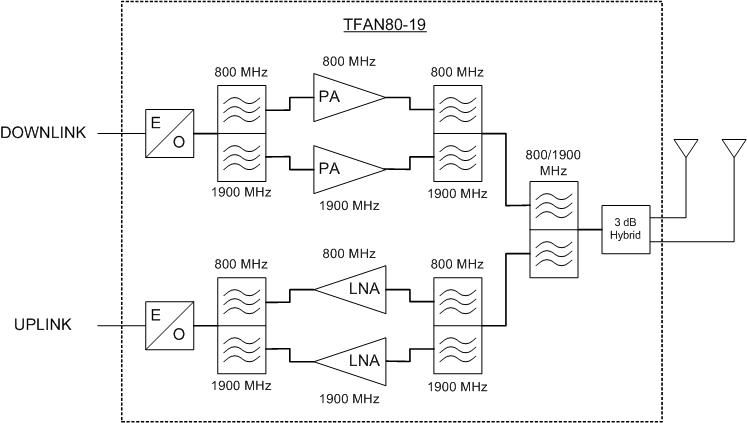

Block Diagram

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

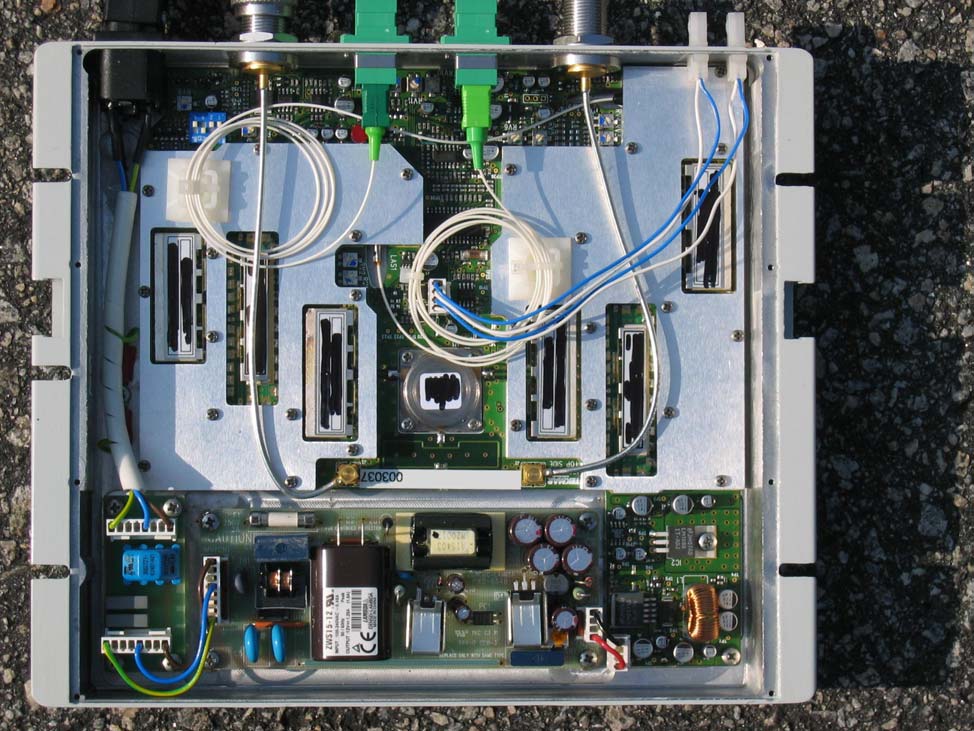

Internal Photos

↗

Parts List/Tune Up Info

↗
↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

ID Label/Location Info

WARNING! To prevent electrical shock do not remove the cover. Service by qualified personnel only. 100-120 / 200-240 V ~ ; 0.24 / 0.13 A ; 50 / 60 Hz Model: BRITECELL ® PLUS Type: TFAN (Remote Unit Plus) Manufactured by: Tekmar Sistemi Srl An Andrew Company FCC ID: BCR-RPT-TFAN8019 IC ID: 2237D-TFAN8019

Parts List/Tune Up Info

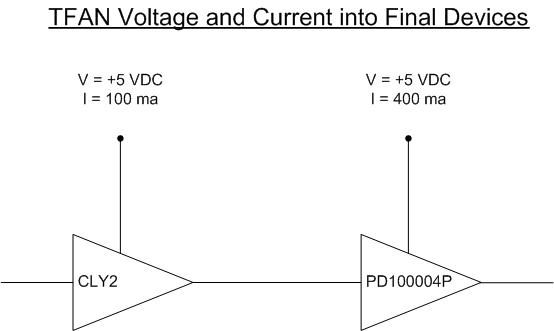

Britecell Plus TFAN80-19 Tune-Up Procedure Gain for the Britecell Plus TFAN80-19 is set at the factory and no provisions are made for user accessible controls. Output power is a function of the input power and the fixed gain of the TFAN80-19. The user should provide an input signal that will produce an output power not exceeding the levels included in the product data sheet for the medium power remote.

RF Exposure Info

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 800MHz1900MHz Maximum peak output power at antenna input terminal:21.0021.00 (dBm) Maximum peak output power at antenna input terminal: 125.8925125.89254 (mW) Antenna gain(typical):1515(dBi) Maximum antenna gain: 31.6227831.622777(numeric) Prediction distance:3535(cm) Prediction frequency:8501900(MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.5333331 (mW/cm^2) Power density at prediction frequency: 0.2586150.25862 (mW/cm^2) Multiple transmitter Calculation: (Sum of all fractional Contributions) 0.48490+0.25862= 0.74352 <1.0 2 4R PG S π =

Test Report

Nemko Test Report No.: 4L0490RUS1REV2 Applicant: Andrew Corporation Equipment Under Test: TFAN 80/19 In Accordance With: FCC Part 24, Subpart E Broadband PCS Repeaters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: 18 October, 2004 Total Number of Pages: 42 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 80/19 TEST REPORT NO.4L0490RUS1REV2 Page 2 of 42 Table of Contents Section 1. Summary of Test Results.................................................................... 3 Section 2. General Equipment Specification ...................................................... 5 Section 3. RF Power Output ................................................................................ 7 Section 4. Occupied Bandwidth .......................................................................... 8 Section 5. Spurious Emissions at Antenna Terminals ......................................17 Section 6. Field Strength of Spurious ...............................................................30 Section 7. Test Equipment List .........................................................................32 ANNEX A - TEST DETAILS................................................................................33 ANNEX B - TEST DIAGRAMS ...........................................................................39 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 80/19 TEST REPORT NO.4L0490RUS1REV2 Page 3 of 42 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAN 80/19 Serial No.: 042202202 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 80/19 TEST REPORT NO.4L0490RUS1REV2 Page 4 of 42 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 24.232 100W Complies Occupied Bandwidth (CDMA) 24.238 Input/Output Complies Occupied Bandwidth (GSM) 24.238 Input/Output Complies Occupied Bandwidth (NADC) 24.238 Input/Output Complies Occupied Bandwidth (EDGE) 24.238 Input/Output Complies Spurious Emissions at Antenna Terminals 24.238(a)-13 dBm Complies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. Complies Frequency Stability 24.235 NA Footnotes: (1) Modulation characteristics were not tested since the E.U.T. processes but does not produce a modulated waveform. Measurement uncertainty for each test configuration is expressed to 95% probability. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 80/19 TEST REPORT NO.4L0490RUS1REV2 Page 5 of 42 Section 2. General Equipment Specification Supply Voltage Input: Frequency Bands: Downlink: Block A : 1930 – 1945 MHz Block D : 1945 – 1950 MHz Block B : 1950 – 1965 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block C : 1975 – 1990 MHz Frequency Bands: Uplink: Block A : 1850 – 1865 MHz Block B : 1865 – 1870 MHz Block C : 1870 – 1885 MHz Block D : 1885 – 1890 MHz Block E : 1890 – 1895 MHz Block F : 1895 – 1910 MHz CDMA GSM NADC EDGE (F9W) (G7W) (DXW) (GXW) Type of Modulation and Designator: Output Impedance: 50 ohms Max Input: +10 dBm RF Output (Rated): Uplink N/A RF Output (Rated): Downlink 28.1 mW max F1-F1 F1-F2 N/A Frequency Translation: Software Duplexer Fullband Band Selection: Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 80/19 TEST REPORT NO.4L0490RUS1REV2 Page 6 of 42 Description of Operation Britecell Plus is a radio over fiber system operation in the 1900 PCS and SMR bands. System Diagram TFLN Britecell Unit (EUT) Fiber RF Out RFAC AC Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 80/19 TEST REPORT NO.4L0490RUS1REV2 Page 7 of 42 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: Dustin Oaks DATE:8/13/04 Test Results: Complies. Measurement Data: Modulation Type Per Channel Output Power (mW) Per Channel Output Power (dBm) Uplink NA Downlink CDMA 5.63 15.01 Uplink NA Downlink GSM 11.50 21.21 Uplink NA Downlink EDGE 7.60 17.61 Uplink NA Downlink NADC 8.50 18.59 Equipment Used: 1627-1036-1604 Measurement Uncertainty: +/- 1.6 dB Temperature: 22 °C Relative Humidity: 40 % Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 80/19 TEST REPORT NO.4L0490RUS1REV2 Page 8 of 42 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE:7/28/04 Test Results: Complies. Test Data: See attached plot(s). Measurement Uncertainty: +/- 1.6 dB Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 80/19 TEST REPORT NO.4L0490RUS1REV2 Page 9 of 42 Test Data – Occupied Bandwidth (Input/Output) Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 8 Complete X Job No.:Date:7/28/2004Preliminary: Specification:Temperature(°C):22 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: Refer to plotsMeasureme…

Text truncated - open the document above for the full version.

Test Report

Nemko Test Report: 4L0490RUS2REV2 Applicant: Andrew Corporation Equipment Under Test: TFAN 80/19 (E.U.T.) In Accordance With: FCC Part 90, Subpart I Private Land Mobile Repeater Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: 18 October, 2004 Total Number of Pages: 36 Nemko Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAN 80/19 TEST REPORT NO.: 4L0490RUS2REV2 Page 2 of 36 Table of Contents Section 1. Summary of Test Results .................................................................................................. 3 Section 2. General Equipment Specification .................................................................................... 5 Section 3. RF Power Output .............................................................................................................. 7 Section 4. Occupied Bandwidth......................................................................................................... 8 Section 5. Spurious Emissions at Antenna Terminals ................................................................... 13 Section 6. Field Strength of Spurious Emissions ........................................................................... 20 Section 7. Test Equipment List ........................................................................................................ 26 ANNEX A - TEST METHODOLOGIES............................................................................................. 27 ANNEX B - TEST DIAGRAMS ........................................................................................................... 33 Nemko Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAN 80/19 TEST REPORT NO.: 4L0490RUS2REV2 Page 3 of 36 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAN 80/19 Serial No.: 042202202 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAN 80/19 TEST REPORT NO.: 4L0490RUS2REV2 Page 4 of 36 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 90.205 Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A Occupied Bandwidth 90.210 Plots Complies Spurious Emissions at Antenna Terminals 90.210 Plots Complies Field Strength of Spurious Emissions 90.210 Complies Frequency Stability 90.213 N/A Transient Frequency Behavior 90.214 N/A N/A Footnotes For N/A’s: (1) Since the E.U.T. does not contain modulation circuitry modulation testing was not performed. (2) Since the E.U.T. is not a keyed carrier system, Transient Frequency Behavior was not performed. . Nemko Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAN 80/19 TEST REPORT NO.: 4L0490RUS2REV2 Page 5 of 36 Section 2. General Equipment Specification Transmitter Supply Voltage Input: 115 Vac Frequency Range: 851 to 869 MHz Tunable Bands: Full band coverage Type(s) of Modulation: F3E (Voice) F1D F2D D7W (iDEN) Other Maximum Input: +10 dBm Output Impedance: 50 ohms RF Power Output (rated): Single: 21 dBm (125.9mW) Composite: 17.5 dBm (56 mW) Operator Selection of Operating Frequency: None Power Output Adjustment Capability: Software Frequency Translation: F1-F1 F1-F2 N/A Band Selection: Software Duplexer Change Fullband Coverage Nemko Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAN 80/19 TEST REPORT NO.: 4L0490RUS2REV2 Page 6 of 36 Description of Operation Britecell Plus is a radio over fiber system operation in the 1900 PCS and SMR bands. System Diagram TFLN Britecell Unit (EUT) Fiber RF Out RFAC AC Nemko Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAN 80/19 TEST REPORT NO.: 4L0490RUS2REV2 Page 7 of 36 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: Dustin Oaks DATE: 8/13/04 Test Results: Complies. Measurement Data: Modulation Measured Power (mW) Measured Power (dBm) Rated Power (dBm) Analog 11.4mW 21.14 21.00 iDEN 5.7mW 15.12 15.00 Nemko Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAN 80/19 TEST REPORT NO.: 4L0490RUS2REV2 Page 8 of 36 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.989 TESTED BY: David Light DATE: 7/29/04 Test Results: Complies. Test Data: See attached graph(s). Nemko Dallas FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: TFAN 80/19 TEST REPORT NO.: 4L0490RUS2REV2 Page 9 of 36 Test Data – Occupied Bandwidth (Input/Output) Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 4 CompleteX Job No.:Date:7/28/2004Preliminary: Specification:Temperature(°C):22 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: Refer to plotsMeasurement Detector Type:PeakVBW: Refer to plots Distance: nam Test Equipment Used Antenna: Directional Co…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Michael Shumate(Director, North American Operations)
[email protected]919 329-8940Fax: 919 329-8950

Technical Contact

Nemko DallasDavid Light
[email protected]972 439 9600

802 N. Kealy · Lewisville, Texas · United States

Non-Technical Contact

Nemko DallasDustin Oaks
[email protected]972 436 9600

Test Firm

Nemko Dallas, Inc.Michael Cantwell
@.972-436-9600Fax: 972-436-2667

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
69851 MHz - 869 MHz32.00 mWGXWAmp
Confidentiality
Long Term
Grant Notes
The antenna used for this transmitter is to be fixed-mounted on indoor permanent structures providing a seperation of at least 35cm from all persons during normal operation. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC bureau(s), including antenna co-location requirements of �1.1307(b)(3). The maximum allowed antenna gain is 15dBi for MPE compliance. Power listed is composite for multi-channel operation
