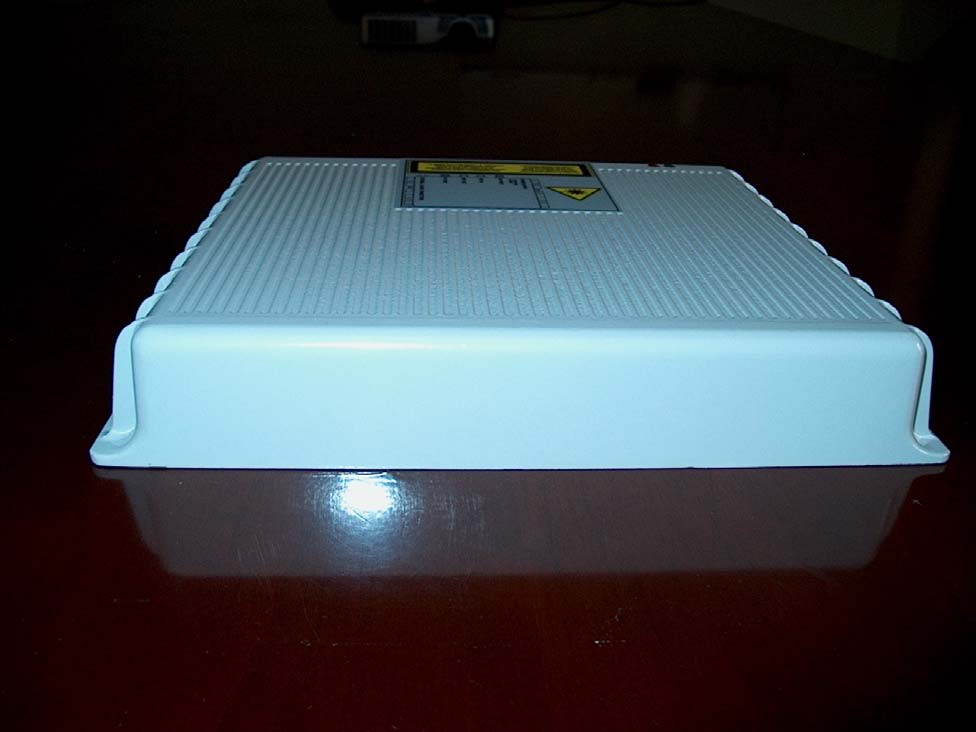

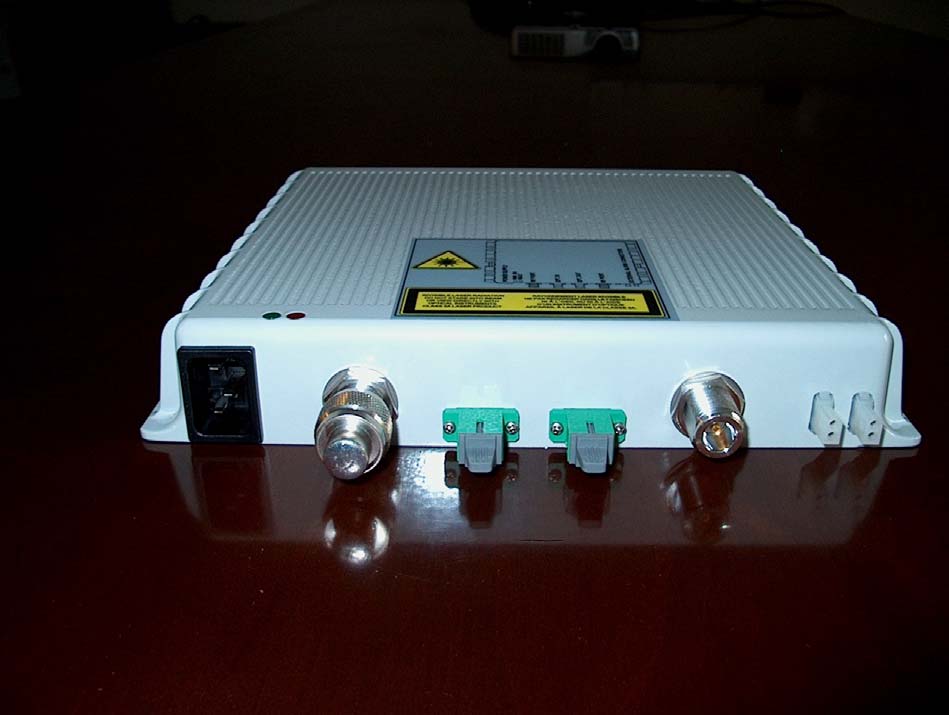

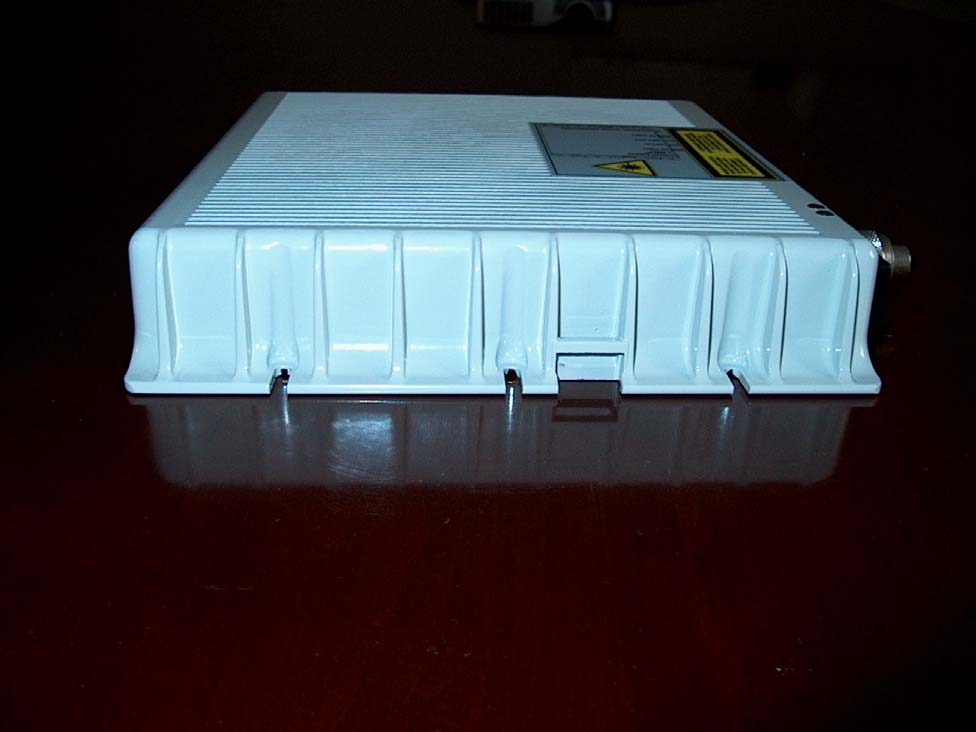

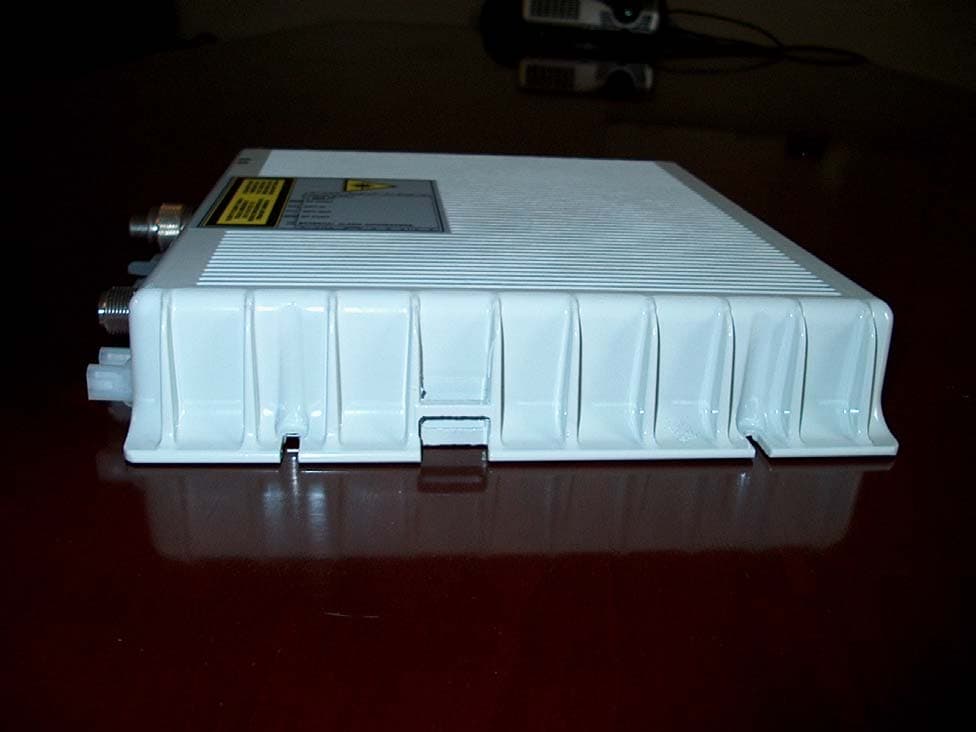

BCR-RPT-TFAN8090Down Link Booster

WARNING! To prevent electrical shock do not remove the cover. Service by qualified personnel only. 100-120 / 200-240 V ~ ; 0.24 / 0.13 A ; 50 / 60 Hz Model: BRITECELL ® PLUS Type: TFAN (Remote Unit Plus) Manufactured by: Tekmar Sistemi Srl An Andrew Company FCC ID: BCR-RPT-TFAN8090 IC ID: 2237D-TFAN8090

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 800MHz 900MHz Maximum peak output power at antenna input terminal:21.0021.00(dBm) Maximum peak output power at antenna input terminal:125.8925 125.89254(mW) Antenna gain(typical):1515(dBi) Maximum antenna gain:31.62278 31.622777(numeric) Prediction distance:3535(cm) Prediction frequency:800900(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.5333330.6(mW/cm^2) Power density at prediction frequency:0.2586150.25862(mW/cm^2) Multiple transmitter Calculation: (Sum of all fractional Contributions) 0.48490+0.43103= 0.91593 <1.0 2 4R PG S π =

Nemko Test Report: 4L0492RUS1REV2 Applicant: Andrew Corporation Equipment Under Test: Optical Repeater (E.U.T.) In Accordance With: FCC Part 90, Subpart I Private Land Mobile Repeater Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Frontline Manager Date: 2 November, 2004 Total Number of Pages: 70 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: Optical Repeater PROJECT NO.: 4L0492R Page 2 of 70 Table of Contents Section 1. Summary of Test Results...................................................................................................... 3 Section 2. General Equipment Specification......................................................................................... 5 Section 3. RF Power Output .................................................................................................................. 8 Section 4. Occupied Bandwidth ............................................................................................................9 Section 5. Spurious Emissions at Antenna Terminals......................................................................... 24 Section 6. Field Strength of Spurious Emissions ................................................................................ 57 Section 7. Frequency Stability.............................................................................................................. 59 Section 8. Test Equipment List ...........................................................................................................60 ANNEX A - TEST METHODOLOGIES ................................................................................................. 61 ANNEX B - TEST DIAGRAMS .............................................................................................................. 67 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: Optical Repeater PROJECT NO.: 4L0492R Page 3 of 70 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAN 80/90 Serial No.: 042602622 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: Optical Repeater PROJECT NO.: 4L0492R Page 4 of 70 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. MEAS. RESULT RF Power Output 90.205 39.02 Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A N/A N/A Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A N/A N/A Modulation Limiting TIA EIA-603.3.2.6 N/A N/A N/A Occupied Bandwidth 90.210 Plots Plots Complies Spurious Emissions at Antenna Terminals 90.210 -13 dBm Plots Complies Field Strength of Spurious Emissions 90.210 -13 dBm E.R.P. E.R.P. Complies Frequency Stability 90.213 Complies Transient Frequency Behavior 90.214 N/A N/A N/A Footnotes For N/A’s: (1) Since the E.U.T. does not contain modulation circuitry modulation testing was not performed. (2) Since the E.U.T. is not a keyed carrier system, Transient Frequency Behavior was not performed. Indoor Temperature: 21°C Humidity: 51% Outdoor Temperature: 19 °C Humidity: 65 % . Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: Optical Repeater PROJECT NO.: 4L0492R Page 5 of 70 Section 2. General Equipment Specification Transmitter Supply Voltage Input: 115V AC Frequency Range: 935-960MHz 851-869MHz Tunable Bands: 935-960MHz 20 dB Passband: Type(s) of Modulation: F3E (Voice) F1D F2D GXW (QAM) Other Maximum Input: +0dBm Output Impedance: NA RF Power Output (rated): Single: 13dBm Composite: 10dBm (2-Carrier) Frequency Translation: F1-F1 F1-F2 N/A Band Selection: Software Duplexer Change Fullband Coverage Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: Optical Repeater PROJECT NO.: 4L0492R Page 6 of 70 Modifications Made During Testing No Modifications made during testing Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: Optical Repeater PROJECT NO.: 4L0492R Page 7 of 70 System Diagram TFLN Britecell Unit (EUT) Fiber RF Out RFAC AC Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: Optical Repeater PROJECT NO.: 4L0492R Page 8 of 70 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: Dustin Oaks DATE: 08/13/2004 Test Results: Complies Measurement Data: 900 Band Frequency (MHz) Measured Power (mW) Measured Power (dBm) Rated Power (dBm) iDEN 33.65 15.27 15.00 ANALOG 132.13 21.21 21.00 800 Band Frequency (MHz) Measured Power (mW) Measured Power (dBm) Rated Power (dBm) iDEN 32.51 15.12 15.00 ANALOG 127.64 21.06 21.00 Equipment Used: 1036, 1053, 1627, 1471, 1973 Measurement Uncertainty: +/- 1.6dB Temperature: 21 °C Relative Humidity: 51 % Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: Optical Repeater PROJECT NO.: 4L0492R Page 9 of 70 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.989 TESTED BY: Dustin Oaks DATE: 08/13/2004 Test Results: Complies Test Data: See attached graph(s). Equipment Used: 1036, 1053, 1627, 1471, 1973, 1092 Measurement Un…
