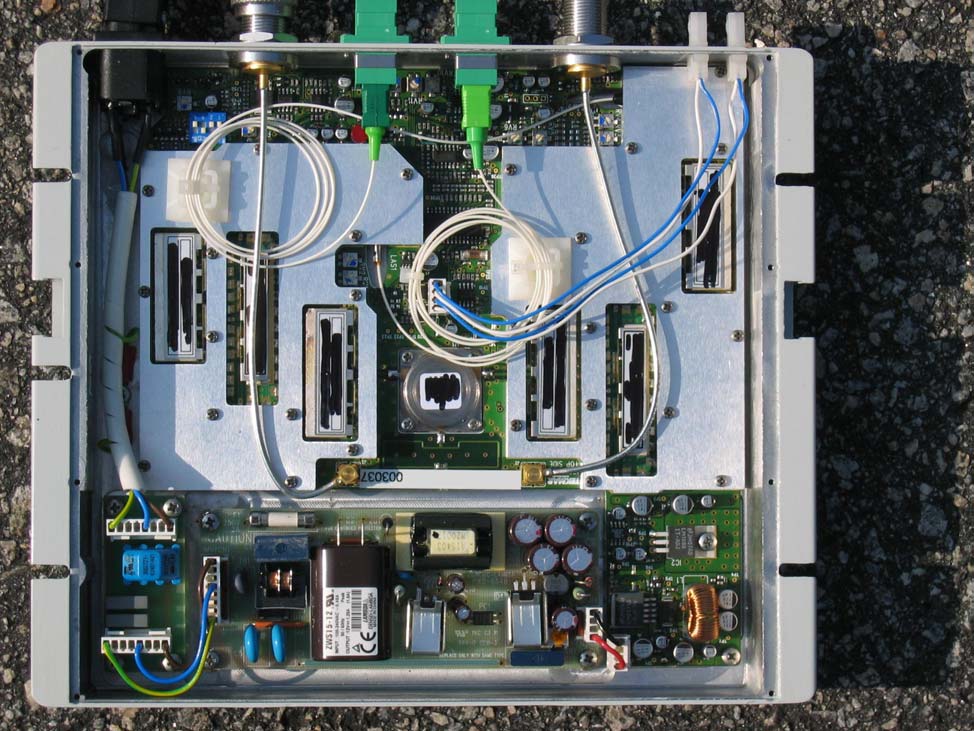

BCR-RPT-TFAN8519Down Link Booster

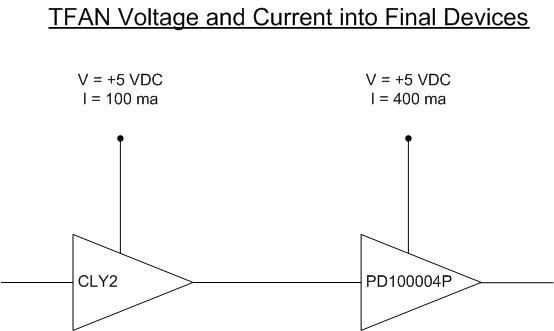

Britecell Plus TFAN85-19 Tune-Up Procedure Gain for the Britecell Plus TFAN85-19 is set at the factory and no provisions are made for user accessible controls. Output power is a function of the input power and the fixed gain of the TFAN85-19. The user should provide an input signal that will produce an output power not exceeding the levels included in the product data sheet for the medium power remote.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 800MHz 1900MHz Maximum peak output power at antenna input terminal:21.0021.00(dBm) Maximum peak output power at antenna input terminal:125.8925 125.89254(mW) Antenna gain(typical):1515(dBi) Maximum antenna gain:31.62278 31.622777(numeric) Prediction distance:3535(cm) Prediction frequency:8501900(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.5333331(mW/cm^2) Power density at prediction frequency:0.2586150.25862(mW/cm^2) Multiple transmitter Calculation: (Sum of all fractional Contributions) 0.48490+0.25862= 0.74352 <1.0 2 4R PG S π =

Nemko Test Report: 4L0491RUS1 Applicant: Andrew Corporation Equipment Under Test: TFAN 85/19 (E.U.T.) In Accordance With: FCC Part 22, Subpart H Cellular Band Repeaters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: 18 August, 2004 Total Number of Pages: 52 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO.: 4L0491RUS1 Page 2 of 52 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS ............................................................................................. 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION.......................................................................... 5 SECTION 3. RF POWER OUTPUT ................................................................................................................7 SECTION 4. OCCUPIED BANDWIDTH ....................................................................................................... 8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS...................................................... 19 SECTION 6. FIELD STRENGTH OF SPURIOUS ...................................................................................... 35 SECTION 7. TEST EQUIPMENT LIST ....................................................................................................... 36 ANNEX A - TEST DETAILS............................................................................................................................. 37 ANNEX B - TEST DIAGRAMS ........................................................................................................................ 46 Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO.: 4L0491RUS1 Page 3 of 52 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAN 85/19 Serial No.: 042202189 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO.: 4L0491RUS1 Page 4 of 52 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 22.913(a) 500W ERP Complies Occupied Bandwidth 22.917(c) Mask Complies Spurious Emissions at Antenna Terminals 22.917 -13 dBm Complies Field Strength of Spurious Emissions 22.917 -13 dBm E.I.R.P. Complies Frequency Stability 22.355 1.5 ppm NA Footnotes: The device has no modulation circuitry and only reproduces a signal. Measurement uncertainty for each test configuration is expressed to 95% probability. . Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO.: 4L0491RUS1 Page 5 of 52 Section 2. General Equipment Specification Supply Voltage Input: 115 VAc Frequency Range: Downlink: 869 – 894 MHz Frequency Range: Uplink: NA CDMA GSM NADC EDGE AMPS (F9W) (G7W) (DXW) (GXW) (F8W, F1D) Type of Modulation and Designator: Output Impedance: 50 ohms Max Input Power: +10 dBm Downlink: RF Output (Rated): 21 dBm (125.9 mW) Single Carrier 17.5 dBm (56.2 mW) Composite w/ 2 carriers Uplink: NA Frequency Translation: F1-F1 F1-F2 N/A Software Duplexer Change Fullband Coverage Band Selection: Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO.: 4L0491RUS1 Page 6 of 52 Description of Operation Britecell Plus is a radio over fiber system operation in the 1900 PCS and 800 MHz cellular bands. System Diagram TFLN Britecell Unit (EUT) Fiber RF Out RFAC AC Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO.: 4L0491RUS1 Page 7 of 52 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: Dustin Oaks DATE: 8/13/04 Test Results: Complies. Test Data: Modulation Type Per Channel Power Output (mW) Per Channel Power Output (dBm) Uplink NA Downlink AMPS 11.4 21.14 Uplink NA Downlink CDMA 5.8 15.29 Uplink NA Downlink GSM 11.3 21.06 Uplink NA Downlink NADC 8.5 18.59 Uplink NA Downlink EDGE 7.6 17.62 Equipment Used: 1036-1626-1627-1471 Measurement Uncertainty: +/- 1.7dB Temperature: 22 °C Relative Humidity: 41 % Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO.: 4L0491RUS1 Page 8 of 52 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 7/29/04 Test Results: Complies. Test Data: See attached plots Measurement Uncertainty: +/- 1.7dB Nemko Dallas FCC PART 22, SUBPART H CELLULAR BAND REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO.: 4L0491RUS1 Page 9 of 52 Test Data – Occupied Bandwidth Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 10 Complete X Job No.:4L0491R Date:7/28/2004Preliminary: Specification:PT22Temperature(°C):22 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: Refer to plotsMeasurement Detector Type:PeakVBW: Refer to plots Distance: NAm Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1626 F…

Text truncated - open the document above for the full version.

Nemko Test Report No.: 4L0491RUS2REV2 Applicant: Andrew Corporation Equipment Under Test: TFAN 85/19 In Accordance With: FCC Part 24, Subpart E Broadband PCS Repeaters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, Frontline Group Manager Date: 18 October, 2004 Total Number of Pages: 42 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO. 4L0491RUS2 Page 2 of 42 Table of Contents Section 1. Summary of Test Results.................................................................... 3 Section 2. General Equipment Specification ...................................................... 5 Section 3. RF Power Output ................................................................................ 7 Section 4. Occupied Bandwidth .......................................................................... 8 Section 5. Spurious Emissions at Antenna Terminals ......................................17 Section 6. Field Strength of Spurious ...............................................................30 Section 7. Test Equipment List .........................................................................32 ANNEX A - TEST DETAILS................................................................................33 ANNEX B - TEST DIAGRAMS ...........................................................................39 Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO. 4L0491RUS2 Page 3 of 42 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAN 85/19 Serial No.: 042202202 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO. 4L0491RUS2 Page 4 of 42 Summary Of Test Data NAME OF TEST PARA. NO. SPEC. RESULT RF Power Output 24.232 100W Complies Occupied Bandwidth (CDMA) 24.238 Input/Output Complies Occupied Bandwidth (GSM) 24.238 Input/Output Complies Occupied Bandwidth (NADC) 24.238 Input/Output Complies Occupied Bandwidth (EDGE) 24.238 Input/Output Complies Spurious Emissions at Antenna Terminals 24.238(a)-13 dBm Complies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. Complies Frequency Stability 24.235 NA Footnotes: (1) Modulation characteristics were not tested since the E.U.T. processes but does not produce a modulated waveform. Measurement uncertainty for each test configuration is expressed to 95% probability. Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO. 4L0491RUS2 Page 5 of 42 Section 2. General Equipment Specification Supply Voltage Input: Frequency Bands: Downlink: Block A : 1930 – 1945 MHz Block D : 1945 – 1950 MHz Block B : 1950 – 1965 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block C : 1975 – 1990 MHz Frequency Bands: Uplink: Block A : 1850 – 1865 MHz Block B : 1865 – 1870 MHz Block C : 1870 – 1885 MHz Block D : 1885 – 1890 MHz Block E : 1890 – 1895 MHz Block F : 1895 – 1910 MHz CDMA GSM NADC EDGE (F9W) (G7W) (DXW) (GXW) Type of Modulation and Designator: Output Impedance: 50 ohms Max Input: +10 dBm RF Output (Rated): Uplink N/A RF Output (Rated): Downlink 21 dBm max, Single channel F1-F1 F1-F2 N/A Frequency Translation: Software Duplexer Fullband Band Selection: Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO. 4L0491RUS2 Page 6 of 42 Description of Operation Britecell Plus is a radio over fiber system operation in the 1900 PCS and SMR bands. System Diagram TFLN Britecell Unit (EUT) Fiber RF Out RFAC AC Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO. 4L0491RUS2 Page 7 of 42 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.1046 TESTED BY: Dustin Oaks DATE:8/13/04 Test Results: Complies. Measurement Data: Modulation Type Per Channel Output Power (mW) Per Channel Output Power (dBm) Uplink NA Downlink CDMA 5.7 15.12 Uplink NA Downlink GSM 11.3 21.06 Uplink NA Downlink EDGE 7.6 17.61 Uplink NA Downlink NADC 8.5 18.59 Equipment Used: 1627-1036-1604 Measurement Uncertainty: +/- 1.6 dB Temperature: 22 °C Relative Humidity: 40 % Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO. 4L0491RUS2 Page 8 of 42 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE:7/28/04 Test Results: Complies. Test Data: See attached plot(s). Measurement Uncertainty: +/- 1.6 dB Nemko Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT: TFAN 85/19 TEST REPORT NO. 4L0491RUS2 Page 9 of 42 Test Data – Occupied Bandwidth (Input/Output) Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 8 Complete X Job No.:Date:7/28/2004Preliminary: Specification:Temperature(°C):22 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 Location:Lab 1RBW: Refer to plotsMeasurement Detector T…
