BEJ9QK-LW130WHD Compact Network Camera

1 OWNER'S MANUAL HD Compact Network Camera Please read this manual carefully before operating your set and retain it for future reference. MODEL LW130W 2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. REGULATORY INFORMATION: FCC Part 15 This product complies with FCC Part 15B, Class B Limits: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radiated Energy Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. 3 - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes and modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission rules. • A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this product in the end user. 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces or shall be provided with brushings. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numÈrique de la classe B est conforme ‡ la norme NMB-003 du. Warning: Do not install this equipment in a confined space such as a bookcase or similar unit. Warning: Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA 70. Warning: This is a class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture. Caution: This installation should be made by a qualified Service person and should conform to all local codes. Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Caution: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus. To disconnect power from mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible. 4 Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. EEE Compliance with Directive. (for Turkey only) LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC. European representative : LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere. The Netherlands (Tel : +31-(0)36-547-8888) 5 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat t…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: Mar. 23, 2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _____AUDIX Technology Corporation______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____Mar. 23, 2012 _____ By: __________________________ __Christopher Johnson ______ (Signature) (Print name) Title: _______Manager ______________ On behalf of: ___LG Electronics USA ________ (Company Name) Telephone: _____1-201-266-2420 ___________

DECLARATION OF CONFORMITY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Trade Name : LG Model : Responsible Party : Address: LG Electronics,Inc. / Product Safety & Compliance 1000 Sylvan Avenue Englewood Cliffs, LW130W, LW130W****** (Where ****** can be any alphanumeric character.) Address : Contact Person : Equipment Classification: FCC Class B Peripheral Device (JBP) NJ 07632. U.S.A. Mr. J. C. Lee, General Manager Tel. No. 1-800-243-0000 For Technical Support Tel. No. 1-847-266-2420 For FCC Inquiry Equipment Classification: Type of Product(EUT) : Manufacturer : Address : Attention : FCC Class B Peripheral Device (JBP) ICES-003 HD Compact Network Camera LG Innotek 978-1 Jangduk-dong Gwangsan-gu Gwangju-si, Korea Mr. H.S. Lee - General Manager DigitalmediaStandards GroupDigitalmediaStandards Group We hereby declare that the equipment bearing the trade and model number specified above was tested conforming to the applicable FCC Rules under the most accurate measurement standards possible, and that all the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission’s requirements. LG Electronics IncLG Electronics Inc. SignatureDate Sep. 20, 2011

Request for Confidentiality Date: Sep. 19, 2011 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: BEJ9QK-LW130W Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ‹ Functional Block Diagram ‹ Operational Description (theory of operation) ‹ Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _______________________________________ Christopher Johnson Manager LG Electronics USA

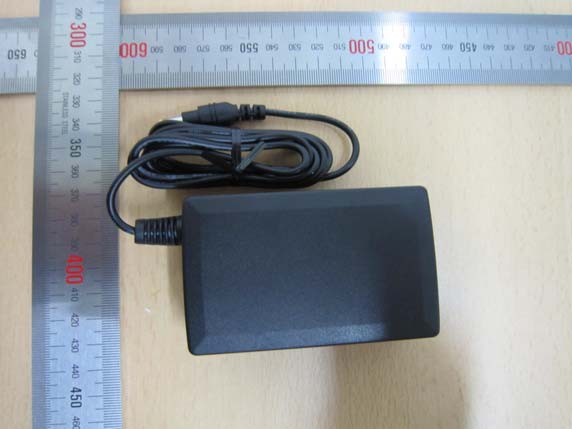

LG Electronics Inc. HD Compact Network CameraFCC ID : BEJ9QK-LW130W EUT External Photos Figure 1 General Appearance (Front & Side View) Figure 2 General Appearance (Back View) LG Electronics Inc. HD Compact Network CameraFCC ID : BEJ9QK-LW130W Figure 3 General Appearance (Back & Side View) Figure 4 General Appearance (Back View) LG Electronics Inc. HD Compact Network CameraFCC ID : BEJ9QK-LW130W Figure 5 AC Adapter, General Appearance (Front View) Figure 6 AC Adapter, General Appearance (Back View)

LG Electronics Inc. HD Compact Network CameraFCC ID : BEJ9QK-LW130W FCC ID Label Location z Label Placement Location (Back of EUT) FCC ID Label Placement Location

LG Electronics Inc. HD Compact Network CameraFCC ID : BEJ9QK-LW130W EUT Internal Photos Figure 7 Internal View (Removed Cover) Figure 8 Internal View (Main Board, Back View) LG Electronics Inc. HD Compact Network CameraFCC ID : BEJ9QK-LW130W Figure 9 Internal View (Main Board, Front View) Figure 10 Internal View (WLAN Module) Antenna LG Electronics Inc. HD Compact Network CameraFCC ID : BEJ9QK-LW130W Figure 11 AC Adapter, Internal View (Removed Cover, PCB/Front View) Figure 12 AC Adapter, Internal View (PCB, Back View)

Declaration of Compliance FCC ID: BEJ9QK-LW130W Product Name: HD Compact Network Camera Model No: LW130W Futaba Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain is 2.19dBi, and the power output is 197.24mW, the power density is 0.065mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where S = Power Density in mW/cm^2 P = 22.95dBm =197.24mW G = 2.19dBi = 1.66 Numerical r = 20cm S = 197.24*1.66 / 4*π* 20^2 = 0.065mW/cm^2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID: BEJ9QK-LW130W Page 1 of 94 AUDIX Technology Corporation Report No. EM-F1000803 APPLICATION FOR CERTIFICATION On Behalf of LG Electronics Inc. HD Compact Network Camera Model No.：LW130W FCC ID：BEJ9QK-LW130W Brand: LG Prepared for : LG Electronics Inc. 19-1, Cheongho-ri, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713 Korea Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number ： C1M1109085 Report Number ： EM-F1000803 Date of Test ： Sep. 13 ~ 16, 2011 Date of Report ： Sep. 16, 2011 FCC ID: BEJ9QK-LW130W Page 2 of 94 AUDIX Technology Corporation Report No. EM-F1000803 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ................................................................................................ 4 1. GENERAL INFORMATION .................................................................................................. 5 1.1. Description of Device (EUT)........................................................................................................... 5 1.2. Data Rate Relative to Output Power (Perform at CH 6).................................................................. 6 1.3. Test Configuration for Each Test Item ............................................................................................ 7 1.4. Tested Supporting System Details ................................................................................................... 7 1.5. Description of Test Facility ............................................................................................................. 8 1.6. Measurement Uncertainty................................................................................................................ 8 2. CONDUCTED EMISSION MEASUREMET........................................................................ 9 2.1. Test Equipment ................................................................................................................................ 9 2.2. Block Diagram of Test Setup........................................................................................................... 9 2.3. Conducted Emission Limits (§15.207) ............................................................................................9 2.4. Operating Condition of EUT ......................................................................................................... 10 2.5. Test Procedure ............................................................................................................................... 10 2.6. Conducted Emission Measurement Results................................................................................... 10 3. RADIATED EMISSION MEASUREMENT ....................................................................... 13 3.1. Test Equipment .............................................................................................................................. 13 3.2. Test Setup ...................................................................................................................................... 13 3.3. Radiated Emission Limits (§15.209) .............................................................................................15 3.4. Operating Condition of EUT ......................................................................................................... 15 3.5. Test Procedure ............................................................................................................................... 16 3.6. Test Results.................................................................................................................................... 17 4. 6dB BANDWIDTH MEASUREMENT ................................................................................ 42 4.1. Test Equipment .............................................................................................................................. 42 4.2. Block Diagram of Test Setup......................................................................................................... 42 4.3. Specification Limits (§15.247(a)(2)) ............................................................................................. 42 4.4. Operating Condition of EUT ......................................................................................................... 42 4.5. Test Procedure ............................................................................................................................... 42 4.6. Test Results.................................................................................................................................... 43 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............................................. 49 5.1. Test Equipment .............................................................................................................................. 49 5.2. Block Diagram of Test Setup......................................................................................................... 49 5.3. Specification Limits (§15.247(b)-(3))............................................................................................ 49 5.4. Operating Condition of EUT ......................................................................................................... 49 5.5. Test Procedure ............................................................................................................................... 49 5.6. Test Results.................................................................................................................................... 50 6. EMISSION LIMITATIONS MEASUREMENT ................................................................. 51 6.1. Test Equipment .............................................................................................................................. 51 6.2. B…

Text truncated - open the document above for the full version.

FCC ID: BEJ9QK-LW130W Page 92 of 94 AUDIX Technology Corporation Report No. EM-F1000803 10. PHOTOGRAPHS 10.1. Photos of Conducted Emission Measurement FRONT VIEW OF CONDUCTED MEASUREMENT SIDE VIEW OF CONDUCTED MEASUREMENT FCC ID: BEJ9QK-LW130W Page 93 of 94 AUDIX Technology Corporation Report No. EM-F1000803 10.2. Photos of Radiated Emission Measurement at Semi-Anechoic Chamber 10.2.1. Frequency Range 30MHz-1GHz 10.2.2. Frequency Range Above 1GHz FCC ID: BEJ9QK-LW130W Page 94 of 94 AUDIX Technology Corporation Report No. EM-F1000803 10.3. Photo of 6dB Bandwidth, Emission Limitations, Band Edges, Power Spectral Density Measurement 10.4. Photo of Maximum Peak Output Measurement
