BEJC660RCellular/PCS WCDMA/GSM/EDGE Phone with WLAN and Bluetooth

User Guide LG-C660R G www.lg.com E N G L I S H Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules and ICES-003 Class B digital apparatus requirements for Industry Canada. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device was tested for typical use with the back of the phone kept 0.39 inches (1 cm) from the body. To comply with FCC/IC RF exposure requirements, a minimum separation distance of 0.39 inches (1 cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters, and similar accessories containing metallic components should not be used. Avoid the use of accessories that cannot maintain 0.39 inches (1 cm) distance between the user’s body and the back of the phone and have not been tested for compliance with FCC/IC RF exposure limits. 19 Getting to know your phone To turn the phone on, press and hold the Power key for  seconds. To turn the phone off, press the Power key for  seconds and touch Power Off. TIP! When screen is locked 1. Drag your finger from left to right to unlock the screen. 2. To turn the phone off, press the Power key for  seconds and touch Power Off. Home key - Returns to the home screen from any screen. Menu key - Check what options are available. Earpiece Back key - Returns to the previous screen. Search key - Search the web and contents in your phone. Power/Lock key - Powers your phone on/off by pressing and holding the key. - Turns the screen off and locks the phone. WARNING: Placing a heavy object on the phone or sitting on it can damage its LCD and touch-screen functionalities. Send key Tip! Press Menu key whenever you tap an application to check what options are available. Tip! LG-C660R does not support video call. Tip! If LG-C660R has errors when you use it or you cannot turn it on, remove battery, install it again and turn it on after 5 seconds. Charger, micro USB cable connector Stereo earphone connector Volume keys - On the home screen: controls ringer volume. - During a call: controls your earpiece volume. - When playing a track: controls volume continuously. Microphone Back cover Battery SIM card slot micro SD memory card slot Camera lens Getting to know your phone Installing the SIM card and battery Before you can start exploring your new phone, you’ll need to set it up. To insert the SIM card and battery: To remove the back cover, hold the phone firmly in your hand. With your other hand, firmly press your thumb on the back cover. Lift off the battery cover with your forefinger. 1 Slide the SIM card into the SIM card holder. Make sure the gold contact area on the card is facing downwards. 2 Insert the battery into place by aligning the gold contacts on the phone and the battery. Replace the back cover of the phone. Tip! To remove the battery, first remove the back cover and hold the phone firmly in your hand. With your other hand, firmly press down the top of the battery using your thumb and lift off the battery. 3 4 Charging your phone Slide back the cover of the charger connector on the side of your LG-C660R. Insert the charger, and plug it into an electrical outlet. Your LG-C660R must be charged until you can see . NOTE: The battery must be initially fully charged to improve battery lifetime. Getting to know your phone Installing the memory card To store multimedia files such as captured images by using a built-in camera, you must insert a memory card to your phone. NOTE: The LG-C660R supports up to a 32GB memory card. To insert a memory card: Turn the phone off before inserting or removing the memory card. Remove the back cover. 1 Insert the memory card into the slot. Make sure the gold contact area is facing downwards. 2 WARNING! Do not insert or remove the memory card when the phone is on. Otherwise, it may damage the memory card as well as your phone, and the data stored on the memory card may be corrupted. Formatting the memory card Your memory card may already be formatted. If it isn’t, you must format it before you can use it. NOTE: All files on the card are deleted when you format the card. On the home screen, touch the Applications tab to open the applications menu. Scroll and touch Settings. Scroll and touch SD card & phone storage . Unmount SD card. Touch Format SD card, then confirm your choice. If you set the pattern lock, input the pattern lock and select Erase everything. The card will then be formatted and ready to use. NOTE: If there is conte…

Text truncated - open the document above for the full version.

          !"# Date: July 28#1 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: $C660R Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Christopher Johnson Senior Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

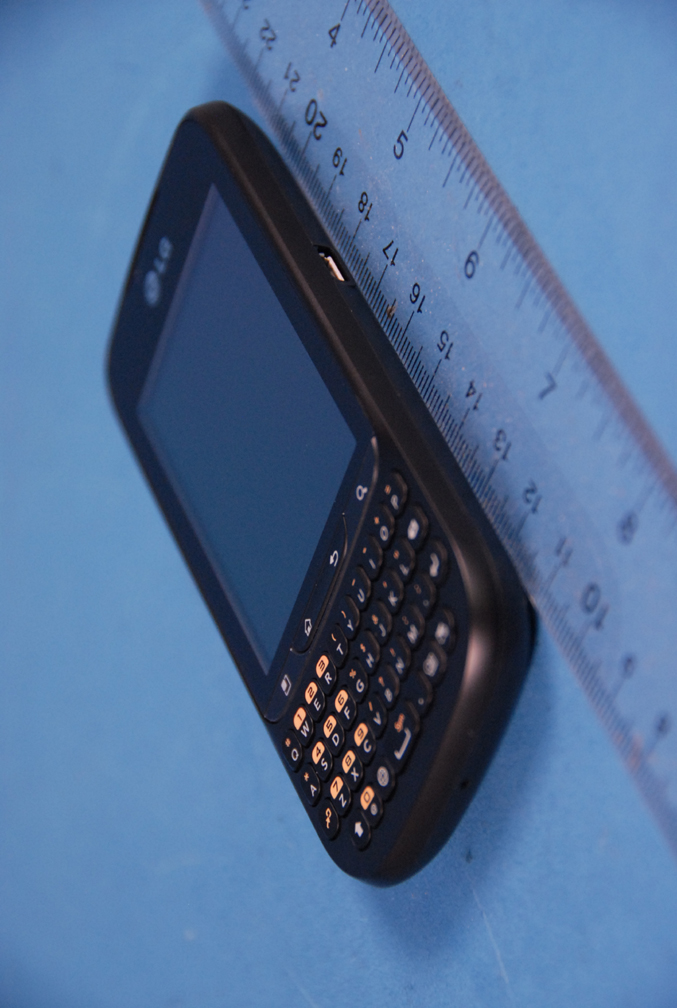

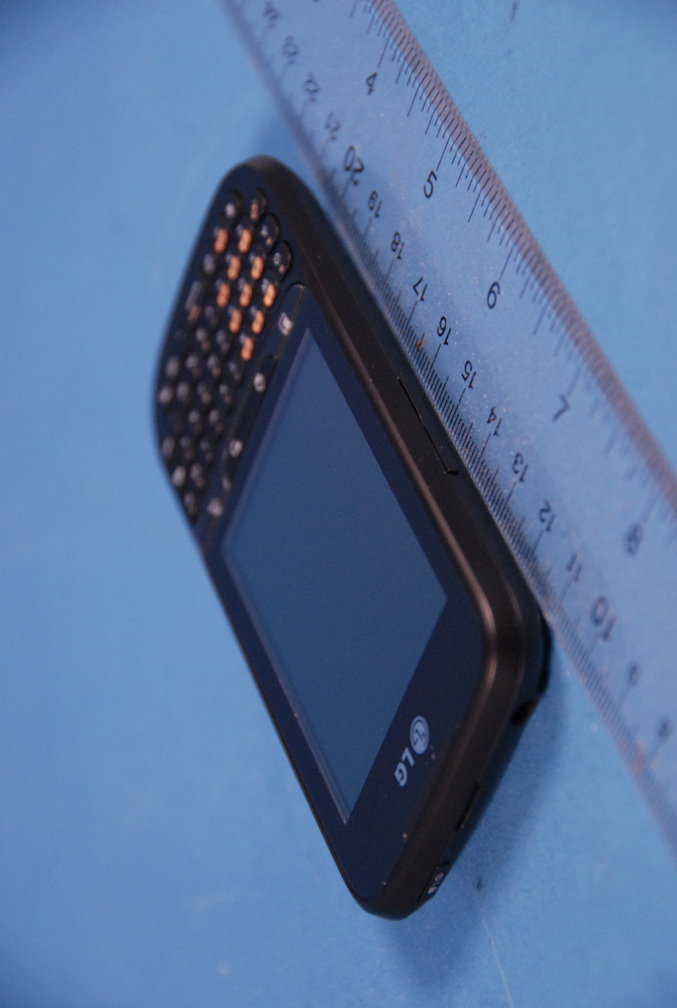

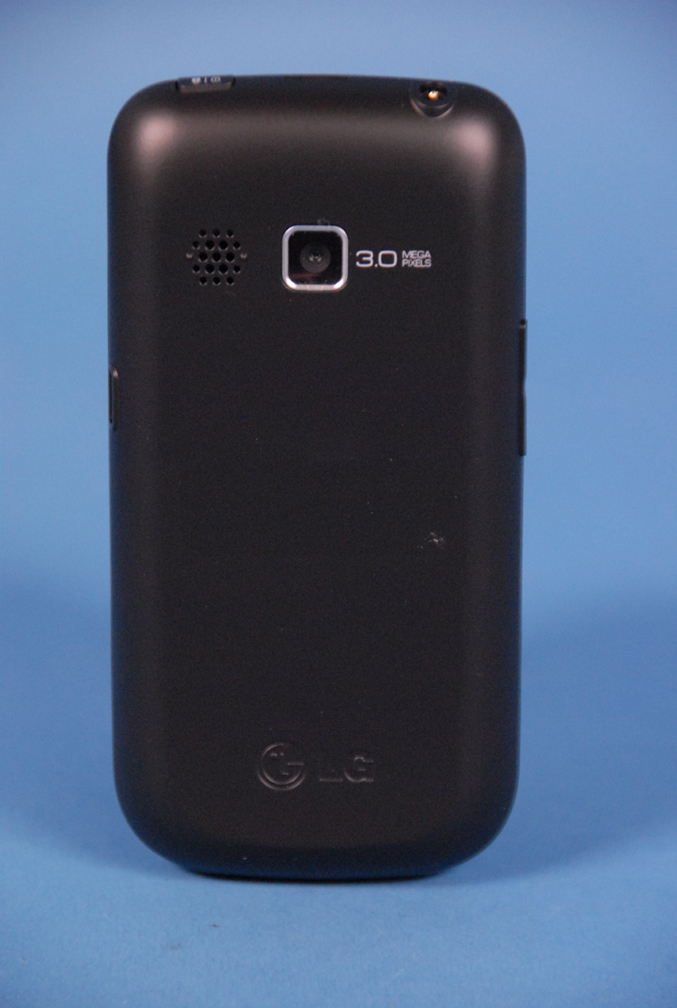

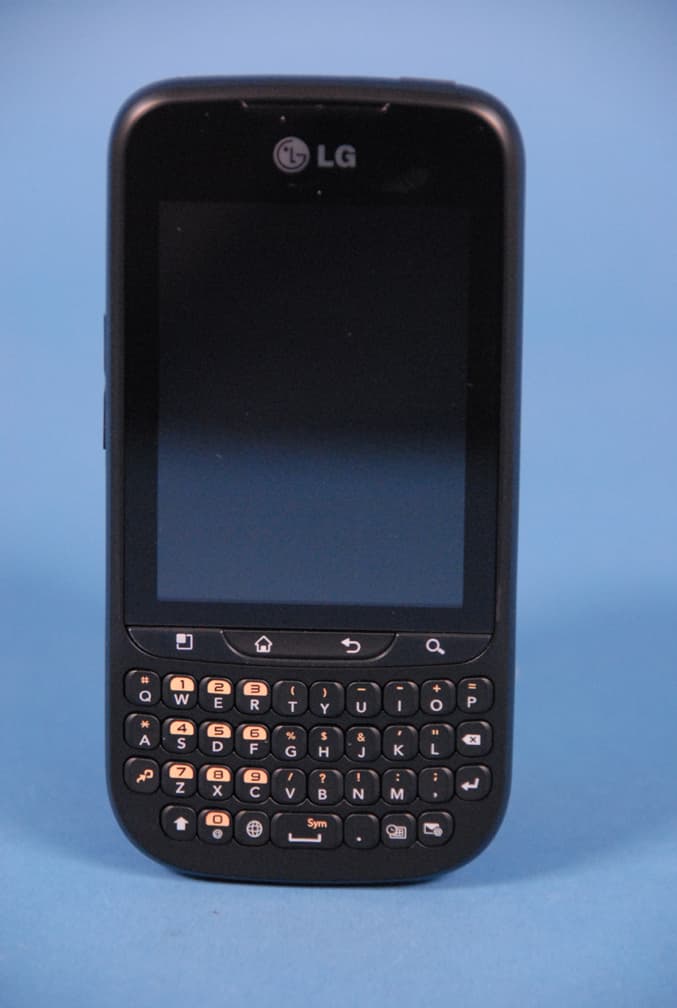

LG Electronics USA FCC ID: BEJC660R Model: C660R External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 1 of 4 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJC660R Model: C660R External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 2 of 4 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 3 of 4 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc.

Model No: LG-C660R FCC ID : BEJC660R S /N : Made in Korea LG Electronics Inc. LGE

LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 1 of 11 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 2 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 3 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 4 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 5 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 6 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 7 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 8 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 9 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 10 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC660R Model: C660R Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 11 of 11 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: BEJC660R IC Cert No.: 2703C-C660R SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical Report S/N: Test Dates: EUT Type / Apparatus/Device: Page 1 of 40 0Y1107081115.BEJ 07/05/11 - 07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 Applicant Name: Date of Testing: LG Electronics USA 07/05/11 - 07/20/11 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test /Technical Report Serial No.: 0Y1107081115.BEJ FCC ID: IC CERTIFICATION NO.: BEJC660R 2703C-C660R APPLICANT: LG ELECTRONICS USA EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): IC Specification(s): Radio Equipment Type: FCC Model(s): IC Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] RSS-102 Issue 4; Health Canada Safety Code 6 Cellular Communications Apparatus C660R, LG-C660R, C660r, LG-C660r, LGC660R, LGC660r C660R, LG-C660R, C660r, LG-C660r, LGC660R, LGC660r Test Device Serial No.: Pre-Production [S/N: 106KPYR025106] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) GSM 850824.20 - 848.80 MHz (GSM 850)33.05 0.311.121.12 GSM 19001850.20 - 1909.80 MHz (GSM 1900)31.140.47 0.730.73 850 WCDM A826.40 - 846.60 MHz (850 WCDMA)23.080.42 1.141.14 1900 WCDM A1852.4 - 1907.6 MHz (1900 WCDMA)22.390.64 1.051.05 2.4 GHz WLAN2412 - 2462 MHz (WLAN)13.16 N/A *N/A *N/A * SAR Band & ModeTx Frequency Conducted Power [dBm] All models are confirmed to be identical per the manufacturer. *See sections 12.2, 16.2 and 16.3 for explanation. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC CFR § 2.1093 / INDUSTRY CANADA RSS-102 FCC ID: BEJC660R IC Cert No.: 2703C-C660R SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical Report S/N: Test Dates: EUT Type / Apparatus/Device: Page 2 of 40 0Y1107081115.BEJ 07/05/11 - 07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC AND HEALTH CANADA SAFETY CODE 6 RF EXPOSURE LIMITS ................................. 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 19 13 FCC PERSONAL WIRELESS ROUTER CONFIGURATIONS ..................................................... 22 14 SYSTEM VERIFICATION .............................................................................................................. 24 15 SAR DATA SUMMARY ................................................................................................................. 26 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 33 17 EQUIPMENT LIST ......................................................................................................................... 36 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 37 19 CONCLUSION ............................................................................................................................... 38 20 REFERENCES .............................................................................................................................. 39 FCC ID: BEJC660R IC Cert No.: 2703C-C660R SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJC660R FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1107081116.BEJ 07/13/11-07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 1 of 58 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3GWCFI 10/26/2010 Applicant Name: Date of Testing: LG Electronics USA 07/13/11-07/20/11 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1107081116.BEJ FCC ID: BEJC660R IC CERTIFICATION NO.: 2703C-C660R APPLICANT: LG ELECTRONICS USA Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Model(s): C660R, LG-C660R, C660r, LG-C660r, LGC660R, LGC660r Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) / 1852.4 - 1907.6MHz (PCS WCDMA) Max. RF Output Power: 0.635 W ERP Cell. GSM (28.03 dBm) / 0.52 W EIRP PCS GSM (27.16 dBm) 0.150 W ERP EDGE Cell (21.76 dBm) / 0.203 W EIRP EDGE PCS (23.07 dBm) 0.138 W ERP Cell. WCDMA (21.41 dBm) / 0.223 W EIRP PCS WCDMA (23.48 dBm) Emission Designator(s): 239KGXW (Cellular GSM), 241KGXW (PCS GSM) 239KG7W (EDGE850), 240KG7W (EDGE1900) 4M19F9W (Cellular WCDMA), 4M18F9W (PCS WCDMA) Test Device Serial No.: identical prototype [S/N: 106KPHG025105] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: BEJC660R FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1107081116.BEJ 07/13/11-07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 2 of 58 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3GWCFI 10/26/2010 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY.....................................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: BEJC660R IC Cert No.: 2703C-C660R SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Test Dates: EUT Type: Page i of vi 07/05/11 - 07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 APPENDIX A: SAR TEST SETUP PHOTOGRAPHS FCC ID: BEJC660R IC Cert No.: 2703C-C660R SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Test Dates: EUT Type: Page ii of vi 07/05/11 - 07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 1: Right Touch SAR Test Setup Photo 2: Right Tilt FCC ID: BEJC660R IC Cert No.: 2703C-C660R SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Test Dates: EUT Type: Page iii of vi 07/05/11 - 07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 3: Left Touch SAR Test Setup Photo 4: Left Tilt FCC ID: BEJC660R IC Cert No.: 2703C-C660R SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Test Dates: EUT Type: Page iv of vi 07/05/11 - 07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 5: Back at 1.0 cm SAR Test Setup Photo 6: Front at 1.0 cm FCC ID: BEJC660R IC Cert No.: 2703C-C660R SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Test Dates: EUT Type: Page v of vi 07/05/11 - 07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 7: Top at 1.0 cm SAR Test Setup Photo 8: Bottom at 1.0 cm FCC ID: BEJC660R IC Cert No.: 2703C-C660R SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Test Dates: EUT Type: Page vi of vi 07/05/11 - 07/20/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 9: Right at 1.0 cm SAR Test Setup Photo 10: Left at 1.0 cm

LG Electronics USA FCC ID: BEJC660R Model: C660R Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN Page 1 of 2 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG Electronics USA FCC ID: BEJC660R Model: C660R Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN Page 2 of 2 © 2011 PCTEST Engineering Laboratory Inc.
