www.lg.com OWNER’S MANUAL LED LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference. LED LCD MONITOR MODELS ENGLISH E1951T E2051T E2251T E2351T E1951S E2051S E2251S E2251VR E2351VR E2251VQ E2351VQ 2 ENG ENGLISH TABLE OF CONTENTS CONTENTS 3 ASSEMBLING AND PREPAR- ING 3 Unpacking 4 Parts and buttons 6 Setting up the Monitor set 6 - Attaching the Stand Base 6 - Detaching the Stand Base 6 - Detaching the Stand Body (Using the Wall mount) 7 - Mounting on a table 8 - Mounting on a wall 10 USING THE MONITOR SET 10 Connecting to a PC 10 - D-SUB connection 11 - DVI-D connection 12 - HDMI connection 13 CUSTOMIZING SETTINGS 13 Accessing The Main Menus 14 Customizing Settings 14 - Menu Settings 15 - SUPER ENERGY SAVING Settings 16 - SUPER+ RESOLUTION Settings 16 - Volume Settings (Only supported in HDMI) 17 - DUAL MONITOR Settings 17 - DUAL WEB Settings 18 TROUBLESHOOTING 20 SPECIFICATIONS 25 Preset Modes (Resolution) 25 - D-SUB / DVI Timing 26 - HDMI Timing 26 Indicator 27 PROPER POSTURE 27 Proper posture for using the Monitor set. 28 LICENSES 3 ENG ENGLISH ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories. yy Do not use any unapproved accessories to ensure the safety and product life span. yy Any damages or injuries by using unapproved accessories are not covered by the warranty. yy The accessories supplied with your product may vary depending on the model. yy Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions. User should use shielded signal interface cables (RGB cable / DVI-D cable) with ferrite cores (core in the connector) to maintain standard compliance for the product. y CAUTION NOTE Stand Base CD(Owner's Manual) / Card D-SUB Cable (This signal cable may be attached to this product before shipping out.) DVI-D Cable (This cable is not included in all countries.) Power CordAC-DC Adapter 4 ENG ENGLISH ASSEMBLING AND PREPARING HDMI D-SUBDVI-D DC-IN / 䏳㵎幑‣ D-SUBDVI-D DC-IN / 䏳㵎幑‣ D-SUB DC-IN / 䏳㵎幑‣ Parts and buttons Power Indicator y Lighting On: Turned on y Lighting Off: Turned off Connection panel (See p.10) Button ("CUSTOMIZING SETTINGS" on page 13) (Power Button) E2251VQ E2351VQ E2251VR E2351VR HDMI D-SUBDVI-D DC-IN / 䏳㵎幑‣ D-SUBDVI-D DC-IN / 䏳㵎幑‣ D-SUB DC-IN / 䏳㵎幑‣ E2251T E1951T E2351T E2051T E1951SE2051SE2251S 5 ENG ENGLISH ASSEMBLING AND PREPARING ButtonDescription MENUAccesses the main menus.(See p.14) Left First ButtonOSD LOCKED/ UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the Left First Button for several seconds. The message "OSD LOCKED" should appear. You can unlock the OSD controls at any time by pushing the Left First Button for several seconds. The message "OSD UNLOCKED" should appear. SUPER+ RESOLUTIONUse this button to enter the SUPER+ RESOLUTION menu. For more information.(See p.16) DUALUse this button to enter the DUAL menu. For more information.(See p.17) AUTOWhen adjusting your display settings, first press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode) The best display mode E1951S / E1951T1366 x 768 E2051S / E2051T1600 x 900 E2251S / E2251T E2251VR / E2251VQ E2351T / E2351VR E2351VQ 1920 x 1080 VOLUME (Only HDMI mode)E2251VR / E2351VR / E2251VQ / E2351VQ Adjust the volume of the Monitor set.(See p.16) INPUT You can choose the input signal. y When two input signals are at least are connected, you can select the input signal (D-SUB/DVI/HDMI) you want. y When only one signal is connected, it is automatically detected. The default setting is D-SUB. EXITExit the OSD(On Screen Display). (Power Button) Turns the power on or off. Power IndicatorThe power indicator stays blue if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks blue. 6 ENG ENGLISH ASSEMBLING AND PREPARING Detaching the stand base 1 Place the monitor's screen face down. To protect the screen from scratches, cover the surface with a soft cloth. Setting Up the Monitor set Attaching the Stand Base 1 Place the monitor's screen face down. yy To protect the screen from scratches, cover the surface with a soft cloth. 3 Using a coin, turn the screw clockwise to se- cure the stand base. 2 Check the position (at the front and rear) of the stand body, then mount the stand base on the stand body as shown in the figure. 2 Using a coin, turn the screw in the stand base counterclockwise. Detach the stand base from the stand body. CAUTION Stand Body Stand Base Stand Base Stand Base Stand Body yy This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. yy Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot. CAUTION 7 ENG ENGLISH ASSEMBLING AND PREPARING DC-IN / 䏳㵎幑‣ 3 Press Power button on the front switch of panel to turn the power on. Mounting on a table 1 Lift and tilt the Monitor set into its upright position on a table. Leave a 10 cm (minimum) space from the wall for proper ventilation. 10 cm 10 cm 10 cm 10 cm Disconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur. CAUTION 2 Connect the AC-DC Adapter and Power Cord to a wall outlet. DC-IN / 䏳㵎幑‣ 2 Remove 4 screws and pull out the Stand Body from the Monitor set. Detaching the Stand Body (Using the Wall mount) 1 Remove 2 screws and pull out the Hinge Cover from the Monitor set. 8 ENG ENGLISH ASSEMBLING AND PREPARING Mounting on a wall For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see t…

Text truncated - open the document above for the full version.

Regulatory Information cont. FCC Compliance Statement This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment on and off), the user is encouraged to try to correct the interference by using one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's (or your) authority to operate the equipment. Only peripherals (digital input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this monitor. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Only shielded signal cables may be used with this System. Canadian DOC Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. TCO Displays 5.0 Congratulations, Your display is designed for both you and the planet! This display carries the TCO Certified label. This ensures that the display is designed for minimal impact on the climate and natural environment, while offering all the performance expected from top of the line electronic products. TCO Certified is a third party verified program, where every product model is tested by an accredited independent test laboratory. TCO Certified represents one of the toughest certifications for displays worldwide. Some of the Usability features of the TCO Displays 5.0 requirements: Visual Ergonomics Good visual ergonomics in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are: • Light levels without color tint, Uniform color and luminance, Wide color gamut • Calibrated color temperature and gamma curve • Wide luminance level, Dark black levels, Low motion blur Electrical Safety • Product fulfills rigorous safety standards 1 NOTICE The regulations are applied only to the products with the ID LABEL indicating specific requirements. NOTICE The regulations are applied only to the products with the ID LABEL indicating specific requirements. NOTICE The following information is for the models certified by TCO. If you want to know the specification of the purchased product, see the label attached on the back of the product. Regulatory Information cont. 2 Emissions • Low alternating electric and magnetic fields emissions • Low acoustic noise emissions Some of the environmental features of the TCO Displays 5.0 requirements: • The brand owner demonstrates corporate social responsibility and has a certified environmental management system (EMAS or ISO 14001) • Very low energy consumption both in on-and standby mode • Restrictions on chlorinated and brominated flame retardants, plasticizers and polymers • Restrictions on heavy metals such as cadmium, mercury and lead (RoHS compliance) • Both product and product packaging is prepared for recycling • The brand owner offers take-back options The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit: www.tcodevelopment.com Information for Environmental Preservation LGE. announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the concept of environment-friendly. We minimize the hazardous materials contained in our products. For example, there is no cadmium to be found in our monitors. Information for recycling This monitor may contain parts which could be hazardous to the environment. It is important that this monitor be recycled after use. LGE. handles all waste monitors through an environmentally acceptable recycling method. There are several take-back and recycling systems currently in operation worldwide. Many parts will be reused and recycled, while harmful substances and heavy metals are treated by an environmentally friendly method. If you want to find out more information about our recycling program, please contact your local LG vendor or a corporate representative of LG. We set our vision and policies on a cleaner world by selecting the issue of the global environment as a task for corporate improvement. Please visit our website for more information about our ‘green’ policies. http://www.lg.com/global/sustainability/environment/take-back- recycling.jsp English Informationen zur Erhaltung der…

Text truncated - open the document above for the full version.

E2251SZ Block Diagram NT68652U (Novatek) Embedded LED Driver RGB R/G/B/H/V SERIAL Flash LED PANEL (21.5”) LVDS RGB IIC V_LED F/B SPI Data/ CLK Key1/Key2 LED (Blue) 19V From Adapter 6 Keys : Power/MENU/DUAL /AUTO/INPUT/EXIT 19-to-5V DC/DC 1Ch. LDO LED B/L T-Con 5V System 3.3V Core 1.2V LED driver Crystal 14.318MHz Crystal：HLX-U-FRegulation：14.31818MHz+/- 30PPM DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part.This part amplifies the level of video signal for the di gital conversion and converts from the analog video signal to the digital video signal using a pixel clock.The pixel clock for each mode is generated by the PLL.The Dclk is 148.5MHz This part consists of the Scaler, ADC conv erter, TMDS receiver and LVDS transmitter. The Scaler gets the video signal converted analog to digital, interpolates input to 1920*1080 resolution signal and outputs 8-bit R, G, B signal to transmitter.2. Power Part.This part consists of the 1.2V regulators to conv ert power which is provided 5V in Power board. 5V is provided for inverter in E2251SZ. Also, 5V is converted 1.2V by regulator. Conver ted power is provided for IC in the main board. The inverter converts from DC 5V to AC 700Vrms and operates back-light lamps of module in E2251SZ 3. MICOM Part.This part is include video controller part. And this part consists of EEPROM IC , control data, Reset IC and the Micom. The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable. The controlled data of each modes is stored in EEPROM.

Power of Attorney Federal Communication Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 We, Company: LG Electronics U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Would like to inform you that we nominated Audix Technology (Shanghai) Co., Ltd, Mr. Byron Kwo to act on behalf of our LG Electronics Inc. to apply FCC ID for the LCD Monitors with LG brand. Kind Regards, Place, date Signature 2011-12-22 Christopher Johnson ________________ ________________

Statement FCC ID: BEJE2251SZ Data: Dec 22, 2011 We LG Electronics U.S.A., Inc. declare under our own responsibility that the product LCD Monitor to which this declaration refers conforms with all electrical and mechanical devices employed for spurious radiation suppression, including any modifications made during certification testing, must be incorporated in each unit marked. 2011.12.22 [Data] [Name and Signature of person responsible]

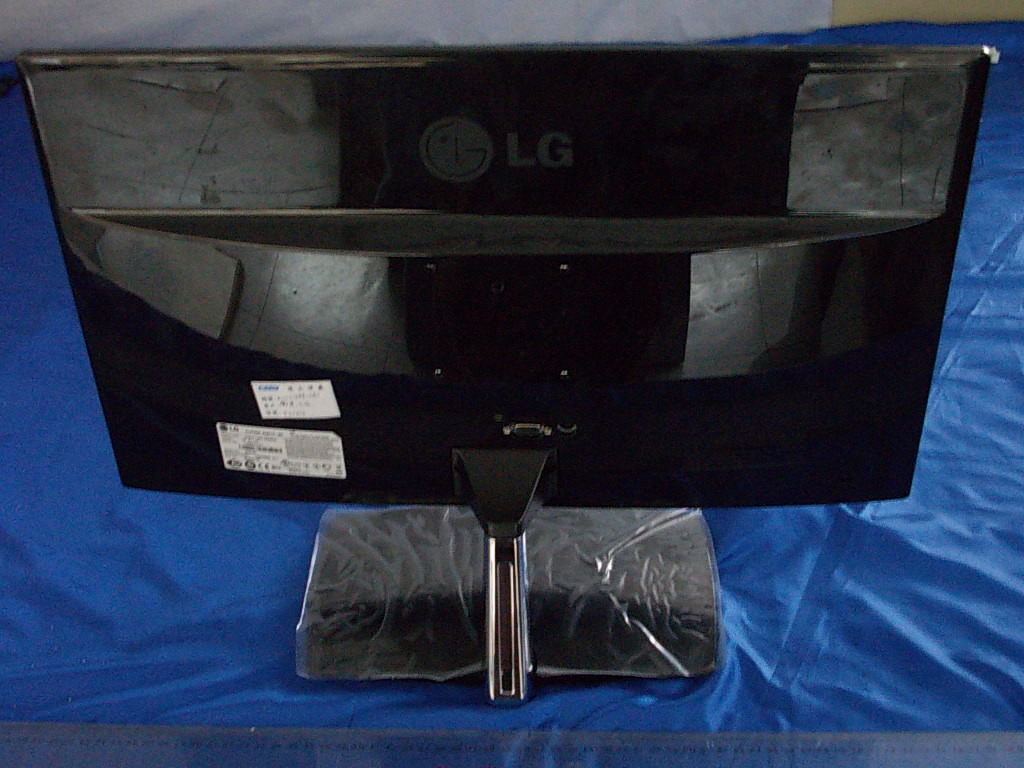

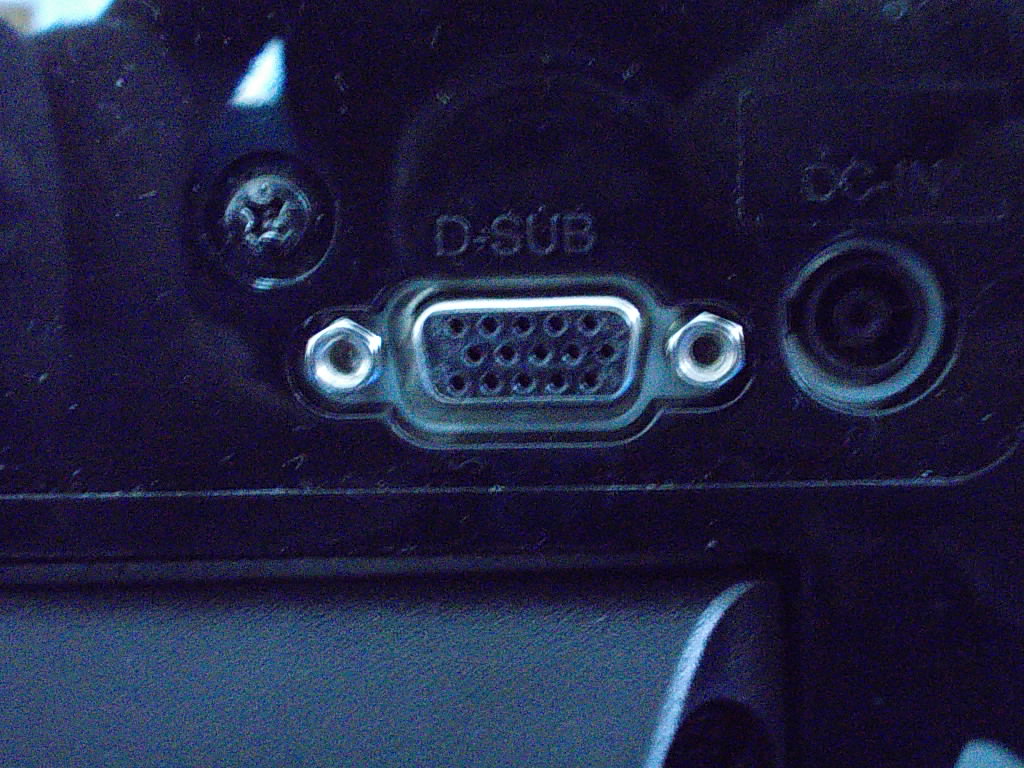

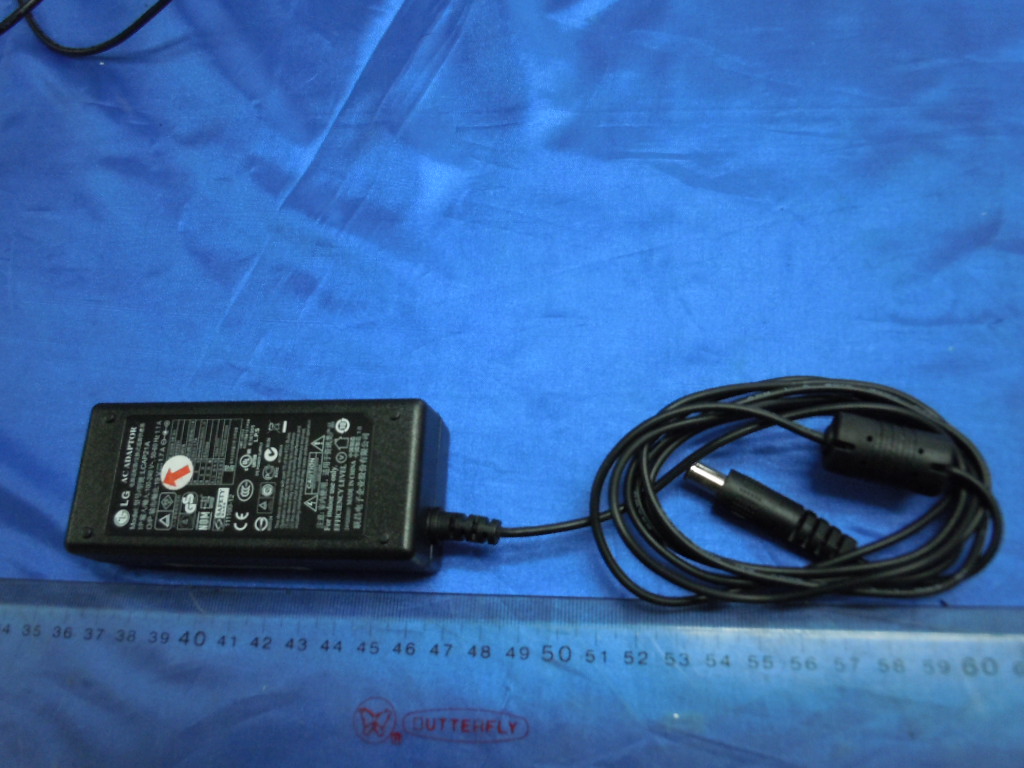

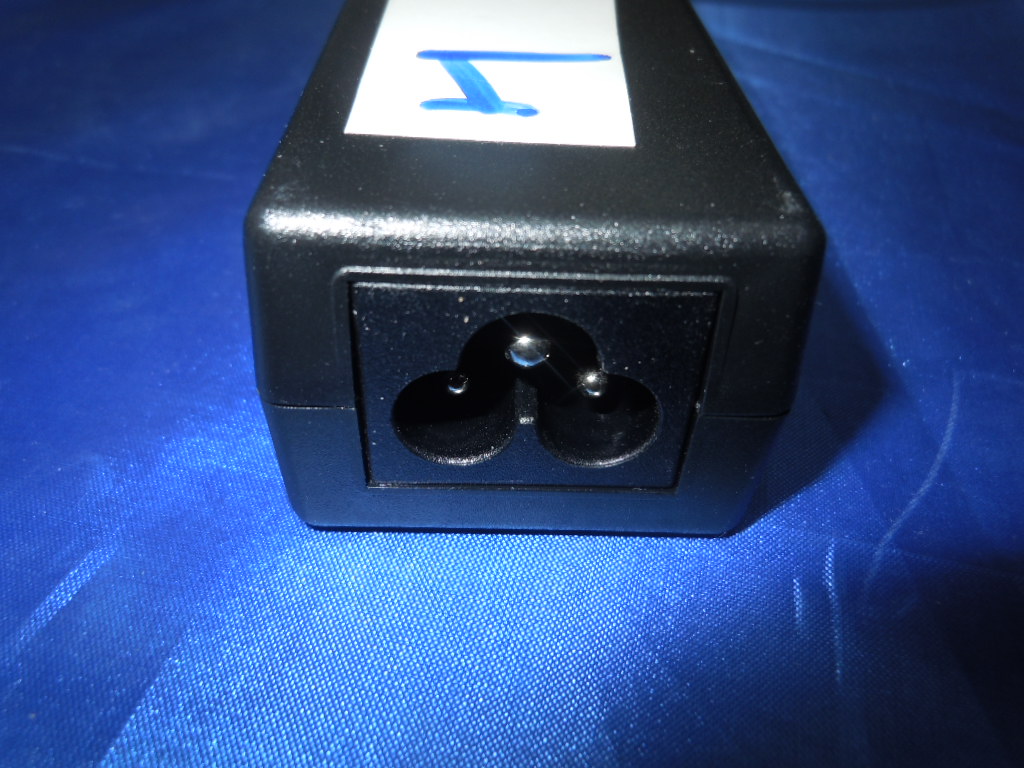

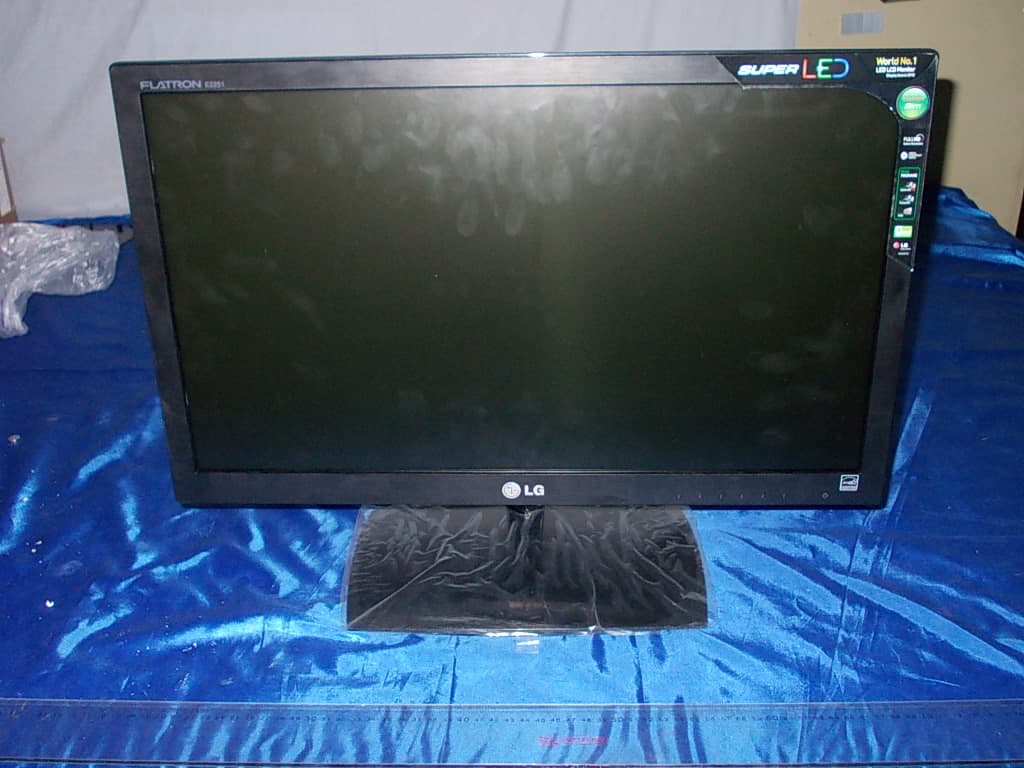

FIGURE 1 LCD MONITOR (M/N: E2251SZ) GENERAL APPEARANCE (FRONT VIEW) F IGURE 2 LCD MONITOR (M/N: E2251SZ) GENERAL APPEARANCE (BACK VIEW) FIGURE 3 LCD MONITOR (M/N: E2251SZ) PORTS F IGURE 4 LCD MONITOR (M/N: E2251SZ) D-SUB CABLE FIGURE 5 LCD MONITOR (M/N: E2251SZ) ADAPTER #1 (GENERAL APPEARANCE) F IGURE 6 LCD MONITOR (M/N: E2251SZ) ADAPTER #1 (GENERAL APPEARANCE – AC PORT) FIGURE 7 LCD MONITOR (M/N: E2251SZ) ADAPTER #1 (GENERAL APPEARANCE – LABEL) FIGURE 8 LCD MONITOR (M/N: E2251SZ) ADAPTER #2 (GENERAL APPEARANCE) FIGURE 9 LCD MONITOR (M/N: E2251SZ) ADAPTER #2 (GENERAL APPEARANCE – LABEL) FIGURE 10 LCD MONITOR (M/N: E2251SZ) ADAPTER #3 (GENERAL APPEARANCE) F IGURE 11 LCD MONITOR (M/N: E2251SZ) ADAPTER #3 (GENERAL APPEARANCE – AC PORT) FIGURE 12 LCD MONITOR (M/N: E2251SZ) ADAPTER #3 (GENERAL APPEARANCE – LABEL) FIGURE 13 LCD MONITOR (M/N: E2251SZ) ADAPTER #4 (GENERAL APPEARANCE) FIGURE 14 LCD MONITOR (M/N: E2251SZ) ADAPTER #4 (GENERAL APPEARANCE – LABEL)

Label Location Information Refer to the below red arrow: (For example)

FIGURE 1 LCD MONITOR (M/N: E2251SZ) COVER REMOVED F IGURE 2 LCD MONITOR (M/N: E2251SZ) LABEL ON LCD PANEL FIGURE 3 LCD MONITOR (M/N: E2251SZ) MAIN BOARD (COMPONENT SIDE) F IGURE 4 LCD MONITOR (M/N: E2251SZ) MAIN BOARD (COMPONENT SIDE) FIGURE 5 LCD MONITOR (M/N: E2251SZ) CHIP & CRYSTAL ON MAIN BOARD FIGURE 6 LCD MONITOR (M/N: E2251SZ) KEY BOARD (COMPONENT SIDE) F IGURE 7 LCD MONITOR (M/N: E2251SZ) KEY BOARD (SOLDERED SIDE) FIGURE 8 LCD MONITOR (M/N: E2251SZ) LCD PANEL CONTROL BOARD (COMPONENT SIDE) F IGURE 9 LCD MONITOR (M/N: E2251SZ) LCD PANEL CONTROL BOARD (SOLDERED SIDE) FIGURE 10 LCD MONITOR (M/N: E2251SZ) DEBUG #1

LG Electronics U.S.A., Inc. FCC ID: BEJE2251SZ 1 Equipment Description The Equipment Under Test (EUT) is the LG Electronics U.S.A., Inc. LCD Monitor. General Specification LG Electronics U.S.A., Inc. FCC ID: BEJE2251SZ 2 EUT Operating Conditions a. Setup the EUT and Peripherals as shown in Sec. 3.2 of the test report. b. Turn on the power of all equipment and the EUT. c. Set the contrast & brightness of EUT to maximum. d. PC system ran the self-test program "EMC Test" by windows XP and sent "H" characters to EUT through graphic card (we use white letters on a black background to represent all colors), the EUT's screen displayed and filled with "H" pattern by its resolution (Via D-Sub Input). e. Repeat above procedure from c to d for difference test mode. f. The other peripherals devices were driven and operated during the test. g. The test modes are as follows: NOTE: We tested the EUT with adapter #1 and selected the worst test mode to perform test with adapter #2/#3/#4. Adapter Test Mode Adapter #1 D-Sub 640*480@60Hz D-Sub 1280*1024@75Hz D-Sub 1680*1050@60Hz D-Sub 1920*1080@60Hz Adapter #2 D-Sub 1280*1024@75Hz Adapter #3 D-Sub 1280*1024@75Hz Adapter #4 D-Sub 1280*1024@75Hz

LG Electronics U.S.A., Inc. FCC ID: BEJE2251SZ Page 1 of 38 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11184 Prepared For : LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, United States Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F and 4F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F11184 Date of Test : Dec 21, 2011 Date of Report : Dec 28, 2011 Application for FCC Certificate On Behalf of LG Electronics U.S.A., Inc. LCD Monitor Model No.: E2251SZ Serial No.: 112NDFV1J171 FCC ID : BEJE2251SZ LG Electronics U.S.A., Inc. FCC ID: BEJE2251SZ Page 2 of 38 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11184 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Peripherals .................................................................................................................................. 6 2.3 Description of Test Facility ........................................................................................................ 7 2.4 Measurement Uncertainty .......................................................................................................... 7 3 CONDUCTED EMISSION TEST .................................................................................................. 8 3.1 Test Equipment ........................................................................................................................... 8 3.2 Block Diagram of Test Setup ..................................................................................................... 8 3.3 Conducted Emission Limit [FCC Part 15 Subpart B 15.107(a)] ................................................ 9 3.4 Test Configuration ...................................................................................................................... 9 3.5 Operating Condition of EUT .................................................................................................... 10 3.6 Test Procedures ........................................................................................................................ 10 3.7 Test Results .............................................................................................................................. 11 4 RADIATED EMISSION TEST ..................................................................................................... 19 4.1 Test Equipment ......................................................................................................................... 19 4.2 Block Diagram of Test Setup ................................................................................................... 19 4.3 Radiated Emission Limit [FCC Part 15 Subpart B 15.109(a)] ................................................. 21 4.4 Test Configuration .................................................................................................................... 21 4.5 Operating Condition of EUT .................................................................................................... 21 4.6 Test Procedures ........................................................................................................................ 22 4.7 Test Results .............................................................................................................................. 23 5 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 37 6 DEBUG DESCRIPTION ............................................................................................................... 38 LG Electronics U.S.A., Inc. FCC ID: BEJE2251SZ Page 3 of 38 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11184 TEST REPORT FOR FCC CERTIFICATE Applicant : LG Electronics U.S.A., Inc. Manufacturer : LG Electronics Nanjing Display Co., Ltd. EUT Description : LCD Monitor (A) Model No. : E2251SZ (B) Serial No. : 112NDFV1J171 (C) Power Supply : 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART B CLASS B OCTOBER 2010 AND ANSI C63.4-2003 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B (Class B) and ICES-003, Issue 4 February 2004 (CISPR 22:2002) limits both radiated and conducted emissions. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This report shows that the EUT (M/N: E2251SZ; S/N: 112NDFV1J171) which was tested in 3m anechoic chamber Dec 21, 2011 is technically compliance with the FCC official limits also. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : Dec 21, 2011 Date of Report : Dec 28, 2011 Producer : KATHY WANG / Assistant Review : SAMMY CHEN / Deputy Manager Signatory : BYRON KWO / Senior Manager LG Electronics U.S.A., Inc. FCC ID: BEJE2251SZ Page 4 of 38 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11184 1 SUMMARY OF STANDARDS …

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test F RONT VIEW B ACK VIEW 2. Radiated Electromagnetic Emission Test FRONT VIEW OF RADIATED EMISSION TEST (BELOW 1GHZ) B ACK VIEW OF RADIATED EMISSION TEST (BELOW 1GHZ) F RONT VIEW OF RADIATED EMISSION TEST (ABOVE 1GHZ) B ACK VIEW OF RADIATED EMISSION TEST (ABOVE 1GHZ) S ETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION (TEST MODE: D-SUB 1920*1080@60Hz Adapter #4) SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION (T EST MODE: D-SUB 1920*1080@60Hz Adapter #4)
