BEJS100XEMicrowave Oven

The followings are our specification for MS-104XP and MM-104XP FCC ID : BEJS100XE 1. Equipment ClassISM Consumer Device, Part 18 2. Trade NameGoldstar 3. Model NumberMS-104XP and MM-104XP 4. FCC IDBEJS100XE 5. Serial Number & Manufacturer dateProto type, Not produced yet. 6. Date of original grantOriginal Model 7. Rated Power Output1000 W 8 Rated Power Consumption1500 W 9. Rated Current13.3 A 10. Overall Dimensions20 7/8 in X 12 3/8 in X 15 1/2 in 11. Cavity Dimensions13 5/8 in X 8 5/8 in X 14 3/8 in 12. Cavity Volume1.0 Cu-Ft 13 Magnetron1) 2M246 - LG 2) 2M248J - Toshiba 14 Mode StirrerTurntable 15 Measurement FacilitiesFCC No : 31010/EQU 4-3-OA 16 Frequency Range in MHz 2450 °æ50 MHz 17Commercial Microwave Oven

FEDERAL COMMUNICATION COMMISSION Authorization and Standards BrenchRef. No.: L9812131 1919M St. North West Washington D.C. 20554-1300Date: Dec. 15,1998 Subject: Application for certification on LG Electronics Microwave Oven FCC ID: BEJS100XE Model Nos.: MS-104XP, MM-104XP and MM-101XP Magnetron: 2M246 (LG Electronics Inc., Korea) 2M248J (Toshiba Hokuto Electronics Corp., Japan) Gentleman: We, LG Electronics Inc., hereby submit this application letter to apply for FCC Certification for the subject new models. For your references, here is the following information. 1. The model MS-104XP is new model to be produced by LG Electronics Inc. 2. The model MS-104XP is to be installed on the counter-top and has touch control panel. 3. The model MS-104XP employs the turntable on the lower side of oven cavity for even cooking. 4. Model MM-104XP is identical to the basic model MS-104XP except for model number and cosmetic differences. 5. Model MM-101XP is identical to the basic model MS-104XP except that mechanical control panel is to be employed instead of touch control panel. 6. The above models are for commercial use. We have performed the relevant testings using the representative Model MS-104XP with LG Electronics Magnetron Type 2M246 and Toshiba Hokuto Electronics Magnetron type 2M248J at our laboratory as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your continued cooperation would be highly appreciated. Should you have any comments, please feel free to contact Mr. K. S. Kim at LG Electronics Chicago Office. Best Regards, B. H. Kim, Team LeaderK. S. Kim, General Manager Cooking Appliance OBU,Engineering Department LG Electronics Inc.LG Electronics Chicago Office

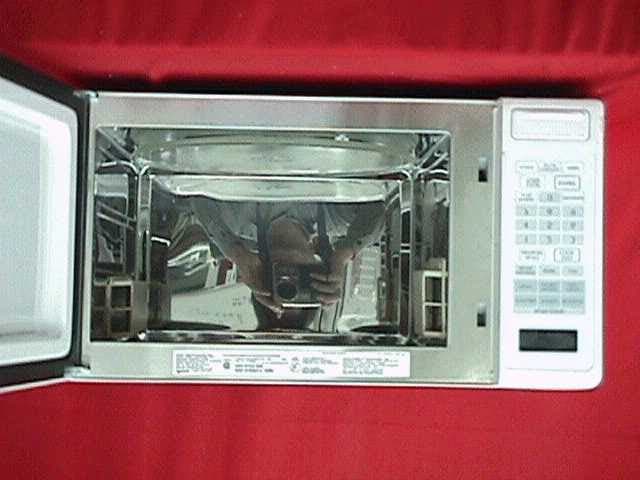

Front view FCC ID : BEJS100XE Cavity View

ID Label (1) FCC ID : BEJS100XE ID Label location (1) FCC ID : BEJS100XE ID Label (2) -Alternate FCC ID : BEJS100XE ID Label location (2) - Alternate FCC ID : BEJS100XE

ID Label (1) FCC ID: BEJS100XE ID Label (1) Location FCC ID : BEJS100XE ID Label (2) Location ‡ Alternative FCC ID : BEJS100XE

ID Label (1) FCC ID: BEJS100XE ID Label (1) Location FCC ID : BEJS100XE ID Label (2) Location



Alternative FCC ID : BEJS100XE

Wave guide part view FCC ID : BEJS100XE Upper Part View without enclosure

Internal Photo showing circuit board ( BEJS100XE ) Internal photo showing circuit board ( BEJS100XE )

Schematic diagram Model : MS-104XP FCC ID : BEJS100XE Schematic diagram (Alternate) Model : MM-101XP FCC ID : BEJS100XE

LG Electronics Inc., EMI Laboratory 391-2 Gaeumjeong - Dong, Changwon City, Gyeongnam, Korea 641-711 REPORT of MEASUREMENT of ELECTROMAGNETIC INTERFERENCE TESTING Issued: November 08, 1998 1. Name of Applicant: LG Electronics Inc. 2. Address of Applicant: 6133 North River Road Suite, 1100 (Riverwary Plaza) Rosemont, IL 60018 3. Equipment Under Test: LG Electronics Inc., Microwave Oven Model MS-104XP with Magnetron Type 2M246 by LG Electronics Inc.. 4. Power Supply: 120 V ac, 60 Hz 5. Test Requirements: CFR Title 47, Part 18 6. Test Procedure: OST MP-5 7. Instrument Used: Hioki Digital Power High Test Model 3181-01 Holaday Industries Inc. Microwave Survey Meter Model 1700 Electro Metrics Field Intensity Meter Model EMC-30 MKIV Electro Metrics Field Intensity Meter Model EMC-60 MKIV Electro Metrics Metering Module CRM-30 Hewlett Packard Frequency Counter 5350A Hewlett Packard Sweep Oscillator 8350B 8. Test Condition: The Equipment Under Test (EUT) was tested while operating at maximum RF output power. Loads of water in a glass beaker was used in amount specified by Test Procedure. 1/7 Model MS-104XP with LG. Magnetron FCC ID : BEJS100XE 9. Results of Testing: A. Input Power Input Power was measured using a Wattmeter. A 275 ml water load was placed in the center of the oven and the oven was operated at full output power for 6 minutes after which the reading was taken. A 275 ml water load was chosen for its compatibility with the UL procedure used by manufacturers to determine our input ratings. Voltage Current Input PowerManufacturer’s Rating 120 V ac, 60 Hz14.25 A1574 W13.3 A B. RF Power Output The Calorimetric Method was used to determine maximum output power. A 1000 ml water load was placed in the center of the oven. A mercury thermometer was used to measure temperature rise. Quantity of WaterStarting Temperature Final TemperatureElapsed Time 1000 ml18.2 °C40.5 °C120 Sec (4.2 Joules/Cal) X (Volume in ml) X (Temperature Rise) Power (W) = Time in Seconds 4.2 x 1000 x 22.3 Power (W) = 120 Power (W) = 780.5 Watts 2/7 Model MS-104XP with LG. Magnetron FCC ID : BEJS100XE C. Frequency Measurements The fundamental operating frequency was measured with a substitution method using the Electro Metrics receiver, Hewlett Packard Sweep Oscillator and Frequency Counter. The receiver was turned to the maximum amplitude at the oven operating frequency. The Sweep Oscillator was substituted for operating the antenna and turned to the same frequency as the receiver. The frequency of the generator was determined using the frequency counter. The frequency was observed over a period of time, and with line voltage variation. The maximum frequency permitted in Part 18 is maximum 2.500 GHz and the minimum 2.400 GHz. No out-of-band frequency measurement was observed. Variation of Frequency With Time (1000 ml reduced to 200 ml) Maximum Frequency Observed: 2.461 GHz Minimum Frequency Observed: 2.440 GHz Variation of Frequency With Line Voltage (96 Volts to 150 Volts AC) Maximum Frequency Observed: 2.459 GHz Minimum Frequency Observed: 2.443 GHz D. Microwave Leakage Radiation leakage was measured in the as-received condition with the oven door closed using a microwave leakage meter. No power greater than 0.12 mW/ was observed at any location on the enclosure of the oven. A maximum of 1.0 mW/ is allowed in accordance with UL 923 standard. Hence, microwave leakage in the as-received condition with the oven door closed, did not exceed the specified limit. 3/7 Model MS-104XP with LG. Magnetron FCC ID : BEJS100XE E. Radiated Emissions Radiated emission was measured over a frequency range of 100 MHz to 10 GHz. For measurements the EUT was get set up in an Shielded Anechoic Chamber. The EUT was supported by a wood table, 1 m high in both cases, measurement above 1 GHz and below 1 GHz. The results of measurements above 1 GHz are shown on Data Page 1. Maximum readings were recorded after variations in antenna polarization, antenna height, EUT orientation, load location, and load volume. Readings were taken with the antenna 3 meters away from the EUT. Field intensity was then extrapolated to a 300 meters distance by multiplying by a factor of 0.01 as described in Section 2.2.6 of MP-5. No over-limit radiated emissions were discovered. The results of measurements below 1 GHz are found on Data Page 2 and 3. They represent horizontal and vertical antenna polarization at 3 meters respectively. 10. Test Engineer: Mr. S. G. Park Reviewed By: Mr. S. Y. Kim 4/7 Model MS-104XP with LG. Magnetron FCC ID : BEJS100XE Issued: Dec. 08, 1998 LABORATORY MEASUREMENTS ABOVE 1 GHz Data Page 1 Date Tested: Dec. 02, 1998 Equipment Under Test (EUT): Microwave Oven Model MS-104XP Mode of Operating (DUT): Maximum RF Power Test Requirements: CFR Title 47, Part 18 Test Equipment: Electro-Metrics FIM. EMC-60MKIV Antenna: Double Ridged Guide Antenna RGA-180 Detector Mode: Average Bandwidth: 1 MHz Measurement Distance: 3 meters FREQ. (GHz) Antenna Factor (dB) Cable Factor (dB) Load (ml) Load Locating Meter Reading (dBμV) Field Intensity @ 3 m dBμV/m Field Intensity @ 3 m (μV/m) Field Intensity @ 300 m (μV/m) FCC Limit @ 300 m (μV/m) 2.3929.40.6700Center21.851.5375.83.7631.2 2.5129.60.6700Center16.146.0199.52.0031.2 4.9034.40.9700Center25.660.11011.610.1231.2 4.9034.40.9700RF29.363.81548.815.4931.2 4.9034.40.9300Center26.761.21148.111.4831.2 4.9034.40.9300RF30.364.81737.817.3831.2 7.3536.81.2700Center4.1041.0112.21.1231.2 7.3536.81.2700RF8.3045.2181.91.8231.2 7.3536.81.2300Center6.9043.8154.81.5531.2 7.3536.81.2300RF8.6045.5188.41.8831.2 9.8038.01.5700Center3.7043.0141.21.4131.2 Note: RF = Right Front Corner 5/7 Model MS-104XE with LG. Magnetron FCC ID : BEJS100XE Issued: Dec. 08, 1998 LABORATORY MEASUREMENTS BELOW 1 GHz Data Page 2 Date Tested: Dec. 02, 1998 Manufacturer: LG Electronics Inc. Product Type: Household Microwave Oven Model No.: MS-104XP Mode of Operating: Maximum RF Power Test Requirements: CFR Title 47, Part 18 Test Equipment: Electro-Metr…

Text truncated - open the document above for the full version.

Description of measurement Facility FCC ID : BEJS100XE

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE LG Electronics Inc. – Cooking ApplianceDate(s) of Tests: February 23, 1999 391-2, Ga Eum Jeong-Dong, Changwon,Test Report S/N: 18.990325209.BEJ Gyeong Nam, 641-711, KOREATest Site: PCTEST Lab., MD U.S.A. Attention: Mr. Bo-Hoon Kim, Engineer FCC ID BEJS100XE APPLICANT LG ELECTRONICS INC. Rule Part(s): FCC Part 18 Equipment Class: 8CC (Part 18 Consumer Device) EUT Type: Microwave Oven RF Frequency: 2.450 GHz RF Power Output: 1000 Watts Magnetron(s): LG 2M246 or Toshiba 2M248J Trade Name(s): GoldStar © Model(s): MS-104XP This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified MP-5. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) Lab Code 100431-0 © 1999 PCTEST Engineering Laboratory, Inc. FCC Part 18 TABLE OF CONTENTS SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 PRODUCTION DESCRIPTION 3 TEST DATA4-9 A. Input Power B. Power Output C. Frequency Measurements D. Power Density Safety Check E. Radiated Emissions PLOTS OF EMISSIONS 10 ACCURACY OF MEASUREMENT 11 LIST OF TEST EQUIPMENT 12 RECOMMENDATION / CONCLUSION 13 FCC Part 18 MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. Manufacturer:LG ELECTRONICS INC. - Changwon Plant Address:391-2, Ga Eum Jeong-Dong, Changwon-City, Gyeong Nam, 641-110, KOREA Contact Person:Mr. Bo Hoon Kim - Senior Engineer Cooking Appliance OBU Importer:LG ELECTRONICS INC. (Chicago Office) Address:1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Attention:Mr. K. S. Kim - General Manager •FCC ID:BEJS100XE •Equipment Type:Microwave Oven •Magnetron(s):LG 2M246 or Toshiba 2M248J •RF Frequency:2.450 GHz •RF Power Output:1000 Watts •Trade Name(s):GoldStar ® •Model:MS-104XP •Power Cord:Unshielded •Rule Part(s): FCC Part 18 - ISM Consumer Device •Test Procedure:MP-5 •Date(s) of Tests:February 23, 1999 •Place of Tests: PCTEST Lab, Columbia, MD U.S.A. •Test Report S/N:18.990325209.BEJ Lab Code 100431-0 Test Report S/N: 18.990325209.BEJFCC Part 18 (ISM) Test Date(s): February 23, 1999Certification © 1999 PCTEST LabLG Electronics Inc. FCC ID: BEJS100XE1 GoldStar Model: MS-104XP Microwave Oven Introduction The measurement procedure described in MP-5 entitled ‘‘FCC Methods of Measure- ments of Radio Noise Emissions from Industrial, Scientific, and Medical Equipment’’ was used in determining frequency measurement, power output measurement, and field strength measurement emanating from LG Electronics Inc. (GoldStar Model: MS- 104XP) Microwave Oven FCC ID: BEJS100XE. These measurement tests were conducted at PCTEST Engineering Laboratory facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the high- est points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39°11’15" N latitude and 76°49’38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measure- ment facility was found to be in compliance with the requirements of § 2.948 accord- ing to ANSI C63.4 on October 19, 1992. Fig. 1. The map above shows the Columbia vicinity area. The map also shows PCTest Lab, FCC Lab and BWI airport. (Scale 1"=2miles) Test Report S/N: 18.990325209.BEJFCC Part 18 (ISM) Test Date(s): February 23, 1999Certification © 1999 PCTEST LabLG Electronics Inc. FCC ID: BEJS100XE2 GoldStar Model: MS-104XP Microwave Oven Product Information Equipment Description: The Equipment Under Test (EUT) is the LG Electronics Inc. (GoldStar Model: MS-104XP) Microwave Oven FCC ID: BEJS100XE. Magnetron(s):LG 2M246 or Toshiba 2M248J RF Frequency:2.450 GHz RF Power Output:1000 Watts Power Consumption:1500 Watts Power Supply:120V AC, 13.3 A Cavity Volume:1.0 Cubic ft. Mode Stirrer:Turntable Power Cord:Unshielded Outer Dimensions:20 7/8 x 12 3/8 x 15 1/2 inches EMI suppression device(s) added and/or modified during testing: *none Test Report S/N: 18.990325209.BEJFCC Part 18 (ISM) Test Date(s): February 23, 1999Certification © 1999 PCTEST LabLG Electronics Inc. FCC ID: BEJS100XE3 GoldStar Model: MS-104XP Microwave Oven Test Data (LG Magnetron Model: 2M246) A. Input Power The input power was measured using a RMS wattmeter. A 275ml. water load in a polypropylene beaker is placed in the center of the oven. The 275ml. of water was chosen for its compatibility with UL procedure to determine input ratings. The oven was operated at full output power for 6 minutes. The reading was taken after 6 minutes at full power. B. Power Output The calorimetric method was used in determining the maximum output power. The test method described in MP-5 and IEC Publication 705/1988. A 1000ml. of water in a beaker was placed in the center of the oven. The oven was operated at full power. P(W…

Text truncated - open the document above for the full version.

Test Set-Up Photo(1) FCC ID : BEJS100XE Test Set-Up Photo(2)

Test Report S/N: 18.990325209.BEJFCC Part 18 (ISM) Test Date(s): February 23, 1999Certification © 1998 PCTEST LabLG Electronics Inc. FCC ID: BEJS100XE NVLAP Lab Code: 100431-0 GoldStar Model: MS-104XP Microwave Oven Test Report S/N: 18.990325209.BEJFCC Part 18 (ISM) Test Date(s): February 23, 1999Certification © 1998 PCTEST LabLG Electronics Inc. FCC ID: BEJS100XE NVLAP Lab Code: 100431-0 GoldStar Model: MS-104XP Microwave Oven Test Report S/N: 18.990325209.BEJFCC Part 18 (ISM) Test Date(s): February 23, 1999Certification © 1998 PCTEST LabLG Electronics Inc. FCC ID: BEJS100XE NVLAP Lab Code: 100431-0 GoldStar Model: MS-104XP Microwave Oven Test Report S/N: 18.990325209.BEJFCC Part 18 (ISM) Test Date(s): February 23, 1999Certification © 1998 PCTEST LabLG Electronics Inc. FCC ID: BEJS100XE NVLAP Lab Code: 100431-0 GoldStar Model: MS-104XP Microwave Oven Test Report S/N: 18.990325209.BEJFCC Part 18 (ISM) Test Date(s): February 23, 1999Certification © 1998 PCTEST LabLG Electronics Inc. FCC ID: BEJS100XE NVLAP Lab Code: 100431-0 GoldStar Model: MS-104XP Microwave Oven Test Report S/N: 18.990325209.BEJFCC Part 18 (ISM) Test Date(s): February 23, 1999Certification © 1998 PCTEST LabLG Electronics Inc. FCC ID: BEJS100XE NVLAP Lab Code: 100431-0 GoldStar Model: MS-104XP Microwave Oven
