BEJT17LDCOLOR MONITOR

C170 User’s Guide Color Monitor English Announcement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPER ATE THE EQUIPMENT. iii First Edition (April / 2003) Note : For important information, refer to the Monitor Safety and Warranty manual that comes with this monitor. ENGLISH 1 Safety (Read first).......................................................................................................2 Setting up the monitor ...............................................................................................3 Product Description..............................................................................................3 Workplace preparation .........................................................................................3 Working Practices ................................................................................................4 Caring for your Monitor ........................................................................................4 Connecting your Monitor ......................................................................................5 Switching on your Monitor....................................................................................6 Device Driver Installation...........................................................................................7 Windows 95/98 ....................................................................................................7 Windows 2000/Me............................................................................................................8 Windows XP .....................................................................................................................9 Adjusting Your Monitor ............................................................................................10 User controls ......................................................................................................10 On-screen display (OSD) controls......................................................................11 Further Information ..................................................................................................15 Display modes ...................................................................................................15 Power Management ...........................................................................................16 Troubleshooting .......................................................................................................17 Help and Service Information.............................................................................19 Specifications ...........................................................................................................20 Service Information ..................................................................................................21 Notices and Trademarks ..........................................................................................22 Contents 2 ííí ENGLISH 3 Setting up the monitor Product Description This monitor requires a computer with a suitable on-board sub-system or Video Adapter card that can support SXGA 1280 x 1024, XGA 1024 x 768, SVGA 800 x 600, or VGA 640 x 480 at 60Hz. In addition to your monitor, your option package includes the following: •User's Guide and Installation Files CD •Monitor Safety and Warranty Information Manual •C170 Color Monitor Quick Setup Guide •Power Cord •C170 Color Monitor •Signal Cable - Attached to Monitor i This section gives advice on what you should consider before you set up your monitor. Workplace Preparation Positioning the Monitor Choose a suitable place to position the monitor where it is not near fluorescent desk lighting or any equipment that produces magnetic fields that could cause interference. Ensure that the furniture or equipment can support the weight of the monitor. Allow at least 50mm (2 in.) ventilation space around the monitor. Height Position the monitor so that the top of the screen is slightly below your eye level when you sit at your workstation. Orientation - Choose a position that gives the least reflection from lights and windows, usually at a right angle to any windows. - Position the monitor directly in front of you so that you do not have to twist your body to use it. - Tilt the monitor to a comfortable viewing angle. 4 Be sure to turn off the power before you perform any maintenance on the monitor. Clean your monitor as follows: • Gently wipe the covers and the screen with a soft cloth. Do not use solvents or abrasives. • Remove finger marks and grease with a damp cloth and mild detergent. • Never use flammable cleaning materials to clean your IBM monitor or any other electrical apparatus. Caring for your Monitor i This section gives advice on how you can work comfo…

Text truncated - open the document above for the full version.

Announcement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter ference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPER ATE THE EQUIPMENT. A1 This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential eletrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this monitor, observe the following basic rules for its installation, use, and servicing. Keep it in an accessible place for future reference. On Safety Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement. The power supply cord is used as the main disconnect device. Ensure that the socket-outlet is easily accessible after installation. Operate the monitor only from a power source indicated in the specifications of this manual or listed on the monitor. If you are not sure what type of power supply you have in your home, consult with your dealer. Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement. Hands must be dry when holding the power plug to avoid an electric shock. Do not damage the power cord by disassembling, bending, pulling or heating up. It can cause fire or electric shock. Make sure to completely insert the power plug. Insecure connections can cause fire. Do not Open the Monitor. There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the monitor is not operating properly. To Avoid Personal Injury : Do not place the monitor on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer. Do not try to roll a stand with small casters across thresholds or deep pile carpets. Important Precautions A2 Important Precautions To Prevent Fire or Hazards: Always turn the monitor OFF if you leave the room for more than a short period of time. Never leave the monitor ON when leaving the house. Keep children from dropping or pushing objects into the monitor's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this monitor. During a lightning storm or when the monitor is to be left unattended for an extended period of time, unplug it from the wall outlet. Do not bring magnetic devices such as magnets or motors near the picture tube. On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the monitor where the power cord is subject to damage. Do not use this monitor near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Monitors are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER: Block the bottom ventilation slots by placing the monitor on a bed, sofa, rug, etc. Place the monitor in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the monitor near or over a radiator or heat source. Do not install the monitor in a dusty area. It can cause fire. On Cleaning Unplug the monitor before cleaning the face of the monitor screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the monitor screen because overspray may cause electrical shock. On Repacking Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material. A3A3 Connecting the Monitor Latch Before setting up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices. Carefully set the monitor face-down with the underside facing you. Connecting the Tilt/Swivel stand 1.Align the hooks on the tilt/swivel stand with the matching slots in the base of the monitor. 2. Insert the hooks into slots. 3. Slide the tilt/swivel stand toward the front of the monitor until the latches click into the locked position. NOTE This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. Hook Slot Hook A4 Connecting the Monitor Using the Computer 1.Connect the signal cable. When mated, tighten the thumbscrews to secure the connection. 2.Connect the power cord into a properly powe…

Text truncated - open the document above for the full version.

Power Input 100~240VAC (50/60Hz) LineFilter Degaussing Circuit [ OSD Control ] SMPSControl(IC901) TILTControlCircuit 6.3V 13V E 2 PROM (IC402) 5V H-Sync V-Sync I 2 C DATA(SDA) I 2 C CLOCK(SCL) VIDEO Pre-AMP / OSD (IC302) Video Signal R G B VIDEO Main AMP (IC303) CUT OFF Circuit (IC304) 80V MICOM & H/V Sync Processor ( IC401 ) SAA4849 V-Out ( IC601) TDA4867J H-Out ( Q706) H-Linearity Correction X-RAY Protection Circuit Dynamic FOCUS Circuit Brightness Control - 160V 40V 13V D/D Feed Back 13V SCL / SDAH-Sync/V-SyncPWM Control Signal 13V 50V DY CDT Heater ( 6.3V ) I 2 C Screen H.V R/G/B Bias H - Drive B-Drive B+ 13V DPMControlCircuit 5V 6.3V 8V 80V Voltagefeedback DegaussingCoil Dynamic Focus Static Focus TILTCoil 50V 80V 5V G2 G1 AutoBeamLimit DC/DC Converter FBT ( T701 ) Regulation Circuit 13V SMPS (T901) 5V BRIGHTNESS CONTRAST MOIRE DEGAUSSING H / V POSITION H / V SIZE SPCC TRAPEZOID PIN BALANCE PARALLELOGRAM ROTATION (Tilt) RECALL / RESET COLOR INFORMATION LANGUAGE OSD TIME TOP/BOTTOM CORNER VIDEO LEVEL OSD CONTROL LOCK BrightviewTextPhotoMovieNormal T710PHL Only INPUT: 120V 60Hz FUNDAMENTAL OPERATION FREQUENCY IS 0.030-0.085 MHz

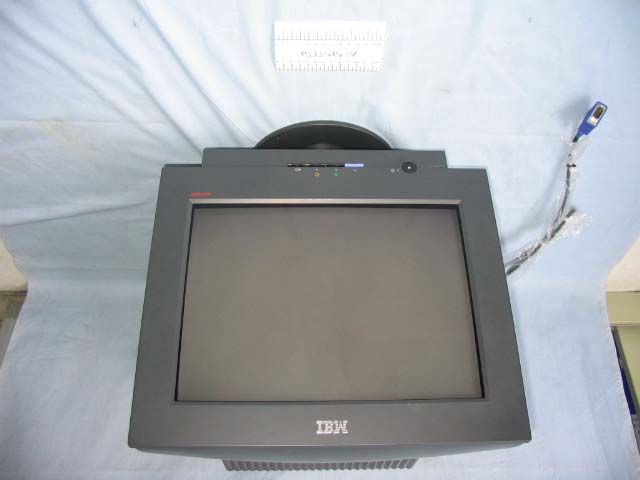

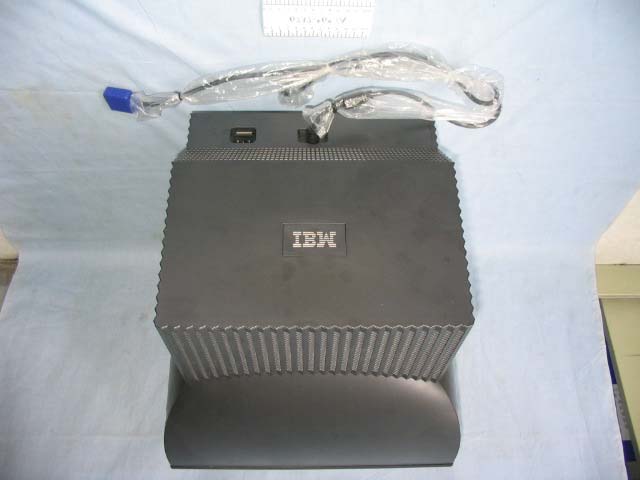

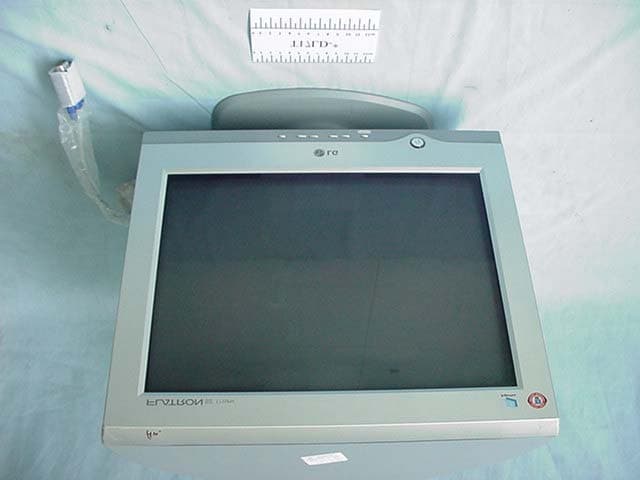

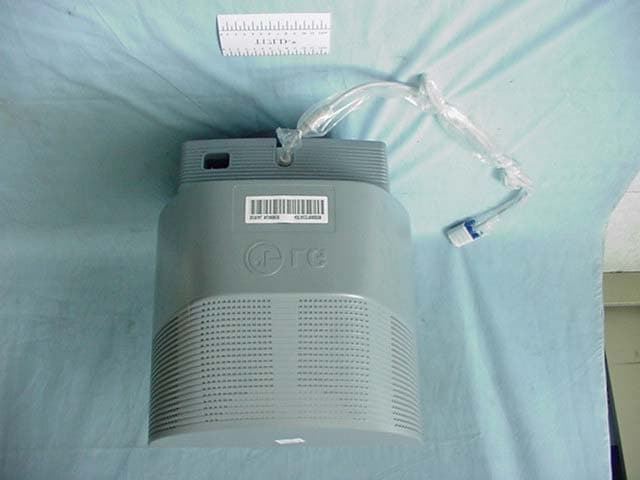

F IGURE 1 C OLOR M ONITOR (M/N: T17LD-*) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 2 C OLOR M ONITOR (M/N: T17LD-*) G ENERAL A PPEARANCE (B ACK V IEW ) F IGURE 3 C OLOR M ONITOR (M/N: 6737-*6* /A) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 4 C OLOR M ONITOR (M/N: 6737-*6* /A) G ENERAL A PPEARANCE (B ACK V IEW )

Label Location Information Refer to the below red arrow: (For example) M/N: T17LD-* M/N: 6737-*6* /A

CHINA CA-139 CWZ

F IGURE 1 C OLOR M ONITOR (M/N: T17LD-*) C OVER R EMOVED 1 F IGURE 2 C OLOR M ONITOR (M/N: T17LD-*) C OVER R EMOVED 2 F IGURE 3 C OLOR M ONITOR (M/N: T17LD-*) CRT T UBE F IGURE 4 C OLOR M ONITOR (M/N: T17LD-*) CRT L ABEL F IGURE 5 C OLOR M ONITOR (M/N: T17LD-*) M AIN B OARD (C OMPONENT S IDE ) F IGURE 6 C OLOR M ONITOR (M/N: T17LD-*) M AIN B OARD (S OLDERED S IDE ) F IGURE 7 C OLOR M ONITOR (M/N: T17LD-*) V IDEO B OARD (C OMPONENT S IDE ) F IGURE 8 C OLOR M ONITOR (M/N: T17LD-*) V IDEO B OARD (S OLDERED S IDE ) F IGURE 9 C OLOR M ONITOR (M/N: T17LD-*) C ONTROL P ANEL B OARD (C OMPONENT S IDE ) F IGURE 10 C OLOR M ONITOR (M/N: T17LD-*) C ONTROL P ANEL B OARD (S OLDERED S IDE ) F IGURE 11 C OLOR M ONITOR (M/N: 6737-*6* /A) C OVER R EMOVED 1 F IGURE 12 C OLOR M ONITOR (M/N: 6737-*6* /A) C OVER R EMOVED 2 F IGURE 13 C OLOR M ONITOR (M/N: 6737-*6* /A) CRT T UBE F IGURE 14 C OLOR M ONITOR (M/N: 6737-*6* /A) CRT T UBE L ABEL F IGURE 15 C OLOR M ONITOR (M/N: 6737-*6* /A) M AIN B OARD (C OMPONENT S IDE ) F IGURE 16 C OLOR M ONITOR (M/N: 6737-*6* /A) M AIN B OARD (S OLDERED S IDE ) F IGURE 17 C OLOR M ONITOR (M/N: 6737-*6* /A) V IDEO B OARD (C OMPONENT S IDE ) F IGURE 18 C OLOR M ONITOR (M/N: 6737-*6* /A) V IDEO B OARD (S OLDERED S IDE ) F IGURE 19 C OLOR M ONITOR (M/N: 6737-*6* /A) C ONTROL B OARD (C OMPONENT S IDE ) F IGURE 20 C OLOR M ONITOR (M/N: 6737-*6* /A) C ONTROL B OARD (S OLDERED S IDE )

LG Electronics U.S.A Inc. FCC ID: BEJT17LD Page 1 of 24 Audix Technology (Shanghai) Co., Ltd. Report No.ACI-F04053 Prepared For :LG Electronics U.S.A Inc. 2000 Millbrook Dr.Lincolnshire, IL 60069 United States Prepared By :Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F04053 Date of Test : Jun 30 –Jul 07, 2004 Date of Report : Jul 21, 2004 Application for FCC Certificate On Behalf of LG Electronics U.S.A Inc. Color Monitor Model No.: T17LD-*, 6737-*6* /A Serial No.: 43TAE27690008, 43TAE27690039 FCC ID : BEJT17LD LG Electronics U.S.A Inc. FCC ID: BEJT17LD Page 2 of 24 Audix Technology (Shanghai) Co., Ltd. Report No.ACI-F04053 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Supported Simulators ................................................................................................................. 4 1.3 Description of Test Facility ........................................................................................................ 5 1.4 Measurement Uncertainty .......................................................................................................... 5 2 CONDUCTED EMISSION TEST .................................................................................................. 6 2.1 Test Equipment........................................................................................................................... 6 2.2 Block Diagram of Test Setup ..................................................................................................... 6 2.3 Conducted Emission Limit ......................................................................................................... 7 2.4 Test Configuration...................................................................................................................... 7 2.5 Operating Condition of EUT ...................................................................................................... 7 2.6 Test Procedures .......................................................................................................................... 8 2.7 Test Results ................................................................................................................................ 8 3 RADIATED EMISSION TEST..................................................................................................... 15 3.1 Test Equipment......................................................................................................................... 15 3.2 Block Diagram of Test Setup ................................................................................................... 15 3.3 Radiated Emission Limit .......................................................................................................... 16 3.4 Test Configuration.................................................................................................................... 16 3.5 Operating Condition of EUT .................................................................................................... 16 3.6 Test Procedures ........................................................................................................................ 16 3.7 Test Results .............................................................................................................................. 17 4 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 24 LG Electronics U.S.A Inc. FCC ID: BEJT17LD Page 3 of 24 Audix Technology (Shanghai) Co., Ltd. Report No.ACI-F04053 TEST REPORT FOR FCC CERTIFICATE Applicant : LG Electronics U.S.A Inc. Manufacturer : Nanjing LG-Tontru Color Display System Co., Ltd. EUT Description : Color Monitor (A) Model No. : T17LD-*, 6737-*6* /A (B) Serial No. : 43TAE27690008, 43TAE27690039 (C) Power Supply : AC100-240V, 50-60Hz, 2.0A Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART B CLASS B JULY 2003 AND ANSI C63.4-2001 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B (Class B) limits both radiated and conducted emissions. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (M/N: T17LD-*, 6737-*6* /A; S/N: 43TAE27690008, 43TAE27690039), which was tested in 3m anechoic chamber on Jun 30-Jul 07, 2004 to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : Jun 30-Jul 07, 2004 Prepared by : Test Engineer : Kathy Wang (Assistant) CLOUD FENG (Engineer) Reviewer : Approved Signatory : SAMMY CHEN (Engineer) BYRON KWO (Assistant Manager) LG Electronics U.S.A Inc. FCC ID: BEJT17LD Page 4 of 24 Audix Technology (Shanghai) Co., Ltd. Report No.ACI-F04053 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Color Monitor Type of EUT : ; Production … Pre-product … Pro-type Model No. : T17LD-*, 6737-*6* /A Serial No. : 43TAE27690008, 43TAE27690039 Applicant : LG Electronics U.S.A Inc. 2000 Millbrook Dr.Lincolnshire, IL 60069 United States …

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test FRONT VIEW (M/N: T17LD-*) SIDE VIEW (M/N: T17LD-*) FRONT VIEW (M/N: 6737-*6* /A) SIDE VIEW (M/N: 6737-*6* /A) 2. Radiated Electromagnetic Emission Test FRONT VIEW OF RADIATED EMISSION TEST (M/N: T17LD-*) BACK VIEW OF RADIATED EMISSION TEST (M/N: T17LD-*) FRONT VIEW OF RADIATED EMISSION TEST (M/N: 6737-*6* /A) BACK VIEW OF RADIATED EMISSION TEST (M/N: 6737-*6* /A) SETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION (M/N: 6737-*6* /A) SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION (M/N: 6737-*6* /A)
